Transporto priemonė: 1924 MBSA-RSA; VIN numerio dalis: 397103

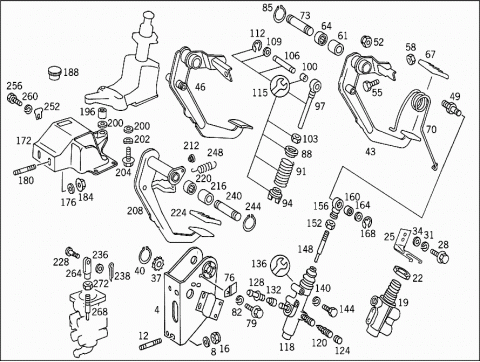

Grupė: 29 PEDAL ASSEMBLY
| # | Kodas | Pavadinimas |
|---|---|---|
| 004 | A 3812901319 | BEARING BRACKET |
| Repalced by: A 3812901219 | ||
| 004 | A 3812901219 | BEARING BRACKET |
| BRAKE PEDAL | ||
| 008 | N 000125008418 | WASHER |
| BEARING BRACKET TO CAB | ||
| 012 | N 000939008083 | STUD BOLT |
| BEARING BRACKET TO CAB | ||
| 016 | N 913004008004 | NUT |
| BEARING BRACKET TO CAB | ||
| 019 | A 0004343801 | VALVE |
| 3/2-WAY VALVE TO ANGLE | ||
| 022 | N 074305026202 | NUT |
| 3/2-WAY VALVE TO ANGLE | ||
| 025 | A 6202900133 | BRACKET |
| BRACKET TO PEDAL BEARING BRACKET | ||
| 028 | N 000933006224 | SCREW |
| Repalced by: A 0019901404 | ||
| 028 | A 0019901404 | SCREW |
| 031 | N 912004006102 | LOCK WASHER |
| 034 | N 000433006402 | WASHER |
| 037 | A 3812910186 | STOP |
| CLUTCH PEDAL | ||
| 040 | N 000471016001 | LOCK RING |
| STOP TO BEARING BRACKET | ||
| 043 | A 6202900216 | PEDAL |
| CLUTCH | ||
| 046 | A 6202902316 | PEDAL |
| CLUTCH | ||
| 049 | A 3812910274 | PIN |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 052 | N 913004008004 | NUT |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 055 | A 3529902101 | SCREW |
| CLUTCH PEDAL | ||
| 055 | A 3529902101 | SCREW |
| CLUTCH PEDAL | ||
| 058 | N 000439008211 | NUT |
| CLUTCH PEDAL | ||
| 058 | N 000439008211 | NUT |
| CLUTCH PEDAL | ||
| 061 | A 3812910053 | SPACER TUBE |
| CLUTCH PEDAL | ||
| 064 | A 0009815610 | NEEDLE BEARING |
| Repalced by: A 0119813410 | ||
| 064 | A 0089811110 | NEEDLE BEARING |
| Repalced by: A 0119813410 | ||
| 064 | A 0119813410 | NEEDLE BEARING |
| CLUTCH PEDAL | ||
| 067 | A 1072910182 | PAD |
| CLUTCH PEDAL | ||
| 070 | A 3819930710 | SPRING |
| CLUTCH PEDAL RESET | ||
| 073 | A 3812940707 | PIVOT PIN |
| PEDAL TO BEARING BRACKET | ||
| 076 | A 3812910073 | LOCK |
| PEDAL TO BEARING BRACKET | ||
| 079 | N 000933006102 | SCREW |
| Repalced by: A 0019901404 | ||
| 079 | A 0019901404 | SCREW |
| LOCK TO BEARING BRACKET | ||
| 082 | N 912004006102 | LOCK WASHER |
| LOCK TO BEARING BRACKET | ||
| 085 | N 000471020001 | LOCK RING |
| PEDAL TO BEARING BRACKET | ||
| 088 | A 1112910491 | SPRING RETAINER |
| TOP | ||
| 091 | A 1109930501 | SPRING |
| 091 | A 3819930201 | SPRING |
| 094 | A 3092910091 | SPRING RETAINER |
| 097 | A 3812910233 | ROD |
| 097 | A 3812910333 | ROD |
| 100 | A 0059813810 | NEEDLE BEARING |
| 100 | A 0059814410 | NEEDLE BEARING |
| 100 | A 0089811210 | NEEDLE BEARING |
| 100 | A 0139818210 | NEEDLE BEARING |
| 103 | N 000439010210 | NUT |
| SPRING TO PUSH ROD | ||
| 106 | A 3812910574 | PIN |
| PUSH ROD TO PEDAL | ||
| 109 | N 000433008406 | WASHER |
| PUSH ROD TO PEDAL | ||
| 112 | N 006799006003 | LOCK PLATE |
| PUSH ROD TO PEDAL | ||
| 115 | A 3802900193 | REPAIR KIT |
| DEAD CENTER SPRING | ||
| 115 | A 3802900093 | REPAIR KIT |
| DEAD CENTER SPRING | ||
| 118 | A 0002956806 | MASTER CYLINDER |
| Repalced by: A 0012952906 | ||
| 118 | A 0012952906 | MASTER CYLINDER |
| Repalced by: A 0012956006 | ||
| 118 | A 0012956006 | MASTER CYLINDER |
| CLUTCH | ||
| 120 | A 0004310265 | VALVE |
| Repalced by: A 3075530107 | ||
| 120 | A 3075530107 | VALVE |
| BREATHER | ||
| TO 000 295 68 06 | ||
| 124 | A 0004210887 | PROTECTIVE CAP |
| Repalced by: A 0004217187 | ||
| 124 | A 0004217187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 124 | A 0004210887 | PROTECTIVE CAP |
| TO 000 295 68 06 | ||
| 128 | A 0002950836 | INTERMEDIATE PIECE |
| 132 | A 0009971186 | PLUG |
| 136 | A 0005863529 | REPAIR KIT |
| Repalced by: A 0002903412 | ||
| 136 | A 0002903412 | REPAIR KIT |
| MASTER CYLINDER | ||
| TO 001 295 29 06 | ||
| 136 | A 0002904667 | REPAIR KIT |
| TO MASTER CYLINDER HAVING SYNTHETIC PISTON | ||
| TO 001 295 60 06 | ||
| 140 | N 912004006102 | LOCK WASHER |
| MASTER CYLINDER TO BEARING BRACKET | ||
| 144 | N 000931006191 | SCREW |
| MASTER CYLINDER TO BEARING BRACKET | ||
| 148 | A 3812950033 | ROD |
| CLUTCH MASTER CYLINDER | ||
| 152 | N 000439008104 | NUT |
| ROD TO ARTICULATION | ||
| 156 | A 0009961045 | ARTICULATION PIECE |
| 156 | A 0009961145 | ARTICULATION PIECE |
| 160 | A 0059813810 | NEEDLE BEARING |
| 160 | A 0059814410 | NEEDLE BEARING |
| 160 | A 0089811210 | NEEDLE BEARING |
| 160 | A 0139818210 | NEEDLE BEARING |
| 164 | N 000433008406 | WASHER |
| JOINT TO PIN | ||
| 168 | N 006799006003 | LOCK PLATE |
| JOINT TO PIN | ||
| 172 | A 3812941001 | BEARING BRACKET |
| BRAKE | ||
| 176 | N 000125008418 | WASHER |
| BEARING BRACKET TO CAB | ||
| 180 | N 000939008083 | STUD BOLT |
| BEARING BRACKET TO CAB | ||
| 184 | N 913004008004 | NUT |
| Repalced by: A 0009906350 | ||
| 184 | A 0009906350 | NUT |
| BEARING BRACKET TO CAB | ||
| 188 | A 3819970386 | PLUG |
| Repalced by: A 0009972020 | ||
| 188 | A 0009972020 | EXPANSION PLUG |
| Repalced by: A 0009973220 | ||
| 188 | A 0009973220 | EXPANSION PLUG |
| CAB FLOOR | ||
| 188 | A 3819970486 | PLUG |
| CAB FLOOR | ||
| 196 | A 3852920253 | SPACER TUBE |
| Repalced by: A 3604270353 | ||
| 196 | A 3604270353 | SPACER TUBE |
| Repalced by: A 3604270253 | ||
| 196 | A 3604270253 | SPACER TUBE |
| PEDAL UNIT TO WINDOW SILL GIRDER | ||
| 200 | A 3859901840 | WASHER |
| Repalced by: A 4039900040 | ||
| 200 | A 4039900040 | WASHER |
| PEDAL UNIT TO WINDOW SILL GIRDER | ||
| 202 | N 000137010201 | SPRING WASHER |
| PEDAL UNIT TO WINDOW SILL GIRDER | ||
| 204 | N 000931010272 | SCREW |
| Repalced by: A 0019909704 | ||
| 204 | A 0019909704 | SCREW |
| PEDAL UNIT TO WINDOW SILL GIRDER | ||
| 208 | A 3852900518 | PEDAL |
| BRAKE | ||
| 212 | A 1152910186 | STOP |
| TO PLUG BRAKE OPENING | ||
| 216 | A 3852920053 | SPACER TUBE |
| 220 | A 0009815610 | NEEDLE BEARING |
| Repalced by: A 0119813410 | ||
| 220 | A 0089811110 | NEEDLE BEARING |
| Repalced by: A 0119813410 | ||
| 220 | A 0119813410 | NEEDLE BEARING |
| 224 | A 1072910182 | PAD |
| BRAKE | ||
| 228 | A 3852920174 | PIN |
| PISTON ROD TO BRAKE PEDAL | ||
| 236 | N 000433008406 | WASHER |
| LEVER TO BRAKE PEDAL | ||
| 238 | N 000094002058 | COTTER PIN |
| LEVER TO BRAKE PEDAL | ||
| 240 | A 3852940007 | PIVOT PIN |
| PEDAL TO BEARING BRACKET | ||
| 244 | N 000471020001 | LOCK RING |
| PEDAL TO BEARING BRACKET | ||
| 248 | A 3879935010 | SPRING |
| BRAKE PEDAL RELEASE SPRING | ||
| 252 | A 3852920073 | LOCK |
| Repalced by: A 6732920073 | ||
| 252 | A 6732920073 | LOCK |
| PEDAL TO BEARING BRACKET | ||
| 256 | N 000933006103 | SCREW |
| LOCK TO BEARING BRACKET | ||
| 260 | N 912004006102 | LOCK WASHER |
| LOCK TO BEARING BRACKET | ||
| 264 | A 6209960001 | YOKE |
| PISTON ROD AND PUSH ROD | ||
| 268 | A 3852950133 | ROD |
| Repalced by: A 9702900039 | ||
| 268 | A 9702900039 | ROD |
| TWO-CIRCUIT-BRAKE-VALVE CONTROL | ||
| 272 | N 000439008102 | NUT |
| OPERATING ROD | ||

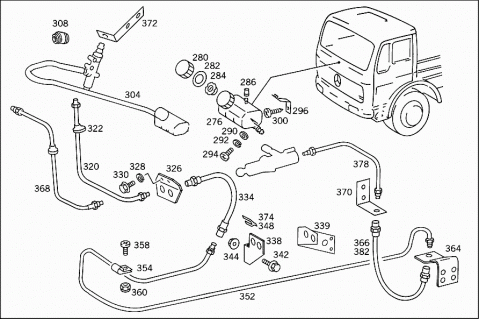

| 276 | A 0002952315 | RESERVOIR |
| EXPANSION TANK | ||
| 280 | A 0002950116 | LOCKING CAP |
| 282 | A 0002950260 | SEAL RING |
| 284 | A 0002950123 | STRAINER |
| Repalced by: A 0004314334 | ||
| 284 | A 0004314334 | STRAINER |
| 286 | A 0009885435 | CAP |
| RESERVOIR DE-AERATION | ||
| 290 | N 009021006205 | WASHER |
| EXPANSION TANK TO BRACKET | ||
| 292 | N 912004006102 | LOCK WASHER |
| EXPANSION TANK TO BRACKET | ||
| 294 | N 007985006145 | SCREW |
| HYDRAULIC LINE TO BRACKET | ||
| 296 | A 3872900433 | BRACKET |
| RESERVOIR | ||
| 300 | N 007981005315 | SHEET METAL SCREW |
| BRACKET TO CAB | ||
| 304 | A 0009978952 | HOSE |
| FROM RESERVOIR TO MASTER CYLINDER | ||
| 308 | A 6209970281 | GROMMET |
| HOSE THRU FIRE WALL | ||
| 320 | A 3812900913 | LINE |
| Repalced by: A 3812901814 | ||
| 320 | A 3812901814 | LINE |
| FROM CLUTCH MASTER CYLINDER TO HYDRAULIC HOSE | ||
| 700 MM | ||
| 322 | A 3819970881 | GROMMET |
| 326 | A 6202950740 | BRACKET |
| Repalced by: A 6202953040 | ||
| 326 | A 6202953040 | BRACKET |
| HYDRAULIC LINE TO CAB FLOOR | ||
| 328 | N 912004006102 | LOCK WASHER |
| BRACKET TO CAB FLOOR | ||
| 330 | N 000933006102 | SCREW |
| Repalced by: A 0019901404 | ||
| 330 | A 0019901404 | SCREW |
| BRACKET TO CAB FLOOR | ||
| 334 | A 3832950035 | HOSE |
| 338 | A 6202951040 | BRACKET |
| 338 | A 6202951040 | BRACKET |
| 339 | A 3972950240 | BRACKET |
| 342 | N 000933006183 | SCREW |
| Repalced by: A 0019901404 | ||
| 342 | A 0019901404 | SCREW |
| BRACKET TO OIL TANK | ||
| 344 | N 913004006002 | NUT |
| Repalced by: A 0009906250 | ||
| 344 | A 0009906250 | NUT |
| BRACKET TO OIL TANK | ||
| 348 | A 0004280473 | BRACKET |
| Repalced by: A 6525040038 | ||
| 348 | A 6525040038 | MOUNTING PLATE |
| BRACKET TO CAB | ||
| 352 | A 3812906413 | LINE |
| Repalced by: A 3812902314 | ||
| 352 | A 3812902314 | LINE |
| FROM BRACKET TO BRACKET | ||
| 2500 MM | ||
| 354 | A 3609950201 | CLAMP |
| Repalced by: A 3604300143 | ||
| 354 | A 3604300143 | CLAMP |
| Repalced by: N 916016008200 | ||
| 354 | N 916016008200 | CLAMP |
| HYDRAULIC LINE TO BRACKET | ||
| 358 | N 007985006145 | SCREW |
| HYDRAULIC LINE TO BRACKET | ||
| 360 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 360 | N 913004006001 | NUT |
| HYDRAULIC LINE TO BRACKET | ||
| 364 | A 6202950440 | BRACKET |
| 366 | A 0002952435 | HOSE |
| 366 | A 0002952435 | HOSE |
| 368 | A 0002951735 | HOSE |
| 368 | A 0002951735 | HOSE |
| 370 | A 3972950040 | BRACKET |
| 370 | A 3972950040 | BRACKET |
| 372 | A 6202952540 | BRACKET |
| FROM HYDRAULIC LINE TO CLUTCH SLAVE CYLINDER | ||
| 372 | A 6202952540 | BRACKET |
| FROM HYDRAULIC LINE TO CLUTCH SLAVE CYLINDER | ||
| 374 | A 0004280473 | BRACKET |
| Repalced by: A 6525040038 | ||
| 374 | A 6525040038 | MOUNTING PLATE |
| HYDRAULIC LINE TO BRACKET | ||
| 378 | A 3812907413 | LINE |
| Repalced by: A 3812901514 | ||
| 378 | A 3812901514 | LINE |
| FROM HYDRAULIC LINE TO CLUTCH SLAVE CYLINDER | ||
| 400 MM | ||
| 378 | A 3812901514 | LINE |
| FROM HYDRAULIC LINE TO CLUTCH SLAVE CYLINDER | ||
| 400 MM | ||
| 382 | A 3812901814 | LINE |
| 382 | A 3812901814 | LINE |
