Transporto priemonė: 1926/4X2; VIN numerio dalis: 398013

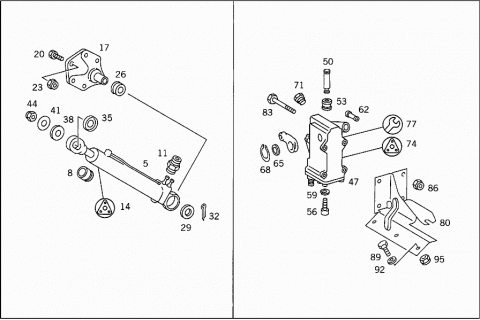

Grupė: 55 HYDRAULIC SYSTEM - 030 HYDRAULIC SYSTEM USED FOR CAB TILTING
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 0015533505 | CYLINDER |
| HYDRAULIC SYSTEM USED FOR CAB TILTING | ||
| "WEBER", TO 000 553 79 01 | ||
| 005 | A 0015531705 | CYLINDER |
| Repalced by: A 0015539505 | ||
| 005 | A 0015539505 | CYLINDER |
| HYDRAULIC SYSTEM USED FOR CAB TILTING | ||
| "POWER-PACKER", TO 000 553 69 01 | ||
| 008 | A 0005531428 | GUIDE |
| "WEBER", TO 001 553 35 05 | ||
| 011 | A 0005530368 | FITTING |
| "WEBER", TO 001 553 35 05 | ||
| 014 | A 0005501407 | GASKET KIT |
| HYDRAULIC CYLINDER | ||
| "WEBER", TO 001 553 35 05 | ||
| 014 | A 0005500235 | GASKET KIT |
| HYDRAULIC CYLINDER | ||
| "POWER-PACKER", TO 001 553 17 05 | ||
| 017 | A 3875530838 | BEARING BRACKET |
| HYDRAULIC CYLINDER | ||
| 020 | N 000961014134 | SCREW |
| Repalced by: A 0029909004 | ||
| 020 | A 0029909004 | SCREW |
| BEARING BRACKET TO FRAME | ||
| 020 | N 000961016102 | SCREW |
| Repalced by: A 0039904104 | ||
| 020 | A 0039904104 | SCREW |
| BEARING BRACKET TO FRAME | ||
| 023 | N 913004016005 | NUT |
| Repalced by: A 0009907150 | ||
| 023 | A 0009907150 | NUT |
| BEARING BRACKET TO FRAME | ||
| 026 | A 6208910417 | BUSHING |
| HYDRAULIC CYLINDER TO BEARING BRACKET | ||
| 029 | A 6205530176 | WASHER |
| HYDRAULIC CYLINDER TO BEARING BRACKET | ||
| 032 | N 000094006327 | COTTER PIN |
| HYDRAULIC CYLINDER TO BEARING BRACKET | ||
| 035 | A 3875530276 | WASHER |
| HYDRAULIC CYLINDER TO CAB | ||
| 038 | A 3875530076 | WASHER |
| HYDRAULIC CYLINDER TO CAB | ||
| 041 | A 3875530376 | WASHER |
| HYDRAULIC CYLINDER TO CAB | ||
| 044 | N 913004016004 | NUT |
| Repalced by: A 0009907150 | ||
| 044 | A 0009907150 | NUT |
| HYDRAULIC CYLINDER TO CAB | ||
| 047 | A 0005537901 | PUMP |
| (HAND PUMP) | ||
| "WEBER", TO 001 553 35 05 | ||
| 047 | A 0005536901 | PUMP |
| Repalced by: A 0005537901 | ||
| 047 | A 0005537901 | PUMP |
| (HAND PUMP) | ||
| "WEBER", TO 001 553 17 05 | ||
| 050 | A 0005531890 | PISTON |
| "WEBER", TO 000 553 79 01 | ||
| 053 | A 0005503455 | VALVE |
| "WEBER", TO 000 553 79 01 | ||
| 056 | N 000912008111 | SCREW |
| BOX COVER | ||
| "WEBER", TO 000 553 79 01 | ||
| 059 | N 912004008102 | LOCK WASHER |
| BOX COVER | ||
| "WEBER", TO 000 553 79 01 | ||
| 062 | A 0005530403 | FILTER |
| "WEBER", TO 000 553 79 01 | ||
| 065 | N 000988020011 | FITTED WASHER |
| "WEBER", TO 000 553 79 01 | ||
| 068 | N 000471020001 | LOCK RING |
| "WEBER", TO 000 553 79 01 | ||
| 071 | A 0009901610 | SCREW |
| OIL REFILLING | ||
| "WEBER", TO 000 553 79 01 | ||
| 071 | A 0005530171 | SCREW |
| OIL REFILLING | ||
| "POWER-PACKER", TO 000 553 69 01 | ||
| 074 | A 0005502783 | GASKET KIT |
| HAND PUMP | ||
| "WEBER", TO 000 553 79 01 | ||
| 077 | A 0005502355 | REPAIR KIT |
| HAND PUMP | ||
| "POWER-PACKER", TO 000 553 69 01 | ||
| 080 | A 3985500040 | BRACKET |
| HAND PUMP | ||
| 083 | N 000933010252 | SCREW |
| Repalced by: A 0019908504 | ||
| 083 | A 0019908504 | SCREW |
| HAND PUMP TO BRACKET | ||
| 086 | N 913004010008 | NUT |
| Repalced by: A 0009906550 | ||
| 086 | A 0009906550 | NUT |
| HAND PUMP TO BRACKET | ||
| 089 | N 000961014096 | SCREW |
| Repalced by: A 0029909204 | ||
| 089 | A 0029909204 | SCREW |
| BRACKET TO SUPPORT | ||
| 089 | N 000961012151 | SCREW |
| Repalced by: A 0029902804 | ||
| 089 | A 0029902804 | SCREW |
| BRACKET TO SUPPORT | ||
| 092 | N 000125015013 | WASHER |
| BRACKET TO SUPPORT | ||
| 092 | N 000125013008 | WASHER |
| BRACKET TO SUPPORT | ||
| 095 | N 913004014002 | NUT |
| Repalced by: A 0009906950 | ||
| 095 | A 0009906950 | NUT |
| BRACKET TO SUPPORT | ||
| 095 | N 913004012008 | NUT |
| Repalced by: A 0009906750 | ||
| 095 | A 0009906750 | NUT |
| BRACKET TO SUPPORT | ||

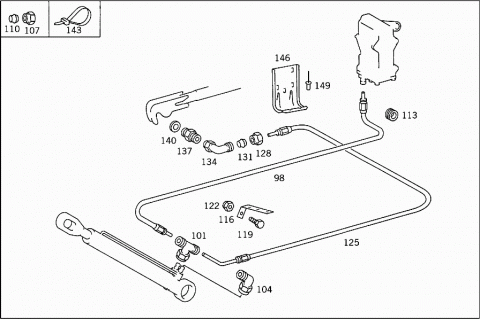

| 098 | A 6155530082 | HOSE |
| FROM HAND PUMP TO HYDRAULIC CYLINDER | ||
| 101 | N 003953006101 | T-FITTING |
| HIGH PRESSURE HOSE TO HYDRAULIC CYLINDER | ||
| 104 | A 0019909871 | ELBOW FITTING |
| HIGH PRESSURE HOSE TO HYDRAULIC CYLINDER | ||
| 104 | A 0019909871 | ELBOW FITTING |
| HIGH PRESSURE HOSE TO HAND PUMP | ||
| 107 | N 915017006100 | UNION NUT |
| HIGH PRESSURE HOSE TO HYDRAULIC CYLINDER | ||
| 107 | N 915017006100 | UNION NUT |
| HIGH PRESSURE HOSE TO HAND PUMP | ||
| 110 | N 003861006007 | GLAND |
| HIGH PRESSURE HOSE TO HYDRAULIC CYLINDER | ||
| 110 | N 003861006007 | GLAND |
| HIGH PRESSURE HOSE TO HAND PUMP | ||
| 113 | A 6559970081 | GROMMET |
| HIGH PRESSURE HOSE THRU FRAME | ||
| 116 | A 6205530440 | BRACKET |
| OIL LINE MOUNTING | ||
| 119 | N 000933010254 | SCREW |
| BRACKET TO FRAME | ||
| 122 | N 913004010008 | NUT |
| Repalced by: A 0009906550 | ||
| 122 | A 0009906550 | NUT |
| BRACKET TO FRAME | ||
| 125 | A 6205530382 | HOSE |
| FROM HYDRAUL.CYLINDER TO TRANSMISSIONSHIFTING-ROD PAWL | ||
| 128 | N 915017006100 | UNION NUT |
| LINE CONNECTIONS | ||
| 131 | N 003861006007 | GLAND |
| LINE CONNECTIONS | ||
| 134 | A 0019909871 | ELBOW FITTING |
| HOSE TO TRANSMISSION-SHIFT ROD SHIFTING CYLINDER | ||
| 137 | A 0029978472 | FITTING |
| HOSE TO TRANSMISSION-SHIFT ROD SHIFTING CYLINDER | ||
| 140 | N 007603010404 | SEAL RING |
| HOSE TO TRANSMISSION-SHIFT ROD SHIFTING CYLINDER | ||
| 143 | A 0019978490 | LOOM TIE |
| HIGH PRESSURE HOSE TO FRAME | ||
| 376 MM | ||
| 143 | A 0019978390 | LOOM TIE |
| HIGH PRESSURE HOSE TO BRACKET AT CAB | ||
| 280 MM | ||
| 146 | A 3816820186 | BRACKET |
| HIGH PRESSURE HOSE | ||
| 149 | N 910002004132 | RIVET |
| BRACKET TO CAB | ||
