Transporto priemonė: 1926 AS; VIN numerio dalis: 389112

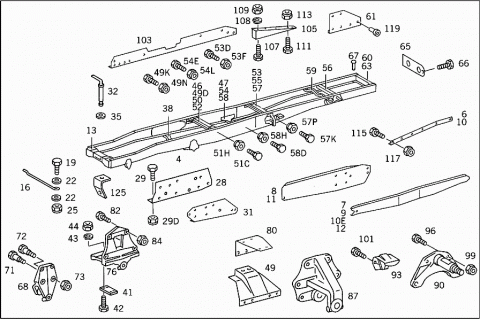

Grupė: 31 FRAME
| # | Kodas | Pavadinimas |
|---|---|---|
| 004 | A 3873105101 | FRAME |
| 004 | A 3873105201 | FRAME |
| Repalced by: A 3873102202 | ||
| 004 | A 3873102202 | FRAME |
| 004 | A 3893101701 | FRAME |
| Repalced by: A 3893105501 | ||
| 004 | A 3893105501 | FRAME |
| 004 | A 3893101801 | FRAME |
| Repalced by: A 3893105601 | ||
| 004 | A 3893105601 | FRAME |
| 004 | A 3893103101 | FRAME |
| 004 | A 3893103201 | FRAME |
| Repalced by: A 3873102302 | ||
| 004 | A 3873102302 | FRAME |
| 004 | A 3873100601 | FRAME |
| Repalced by: A 3873106102 | ||
| 004 | A 3873103201 | FRAME |
| Repalced by: A 3873106102 | ||
| 004 | A 3873102602 | FRAME |
| Repalced by: A 3873106102 | ||
| 004 | A 3873106102 | FRAME |
| 006 | A 3873110651 | TRUSS |
| LEFT | ||
| 007 | A 3873114151 | TRUSS |
| LEFT | ||
| 007 | A 3873114351 | TRUSS |
| LEFT | ||
| 008 | A 3873110251 | TRUSS |
| Repalced by: A 3873110451 | ||
| 008 | A 3873110451 | TRUSS |
| LEFT | ||
| 008 | A 3873114551 | TRUSS |
| LEFT | ||
| 008 | A 3873114551 | TRUSS |
| LEFT | ||
| 009 | A 3873116051 | TRUSS |
| RIGHT | ||
| 010 | A 3873110751 | TRUSS |
| RIGHT | ||
| 010E | A 3873114251 | TRUSS |
| RIGHT | ||
| 010E | A 3873114451 | TRUSS |
| RIGHT | ||
| 011 | A 3873110351 | TRUSS |
| Repalced by: A 3873110551 | ||
| 011 | A 3873110551 | TRUSS |
| RIGHT | ||
| 011 | A 3873114651 | TRUSS |
| RIGHT | ||
| 011 | A 3873114651 | TRUSS |
| RIGHT | ||
| 012 | A 3873116151 | TRUSS |
| RIGHT | ||
| 013 | A 3873100422 | CROSS MEMBER |
| FRONT | ||
| 013 | A 3873100422 | CROSS MEMBER |
| FRONT | ||
| 013 | A 3873100522 | CROSS MEMBER |
| FRONT | ||
| 016 | A 3353150031 | LOCKING SPRING |
| FOR COUPLING MOUTH | ||
| 016 | A 3353150031 | LOCKING SPRING |
| FOR COUPLING MOUTH | ||
| 016 | A 3873150031 | LOCKING SPRING |
| FOR COUPLING MOUTH | ||
| 019 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 019 | N 304017008034 | SCREW |
| LOCK SPRING TO CROSS MEMBER | ||
| M 8X25 | ||
| 019 | N 304017008034 | SCREW |
| LOCK SPRING TO CROSS MEMBER | ||
| M 8X25 | ||
| 019 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 019 | N 304017008027 | SCREW |
| LOCK SPRING TO CROSS MEMBER | ||
| M 8X30 | ||
| 022 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 022 | N 000125008443 | WASHER |
| LOCK SPRING TO CROSS MEMBER | ||
| 025 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 025 | N 913004008001 | NUT |
| LOCK SPRING TO CROSS MEMBER | ||
| 028 | A 3873120487 | GUSSET PLATE |
| Repalced by: A 3873122087 | ||
| 028 | A 3873122087 | GUSSET PLATE |
| LEFT | ||
| 028 | A 3873120587 | GUSSET PLATE |
| Repalced by: A 3873122187 | ||
| 028 | A 3873122187 | GUSSET PLATE |
| Repalced by: A 6203120987 | ||
| 028 | A 6203120987 | GUSSET PLATE |
| RIGHT | ||
| 029 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 029 | N 308676012026 | SCREW |
| CROSS MEMBER AND GUSSET PLATE TO FRAME SIDE MEMBERS | ||
| 029D | N 913004012007 | NUT |
| Repalced by: N 910113012005 | ||
| 029D | N 910113012005 | NUT |
| CROSS MEMBER AND GUSSET PLATE TO FRAME SIDE MEMBERS | ||
| 031 | A 3873110253 | ANGLE |
| LEFT | ||
| 031 | A 3873110353 | ANGLE |
| RIGHT | ||
| 032 | A 3873150006 | COUPLING PIN |
| FOR COUPLING MOUTH | ||
| 032 | A 3873150106 | COUPLING PIN |
| FOR COUPLING MOUTH | ||
| 035 | A 0009874346 | SEALING CORD |
| FOR COUPLING MOUTH | ||
| 038 | A 3873120410 | CROSS MEMBER |
| NO.2 | ||
| 041 | A 3873120084 | SHIM |
| Repalced by: A 6203121984 | ||
| 041 | A 6203121984 | SHIM |
| CROSS MEMBER AND SPRING BRACKET TO SIDE MEMBER | ||
| 042 | N 000961014054 | SCREW |
| CROSS MEMBER WITH SHIM TO FRONT SPRING REAR BRACKET | ||
| M 14X45 | ||
| 042 | N 000961014100 | SCREW |
| CROSS MEMBER WITH SHIM TO FRONT SPRING REAR BRACKET | ||
| M 14X30 | ||
| 042 | N 000961014100 | SCREW |
| CROSS MEMBER WITH SHIM TO FRONT SPRING REAR BRACKET | ||
| M 14X30 | ||
| 043 | N 912004014100 | LOCK WASHER |
| CROSS MEMBER WITH SHIM TO FRONT SPRING REAR BRACKET | ||
| 044 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 044 | N 910113014001 | NUT |
| CROSS MEMBER WITH SHIM TO FRONT SPRING REAR BRACKET | ||
| 046 | A 3873120017 | CROSS MEMBER |
| NO.3 | ||
| 046 | A 3873120017 | CROSS MEMBER |
| NO.4 | ||
| 046 | A 3873120017 | CROSS MEMBER |
| NO.4 | ||
| 046 | A 3873120017 | CROSS MEMBER |
| NO.5 | ||
| 047 | A 3893120025 | CROSS MEMBER |
| NO.4 | ||
| 049 | A 3873120161 | STRUT |
| REAR SPRING FRONT BRACKET | ||
| 049D | A 3873100236 | CROSS MEMBER |
| NO.3 | ||
| 049D | A 3873100936 | CROSS MEMBER |
| NO.3 | ||
| 049D | A 3873101736 | CROSS MEMBER |
| Repalced by: A 3873101036 | ||
| 049D | A 3873101036 | CROSS MEMBER |
| NO.3 | ||
| 049K | N 000961012052 | SCREW |
| Repalced by: N 308676012012 | ||
| 049K | N 308676012012 | SCREW |
| CROSS MEMBER TO SIDE MEMBERS | ||
| M 12X25 | ||
| 049K | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 049K | N 308676012026 | SCREW |
| CROSS MEMBER TO SIDE MEMBERS | ||
| M 12X35 | ||
| 049K | N 000961014028 | SCREW |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 049N | N 910113012002 | NUT |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 049N | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 049N | N 910113014001 | NUT |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 050 | A 3953100136 | CROSS MEMBER |
| NO.3 | ||
| 050 | A 3953100136 | CROSS MEMBER |
| NO.4 | ||
| A 3873120025 | CROSS MEMBER | |
| A 3953120261 | STRUT | |
| AT CROSS MEMBER | ||
| A 0039900901 | SCREW | |
| Repalced by: A 0029908201 | ||
| A 0029908201 | SCREW | |
| STRUT TO CROSS MEMBER | ||
| N 913004012009 | NUT | |
| Repalced by: N 910113012003 | ||
| N 910113012003 | NUT | |
| STRUT TO CROSS MEMBER | ||
| 051C | N 000961012164 | SCREW |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 051H | N 910113012002 | NUT |
| CROSS MEMBER TO SIDE MEMBERS | ||
| N 000961014100 | SCREW | |
| CROSS MEMBER TO SIDE MEMBERS | ||
| N 913004014002 | NUT | |
| Repalced by: N 910113014001 | ||
| N 910113014001 | NUT | |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 052 | A 3873100036 | CROSS MEMBER |
| NO.3 | ||
| N 000961012164 | SCREW | |
| CROSS MEMBER TO SIDE MEMBERS | ||
| N 000961014100 | SCREW | |
| CROSS MEMBER TO SIDE MEMBERS | ||
| N 910113012002 | NUT | |
| CROSS MEMBER TO SIDE MEMBERS | ||
| N 913004014002 | NUT | |
| Repalced by: N 910113014001 | ||
| N 910113014001 | NUT | |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 053 | A 3873100437 | CROSS MEMBER |
| NO.5 | ||
| 053D | N 000961012164 | SCREW |
| SHOCK ABSORBER CROSS MEMBER TO SIDE MEMBERS | ||
| 053F | N 910113012002 | NUT |
| SHOCK ABSORBER CROSS MEMBER TO SIDE MEMBERS | ||
| 054 | A 3873100537 | CROSS MEMBER |
| Repalced by: A 3933100137 | ||
| 054 | A 3933100137 | CROSS MEMBER |
| NO.4 | ||
| 054 | A 3873100637 | CROSS MEMBER |
| Repalced by: A 3873100937 | ||
| 054 | A 3873100937 | CROSS MEMBER |
| NO.4 | ||
| 054 | A 3873100937 | CROSS MEMBER |
| NO.4 | ||
| 054E | N 000960012342 | SCREW |
| Repalced by: N 308676012015 | ||
| 054E | N 308676012015 | SCREW |
| SHOCK ABSORBER CROSS MEMBER TO SIDE MEMBERS | ||
| M 12X45 | ||
| 054E | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 054E | N 308676012026 | SCREW |
| SHOCK ABSORBER CROSS MEMBER TO SIDE MEMBERS | ||
| M 12X35 | ||
| 054E | N 308676012026 | SCREW |
| SHOCK ABSORBER CROSS MEMBER TO SIDE MEMBERS | ||
| M 12X35 | ||
| 054L | N 910113012002 | NUT |
| SHOCK ABSORBER CROSS MEMBER TO SIDE MEMBERS | ||
| 055 | A 3873100037 | CROSS MEMBER |
| NO.4 | ||
| 055 | A 3873100037 | CROSS MEMBER |
| NO.5 | ||
| 055 | A 3873100037 | CROSS MEMBER |
| NO.6 | ||
| 056 | A 3893100137 | CROSS MEMBER |
| NO.7 | ||
| A 3873120017 | CROSS MEMBER | |
| A 3873120361 | STRUT | |
| AT CROSS MEMBER | ||
| A 0039900901 | SCREW | |
| Repalced by: A 0029908201 | ||
| A 0029908201 | SCREW | |
| STRUT TO CROSS MEMBER | ||
| N 913004012009 | NUT | |
| Repalced by: N 910113012003 | ||
| N 910113012003 | NUT | |
| STRUT TO CROSS MEMBER | ||
| 057 | A 3893100236 | CROSS MEMBER |
| NO.5 | ||
| 057K | N 000961014100 | SCREW |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 057P | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 057P | N 910113014001 | NUT |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 058 | A 3893100136 | CROSS MEMBER |
| NO.4 | ||
| 058D | N 000961012164 | SCREW |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 058H | N 910113012002 | NUT |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 059 | A 3873120425 | CROSS MEMBER |
| NO.6 | ||
| 060 | A 3463125135 | CROSS MEMBER |
| REAR | ||
| 061 | A 3873121887 | GUSSET PLATE |
| REAR CROSS MEMBER TO FRAME | ||
| 061 | A 3873121987 | GUSSET PLATE |
| REAR CROSS MEMBER TO FRAME | ||
| 063 | A 3873120035 | CROSS MEMBER |
| Repalced by: A 3933100246 | ||
| 063 | A 3933100046 | CROSS MEMBER |
| Repalced by: A 3933100246 | ||
| 063 | A 3933100246 | CROSS MEMBER |
| Repalced by: A 3873120735 | ||
| 063 | A 3873120735 | CROSS MEMBER |
| REAR | ||
| 063 | A 3873120735 | CROSS MEMBER |
| REAR | ||
| 065 | A 3875440438 | BRACKET |
| ELECTRIC CABLE TO REAR CROSS MEMBER | ||
| 065 | A 3875440438 | BRACKET |
| ELECTRIC CABLE TO REAR CROSS MEMBER | ||
| 066 | N 000961012151 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| 067 | N 910005012080 | RIVET |
| 068 | A 3873220301 | FRONT SPRING BRACKET |
| FRONT | ||
| 071 | A 3879900114 | SCREW |
| FRONT SPRING FRONT BRACKET | ||
| M 16X45 | ||
| 072 | A 3879900214 | SCREW |
| FRONT SPRING FRONT BRACKET | ||
| M 16X55 | ||
| 073 | N 913004016005 | NUT |
| Repalced by: N 910113016001 | ||
| 073 | N 910113016001 | NUT |
| FRONT SPRING FRONT BRACKET | ||
| 076 | A 3873220503 | FRONT SPRING BRACKET |
| REAR | ||
| 080 | A 3872660640 | BRACKET |
| LEFT,AT TRANSMISSION | ||
| 080 | A 3872660740 | BRACKET |
| RIGHT,AT TRANSMISSION | ||
| 082 | N 000961014101 | SCREW |
| Repalced by: N 308676014012 | ||
| 082 | N 308676014012 | SCREW |
| FRONT SPRING BRACKET TO SIDE MEMBER | ||
| M 14X45 | ||
| 082 | N 000961014014 | SCREW |
| FRONT SPRING BRACKET TO TRANSMISSION BRACKET | ||
| M 14X50 | ||
| 082 | N 000960014229 | SCREW |
| FRONT SPRING BRACKET TO SIDE MEMBER | ||
| M 14X55 | ||
| 082 | N 000961014055 | SCREW |
| FRONT SPRING BRACKET TO TRANSMISSION BRACKET | ||
| M 14X42 | ||
| 084 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 084 | N 910113014000 | NUT |
| FRONT SPRING REAR BRACKET | ||
| 087 | A 3873250101 | REAR SPRING BRACKET |
| FRONT | ||
| 090 | A 3873250003 | REAR SPRING BRACKET |
| REAR | ||
| 093 | A 3873250117 | HELPER SPRING BRACKET |
| REAR SPRING | ||
| 096 | N 000961014028 | SCREW |
| SPRING BRACKET TO SIDE MEMBER | ||
| M 14X40 | ||
| 096 | N 000961014054 | SCREW |
| SPRING BRACKET TO SIDE MEMBER | ||
| M 14X45 | ||
| 099 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 099 | N 910113014001 | NUT |
| SPRING BRACKET TO SIDE MEMBER | ||
| 101 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 101 | N 308676014020 | SCREW |
| HELPER SPRING BRACKET TO SIDE MEMBER | ||
| M 14X35 | ||
| 101 | N 308676014020 | SCREW |
| HELPER SPRING BRACKET TO SIDE MEMBER | ||
| M 14X35 | ||
| 101 | N 000961014054 | SCREW |
| HELPER SPRING BRACKET TO SIDE MEMBER | ||
| M 14X45 | ||
| 101 | N 000961014054 | SCREW |
| HELPER SPRING BRACKET TO SIDE MEMBER | ||
| M 14X45 | ||
| A 3873100057 | PLATE | |
| LEFT | ||
| A 3873100157 | PLATE | |
| RIGHT | ||
| 103 | A 3873163252 | ANGLE |
| LEFT REINFORCEMENT | ||
| 103 | A 3873163352 | ANGLE |
| RIGHT REINFORCEMENT | ||
| 103 | A 3873163452 | ANGLE |
| LEFT REINFORCEMENT | ||
| 103 | A 3873163552 | ANGLE |
| RIGHT REINFORCEMENT | ||
| A 3873101663 | CONSOLE | |
| SADDLE PLATE,LEFT | ||
| 105 | A 3873103063 | CONSOLE |
| SADDLE PLATE,LEFT | ||
| 105 | A 3873103063 | CONSOLE |
| SADDLE PLATE,RIGHT | ||
| A 3873101763 | CONSOLE | |
| SADDLE PLATE,RIGHT | ||
| 105 | A 3873103163 | CONSOLE |
| SADDLE PLATE,RIGHT | ||
| 105 | A 3873160150 | CONSOLE |
| SADDLE PLATE,LEFT AND RIGHT | ||
| 107 | N 000961012134 | SCREW |
| CONSOLE TO FRAME | ||
| M 12X35 | ||
| 107 | N 000961012134 | SCREW |
| CONSOLE TO FRAME | ||
| M 12X35 | ||
| 107 | N 000961012052 | SCREW |
| Repalced by: N 308676012012 | ||
| 107 | N 308676012012 | SCREW |
| CONSOLE TO FRAME | ||
| M 12X25 | ||
| 107 | N 000961012151 | SCREW |
| CONSOLE TO FRAME | ||
| M 12X30 | ||
| 108 | N 912004012100 | LOCK WASHER |
| CONSOLE TO FRAME | ||
| 109 | N 910113012002 | NUT |
| CONSOLE TO FRAME | ||
| 109 | N 910113012002 | NUT |
| CONSOLE TO FRAME | ||
| 111 | N 000961014101 | SCREW |
| Repalced by: N 308676014012 | ||
| 111 | N 308676014012 | SCREW |
| CONSOLE TO FRAME | ||
| 111 | N 000961014063 | SCREW |
| Repalced by: A 9429901304 | ||
| 111 | A 9429901304 | SCREW |
| CONSOLE TO FRAME | ||
| 113 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 113 | N 910113014000 | NUT |
| CONSOLE TO FRAME | ||
| 113 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 113 | N 910113014000 | NUT |
| CONSOLE TO FRAME | ||
| 115 | N 000961014100 | SCREW |
| FRAME TRUSS TO SIDE MEMBER | ||
| 117 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 117 | N 910113014001 | NUT |
| FRAME TRUSS TO SIDE MEMBER | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| MOUNTING USED FOR FRAME CONNECTION PARTS | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| DIMENSIONS ARE INDICATED IN THE FOLLOWING ORDER: | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| THREAD X SHANK DIA. X SHANK LENGTH X TOTAL LENGTH | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| N 000609010004 | FITTED SCREW | |
| M 10X11X14X28 | ||
| N 000610010003 | FITTED SCREW | |
| M 10X11X25X38 | ||
| N 000609010014 | FITTED SCREW | |
| M 10X11X24X40 | ||
| A 3859900514 | SCREW | |
| M 10X11X26.5X46 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| A 3859900714 | SCREW | |
| M 12X12X10X25 | ||
| A 3859901414 | SCREW | |
| M 12X12X11X26 | ||
| A 0039900901 | SCREW | |
| Repalced by: A 0029908201 | ||
| A 0029908201 | SCREW | |
| M 12X12X12X28 | ||
| A 3859901514 | SCREW | |
| M 12X12X13X28 | ||
| A 0029908201 | SCREW | |
| M 12X12X14X30 | ||
| A 3859902114 | SCREW | |
| M 12X12X15X30 | ||
| A 0029908301 | SCREW | |
| Repalced by: N 308676012013 | ||
| N 308676012013 | SCREW | |
| M 12X12X16X32 | ||
| A 3859902214 | SCREW | |
| M 12X12X17X32 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| A 6209900114 | SCREW | |
| M 12X13X12X29 | ||
| A 3969900314 | SCREW | |
| M 12X13X13X30 | ||
| A 3589901914 | SCREW | |
| M 12X13X15X32 | ||
| A 3559900014 | SCREW | |
| M 12X13X18X35 | ||
| A 3589900614 | SCREW | |
| M 12X13X21X38 | ||
| A 6179900114 | SCREW | |
| M 12X13X23X40 | ||
| A 6249900014 | SCREW | |
| M 12X13X25X42 | ||
| A 3859900214 | SCREW | |
| M 12X13X35X52 | ||
| A 6689900114 | SCREW | |
| M 12X13X58X80 | ||
| A 6689900014 | SCREW | |
| M 12X13X63X85 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| A 3229903101 | SCREW | |
| M 14X14X14X32 | ||
| A 3859900814 | SCREW | |
| Repalced by: A 3229903101 | ||
| A 3229903101 | SCREW | |
| M 14X14X16X32 | ||
| A 3859902014 | SCREW | |
| M 14X14X18X34 | ||
| A 3559900114 | SCREW | |
| M 12X14X13X35 | ||
| A 3219901601 | SCREW | |
| Repalced by: A 3169900014 | ||
| A 3169900014 | SCREW | |
| M 14X14X17X35 | ||
| A 3219901901 | SCREW | |
| M 14X14X22X40 | ||
| A 3559900501 | SCREW | |
| M 14X14X24X42 | ||
| A 3409900201 | SCREW | |
| M 14X14X27X45 | ||
| A 3609902001 | SCREW | |
| M 14X14X32X50 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| A 3589900114 | SCREW | |
| M 14X15X15X32 | ||
| A 3589900814 | SCREW | |
| M 14X15X17X34 | ||
| A 6459900014 | SCREW | |
| M 14X15X18X35 | ||
| A 3589901014 | SCREW | |
| M 14X15X19X36 | ||
| A 3589900214 | SCREW | |
| M 14X15X21X38 | ||
| A 3589900414 | SCREW | |
| M 14X15X25X42 | ||
| A 3589900714 | SCREW | |
| M 14X15X27X44 | ||
| A 3589900914 | SCREW | |
| M 14X15X29X46 | ||
| A 3859900414 | SCREW | |
| M 14X15X31X48 | ||
| A 3859900314 | SCREW | |
| M 14X15X35X52 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| A 3859900914 | SCREW | |
| Repalced by: N 308676016020 | ||
| N 308676016020 | SCREW | |
| M 16X16X18X36 | ||
| A 3859901714 | SCREW | |
| M 16X16X20X38 | ||
| A 3859901014 | SCREW | |
| M 16X16X22X40 | ||
| A 3859901114 | SCREW | |
| M 16X16X24X42 | ||
| A 0029909901 | SCREW | |
| Repalced by: A 3959900501 | ||
| A 3959900501 | SCREW | |
| M 16X16X20X45 | ||
| A 3859901814 | SCREW | |
| M 16X16X30X48 | ||
| A 3859901914 | SCREW | |
| M 16X16X32X50 | ||
| A 6259900301 | SCREW | |
| M 16X16X38X90 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| A 3589900514 | SCREW | |
| M 16X17X22X42 | ||
| A 6459900714 | SCREW | |
| M 16X17X24X44 | ||
| A 3609900114 | SCREW | |
| Repalced by: A 0009906314 | ||
| A 0009906314 | SCREW | |
| M 16X17X28X48 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| A 3469900014 | SCREW | |
| M 16X18X18X40 | ||
| A 3859902314 | SCREW | |
| M 18X18X23X45 | ||
| A 6209900014 | SCREW | |
| M 16X18X26X48 | ||
| A 3469900114 | SCREW | |
| M 16X18X31X50 | ||
| A 3859902414 | SCREW | |
| Repalced by: N 000961018043 | ||
| N 000961018043 | SCREW | |
| M 18X18X33X55 | ||
| A 6229900014 | SCREW | |
| M 16X18X38X60 | ||
| A 3919900014 | SCREW | |
| M 16X18X63X85 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| N 000610018004 | FITTED SCREW | |
| M 18X19X25X45 | ||
| N 000610018009 | FITTED SCREW | |
| M 18X19X33X55 | ||
| N 000610018006 | FITTED SCREW | |
| M 18X19X38X60 | ||
| N 000609018000 | FITTED SCREW | |
| M 18X19X57X85 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| N 913004010011 | NUT | |
| N 913004012009 | NUT | |
| Repalced by: N 910113012003 | ||
| N 910113012003 | NUT | |
| N 913004014005 | NUT | |
| Repalced by: N 910113014000 | ||
| N 910113014000 | NUT | |
| N 913004016005 | NUT | |
| Repalced by: N 910113016001 | ||
| N 910113016001 | NUT | |
| N 913004018004 | NUT | |
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 119 | N 910005012080 | RIVET |
| 12X42 MM | ||
| 119 | N 910005012087 | RIVET |
| 12X58 MM | ||
| 119 | N 910005014056 | RIVET |
| 14X45 MM | ||
| 119 | N 910005014059 | RIVET |
| 14X55 MM | ||
| 119 | N 910005016027 | RIVET |
| 16X68 MM | ||
| 119 | N 910005016004 | RIVET |
| 16X60 MM | ||
| 119 | N 910005016027 | RIVET |
| 16X68 MM | ||
| 119 | N 910005016007 | RIVET |
| 16X68 MM | ||
| N 000961012097 | SCREW | |
| Repalced by: N 308676012026 | ||
| N 308676012026 | SCREW | |
| FRONT CROSS MEMBER TO SIDE MEMBERS | ||
| N 000961014050 | SCREW | |
| Repalced by: N 308676014020 | ||
| N 308676014020 | SCREW | |
| FRONT CROSS MEMBER TO SIDE MEMBERS | ||
| N 910113012002 | NUT | |
| FRONT CROSS MEMBER TO SIDE MEMBERS | ||
| N 913004014002 | NUT | |
| Repalced by: N 910113014001 | ||
| N 910113014001 | NUT | |
| FRONT CROSS MEMBER TO SIDE MEMBERS | ||

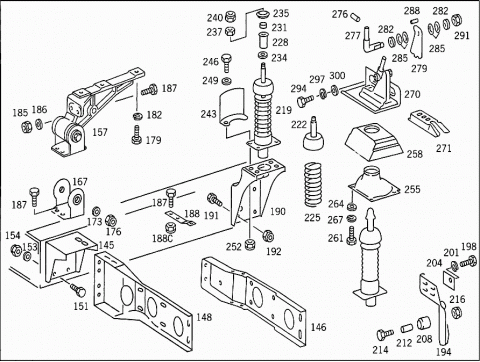

| 125 | A 3875420640 | BRACKET |
| HORN | ||
| 145 | A 3878910531 | CONSOLE |
| Repalced by: A 3878912631 | ||
| 145 | A 3878912631 | CONSOLE |
| BUMPER AT TORSION BAR | ||
| 145 | A 3878912631 | CONSOLE |
| BUMPER AT TORSION BAR | ||
| 146 | A 3873170323 | STRUT |
| BUMPER AT TORSION BAR | ||
| 148 | A 3873170423 | STRUT |
| BUMPER AT TORSION BAR | ||
| 151 | N 000961014101 | SCREW |
| Repalced by: N 308676014012 | ||
| 151 | N 308676014012 | SCREW |
| CONSOLE,STRUT,AND BRACKET TO FRAME | ||
| M 14X45 | ||
| 151 | N 000961014063 | SCREW |
| Repalced by: A 9429901304 | ||
| 151 | A 9429901304 | SCREW |
| CONSOLE,STRUT,AND BRACKET TO FRAME | ||
| M 14X40 | ||
| 153 | N 000125015013 | WASHER |
| Repalced by: N 000125015019 | ||
| 153 | N 000125015019 | WASHER |
| CONSOLE,STRUT,AND BRACKET TO FRAME | ||
| 154 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 154 | N 910113014000 | NUT |
| CONSOLE,STRUT,AND BRACKET TO FRAME | ||
| 157 | A 3878902503 | MOUNTING |
| Repalced by: A 3813106509 | ||
| 157 | A 3813106509 | BRACKET |
| CAB SUSPENSION,FRONT LEFT | ||
| 157 | A 3878902603 | MOUNTING |
| Repalced by: A 3813106609 | ||
| 157 | A 3813106609 | BRACKET |
| CAB SUSPENSION,FRONT RIGHT | ||
| A 3813171312 | RUBBER BUFFER | |
| Repalced by: A 3813171512 | ||
| A 3813171512 | RUBBER BUFFER | |
| A 3813171412 | RUBBER BUFFER | |
| 167 | A 3878902903 | MOUNTING |
| A 3813172174 | PIN | |
| 173 | N 007349017002 | WASHER |
| 176 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 176 | N 910113016002 | NUT |

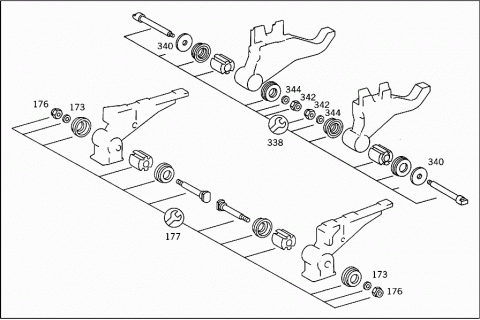

| 177 | A 3815860031 | REPAIR KIT |
| CAB SUSPENSION,FRONT | ||
| 179 | N 000961014028 | SCREW |
| LEFT AND RIGHT BEARING BRACKETS TO CAB | ||
| M 14X40 | ||
| 179 | N 000961014064 | SCREW |
| LEFT AND RIGHT BEARING BRACKETS TO CAB | ||
| M 14X50 | ||
| 182 | N 912004014100 | LOCK WASHER |
| LEFT AND RIGHT BEARING BRACKETS TO CAB | ||
| 185 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 185 | N 910113014001 | NUT |
| LEFT AND RIGHT BEARING BRACKETS TO CAB | ||
| 186 | A 3209901840 | WASHER |
| LEFT AND RIGHT BEARING BRACKETS TO CAB | ||
| 187 | N 000961014063 | SCREW |
| Repalced by: A 9429901304 | ||
| 187 | A 9429901304 | SCREW |
| CAB TO FRAME | ||
| M 14X40 | ||
| 187 | N 000961014101 | SCREW |
| Repalced by: N 308676014012 | ||
| 187 | N 308676014012 | SCREW |
| CAB TO FRAME | ||
| M 14X45 | ||
| A 3878910698 | SHIM | |
| 188 | A 3878910398 | SHIM |
| CAB TO FRAME | ||
| 188C | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 188C | N 910113014000 | NUT |
| CAB TO FRAME | ||

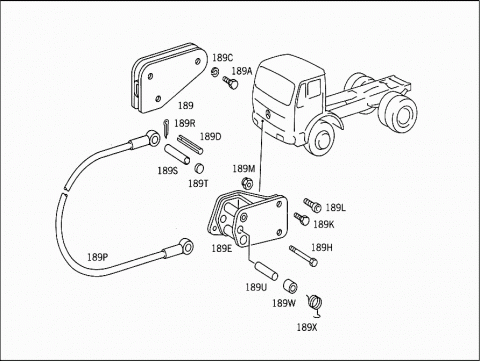

| 189 | A 3878907303 | MOUNTING |
| RETAINING ROPE TO CAB | ||
| 189A | N 000961014100 | SCREW |
| BEARING BRACKET TO CAB | ||
| M 14X30 | ||
| 189C | N 912004014100 | LOCK WASHER |
| BEARING BRACKET TO CAB | ||
| 189D | N 001481006040 | CLAMPING SLEEVE |
| RETAINING ROPE TO CAB | ||
| 189E | A 3878907203 | MOUNTING |
| RETAINING ROPE TO FRAME | ||
| 189E | A 3878907403 | MOUNTING |
| RETAINING ROPE TO FRAME | ||
| 189H | N 000960014263 | SCREW |
| BEARING BRACKET TO FRAME | ||
| M 14X120 | ||
| 189K | N 000961014101 | SCREW |
| Repalced by: N 308676014012 | ||
| 189K | N 308676014012 | SCREW |
| BEARING BRACKET TO FRAME | ||
| M 14X45 | ||
| 189L | N 007991014014 | SCREW |
| BEARING BRACKET TO FRAME | ||
| M 14X50 | ||
| 189M | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 189M | N 910113014000 | NUT |
| BEARING BRACKET TO FRAME | ||
| 189P | A 0009882075 | WIRE CABLE |
| (RETAINING ROPE) | ||
| 189S | A 3873171174 | PIN |
| AT MOUNTING ON CAB | ||
| 189R | N 000094005044 | COTTER PIN |
| AT MOUNTING ON CAB | ||
| 189T | A 3635530051 | SPACER RING |
| AT MOUNTING ON FRAME | ||
| 189U | A 3873171274 | PIN |
| AT MOUNTING ON FRAME | ||
| 189W | A 3878911553 | SPACER TUBE |
| AT MOUNTING ON FRAME | ||
| 189X | A 3879930020 | SPRING |
| AT MOUNTING ON FRAME | ||
| 189X | A 3879930120 | SPRING |
| AT MOUNTING ON FRAME | ||
| 190 | A 3873170001 | CONSOLE |
| Repalced by: A 6553170001 | ||
| 190 | A 6553170001 | CONSOLE |
| Repalced by: A 3873170001 | ||
| 190 | A 3873170001 | CONSOLE |
| SHOCK ABSORBER | ||
| 191 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 191 | N 308676012026 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| 192 | N 910113012002 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| 194 | A 3873170426 | GUIDE |
| CAB SUSPENSION,REAR LEFT | ||
| 194 | A 3873170626 | GUIDE |
| CAB SUSPENSION,REAR LEFT | ||
| 194 | A 3873170526 | GUIDE |
| CAB SUSPENSION,REAR RIGHT | ||
| 194 | A 3873170726 | GUIDE |
| CAB SUSPENSION,REAR RIGHT | ||
| 198 | N 000960012301 | SCREW |
| GUIDE TO CAB | ||
| 201 | N 912004012100 | LOCK WASHER |
| GUIDE TO CAB | ||
| 204 | A 3873170028 | REINFORCEMENT |
| GUIDE TO CAB | ||
| 204 | A 3873170084 | SHIM |
| GUIDE TO CAB | ||
| 208 | A 3813170750 | BUSHING |
| CAB GUIDE | ||
| 212 | A 3813170553 | SPACER TUBE |
| CAB GUIDE | ||
| 214 | N 000960012230 | SCREW |
| CAB GUIDE | ||
| 216 | N 910113012002 | NUT |
| CAB GUIDE | ||
| 219 | A 3818900719 | SHOCK ABSORBER |
| Repalced by: A 3878901619 | ||
| 219 | A 3878901619 | SHOCK ABSORBER |
| Repalced by: A 3878901319 | ||
| 219 | A 3878901319 | SHOCK ABSORBER |
| CAB SUSPENSION,REAR | ||
| 219 | A 3878901319 | SHOCK ABSORBER |
| CAB SUSPENSION,REAR | ||
| 222 | A 3818900101 | MOUNTING |
| 222 | A 0008910201 | RUBBER MOUNTING |
| TO 387 890 16 19 | ||
| 222 | A 0008910301 | RUBBER MOUNTING |
| TO 387 890 13 19 | ||
| 225 | A 3818910080 | SPRING |
| 225 | A 0008910751 | SPRING |
| Repalced by: A 0008910451 | ||
| 225 | A 0008910451 | SPRING |
| 228 | A 3813170753 | SPACER TUBE |
| SHOCK ABSORBER | ||
| 231 | A 0009935326 | DISC SPRING |
| Repalced by: A 3275045082 | ||
| 231 | A 3275045082 | RUBBER RING |
| SHOCK ABSORBER | ||
| 234 | N 000433015005 | WASHER |
| SHOCK ABSORBER | ||
| 235 | A 3878912010 | WASHER |
| SHOCK ABSORBER | ||
| 237 | N 000934012022 | NUT |
| SHOCK ABSORBER | ||
| 240 | N 001587012008 | CAP NUT |
| Repalced by: N 001587012010 | ||
| 240 | N 001587012010 | CAP NUT |
| SHOCK ABSORBER | ||
| 243 | A 3813170031 | COVER PLATE |
| SHOCK ABSORBER | ||
| 246 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 246 | N 304017008021 | SCREW |
| SHOCK ABSORBER TO CONSOLE | ||
| M 8X20 | ||
| 246 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 246 | N 304017008034 | SCREW |
| SHOCK ABSORBER TO CONSOLE | ||
| M 8X25 | ||
| 249 | N 007349008003 | WASHER |
| SHOCK ABSORBER TO CONSOLE | ||
| 252 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 252 | N 913004008001 | NUT |
| SHOCK ABSORBER TO CONSOLE | ||
| 255 | A 3813176140 | BRACKET |
| Repalced by: A 3813177840 | ||
| 255 | A 3813177840 | BRACKET |
| VIBRATION ABSORBER TO CAB,LEFT | ||
| 255 | A 3813177940 | BRACKET |
| VIBRATION ABSORBER TO CAB,RIGHT | ||
| 258 | A 3813170097 | BOOT |
| CAB SUSPENSION,REAR | ||
| 261 | N 000933010105 | SCREW |
| BRACKET AND BOOT TO SIDE MEMBER | ||
| 264 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 264 | N 000125010532 | WASHER |
| BRACKET AND BOOT TO SIDE MEMBER | ||
| 267 | N 912004010102 | LOCK WASHER |
| BRACKET AND BOOT TO SIDE MEMBER | ||
| 270 | A 3813101275 | LOCKING MECHANISM |
| Repalced by: A 3813102075 | ||
| 270 | A 3813102075 | LOCKING MECHANISM |
| CAB,LEFT | ||
| 270 | A 3813101175 | LOCKING MECHANISM |
| Repalced by: A 3813101975 | ||
| 270 | A 3813101975 | LOCKING MECHANISM |
| CAB, RIGHT | ||
| 271 | A 3813170119 | LATCH |
| 276 | A 3813100007 | COUPLING PIN |
| Repalced by: A 3813172374 | ||
| 276 | N 001481006012 | CLAMPING SLEEVE |
| Repalced by: N 000000000306 | ||
| 276 | N 000000000306 | CLAMPING PIN |
| 277 | A 3813172374 | PIN |
| 279 | A 3813170924 | LEVER |
| 282 | A 3813170676 | WASHER |
| 285 | A 0009935426 | DISC SPRING |
| 288 | N 001481006041 | CLAMPING SLEEVE |
| 291 | N 910113012002 | NUT |
| 294 | N 000933010105 | SCREW |
| LOCKING MECHANISM TO CAB | ||
| 297 | N 000127010208 | LOCK WASHER |
| LOCKING MECHANISM TO CAB | ||
| 300 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 300 | N 000125010532 | WASHER |
| LOCKING MECHANISM TO CAB | ||
| 305 | N 000961014101 | SCREW |
| Repalced by: N 308676014012 | ||
| 305 | N 308676014012 | SCREW |
| LOCKING MECHANISM TO CAB | ||
| 305 | N 000961012094 | SCREW |
| Repalced by: N 308676012013 | ||
| 305 | N 308676012013 | SCREW |
| LOCKING MECHANISM TO CAB | ||
| 308 | A 3878915320 | MOUNTING |
| FRAME,LEFT | ||
| 308 | A 3878916220 | MOUNTING |
| FRAME,LEFT | ||
| 308 | A 3878913820 | MOUNTING |
| FRAME,RIGHT | ||
| 308 | A 3878916120 | MOUNTING |
| Repalced by: A 6558910420 | ||
| 308 | A 6558910420 | MOUNTING |
| FRAME,RIGHT | ||
| 308 | A 3878913720 | MOUNTING |
| FRAME,LEFT | ||
| 308 | A 3878916020 | MOUNTING |
| Repalced by: A 6558910320 | ||
| 308 | A 6558910320 | MOUNTING |
| FRAME,LEFT | ||
| 308 | A 3878915420 | MOUNTING |
| FRAME,RIGHT | ||
| 308 | A 3878916320 | MOUNTING |
| FRAME,RIGHT | ||

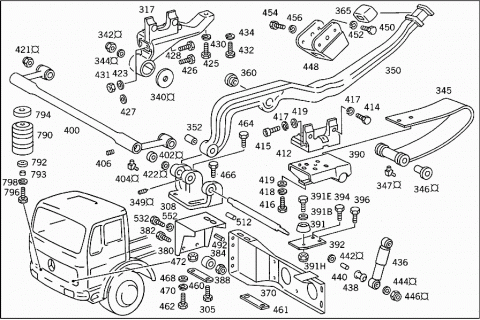

| 317 | A 3878916420 | MOUNTING |
| CAB SUSPENSION,FRONT LEFT | ||
| 317 | A 3878916520 | MOUNTING |
| CAB SUSPENSION,FRONT RIGHT | ||
| 338 | A 3813171712 | RUBBER BUFFER |
| Repalced by: A 6205860031 | ||
| 338 | A 3813171412 | RUBBER BUFFER |
| Repalced by: A 6205860031 | ||
| 338 | A 3873170874 | PIN |
| Repalced by: A 6205860031 | ||
| 338 | A 6205860031 | REPAIR KIT |
| CAB SUSPENSION,FRONT | ||
| 340 | A 3873170376 | WASHER |
| CAB SUSPENSION,FRONT | ||
| 342 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 342 | N 910113016002 | NUT |
| PIN TO BEARING | ||
| 344 | N 007349017002 | WASHER |
| PIN TO BEARING | ||

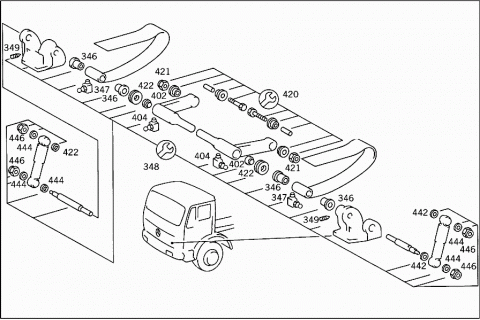

| 345 | A 3878900705 | SPRING |
| Repalced by: A 3878910851 | ||
| 345 | A 3878910851 | SPRING |
| CAB SUSPENSION,FRONT | ||
| 346 | A 3638910617 | BUSHING |
| CAB SUSPENSION,FRONT | ||
| 347 | N 071412008200 | GREASE NIPPLE |
| FOR SPRING | ||
| A 3873170674 | PIN | |
| Repalced by: A 3875860131 | ||
| 348 | A 3875860131 | REPAIR KIT |
| Repalced by: A 3873100077 | ||
| 348 | A 3873100077 | REPAIR KIT |
| CAB SUSPENSION,FRONT | ||
| 349 | N 000417008004 | HEADLESS SETSCREW |
| PIN TO BEARING | ||
| 350 | A 3878911656 | LEVER |
| Repalced by: A 3878912756 | ||
| 350 | A 3878912356 | LEVER |
| Repalced by: A 3878912756 | ||
| 350 | A 3878912756 | LEVER |
| (TILTING LEVER),CAB | ||
| 350 | A 3878911756 | LEVER |
| Repalced by: A 3878912856 | ||
| 350 | A 3878912456 | LEVER |
| Repalced by: A 3878912856 | ||
| 350 | A 3878912856 | LEVER |
| (TILTING LEVER),CAB | ||
| 352 | A 3879920003 | BUSHING |
| LEVER TO BEARING BRACKET | ||
| 352 | A 3879920203 | BUSHING |
| LEVER TO BEARING BRACKET | ||
| A 0009817231 | JOINT BEARING | |
| Repalced by: A 6208910017 | ||
| A 0019810431 | JOINT BEARING | |
| Repalced by: A 6208910017 | ||
| A 0019810531 | JOINT BEARING | |
| Repalced by: A 6208910017 | ||
| 360 | A 6208910017 | BUSHING |
| CAB TILTING LEVER | ||
| 365 | A 0029943741 | LOCK |
| Repalced by: A 6208910017 | ||
| 365 | A 3638910023 | BUFFER |
| CAB TILTING LEVER | ||
| 370 | A 3873100153 | STRUT |
| LEFT | ||
| 370 | A 3873100253 | STRUT |
| RIGHT | ||
| 370 | A 3873170423 | STRUT |
| BUMPER AT TORSION BAR | ||
| 380 | A 3878911431 | CONSOLE |
| Repalced by: A 3878912631 | ||
| 380 | A 3878912631 | CONSOLE |
| BUMPER,LEFT | ||
| 380 | A 3878912631 | CONSOLE |
| BUMPER,RIGHT | ||
| 380 | A 3878912631 | CONSOLE |
| BUMPER,RIGHT | ||
| 380 | A 3878912631 | CONSOLE |
| BUMPER,LEFT | ||
| 382 | N 000961014101 | SCREW |
| Repalced by: N 308676014012 | ||
| 382 | N 308676014012 | SCREW |
| CONSOLE AND STRUT TO FRAME | ||
| 382 | N 000961016036 | SCREW |
| Repalced by: N 308676016013 | ||
| 382 | N 308676016013 | SCREW |
| CONSOLE AND STRUT TO FRAME | ||
| 382 | N 000961018018 | SCREW |
| CONSOLE AND STRUT TO FRAME | ||
| M 18X40 | ||
| 382 | N 000961018043 | SCREW |
| CONSOLE AND STRUT TO FRAME | ||
| M 18X55 | ||
| 384 | A 3543230051 | SPACER RING |
| CONSOLE AND STRUT TO FRAME | ||
| 388 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 388 | N 910113014000 | NUT |
| CONSOLE AND STRUT TO FRAME | ||
| 388 | N 913004016005 | NUT |
| Repalced by: N 910113016001 | ||
| 388 | N 910113016001 | NUT |
| CONSOLE AND STRUT TO FRAME | ||
| 388 | N 913004018004 | NUT |
| CONSOLE AND STRUT TO FRAME | ||
| 390 | A 3878905303 | MOUNTING |
| STABILIZER,LEFT | ||
| 390 | A 3878905603 | MOUNTING |
| RIGHT STABILIZER | ||
| 391 | A 3878910123 | BUFFER |
| Repalced by: A 3348910072 | ||
| 391 | A 3348910072 | MOUNTING |
| (RUBBER BUFFER) | ||
| 391B | N 009021008205 | WASHER |
| Repalced by: N 009021008213 | ||
| 391B | N 009021008213 | WASHER |
| RUBBER BUFFER TO BRACKET | ||
| 391E | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 391E | N 304017008034 | SCREW |
| RUBBER BUFFER TO BRACKET | ||
| 391H | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 391H | N 913004008001 | NUT |
| RUBBER BUFFER TO BRACKET | ||
| 392 | A 3878910914 | BRACKET |
| RUBBER BUFFER TO FRAME AND TO BODY | ||
| 394 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 394 | N 308676012026 | SCREW |
| BRACKET TO FRAME | ||
| 396 | N 000961012151 | SCREW |
| BRACKET TO FRAME | ||
| N 910005014059 | RIVET | |
| BRACKET TO FRAME | ||
| 400 | A 3878900404 | STABILIZER |
| CAB SUSPENSION,FRONT | ||
| 402 | A 0009810731 | JOINT BEARING |
| Repalced by: A 0009817231 | ||
| 402 | A 0009810931 | JOINT BEARING |
| Repalced by: A 0009817331 | ||
| 402 | A 0009817331 | JOINT BEARING |
| Repalced by: A 0009817231 | ||
| 402 | A 0009817231 | JOINT BEARING |
| Repalced by: A 0019814631 | ||
| 402 | A 0019814631 | JOINT BEARING |
| A 0019814831 | JOINT BEARING | |
| 404 | N 071412008200 | GREASE NIPPLE |
| 406 | N 000906010000 | SCREW PLUG |
| STABILIZER | ||
| 412 | A 3878910272 | MOUNTING |
| Repalced by: A 3875860531 | ||
| 412 | A 3878910717 | BUSHING |
| Repalced by: A 3875860531 | ||
| 412 | A 3878910831 | CONSOLE |
| Repalced by: A 6208910631 | ||
| 412 | A 6208910631 | CONSOLE |
| CAB SUSPENSION,FRONT LEFT | ||
| 412 | A 3878910931 | CONSOLE |
| Repalced by: A 6208910731 | ||
| 412 | A 6208910731 | CONSOLE |
| CAB SUSPENSION,FRONT RIGHT | ||
| 414 | N 000961012069 | SCREW |
| Repalced by: N 308676012015 | ||
| 414 | N 308676012015 | SCREW |
| CONSOLE TO CAB | ||
| M 12X45 | ||
| 415 | N 006912012013 | SCREW |
| CONSOLE TO CAB | ||
| M 12X30 | ||
| 416 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 416 | N 308676014020 | SCREW |
| CONSOLE TO CAB | ||
| 417 | N 912004012101 | LOCK WASHER |
| CONSOLE TO CAB | ||
| 418 | N 912004014100 | LOCK WASHER |
| CONSOLE TO CAB | ||
| 419 | A 3609900940 | WASHER |
| CONSOLE TO CAB | ||
| 420 | A 3878910957 | PIN |
| Repalced by: A 3875860531 | ||
| 420 | A 3875860531 | REPAIR KIT |
| CAB FRONT SUSPENSION STABILIZER | ||
| 421 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 421 | N 910113014001 | NUT |
| STABILIZER TO BEARING BRACKET | ||
| 422 | A 3878911910 | WASHER |
| BEARING BRACKET TO CAB | ||
| 423 | A 3209901840 | WASHER |
| BEARING BRACKET TO CAB | ||
| 425 | N 000961014028 | SCREW |
| BEARING BRACKET TO CAB | ||
| M 14X40 | ||
| 426 | N 000960014167 | SCREW |
| Repalced by: N 000961014064 | ||
| 426 | N 000961014064 | SCREW |
| BEARING BRACKET TO CAB | ||
| M 14X50 | ||
| 427 | N 000125015013 | WASHER |
| Repalced by: N 000125015019 | ||
| 427 | N 000125015019 | WASHER |
| BEARING BRACKET TO CAB | ||
| 428 | N 000961014054 | SCREW |
| BEARING BRACKET TO CAB | ||
| 430 | N 912004014100 | LOCK WASHER |
| BEARING BRACKET TO CAB | ||
| 431 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 431 | N 910113014001 | NUT |
| BEARING BRACKET TO CAB | ||
| 432 | N 000960012189 | SCREW |
| Repalced by: N 308676012031 | ||
| 432 | N 308676012031 | SCREW |
| Repalced by: N 308676012011 | ||
| 432 | N 308676012011 | SCREW |
| BEARING BRACKET TO CAB | ||
| 434 | N 912004012100 | LOCK WASHER |
| BEARING BRACKET TO CAB | ||
| 436 | A 0008911905 | SHOCK ABSORBER |
| Repalced by: A 0008911805 | ||
| 436 | A 0008911805 | SHOCK ABSORBER |
| CAB SUSPENSION,FRONT | ||
| 438 | A 0008910501 | RUBBER MOUNTING |
| 440 | A 0008910617 | BUSHING |
| 442 | A 3873170176 | WASHER |
| Repalced by: A 6203170176 | ||
| 442 | A 6203170176 | WASHER |
| SHOCK ABSORBER TO CAB | ||
| 444 | A 3873170276 | WASHER |
| Repalced by: N 000125013008 | ||
| 444 | N 000125013008 | WASHER |
| 446 | N 910113012002 | NUT |
| SHOCK ABSORBER TO CAB | ||
| 448 | A 3878915520 | MOUNTING |
| Repalced by: A 6208901603 | ||
| 448 | A 6208901603 | MOUNTING |
| TILTING LEVER TO CAB SIDE MEMBER | ||
| 450 | N 000933010105 | SCREW |
| MOUNTING TO CAB | ||
| 452 | N 912004010102 | LOCK WASHER |
| MOUNTING TO CAB | ||
| 454 | N 000961012052 | SCREW |
| Repalced by: N 308676012012 | ||
| 454 | N 308676012012 | SCREW |
| MOUNTING TO CAB | ||
| 454 | N 308676012012 | SCREW |
| MOUNTING TO CAB | ||
| 456 | N 912004012100 | LOCK WASHER |
| MOUNTING TO CAB | ||
| 461 | A 3878910798 | SHIM |
| Repalced by: A 3878910498 | ||
| 460 | A 3878910498 | SHIM |
| CAB MOUNTING TO SIDE MEMBER | ||
| 462 | N 000961014088 | SCREW |
| Repalced by: N 308676014008 | ||
| 462 | N 308676014008 | SCREW |
| CAB MOUNTING TO SIDE MEMBER | ||
| M 14X35 | ||
| 464 | N 000960014229 | SCREW |
| CAB MOUNTING TO SIDE MEMBER | ||
| M 14X55 | ||
| 466 | N 000961014063 | SCREW |
| Repalced by: A 9429901304 | ||
| 466 | A 9429901304 | SCREW |
| CAB MOUNTING TO SIDE MEMBER | ||
| M 14X40 | ||
| 468 | N 007349015003 | WASHER |
| CAB MOUNTING TO SIDE MEMBER | ||
| 470 | N 912004014100 | LOCK WASHER |
| CAB MOUNTING TO SIDE MEMBER | ||
| 472 | N 913004014001 | NUT |
| CAB MOUNTING TO SIDE MEMBER | ||
| 492 | N 001471016000 | GROOVED PIN |
| CAB MOUNTING TO SIDE MEMBER | ||
| 512 | N 900037018000 | DOWEL PIN |
| CAB MOUNTING TO SIDE MEMBER | ||
| 532 | N 000961016108 | SCREW |
| CAB MOUNTING TO SIDE MEMBER | ||
| M 16X30 | ||
| 532 | N 000961016112 | SCREW |
| CAB MOUNTING TO SIDE MEMBER | ||
| M 16X25 | ||
| 532 | N 000961016100 | SCREW |
| Repalced by: N 308676016020 | ||
| 532 | N 308676016020 | SCREW |
| CAB MOUNTING TO SIDE MEMBER | ||
| M 16X35 | ||
| 552 | N 912004016100 | LOCK WASHER |
| CAB MOUNTING TO SIDE MEMBER | ||

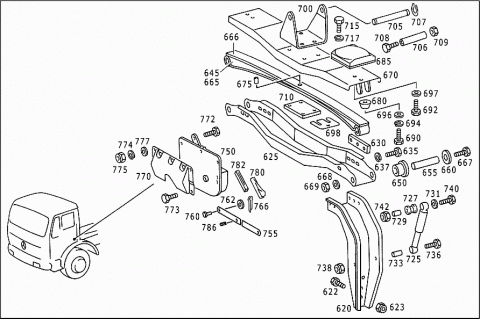

| 620 | A 3878911031 | CONSOLE |
| CAB MOUNTING,REAR | ||
| 620 | A 3878911731 | CONSOLE |
| CAB MOUNTING,REAR | ||
| 622 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 622 | N 308676014020 | SCREW |
| CONSOLE TO FRAME | ||
| M 14X35 | ||
| 622 | N 000961014028 | SCREW |
| CONSOLE TO FRAME | ||
| M 14X40 | ||
| 623 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 623 | N 910113014001 | NUT |
| CONSOLE TO FRAME | ||
| 625 | A 3878910024 | STRUT |
| Repalced by: A 6558910224 | ||
| 625 | A 6558910224 | STRUT |
| CAB MOUNTING,REAR | ||
| 630 | A 3878910198 | SHIM |
| STRUT TO CONSOLE | ||
| 635 | N 000961012052 | SCREW |
| Repalced by: N 308676012012 | ||
| 635 | N 308676012012 | SCREW |
| STRUT TO CONSOLE | ||
| 637 | N 912004012101 | LOCK WASHER |
| STRUT TO CONSOLE | ||
| 645 | A 3878910651 | SPRING |
| Repalced by: A 3878911051 | ||
| 645 | A 3878911051 | SPRING |
| CAB | ||
| 650 | A 3638910717 | BUSHING |
| SPRING TO STRUT | ||
| 655 | A 3638910218 | TUBE |
| SPRING TO STRUT | ||
| 660 | A 3638910010 | WASHER |
| SPRING TO STRUT | ||
| 665 | A 3878911351 | SPRING |
| (SPRING LEAF),BOTTOM;CAB REAR SUSPENSION | ||
| 666 | A 3878911451 | SPRING |
| (SPRING LEAF),TOP;CAB REAR SUSPENSION | ||
| 667 | N 000960012153 | SCREW |
| SPRING TO STRUT | ||
| 668 | N 009021013200 | WASHER |
| SPRING TO STRUT | ||
| 669 | N 910113012002 | NUT |
| SPRING TO STRUT | ||
| 670 | A 3878900322 | RAIL |
| Repalced by: A 3878900622 | ||
| 670 | A 3878900622 | RAIL |
| Repalced by: A 6558900222 | ||
| 670 | A 6558900222 | RAIL |
| (CONNECTING RAIL) | ||
| 670 | A 3878900622 | RAIL |
| Repalced by: A 6558900222 | ||
| 670 | A 6558900222 | RAIL |
| (CONNECTING RAIL) | ||
| 675 | N 000007012213 | CYLINDRICAL PIN |
| 680 | A 3638910123 | BUFFER |
| Repalced by: A 3878910323 | ||
| 680 | A 3878910323 | BUFFER |
| CAB SUSPENSION,REAR | ||
| 685 | A 3878910072 | MOUNTING |
| CAB SUSPENSION | ||
| 690 | N 000084008119 | SCREW |
| BUFFER AND MOUNTING TO RAIL | ||
| M 8X20 | ||
| 692 | N 000933008154 | SCREW |
| Repalced by: N 304017008021 | ||
| 692 | N 304017008021 | SCREW |
| BUFFER AND MOUNTING TO RAIL | ||
| M 8X22 | ||
| 694 | N 912004008102 | LOCK WASHER |
| BUFFER AND MOUNTING TO RAIL | ||
| 696 | N 000433008406 | WASHER |
| BUFFER AND MOUNTING TO RAIL | ||
| 697 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 697 | N 000125008443 | WASHER |
| BUFFER AND MOUNTING TO RAIL | ||
| 698 | A 3878910298 | SHIM |
| BUFFER AND MOUNTING TO RAIL | ||
| 700 | A 3638910520 | MOUNTING |
| Repalced by: A 3878918120 | ||
| 700 | A 3878918120 | MOUNTING |
| CAB LOCKING MECHANISM | ||
| 700 | A 6208910020 | MOUNTING |
| CAB LOCKING MECHANISM | ||
| 705 | A 3638910457 | PIN |
| CAB LOCKING MECHANISM | ||
| 706 | A 3878911753 | SPACER TUBE |
| CAB LOCKING MECHANISM | ||
| 707 | N 000471025002 | LOCK RING |
| CAB LOCKING MECHANISM | ||
| 708 | N 000960016242 | SCREW |
| Repalced by: N 000960016251 | ||
| 708 | N 000960016251 | SCREW |
| CAB LOCKING MECHANISM | ||
| 709 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 709 | N 910113016002 | NUT |
| CAB LOCKING MECHANISM | ||
| 710 | A 3878910811 | PLATE |
| CAB LOCKING MECHANISM | ||
| 715 | N 000931010258 | SCREW |
| BEARING BRACKET AND PLATE TO SPRING | ||
| 715 | N 000931010331 | SCREW |
| BEARING BRACKET AND PLATE TO SPRING | ||
| 717 | N 912004010102 | LOCK WASHER |
| BEARING BRACKET AND PLATE TO SPRING | ||
| 725 | A 0008911405 | SHOCK ABSORBER |
| CAB SUSPENSION,REAR | ||
| 725 | A 0008911605 | SHOCK ABSORBER |
| CAB SUSPENSION,REAR | ||
| 725 | A 0008911905 | SHOCK ABSORBER |
| Repalced by: A 0009811805 | ||
| 725 | A 0008911805 | SHOCK ABSORBER |
| CAB SUSPENSION,REAR | ||
| 725 | A 0008911805 | SHOCK ABSORBER |
| CAB SUSPENSION,REAR | ||
| 725 | A 0008912205 | SHOCK ABSORBER |
| CAB SUSPENSION,REAR | ||
| 727 | A 0008910101 | RUBBER MOUNTING |
| Repalced by: A 0008910001 | ||
| 727 | A 0008910001 | RUBBER MOUNTING |
| 727 | A 0008910401 | RUBBER MOUNTING |
| Repalced by: A 0008910501 | ||
| 727 | A 0008910501 | RUBBER MOUNTING |
| 727 | A 0008910501 | RUBBER MOUNTING |
| 729 | A 0008910317 | BUSHING |
| Repalced by: A 0008910617 | ||
| 729 | A 0008910617 | BUSHING |
| 729 | A 0008910617 | BUSHING |
| 729 | A 0008910217 | BUSHING |
| Repalced by: A 0008910117 | ||
| 729 | A 0008910117 | BUSHING |
| 731 | A 3878911610 | WASHER |
| SHOCK ABSORBER TO CONSOLE | ||
| 733 | A 3878910453 | SPACER TUBE |
| SHOCK ABSORBER TO CONSOLE | ||
| 733 | A 3878910953 | SPACER TUBE |
| SHOCK ABSORBER TO CONSOLE | ||
| 733 | A 3878911053 | SPACER TUBE |
| Repalced by: A 3878910953 | ||
| 733 | A 3878910953 | SPACER TUBE |
| SHOCK ABSORBER TO CONSOLE | ||
| 9 MM | ||
| 736 | N 000960014145 | SCREW |
| SHOCK ABSORBER TO CONSOLE | ||
| 736 | N 000960018125 | SCREW |
| Repalced by: N 000960018072 | ||
| 736 | N 000960018072 | SCREW |
| SHOCK ABSORBER TO CONSOLE | ||
| 738 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 738 | N 910113014001 | NUT |
| SHOCK ABSORBER TO CONSOLE | ||
| 738 | N 913004018003 | NUT |
| Repalced by: N 910113018004 | ||
| 738 | N 910113018004 | NUT |
| SHOCK ABSORBER TO CONSOLE | ||
| 740 | N 000960014136 | SCREW |
| SHOCK ABSORBER TO RAIL | ||
| 740 | N 000960018072 | SCREW |
| Repalced by: N 308765018004 | ||
| 740 | N 308765018004 | SCREW |
| SHOCK ABSORBER TO RAIL | ||
| M 18X140 | ||
| 740 | N 000960018127 | SCREW |
| SHOCK ABSORBER TO RAIL | ||
| M 18X115 | ||
| 742 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 742 | N 910113014001 | NUT |
| SHOCK ABSORBER TO RAIL | ||
| 742 | N 913004018003 | NUT |
| Repalced by: N 910113018004 | ||
| 742 | N 910113018004 | NUT |
| SHOCK ABSORBER TO RAIL | ||
| 750 | A 0008900089 | FASTENER |
| Repalced by: A 0008902389 | ||
| 750 | A 0008901389 | FASTENER |
| Repalced by: A 0008902389 | ||
| 750 | A 0008902389 | FASTENER |
| CAB LOCKING MECHANISM | ||
| 755 | A 3878910070 | ROD |
| CAB LOCKING MECHANISM | ||
| 760 | N 001444008202 | PIN |
| PULL TO FASTENER | ||
| 762 | N 000433008406 | WASHER |
| PULL TO FASTENER | ||
| 766 | N 000094002059 | COTTER PIN |
| PULL TO FASTENER | ||
| 770 | A 3878911131 | CONSOLE |
| CENTRAL LOCK | ||
| 772 | N 000933010128 | SCREW |
| CENTRAL LOCK TO CAB | ||
| 773 | N 000933010105 | SCREW |
| CENTRAL LOCK TO CAB | ||
| 774 | N 912004010102 | LOCK WASHER |
| CENTRAL LOCK TO CAB | ||
| 775 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 775 | N 910113010000 | NUT |
| CENTRAL LOCK TO CAB | ||
| 777 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 777 | N 000125010532 | WASHER |
| CENTRAL LOCK TO CAB | ||
| 780 | A 3878910814 | BRACKET |
| ROD THRU CAB | ||
| 782 | A 3878910085 | SEAL |
| ROD THRU CAB | ||
| 786 | N 007346005003 | CLAMPING SLEEVE |
| CAB LOCKING MECHANISM | ||
| 790 | A 3638910223 | BUFFER |
| (HOLLOW RUBBER SPRING),CAB | ||
| 792 | A 3638910047 | FLANGE |
| HOLLOW RUBBER SPRING TO CAB | ||
| 793 | A 3638910517 | BUSHING |
| HOLLOW RUBBER SPRING TO CAB | ||
| 794 | A 3878911710 | WASHER |
| Repalced by: A 3878912210 | ||
| 794 | A 3878912210 | WASHER |
| Repalced by: A 4432610076 | ||
| 794 | A 4432610076 | WASHER |
| HOLLOW RUBBER SPRING TO CAB | ||
| 20 MM | ||
| 794 | A 3878912210 | WASHER |
| Repalced by: A 4432610076 | ||
| 794 | A 4432610076 | WASHER |
| HOLLOW RUBBER SPRING TO CAB | ||
| 10 MM | ||
| 796 | N 000931010282 | SCREW |
| HOLLOW RUBBER SPRING TO CAB | ||
| 798 | N 912004010102 | LOCK WASHER |
| HOLLOW RUBBER SPRING TO CAB | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
