Transporto priemonė: 1926 K; VIN numerio dalis: 389044
Grupė: 42 BRAKES
42726
42727
42728
42729
42730
42731
42732
42733
42734
42735
42736
# Kodas Pavadinimas
T YYYYYYYYYYYY PART NAME MISSING
FOR FRONT WHEEL BRAKE,SEE UNIT PARTS LIST:
739.1
T YYYYYYYYYYYY PART NAME MISSING
FOR REAR WHEEL BRAKE, SEE PARTS LIST:
0.3
A 0004291838 ELBOW FITTING
AT AIR COMPRESSOR
004 A 0004294338 ELBOW FITTING
AT AIR COMPRESSOR
N 080705026000 NUT
Repalced by: N 080705026003
N 080705026003 NUT
AT AIR COMPRESSOR
007 N 074305026202 NUT
AT AIR COMPRESSOR
N 007603026104 SEAL RING
010 A 0039973848 SEAL RING
AT AIR COMPRESSOR
011 A 0004290527 THRUST RING
AT AIR COMPRESSOR
A 0004290401 LINE
Repalced by: A 0005516456
013 A 0005516456 TUBE
AIR RESERVOIR,FOUR-CIRCUIT PROTECTIVE VALVE,BRAKE CYLINDER
016 N 915018018000 UNION NUT
019 N 003861018003 GLAND
Repalced by: A 0019901167
019 A 0019901167 SEAL CONE
A 3894205848 BRAKE HOSE
Repalced by: A 0004297135
022 N 915065018101 THRUST RING
025 A 0004291584 SEAL RING
Repalced by: N 915045015100
025 N 915045015100 SEAL RING
A 0004295635 BRAKE HOSE
Repalced by: A 0004297335
A 0004297335 BRAKE HOSE
028 A 0004297135 BRAKE HOSE
FROM AIR COMPRESSOR TO PRESSURE REGULATOR
N 915018015000 UNION NUT
FROM AIR COMPRESSOR TO PRESSURE REGULATOR
N 003861015004 GLAND
A 3464295940 BRACKET
Repalced by: A 3464296040
031 A 3874295840 BRACKET
AT SIDE MEMBER
034 A 3874292240 BRACKET
MOUNTING USED FOR COMPRESSED AIR LINES
034 A 3874292240 BRACKET
MOUNTING USED FOR COMPRESSED AIR LINES
035 A 3874292940 BRACKET
Repalced by: A 3852670040
035 A 3852670040 BRACKET
MOUNTING USED FOR COMPRESSED AIR LINES
036 A 3874293040 BRACKET
Repalced by: A 3914290140
036 A 3914290140 BRACKET
MOUNTING USED FOR COMPRESSED AIR LINES
N 000933008147 SCREW
Repalced by: N 304017008021
N 304017008021 SCREW
BRACKET TO SIDE MEMBER
N 913004008004 NUT
Repalced by: N 913004008001
N 913004008001 NUT
BRACKET TO SIDE MEMBER

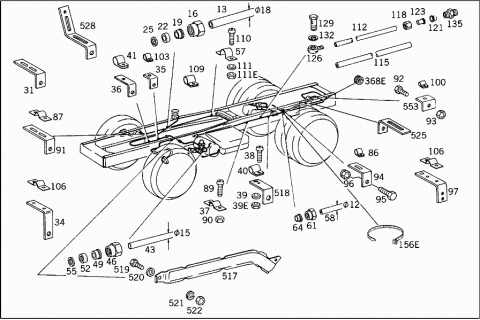

037 N 001593019001 CLAMP
LINE TO BRACKET
038 N 000000001147 SCREW
LINE TO BRACKET
M 6X20
039 N 000125006421 WASHER
LINE TO BRACKET
039E N 913004006002 NUT
Repalced by: N 913004006001
039E N 913004006001 NUT
LINE TO BRACKET
040 A 3609950601 CLAMP
MOUNTING USED FOR COMPRESSED AIR LINES
A 3609950501 CLAMP
Repalced by: A 3609952001
041 A 3609952001 CLAMP
Repalced by: A 6739950001
041 A 6739950001 CLAMP
MOUNTING USED FOR COMPRESSED AIR LINES
A 3874209545 LINE
Repalced by: A 0004291401
A 0004291401 LINE
FROM FITTING I TO CONNECTION FITTING II
A 3874209645 LINE
FROM FITTING I TO CONNECTION FITTING II
A 3874209645 LINE
AIR COMPRESSOR,PRESSURE REGULATOR, FOUR-CIRCUIT PROTECTIVE VALVE
046 N 915018015000 UNION NUT
049 N 003861015004 GLAND
052 N 915065015101 THRUST RING
A 0004292084 SEAL RING
Repalced by: N 915045012100
055 N 915045012100 SEAL RING
Repalced by: N 007603012121
055 N 007603012121 SEAL RING
056 N 074298022203 DOUBLE FITTING
BETWEEN THE LINES
057 N 001593015500 CLAMP
Repalced by: A 3609950210
057 A 3609950210 CLAMP
057 A 3609950210 CLAMP
058 A 0004292101 LINE
BRASS
12 MM
A 0004292001 LINE
Repalced by: A 0005516156
A 0005516156 TUBE
AIR RESERVOIR,FOUR-CIRCUIT PROTECTIVE VALVE,BRAKE CYLINDER
12 MM
061 N 915017012100 UNION NUT
TO LINE
12 MM
064 N 003861012007 GLAND
Repalced by: A 0019901967
064 A 0019901967 SEAL CONE
067 A 0009905270 T-FITTING
Repalced by: A 0009905270
067 A 0009905270 T-FITTING
LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS

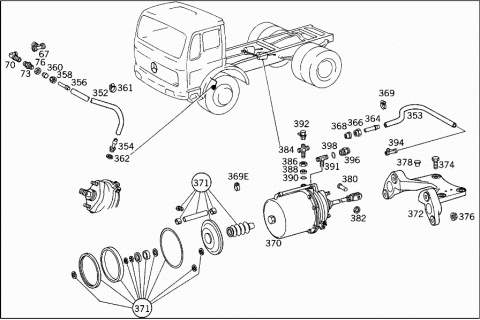

070 A 0029971472 FITTING
Repalced by: A 0049971772
070 A 0049971772 FITTING
Repalced by: A 0029906171
070 A 0029906171 FITTING
LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
073 N 003911012000 FITTING
Repalced by: A 0009907871
073 A 0009907871 ELBOW FITTING
LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
076 N 080705018002 NUT
LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
N 074298022203 DOUBLE FITTING
FITTING TO FRAME SIDE MEMBER
N 074298022203 DOUBLE FITTING
FITTING TO FRAME SIDE MEMBER
A 0019901871 ELBOW FITTING
FITTING TO FRAME SIDE MEMBER
A 0019901871 ELBOW FITTING
FITTING TO FRAME SIDE MEMBER
078 N 003940014201 BULKHEAD FITTING
080 N 074305022202 NUT
FITTING TO FRAME SIDE MEMBER
080 N 074305022202 NUT
FITTING TO FRAME SIDE MEMBER
086 A 3609950401 CLAMP
MOUNTING USED FOR COMPRESSED AIR LINES
087 A 3159955010 CLAMP
MOUNTING USED FOR COMPRESSED AIR LINES
N 001593013000 CLAMP
MOUNTING USED FOR COMPRESSED AIR LINES
089 N 000000001147 SCREW
MOUNTING USED FOR COMPRESSED AIR LINES
M 6X20
090 N 913004006002 NUT
Repalced by: N 913004006001
090 N 913004006001 NUT
MOUNTING USED FOR COMPRESSED AIR LINES
091 A 3464295940 BRACKET
Repalced by: A 3464296040
091 A 3464296040 BRACKET
MOUNTING USED FOR COMPRESSED AIR LINES
092 N 000933008147 SCREW
Repalced by: N 304017008021
092 N 304017008021 SCREW
MOUNTING USED FOR COMPRESSED AIR LINES
093 N 913004008004 NUT
Repalced by: N 913004008001
093 N 913004008001 NUT
MOUNTING USED FOR COMPRESSED AIR LINES
094 A 3464295840 BRACKET
Repalced by: A 3812950440
094 A 3144290240 BRACKET
Repalced by: A 3812950440
094 A 3812950440 BRACKET
MOUNTING USED FOR COMPRESSED AIR LINES
095 N 000933008147 SCREW
Repalced by: N 304017008021
095 N 304017008021 SCREW
MOUNTING USED FOR COMPRESSED AIR LINES
096 N 913004008004 NUT
Repalced by: N 913004008001
096 N 913004008001 NUT
MOUNTING USED FOR COMPRESSED AIR LINES
097 A 3634292740 BRACKET
MOUNTING USED FOR COMPRESSED AIR LINES
A 0009906670 T-FITTING
098E A 3529900071 ELBOW FITTING
098N A 0009904570 T-FITTING
099 A 0009971548 SEAL RING
099E A 0004290927 THRUST RING
099N N 080705016003 NUT
100 A 3609950201 CLAMP
Repalced by: A 3604300143
100 A 3604300143 CLAMP
Repalced by: N 916016008200
100 N 916016008200 CLAMP
MOUNTING USED FOR COMPRESSED AIR LINES
8 MM
103 A 3609950401 CLAMP
MOUNTING USED FOR COMPRESSED AIR LINES
12 MM
106 N 001593013000 CLAMP
MOUNTING USED FOR COMPRESSED AIR LINES
12 MM
109 A 3609950501 CLAMP
Repalced by: A 3609952001
109 A 3609952001 CLAMP
Repalced by: A 6739950001
109 A 6739950001 CLAMP
MOUNTING USED FOR COMPRESSED AIR LINES
15 MM
110 N 000000001147 SCREW
MOUNTING USED FOR COMPRESSED AIR LINES
M 6X20
111 N 000125006421 WASHER
MOUNTING USED FOR COMPRESSED AIR LINES
111E N 913004006002 NUT
Repalced by: N 913004006001
111E N 913004006001 NUT
MOUNTING USED FOR COMPRESSED AIR LINES
112 A 0089979082 HOSE
BRAKE VALVE,FOUR-CIRCUIT PROTECTIVE VALVE,RELAY VALVE
6X8 MM
112 A 0089979082 HOSE
BRAKE LINES TO FRAME
6X8 MM
115 N 040621008208 INSULATING HOSE
YELLOW
8 MM
118 N 915017008100 UNION NUT
121 N 003861008005 GLAND
123 A 0007630043 SLEEVE
Repalced by: N 915062006000
123 N 915062006000 SLEEVE
A 0109975982 HOSE
Repalced by: A 0009872827
A 0009872827 PLASTIC PIPE
AIR RESERVOIR,FOUR-CIRCUIT PROTECTIVE VALVE,BRAKE CYLINDER
9X12 MM
A 0009872827 PLASTIC PIPE
BRAKE VALVE,BRAKE POWER REGULATOR
9X12 MM
A 0049971772 FITTING
Repalced by: A 0029906171
A 0029906171 FITTING
(PARTS KIT),LINE RUPTURE
TO 010 997 59 82
N 915017012100 UNION NUT
N 003861012007 GLAND
Repalced by: A 0019901967
A 0019901967 SEAL CONE
A 0009921505 BUSHING
Repalced by: N 915062009000
N 915062009000 SLEEVE
126 N 915052006014 BANJO UNION
A 0009906688 BANJO UNION
Repalced by: N 915052006013
126 N 915052006013 BANJO UNION
126 N 915052009009 BANJO UNION
SPRING LOAD ACCUMULATOR CYLINDER
129 N 915036012203 HOLLOW SCREW
132 N 007603016401 SEAL RING
135 A 0019972672 FITTING
Repalced by: A 0039978972
135 A 0039978972 FITTING
Repalced by: A 0029905971
135 A 0029905971 FITTING
A 0009909970 T-FITTING
138 A 0089976082 HOSE
Repalced by: A 0009872627
138 A 0009872627 PLASTIC PIPE
3/2-WAY VALVE,PRESSURE GAUGE,EXHAUST BRAKE CYLINDER
4X6 MM
138 A 0009872627 PLASTIC PIPE
LOAD/NO-LOAD VALVE,TRUCK-TRACTOR BRAKE VALVE
4X6 MM
141 N 040621006204 INSULATING HOSE
AMBER
6 MM
143 A 0009903888 BANJO UNION
Repalced by: N 915052004006
143 N 915052004015 BANJO UNION
145 N 915039008202 HOLLOW SCREW FITTING
147 N 007603012405 SEAL RING
149 N 915017006100 UNION NUT
151 N 003861006007 GLAND
Repalced by: A 0019901667
151 A 0019901667 SEAL CONE
153 A 0009920205 BUSHING
Repalced by: N 915062004000
153 N 915062004000 SLEEVE
153 A 0009920105 BUSHING
Repalced by: N 915062004000
153 N 915062004000 SLEEVE
A 0019900170 T-FITTING
155 A 0039979172 FITTING
A 0019977590 LOOM TIE
Repalced by: A 0019978490
A 0019978590 LOOM TIE
Repalced by: A 0019978490
A 0019978490 LOOM TIE
A 0019977290 LOOM TIE
Repalced by: A 0019978390
156E A 0019978390 LOOM TIE
A 6204295240 BRACKET
AT CAB FLOOR
N 913004006002 NUT
Repalced by: N 913004006001
N 913004006001 NUT
AT CAB FLOOR
157 A 0014310006 PRESSURE REGULATOR
Repalced by: A 0024314906
157 A 0014310606 PRESSURE REGULATOR
Repalced by: A 0024313406
157 A 0024313406 PRESSURE REGULATOR
Repalced by: A 0024314306
157 A 0014313406 PRESSURE REGULATOR
Repalced by: A 0024314306
157 A 0024314306 PRESSURE REGULATOR
WITH TIRE INFLATING CONNECTION
BOSCH
A 0014311206 PRESSURE REGULATOR
Repalced by: A 0024314906
A 0024314906 PRESSURE REGULATOR
WITH TIRE INFLATING CONNECTION
WABCO
A 0024318306 PRESSURE REGULATOR
WITH TIRE INFLATING CONNECTION
KNORR
158 A 0015864343 REPAIR KIT
Repalced by: A 0004301107
158 A 0004301107 REPAIR KIT
TO 001 431 00 06,WABCO 975 300 110 0
A 0024304681 REPAIR KIT
VALVE KIT
TO 001 431 00 06,WABCO 975 300 110 0
A 0014304960 REPAIR KIT
TO 002 431 49 06,WABCO 975 303 460 0
A 0015868543 REPAIR KIT
Repalced by: A 0004301407
A 0004301407 REPAIR KIT
TO 001 431 06 06,BOSCH 0 481 039 101
A 0025866043 REPAIR KIT
TO 001 431 34 06,GRAU 312 017 014
A 0025866743 REPAIR KIT
TO 001 431 12 06,KNORR 3200
158C A 0004301768 REPAIR KIT
DIAPHRAGM
TO 002 431 34 06,BOSCH 0 481 039 221
158C A 0004301768 REPAIR KIT
DIAPHRAGM
TO 002 431 43 06,BOSCH 0 481 039 201
158D A 0004307960 REPAIR KIT
TIRE INFLATING CONNECTION
TO 002 431 34 06,BOSCH 0 481 039 221
158D A 0004307960 REPAIR KIT
TIRE INFLATING CONNECTION
TO 002 431 43 06,BOSCH 0 481 039 201
158E N 000931008251 SCREW
PRESSURE REGULATOR TO BRACKET
158N N 913004008004 NUT
Repalced by: N 913004008001
158N N 913004008001 NUT
PRESSURE REGULATOR TO BRACKET
159 N 007603022102 SEAL RING
AT PRESSURE REGULATOR
159 N 007603022102 SEAL RING
AT PRESSURE REGULATOR
A 0004310173 BREATHER PIPE
160 A 0004300170 MUFFLER
PRESSURE REGULATOR,CONNECTION:
"30"
N 916026020001 CLAMP
Repalced by: N 000000000667
N 000000000667 CLAMP
PRESSURE REGULATOR,CONNECTION:
"30"
160C N 916002035100 CLAMP
PRESSURE REGULATOR,CONNECTION:
"30"
N 916002020100 CLAMP
Repalced by: N 916026016001
N 916026016001 CLAMP
Repalced by: A 0059970190
A 0059970190 LOOM TIE
PRESSURE REGULATOR,CONNECTION:
"30"
160N A 0004310151 SPACER RING
A 0119971082 HOSE
Repalced by: A 0005461830
A 0005461830 INSULATING HOSE
PRESSURE REGULATOR,CONNECTION:
"30"
A 0159975082 HOSE
PRESSURE REGULATOR,CONNECTION "3"
24X1.5 MM
A 0019978390 LOOM TIE
PRESSURE REGULATOR,CONNECTION:
"30"
161 N 074313018201 FITTING
AT PRESSURE REGULATOR
163 N 074298022203 DOUBLE FITTING
AT PRESSURE REGULATOR
163 N 074298022203 DOUBLE FITTING
AT PRESSURE REGULATOR
163 N 074298022203 DOUBLE FITTING
AT PRESSURE REGULATOR
164 N 074301022203 ELBOW FITTING
AT PRESSURE REGULATOR
164D A 0009870446 SEALING CORD
AT PRESSURE REGULATOR
164L A 0004290227 THRUST RING
AT PRESSURE REGULATOR
164R N 074305022202 NUT
AT PRESSURE REGULATOR
A 0014311506 VALVE
Repalced by: A 0014315806
A 0014312006 VALVE
FOUR-CIRCUIT PROTECTIVE VALVE
KNORR
165 A 0014313006 VALVE
FOUR-CIRCUIT PROTECTIVE VALVE
WABCO
A 0014315806 VALVE
Repalced by: A 0024310606
A 0024310606 VALVE
FOUR-CIRCUIT PROTECTIVE VALVE
BOSCH
A 0014313906 VALVE
Repalced by: A 0024312806
A 0024312806 VALVE
Repalced by: A 0024319206
A 0024319206 VALVE
FOUR-CIRCUIT PROTECTIVE VALVE
GRAU
A 0014313806 VALVE
Repalced by: A 0024310406
A 0024310406 VALVE
FOUR-CIRCUIT PROTECTIVE VALVE
BOSCH
A 0014314706 VALVE
FOUR-CIRCUIT PROTECTIVE VALVE
WABCO
A 0014313506 VALVE
Repalced by: A 0014318406
A 0014318406 VALVE
FOUR-CIRCUIT PROTECTIVE VALVE
KNORR
A 0014316806 VALVE
Repalced by: A 0024312906
A 0024312906 VALVE
Repalced by: A 0024319306
A 0024319306 VALVE
FOUR-CIRCUIT PROTECTIVE VALVE
GRAU
A 0014310986 CUP
TO 002 431 04 06,06 06
A 0009934905 SPRING
Repalced by: A 0009935205
A 0009935205 SPRING
TO 002 431 04 06,06 06
A 0014311860 SEAL RING
34X2.3 MM,TO 001 431 68 06,39 06
A 0024298844 VALVE
TO 001 431 68 06,GRAU 37001,
Y YYYYYYYYYYYY PART NAME MISSING
001 431 39 06,GRAU 38001
A 0099972448 SEAL RING
19.3X2.4MM,TO 001 431 68 06 GRAU37001,
Y YYYYYYYYYYYY PART NAME MISSING
001 431 39 06, GRAU 38001
A 0059973248 SEAL RING
TO 001 431 68 06,001 431 39 06
A 0004313188 VALVE SEAT
TO 001 431 68 06 GRAU 37001,
Y YYYYYYYYYYYY PART NAME MISSING
001 431 39 06, GRAU 38001
A 0014311960 SEAL RING
Repalced by: A 0009971548
A 0009971548 SEAL RING
15X2MM, TO 001 431 68 06,001 431 39 06
Y YYYYYYYYYYYY PART NAME MISSING
GRAU 19001,23001
A 0004302906 GASKET KIT
BOOT
TO 002 431 04 06
A 0025863943 REPAIR KIT
BOOT
TO 001 431 15 06
A 0025864043 REPAIR KIT
SEAL RING
T0 001 431 15 06
A 0034300881 REPAIR KIT
TO 002 431 92 06 GRAU 61001
A 0015863842 REPAIR KIT
TO 001 431 20 06,001 431 35 06
A 0015865343 REPAIR KIT
Repalced by: A 0034300781
A 0034300781 REPAIR KIT
TO 001 431 30 06,WABCO NR. 1000
166 A 0025865942 REPAIR KIT
TO 001 431 30 06, WABCO NR. 3000
A 0004302268 REPAIR KIT
TO 001 431 30 06,WABCO NR.3400
A 0034300881 REPAIR KIT
TO 002 431 93 06 GRAU 74001
A 0025861743 REPAIR KIT
BOOT
TO 001 431 15 06,38 06,BOSCH
A 0034304681 GASKET KIT
SEAL RING
TO 001 431 58 06,BOSCH
A 0015868443 REPAIR KIT
SEAL RING
TO 001 431 38 06,BOSCH
A 0025862843 REPAIR KIT
TO 001 431 47 06,WABCO 2100
A 0004300468 REPAIR KIT
TO 001 431 47 06,WABCO 2210
A 0004303160 REPAIR KIT
TO 001 431 84 06
167 A 0009909671 ELBOW FITTING
Repalced by: A 0029901271
167 A 0029901271 ELBOW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"10"
169 N 074305022202 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"10"
171 A 0004290227 THRUST RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"10"
173 A 0009870446 SEALING CORD
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"10"
175 A 0029971572 FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
"11,21"
175 A 0029971572 FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
"11,12,21"
177 N 074313008104 FITTING
Repalced by: A 0029979572
177 A 0029979572 FITTING
179 N 007603016401 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
"11,12,21"
N 074315012100 FITTING
Repalced by: A 0019903371
A 0019903371 ELBOW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
"11,21"
A 0009970469 F-FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
"11,12"
A 0009971548 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
"11,12"
A 0004290927 THRUST RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
"11,12"
N 080705016003 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
"11,12"
180 N 074313012304 FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
180 N 074313012304 FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
181 N 080705018002 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
181 N 080705018002 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
A 0029971572 FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
"21,22"
N 003952012101 FITTING
Repalced by: A 0019902771
A 0019902771 ELBOW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
"21,22"
A 0004290927 THRUST RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
"21,22"
A 0009971548 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
"21,22"
N 000125019009 WASHER
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
182 A 0029972672 FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
183 A 0019979272 FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
184 N 080705016003 NUT
FOUR-CIRCUIT PROTECTIVE VALVE
186 A 0004290927 THRUST RING
FOUR-CIRCUIT PROTECTIVE VALVE
188 A 0009971548 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE
189B A 0009970386 PLUG
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"23"
189E N 915020018000 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"23"
188K A 0019905268 FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"23"
188N N 007603016401 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"23"
188P N 915039008202 HOLLOW SCREW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"23"
188S N 007603012405 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"23"
189K A 0004313313 VALVE
LOAD/NO-LOAD VALVE
189K A 0004313313 VALVE
LOAD/NO-LOAD VALVE
189K A 0004313213 VALVE
LOAD/NO-LOAD VALVE
A 0005867143 REPAIR KIT
TO 000 431 32 13
189N A 0005867843 REPAIR KIT
TO 000 431 33 13
189N A 0005867843 REPAIR KIT
TO 000 431 33 13
190A A 3895840421 GUIDE SIGN
LOAD-DEPENDING BRAKE
A 3895842521 GUIDE SIGN
LOAD-DEPENDING BRAKE
A 3895841721 GUIDE SIGN
LOAD-DEPENDING BRAKE
A 3895840321 GUIDE SIGN
LOAD-DEPENDING BRAKE
A 3895842221 GUIDE SIGN
LOAD-DEPENDING BRAKE
A 3895840121 GUIDE SIGN
LOAD-DEPENDING BRAKE
A 3875840055 ADHESIVE FOIL
LOAD-DEPENDING BRAKE
190B A 0004312031 TEST CONNECTION
AT BRAKE VALVE
VOSS
190B A 0004312031 TEST CONNECTION
AT BRAKE VALVE
VOSS
190B A 0004314831 TEST CONNECTION
AT RESERVOIR,BOTTOM
WABCO
190B A 0004314831 TEST CONNECTION
AT RESERVOIR,BOTTOM
WABCO
190B A 0004314531 TEST CONNECTION
AT BRAKE VALVE
SCHAEFER
190B A 0004314531 TEST CONNECTION
AT BRAKE VALVE
SCHAEFER
190B A 0004316131 TEST CONNECTION
AT BRAKE VALVE
WIRA
190B A 0004316131 TEST CONNECTION
AT BRAKE VALVE
WIRA
A 0009979486 PLUG
190C A 3874293240 BRACKET
LOAD/NO-LOAD VALVE
190C A 3874293240 BRACKET
LOAD/NO-LOAD VALVE
A 3914311040 BRACKET
Repalced by: A 3934310840
190D A 3934310840 BRACKET
LOAD/NO-LOAD VALVE
190E A 0029977372 FITTING
LOAD/NO-LOAD VALVE
190F N 080705018002 NUT
FITTING TO BRACKET
190H N 000933008150 SCREW
Repalced by: N 304017008018
190H N 304017008018 SCREW
BRACKET TO SIDE MEMBER
190K N 913004008004 NUT
Repalced by: N 913004008001
190K N 913004008001 NUT
BRACKET TO SIDE MEMBER
190L N 000933008153 SCREW
Repalced by: N 304017008034
190L N 304017008034 SCREW
LOAD/NO-LOAD VALVE
190L N 304017008034 SCREW
LOAD/NO-LOAD VALVE
190M N 913004008004 NUT
Repalced by: N 913004008001
190M N 913004008001 NUT
LOAD/NO-LOAD VALVE
190M N 913004008001 NUT
LOAD/NO-LOAD VALVE
N 003952012101 FITTING
Repalced by: A 0019902771
A 0019902771 ELBOW FITTING
A 0004294238 ELBOW FITTING
192 N 074315012100 FITTING
Repalced by: A 0019903371
192 A 0019903371 ELBOW FITTING
192 A 0019903371 ELBOW FITTING
193 A 0019903071 ELBOW FITTING
FOR LINE CONNECTION
194 N 074317012201 FITTING
Repalced by: A 0009905070
194 A 0009905070 T-FITTING
CONNECTIONS "V1" & "V2" TO BRAKE VALVE
195 A 3529900071 ELBOW FITTING
FOR LINE CONNECTION
195 A 3529900071 ELBOW FITTING
FOR LINE CONNECTION
195 A 3529900071 ELBOW FITTING
FOR LINE CONNECTION
N 074313006101 FITTING
Repalced by: A 0029978172
A 0029978172 FITTING
FOR LINE CONNECTION
195E A 0009904570 T-FITTING
FOR LINE CONNECTION
195E A 0009904570 T-FITTING
FOR LINE CONNECTION
196 A 0009971548 SEAL RING
FOR LINE CONNECTION
196 A 0009971548 SEAL RING
FOR LINE CONNECTION
198 A 0004290927 THRUST RING
FOR LINE CONNECTION
198 A 0004290927 THRUST RING
FOR LINE CONNECTION
200 N 080705016003 NUT
FOR LINE CONNECTION
200 N 080705016003 NUT
FOR LINE CONNECTION
202 N 000908016001 SCREW PLUG
204 N 007603016401 SEAL RING
206 A 3874311140 BRACKET
NO-LOAD/LOAD VALVE
N 000933008152 SCREW
Repalced by: N 304017008027
N 304017008027 SCREW
NO-LOAD/LOAD VALVE TO BRACKET
N 304017008027 SCREW
NO-LOAD/LOAD VALVE TO BRACKET
207 N 000933008160 SCREW
Repalced by: N 304017008040
207 N 304017008040 SCREW
Repalced by: N 910105008010
207 N 910105008010 SCREW
Repalced by: N 910143008005
207 N 910143008005 SCREW
BRACKET TO SIDE MEMBER
208 N 913004008004 NUT
Repalced by: N 913004008001
208 N 913004008001 NUT
BRACKET TO SIDE MEMBER
208 N 913004008001 NUT
BRACKET TO SIDE MEMBER
A 0029970736 VALVE
Repalced by: A 0004202755
209 A 0004202755 BLEEDER VALVE
209 A 0004202755 BLEEDER VALVE
210 N 000908012003 SCREW PLUG
Repalced by: N 000908012009
210 N 000908012009 SCREW PLUG
TO LOCK T-FITTING
210 N 000908012009 SCREW PLUG
TO LOCK T-FITTING
211 N 007603012405 SEAL RING
TO LOCK T-FITTING
211 N 007603012405 SEAL RING
TO LOCK T-FITTING
212 N 000933006124 SCREW
VALVE TO BRACKET
212 N 000933006124 SCREW
VALVE TO BRACKET
213 N 913004006002 NUT
Repalced by: N 913004006001
213 N 913004006001 NUT
VALVE TO BRACKET
213 N 913004006001 NUT
VALVE TO BRACKET
A 0014298644 VALVE
Repalced by: A 0024294344
A 0024291344 VALVE
Repalced by: A 0024294844
218 A 0024294344 VALVE
OVERFLOW VALVE
218R A 0004300268 REPAIR KIT
OVERFLOW VALVE
TO 002 429 43 44
218R A 0015862642 REPAIR KIT
OVERFLOW VALVE
TO 002 429 48 44,002 429 13 44
A 0024294844 VALVE
OVERFLOW VALVE
220 N 080705016003 NUT
AT OVERFLOW VALVE
222 A 0004290927 THRUST RING
AT OVERFLOW VALVE
224 A 0009971548 SEAL RING
AT OVERFLOW VALVE
N 074317012200 FITTING
Repalced by: A 0009907470
A 0009907470 T-FITTING
AT OVERFLOW VALVE
226 A 0029973572 FITTING
AT OVERFLOW VALVE
A 0029971572 FITTING
AT OVERFLOW VALVE

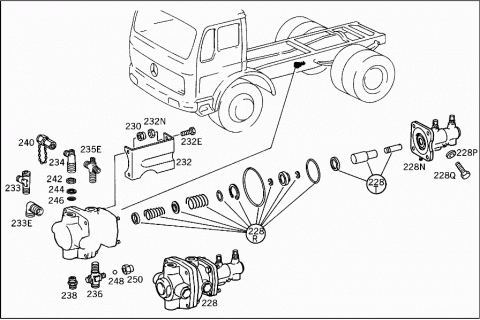

228 A 0014313505 BRAKE VALVE
WABCO-TEVES
A 0014314305 BRAKE VALVE
BOSCH-TEVES
A 0014319405 BRAKE VALVE
WABCO-SCHAEFER
A 0024310505 BRAKE VALVE
BOSCH-SCHAEFER
A 0004310378 RUBBER RING
TO 001 431 43 05,002 431 05 05
A 0049970248 SEAL RING
A 0004312181 VALVE DISC
Repalced by: A 0004312781
A 0004312781 VALVE DISC
TO 001 431 43 05
A 0004318986 CUP
A 0004312281 VALVE DISC
A 0109974248 SEAL RING
TO 001 431 43 05
A 0109974348 SEAL RING
Repalced by: A 0049970248
A 0049970248 SEAL RING
TO 002 431 05 05
A 0059975248 SEAL RING
TO 001 431 43 05,002 431 05 05
A 0059975348 SEAL RING
TO 001 431 43 05,002 431 05 05
A 0059975448 SEAL RING
TO 001 431 43 05,002 431 05 05
A 0049979148 SEAL RING
TO 001 431 43 05,002 431 05 05
A 0059975548 SEAL RING
TO 001 431 43 05,002 431 05 05
A 0002960107 SLAVE CYLINDER
Repalced by: A 0074202118
228N A 0074202118 WHEEL BRAKE CYLINDER
TO 001 431 35 05,001 431 43 05,TEVES
A 0064201518 WHEEL BRAKE CYLINDER
SLAVE CYLINDER
TO 001 431 94 05,002 431 05 05
228P N 007603006108 SEAL RING
TO 000 296 01 07
228Q A 0004310871 SCREW
TO 000 296 01 07
A 0004204155 BLEEDER VALVE
Repalced by: A 0004310265
A 0004310265 VALVE
Repalced by: A 3075530107
A 3075530107 VALVE
A 0004202155 BLEEDER VALVE
Repalced by: A 0004310265
A 3164210187 PROTECTIVE CAP
Repalced by: A 0004210887
A 0004210887 PROTECTIVE CAP
Repalced by: A 0004217187
A 0004217187 PROTECTIVE CAP
Repalced by: A 0004210887
A 0004210887 PROTECTIVE CAP
A 0004212687 PROTECTIVE CAP
Repalced by: A 0004210887
228R A 0005868643 REPAIR KIT
COMPRESSED AIR CYLINDER
001 431 35 05,001 431 94 05
A 0025861343 REPAIR KIT
VALVE DISC
001 431 43 05,002 431 05 05
A 0025865742 REPAIR KIT
Repalced by: A 0004301109
A 0004301109 REPAIR KIT
FOOT OPERATED PARKING BRAKE; L.H.D.
TO 001 431 43 05,002 431 05 05
A 0005864029 REPAIR KIT
Repalced by: A 0005864829
228T A 0005864829 REPAIR KIT
SLAVE CYLINDER
000 296 01 07
A 0025862442 REPAIR KIT
SLAVE CYLINDER
TO 007 420 21 18
A 0025860942 REPAIR KIT
SLAVE CYLINDER
006 420 15 18
A 0025865542 REPAIR KIT
SLAVE CYLINDER
TO 006 420 15 18
230 N 913004008004 NUT
Repalced by: N 913004008001
230 N 913004008001 NUT
TRUCK-TRACTOR BRAKE VALVE TO BRACKET
232 A 3874311340 BRACKET
TRUCK-TRACTOR BRAKE VALVE
232E N 000933010128 SCREW
BRACKET TO BATTERY/APPARATUS SUPPORT
232N N 913004010008 NUT
Repalced by: N 910113010000
232N N 910113010000 NUT
BRACKET TO BATTERY/APPARATUS SUPPORT
N 074317012201 FITTING
Repalced by: A 0009905070
A 0009905070 T-FITTING
TWO-CIRCUIT BRAKE VALVE,CONNECTIONS:
"11,12"
233 A 0009904770 T-FITTING
TWO-CIRCUIT BRAKE VALVE,CONNECTIONS:
"11,12"
A 0029973572 FITTING
TWO-CIRCUIT BRAKE VALVE,CONNECTION:
"22"
A 0029979072 FITTING
TWO-CIRCUIT BRAKE VALVE,CONNECTION:
"22"
A 0029979072 FITTING
TWO-CIRCUIT BRAKE VALVE,CONNECTION:
"22"
233E A 0019903071 ELBOW FITTING
TWO-CIRCUIT BRAKE VALVE,CONNECTION:
"22"
234 A 0009906170 T-FITTING
TWO-CIRCUIT BRAKE VALVE,CONNECTION:
"22"
235E A 0029979072 FITTING
TWO-CIRCUIT BRAKE VALVE,CONNECTION:
"21"
236 N 074317012200 FITTING
Repalced by: A 0009907470
236 A 0009907470 T-FITTING
TWO-CIRCUIT BRAKE VALVE
A 0029971572 FITTING
TWO-CIRCUIT BRAKE VALVE
238 N 074317012201 FITTING
Repalced by: A 0009905070
238 A 0009905070 T-FITTING
TWO-CIRCUIT BRAKE VALVE
240 A 0004312031 TEST CONNECTION
CONNECTION "21"
VOSS
240 A 0004312031 TEST CONNECTION
CONNECTION:
"22"
240 A 0004312031 TEST CONNECTION
CONNECTIONS:
"21,22"
240 A 0004314531 TEST CONNECTION
CONNECTION "21"
SCHAEFER
240 A 0004314531 TEST CONNECTION
CONNECTION:
"22"
240 A 0004314531 TEST CONNECTION
CONNECTIONS:
"21,22"
240 A 0004314831 TEST CONNECTION
CONNECTION "21"
WABCO
240 A 0004314831 TEST CONNECTION
CONNECTION:
"22"
240 A 0004314831 TEST CONNECTION
CONNECTIONS:
"21,22"
240 A 0004316131 TEST CONNECTION
CONNECTION "21"
WIRA
240 A 0004316131 TEST CONNECTION
CONNECTION:
"22"
240 A 0004316131 TEST CONNECTION
CONNECTIONS:
"21,22"
A 0009979486 PLUG
242 N 080705016003 NUT
TWO-CIRCUIT BRAKE VALVE
244 A 0004290927 THRUST RING
TWO-CIRCUIT BRAKE VALVE
246 A 0009971548 SEAL RING
TWO-CIRCUIT BRAKE VALVE
A 3209970286 PLUG
Repalced by: A 3879970086
248 A 3879970086 PLUG
TWO-CIRCUIT BRAKE VALVE,CONNECTIONS:
"21,22"
250 N 915020014000 NUT
TWO-CIRCUIT BRAKE VALVE,CONNECTIONS:
"21,22"
A 0089979082 HOSE
BLEEDING
A 0019978390 LOOM TIE
BLEEDING
A 0004323201 RESERVOIR
Repalced by: A 0004324301
A 0004324301 RESERVOIR
Repalced by: A 0034321201
A 0034321201 RESERVOIR
20 L.

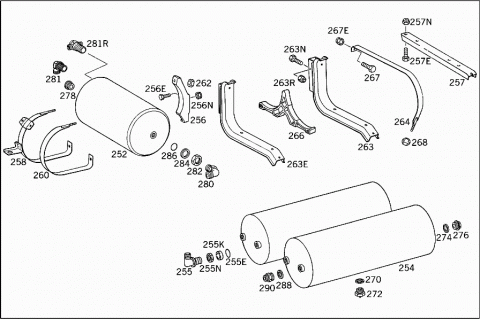

252 A 0004324801 RESERVOIR
Repalced by: A 0014327501
252 A 0014327501 RESERVOIR
Repalced by: A 0034321201
252 A 0034321201 RESERVOIR
20 L.
254 A 0004322601 RESERVOIR
Repalced by: A 0034321801
254 A 0034321801 RESERVOIR
30 L.
N 074313012100 FITTING
Repalced by: A 0029971172
A 0029971172 FITTING
AT AIR RESERVOIR
A 0029971172 FITTING
AT AIR RESERVOIR
N 074315012101 FITTING
Repalced by: A 0009907771
255 A 0009907771 ELBOW FITTING
AT AIR RESERVOIR
255 A 0009907771 ELBOW FITTING
AT AIR RESERVOIR
255 A 0009907771 ELBOW FITTING
AT AIR RESERVOIR
255 A 0009907771 ELBOW FITTING
AT AIR RESERVOIR
A 0009904670 T-FITTING
INSIDE AND OUTSIDE AIR RESERVOIRS, FRONT CONNECTION
A 0009903970 T-FITTING
Repalced by: A 0019901070
A 0019901070 T-FITTING
AT AIR RESERVOIR
A 0019901070 T-FITTING
AT AIR RESERVOIR
A 0009902687 CROSS FITTING
INSIDE AND OUTSIDE AIR RESERVOIRS, FRONT CONNECTION
A 0004312031 TEST CONNECTION
INSIDE AND OUTSIDE AIR RESERVOIRS, FRONT CONNECTION
A 0004314531 TEST CONNECTION
INSIDE AND OUTSIDE AIR RESERVOIRS, FRONT CONNECTION
A 0004314831 TEST CONNECTION
INSIDE AND OUTSIDE AIR RESERVOIRS, FRONT CONNECTION
A 0004316131 TEST CONNECTION
INSIDE AND OUTSIDE AIR RESERVOIRS, FRONT CONNECTION
A 0009979486 PLUG
A 0009970669 F-FITTING
AT AIR RESERVOIR
N 007603022102 SEAL RING
AT AIR RESERVOIR
N 007603022102 SEAL RING
AIR-RESERVOIR DRAIN
255E A 0009870446 SEALING CORD
AT AIR RESERVOIR
255K A 0004290227 THRUST RING
AT AIR RESERVOIR
255N N 074305022202 NUT
AT AIR RESERVOIR
256 A 3874320540 BRACKET
AIR RESERVOIR
256E N 000933008154 SCREW
Repalced by: N 304017008021
256E N 304017008021 SCREW
BRACKET TO BATTERY/APPARATUS SUPPORT
256N N 913004008004 NUT
Repalced by: N 913004008001
256N N 913004008001 NUT
BRACKET TO BATTERY/APPARATUS SUPPORT
A 3874320117 ANGLE
AIR RESERVOIR
N 000933008147 SCREW
Repalced by: N 304017008021
N 304017008021 SCREW
AIR RESERVOIR
N 913004008004 NUT
Repalced by: N 913004008001
N 913004008001 NUT
AIR RESERVOIR
A 3874320617 ANGLE
Repalced by: A 3874321917
257 A 3874321917 ANGLE
AIR RESERVOIR
257E N 000933010128 SCREW
AIR RESERVOIR
257N N 913004010008 NUT
Repalced by: N 910113010000
257N N 910113010000 NUT
AIR RESERVOIR
A 3874300240 STRAP
AIR RESERVOIR
258 A 3874300840 STRAP
AIR RESERVOIR
A 3874311240 BRACKET
AIR RESERVOIR
260 A 3874300640 STRAP
AIR RESERVOIR
262 N 000934010014 NUT
AIR RESERVOIR
A 3874303639 SUPPORT
30-LITER AIR RESERVOIR
263 A 3874300339 SUPPORT
30-LITER AIR RESERVOIR
A 3874303739 SUPPORT
263E A 3874300439 SUPPORT
30-LITER AIR RESERVOIR
263N N 308676012012 SCREW
SUPPORT TO FRAME SIDE MEMBER
N 912004012100 LOCK WASHER
SUPPORT TO FRAME SIDE MEMBER
263R N 910113012002 NUT
SUPPORT TO FRAME SIDE MEMBER
A 3874300440 STRAP
SUPPORT TO FRAME SIDE MEMBER
264 A 3874300740 STRAP
SUPPORT TO FRAME SIDE MEMBER
A 3874300540 STRAP
Repalced by: A 6204300040
A 6204300040 STRAP
SUPPORT TO FRAME SIDE MEMBER
A 3874320118 BASE
Repalced by: A 3854320218
266 A 3854320218 BASE
AIR RESERVOIR,STRAP
267 N 000933010150 SCREW
AIR RESERVOIR,STRAP
N 000436011004 WASHER
STRAP TO SUPPORT
267E N 913004010008 NUT
Repalced by: N 910113010000
267E N 910113010000 NUT
AIR RESERVOIR,STRAP
268 N 000934010014 NUT
AIR RESERVOIR,STRAP
N 308676012012 SCREW
STRAP TO SUPPORT
N 910113012002 NUT
STRAP TO SUPPORT
N 000934010014 NUT
STRAP TO SUPPORT
270 N 007603022102 SEAL RING
DRAIN VALVE
272 A 0004322407 VALVE
AIR RESERVOIR
A 0005830296 RING
DRAIN VALVE
TO 000 432 08 07
274 N 007603022102 SEAL RING
TO LOCK T-FITTING
276 N 000908022001 SCREW PLUG
Repalced by: N 000908022011
276 N 000908022011 SCREW PLUG
TO LOCK T-FITTING
278 N 000908022001 SCREW PLUG
Repalced by: N 000908022011
278 N 000908022011 SCREW PLUG
TO LOCK T-FITTING
N 074315012101 FITTING
Repalced by: A 0009907771
280 A 0009907771 ELBOW FITTING
280 A 0009907771 ELBOW FITTING
A 0029970772 FITTING
281 A 0009905871 ELBOW FITTING
281R A 0024295844 VALVE
CHECK
281R A 0024295944 VALVE
CHECK
281R A 0024297544 VALVE
CHECK
282 N 074305022202 NUT
284 A 0004290227 THRUST RING
286 A 0009870446 SEALING CORD
288 N 007603022102 SEAL RING
N 074313012100 FITTING
Repalced by: A 0029971172
290 A 0029971172 FITTING

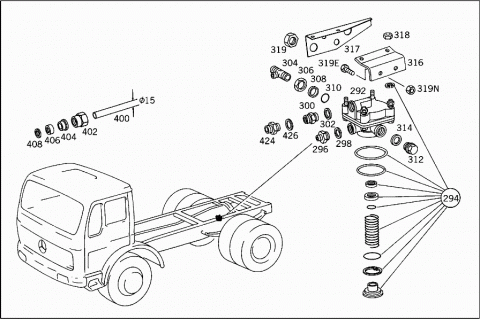

A 0014292044 VALVE
Repalced by: A 0034291644
A 0034291644 VALVE
RELAY VALVE
BOSCH
A 0024290744 VALVE
Repalced by: A 0034295344
A 0034295344 VALVE
RELAY VALVE
KNORR
A 0014299144 VALVE
RELAY VALVE
GRAU
292 A 0014296844 VALVE
RELAY VALVE
WABCO
A 0059972648 SEAL RING
22,3X2,4 MM,TO 001 429 91 44
A 0004312788 VALVE SEAT
TO 001 429 91 44
A 0059972748 SEAL RING
80X3 MM,TO 000 429 28 95, GRAU
A 0014311660 SEAL RING
28X2 MM,TO 001 429 91 44
A 0014311760 SEAL RING
86X2 MM,TO 001 429 91 44
A 0014311980 GASKET
Repalced by: A 0004311980
A 0004311980 GASKET
32X2X6 MM,TO 001 429 91 44
A 0015862742 REPAIR KIT
TO 001 429 20 44
294 A 0005865742 REPAIR KIT
TO 001 429 68 44
A 0025865642 REPAIR KIT
Repalced by: A 0004201071
A 0004201071 VALVE
GASKET KIT
TO 003 429 16 44; UP TO 03.82
A 0004201271 VALVE
GASKET KIT
TO 003 429 16 44; FROM 04.82
A 0025865742 REPAIR KIT
Repalced by: A 0004301109
A 0004301109 REPAIR KIT
BLEEDER VALVE
TO 003 429 16 44, 003 429 53 44
A 0025863542 REPAIR KIT
TO 002 429 07 44
296 N 074298022203 DOUBLE FITTING
A 0029971172 FITTING
RELAY VALVE,CONNECTION:
"10"
298 A 0009870446 SEALING CORD
RELAY VALVE,CONNECTION:
"10"
A 0004290227 THRUST RING
RELAY VALVE,CONNECTION:
"10"
300 A 0009970171 FITTING
RELAY VALVE,CONNECTION:
"40"
302 N 007603016401 SEAL RING
RELAY VALVE,CONNECTION:
"40"
304 N 074317012201 FITTING
Repalced by: A 0009905070
304 A 0009905070 T-FITTING
AT RELAY VALVE
306 N 080705016003 NUT
AT RELAY VALVE
308 A 0004290927 THRUST RING
AT RELAY VALVE
310 A 0009971548 SEAL RING
AT RELAY VALVE
312 N 000908016001 SCREW PLUG
AT RELAY VALVE
314 N 007603016401 SEAL RING
AT RELAY VALVE
316 A 3634311740 BRACKET
RELAY VALVE
317 A 3934290640 BRACKET
RELAY VALVE
A 3874292840 BRACKET
RELAY VALVE
318 N 913004008004 NUT
Repalced by: N 913004008001
318 N 913004008001 NUT
VALVE TO BRACKET
319 N 080705018002 NUT
BRAKE HOSE TO BRACKET
319E N 000933010105 SCREW
BRACKET TO LEFT SIDE MEMBER
319N N 913004010008 NUT
Repalced by: N 910113010000
319N N 910113010000 NUT
BRACKET TO LEFT SIDE MEMBER
A 0004316612 BRAKE PRESSURE REGULATOR
Repalced by: A 0014311412
320 A 0014311412 BRAKE PRESSURE REGULATOR
320E A 0005866843 REPAIR KIT
TO 000 431 66 12
A 0025867343 REPAIR KIT
TO 001 431 14 12
A 0004290641 FITTING
A 0019979172 FITTING
FOR LINE CONNECTION
A 0019979172 FITTING
FOR LINE CONNECTION
A 0029971172 FITTING
FOR LINE CONNECTION
A 0009904670 T-FITTING
321 A 0009907771 ELBOW FITTING
N 074317012200 FITTING
Repalced by: A 0009907470
A 0009907470 T-FITTING
FOR LINE CONNECTION
N 074315012100 FITTING
Repalced by: A 0019903371
A 0019903371 ELBOW FITTING
FOR LINE CONNECTION
321E A 0009870446 SEALING CORD
FOR LINE CONNECTION
A 0009971548 SEAL RING
FOR LINE CONNECTION
A 0004290927 THRUST RING
FOR LINE CONNECTION
321N A 0004290227 THRUST RING
FOR LINE CONNECTION
N 080705016003 NUT
FOR LINE CONNECTION
A 0029971572 FITTING
FOR LINE CONNECTION
321R N 074305022202 NUT
FOR LINE CONNECTION
N 007603016401 SEAL RING
FOR LINE CONNECTION
322 N 007603022102 SEAL RING
N 074313012100 FITTING
Repalced by: A 0029971172
324 A 0029971172 FITTING
BRAKE POWER REGULATOR
326 A 3874311540 BRACKET
BRAKE POWER REGULATOR
328 N 913004008004 NUT
Repalced by: N 913004008001
328 N 913004008001 NUT
BRACKET TO BRAKE POWER REGULATOR
329 N 000933010129 SCREW
Repalced by: N 304017010002
329 N 304017010002 SCREW
BRACKET TO SIDE MEMBER
N 000127010203 LOCK WASHER
Repalced by: N 912004010102
N 912004010102 LOCK WASHER
BRACKET TO SIDE MEMBER
329E N 913004010008 NUT
Repalced by: N 910113010000
329E N 910113010000 NUT
BRACKET TO SIDE MEMBER
A 3464315139 LEVER
Repalced by: A 3854310239
A 3464315239 LEVER
Repalced by: A 3854310239
A 0004311639 LEVER
Repalced by: A 3854310239
330 A 3854310239 LEVER
Repalced by: A 6204310839
330 A 6204310839 LEVER
Repalced by: A 6744310039
330 A 6744310039 LEVER
BRAKE POWER REGULATOR CONTROL
A 3464315592 ROD
Repalced by: N 900331008261
N 900331008419 PULL ROD
BRAKE POWER REGULATOR CONTROL
N 900331008419 PULL ROD
BRAKE POWER REGULATOR CONTROL
A 3464315192 ROD
Repalced by: N 900331008262
N 900331008262 PULL ROD
Repalced by: N 900331008420
N 900331008420 PULL ROD
BRAKE POWER REGULATOR CONTROL
N 900331008420 PULL ROD
BRAKE POWER REGULATOR CONTROL
332 A 3874310092 ROD
Repalced by: N 900331008262
334 A 0004310735 CONNECTOR
BRAKE POWER REGULATOR CONTROL
335 N 916026010000 CLAMP
Repalced by: N 000000000665
335 N 000000000665 CLAMP
CONNECTOR TO ROD
336 N 304032008006 NUT
CONNECTOR TO ROD
338 N 000125008418 WASHER
Repalced by: N 000125008443
338 N 000125008443 WASHER
CONNECTOR TO ROD
N 000094002063 COTTER PIN
Repalced by: N 000094002077
N 000094002077 COTTER PIN
CONNECTOR TO ROD
A 0004310518 METAL SPRING BELLOWS
Repalced by: A 0004311418
340 A 0004311418 METAL SPRING BELLOWS
Repalced by: A 0004311718
340 A 0004311718 METAL SPRING BELLOWS
BRAKE POWER REGULATOR CONTROL
342 A 3874311240 BRACKET
BRAKE POWER REGULATOR CONTROL
344 N 000933012039 SCREW
METAL SPRING BELLOWS TO BRACKET
344 N 000961012047 SCREW
METAL SPRING BELLOWS TO BRACKET
346 N 912004012100 LOCK WASHER
METAL SPRING BELLOWS TO BRACKET
348 A 3893250175 SCREW
Repalced by: N 914142016202
348 N 000961016077 SCREW
Repalced by: N 308676016006
348 N 308676016006 SCREW
BRACKET
350 N 000125017010 WASHER
Repalced by: N 000125017016
350 N 000125017016 WASHER
BRACKET
A 3874208336 LINE
Repalced by: A 3874299502
A 3874295401 LINE
Repalced by: A 3874299502
A 3874208436 LINE
Repalced by: A 3874299502
A 3874295401 LINE
Repalced by: A 3874299502
A 3874299502 LINE
Repalced by: A 3834290801
A 3834290801 LINE
Repalced by: A 6194290801
A 6194290801 LINE
Repalced by: A 6254293501
A 6254293501 LINE
WITH BEAD
352 N 916027011014 HOSE
FRONT AXLE I BRAKE CYLINDER,LEFT AND RIGHT
540 MM
353 A 0005516156 TUBE
FROM LEFT TRISTOP CYLINDER TO RIGHT TRISTOP CYLINDER
354 N 074304016201 FITTING
BRAKE HOSE
356 A 0004290541 FITTING
BRAKE HOSE
358 N 003870012104 UNION NUT
Repalced by: N 915017012100
358 N 915017012100 UNION NUT
BRAKE HOSE
360 N 003861012007 GLAND
Repalced by: A 0019901967
360 A 0019901967 SEAL CONE
BRAKE HOSE
361 N 916017016000 CLAMP
Repalced by: N 000000000666
361 N 000000000666 CLAMP
SERVICE BRAKE CONNECTION
362 N 007603016401 SEAL RING
O.D.,47.1 MM;REPAIR SIZE I
A 0009901387 CROSS FITTING
N 916027011014 HOSE
FROM RELAY VALVE TO SPRING-LOAD ACCUMULATOR CYLINDER
630 MM
N 916027011014 HOSE
FROM PIPE LINE TO FITTING AT TRISTOP CYLINDER
630 MM
364 A 0004290541 FITTING
FROM RELAY VALVE TO RIGHT TRISTOP CYLINDER
A 0004290641 FITTING
FROM RELAY VALVE TO RIGHT TRISTOP CYLINDER
A 0029970772 FITTING
FROM RELAY VALVE TO RIGHT TRISTOP CYLINDER
N 074304016201 FITTING
FROM RELAY VALVE TO RIGHT TRISTOP CYLINDER
366 N 003870012104 UNION NUT
Repalced by: N 915017012100
366 N 915017012100 UNION NUT
FROM RELAY VALVE TO RIGHT TRISTOP CYLINDER
368 N 003861012007 GLAND
Repalced by: A 0019901967
368 A 0019901967 SEAL CONE
FROM RELAY VALVE TO RIGHT TRISTOP CYLINDER
A 0039976881 GROMMET
A 3879970181 GROMMET
368E A 3549970081 GROMMET
LINE THRU FRAME
32/27 MM
A 3879970481 GROMMET
LINE THRU FRAME
38/30 MM
N 007603016401 SEAL RING
FOR LINE CONNECTION
A 0029970590 LOOM TIE
Repalced by: A 0009971190
A 0009971190 LOOM TIE
Repalced by: N 916018011000
369 N 916017011000 CLAMP
Repalced by: N 916017011001
369 N 000000000665 CLAMP
369E N 900288018006 CLAMP
A 0044203518 WHEEL BRAKE CYLINDER
Repalced by: A 0054209818
A 0054209818 WHEEL BRAKE CYLINDER
Repalced by: A 0064200218
370 A 0064200218 WHEEL BRAKE CYLINDER
TRISTOP CYLINDER
WABCO
370 A 0064203718 WHEEL BRAKE CYLINDER
TRISTOP CYLINDER
BOSCH
A 0004310728 DIAPHRAGM
DIAPHRAGM CYLINDER
TO 005 420 98 18
A 0004312728 DIAPHRAGM
Repalced by: A 0004314028
A 0004314028 DIAPHRAGM
TO 006 420 37 18
A 0003530191 BOOT
DIAPHRAGM CYLINDER
TO 005 420 98 18
A 0004233886 CUP
TO 006 420 37 18
A 0004210763 GUIDE
DIAPHRAGM CYLINDER
TO 005 420 98 18
A 0004211263 GUIDE
Repalced by: N 071752014000
N 071752014000 YOKE
TO 006 420 37 18
A 0015863042 REPAIR KIT
DIAPHRAGM CYLINDER
TO 005 420 98 18
A 0004301660 REPAIR KIT
SPRING LOAD ACCUMULATOR CYLINDER
TO 005 420 98 18
A 0014308660 REPAIR KIT
TRISTOP CYLINDER
TO 006 420 37 18,BOSCH
371 A 0015861042 REPAIR KIT
TO 004 420 35 18,005 420 98 18
A 0025865842 REPAIR KIT
CONVERSION KIT
372 A 3894230133 BEARING BRACKET
Repalced by: A 3634230033
372 A 3634230033 BEARING BRACKET
TRISTOP CYLINDER
374 A 3893250275 SCREW
Repalced by: N 914142016201
N 000961016036 SCREW
Repalced by: N 308676016013
N 308676016013 SCREW
BEARING BRACKET TO REAR AXLE
N 913013016001 NUT
TRISTOP CYLINDER TO BEARING BRACKET
376 N 913004016004 NUT
Repalced by: N 910113016002
376 N 910113016002 NUT
TRISTOP CYLINDER TO BEARING BRACKET
378 N 915042015000 PLUG
380 A 3619910005 PIN
AT TRISTOP CYLINDER
382 N 000433015005 WASHER
AT TRISTOP CYLINDER
N 000094004049 COTTER PIN
AT TRISTOP CYLINDER
384 A 0029973472 FITTING
SPRING LOAD ACCUMULATOR CYLINDER
A 0019905370 T-FITTING
SPRING LOAD ACCUMULATOR CYLINDER
N 074315012100 FITTING
Repalced by: A 0019903371
A 0019903371 ELBOW FITTING
SPRING LOAD ACCUMULATOR CYLINDER
A 0019903371 ELBOW FITTING
SPRING LOAD ACCUMULATOR CYLINDER
A 0019903371 ELBOW FITTING
SPRING LOAD ACCUMULATOR CYLINDER
N 915039012205 HOLLOW SCREW FITTING
SPRING LOAD ACCUMULATOR CYLINDER
386 N 080705016003 NUT
SPRING LOAD ACCUMULATOR CYLINDER
386 N 080705016003 NUT
SPRING LOAD ACCUMULATOR CYLINDER
388 A 0004290927 THRUST RING
SPRING LOAD ACCUMULATOR CYLINDER
388 A 0004290927 THRUST RING
SPRING LOAD ACCUMULATOR CYLINDER
390 A 0009971548 SEAL RING
SPRING LOAD ACCUMULATOR CYLINDER
390 A 0009971548 SEAL RING
SPRING LOAD ACCUMULATOR CYLINDER
A 0009909470 T-FITTING
SPRING LOAD ACCUMULATOR CYLINDER
391 A 0009904770 T-FITTING
SPRING LOAD ACCUMULATOR CYLINDER
N 915036012203 HOLLOW SCREW
SPRING LOAD ACCUMULATOR CYLINDER
N 007603016401 SEAL RING
SPRING LOAD ACCUMULATOR CYLINDER
392 A 0004312031 TEST CONNECTION
SPRING LOAD ACCUMULATOR CYLINDER
VOSS
392 A 0004314831 TEST CONNECTION
SPRING LOAD ACCUMULATOR CYLINDER
WABCO
392 A 0004316131 TEST CONNECTION
SPRING LOAD ACCUMULATOR CYLINDER
WIRA
392 A 0004314531 TEST CONNECTION
SPRING LOAD ACCUMULATOR CYLINDER
SCHAEFER
A 0009979486 PLUG
394 N 074317012300 FITTING
AT TRISTOP CYLINDER
396 A 0029971572 FITTING
AT TRISTOP CYLINDER
398 N 007603016401 SEAL RING
AT TRISTOP CYLINDER
A 0004290201 LINE
Repalced by: A 0005516256
400 A 0005516256 TUBE
FROM AIR RESERVOIR TO RELAY VALVE
15 MM
402 N 003872015100 UNION NUT
Repalced by: N 915018015000
402 N 915018015000 UNION NUT
404 N 003861015004 GLAND
406 N 915065015101 THRUST RING
A 0004292084 SEAL RING
Repalced by: N 915045012100
408 N 915045012100 SEAL RING
Repalced by: N 007603012121
408 N 007603012121 SEAL RING
410 A 0089979082 HOSE
PRESSURE GAUGE LINE
6X8 MM
412 N 040621008206 INSULATING HOSE
BLUE
8 MM
412 N 040621008207 INSULATING HOSE
RED
8 MM
414 N 915052006021 BANJO UNION
416 N 915017008100 UNION NUT
416 N 915017006100 UNION NUT
418 N 003861008005 GLAND
418 N 003861006007 GLAND
Repalced by: A 0019901667
418 A 0019901667 SEAL CONE
420 A 0007630043 SLEEVE
Repalced by: N 915062006000
420 N 915062006000 SLEEVE
A 0019976772 FITTING
Repalced by: N 915059006000
N 915059006002 FITTING
BETWEEN THE LINES
A 0009920205 BUSHING
Repalced by: N 915062004000
N 915062004000 SLEEVE
A 0009920105 BUSHING
Repalced by: N 915062004000
N 915062004000 SLEEVE

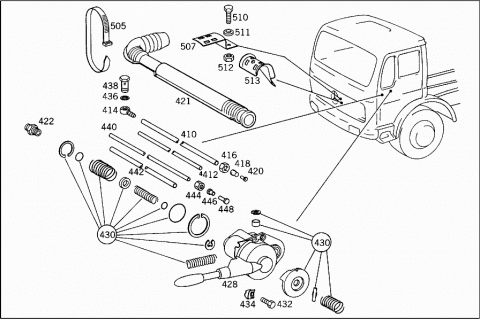

421 A 0004290086 PROTECTIVE TUBE
Repalced by: A 0004290286
421 A 0004290286 PROTECTIVE TUBE
N 003902008001 CONNECTION FITTING
Repalced by: A 0019972672
422 A 0019972672 FITTING
Repalced by: A 0039978972
422 A 0039978972 FITTING
Repalced by: A 0029905971
422 A 0029905971 FITTING
BETWEEN THE LINES
424 A 0009971772 FITTING
Repalced by: A 0009970171
424 A 0009970171 FITTING
PLASTIC LINE TO RELAY VALVE
426 N 007603022102 SEAL RING
PLASTIC LINE TO RELAY VALVE
A 0019978590 LOOM TIE
Repalced by: A 0019978490
A 0019978490 LOOM TIE
PLASTIC LINES TO FRAME
428 A 0004305581 VALVE
HAND BRAKE VALVE
WABCO
428 A 0004306681 VALVE
HAND BRAKE VALVE
KNORR
428 A 0004305681 VALVE
HAND BRAKE VALVE
WABCO
428 A 0004306781 VALVE
HAND BRAKE VALVE
KNORR
A 0005868043 REPAIR KIT
Repalced by: A 0004305760
A 0004305760 REPAIR KIT
TO 000 430 55 81, WABCO
430 A 0005868143 REPAIR KIT
Repalced by: A 0004305860
430 A 0004305860 REPAIR KIT
TO 000 430 56 81,NR.1120 WABCO
A 0025866243 REPAIR KIT
Repalced by: A 0034303881
A 0034303881 REPAIR KIT
TO 000 430 66 81,000 431 67 81,KNORR
N 000963006024 SCREW
A 3874310684 SHIM
VALVE TO CAB
432 N 000965006003 SCREW
VALVE TO CAB
N 000965006000 SCREW
VALVE TO CAB
434 A 0009907191 NUT RETAINER
Repalced by: A 3229900091
434 A 3229900091 NUT RETAINER
436 N 007603014405 SEAL RING
CONNECTION TO VALVE
438 N 915036010204 HOLLOW SCREW
Repalced by: N 915036010108
438 N 915036010108 HOLLOW SCREW
CONNECTION TO VALVE
440 A 0089976082 HOSE
Repalced by: A 0009872627
440 A 0009872627 PLASTIC PIPE
BLACK
6X4 MM
442 N 040621006203 INSULATING HOSE
RED
6 MM
444 N 915017006100 UNION NUT
446 N 003861006007 GLAND
Repalced by: A 0019901667
446 A 0019901667 SEAL CONE
A 0009920205 BUSHING
Repalced by: N 915062004000
N 915062004000 SLEEVE
448 A 0009920105 BUSHING
Repalced by: N 915062004000
448 N 915062004000 SLEEVE
460 A 0004340501 VALVE
Repalced by: A 0004342301
460 A 0004342001 VALVE
Repalced by: A 0004342301
460 A 0004342301 VALVE
OPERATING VALVE
WABCO
A 0004341001 VALVE
Repalced by: A 0004342101
A 0004342101 VALVE
OPERATING VALVE
BOSCH
461 A 0009971977 HANDLE
TO 000 434 23 01
461M A 0004340586 CUP
TO 000 434 23 01
A 0079972448 SEAL RING
TO 000 434 23 01
A 0079972548 SEAL RING
TO 000 434 23 01
A 0004340386 CUP
Repalced by: A 0004340486
A 0004340486 CUP
TO 000 434 10 01
A 0004340650 BUSHING
TO 000 434 10 01
A 0059979248 SEAL RING
TO 000 434 21 01
A 0014315193 SPRING
TO 000 434 21 01
A 0004314034 STRAINER
TO 000 434 21 01
462 A 0025869843 REPAIR KIT
TO 000 434 23 01
A 0015867043 REPAIR KIT
TO 000 434 10 01
A 0015868743 REPAIR KIT
TO 000 434 10 01
462 A 0005869743 REPAIR KIT
TO 000 434 05 01,000 434 20 01
A 0025865343 REPAIR KIT
TO 000 434 21 01
464 A 3634310060 SEAL RING
465 N 000137027201 SPRING WASHER
VALVE TO CAB
466 N 074305026202 NUT
VALVE TO CAB
A 3933280065 PIPE SOCKET
Repalced by: A 4063580065
A 4063580065 BREATHER
Repalced by: A 3933280065
A 3933280065 PIPE SOCKET
3/2-WAY VALVE;CONNECTION:
"3"
467 N 915039008202 HOLLOW SCREW FITTING
CONNECTION:
"1"
468 N 007603012405 SEAL RING
3/2-WAY VALVE;CONNECTION:
"1,2"
A 0009971572 FITTING
Repalced by: A 0019972572
A 0019972572 FITTING
3/2-WAY VALVE;CONNECTION:
"2"
A 0019902570 T-FITTING
CONNECTION:
"2"
A 0019875046 SEALING CORD
CONNECTION:
"2"
473 A 0004290827 THRUST RING
CONNECTION "2"
"2"
473E N 080705012003 NUT
CONNECTION "2"
473H N 003901008101 SCREW-IN FITTING
N 074298012202 DOUBLE FITTING
Repalced by: A 0019972872
473M A 0019972872 FITTING
Repalced by: A 0039979072
473M A 0039979072 FITTING
Repalced by: A 0029906071
473M A 0029906071 FITTING
474 A 0089979082 HOSE
FROM OPERATING VALVE TO CONNECTION FITTING
6 X 8 MM
476 N 040621008207 INSULATING HOSE
RED
8 MM
478 N 915017008100 UNION NUT
480 N 003861008005 GLAND
482 A 0007630043 SLEEVE
Repalced by: N 915062006000
482 N 915062006000 SLEEVE
484 A 0009906688 BANJO UNION
Repalced by: N 915052006013
484 N 915052006013 BANJO UNION
N 915052006021 BANJO UNION
A 0009903888 BANJO UNION
Repalced by: N 915052004006
N 915052004015 BANJO UNION
486 A 0089976082 HOSE
Repalced by: A 0009872627
486 A 0009872627 PLASTIC PIPE
FROM OPERATING VALVE TO CONNECTION FITTING
6X4 MM
488 N 040621006204 INSULATING HOSE
YELLOW
6 MM
N 040621006203 INSULATING HOSE
RED
6 MM
490 A 3229971581 GROMMET
LINE THRU FRAME
A 3549970081 GROMMET
LINE THRU FRAME
32/27 MM
A 0019900170 T-FITTING
N 003902006001 CONNECTION FITTING
Repalced by: A 0039979172
A 0039979172 FITTING
FROM DOUBLE FITTING TO TWO-WAY VALVE
493 A 0019973572 FITTING
Repalced by: N 915059004000
493 N 915059004001 FITTING
FROM DOUBLE FITTING TO TWO-WAY VALVE
A 0029979872 FITTING
496 N 915017006100 UNION NUT
499 N 003861006007 GLAND
Repalced by: A 0019901667
499 A 0019901667 SEAL CONE
A 0009920205 BUSHING
Repalced by: N 915062004000
N 915062004000 SLEEVE
502 A 0009920105 BUSHING
Repalced by: N 915062004000
502 N 915062004000 SLEEVE
A 0007630043 SLEEVE
Repalced by: N 915062006000
N 915062006000 SLEEVE
N 073379006203 HOSE
6 MM
A 0019977290 LOOM TIE
Repalced by: A 0019878390
505 A 0019978390 LOOM TIE
A 0019977490 LOOM TIE
Repalced by: A 0019978490
A 0019978490 LOOM TIE
507 A 3874291140 BRACKET
PLASTIC LINES TO FRAME
A 3874291440 BRACKET
AT TRANSMISSION
509 A 3274925419 BRACKET
Repalced by: A 6205240340
509 A 6205240340 BRACKET
AT TRANSMISSION
510 N 000933008147 SCREW
Repalced by: N 304017008021
510 N 304017008021 SCREW
BRACKET TO BUMPER STRUT
511 N 000125008418 WASHER
Repalced by: N 000125008443
511 N 000125008443 WASHER
BRACKET TO BUMPER STRUT
512 N 913004008004 NUT
Repalced by: N 913004008001
512 N 913004008001 NUT
BRACKET TO BUMPER STRUT
513 A 3874292540 BRACKET
BUMPER,LEFT
A 3874292640 BRACKET
BUMPER,RIGHT
A 3874291540 BRACKET
PRESSURE GAUGE LINE TO CAB
A 3874292740 BRACKET
PRESSURE GAUGE LINE TO CAB
517 A 3874296340 BRACKET
PLASTIC LINES TO FRAME
518 A 3274925419 BRACKET
Repalced by: A 6205240340
518 A 6205240340 BRACKET
BRACKET TO FRONT CROSS MEMBER
519 N 000933008153 SCREW
Repalced by: N 304017008034
519 N 304017008034 SCREW
BRACKET TO FRONT CROSS MEMBER
520 N 007349008004 WASHER
BRACKET TO FRONT CROSS MEMBER
521 N 912004008102 LOCK WASHER
BRACKET TO FRONT CROSS MEMBER
522 N 913004008004 NUT
Repalced by: N 913004008001
522 N 913004008001 NUT
BRACKET TO FRONT CROSS MEMBER
525 A 3464295840 BRACKET
Repalced by: A 3812950440
525 A 3144290240 BRACKET
Repalced by: A 3812950440
525 A 3812950440 BRACKET
COMPRESSED AIR LINE MOUNTING
528 A 3604312640 BRACKET
COMPRESSED AIR LINE MOUNTING
N 000933008147 SCREW
Repalced by: N 304017008021
N 304017008021 SCREW
COMPRESSED AIR LINE MOUNTING
N 913004008004 NUT
Repalced by: N 913004008001
N 913004008001 NUT
COMPRESSED AIR LINE MOUNTING
A 3609950401 CLAMP
COMPRESSED AIR LINE MOUNTING
A 3609950501 CLAMP
Repalced by: A 3609952001
A 3609952001 CLAMP
Repalced by: A 6739950001
A 6739950001 CLAMP
COMPRESSED AIR LINE MOUNTING
N 000000001147 SCREW
COMPRESSED AIR LINE MOUNTING
M 6X20
N 913004006002 NUT
Repalced by: N 913004006001
N 913004006001 NUT
COMPRESSED AIR LINE MOUNTING
A 0004294137 DISTRIBUTOR
Repalced by: A 0004294037
535 A 0004294037 DISTRIBUTOR
535 A 0004294037 DISTRIBUTOR
535E N 000931006084 SCREW
Repalced by: N 304017006027
535E N 304017006027 SCREW
DISTRIBUTOR TO FRAME
535N N 009021006205 WASHER
Repalced by: N 009021006208
535N N 009021006208 WASHER
DISTRIBUTOR TO FRAME
535R N 913004006002 NUT
Repalced by: N 913004006001
535R N 913004006001 NUT
DISTRIBUTOR TO FRAME
A 0009903563 HOLLOW SCREW
Repalced by: N 915047008100
536 N 915047008202 HOLLOW SCREW
N 000933008161 SCREW
Repalced by: N 304017008028
N 304017008028 SCREW
N 009021008205 WASHER
Repalced by: N 009021008213
N 009021008213 WASHER
N 913004008004 NUT
Repalced by: N 913004008001
N 913004008001 NUT
538 N 007603012405 SEAL RING
AT DISTRIBUTOR
541 N 003901008001 SCREW-IN FITTING
Repalced by: A 0019972572
541 A 0019972572 FITTING
AT DISTRIBUTOR
544 N 000908012003 SCREW PLUG
Repalced by: N 000908012009
544 N 000908012009 SCREW PLUG
AT DISTRIBUTOR
547 N 915011008103 HOLLOW SCREW
Repalced by: N 915036010100
547 N 915036010204 HOLLOW SCREW
Repalced by: N 915036010108
547 N 915036010108 HOLLOW SCREW
AT DISTRIBUTOR
550 A 0004294237 DISTRIBUTOR
A 0009907990 T-FITTING
A 0019902970 T-FITTING
553 A 3604280243 ANGLE
A 0029974890 LOOM TIE
MOUNTING USED FOR COMPRESSED AIR LINES
556 A 3874200086 BRACKET
FITTING TO FIRE WALL
A 3874200986 BRACKET
556E A 3874201186 BRACKET
FITTING TO FIRE WALL
A 3874296140 BRACKET
557 N 000000001147 SCREW
BRACKET TO BRACKET
M 6X20
557E N 913004006002 NUT
Repalced by: N 913004006001
557E N 913004006001 NUT
BRACKET TO BRACKET
N 000961012097 SCREW
Repalced by: N 308676012026
N 308676012026 SCREW
BRACKET TO CROSS MEMBER
12X35 MM
N 000961012122 SCREW
BRACKET TO CROSS MEMBER
12X40 MM
N 910113012002 NUT
BRACKET TO CROSS MEMBER
N 000961012122 SCREW
BRACKET TO SPRING BRACKET
N 910113012002 NUT
BRACKET TO SPRING BRACKET
A 0019978390 LOOM TIE
A 0019978490 LOOM TIE
559 A 0004290701 LINE
Repalced by: A 0004296201
559 A 0004296201 LINE
FROM FITTING TO POWER CYLINDER
6 MM
562 N 915017006100 UNION NUT
565 N 003861006007 GLAND
Repalced by: A 0019901667
565 A 0019901667 SEAL CONE
Reklama
Kontaktai
Pasiūlymas
Skaitliukas



© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
