Transporto priemonė: 1926 K; VIN numerio dalis: 389044

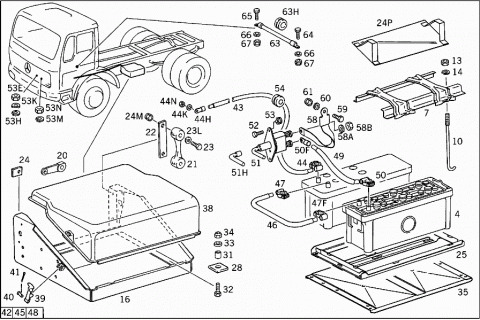

Grupė: 54 ELECTRICAL EQUIPMENT AND INSTRUMENTS
| # | Kodas | Pavadinimas |
|---|---|---|
| A 0005418001 | BATTERY | |
| Repalced by: A 3875400801 | ||
| 004 | A 3875400801 | BATTERY |
| Repalced by: A 0035410101 | ||
| 004 | A 0035410101 | BATTERY |
| Repalced by: A 0035411801 | ||
| 004 | A 0035411801 | BATTERY |
| Repalced by: A 0025412301 | ||
| 004 | A 0025412301 | BATTERY |
| 12 V/135 AH | ||
| 007 | A 3148900063 | FRAME |
| BATTERY MOUNTING | ||
| 007 | A 3875400123 | MOUNTING FRAME |
| BATTERY MOUNTING | ||
| A 3875410124 | CLAMPING SCREW | |
| Repalced by: A 3875410424 | ||
| 010 | A 3875410424 | CLAMPING SCREW |
| BATTERY MOUNTING | ||
| 010 | A 3875410524 | CLAMPING SCREW |
| BATTERY MOUNTING | ||
| 013 | N 000934006007 | NUT |
| BATTERY MOUNTING | ||
| 014 | N 912004006102 | LOCK WASHER |
| BATTERY MOUNTING | ||
| 016 | A 3874300639 | SUPPORT |
| BATTERY | ||
| 016 | A 3874302239 | SUPPORT |
| BATTERY | ||
| 020 | A 3874310284 | SHIM |
| APPARATUS SUPPORT TO FRAME SIDE MEMBER | ||
| 021 | A 3874310384 | SHIM |
| APPARATUS SUPPORT TO FRAME SIDE MEMBER | ||
| 022 | A 3464315184 | SHIM |
| APPARATUS SUPPORT TO FRAME SIDE MEMBER | ||
| 022 | A 3464315184 | SHIM |
| APPARATUS SUPPORT TO FRAME SIDE MEMBER | ||
| 023 | N 000960014167 | SCREW |
| Repalced by: N 000961014064 | ||
| 023 | N 000961014064 | SCREW |
| APPARATUS SUPPORT TO FRAME SIDE MEMBER | ||
| 14X1.5X50 MM | ||
| 023 | N 000961014054 | SCREW |
| APPARATUS SUPPORT TO FRAME SIDE MEMBER | ||
| 14X1.5X45 MM | ||
| 023 | N 000961014054 | SCREW |
| APPARATUS SUPPORT TO FRAME SIDE MEMBER | ||
| 14X1.5X45 MM | ||
| 023 | N 000961014054 | SCREW |
| APPARATUS SUPPORT TO FRAME SIDE MEMBER | ||
| 14X1.5X45 MM | ||
| 023 | N 000961014028 | SCREW |
| APPARATUS SUPPORT TO FRAME SIDE MEMBER | ||
| 14X1.5X40 MM | ||
| 023 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 023 | N 308676014020 | SCREW |
| APPARATUS SUPPORT TO FRAME SIDE MEMBER | ||
| 14X1.5X35 MM | ||
| 023 | N 000960014249 | SCREW |
| APPARATUS SUPPORT TO FRAME SIDE MEMBER | ||
| 14X1.5X55 MM | ||
| 023 | N 000960014194 | SCREW |
| APPARATUS SUPPORT TO FRAME SIDE MEMBER | ||
| 14X1.5X60 MM | ||
| 023 | N 000960014194 | SCREW |
| APPARATUS SUPPORT TO FRAME SIDE MEMBER | ||
| 14X1.5X60 MM | ||
| 023 | N 000960014121 | SCREW |
| Repalced by: N 308676014014 | ||
| 023 | N 308676014014 | SCREW |
| APPARATUS SUPPORT TO FRAME SIDE MEMBER | ||
| 14X1.5X70 MM | ||
| 023 | N 308676014014 | SCREW |
| APPARATUS SUPPORT TO FRAME SIDE MEMBER | ||
| 14X1.5X70 MM | ||
| 023 | N 000960014244 | SCREW |
| APPARATUS SUPPORT TO FRAME SIDE MEMBER | ||
| 14X1.5X65 MM | ||
| 023 | N 000960014244 | SCREW |
| APPARATUS SUPPORT TO FRAME SIDE MEMBER | ||
| 14X1.5X65 MM | ||
| 023 | N 000960014245 | SCREW |
| APPARATUS SUPPORT TO FRAME SIDE MEMBER | ||
| 14X1.5X85 MM | ||
| 023 | N 000960014072 | SCREW |
| APPARATUS SUPPORT TO FRAME SIDE MEMBER | ||
| 14X1.5X105 MM | ||
| A 3874320426 | PLATE | |
| Repalced by: N 000125015013 | ||
| 023L | N 000125015013 | WASHER |
| Repalced by: N 000125015019 | ||
| 023L | N 000125015019 | WASHER |
| APPARATUS SUPPORT TO FRAME SIDE MEMBER | ||
| 024 | A 3614750019 | BASE |
| FOR AUXILIARY FRAME | ||
| 024 | A 3044750019 | BASE |
| FOR AUXILIARY FRAME | ||
| 024M | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 024M | N 910113014001 | NUT |
| APPARATUS SUPPORT TO FRAME SIDE MEMBER | ||
| 024P | A 3874200044 | PROTECTIVE PLATE |
| APPARATUS SUPPORT TO FRAME SIDE MEMBER | ||
| 025 | A 3875400218 | RAIL |
| BATTERY BASE FRAME | ||
| A 3875400418 | RAIL | |
| Repalced by: A 3875400818 | ||
| 025 | A 3875400818 | RAIL |
| BATTERY BASE FRAME | ||
| 028 | A 3855410136 | INSULATING PLATE |
| Repalced by: A 3855410236 | ||
| 028 | A 3855410236 | INSULATING PLATE |
| BATTERY BASE FRAME TO BATTERY/APPARATUS SUPPORT | ||
| 028 | A 3855410236 | INSULATING PLATE |
| BATTERY BASE FRAME TO BATTERY/APPARATUS SUPPORT | ||
| 031 | A 3859910040 | SPACER TUBE |
| BATTERY BASE FRAME TO BATTERY/APPARATUS SUPPORT | ||
| 032 | N 000931010282 | SCREW |
| BATTERY BASE FRAME TO BATTERY/APPARATUS SUPPORT | ||
| 033 | N 007349010003 | WASHER |
| Repalced by: N 007349010007 | ||
| 033 | N 007349010007 | WASHER |
| BATTERY BASE FRAME TO BATTERY/APPARATUS SUPPORT | ||
| 034 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 034 | N 910113010000 | NUT |
| BATTERY BASE FRAME TO BATTERY/APPARATUS SUPPORT | ||
| 035 | A 3875410002 | BATTERY CASE |
| 035 | A 3875410102 | BATTERY CASE |
| 035 | A 3875410202 | BATTERY CASE |
| 035 | A 3875410202 | BATTERY CASE |
| 038 | A 3854200044 | PROTECTIVE PLATE |
| AT SUPPORT | ||
| 038 | A 3854260465 | PROTECTIVE PLATE |
| AT SUPPORT | ||
| A 3125271717 | HOOD FASTENER | |
| Repalced by: A 3854261140 | ||
| 039 | A 3854261140 | BRACKET |
| Repalced by: A 3874260040 | ||
| 039 | A 3874260040 | BRACKET |
| 040 | A 3125271174 | PIN |
| BRACKET TO BATTERY CASE | ||
| 041 | N 000094001615 | COTTER PIN |
| BRACKET TO BATTERY CASE | ||
| 042 | A 3635400430 | POS.CABLE |
| Repalced by: N 072551070880 | ||
| 042 | A 3635400930 | POS.CABLE |
| Repalced by: N 072551070880 | ||
| 042 | A 3635400030 | POS.CABLE |
| Repalced by: N 072551070880 | ||
| 043 | N 072551070880 | ELECTRIC CABLE |
| Repalced by: N 922002070000 | ||
| 043 | N 922002070000 | ELECTRIC CABLE |
| Repalced by: A 6735460013 | ||
| 043 | A 6735460013 | ELECTRIC CABLE |
| FROM BATTERY TO STARTING MOTOR | ||
| 044 | N 072332013100 | SOLDERING TERMINAL |
| POS. POLE | ||
| 044H | N 046234010007 | CABLE SHOE |
| STARTING MOTOR | ||
| 044H | N 046234012006 | CABLE SHOE |
| STARTING MOTOR | ||
| 044K | N 912004010102 | LOCK WASHER |
| BATTERY CABLE TO STARTING MOTOR | ||
| 044K | N 912004012100 | LOCK WASHER |
| BATTERY CABLE TO STARTING MOTOR | ||
| 044N | N 000934010014 | NUT |
| BATTERY CABLE TO STARTING MOTOR | ||
| 044N | N 000934012021 | NUT |
| BATTERY CABLE TO STARTING MOTOR | ||
| 045 | A 3875400030 | POS.CABLE |
| Repalced by: N 072551070880 | ||
| 046 | N 072551070880 | ELECTRIC CABLE |
| Repalced by: N 922002070000 | ||
| 046 | N 922002070000 | ELECTRIC CABLE |
| Repalced by: A 6735460013 | ||
| 046 | A 6735460013 | ELECTRIC CABLE |
| FROM BATTERY I TO BATTERY II | ||
| 047 | N 072332013100 | SOLDERING TERMINAL |
| POS. POLE | ||
| 047F | N 072332013200 | SOLDERING TERMINAL |
| NEG.POLE | ||
| 048 | A 3875400031 | NEG. CABLE |
| Repalced by: N 072551070880 | ||
| 048 | A 3635400531 | NEG. CABLE |
| Repalced by: N 072551070880 | ||
| 048 | A 3605401131 | NEG. CABLE |
| Repalced by: N 072551070880 | ||
| 049 | N 072551070880 | ELECTRIC CABLE |
| Repalced by: N 922002070000 | ||
| 049 | N 922002070000 | ELECTRIC CABLE |
| Repalced by: A 6735460013 | ||
| 049 | A 6735460013 | ELECTRIC CABLE |
| FROM BATTERY TO BATTERY MASTER SWITCH | ||
| 049 | A 6735460013 | ELECTRIC CABLE |
| FROM BATTERY TO GROUND AT SIDE MEMBER | ||
| 050 | N 072332013200 | SOLDERING TERMINAL |
| NEG.POLE | ||
| 050F | A 0009881878 | CLIP |
| NEG. CABLE | ||
| 051 | A 0005452508 | SWITCH |
| Repalced by: A 0005458408 | ||
| 051 | A 0005458408 | SWITCH |
| BATTERY MASTER SWITCH | ||
| 051H | A 0005450536 | KEY |
| 052 | N 000933006121 | SCREW |
| Repalced by: N 304017006020 | ||
| 052 | N 304017006020 | SCREW |
| BATTERY MASTER SWITCH | ||
| 053 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 053 | N 913004006001 | NUT |
| BATTERY MASTER SWITCH | ||
| 053E | N 000934004006 | NUT |
| ALTERNATOR CONNECTION | ||
| 053E | N 304032005002 | NUT |
| Repalced by: N 304032005005 | ||
| 053E | N 304032005005 | NUT |
| ALTERNATOR BRANCH-OFF TO ALTERNATOR | ||
| 053E | N 000934006007 | NUT |
| ALTERNATOR BRANCH-OFF TO ALTERNATOR | ||
| 053H | N 912004004102 | LOCK WASHER |
| ALTERNATOR CONNECTION | ||
| 053K | N 000137005203 | SPRING WASHER |
| ALTERNATOR BRANCH-OFF TO ALTERNATOR | ||
| 053K | N 000137006204 | SPRING WASHER |
| ALTERNATOR BRANCH-OFF TO ALTERNATOR | ||
| 053M | N 912004006102 | LOCK WASHER |
| CABLE TO STARTING MOTOR,TERMINAL 50 | ||
| 053N | N 000934006007 | NUT |
| CABLE TO STARTING MOTOR,TERMINAL 50 | ||
| 054 | A 3549970081 | GROMMET |
| BATTERY CABLE THRU SIDE MEMBER | ||
| 32/27 MM | ||
| A 3315400141 | GROUND STRAP | |
| Repalced by: A 3145400041 | ||
| A 3875400041 | GROUND STRAP | |
| Repalced by: A 3145400041 | ||
| 058 | A 3145400041 | GROUND STRAP |
| Repalced by: A 3525400041 | ||
| 058 | A 3525400041 | GROUND STRAP |
| FROM STARTING MOTOR TO SIDE MEMBER | ||
| 058 | A 3525400041 | GROUND STRAP |
| FROM BATTERY MASTER SWITCH TO SIDE MEMBER | ||
| 058A | N 912004010102 | LOCK WASHER |
| GROUND STRAP TO STARTING MOTOR | ||
| 058B | N 000934010014 | NUT |
| GROUND STRAP TO STARTING MOTOR | ||
| 059 | N 000933010062 | SCREW |
| GROUND STRAP TO FRAME SIDE MEMBER | ||
| 059 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 059 | N 304017010002 | SCREW |
| GROUND STRAP TO FRAME | ||
| M 10X30 | ||
| 059 | N 000933010145 | SCREW |
| GROUND STRAP TO FRAME | ||
| M 10X35 | ||
| 060 | N 009021010202 | WASHER |
| Repalced by: N 009021010209 | ||
| 060 | N 009021010209 | WASHER |
| GROUND STRAP TO SIDE MEMBER | ||
| 061 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 061 | N 910113010000 | NUT |
| GROUND STRAP TO SIDE MEMBER | ||
| 063 | A 3835400231 | NEG. CABLE |
| Repalced by: A 6205402339 | ||
| 063 | A 6205402339 | NEG. CABLE |
| FROM FRAME CROSS MEMBER TO CAB | ||
| 063H | A 0009970581 | GROMMET |
| FROM FRAME CROSS MEMBER TO CAB | ||
| 064 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 064 | N 304017008034 | SCREW |
| GROUND CABLE TO FRAME CROSS MEMBER | ||
| 065 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 065 | N 304017008016 | SCREW |
| GROUND CABLE TO CAB | ||
| 066 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 066 | N 000125008443 | WASHER |
| GROUND CABLE | ||
| 067 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 067 | N 913004008001 | NUT |
| GROUND CABLE | ||
| 068 | A 3875420439 | PLATE |
| APPARATUS | ||
| 068 | A 3875420739 | PLATE |
| APPARATUS | ||
| 070 | N 007981004244 | SHEET METAL SCREW |
| Repalced by: N 000000000453 | ||
| 070 | N 000000000453 | SHEET METAL SCREW |
| APPARATUS PLATE TO WINDOW SILL | ||
| 071B | N 007985006193 | SCREW |
| Repalced by: N 000000001146 | ||
| 071B | N 000000001146 | SCREW |
| GROUND CABLE TO CAB WINDOW SILL | ||
| 071D | N 000125006421 | WASHER |
| GROUND CABLE TO CAB WINDOW SILL | ||
| 071E | N 912004006102 | LOCK WASHER |
| GROUND CABLE TO CAB WINDOW SILL | ||
| 072 | A 0005458501 | FUSE BOX |
| 12-POLE;TERMINALS 2-8;9-10;11-12 SHUNTED | ||
| 073 | A 0005458401 | FUSE BOX |
| 12-POLE; TERMINALS 1-2,3-8,9-12 SHUNTED | ||
| 075 | A 0005458134 | FUSE |
| Repalced by: N 072581005100 | ||
| 075 | N 072581005100 | FUSE |
| 5A | ||
| 075L | A 0005458234 | FUSE |
| Repalced by: N 072581008101 | ||
| 075L | N 072581008101 | FUSE |
| 8A | ||
| 076 | N 007985006154 | SCREW |
| Repalced by: A 0029903712 | ||
| 076 | A 0029903712 | SCREW |
| Repalced by: N 000000001149 | ||
| 076 | N 000000001149 | SCREW |
| FUSE BOX TO APPARATUS PLATE | ||
| 077 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 077 | N 913004006001 | NUT |
| FUSE BOX TO APPARATUS PLATE | ||
| 078 | A 0021540506 | REGULATOR AND CUT-OUT |
| TRANSISTOR | ||
| 078H | N 007985006193 | SCREW |
| Repalced by: N 000000001146 | ||
| 078H | N 000000001146 | SCREW |
| REGULATOR MOUNTING | ||
| 078M | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 078M | N 913004006001 | NUT |
| REGULATOR MOUNTING | ||
| 079 | A 0045456324 | SWITCH,AUTOMATIC |
| WIPER PULSE SENDER UNIT | ||
| 079 | A 0055451424 | SENDER UNIT |
| WIPER PULSE SENDER UNIT | ||
| 079 | A 0055450624 | SENDER UNIT |
| Repalced by: A 0225452532 | ||
| 079 | A 0225452532 | CONTROL UNIT |
| WIPER PULSE SENDER UNIT | ||
| 079 | A 0055451624 | SENDER UNIT |
| WIPER PULSE SENDER UNIT | ||
| 080E | N 007985006193 | SCREW |
| Repalced by: N 000000001146 | ||
| 080E | N 000000001146 | SCREW |
| SWITCH TO APPARATUS PLATE | ||
| 080F | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 080F | N 913004006001 | NUT |
| SWITCH TO APPARATUS PLATE | ||
| 081 | A 0025441432 | SENDER UNIT |
| Repalced by: A 0025446432 | ||
| 081 | A 0025446432 | SENDER UNIT |
| HAZARD WARNING LIGHT | ||
| 081 | A 0025442832 | SENDER UNIT |
| Repalced by: A 0025445932 | ||
| 081 | A 0025445932 | SENDER UNIT |
| HAZARD WARNING LIGHT | ||
| 081 | A 0025446732 | SENDER UNIT |
| Repalced by: A 0035440632 | ||
| 081 | A 0035440632 | SENDER UNIT |
| HAZARD WARNING LIGHT | ||
| 081F | A 0025445532 | SENDER UNIT |
| GEAR DISPLAY | ||
| 082E | N 007985006193 | SCREW |
| Repalced by: N 000000001146 | ||
| 082E | N 000000001146 | SCREW |
| SENDER UNIT TO APPARATUS PLATE | ||
| 082F | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 082F | N 913004006001 | NUT |
| SENDER UNIT TO APPARATUS PLATE | ||
| 083 | A 0005455405 | RELAY |
| Repalced by: A 0035459605 | ||
| 083 | A 0005458405 | RELAY |
| Repalced by: A 0035459605 | ||
| 083 | A 0035459605 | RELAY |
| GEAR DISPLAY | ||
| 083 | A 0035459605 | RELAY |
| GEAR CLUSTER INDICATION | ||
| 084C | A 3015400265 | RESISTOR |
| GEAR CLUSTER INDICATION | ||
| 084F | A 0025451128 | PIN BUSHING HOUSING |
| RESISTOR | ||

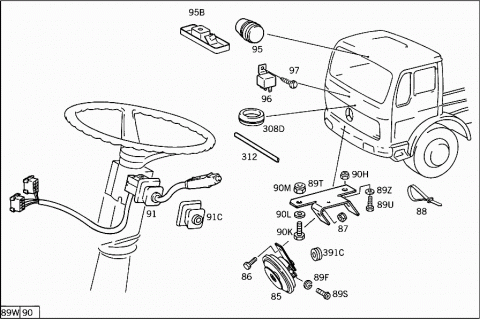

| 085 | A 0015426920 | HORN |
| Repalced by: A 0025428420 | ||
| 085 | A 0025428420 | HORN |
| Repalced by: A 0045423020 | ||
| 085 | A 0045423020 | HORN |
| HIGH NOTE | ||
| BOSCH | ||
| 085 | A 0025425720 | HORN |
| Repalced by: A 0025426820 | ||
| 085 | A 0025426820 | HORN |
| Repalced by: A 0045424520 | ||
| 085 | A 0045424520 | HORN |
| HIGH NOTE | ||
| HELLA | ||
| 085 | A 0035425420 | HORN |
| Repalced by: A 0025426820 | ||
| 085 | A 0015426820 | HORN |
| Repalced by: A 0025428320 | ||
| 085 | A 0025428320 | HORN |
| Repalced by: A 0045422920 | ||
| 085 | A 0045422920 | HORN |
| Repalced by: A 0045424420 | ||
| 085 | A 0045424420 | HORN |
| LOW NOTE | ||
| BOSCH | ||
| 085 | A 0025425620 | HORN |
| Repalced by: A 0025426720 | ||
| 085 | A 0025426720 | HORN |
| Repalced by: A 0045424420 | ||
| 085 | A 0045424420 | HORN |
| LOW NOTE | ||
| HELLA | ||
| 085 | A 0035425320 | HORN |
| Repalced by: A 0025426720 | ||
| 086 | N 000933010128 | SCREW |
| HORN TO BRACKET | ||
| 087 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 087 | N 910113010000 | NUT |
| HORN TO BRACKET | ||
| 088 | A 0019978490 | LOOM TIE |
| ELECTRIC CABLE TO HORN | ||
| 089F | N 912004004102 | LOCK WASHER |
| ELECTRIC CABLE TO HORN | ||
| 089S | N 007985004123 | SCREW |
| ELECTRIC CABLE TO HORN | ||
| 089T | A 3875421240 | BRACKET |
| Repalced by: A 6205420840 | ||
| 089T | A 6205420840 | BRACKET |
| HORN | ||
| 089T | A 3875401973 | BRACKET |
| HORN | ||
| 089U | N 000961014028 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 090 H | ||
| 089Z | N 000125015013 | WASHER |
| Repalced by: N 000125015019 | ||
| 089Z | N 000125015019 | WASHER |
| BRACKET TO CROSS MEMBER | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 091 | ||
| 090H | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 090H | N 910113014001 | NUT |
| BRACKET TO CROSS MEMBER | ||
| 090K | N 308676012012 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| 090L | N 000125013008 | WASHER |
| 090M | N 910113012002 | NUT |
| BRACKET TO CROSS MEMBER | ||
| 091 | A 0045454124 | SWITCH,AUTOMATIC |
| STEERING COLUMN MOUNTED | ||
| 091 | A 0045454224 | SWITCH,AUTOMATIC |
| Repalced by: A 0055451024 | ||
| 091 | A 0055451024 | SWITCH,AUTOMATIC |
| Repalced by: A 0055453824 | ||
| 091 | A 0055453824 | SWITCH,AUTOMATIC |
| Repalced by: A 0055455124 | ||
| 091 | A 0055455124 | SWITCH,AUTOMATIC |
| STEERING COLUMN MOUNTED | ||
| 091 | A 0045455324 | SWITCH,AUTOMATIC |
| Repalced by: A 0055451124 | ||
| 091 | A 0055451124 | SWITCH,AUTOMATIC |
| Repalced by: A 0055453924 | ||
| 091 | A 0055453924 | SWITCH,AUTOMATIC |
| Repalced by: A 0055455224 | ||
| 091 | A 0055455224 | STEERG.COLUMN MTD. SWITCH |
| STEERING COLUMN MOUNTED | ||
| 091C | A 6085450045 | BOOT |
| STEERING COLUMN MOUNTED SWITCH | ||
| A 0005421027 | WARNING INDICATOR | |
| Repalced by: A 0005421327 | ||
| A 0005421327 | WARNING INDICATOR | |
| Repalced by: A 0005422527 | ||
| 092 | A 0005422527 | WARNING INDICATOR |
| AIR CLEANER | ||
| 093 | A 3816890056 | RING |
| AIR CLEANER | ||
| 095 | A 0005421123 | BUZZER |
| COOLING WATER TEMPERATURE | ||
| 095B | A 0005423623 | BUZZER |
| COOLING WATER TEMPERATURE | ||
| 096 | A 0005422523 | BUZZER |
| BLINKER | ||
| 097 | N 007971004223 | SHEET METAL SCREW |
| BUZZER TO CAB | ||
| A 0005451932 | CONTROL UNIT | |
| Repalced by: A 0005458932 | ||
| 098 | A 0005458932 | CONTROL UNIT |
| SHIFTING LOCK | ||
| 098 | A 0005459832 | CONTROL UNIT |
| SHIFTING LOCK | ||
| 099 | N 007985006193 | SCREW |
| Repalced by: N 000000001146 | ||
| 099 | N 000000001146 | SCREW |
| SWITCH TO APPARATUS PLATE | ||
| 099H | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 099H | N 913004006001 | NUT |
| SWITCH TO APPARATUS PLATE | ||
| 100 | A 0005458314 | SWITCH |
| Repalced by: A 0015455314 | ||
| 100 | A 0015455314 | SWITCH |
| SHIFTING LOCK | ||

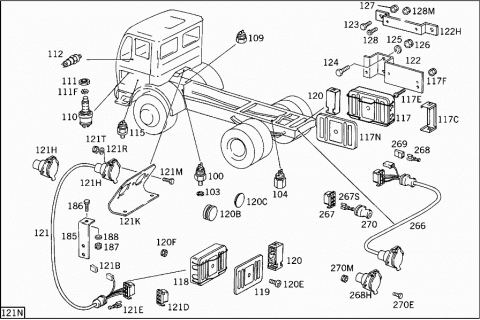

| 103 | N 007603010103 | SEAL RING |
| Repalced by: N 007603010110 | ||
| 103 | N 007603010110 | SEAL RING |
| SWITCH | ||
| 104 | A 0005455414 | SWITCH |
| PARKING BRAKE | ||
| 104 | A 0005455414 | SWITCH |
| BRAKE PRESSURE CONTROL,CIRCUIT NO.3 | ||
| A 0005454509 | SWITCH | |
| Repalced by: A 0005456009 | ||
| 109 | A 0005456009 | SWITCH |
| EXHAUST BRAKE | ||
| 109 | A 0005456009 | SWITCH |
| EXHAUST BRAKE | ||
| 109 | A 0005456009 | SWITCH |
| LOAD-DEPENDING BRAKE | ||
| A 0005455209 | SWITCH | |
| Repalced by: A 0005457909 | ||
| 110 | A 0005457909 | SWITCH |
| Repalced by: A 0005459009 | ||
| 110 | A 0005459009 | SWITCH |
| Repalced by: A 0015451109 | ||
| 110 | A 0015451109 | SWITCH |
| Repalced by: A 0015452709 | ||
| 110 | A 0015452709 | SWITCH |
| STOP LIGHT | ||
| 110 | A 0005456909 | SWITCH |
| STOP LIGHT | ||
| 111 | A 0019909351 | NUT |
| SWITCH TO BRAKE PEDAL | ||
| 111 | A 0009909251 | NUT |
| SWITCH TO BRAKE PEDAL | ||
| 111F | N 006797012251 | TOOTHED WASHER |
| SWITCH TO BRAKE PEDAL | ||
| 112 | A 0035424717 | SENDER UNIT |
| Repalced by: A 0005455509 | ||
| 112 | A 0005455509 | SWITCH |
| BRAKE MASTER CYLINDER | ||
| A 0005455009 | SWITCH | |
| Repalced by: A 0005455909 | ||
| 115 | A 0005455909 | SWITCH |
| DUMPER VALVE | ||
| 117 | A 0005467941 | CABLE CONNECTOR |
| Repalced by: A 0015463341 | ||
| 117 | A 0015463341 | CABLE CONNECTOR |
| Repalced by: A 0015463841 | ||
| 117 | A 0015463841 | CABLE CONNECTOR |
| Repalced by: A 0015465441 | ||
| 117 | A 0015465441 | CABLE CONNECTOR |
| BEHIND REAR AXLE | ||
| 117C | A 0005460283 | ANGLE |
| CABLE CONNECTOR | ||
| 117E | N 007985005181 | SCREW |
| CABLE CONNECTOR TO BRACKET | ||
| 117F | N 913004005001 | NUT |
| CABLE CONNECTOR TO BRACKET | ||
| A 0015461341 | CABLE CONNECTOR | |
| Repalced by: A 0015461741 | ||
| A 0015461941 | CABLE CONNECTOR | |
| Repalced by: A 0015461741 | ||
| 117N | A 0005453303 | CAP |
| TO 001 546 19 41 | ||
| 118 | A 0015461741 | CABLE CONNECTOR |
| Repalced by: A 0015463841 | ||
| 118 | A 0015463841 | CABLE CONNECTOR |
| Repalced by: A 0015465441 | ||
| 118 | A 0015465441 | CABLE CONNECTOR |
| BEHIND REAR AXLE | ||
| 118 | A 0015465441 | CABLE CONNECTOR |
| BEHIND CAB | ||
| A 0005460481 | COVERING | |
| Repalced by: A 0005460581 | ||
| 119 | A 0005460581 | COVERING |
| 120 | A 0095459728 | PLUG |
| CABLE CONNECTOR | ||
| 120B | A 0005461237 | GROMMET |
| TO LOCK TRAILER-PLUG-SOCKET OUTLET | ||
| 120C | A 0009872844 | EXPANSION PLUG |
| TO LOCK TRAILER-PLUG-SOCKET OUTLET | ||
| 120E | N 007985005181 | SCREW |
| CABLE CONNECTOR BEHIND CAB | ||
| 120F | N 913004005001 | NUT |
| CABLE CONNECTOR BEHIND CAB | ||
| A 3635400107 | CABLE HARNESS | |
| Repalced by: A 3835400707 | ||
| 121 | A 3835400707 | CABLE HARNESS |
| Repalced by: A 3835400607 | ||
| 121 | A 3835400607 | CABLE HARNESS |
| Repalced by: A 3095400481 | ||
| 121 | A 3095400481 | PLUG SOCKET |
| Repalced by: A 3095400581 | ||
| 121 | A 3095400581 | ELECTRIC CABLE |
| WITH TRAILER PLUG SOCKET CABLE | ||
| 121B | A 0005453545 | BOOT |
| PIN BUSHING | ||
| 121D | A 0075450528 | PIN BUSHING HOUSING |
| 6-POLE | ||
| 121E | A 0005453726 | PIN BUSHING |
| Repalced by: A 0075458426 | ||
| 121E | A 0075458426 | PIN BUSHING |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 121E | A 0005453826 | PIN BUSHING |
| Repalced by: A 0075458226 | ||
| 121E | A 0075458226 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 121H | A 0015450628 | PLUG SOCKET |
| Repalced by: A 0065450626 | ||
| 121H | A 0065450626 | PLUG SOCKET |
| TRAILER PLUG SOCKET | ||
| 121K | A 3875450240 | BRACKET |
| Repalced by: A 3875450740 | ||
| 121K | A 3875450740 | BRACKET |
| TRAILER PLUG SOCKET TO SUPPORT | ||
| 121M | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 121M | N 304017008034 | SCREW |
| BRACKET TO FRAME | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 121 T | ||
| 121R | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 121R | N 000125008443 | WASHER |
| BRACKET TO FRAME | ||
| 121T | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 121T | N 913004008001 | NUT |
| BRACKET TO FRAME | ||
| 122 | A 3635400373 | BRACKET |
| BEHIND REAR AXLE | ||
| 122H | A 3465465043 | BRACKET |
| BEHIND REAR AXLE | ||
| 123 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 123 | N 304017008021 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 124 | N 000933010105 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 125 | N 912004010102 | LOCK WASHER |
| BRACKET TO SIDE MEMBER | ||
| 126 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 126 | N 910113010000 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 127 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 127 | N 913004008001 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 128 | N 007985005180 | SCREW |
| CABLE CONNECTOR TO BRACKET | ||
| 128M | N 913004005001 | NUT |
| CABLE CONNECTOR TO BRACKET | ||

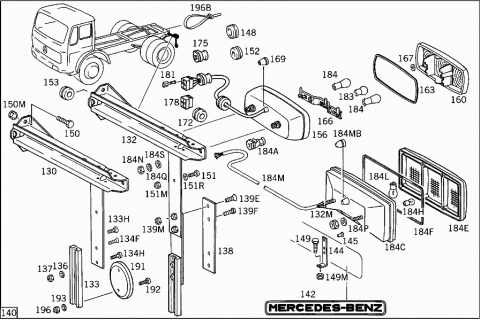

| 130 | A 3525405173 | BRACKET |
| LEFT TAIL LAMP | ||
| 130 | A 3525405173 | BRACKET |
| LEFT TAIL LAMP | ||
| 130 | A 3525405273 | BRACKET |
| RIGHT TAIL LAMP | ||
| 130 | A 3525405273 | BRACKET |
| RIGHT TAIL LAMP | ||
| 132 | A 3875401073 | BRACKET |
| Repalced by: A 3525405173 | ||
| 132 | A 3875401173 | BRACKET |
| Repalced by: A 3525405273 | ||
| A 3525405773 | BRACKET | |
| Repalced by: A 3525405173 | ||
| A 3525405873 | BRACKET | |
| Repalced by: A 3525405273 | ||
| 132M | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 132M | N 913004008001 | NUT |
| TAIL LAMP BRACKET TO BEARING BRACKET | ||
| 133 | A 3525440538 | BRACKET |
| REFLECTOR | ||
| 133 | A 3525440538 | BRACKET |
| REFLECTOR | ||
| 133H | N 007985006193 | SCREW |
| Repalced by: N 000000001146 | ||
| 133H | N 000000001146 | SCREW |
| REFLECTOR BRACKET TO TAIL LAMP BRACKET | ||
| 6X16 MM | ||
| 133H | N 000000001146 | SCREW |
| REFLECTOR BRACKET TO TAIL LAMP BRACKET | ||
| 6X16 MM | ||
| 134F | N 000965006049 | SCREW |
| REFLECTOR BRACKET TO TAIL LAMP BRACKET | ||
| 6X18 MM | ||
| 134H | N 000000001147 | SCREW |
| REFLECTOR BRACKET TO TAIL LAMP BRACKET | ||
| M 6X20 | ||
| A 3525440084 | SHIM | |
| Repalced by: N 000125006421 | ||
| 136 | N 000125006421 | WASHER |
| BRACKET TO TAIL LAMP BRACKET | ||
| 136 | N 000125006421 | WASHER |
| BRACKET TO TAIL LAMP BRACKET | ||
| 137 | N 913002006005 | NUT |
| Repalced by: N 913002006009 | ||
| 137 | N 913002006009 | NUT |
| BRACKET TO TAIL LAMP BRACKET | ||
| 137 | N 913002006009 | NUT |
| BRACKET TO TAIL LAMP BRACKET | ||
| 138 | A 3875440038 | BRACKET |
| BRACKET TO TAIL LAMP BRACKET | ||
| 138 | A 3875440038 | BRACKET |
| BRACKET TO TAIL LAMP BRACKET | ||
| 139E | N 000965006046 | SCREW |
| BRACKET TO TAIL LAMP BRACKET | ||
| 139E | N 000965006046 | SCREW |
| BRACKET TO TAIL LAMP BRACKET | ||
| 139F | N 007985006193 | SCREW |
| Repalced by: N 000000001146 | ||
| 139F | N 000000001146 | SCREW |
| BRACKET TO TAIL LAMP BRACKET | ||
| 139F | N 000000001146 | SCREW |
| BRACKET TO TAIL LAMP BRACKET | ||
| 139M | N 913002006005 | NUT |
| Repalced by: N 913002006009 | ||
| 139M | N 913002006009 | NUT |
| BRACKET TO TAIL LAMP BRACKET | ||
| 139M | N 913002006009 | NUT |
| BRACKET TO TAIL LAMP BRACKET | ||
| 139N | A 6205202341 | BRACKET |
| TAIL LAMP | ||
| 139P | N 000931008327 | SCREW |
| Repalced by: N 304017008043 | ||
| 139P | N 304017008043 | SCREW |
| TAIL LAMP BRACKET TO BRACKET | ||
| 139R | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 139R | N 000125008443 | WASHER |
| TAIL LAMP BRACKET TO BRACKET | ||
| 139S | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 139S | N 913004008001 | NUT |
| TAIL LAMP BRACKET TO BRACKET | ||
| 139T | A 3915220092 | BEARING BRACKET |
| Repalced by: A 3465225092 | ||
| 139T | A 3465225092 | BEARING BRACKET |
| TAIL LAMP BRACKET | ||
| 139U | N 000933010157 | SCREW |
| VENTILATION;FAST-SLOW | ||
| M 10X28 | ||
| 139W | N 000933010128 | SCREW |
| VENTILATION;FAST-SLOW | ||
| M 10X20 | ||
| 139Z | N 912004010102 | LOCK WASHER |
| VENTILATION;FAST-SLOW | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 142 | ||
| 141D | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 141D | N 910113010000 | NUT |
| VENTILATION;FAST-SLOW | ||
| 141F | A 3935220140 | BRACKET |
| TAIL LAMP BRACKET | ||
| 141L | N 000931010264 | SCREW |
| SUPPORT TO BEARING BRACKET | ||
| 141N | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 141N | N 910113010000 | NUT |
| SUPPORT TO BEARING BRACKET | ||
| 141R | N 000931008251 | SCREW |
| PROTECTION AGAINST TORSION; SUPPORT TO BEARING BRACKET | ||
| 141T | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 141T | N 913004008001 | NUT |
| PROTECTION AGAINST TORSION; SUPPORT TO BEARING BRACKET | ||
| 141W | A 0009970620 | EXPANSION PLUG |
| BRACKET | ||
| 142 | A 3605840025 | NAME PLATE |
| 144 | A 3605840051 | SUPPORT |
| Repalced by: A 3875840051 | ||
| 144 | A 3875840051 | SUPPORT |
| 145 | N 910006004018 | RIVET |
| 148 | A 0039973481 | GROMMET |
| ELECTRIC CABLE THRU REAR PART OF FRAME AND REAR CROSS MEMBER | ||
| 149 | N 000933008145 | SCREW |
| NAME PLATE TO BRACKET | ||
| 149 | N 000933008145 | SCREW |
| NAME PLATE TO BRACKET | ||
| 149M | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 149M | N 913004008001 | NUT |
| NAME PLATE TO BRACKET | ||
| 149M | N 913004008001 | NUT |
| NAME PLATE TO BRACKET | ||
| 150 | N 000933010105 | SCREW |
| TAIL LAMP BRACKET AND LICENSE PLATE TO FRAME | ||
| 150 | N 000933010105 | SCREW |
| TAIL LAMP BRACKET AND LICENSE PLATE TO FRAME | ||
| 150M | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 150M | N 910113010000 | NUT |
| TAIL LAMP BRACKET AND LICENSE PLATE TO FRAME | ||
| 150M | N 910113010000 | NUT |
| TAIL LAMP BRACKET AND LICENSE PLATE TO FRAME | ||
| 151 | N 000084006402 | SCREW |
| LICENSE PLATE MOUNTING | ||
| M 6X18 | ||
| 151 | N 000084006402 | SCREW |
| LICENSE PLATE MOUNTING | ||
| M 6X18 | ||
| 151 | N 000084006133 | SCREW |
| LICENSE PLATE MOUNTING | ||
| M 6X10 | ||
| 151M | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 151M | N 913004006001 | NUT |
| LICENSE PLATE MOUNTING | ||
| 151M | N 913004006001 | NUT |
| LICENSE PLATE MOUNTING | ||
| 151R | N 000125006421 | WASHER |
| LICENSE PLATE TO BRACKET | ||
| 152 | A 3549970081 | GROMMET |
| ELECTRIC CABLE THRU REAR CROSS MEMBER | ||
| 32/27 MM | ||
| 153 | A 4069975081 | GROMMET |
| ELECTRIC CABLE THU SIDE MEMBER | ||
| 156 | A 0005401470 | TAIL LAMP |
| Repalced by: A 0015444003 | ||
| 156 | A 0015444003 | TAIL LAMP |
| LEFT | ||
| HELLA | ||
| 156 | A 0005401970 | TAIL LAMP |
| Repalced by: A 0015444503 | ||
| 156 | A 0015444503 | TAIL LAMP |
| LEFT | ||
| R & S | ||
| 156 | A 0005403070 | TAIL LAMP |
| Repalced by: A 0015444203 | ||
| 156 | A 0015444203 | TAIL LAMP |
| RIGHT | ||
| HELLA | ||
| 156 | A 0005402270 | TAIL LAMP |
| Repalced by: A 0015444803 | ||
| 156 | A 0005447303 | TAIL LAMP |
| Repalced by: A 0015444803 | ||
| 156 | A 0015444803 | TAIL LAMP |
| RIGHT | ||
| R & S | ||
| 156 | A 0005401570 | TAIL LAMP |
| Repalced by: A 0015444103 | ||
| 156 | A 0015444103 | TAIL LAMP |
| RIGHT | ||
| HELLA | ||
| 156 | A 0005402070 | TAIL LAMP |
| Repalced by: A 0015444603 | ||
| 156 | A 0015444603 | TAIL LAMP |
| RIGHT | ||
| R & S | ||
| 156 | A 0005403170 | TAIL LAMP |
| Repalced by: A 0015445903 | ||
| 156 | A 0015445903 | TAIL LAMP |
| LEFT | ||
| HELLA | ||
| 156 | A 0005402370 | TAIL LAMP |
| Repalced by: A 0005447403 | ||
| 156 | A 0015446103 | TAIL LAMP |
| LEFT | ||
| R & S | ||
| 160 | A 0015445590 | LENS |
| HELLA | ||
| 160 | A 0015447290 | LENS |
| Repalced by: A 0015445990 | ||
| 160 | A 0015445990 | LENS |
| R & S | ||
| A 0005448080 | GASKET | |
| Repalced by: A 0005448480 | ||
| 163 | A 0005448480 | GASKET |
| HELLA | ||
| 163 | A 0005447580 | GASKET |
| R & S | ||
| 166 | A 0005445293 | LAMP SOCKET |
| HELLA | ||
| 166 | A 0005445193 | LAMP SOCKET |
| R & S | ||
| 167 | A 0005440176 | WASHER |
| R & S | ||
| A 0005440376 | WASHER | |
| Repalced by: A 0005440476 | ||
| 167 | A 0005440476 | WASHER |
| R & S | ||
| 167 | A 0019901940 | WASHER |
| R & S | ||
| 169 | A 0009978081 | GROMMET |
| HELLA | ||
| 172 | A 4069975081 | GROMMET |
| 175 | A 0005461237 | GROMMET |
| 178 | A 0015458428 | PIN BUSHING HOUSING |
| 4-POLE | ||
| 181 | A 0005453726 | PIN BUSHING |
| Repalced by: A 0075458426 | ||
| 181 | A 0075458426 | PIN BUSHING |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 181 | A 0005453826 | PIN BUSHING |
| Repalced by: A 0075458226 | ||
| 181 | A 0075458226 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 183 | N 072601024702 | BULB |
| Repalced by: N 072601024704 | ||
| 183 | N 072601024704 | BULB |
| 24V10W | ||
| 184 | N 072601024190 | BULB |
| Repalced by: N 072601024192 | ||
| 184 | N 072601024192 | BULB |
| 24V21W | ||
| A 0005405270 | TAIL LAMP | |
| Repalced by: A 0015446903 | ||
| 184C | A 0015446903 | TAIL LAMP |
| LEFT | ||
| "HELLA" | ||
| 184C | A 0015448003 | TAIL LAMP |
| LEFT | ||
| "R & S" | ||
| A 0005405370 | TAIL LAMP | |
| Repalced by: A 0015446803 | ||
| 184C | A 0015446803 | TAIL LAMP |
| RIGHT | ||
| "HELLA" | ||
| 184C | A 0015448103 | TAIL LAMP |
| RIGHT | ||
| "R & S" | ||
| A 0005405770 | TAIL LAMP | |
| Repalced by: A 0015447003 | ||
| 184C | A 0015447003 | TAIL LAMP |
| Repalced by: A 0025440203 | ||
| 184C | A 0025440203 | TAIL LAMP |
| LEFT | ||
| "HELLA" | ||
| 184C | A 0015448303 | TAIL LAMP |
| LEFT | ||
| "R & S" | ||
| A 0005405670 | TAIL LAMP | |
| Repalced by: A 0015447103 | ||
| 184C | A 0015447103 | TAIL LAMP |
| RIGHT | ||
| "HELLA" | ||
| 184C | A 0015448203 | TAIL LAMP |
| RIGHT | ||
| "R & S" | ||
| 184E | A 0015448390 | LENS |
| "HELLA" | ||
| 184E | A 0015448490 | LENS |
| "R & S" | ||
| 184F | A 0005448580 | GASKET |
| HELLA | ||
| 184F | A 0005448880 | GASKET |
| R & S | ||
| 184H | N 072601024702 | BULB |
| Repalced by: N 072601024704 | ||
| 184H | N 072601024704 | BULB |
| 24 V 10 W | ||
| 184L | N 072601024190 | BULB |
| Repalced by: N 072601024192 | ||
| 184L | N 072601024192 | BULB |
| 24V 21W | ||
| A 0005401538 | ELECTRIC CABLE | |
| Repalced by: A 0005401838 | ||
| 184M | A 0005401838 | ELECTRIC CABLE |
| Repalced by: A 6175400307 | ||
| 184M | A 6175400307 | CABLE HARNESS |
| Repalced by: A 6215402207 | ||
| 184M | A 6215402207 | CABLE HARNESS |
| RIGHT TAIL LAMP | ||
| A 0005401638 | ELECTRIC CABLE | |
| Repalced by: A 0005401938 | ||
| 184M | A 0005401938 | ELECTRIC CABLE |
| Repalced by: A 6175400107 | ||
| 184M | A 6175400107 | CABLE HARNESS |
| Repalced by: A 6175400207 | ||
| 184M | A 6175400207 | CABLE HARNESS |
| Repalced by: A 6175401507 | ||
| 184M | A 6175401507 | CABLE HARNESS |
| LEFT TAIL LAMP | ||
| 184MA | A 3875460437 | GROMMET |
| AT CABLE CONNECTOR | ||
| 184MB | A 6019972081 | GROMMET |
| AT TAIL LAMP SHELL | ||
| 184N | N 304032008006 | NUT |
| TAIL LAMP | ||
| 184P | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 184P | N 000125008443 | WASHER |
| TAIL LAMP TO BRACKET | ||
| 184Q | N 912004008102 | LOCK WASHER |
| TAIL LAMP | ||
| 184S | A 3875440076 | WASHER |
| TAIL LAMP | ||
| A 3875440238 | BRACKET | |
| Repalced by: A 3875223740 | ||
| 184T | A 3875223740 | BRACKET |
| LEFT TAIL LAMP | ||
| A 3875440238 | BRACKET | |
| Repalced by: A 3875223840 | ||
| 184T | A 3875223840 | BRACKET |
| RIGHT TAIL LAMP | ||
| 184U | N 000933010105 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 184W | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 184W | N 910113010000 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 185 | A 3874922741 | BRACKET |
| TRAILER PLUG SOCKET | ||
| 186 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 186 | N 304017008034 | SCREW |
| BRACKET TO FRAME | ||
| 187 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 187 | N 913004008001 | NUT |
| BRACKET TO FRAME | ||
| 188 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 188 | N 000125008443 | WASHER |
| BRACKET TO FRAME | ||
| A 0005441605 | REFLECTOR | |
| Repalced by: A 0005443305 | ||
| 191 | A 0005443305 | REFLECTOR |
| 192 | N 007985005146 | SCREW |
| REFLECTOR TO BRACKET | ||
| 193 | N 000125005317 | WASHER |
| Repalced by: N 000433005304 | ||
| 193 | N 000433005304 | WASHER |
| REFLECTOR TO BRACKET | ||
| 196 | N 913004005001 | NUT |
| REFLECTOR TO BRACKET | ||
| A 0019978590 | LOOM TIE | |
| Repalced by: A 0019978490 | ||
| 196B | A 0019978490 | LOOM TIE |
| CABLE HARNESS MOUNTING | ||
| 197 | A 0005440231 | LIGHT RANGE REGULATOR |
| 197E | N 000931006114 | SCREW |
| Repalced by: N 304017006012 | ||
| 197E | N 304017006012 | SCREW |
| LIGHT RANGE REGULATOR | ||
| 197F | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 197F | N 913004006001 | NUT |
| LIGHT RANGE REGULATOR | ||
| 197K | A 3044293040 | BRACKET |
| Repalced by: A 3604292940 | ||
| 197K | A 3604292940 | BRACKET |
| LIGHT RANGE REGULATOR | ||
| 197M | A 0019978490 | LOOM TIE |
| LIGHT RANGE REGULATOR | ||
| 198 | A 0025442932 | SENDER UNIT |
| LIGHT RANGE REGULATOR | ||
| A 0009970725 | EXPANSION PLUG | |
| Repalced by: A 0009970925 | ||
| 198B | A 0009970925 | EXPANSION PLUG |
| LIGHT RANGE REGULATOR | ||
| 198D | A 0019976572 | FITTING |
| LIGHT RANGE REGULATOR | ||
| 198H | A 3875400473 | BRACKET |
| FRONT | ||
| 198K | A 3875460643 | BRACKET |
| REAR | ||
| 198L | N 000933006127 | SCREW |
| BRACKET | ||
| 198M | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 198M | N 913004006001 | NUT |
| BRACKET | ||
| 198N | N 308676012012 | SCREW |
| BRACKET | ||
| 198P | N 910113012002 | NUT |
| BRACKET | ||
| 198R | A 3875400873 | LINKAGE |
| FRONT | ||
| 198S | A 3875400773 | LINKAGE |
| Repalced by: A 3875400873 | ||
| 198S | A 3875400873 | LINKAGE |
| REAR | ||
| 198W | A 3875400373 | BRACKET |
| FRONT | ||
| 198Z | A 3875400573 | BRACKET |
| REAR | ||

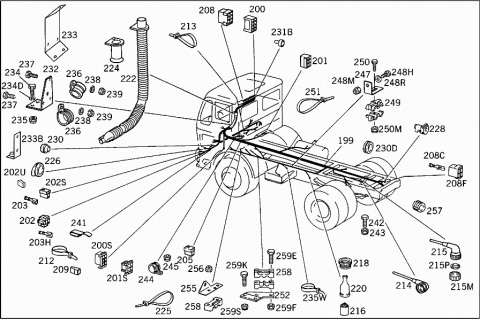

| 199 | A 3895400537 | ELECTRIC CABLE |
| FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR | ||
| 199 | A 3895402537 | ELECTRIC CABLE |
| FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR | ||
| 199 | A 3895404937 | ELECTRIC CABLE |
| FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR | ||
| 199 | A 3895405737 | ELECTRIC CABLE |
| FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR | ||
| 199 | A 3895400837 | ELECTRIC CABLE |
| FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR | ||
| 199 | A 3895403437 | ELECTRIC CABLE |
| Repalced by: A 3895403337 | ||
| 199 | A 3895403337 | ELECTRIC CABLE |
| FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR | ||
| 199 | A 3895405037 | ELECTRIC CABLE |
| Repalced by: A 3895405137 | ||
| 199 | A 3895405137 | ELECTRIC CABLE |
| FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR | ||
| 199 | A 3895407237 | ELECTRIC CABLE |
| FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR | ||
| 199 | A 3875402437 | ELECTRIC CABLE |
| FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR | ||
| 199 | A 3895403337 | ELECTRIC CABLE |
| FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR | ||
| 199 | A 3895405137 | ELECTRIC CABLE |
| FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR | ||
| 199 | A 3895405837 | ELECTRIC CABLE |
| FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR | ||
| 199 | A 3895400237 | ELECTRIC CABLE |
| FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR | ||
| 199 | A 3895402237 | ELECTRIC CABLE |
| FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR | ||
| 199 | A 3895400337 | ELECTRIC CABLE |
| FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR | ||
| 199 | A 3895402937 | ELECTRIC CABLE |
| Repalced by: A 3895404337 | ||
| 199 | A 3895404337 | ELECTRIC CABLE |
| FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR | ||
| 199 | A 3895400437 | ELECTRIC CABLE |
| FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR | ||
| 199 | A 3895403237 | ELECTRIC CABLE |
| Repalced by: A 3895404337 | ||
| 199 | A 3895404337 | ELECTRIC CABLE |
| FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR | ||
| 199 | A 3895405437 | ELECTRIC CABLE |
| FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR | ||
| 199 | A 3895406137 | ELECTRIC CABLE |
| Repalced by: A 3895406237 | ||
| 199 | A 3895406237 | ELECTRIC CABLE |
| FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR | ||
| 199 | A 3895404337 | ELECTRIC CABLE |
| FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR | ||
| 199 | A 3895405537 | ELECTRIC CABLE |
| FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR | ||
| 199 | A 3895406237 | ELECTRIC CABLE |
| FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR | ||
| 199 | A 3875402337 | ELECTRIC CABLE |
| FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR | ||
| 199 | A 3895402737 | ELECTRIC CABLE |
| FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR | ||
| 199 | A 3895404937 | ELECTRIC CABLE |
| FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR | ||
| 199 | A 3895405737 | ELECTRIC CABLE |
| FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR | ||
| 199 | A 3895408337 | ELECTRIC CABLE |
| FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR | ||
| 199 | A 3895400937 | ELECTRIC CABLE |
| FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR | ||
| 199 | A 3895403737 | ELECTRIC CABLE |
| FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR | ||
| 199 | A 3895405037 | ELECTRIC CABLE |
| Repalced by: A 3895405137 | ||
| 199 | A 3895405137 | ELECTRIC CABLE |
| FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR | ||
| 199 | A 3895407237 | ELECTRIC CABLE |
| FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR | ||
| 199 | A 3895408437 | ELECTRIC CABLE |
| Repalced by: A 6205400136 | ||
| 199 | A 6205400136 | ELECTRIC CABLE |
| FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR | ||
| 199 | A 3875402537 | ELECTRIC CABLE |
| FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR | ||
| 199 | A 3895403537 | ELECTRIC CABLE |
| FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR | ||
| 199 | A 3895405137 | ELECTRIC CABLE |
| FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR | ||
| 199 | A 3895405837 | ELECTRIC CABLE |
| FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR | ||
| 199 | A 6205400136 | ELECTRIC CABLE |
| FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR | ||
| 199 | A 3875403037 | ELECTRIC CABLE |
| FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR | ||
| 199 | A 3875404432 | ELECTRIC CABLE |
| FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR | ||
| 199 | A 3895406437 | ELECTRIC CABLE |
| FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR | ||
| 199 | A 3895407137 | ELECTRIC CABLE |
| FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR | ||
| 199 | A 3875402237 | ELECTRIC CABLE |
| FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR | ||
| 199 | A 3895403137 | ELECTRIC CABLE |
| FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR | ||
| 199 | A 3895405337 | ELECTRIC CABLE |
| Repalced by: A 3895405537 | ||
| 199 | A 3895405537 | ELECTRIC CABLE |
| FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR | ||
| 199 | A 3895406037 | ELECTRIC CABLE |
| Repalced by: A 3895406237 | ||
| 199 | A 3895406237 | ELECTRIC CABLE |
| FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR | ||
| 199 | A 3895406537 | ELECTRIC CABLE |
| FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR | ||
| 199 | A 3895406937 | ELECTRIC CABLE |
| Repalced by: A 3895407137 | ||
| 199 | A 3895407137 | ELECTRIC CABLE |
| FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR | ||
| 199 | A 3895400737 | ELECTRIC CABLE |
| FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR | ||
| 199 | A 3895402137 | ELECTRIC CABLE |
| Repalced by: A 3895402237 | ||
| 199 | A 3895402237 | ELECTRIC CABLE |
| FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR | ||
| 199 | A 3875403237 | ELECTRIC CABLE |
| FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR | ||
| 199 | A 3875404332 | ELECTRIC CABLE |
| FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR | ||
| 199 | A 3895406637 | ELECTRIC CABLE |
| Repalced by: A 3895406437 | ||
| 199 | A 3895406437 | ELECTRIC CABLE |
| FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR | ||
| 199 | A 3895407037 | ELECTRIC CABLE |
| Repalced by: A 3895407137 | ||
| 199 | A 3895407137 | ELECTRIC CABLE |
| FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR | ||
| 200 | A 0015458328 | PIN BUSHING HOUSING |
| 8-POLE | ||
| 200S | A 0015458128 | PIN BUSHING HOUSING |
| 6-POLE | ||
| 201 | A 0075450528 | PIN BUSHING HOUSING |
| 6-POLE | ||
| 201S | A 0015454128 | PIN BUSHING HOUSING |
| 4-POLE | ||
| 202 | A 0015458528 | PIN BUSHING HOUSING |
| 3-POLE | ||
| 202S | A 0015458728 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| 202U | A 0025451128 | PIN BUSHING HOUSING |
| UNIPOLAR | ||
| 203 | A 0005454526 | PIN BUSHING |
| Repalced by: A 0005453726 | ||
| 203 | A 0005453726 | PIN BUSHING |
| Repalced by: A 0075458426 | ||
| 203 | A 0075458426 | PIN BUSHING |
| WITH DETENT;LESS CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 203 | A 0005453726 | PIN BUSHING |
| Repalced by: A 0075458426 | ||
| 203 | A 0075458426 | PIN BUSHING |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 203 | A 0005453826 | PIN BUSHING |
| Repalced by: A 0075458226 | ||
| 203 | A 0075458226 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 203 | A 0005453626 | PIN BUSHING |
| Repalced by: A 0075457426 | ||
| 203 | A 0075457426 | PIN BUSHING |
| OFFSET | ||
| 4 MM2 | ||
| 203 | A 0005457926 | PIN BUSHING |
| OFFSET | ||
| 1-2.5 MM2 | ||
| 203H | A 0005454026 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 4-6 MM2 | ||
| 205 | A 0025459528 | PIN BUSHING HOUSING |
| 208 | A 0015456028 | PLUG HOUSING |
| 6-POLE | ||
| 208C | A 0025450628 | PLUG |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 208C | A 0025451428 | PLUG |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5-4 MM2 | ||
| 208F | A 0025451228 | PLUG HOUSING |
| 4-POLE | ||
| 209 | A 0005451745 | BOOT |
| PIN BUSHING | ||
| 212 | A 0019978490 | LOOM TIE |
| 376 MM | ||
| 213 | A 0019978390 | LOOM TIE |
| 280 MM | ||
| A 0005400481 | PLUG SOCKET | |
| Repalced by: A 3805400181 | ||
| 214 | A 3805400181 | PLUG SOCKET |
| Repalced by: A 3805402181 | ||
| 214 | A 3805402181 | PLUG SOCKET |
| REPAIR VERSION; NOT FOR DANGER CATEGORY VEHICLES | ||
| M 24X1 | ||
| A 0005400581 | PLUG SOCKET | |
| Repalced by: A 3805400281 | ||
| 215 | A 3805400281 | PLUG SOCKET |
| Repalced by: A 3805402281 | ||
| 215 | A 3805402281 | PLUG SOCKET |
| REPAIR VERSION; NOT FOR DANGER CATEGORY VEHICLES | ||
| M 27X1 | ||
| 215M | A 0009904954 | NUT |
| 215P | A 0019906440 | WASHER |
| 216 | A 0055454628 | PIN BUSHING HOUSING |
| 4-POLE | ||
| 218 | A 0019976572 | FITTING |
| 220 | A 0029970781 | GROMMET |
| 222 | A 3875460030 | INSULATING HOSE |
| Repalced by: A 6205460230 | ||
| 222 | A 6205460230 | INSULATING HOSE |
| 224 | A 0005450155 | GUIDE |
| 225 | A 0019978390 | LOOM TIE |
| 280 MM | ||
| 226 | A 3149970181 | GROMMET |
| 228 | A 0005461237 | GROMMET |
| 228 | A 3805461937 | GROMMET |
| 228 | A 3805462037 | GROMMET |
| 230 | A 0029970981 | GROMMET |
| 230D | A 0039973281 | GROMMET |
| A 0005462741 | CABLE CONNECTOR | |
| Repalced by: A 0005463641 | ||
| 231B | A 0005463641 | CABLE CONNECTOR |
| BIPOLAR | ||
| 231B | A 0005467741 | CABLE CONNECTOR |
| 1,5 - 6,6 MM2 | ||
| 231B | A 0015466641 | CABLE CONNECTOR |
| BIPOLAR | ||
| 6-10 MM2 | ||
| 232 | A 3875420540 | BRACKET |
| LINE TO CROSS MEMBER | ||
| 233 | A 3875420940 | BRACKET |
| LINE TO CROSS MEMBER | ||
| A 3875461543 | BRACKET | |
| Repalced by: A 3875401873 | ||
| 233B | A 3875401873 | BRACKET |
| LINE TO CROSS MEMBER | ||
| 234 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 234 | N 304017008034 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| 234 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 234 | N 304017008021 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| 234D | N 912004008102 | LOCK WASHER |
| BRACKET TO CROSS MEMBER | ||
| 235 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 235 | N 913004008001 | NUT |
| BRACKET TO CROSS MEMBER | ||
| 235W | A 0019978490 | LOOM TIE |
| CABLE HARNESS MOUNTING | ||
| 376 MM | ||
| A 0009955301 | CLAMP | |
| Repalced by: N 916016032201 | ||
| 236 | N 916016032201 | CLAMP |
| LINE TO BRACKET | ||
| 237 | N 000933006127 | SCREW |
| CLAMP MOUNTING | ||
| 238 | N 912004006102 | LOCK WASHER |
| CLAMP MOUNTING | ||
| 239 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 239 | N 913004006001 | NUT |
| CLAMP MOUNTING | ||
| 241 | A 3529950040 | CLAMP |
| Repalced by: A 3099950140 | ||
| 241 | A 3099950140 | CLAMP |
| CABLE HARNESS MOUNTING | ||
| 242 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 242 | N 304017008034 | SCREW |
| GROUND CABLE TO SIDE MEMBER | ||
| 243 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 243 | N 913004008001 | NUT |
| GROUND CABLE TO SIDE MEMBER | ||
| A 0009951201 | CLAMP | |
| Repalced by: N 916016010201 | ||
| 244 | N 916016010201 | CLAMP |
| Repalced by: N 916016010211 | ||
| 244 | N 916016010211 | CLAMP |
| Repalced by: N 000000001045 | ||
| 244 | N 000000001045 | CLAMP |
| CABLE TO ALTERNATOR | ||
| 245 | N 913004005001 | NUT |
| CABLE TO ALTERNATOR | ||
| 247 | A 3464295840 | BRACKET |
| Repalced by: A 3812950440 | ||
| 247 | A 3144290240 | BRACKET |
| Repalced by: A 3812950440 | ||
| 247 | A 3812950440 | BRACKET |
| BATTERY CABLE AND CABLE HARNESS TO SIDE MEMBER | ||
| 248H | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 248H | N 304017008027 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 248M | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 248M | N 913004008001 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 248R | N 009021008205 | WASHER |
| Repalced by: N 009021008213 | ||
| 248R | N 009021008213 | WASHER |
| BRACKET TO SIDE MEMBER | ||
| 249 | A 0005469644 | CLAMPING PIECE |
| Repalced by: A 3835460044 | ||
| 249 | A 3835460044 | CLAMPING PIECE |
| CLAMPING PIECE TO BRACKET | ||
| 250 | N 000931006084 | SCREW |
| Repalced by: N 304017006027 | ||
| 250 | N 304017006027 | SCREW |
| CLAMPING PIECE TO BRACKET | ||
| 250M | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 250M | N 913004006001 | NUT |
| CLAMPING PIECE TO BRACKET | ||
| 251 | A 0019978390 | LOOM TIE |
| CABLE HARNESS MOUNTING | ||
| 280 MM | ||
| 251 | A 0019978490 | LOOM TIE |
| CABLE HARNESS MOUNTING | ||
| 376 MM | ||
| 252 | A 3875460143 | BRACKET |
| BRACKET TO COMPRESSED-AIR-LINE BRACKET | ||
| A 3635460043 | BRACKET | |
| Repalced by: A 3875401773 | ||
| A 3875401273 | BRACKET | |
| Repalced by: A 3875401773 | ||
| A 3875461443 | BRACKET | |
| Repalced by: A 3875401773 | ||
| A 3875461643 | BRACKET | |
| Repalced by: A 3875401773 | ||
| 255 | A 3875463143 | BRACKET |
| Repalced by: A 3875401773 | ||
| 255 | A 3875401773 | BRACKET |
| FRAME MOUNTED CABLE HARNESS AND BATTERY CABLE TO BELL HOUSING | ||
| 256 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 256 | N 913004006001 | NUT |
| BRACKET TO BELL HOUSING | ||
| TO 387 546 31 43 | ||
| 257 | A 3875462143 | BRACKET |
| Repalced by: A 9415460243 | ||
| 257 | A 9415460243 | BRACKET |
| FRAME MOUNTED CABLE HARNESS | ||
| 258 | A 3635460044 | CLAMPING PIECE |
| FRAME MOUNTED CABLE HARNESS | ||
| 259E | N 000933006147 | SCREW |
| CLAMPING PIECE TO BRACKET | ||
| 259F | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 259F | N 913004006001 | NUT |
| CLAMPING PIECE TO BRACKET | ||
| 259K | N 000933006121 | SCREW |
| Repalced by: N 304017006020 | ||
| 259K | N 304017006020 | SCREW |
| BRACKET TO COMPRESSED-AIR-LINE BRACKET | ||
| 259S | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 259S | N 913004006001 | NUT |
| BRACKET TO COMPRESSED-AIR-LINE BRACKET | ||
| A 3875400137 | ELECTRIC CABLE | |
| Repalced by: A 3875400232 | ||
| 260 | A 3875400232 | ELECTRIC CABLE |
| FROM CABLE HARNESS TO ENGINE | ||
| 260 | A 3875400232 | ELECTRIC CABLE |
| FROM CABLE HARNESS TO ENGINE | ||
| 260 | A 3875400132 | ELECTRIC CABLE |
| FROM CABLE HARNESS TO ENGINE | ||
| 260 | A 3875409737 | ELECTRIC CABLE |
| FROM CABLE HARNESS TO ENGINE | ||
| 261 | A 0005453826 | PIN BUSHING |
| Repalced by: A 0075458226 | ||
| 261 | A 0075458226 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 261S | A 0015456028 | PLUG HOUSING |
| 6-POLE | ||
| 262 | A 0025451228 | PLUG HOUSING |
| 4-POLE | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 264 | ||
| 263 | A 0025450628 | PLUG |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 263A | A 6015460335 | BOOT |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| TO M 24 X 1 | ||
| 263B | A 0009902054 | NUT |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| M 24 X 1 | ||
| 263C | A 0009906840 | WASHER |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| TO M 24 X 1 | ||
| 263D | A 3805450026 | PLUG SOCKET |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| TO M 24 X 1 | ||
| 263E | A 0015454826 | ROUND PIN BUSHING |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| TO M 24 X 1 | ||
| A 0005400581 | PLUG SOCKET | |
| Repalced by: A 3805400281 | ||
| 263S | A 3805400281 | PLUG SOCKET |
| Repalced by: A 3805402281 | ||
| 263S | A 3805402281 | PLUG SOCKET |
| REPAIR VERSION; NOT FOR DANGER CATEGORY VEHICLES | ||
| M 27X1 | ||
| 263S | A 3805402281 | PLUG SOCKET |
| REPAIR VERSION; NOT FOR DANGER CATEGORY VEHICLES | ||
| M 27X1 | ||
| 263S | A 3805400181 | PLUG SOCKET |
| Repalced by: A 3805402181 | ||
| 263S | A 3805402181 | PLUG SOCKET |
| REPAIR VERSION; NOT FOR DANGER CATEGORY VEHICLES | ||
| M 24X1 | ||
| 264 | A 0015458728 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| 264T | A 3875400273 | BRACKET |
| ENGINE CABLE HARNESS | ||
| 265H | A 3875450540 | BRACKET |
| ENGINE CABLE HARNESS | ||
| 265L | A 0019978490 | LOOM TIE |
| ELECTRIC CABLE TO BRACKET | ||
| 376 MM | ||
| 265P | A 0019978390 | LOOM TIE |
| ENGINE CABLE HARNESS | ||
| 280 MM | ||
| 265Q | A 3875408533 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO REGULATOR | ||
| A 3875408633 | ELECTRIC CABLE | |
| Repalced by: A 3815401227 | ||
| 265Q | A 3815401227 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO ALTERNATOR | ||
| 266 | A 3875400007 | CABLE HARNESS |
| Repalced by: A 3835400607 | ||
| 266 | A 3835400607 | CABLE HARNESS |
| Repalced by: A 3095400481 | ||
| 266 | A 3095400481 | PLUG SOCKET |
| Repalced by: A 3095400581 | ||
| 266 | A 3095400581 | ELECTRIC CABLE |
| WITH TRAILER PLUG SOCKET CABLE | ||
| 267 | A 0015458128 | PIN BUSHING HOUSING |
| 6-POLE | ||
| 267S | A 0005453826 | PIN BUSHING |
| Repalced by: A 0075458226 | ||
| 267S | A 0075458226 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 268 | A 0005453726 | PIN BUSHING |
| Repalced by: A 0075458426 | ||
| 268 | A 0075458426 | PIN BUSHING |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 268H | A 0015450628 | PLUG SOCKET |
| Repalced by: A 0065450626 | ||
| 268H | A 0065450626 | PLUG SOCKET |
| TRAILER PLUG SOCKET | ||
| 269 | A 0005451745 | BOOT |
| PIN BUSHING | ||
| 270 | A 0005461237 | GROMMET |
| 270E | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 270E | N 304017008027 | SCREW |
| JUNCTION BOX TO REAR CROSS MEMBER | ||
| 270M | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 270M | N 913004008001 | NUT |
| JUNCTION BOX TO BRACKET | ||
| 271 | A 6185400236 | ELECTRIC CABLE |
| FROM DOOR PLUG CONNECTION TO OUTSIDE REARVIEW MIRROR PLUG-CONNECTION | ||
| 271B | A 0015458728 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| 271D | A 0015457928 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| 271F | A 0005453726 | PIN BUSHING |
| Repalced by: A 0075458426 | ||
| 271F | A 0075458426 | PIN BUSHING |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 271H | A 0025450628 | PLUG |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 271HA | A 1119971481 | GROMMET |
| ELECTRIC CABLE THRU DOOR | ||
| 271K | A 3165402237 | ELECTRIC CABLE |
| Repalced by: A 0018207015 | ||
| 271K | A 0018207015 | ELECTRIC CABLE |
| FROM OUTSIDE REARVIEW MIRROR PLUGCONNECTION TO OUTSIDE REARVIEW MIRROR | ||
| 271M | A 6209970481 | GROMMET |
| ELECTRIC CABLE TO BRACKET | ||
| 271N | A 0015457928 | PIN BUSHING HOUSING |
| HEATED OUTSIDE REARVIEW MIRROR | ||
| 271P | A 0025450628 | PLUG |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 271R | A 0019875046 | SEALING CORD |
| OUTSIDE REARVIEW MIRROR CONNECTION | ||
| 272 | A 3875400637 | ELECTRIC CABLE |
| Repalced by: A 3875403937 | ||
| 272 | A 3875403937 | ELECTRIC CABLE |
| SOLENOID VALVE | ||
| 272 | A 3875403937 | ELECTRIC CABLE |
| SOLENOID VALVE | ||
| 272 | A 3875403937 | ELECTRIC CABLE |
| SOLENOID VALVE | ||
| 272 | A 3875403937 | ELECTRIC CABLE |
| SOLENOID VALVE | ||
| A 3895401037 | ELECTRIC CABLE | |
| Repalced by: A 3895401137 | ||
| 273 | A 3895401137 | ELECTRIC CABLE |
| BRAKE PRESSURE CONTROL | ||
| 273 | A 3895401137 | ELECTRIC CABLE |
| BRAKE PRESSURE CONTROL | ||
| 274 | A 3875401337 | ELECTRIC CABLE |
| P.T.O. | ||
| 274 | A 3875401337 | ELECTRIC CABLE |
| P.T.O. | ||
| 274 | A 3875401437 | ELECTRIC CABLE |
| P.T.O. | ||
| 274 | A 3875401437 | ELECTRIC CABLE |
| P.T.O. | ||
| 274 | A 3955401137 | ELECTRIC CABLE |
| P.T.O. | ||
| 274 | A 3955401137 | ELECTRIC CABLE |
| P.T.O. | ||
| 274 | A 3875401432 | ELECTRIC CABLE |
| P.T.O. | ||
| 274 | A 3875401432 | ELECTRIC CABLE |
| P.T.O. | ||
| 275 | A 0055454528 | PIN BUSHING HOUSING |
| 4-POLE | ||
| 278 | A 0009904954 | NUT |
| 279 | A 0029970781 | GROMMET |
| 282 | A 0029970881 | GROMMET |
| 284 | A 0019906440 | WASHER |
| 284E | A 0025451428 | PLUG |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 284H | A 0025450628 | PLUG |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 284K | A 0065457328 | PLUG |
| 284L | A 6015460335 | BOOT |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| TO M 27 X 1 | ||
| 284LA | A 0009903654 | NUT |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| M 27 X 1 | ||
| 284LB | A 3809900140 | WASHER |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| TO M 27 X 1 | ||
| 284LC | A 3805450226 | PLUG SOCKET |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| TO M 27 X 1 | ||
| 284LD | A 0015454826 | ROUND PIN BUSHING |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| TO M 27 X 1 | ||
| A 0005400581 | PLUG SOCKET | |
| Repalced by: A 3805400281 | ||
| 284M | A 3805400281 | PLUG SOCKET |
| Repalced by: A 3805402281 | ||
| 284M | A 3805402281 | PLUG SOCKET |
| REPAIR VERSION; NOT FOR DANGER CATEGORY VEHICLES | ||
| M 27X1 | ||
| A 0005400481 | PLUG SOCKET | |
| Repalced by: A 3805400181 | ||
| 284P | A 3805400181 | PLUG SOCKET |
| Repalced by: A 3805402181 | ||
| 284P | A 3805402181 | PLUG SOCKET |
| REPAIR VERSION; NOT FOR DANGER CATEGORY VEHICLES | ||
| M 24X1 | ||
| 284S | A 0019978390 | LOOM TIE |
| CABLE HARNESS MOUNTING | ||
| 280 MM | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE MICROFICHE NO.0235,GROUP 54, FIG.NO.: | ||
| 285 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE MICROFICHE NO.0235,GROUP 54, FIG.NO.: | ||
| 285E | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE MICROFICHE NO.0235,GROUP 54, FIG.NO.: | ||
| 285H | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE MICROFICHE NO.0235,GROUP 54, FIG.NO.: | ||
| 285L | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE MICROFICHE NO.0235,GROUP 54, FIG.NO.: | ||
| 285N | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE MICROFICHE NO.0235,GROUP 54, FIG.NO.: | ||
| 285R | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE MICROFICHE NO.0235,GROUP 54, FIG.NO.: | ||
| 285S | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE MICROFICHE NO.0235,GROUP 54, FIG.NO.: | ||
| 285W | ||
| 286 | A 0015450411 | SWITCH |
| Repalced by: A 0015450611 | ||
| 286 | A 0015450611 | SWITCH |
| P.T.O. | ||
| 286 | A 0015450611 | SWITCH |
| HEATED OUTSIDE REARVIEW MIRROR CONTROL | ||
| 288 | A 0005452883 | CAP |
| P.T.O. | ||
| 288 | A 0005452883 | CAP |
| HEATED OUTSIDE REARVIEW MIRROR CONTROL | ||
| 290 | A 0005457190 | LENS |
| 290N | A 0015455090 | LENS |
| P.T.O. | ||
| 290P | A 0015450490 | LENS |
| HEATED OUTSIDE REARVIEW MIRROR CONTROL | ||
| 291 | N 072601024801 | BULB |
| P.T.O. | ||
| 2 W | ||
| 291 | N 072601024801 | BULB |
| HEATED OUTSIDE REARVIEW MIRROR CONTROL | ||
| 2 W | ||
| 292 | A 3875400005 | CABLE HARNESS |
| Repalced by: A 3875400205 | ||
| 292 | A 3875400205 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 292 | A 3875400205 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 292 | A 3875400505 | CABLE HARNESS |
| Repalced by: A 3875403405 | ||
| 292 | A 3875401705 | CABLE HARNESS |
| Repalced by: A 3875403405 | ||
| 292 | A 3875403405 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 292 | A 3875404405 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 292 | A 3875404705 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 292 | A 6205400805 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 292 | A 6205401405 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 292 | A 3875400105 | CABLE HARNESS |
| Repalced by: A 3875400305 | ||
| 292 | A 3875400305 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 292 | A 3875400605 | CABLE HARNESS |
| Repalced by: A 3875403505 | ||
| 292 | A 3875401805 | CABLE HARNESS |
| Repalced by: A 3875403505 | ||
| 292 | A 3875403505 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 292 | A 3875404505 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 292 | A 3875404805 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 292 | A 6205400905 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 292 | A 6205401505 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 292S | A 0075457328 | PIN BUSHING HOUSING |
| 4-POLE | ||
| 293 | A 0065455528 | PIN BUSHING HOUSING |
| 10-POLE | ||
| 293S | A 0055459928 | PIN BUSHING HOUSING |
| 7-POLE | ||
| 294 | A 0055458428 | PIN BUSHING HOUSING |
| 6-POLE | ||
| 294S | A 0065450728 | PIN BUSHING HOUSING |
| 5-POLE | ||
| 295 | A 0015458328 | PIN BUSHING HOUSING |
| 8-POLE | ||
| 295S | A 0015458128 | PIN BUSHING HOUSING |
| 6-POLE | ||
| 295U | A 0075450528 | PIN BUSHING HOUSING |
| 6-POLE | ||
| 296 | A 0015458428 | PIN BUSHING HOUSING |
| 4-POLE | ||
| 296S | A 0015458728 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| 297 | A 0025451128 | PIN BUSHING HOUSING |
| UNIPOLAR | ||
| 297H | A 0025451328 | PIN BUSHING HOUSING |
| UNIPOLAR | ||
| 297S | A 0005454626 | PIN BUSHING |
| WITH DETENT;LESS CATCH FOR HOUSING | ||
| 4-6 MM2 | ||
| 298 | A 0005454526 | PIN BUSHING |
| Repalced by: A 0005453726 | ||
| 298 | A 0005453726 | PIN BUSHING |
| Repalced by: A 0075458426 | ||
| 298 | A 0075458426 | PIN BUSHING |
| WITH DETENT;LESS CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 299 | A 0005453726 | PIN BUSHING |
| Repalced by: A 0075458426 | ||
| 299 | A 0075458426 | PIN BUSHING |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 299 | A 0005453826 | PIN BUSHING |
| Repalced by: A 0075458226 | ||
| 299 | A 0075458226 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 299S | A 0005454026 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 4-6MM2 | ||
| 299U | A 0025451428 | PLUG |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 4-6MM2 | ||
| 300 | A 0025459528 | PIN BUSHING HOUSING |
| 3-POLE | ||
| 300S | A 0015458228 | PLUG HOUSING |
| 8-POLE | ||
| 301 | A 0025450628 | PLUG |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 305 | A 0065459128 | PIN BUSHING HOUSING |
| 3-POLE | ||
| 306 | A 0005451745 | BOOT |
| PIN BUSHING | ||
| 307 | A 3015400265 | RESISTOR |
| 308 | A 3839970181 | GROMMET |
| Repalced by: A 0089976381 | ||
| 308 | A 0089976381 | GROMMET |
| 308A | A 3805400281 | PLUG SOCKET |
| Repalced by: A 3805402281 | ||
| 308A | A 3805402281 | PLUG SOCKET |
| REPAIR VERSION; NOT FOR DANGER CATEGORY VEHICLES | ||
| M 27X1 | ||
| 308B | A 0019978390 | LOOM TIE |
| 280 MM | ||
| 308B | A 0019978490 | LOOM TIE |
| 376 MM | ||
| 308D | A 0039976781 | GROMMET |
| MAIN CABLE HARNESS THRU WINDOW SILL | ||
| 308D | A 0059971981 | GROMMET |
| MAIN CABLE HARNESS THRU WINDOW SILL | ||
| 308DA | A 0015458728 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| 308DB | A 0025451128 | PIN BUSHING HOUSING |
| UNIPOLAR | ||
| 308DC | A 3875404632 | ELECTRIC CABLE |
| GEAR DISPLAY | ||
| 308DD | A 0065450728 | PIN BUSHING HOUSING |
| 5-POLE | ||
| 308DE | A 0015458728 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| 308DF | A 0015457928 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| 308DH | A 0025451328 | PIN BUSHING HOUSING |
| UNIPOLAR | ||
| 308DL | A 0005453726 | PIN BUSHING |
| Repalced by: A 0075458426 | ||
| 308DL | A 0075458426 | PIN BUSHING |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 308DL | A 0005453826 | PIN BUSHING |
| Repalced by: A 0075458226 | ||
| 308DL | A 0075458226 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 308DM | A 0025450628 | PLUG |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 308DN | A 0019978390 | LOOM TIE |
| 280 MM | ||
| A 3875404732 | ELECTRIC CABLE | |
| INDUCTIVE PICKUP | ||
| A 6155400136 | ELECTRIC CABLE | |
| Repalced by: A 6155400736 | ||
| A 6155400536 | ELECTRIC CABLE | |
| Repalced by: A 6155400736 | ||
| A 6155400736 | ELECTRIC CABLE | |
| Repalced by: A 6155401336 | ||
| 308DP | A 6155401336 | ELECTRIC CABLE |
| FROM TACHOGRAPH TO PULSE TRANSMITTER | ||
| 308DQ | A 0015458428 | PIN BUSHING HOUSING |
| 4-POLE | ||
| 308DR | A 0125450928 | PIN BUSHING HOUSING |
| 3-POLE | ||
| 308DS | A 0005453826 | PIN BUSHING |
| Repalced by: A 0075458226 | ||
| 308DS | A 0075458226 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 308DT | A 0005463435 | BOOT |
| 308DU | A 0029978590 | CLIP |
| 308DW | A 3019901440 | WASHER |
| 308DX | A 0005421572 | NUT |
| 308E | A 3805402437 | ELECTRIC CABLE |
| Repalced by: A 3805402537 | ||
| 308E | A 3805402537 | ELECTRIC CABLE |
| FROM MAIN CABLE HARNESS TO EXHAUST BRAKE SWITCH | ||
| 308F | A 0025451228 | PLUG HOUSING |
| 4-POLE | ||
| 308H | A 0025450628 | PLUG |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 308K | A 3805400281 | PLUG SOCKET |
| Repalced by: A 3805402281 | ||
| 308K | A 3805402281 | PLUG SOCKET |
| REPAIR VERSION; NOT FOR DANGER CATEGORY VEHICLES | ||
| M 27X1 | ||
| 308L | A 3875405333 | ELECTRIC CABLE |
| Repalced by: A 3805400281 | ||
| 308M | A 0025450628 | PLUG |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 308N | A 3805400281 | PLUG SOCKET |
| Repalced by: A 3805402281 | ||
| 308N | A 3805402281 | PLUG SOCKET |
| REPAIR VERSION; NOT FOR DANGER CATEGORY VEHICLES | ||
| M 27X1 | ||
| 308P | A 3875406933 | ELECTRIC CABLE |
| FROM GEAR CLUSTER INDICATOR TO PLUG CONNECTION AT CAB | ||
| 308Q | A 0005453726 | PIN BUSHING |
| Repalced by: A 0075458426 | ||
| 308Q | A 0075458426 | PIN BUSHING |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 308Q | A 0005453826 | PIN BUSHING |
| Repalced by: A 0075458226 | ||
| 308Q | A 0075458226 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 308R | A 0025451328 | PIN BUSHING HOUSING |
| UNIPOLAR | ||
| 308S | A 0025451128 | PIN BUSHING HOUSING |
| UNIPOLAR | ||
| 308T | A 0015458728 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| 308U | A 0065450728 | PIN BUSHING HOUSING |
| 5-POLE | ||
| 308W | A 0025450628 | PLUG |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 308Z | A 0019978390 | LOOM TIE |
| 280 MM | ||
| A 3875400037 | ELECTRIC CABLE | |
| Repalced by: A 3895401737 | ||
| 309 | A 3895401737 | ELECTRIC CABLE |
| CAB ROOF | ||
| 309B | A 0055456428 | PIN BUSHING HOUSING |
| 3-POLE | ||
| 309D | A 0015458728 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| 309E | A 0005451745 | BOOT |
| PIN BUSHING | ||
| 309F | A 0005454526 | PIN BUSHING |
| Repalced by: A 0005453726 | ||
| 309F | A 0005453726 | PIN BUSHING |
| Repalced by: A 0075458426 | ||
| 309F | A 0075458426 | PIN BUSHING |
| WITH DETENT;LESS CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 309F | A 0005453726 | PIN BUSHING |
| Repalced by: A 0075458426 | ||
| 309F | A 0075458426 | PIN BUSHING |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 309F | A 0005453826 | PIN BUSHING |
| Repalced by: A 0075458226 | ||
| 309F | A 0075458226 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 309H | A 0015458228 | PLUG HOUSING |
| 8-POLE | ||
| 309K | A 0025450628 | PLUG |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 310 | A 3875403437 | ELECTRIC CABLE |
| FROM LIGHT RANGE REGULATOR TO FRONT AXLE | ||
| 310A | A 0005453726 | PIN BUSHING |
| Repalced by: A 0075458426 | ||
| 310A | A 0075458426 | PIN BUSHING |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 310A | A 0005453826 | PIN BUSHING |
| Repalced by: A 0075458226 | ||
| 310A | A 0075458226 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 310B | A 0055454628 | PIN BUSHING HOUSING |
| 4-POLE | ||
| 310C | A 0029970881 | GROMMET |
| 310D | A 0019906440 | WASHER |
| 310E | A 0009904954 | NUT |
| 310F | A 0029970781 | GROMMET |
| A 3875403637 | ELECTRIC CABLE | |
| Repalced by: A 3875403837 | ||
| A 3875403737 | ELECTRIC CABLE | |
| Repalced by: A 3875403837 | ||
| 311 | A 3875403837 | ELECTRIC CABLE |
| FROM LIGHT RANGE REGULATOR TO REAR AXLE | ||
| 311K | A 0005453726 | PIN BUSHING |
| Repalced by: A 0075458426 | ||
| 311K | A 0075458426 | PIN BUSHING |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 311K | A 0005453826 | PIN BUSHING |
| Repalced by: A 0075458226 | ||
| 311K | A 0075458226 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 311L | A 0025450628 | PLUG |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 311M | A 0055454628 | PIN BUSHING HOUSING |
| 4-POLE | ||
| 311N | A 0029970881 | GROMMET |
| 311P | A 0019906440 | WASHER |
| 311Q | A 0009904954 | NUT |
| 311R | A 0029970781 | GROMMET |
| A 1078240088 | EDGE GUARD SECTION | |
| Repalced by: A 0019877625 | ||
| A 3529850051 | METAL SECTION | |
| Repalced by: A 0019877625 | ||
| 312 | A 0019877625 | PLASTIC SECTION |
| MAIN CABLE HARNESS THRU WINDOW SILL | ||
| 313 | A 0019978490 | LOOM TIE |
| CABLE HARNESS MOUNTING | ||
| 314 | A 0009881878 | CLIP |
| ROOF MOUNTED CABLE HARNESS | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE MICROFICHE NO.0235,GROUP 54, FIG.NO.: | ||
| 315 | ||
| 316B | N 007981004258 | SHEET METAL SCREW |
| GROUND CABLE CONNECTION | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE MICROFICHE NO.0235,GROUP 54, FIG.NO.: | ||
| 316S | ||
| 317 | A 0005453013 | SWITCH |
| (IGNITION AND LIGHT SWITH) | ||
| 318 | A 0005451235 | KEY |
| IGNITION AND LIGHT SWITCH | ||
| 318B | A 0005830296 | RING |
| IGNITION AND LIGHT SWITCH | ||
| 318L | A 0005450376 | WASHER |
| IGNITION SWITCH TO INSTRUMENT PANEL | ||
| 319 | A 0009872846 | SEALING CORD |
| 320 | A 3359900240 | WASHER |
| A 0005450672 | NUT | |
| Repalced by: A 0005451072 | ||
| 321 | A 0005451072 | NUT |
| IGNITION SWITCH TO INSTRUMENT PANEL | ||
| 322 | A 0045450224 | SWITCH |
| HAZARD WARNING LIGHT | ||
| 325 | A 0005453637 | BUTTON |
| HAZARD WARNING LIGHT SWITCH | ||
| 326 | N 072601024801 | BULB |
| HAZARD WARNING LIGHT SWITCH | ||
| 2 W | ||
| 328 | A 0005422425 | POTENTIOMETER |
| INSTRUMENT LIGHTING | ||
| 329 | A 0005422625 | POTENTIOMETER |
| Repalced by: A 0005423025 | ||
| 329 | A 0005423025 | POTENTIOMETER |
| Repalced by: A 6155420225 | ||
| 329 | A 6155420225 | POTENTIOMETER |
| INSTRUMENT LIGHTING | ||
| 330 | A 0005421889 | KNOB |
| INSTRUMENT LIGHTING | ||
| 333 | A 0005450372 | NUT |
| INSTRUMENT LIGHTING | ||
| 334 | A 0005451472 | NUT |
| Repalced by: A 0029906251 | ||
| 334 | A 0029906251 | NUT |
| INSTRUMENT LIGHTING | ||
| 335 | N 006797012153 | TOOTHED WASHER |
| INSTRUMENT LIGHTING | ||
| 336 | A 0005458026 | PLUG SOCKET |
| Repalced by: A 0045454326 | ||
| 336 | A 0045454326 | PLUG SOCKET |
| AT INSTRUMENT PANEL | ||
| 339 | A 0009900946 | WASHER |
| AT INSTRUMENT PANEL | ||
| 339 | A 3805450076 | WASHER |
| AT INSTRUMENT PANEL | ||
| 340 | A 0009904954 | NUT |
| TO PLUG THE FREE BORES IN INSTRUMENT PANEL | ||
| 341 | A 0009970725 | EXPANSION PLUG |
| Repalced by: A 0009970925 | ||
| 341 | A 0009970925 | EXPANSION PLUG |
| TO PLUG THE FREE BORES IN INSTRUMENT PANEL | ||
| 341H | A 0005455214 | SWITCH |
| P.T.O. | ||
| 342 | A 0015451815 | TELL-TALE LAMP |
| LESS LENS | ||
| 343 | A 0005454390 | LENS |
| Repalced by: A 0045453990 | ||
| 343 | A 0045453990 | LENS |
| P.T.O. | ||
| 344 | A 0005454090 | LENS |
| LONGITUDINAL LOCK | ||
| 345 | A 0005455390 | LENS |
| Repalced by: A 0035454190 | ||
| 345 | A 0035454190 | LENS |
| Repalced by: A 0035455290 | ||
| 345B | A 0005455490 | LENS |
| Repalced by: A 0035454290 | ||
| 345B | A 0035454290 | LENS |
| Repalced by: A 0035455290 | ||
| 345D | A 0035455290 | LENS |
| BLINKER LIGHT CONTROL | ||
| 345L | A 0005453790 | LENS |
| Repalced by: A 0035453290 | ||
| 345L | A 0035453290 | LENS |
| CHARGE CONTROL | ||
| 346F | A 0005455290 | LENS |
| Repalced by: A 0035453390 | ||
| 346F | A 0035453390 | LENS |
| Repalced by: A 0065451990 | ||
| 346F | A 0065451990 | LENS |
| HIGH BEAM | ||
| 346L | A 0005455190 | LENS |
| Repalced by: A 0035453790 | ||
| 346L | A 0035453790 | LENS |
| PARKING BRAKE | ||
| A 0005453890 | LENS | |
| Repalced by: A 0035453590 | ||
| 346P | A 0035453590 | LENS |
| OIL PRESSURE | ||
| 347K | A 0005454590 | LENS |
| DUMPER CONTROL | ||
| 347L | A 0005455090 | LENS |
| Repalced by: A 0055458890 | ||
| 347L | A 0055458890 | LENS |
| BRAKE FLUID CONTROL | ||
| 348 | A 0015456290 | LENS |
| BRAKE CONTROL | ||
| 348D | A 0015459490 | LENS |
| GEAR DISPLAY | ||
| 348F | A 0025453890 | LENS |
| GEAR GROUP INDICATION,"SLOW" | ||
| 348L | A 0025453990 | LENS |
| GEAR GROUP INDICATION,"FAST" | ||
| 349 | N 072601024801 | BULB |
| 2 W | ||
| 350 | A 0009974335 | PLUG |
| TO PLUG THE FREE HOLES FOR TELL-TALE LAMP | ||
| 350S | A 0009974435 | PLUG |
| TO PLUG THE FREE HOLES IN INSTRUMENT PANEL | ||
| 350S | A 6209880035 | CAP |
| TO PLUG THE FREE HOLES IN INSTRUMENT PANEL | ||
| 350S | A 3899880135 | CAP |
| TO PLUG THE FREE HOLES IN INSTRUMENT PANEL | ||
| 350W | A 0009970203 | PLUG |
| DUMPER CONTROL | ||
| A 0015450214 | SWITCH | |
| Repalced by: A 0015454914 | ||
| 351 | A 0015454914 | SWITCH |
| STARTING IN CAB | ||
| 352 | A 0005459214 | SWITCH |
| STARTING AT ENGINE | ||
| 352 | A 0015451514 | SWITCH |
| STARTING AT ENGINE | ||
| 352F | A 0009941710 | LOCK |
| 352N | A 0005451672 | NUT |
| 353 | A 0015454614 | SWITCH |
| Repalced by: A 0035452314 | ||
| 353 | A 0035452314 | SWITCH |
| STARTING AT ENGINE | ||
| 353H | A 0009941910 | LOCK |
| 353M | A 0005451772 | NUT |
| 354 | A 0005452945 | BOOT |
| STARTING AT ENGINE | ||
| TO 001 545 46 14 | ||
| A 0065428710 | TACHOGRAPH | |
| Repalced by: A 0085422710 | ||
| 355 | A 0085422710 | TACHOGRAPH |
| Repalced by: A 0085425310 | ||
| 355 | A 0085425310 | TACHOGRAPH |
| ONE-DAY REGISTRATION;READING IN KILOMETERS;MEASURING RANGE,125KM/H | ||
| 355 | A 0105426910 | TACHOGRAPH |
| Repalced by: A 0125422310 | ||
| 355 | A 0125422310 | TACHOGRAPH |
| Repalced by: A 0115423710 | ||
| 355 | A 0115423710 | TACHOGRAPH |
| TACHOGRAPH ADJUSTABLE | ||
| 125 KM/H;24V | ||
| A 0005423394 | DIAGRAM PAPER | |
| SET = 100 PIECES | ||
| TO 008 542 53 10,010 542 69 10 | ||
| A 0005422894 | DIAGRAM PAPER | |
| SET = 100 PIECES | ||
| TO 006 542 87 10 | ||
| A 0005420390 | BLIND CAP | |
| TACHOGRAPH LEAD SEALING | ||
| 355C | A 0005420285 | PROTECTIVE PLATE |
| TACHOGRAPH LEAD SEALING | ||
| 355D | N 007971002206 | SHEET METAL SCREW |
| TACHOGRAPH LEAD SEALING | ||
| 358 | A 0015423109 | ADAPTER |
| Repalced by: A 3875422609 | ||
| 358 | A 0005422109 | ADAPTER |
| Repalced by: A 3875422109 | ||
| 358 | A 3875422109 | ADAPTER |
| RATIO 1: | ||
| 0.975 | ||
| 358 | A 0005426409 | ADAPTER |
| Repalced by: A 3875422609 | ||
| 358 | A 3875422609 | ADAPTER |
| RATIO 1: | ||
| 1.129 | ||
| 358 | A 3875422609 | ADAPTER |
| RATIO 1: | ||
| 1.129 | ||
| 358 | A 3875422209 | ADAPTER |
| RATIO 1: | ||
| 1.0 | ||
| 358 | A 3875422209 | ADAPTER |
| RATIO 1: | ||
| 1.0 | ||
| 358K | A 0055429417 | SENDER UNIT |
| ELECTRONIC TACHOGRAPH | ||
| 358K | A 0065424617 | SENDER UNIT |
| ELECTRONIC TACHOGRAPH | ||
| 359 | N 072601024801 | BULB |
| TACHOGRAPH | ||
| 24V 2W | ||
| 359 | A 0015442694 | BULB |
| TACHOGRAPH | ||
| 24V 1,2W | ||
| 360 | A 0005420481 | GROMMET |
| TACHOGRAPH | ||
| 361 | A 3815420090 | BLIND CAP |
| TACHOGRAPH | ||
| 363 | A 3816890408 | COVERING |
| TACHOGRAPH | ||
| 366 | A 0009949745 | LOCK |
| TACHOGRAPH | ||
| A 3955400937 | ELECTRIC CABLE | |
| IDLING SWITCH BRANCH-OFF EXTENSION | ||
| 367 | A 3805402181 | PLUG SOCKET |
| REPAIR VERSION; NOT FOR DANGER CATEGORY VEHICLES | ||
| M 24X1 | ||
| 367 | A 3805402281 | PLUG SOCKET |
| REPAIR VERSION; NOT FOR DANGER CATEGORY VEHICLES | ||
| M 27X1 | ||
| 368 | A 0065457328 | PLUG |
| 368K | A 3874291440 | BRACKET |
| CABLE TO INDUCTIVE SENDER UNIT | ||
| A 0015422016 | TACHOMETER | |
| Repalced by: A 0015424016 | ||
| 369 | A 0015424016 | TACHOMETER |
| A 3875400805 | CABLE HARNESS | |
| TACHOMETER | ||
| TO 001 542 40 16 | ||
| A 0025451328 | PIN BUSHING HOUSING | |
| UNIPOLAR | ||
| A 0045420307 | FLEXIBLE SHAFT | |
| Repalced by: A 0045420407 | ||
| 372 | A 0045420407 | FLEXIBLE SHAFT |
| 3950 MM | ||
| 372 | A 0055421807 | FLEXIBLE SHAFT |
| 3770 MM | ||
| 372 | A 0045423807 | FLEXIBLE SHAFT |
| 4250 MM | ||
| 372 | A 0045420507 | FLEXIBLE SHAFT |
| 4100 MM | ||
| 372 | A 0045429207 | FLEXIBLE SHAFT |
| 4030 MM | ||
| 372 | A 0045421907 | FLEXIBLE SHAFT |
| Repalced by: A 0055421707 | ||
| 372 | A 0055421707 | FLEXIBLE SHAFT |
| 4550 MM | ||
| 375 | A 3875460044 | CLAMPING PIECE |
| FLEXIBLE SHAFT TO CAB FIRE WALL | ||
| 377 | A 3875460344 | CLAMPING PIECE |
| FLEXIBLE SHAFT TO CAB FIRE WALL | ||
| 377 | A 3875460144 | CLAMPING PIECE |
| FLEXIBLE SHAFT TO CAB FIRE WALL | ||
| A 3875460444 | CLAMPING PIECE | |
| Repalced by: A 6175460344 | ||
| 377 | A 6175460344 | CLAMPING PIECE |
| FLEXIBLE SHAFT TO CAB FIRE WALL | ||
| 378 | N 000931006118 | SCREW |
| FLEXIBLE SHAFT TO CAB FIRE WALL | ||
| 378 | N 007981004233 | SHEET METAL SCREW |
| Repalced by: N 000000000460 | ||
| 378 | N 000000000460 | SCREW |
| FLEXIBLE SHAFT TO CAB FIRE WALL | ||
| 379 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 379 | N 913004006001 | NUT |
| FLEXIBLE SHAFT TO CAB FIRE WALL | ||
| A 3875421040 | BRACKET | |
| 380 | A 0005420881 | GROMMET |
| Repalced by: A 0005420781 | ||
| 380 | A 0005420781 | GROMMET |
| Repalced by: A 0005421081 | ||
| 380 | A 0005421081 | GROMMET |
| ELECTRIC CABLE THRU FIRE WALL | ||
| 382 | A 3875420740 | BRACKET |
| GROMMET TO CAB | ||
| 382 | A 6155420140 | BRACKET |
| GROMMET TO CAB | ||
| 383 | N 007981004400 | SHEET METAL SCREW |
| Repalced by: N 000000000878 | ||
| 383 | N 000000000878 | SCREW |
| GROMMET TO CAB | ||
| 4.8X50 | ||
| 384 | A 0009940545 | LOCK |
| GROMMET TO CAB | ||
| 386 | A 3875400173 | BRACKET |
| FLEXIBLE SHAFT TO BUMPER SUPPORT | ||
| 386 | A 3875400973 | BRACKET |
| Repalced by: A 3855400773 | ||
| 386 | A 3855400773 | BRACKET |
| FLEXIBLE SHAFT TO BUMPER SUPPORT | ||
| 386 | A 3855400773 | BRACKET |
| FLEXIBLE SHAFT TO BUMPER SUPPORT | ||
| 386K | N 007985006193 | SCREW |
| Repalced by: N 000000001146 | ||
| 386K | N 000000001146 | SCREW |
| BRACKET TO BUMBER STRUT | ||
| 386N | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 386N | N 913004006001 | NUT |
| BRACKET TO BUMBER STRUT | ||
| 386Q | A 3875421140 | BRACKET |
| FLEXIBLE SHAFT TO BUMPER SUPPORT | ||
| 387 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 387 | N 304017008021 | SCREW |
| FLEXIBLE SHAFT TO BUMPER SUPPORT | ||
| 387 | N 304017008021 | SCREW |
| FLEXIBLE SHAFT TO BUMPER SUPPORT | ||
| 388 | N 912004008102 | LOCK WASHER |
| FLEXIBLE SHAFT TO BUMPER SUPPORT | ||
| 388L | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 388L | N 913004008001 | NUT |
| FLEXIBLE SHAFT TO BUMPER SUPPORT | ||
| 389 | A 3875460244 | CLAMPING PIECE |
| FLEXIBLE SHAFT TO BRACKET | ||
| 389 | A 3875460244 | CLAMPING PIECE |
| FLEXIBLE SHAFT TO BRACKET | ||
| 390 | N 000933006121 | SCREW |
| Repalced by: N 304017006020 | ||
| 390 | N 304017006020 | SCREW |
| FLEXIBLE SHAFT TO BRACKET | ||
| 390 | N 304017006020 | SCREW |
| FLEXIBLE SHAFT TO BRACKET | ||
| 391 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 391 | N 913004006001 | NUT |
| FLEXIBLE SHAFT TO BRACKET | ||
| 391 | N 913004006001 | NUT |
| FLEXIBLE SHAFT TO BRACKET | ||
| 391B | A 0019978390 | LOOM TIE |
| FLEXIBLE SHAFT MOUNTING | ||
| 280 MM | ||
| 391B | A 0019978490 | LOOM TIE |
| FLEXIBLE SHAFT MOUNTING | ||
| 280 MM | ||
| 391C | A 0039973481 | GROMMET |
| FLEXIBLE SHAFT THRU HORN BRACKET | ||
| 392 | A 0025405847 | INSTRUMENT CLUSTER |
| Repalced by: A 0035405447 | ||
| 392 | A 0035405447 | INSTRUMENT CLUSTER |
| Repalced by: A 0035407847 | ||
| 392 | A 0035407847 | INSTRUMENT CLUSTER |
| Repalced by: A 0035409647 | ||
| 392 | A 0035409647 | INSTRUMENT CLUSTER |
| WITH INSCRIPTION IN GERMAN | ||
| 392 | A 0035409647 | INSTRUMENT CLUSTER |
| WITH INSCRIPTION IN GERMAN | ||
| A 0025406047 | INSTRUMENT CLUSTER | |
| Repalced by: A 0035405547 | ||
| 392 | A 0035405547 | INSTRUMENT CLUSTER |
| Repalced by: A 0035404047 | ||
| 392 | A 0035404047 | INSTRUMENT CLUSTER |
| IN ENGLISH | ||
| 393L | A 0015420408 | AIR PRESSURE GAUGE |
| TO 002 540 58 47,002 540 54 47 | ||
| 393L | A 0015420408 | AIR PRESSURE GAUGE |
| TO 002 540 58 47,002 540 54 47 | ||
| 393L | A 0015423908 | AIR PRESSURE GAUGE |
| TO 003 540 78 47 | ||
| 393L | A 0015420608 | AIR PRESSURE GAUGE |
| TO 002 540 60 47,003 540 55 47 | ||
| A 0015424208 | AIR PRESSURE GAUGE | |
| TO 003 540 96 47 | ||
| A 0015422808 | AIR PRESSURE GAUGE | |
| TO 003 540 40 47 | ||
| 393P | A 0015429902 | OIL PRESSURE GAUGE |
| TO 002 540 58 47,003 540 54 47 | ||
| 393P | A 0015429902 | OIL PRESSURE GAUGE |
| TO 002 540 58 47,003 540 54 47 | ||
| 393P | A 0025422702 | OIL PRESSURE GAUGE |
| TO 003 540 78 47 | ||
| 393P | A 0025420102 | OIL PRESSURE GAUGE |
| TO 002 540 60 47 | ||
| 393P | A 0025422902 | OIL PRESSURE GAUGE |
| TO 003 540 55 47, | ||
| A 0025421702 | OIL PRESSURE GAUGE | |
| TO 003 540 96 47 | ||
| A 0025421802 | OIL PRESSURE GAUGE | |
| TO 003 540 40 47 | ||
| 393T | A 0015424503 | FUEL GAUGE DASH UNIT |
| TO 0025405847,0025406047,0035405447 | ||
| 393T | A 0025429203 | FUEL GAUGE DASH UNIT |
| TO 003 540 55 47,003 540 78 47 | ||
| A 0025428503 | FUEL GAUGE DASH UNIT | |
| TO 003 540 40 47/9647 | ||
| 393W | A 0035423305 | TEMPERATURE GAUGE |
| TO 002 540 58 47,003 540 54 47 | ||
| 393W | A 0035423305 | TEMPERATURE GAUGE |
| TO 002 540 58 47,003 540 54 47 | ||
| 393W | A 0035428805 | TEMPERATURE GAUGE |
| TO 003 540 78 47 | ||
| 393W | A 0035423405 | TEMPERATURE GAUGE |
| TO 002 540 60 47, | ||
| 393W | A 0035429005 | TEMPERATURE GAUGE |
| TO 003 540 55 47, | ||
| A 0035427405 | TEMPERATURE GAUGE | |
| TO 003 540 96 47 | ||
| A 0035427505 | TEMPERATURE GAUGE | |
| TO 003 540 40 47 | ||
| A 0005423578 | CONNECTION PLATE | |
| TO 003 540 40 47,96 47 | ||
| 393X | A 0005422178 | CONNECTION PLATE |
| TO 002 540 58 47 | ||
| 393Y | A 0005451219 | SOCKET |
| 393Z | N 072601024801 | BULB |
| 24V 2W | ||
| 394 | A 0005420481 | GROMMET |
| INSTRUMENT CLUSTER | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
