Transporto priemonė: 1926 K; VIN numerio dalis: 389044

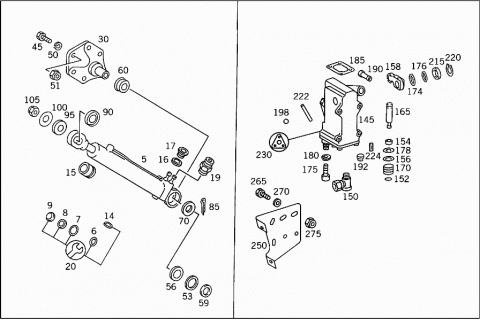

Grupė: 55 HYDRAULIC SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 0005532805 | CYLINDER |
| Repalced by: A 0005534405 | ||
| 005 | A 0005534405 | CYLINDER |
| Repalced by: A 0005537005 | ||
| 005 | A 0005537005 | CYLINDER |
| Repalced by: A 0015533605 | ||
| 005 | A 0015533605 | CYLINDER |
| HYDRAULIC SYSTEM USED FOR CAB TILTING | ||
| WEBER | ||
| 005 | A 0005534305 | CYLINDER |
| Repalced by: A 0005537105 | ||
| 005 | A 0005537105 | CYLINDER |
| HYDRAULIC SYSTEM USED FOR CAB TILTING | ||
| POWER-PACKER | ||
| 005 | A 0005536805 | CYLINDER |
| Repalced by: A 0015533605 | ||
| 005 | A 0015533605 | CYLINDER |
| HYDRAULIC SYSTEM USED FOR CAB TILTING | ||
| POWER-PACKER | ||
| 006 | A 0005535760 | SEAL RING |
| PISTON | ||
| WEBER,TO 000 553 44 05 | ||
| 007 | A 0049974648 | SEAL RING |
| 29X3 MM,WEBER,TO 000 553 44 05 | ||
| 008 | A 0005534260 | SEAL RING |
| 20X26X5 MM,WEBER,TO 000 553 28 05 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 000 553 44 05 | ||
| 009 | A 0005534360 | SEAL RING |
| 20X28X7 MM,WEBER,TO 000 553 28 05 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 000 553 44 05 | ||
| 014 | A 0005535360 | SEAL RING |
| VALVE | ||
| WEBER,TO 000 553 28 05,000 553 44 05 | ||
| 015 | A 0005531428 | GUIDE |
| WEBER,TO 000 553 36 05 | ||
| 016 | N 007603014405 | SEAL RING |
| VALVE BORE LOCKING | ||
| WEBER,TO 000 553 28 05,000 553 44 05 | ||
| 017 | N 000908014001 | SCREW PLUG |
| Repalced by: N 000908014009 | ||
| 017 | N 000908014009 | SCREW PLUG |
| VALVE BORE LOCKING | ||
| WEBER,TO 000 553 28 05,000 553 44 05 | ||
| N 003861006007 | GLAND | |
| Repalced by: A 0019901667 | ||
| A 0019901667 | SEAL CONE | |
| HIGH PRESSURE HOSE | ||
| WEBER,TO 000 553 28 05,000 553 44 05 | ||
| 019 | A 0005530068 | FITTING |
| HIGH PRESSURE HOSE | ||
| WEBER,TO 000 553 28 05,000 553 44 05 | ||
| 020 | A 0005861855 | REPAIR KIT |
| HYDRAULIC CYLINDER | ||
| WEBER,TO 000 553 28 05 | ||
| 020 | A 0005864855 | REPAIR KIT |
| Repalced by: A 0005501535 | ||
| 020 | A 0005501535 | REPAIR KIT |
| Repalced by: A 0015534905 | ||
| 020 | A 0015534905 | GASKET KIT |
| HYDRAULIC CYLINDER | ||
| WEBER,TO 000 553 44 05,000 553 70 05 | ||
| 020 | A 0005863355 | REPAIR KIT |
| Repalced by: A 0005500207 | ||
| 020 | A 0005500207 | REPAIR KIT |
| HYDRAULIC CYLINDER | ||
| POWER-PACKER,TO 000 553 43 05, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 000 553 71 05 | ||
| 020 | A 0005500235 | GASKET KIT |
| HYDRAULIC CYLINDER | ||
| POWER-PACKER,TO 000 553 68 05 | ||
| 020 | A 0005501407 | GASKET KIT |
| HYDRAULIC CYLINDER | ||
| WEBER,TO 001 553 36 05 | ||
| 030 | A 3875530338 | BEARING BRACKET |
| HYDRAULIC CYLINDER | ||
| 045 | N 000961014074 | SCREW |
| BEARING BRACKET TO FRAME | ||
| 14X1.5X22 MM | ||
| 045 | N 000961014063 | SCREW |
| Repalced by: A 9429901304 | ||
| 045 | A 9429901304 | SCREW |
| BEARING BRACKET TO FRAME | ||
| 14X1.5X40 MM | ||
| 050 | N 912004014100 | LOCK WASHER |
| BEARING BRACKET TO FRAME | ||
| 051 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 051 | N 910113014000 | NUT |
| BEARING BRACKET TO FRAME | ||
| 053 | A 3635530060 | SEAL RING |
| HYDRAULIC CYLINDER TO BEARING BRACKET | ||
| 056 | A 3635530076 | WASHER |
| HYDRAULIC CYLINDER TO BEARING BRACKET | ||
| 059 | N 000125025005 | WASHER |
| Repalced by: N 000125025008 | ||
| 059 | N 000125025008 | WASHER |
| HYDRAULIC CYLINDER TO BEARING BRACKET | ||
| 060 | A 6208910417 | BUSHING |
| HYDRAULIC CYLINDER TO BEARING BRACKET | ||
| 070 | A 6205530176 | WASHER |
| HYDRAULIC CYLINDER TO BEARING BRACKET | ||
| 085 | N 000094006327 | COTTER PIN |
| HYDRAULIC CYLINDER TO BEARING BRACKET | ||
| 090 | A 3875530276 | WASHER |
| HYDRAULIC CYLINDER TO CAB | ||
| 095 | A 3875530076 | WASHER |
| HYDRAULIC CYLINDER TO CAB | ||
| 100 | A 3875530376 | WASHER |
| HYDRAULIC CYLINDER TO CAB | ||
| 105 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 105 | N 910113016002 | NUT |
| HYDRAULIC CYLINDER TO CAB | ||
| 145 | A 0005532301 | PUMP |
| Repalced by: A 0005533701 | ||
| 145 | A 0005533701 | PUMP |
| Repalced by: A 0005533901 | ||
| 145 | A 0005533901 | PUMP |
| Repalced by: A 0005537901 | ||
| 145 | A 0005537901 | PUMP |
| (HAND PUMP) | ||
| WEBER | ||
| 145 | A 0005533201 | PUMP |
| (HAND PUMP) | ||
| POWER PACKER | ||
| 145 | A 0005535401 | PUMP |
| Repalced by: A 0005536501 | ||
| 145 | A 0005536501 | PUMP |
| (HAND PUMP) | ||
| POWER-PACKER | ||
| 150 | A 0009909268 | FITTING |
| WEBER,TO 000 553 23 01,000 553 37 01 | ||
| 152 | A 0049971548 | SEAL RING |
| 2.44X1.78 MM,WEBER,TO 000 553 37 01 | ||
| 154 | A 0005530096 | BOOT |
| 6X14X6 MM,WEBER,TO 000 553 23 01, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 000 553 37 01 | ||
| 156 | A 0005534560 | SEAL RING |
| 20X16X2 MM,WEBER,TO 000 553 37 01 | ||
| 158 | A 0005500113 | LEVER |
| WEBER,TO 000 553 37 01 | ||
| 165 | A 0005531190 | PISTON |
| WEBER,TO 000 553 37 01 | ||
| 165 | A 0005531790 | PISTON |
| WEBER,TO 000 553 39 01 | ||
| 165 | A 0005531890 | PISTON |
| WEBER,TO 000 553 79 01 | ||
| 165 | A 0005531290 | PISTON |
| POWER-PACKER,TO 000 553 32 01 | ||
| 170 | A 0005500055 | VALVE |
| Repalced by: A 0005501555 | ||
| 170 | A 0005501555 | VALVE |
| WEBER,TO 000 553 37 01 | ||
| 170 | A 0005502855 | VALVE |
| WEBER,TO 000 553 39 01 | ||
| 170 | A 0005503455 | VALVE |
| WEBER,TO 000 553 79 01 | ||
| 174 | A 0019978748 | SEAL RING |
| 12X2 MM,WEBER,TO 000 553 23 01, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 000 553 37 01 | ||
| 174 | A 0019978848 | SEAL RING |
| 16X2.5 MM,WEBER,TO 000 553 23 01 | ||
| 174 | A 0019978948 | SEAL RING |
| 15X2.5 MM,WEBER,TO 000 553 23 01, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 000 553 37 01 | ||
| 175 | N 000912008111 | SCREW |
| Repalced by: N 000000000190 | ||
| 175 | N 000000000190 | SCREW |
| BOX COVER | ||
| WEBER,TO 000 553 79 01, | ||
| 176 | A 0089978645 | SEAL RING |
| 20X2.5 MM,WEBER,TO 000 553 23 01 | ||
| 178 | A 0005534760 | SEAL RING |
| 11X20X1 MM,WEBER,TO 000 553 23 01 | ||
| 180 | N 912004008102 | LOCK WASHER |
| BOX COVER | ||
| WEBER,TO 000 553 79 01 | ||
| 185 | A 0005530280 | GASKET |
| 57X96X1 MM,WEBER,TO 000 553 23 01, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 000 553 37 01 | ||
| 190 | A 0005530403 | FILTER |
| WEBER,TO 000 553 79 01 | ||
| 192 | A 0005530803 | FILTER |
| POWER-PACKER,TO 000 553 32 01 | ||
| 198 | A 0019813785 | BALL |
| PISTON | ||
| POWER-PACKER,TO 000 553 32 01 | ||
| 198 | A 0019813885 | BALL |
| VALVE | ||
| POWER-PACKER,TO 000 553 32 01 | ||
| 215 | N 000988020014 | FITTED WASHER |
| WEBER,TO 000 553 79 01 | ||
| 220 | N 000471020001 | LOCK RING |
| WEBER,TO 000 553 79 01 | ||
| 222 | N 001481004023 | CLAMPING SLEEVE |
| 4X32 MM,WEBER,TO 000 553 23 01 | ||
| 222 | N 001481004015 | CLAMPING SLEEVE |
| 4X28 MM,WEBER,TO 000 553 37 01 | ||
| 224 | N 001481004001 | CLAMPING SLEEVE |
| 4X12 MM,WEBER,TO 000 553 23 01 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 000 553 37 01, | ||
| A 0009901610 | SCREW | |
| OIL REFILLING | ||
| WEBER,TO 000 553 79 01 | ||
| A 0005530171 | SCREW | |
| OIL REFILLING | ||
| POWER-PACKER,TO 000 553 32 01, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 000 553 54 01, | ||
| N 007603018106 | SEAL RING | |
| 18X22 MM,WEBER,TO 000 553 37 01 | ||
| N 009045016001 | SNAP RING | |
| WEBER,TO 000 553 23 01,000 553 37 01 | ||
| N 009045014000 | SNAP RING | |
| WEBER,TO 000 553 37 01 | ||
| A 0015532760 | GASKET KIT | |
| Repalced by: A 0005502583 | ||
| 230 | A 0005502583 | GASKET KIT |
| HAND PUMP | ||
| WEBER,TO 000 553 39 01 | ||
| 230 | A 0005502783 | GASKET KIT |
| HAND PUMP | ||
| WEBER,TO 000 553 79 01 | ||
| 230 | A 0005863455 | REPAIR KIT |
| VALVE | ||
| POWER-PACKER,TO 000 553 32 01 | ||
| 230 | A 0005863555 | REPAIR KIT |
| PISTON | ||
| POWER-PACKER,TO 000 553 32 01 | ||
| 230 | A 0005500255 | REPAIR KIT |
| VALVE | ||
| POWER-PACKER,TO 000 553 54 01 | ||
| 230 | A 0005500275 | REPAIR KIT |
| PISTON | ||
| POWER-PACKER,TO 000 553 54 01 | ||
| 250 | A 3875530340 | BRACKET |
| Repalced by: A 3875531140 | ||
| 250 | A 3875530640 | BRACKET |
| Repalced by: A 3875531140 | ||
| 250 | A 3875531140 | BRACKET |
| HAND PUMP | ||
| 265 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 265 | N 304017010002 | SCREW |
| HAND PUMP TO BRACKET | ||
| 10X30 MM | ||
| 270 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 270 | N 000125010532 | WASHER |
| HAND PUMP TO BRACKET | ||
| 275 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 275 | N 910113010000 | NUT |
| HAND PUMP TO BRACKET | ||
| 310 | A 0004290001 | LINE |
| FROM HAND PUMP TO HIGH PRESSURE HOSE | ||
| 315 | N 915017006100 | UNION NUT |
| HYDRAULIC LINE | ||
| 320 | N 003861006007 | GLAND |
| Repalced by: A 0019901667 | ||
| 320 | A 0019901667 | SEAL CONE |
| HYDRAULIC LINE | ||
| N 003902006001 | CONNECTION FITTING | |
| Repalced by: A 0039979172 | ||
| 325 | A 0039979172 | FITTING |
| HYDRAULIC LINE | ||
| 335 | A 3875530282 | HOSE |
| Repalced by: A 3875530182 | ||
| 335 | A 3875530182 | HOSE |
| FROM HYDRAULIC LINE TO CYLINDER | ||
| 400 | A 3604280243 | ANGLE |
| OIL LINE MOUNTING | ||
| 402 | A 3604292940 | BRACKET |
| 425 | N 000933006102 | SCREW |
| OIL DELIVERY LINE TO BRACKET | ||
| 425 | N 000933006102 | SCREW |
| OIL DELIVERY LINE TO BRACKET | ||
| 435 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 435 | N 913004006001 | NUT |
| OIL DELIVERY LINE TO BRACKET | ||
| 440 | A 3464295540 | BRACKET |
| Repalced by: A 3464296040 | ||
| 440 | A 3464296040 | BRACKET |
| OIL LINE MOUNTING | ||
| 445 | N 003953006101 | T-FITTING |
| HAND PUMP HOSE & TRANSMISSION SHIFTING ROD TO CYLINDER | ||
| 445 | A 0019900170 | T-FITTING |
| HAND PUMP HOSE & TRANSMISSION SHIFTING ROD TO CYLINDER | ||
| 455 | A 0019909871 | ELBOW FITTING |
| HIGH PRESSURE HOSE TO HYDRAULIC CYLINDER | ||
| 495 | A 3164290040 | BRACKET |
| OIL LINE MOUNTING | ||
| 495 | A 3164290040 | BRACKET |
| OIL LINE MOUNTING | ||
| 497 | A 3524281640 | BRACKET |
| OIL LINE MOUNTING | ||
| 475 | A 3604292440 | BRACKET |
| Repalced by: A 3604292940 | ||
| 475 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 475 | N 304017008021 | SCREW |
| BRACKET TO FRAME | ||
| 475 | N 304017008021 | SCREW |
| BRACKET TO FRAME | ||
| 470 | A 3609950101 | CLAMP |
| OIL DELIVERY LINE TO BRACKET | ||
| 475 | N 000933010105 | SCREW |
| BRACKET TO FRAME | ||
| 475 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 475 | N 304017008034 | SCREW |
| BRACKET TO FRAME | ||
| 475 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 475 | N 304017008027 | SCREW |
| BRACKET TO FRAME | ||
| 475 | N 308676012012 | SCREW |
| BRACKET TO FRAME | ||
| 480 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 480 | N 000125008443 | WASHER |
| BRACKET TO FRAME | ||
| 480 | N 000125013008 | WASHER |
| 485 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 485 | N 913004008001 | NUT |
| BRACKET TO FRAME | ||
| 485 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 485 | N 910113010000 | NUT |
| BRACKET TO FRAME | ||
| 485 | N 910113012002 | NUT |
| BRACKET TO FRAME | ||
| 490 | A 3875530382 | HOSE |
| FROM HYDRAUL.CYLINDER TO TRANSMISSIONSHIFTING-ROD PAWL | ||
| 495 | N 915017006100 | UNION NUT |
| HIGH PRESSURE HOSE TO HYDRAULIC CYLINDER | ||
| 500 | N 003861006007 | GLAND |
| Repalced by: A 0019901667 | ||
| 500 | A 0019901667 | SEAL CONE |
| HIGH PRESSURE HOSE TO HYDRAULIC CYLINDER | ||
| 505 | N 003952006102 | FITTING |
| Repalced by: A 0019909871 | ||
| 505 | A 0019909871 | ELBOW FITTING |
| HOSE TO TRANSMISSION-SHIFT ROD SHIFTING CYLINDER | ||
| 510 | A 0029978472 | FITTING |
| HOSE TO TRANSMISSION-SHIFT ROD SHIFTING CYLINDER | ||
| 515 | N 007603010103 | SEAL RING |
| Repalced by: N 007603010110 | ||
| 515 | N 007603010110 | SEAL RING |
| HOSE TO TRANSMISSION-SHIFT ROD SHIFTING CYLINDER | ||
| 520 | A 0019978490 | LOOM TIE |
| HIGH PRESSURE HOSE TO CAB | ||
| 540 | A 3875531340 | BRACKET |
| HIGH PRESSURE HOSE | ||
| 550 | N 000933010128 | SCREW |
| BRACKET TO BUMPER STRUT | ||
| 560 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 560 | N 910113010000 | NUT |
| BRACKET TO BUMPER STRUT | ||
| 565 | N 916016008200 | CLAMP |
| HIGH PRESSURE HOSE TO BRACKET | ||
| 570 | N 007985006163 | SCREW |
| HIGH PRESSURE HOSE TO BRACKET | ||
| 575 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 575 | N 913004006001 | NUT |
| HIGH PRESSURE HOSE TO BRACKET | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
