Transporto priemonė: 1926 K; VIN numerio dalis: 389044

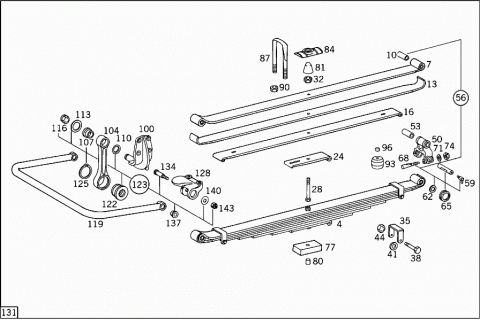

Grupė: 32 SPRINGS AND SUSPENSION
| # | Kodas | Pavadinimas |
|---|---|---|
| 004 | A 3873200102 | FRONT SPRING |
| 12-LEAF | ||
| 004 | A 3873200002 | FRONT SPRING |
| 9-LEAF | ||
| 007 | A 3873200094 | SPRING LEAF |
| Repalced by: A 3873200394 | ||
| 007 | A 3873200394 | SPRING LEAF |
| NO.1 | ||
| 007 | A 3873200194 | SPRING LEAF |
| NO.1 | ||
| 010 | A 3043210150 | BUSHING |
| 010 | A 6203210050 | BUSHING |
| 010 | A 3873210012 | SPRING LEAF |
| Repalced by: A 3873210312 | ||
| 013 | A 3873210312 | SPRING LEAF |
| NO.2 | ||
| 013 | A 3873210112 | SPRING LEAF |
| NO.2 | ||
| 016 | A 3873210013 | SPRING LEAF |
| NO.3 | ||
| 016 | A 3633210013 | SPRING LEAF |
| Repalced by: A 6593210713 | ||
| 016 | A 6593210713 | SPRING LEAF |
| NO.3 | ||
| A 3873210014 | SPRING LEAF | |
| NO.4 | ||
| A 3633210014 | SPRING LEAF | |
| Repalced by: A 6593210714 | ||
| A 6593210714 | SPRING LEAF | |
| NO.4 | ||
| A 3873210015 | SPRING LEAF | |
| NO.5 | ||
| A 3633210015 | SPRING LEAF | |
| Repalced by: A 6593210615 | ||
| A 6593210615 | SPRING LEAF | |
| NO.5 | ||
| A 3873210016 | SPRING LEAF | |
| NO.6 | ||
| A 3633210016 | SPRING LEAF | |
| Repalced by: A 6593210616 | ||
| A 6593210616 | SPRING LEAF | |
| NO.6 | ||
| A 3873210017 | SPRING LEAF | |
| NO.7 | ||
| A 3633210017 | SPRING LEAF | |
| Repalced by: A 6593210617 | ||
| A 6593210617 | SPRING LEAF | |
| NO.7 | ||
| 024 | A 3873210018 | SPRING LEAF |
| NO.8 | ||
| 024 | A 3633210018 | SPRING LEAF |
| Repalced by: A 6593210618 | ||
| 024 | A 6593210618 | SPRING LEAF |
| NO.8 | ||
| A 3873210019 | SPRING LEAF | |
| NO.9 | ||
| A 3633210019 | SPRING LEAF | |
| Repalced by: A 6593210619 | ||
| A 6593210619 | SPRING LEAF | |
| NO.9 | ||
| A 3633210020 | SPRING LEAF | |
| NO.10 | ||
| A 3633210021 | SPRING LEAF | |
| NO.11 | ||
| A 3633210022 | SPRING LEAF | |
| Repalced by: A 3873210122 | ||
| A 3873210122 | SPRING LEAF | |
| Repalced by: A 6593210422 | ||
| A 6593210422 | SPRING LEAF | |
| NO.12 | ||
| 028 | A 3353210071 | SCREW |
| Repalced by: A 3873210071 | ||
| 028 | A 3873210071 | SCREW |
| (SPRING BOLT) | ||
| 028 | A 3323210071 | SCREW |
| (SPRING BOLT) | ||
| 032 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 032 | N 910113014000 | NUT |
| SPRING BOLT | ||
| 035 | A 0003246433 | SPRING CLAMP |
| Repalced by: A 0023219233 | ||
| 035 | A 0023219233 | SPRING CLAMP |
| Repalced by: A 6203240733 | ||
| 035 | A 6203240733 | SPRING CLAMP |
| Repalced by: A 6203240433 | ||
| 035 | A 6203240433 | SPRING CLAMP |
| FRONT SPRING | ||
| 038 | N 000960012216 | SCREW |
| Repalced by: N 308765012007 | ||
| 038 | N 308765012007 | SCREW |
| FOR SPRING CLAMPS | ||
| 038 | N 000963012011 | SCREW |
| FOR SPRING CLAMPS | ||
| 041 | A 3039902440 | WASHER |
| FOR SPRING CLAMPS | ||
| 044 | N 000934012022 | NUT |
| FOR SPRING CLAMPS | ||
| A 3703220130 | SHACKLE PIN | |
| Repalced by: A 3955860332 | ||
| A 3953220430 | SHACKLE PIN | |
| Repalced by: A 3955860332 | ||
| A 3955860132 | REPAIR KIT | |
| Repalced by: A 3955860332 | ||
| A 3955860332 | REPAIR KIT | |
| Repalced by: A 3953200165 | ||
| A 3953200165 | SHACKLE PIN | |
| PARTS KIT | ||
| 050 | A 3703200062 | SHACKLE |
| Repalced by: A 3873200162 | ||
| 050 | A 3873200162 | SHACKLE |
| FRONT SPRING | ||
| 053 | A 3043210150 | BUSHING |
| 053 | A 6203210050 | BUSHING |
| A 3703220030 | SHACKLE PIN | |
| Repalced by: A 3955860232 | ||
| A 3953220330 | SHACKLE PIN | |
| Repalced by: A 3955860232 | ||
| 056 | A 3955860032 | REPAIR KIT |
| Repalced by: A 3955860232 | ||
| 056 | A 3955860232 | REPAIR KIT |
| Repalced by: A 3953200265 | ||
| 056 | A 3953200265 | SHACKLE PIN |
| PARTS KIT | ||
| 059 | N 071412010300 | GREASE NIPPLE |
| SHACKLE PIN | ||
| 062 | A 3523230376 | WASHER |
| AS REQUIRED | ||
| 4.00 MM | ||
| 062 | A 3523230476 | WASHER |
| AS REQUIRED | ||
| 4.20 MM | ||
| 062 | A 3523230576 | WASHER |
| AS REQUIRED | ||
| 4.30 MM | ||
| 065 | A 0029973140 | SEAL RING |
| SHACKLE PIN TO SHACKLE | ||
| 068 | A 3529900337 | BOLT |
| SHACKLE PIN TO SHACKLE | ||
| 071 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 071 | N 000125010532 | WASHER |
| SHACKLE PIN TO SHACKLE | ||
| 074 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 074 | N 910113010000 | NUT |
| SHACKLE PIN TO SHACKLE | ||
| 077 | A 3663310028 | SHIM |
| FRONT SPRINGS TO FRONT AXLE | ||
| 077 | A 3663310028 | SHIM |
| FRONT SPRINGS TO FRONT AXLE | ||
| 077 | A 3663310028 | SHIM |
| FRONT SPRINGS TO FRONT AXLE | ||
| 077 | A 3663310028 | SHIM |
| FRONT SPRINGS TO FRONT AXLE | ||
| A 3873310728 | SHIM | |
| FRONT SPRINGS TO FRONT AXLE | ||
| 080 | A 3893230074 | PIN |
| FRONT SPRINGS TO FRONT AXLE | ||
| 081 | A 3263310044 | RUBBER BUFFER |
| Repalced by: A 6553310044 | ||
| 081 | A 6553310044 | RUBBER BUFFER |
| FRONT SPRINGS TO FRONT AXLE | ||
| 084 | A 3043310027 | SPACER |
| Repalced by: A 6483310026 | ||
| 084 | A 6483310026 | PLATE |
| Repalced by: A 6553310126 | ||
| 084 | A 6553310126 | PLATE |
| Repalced by: A 6483310026 | ||
| 084 | A 6483310026 | PLATE |
| FRONT SPRINGS TO FRONT AXLE | ||
| A 3483310025 | U-BOLT | |
| Repalced by: A 3873310925 | ||
| 087 | A 3873310925 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 230 MM | ||
| 087 | A 3873310925 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 230 MM | ||
| 087 | A 3203310325 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 212 MM | ||
| 087 | A 3043311925 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 275 MM | ||
| 090 | N 000934020008 | NUT |
| Repalced by: N 308673020002 | ||
| 090 | N 308673020002 | NUT |
| Repalced by: N 308674020000 | ||
| 090 | N 308674020000 | NUT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 090 | N 308674020000 | NUT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 090 | N 308674020000 | NUT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 093 | A 0019871140 | RUBBER BUFFER |
| SPRING STOP TO FRAME BOTTOM SIDE | ||
| 096 | A 3633220051 | SPACER RING |
| SPRING STOP TO FRAME BOTTOM SIDE | ||
| N 007985010125 | SCREW | |
| SPRING STOP TO FRAME BOTTOM SIDE | ||
| N 007985010122 | SCREW | |
| SPRING STOP TO FRAME BOTTOM SIDE | ||
| N 913004010008 | NUT | |
| Repalced by: N 910113010000 | ||
| N 910113010000 | NUT | |
| SPRING STOP TO FRAME BOTTOM SIDE | ||
| 100 | A 3873230263 | BEARING BRACKET |
| Repalced by: A 3873200178 | ||
| 100 | A 3873200178 | CONSOLE |
| Repalced by: A 3873230563 | ||
| 100 | A 3873230563 | BEARING BRACKET |
| FRONT STABILIZER | ||
| N 000939012102 | STUD BOLT | |
| N 000961016040 | SCREW | |
| BEARING BRACKET TO SIDE MEMBER | ||
| M 16X45 | ||
| N 000961016142 | SCREW | |
| BEARING BRACKET TO SIDE MEMBER | ||
| M 16X30 | ||
| N 913004016004 | NUT | |
| Repalced by: N 910113016002 | ||
| N 910113016002 | NUT | |
| BEARING BRACKET TO SIDE MEMBER | ||
| 104 | A 3893230016 | LINK |
| Repalced by: A 3893230116 | ||
| 104 | A 3893230116 | SHACKLE |
| 107 | A 0003232150 | BUSHING |
| LINK TO BEARING BRACKET | ||
| 110 | A 3873230052 | SPACER WASHER |
| LINK TO BEARING BRACKET | ||
| N 000125033001 | WASHER | |
| LINK TO BEARING BRACKET | ||
| N 000471032000 | LOCK RING | |
| LINK TO BEARING BRACKET | ||
| 113 | A 3873230152 | SPACER WASHER |
| LINK TO BEARING BRACKET | ||
| 116 | N 910113012002 | NUT |
| LINK TO BEARING BRACKET | ||
| 119 | A 3873230165 | TORSION BAR |
| TORSION BAR,FRONT | ||
| 122 | A 0003233785 | RUBBER MOUNTING |
| TORSION BAR | ||
| 122 | A 3873230285 | RUBBER MOUNTING |
| TORSION BAR | ||
| 123 | A 3875860032 | REPAIR KIT |
| Repalced by: A 3873200028 | ||
| 123 | A 3873200028 | REPAIR KIT |
| TORSION BAR TO SHACKLE | ||
| 123 | A 6205860032 | REPAIR KIT |
| Repalced by: A 6203200228 | ||
| 123 | A 6203200228 | REPAIR KIT |
| TORSION BAR MOUNTING | ||
| 125 | N 000983068000 | LOCK RING |
| TORSION BAR TO SHACKLE | ||
| 128 | A 3703230020 | BEARING |
| LEFT | ||
| 128 | A 3703230120 | BEARING |
| RIGHT | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE MICROFICHE NO.0235,GROUP 54, FIG.NO.: | ||
| 131 | ||
| 134 | A 3353230074 | PIN |
| Repalced by: A 3875860032 | ||
| 134 | A 3353230074 | PIN |
| Repalced by: A 6205860032 | ||
| 137 | A 0003230950 | BUSHING |
| TORSION BAR TO BEARING BRACKET | ||
| 140 | A 0009932026 | DISC SPRING |
| TORSION BAR TO BEARING BRACKET | ||
| 143 | N 000935020001 | NUT |
| TORSION BAR TO BEARING BRACKET | ||
| N 000094004066 | COTTER PIN | |
| TORSION BAR TO BEARING BRACKET | ||
| 150 | A 0023237200 | SHOCK ABSORBER |
| Repalced by: A 0033239700 | ||
| 150 | A 0033239700 | SHOCK ABSORBER |
| Repalced by: A 0063230700 | ||
| 150 | A 0023237300 | SHOCK ABSORBER |
| Repalced by: A 0043234400 | ||
| 150 | A 0043234400 | SHOCK ABSORBER |
| Repalced by: A 0063230700 | ||
| 150 | A 0063230700 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 150 | A 0023235800 | SHOCK ABSORBER |
| Repalced by: A 0043234500 | ||
| 150 | A 0043234500 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 150 | A 0023235900 | SHOCK ABSORBER |
| Repalced by: A 0043230000 | ||
| 150 | A 0043230000 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 154 | A 0003232444 | RUBBER BUFFER |
| Repalced by: A 0003232885 | ||
| 154 | A 0003232885 | RUBBER MOUNTING |
| TO 002 323 58 00,002 323 73 00, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 004 323 44 00,004 323 45 00, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| TO 002 323 59 00,002 323 72 00 | ||
| 154 | A 0003233044 | RUBBER BUFFER |
| Repalced by: A 0003233144 | ||
| 154 | A 0003233144 | RUBBER BUFFER |
| TO 003 323 97 00,004 323 00 00 | ||
| 157 | A 0003230453 | SPACER TUBE |
| Repalced by: A 0003233150 | ||
| 157 | A 0003232550 | BUSHING |
| Repalced by: A 0003233150 | ||
| 157 | A 0003233150 | SPACER RING |
| TO 002 323 58 00,002 323 73 00, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 004 323 44 00,004 323 45 00, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| TO 002 323 59 00,002 323 72 00 | ||
| 157 | A 0003235250 | BUSHING |
| TO 003 323 97 00,004 323 00 00 | ||
| 160 | N 000960016164 | SCREW |
| SHOCK ABSORBER TO TOP BRACKET | ||
| M 16X85 | ||
| 163 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 163 | N 910113016002 | NUT |
| SHOCK ABSORBER TO TOP BRACKET | ||
| 166 | A 3393230040 | BRACKET |
| Repalced by: A 3953230140 | ||
| 166 | A 3953230140 | BRACKET |
| SHOCK ABSORBER TO FRONT SPRING | ||
| A 3349900001 | SCREW | |
| Repalced by: N 000960020084 | ||
| N 000960020084 | SCREW | |
| SHOCK ABSORBER TO TOP BRACKET | ||
| 169 | N 000960020075 | SCREW |
| Repalced by: N 000960020084 | ||
| 169 | N 000960020084 | SCREW |
| SHOCK ABSORBER TO FRONT SPRING | ||
| M 20X125 | ||
| 172 | N 913004020004 | NUT |
| Repalced by: N 913004020003 | ||
| 172 | N 913004020003 | NUT |
| SHOCK ABSORBER TO FRONT SPRING | ||
| 175 | N 000960016164 | SCREW |
| SHOCK ABSORBER TO FRONT SPRING | ||
| M 16X85 | ||
| 178 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 178 | N 910113016002 | NUT |
| SHOCK ABSORBER TO FRONT SPRING | ||
| 181 | A 0023261100 | SHOCK ABSORBER |
| Repalced by: A 3873260000 | ||
| 184 | A 3873260000 | SHOCK ABSORBER |
| (PARTS KIT) | ||
| A 0023262900 | SHOCK ABSORBER | |
| Repalced by: A 3913260100 | ||
| A 3913260100 | SHOCK ABSORBER | |
| (PARTS KIT) | ||
| A 0023263000 | SHOCK ABSORBER | |
| Repalced by: A 3873260300 | ||
| A 3873260200 | SHOCK ABSORBER | |
| Repalced by: A 3873260300 | ||
| A 0023263600 | SHOCK ABSORBER | |
| Repalced by: A 3873260300 | ||
| A 3873260300 | SHOCK ABSORBER | |
| (PARTS KIT) | ||
| 190 | A 3173260167 | RETAINER |
| SHOCK ABSORBER TO CROSS MEMBER AND TO BRACKET | ||
| 193 | A 3179911240 | SPACER TUBE |
| SHOCK ABSORBER TO CROSS MEMBER AND TO BRACKET | ||
| 196 | A 3543260068 | RUBBER BUFFER |
| SHOCK ABSORBER TO CROSS MEMBER AND TO BRACKET | ||
| 199 | A 3543260067 | RETAINER |
| SHOCK ABSORBER TO CROSS MEMBER AND TO BRACKET | ||
| 201 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 201 | N 910113014001 | NUT |
| SHOCK ABSORBER TO CROSS MEMBER AND TO BRACKET | ||

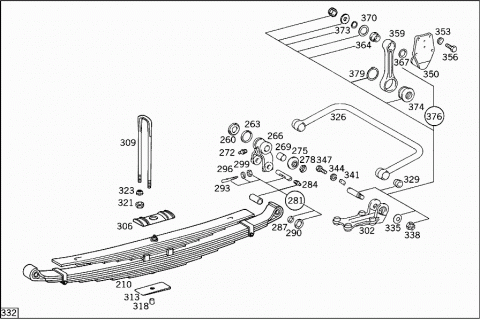

| 210 | A 3893200308 | REAR SPRING |
| 8-LEAF;WITH 6-LEAF HELPER SPRING | ||
| 210 | A 3633200608 | REAR SPRING |
| 12-LEAF;WITH 6-LEAF HELPER SPRING | ||
| 213 | A 3893200393 | SPRING LEAF |
| NO.1 | ||
| 213 | A 3633200693 | SPRING LEAF |
| NO.1 | ||
| 216 | A 3353240350 | BUSHING |
| 216 | A 6203240050 | BUSHING |
| 219 | A 3893240312 | SPRING LEAF |
| NO.2 | ||
| 219 | A 3633240612 | SPRING LEAF |
| NO.2 | ||
| 222 | A 3893240313 | SPRING LEAF |
| Repalced by: A 6563240514 | ||
| 222 | A 6563240514 | SPRING LEAF |
| NO.3 | ||
| 222 | A 3363240513 | SPRING LEAF |
| NO.3 | ||
| 224 | A 3893240314 | SPRING LEAF |
| Repalced by: A 3893240515 | ||
| 224 | A 3893240515 | SPRING LEAF |
| Repalced by: A 6563240315 | ||
| 224 | A 6563240315 | SPRING LEAF |
| NO.4 | ||
| 224 | A 3363240514 | SPRING LEAF |
| NO.4 | ||
| A 3893240315 | SPRING LEAF | |
| Repalced by: A 3893240516 | ||
| A 3893240516 | SPRING LEAF | |
| NO.5 | ||
| A 3363240515 | SPRING LEAF | |
| NO.5 | ||
| A 3893240316 | SPRING LEAF | |
| Repalced by: A 3893240517 | ||
| A 3893240517 | SPRING LEAF | |
| Repalced by: A 6563240317 | ||
| A 6563240317 | SPRING LEAF | |
| NO.6 | ||
| A 3363240516 | SPRING LEAF | |
| NO.6 | ||
| A 3893240317 | SPRING LEAF | |
| Repalced by: A 3893240518 | ||
| A 3893240518 | SPRING LEAF | |
| Repalced by: A 6563240318 | ||
| A 6563240318 | SPRING LEAF | |
| NO.7 | ||
| A 3363240517 | SPRING LEAF | |
| NO.7 | ||
| A 3893240318 | SPRING LEAF | |
| Repalced by: A 3893240019 | ||
| A 3893240019 | SPRING LEAF | |
| Repalced by: A 6563240219 | ||
| A 6563240219 | SPRING LEAF | |
| NO.8 | ||
| A 3363240518 | SPRING LEAF | |
| NO.8 | ||
| A 3363240519 | SPRING LEAF | |
| NO.9 | ||
| A 3363240520 | SPRING LEAF | |
| NO.10 | ||
| A 3893240121 | SPRING LEAF | |
| NO.11 | ||
| A 3893240122 | SPRING LEAF | |
| NO.12 | ||
| 229 | A 3893200310 | HELPER SPRING |
| 6-LEAF | ||
| 229 | A 3893200110 | HELPER SPRING |
| 6-LEAF | ||
| A 3893240340 | SPRING LEAF | |
| Repalced by: A 3893240541 | ||
| A 3893240541 | SPRING LEAF | |
| Repalced by: A 6563240541 | ||
| A 6563240541 | SPRING LEAF | |
| NO.1 | ||
| A 3363240540 | SPRING LEAF | |
| NO.1 | ||
| A 3893240341 | SPRING LEAF | |
| Repalced by: A 3893240542 | ||
| A 3893240542 | SPRING LEAF | |
| Repalced by: A 6563240342 | ||
| A 6563240342 | SPRING LEAF | |
| NO.2 | ||
| A 3363240541 | SPRING LEAF | |
| NO.2 | ||
| A 3893240342 | SPRING LEAF | |
| Repalced by: A 3893240543 | ||
| A 3893240543 | SPRING LEAF | |
| Repalced by: A 6563240343 | ||
| A 6563240343 | SPRING LEAF | |
| NO.3 | ||
| A 3363240542 | SPRING LEAF | |
| NO.3 | ||
| A 3893240343 | SPRING LEAF | |
| Repalced by: A 3893240544 | ||
| A 3893240544 | SPRING LEAF | |
| Repalced by: A 6563240344 | ||
| A 6563240344 | SPRING LEAF | |
| NO.4 | ||
| A 3363240543 | SPRING LEAF | |
| NO.4 | ||
| A 3893240344 | SPRING LEAF | |
| Repalced by: A 3893240545 | ||
| A 3893240545 | SPRING LEAF | |
| Repalced by: A 6563240345 | ||
| A 6563240345 | SPRING LEAF | |
| NO.5 | ||
| A 3893240144 | SPRING LEAF | |
| NO.5 | ||
| A 3893240345 | SPRING LEAF | |
| Repalced by: A 3893240546 | ||
| A 3893240546 | SPRING LEAF | |
| NO.6 | ||
| A 3893240145 | SPRING LEAF | |
| NO.6 | ||
| 236 | A 3873240035 | SPACER |
| 239 | A 3463245071 | SPRING BOLT |
| 242 | N 007349019002 | WASHER |
| 245 | N 913004018004 | NUT |
| 248 | A 0003246733 | SPRING CLAMP |
| Repalced by: A 0023218933 | ||
| 248 | A 0003246333 | SPRING CLAMP |
| Repalced by: A 0023218933 | ||
| 248 | A 0023218933 | SPRING CLAMP |
| Repalced by: A 0023219833 | ||
| 248 | A 0023219833 | SPRING CLAMP |
| Repalced by: A 0003244233 | ||
| 248 | A 0003244233 | SPRING CLAMP |
| 251 | N 000960012222 | SCREW |
| 254 | A 3039902440 | WASHER |
| 257 | N 000934012022 | NUT |
| 260 | A 3463255062 | THRUST WASHER |
| Repalced by: A 6213250062 | ||
| 260 | A 6213250062 | THRUST WASHER |
| SHACKLE TO REAR-SPRING REAR BRACKET | ||
| 263 | A 0029973640 | SEAL RING |
| SHACKLE TO REAR-SPRING REAR BRACKET | ||
| 266 | A 3463205063 | SHACKLE |
| REAR SPRING TO REAR SPRING REAR BRACKET | ||
| 269 | A 3353240050 | BUSHING |
| 272 | N 071412008200 | GREASE NIPPLE |
| 275 | A 3463255162 | THRUST WASHER |
| Repalced by: A 6213250162 | ||
| 275 | A 6213250162 | THRUST WASHER |
| SHACKLE TO REAR-SPRING REAR BRACKET | ||
| 278 | N 000439024200 | NUT |
| SHACKLE TO REAR-SPRING REAR BRACKET | ||
| A 3353250030 | SHACKLE PIN | |
| Repalced by: A 3895860132 | ||
| A 3893250230 | SHACKLE PIN | |
| Repalced by: A 3895860132 | ||
| 281 | A 3895860032 | REPAIR KIT |
| Repalced by: A 3895860132 | ||
| 281 | A 3895860132 | REPAIR KIT |
| Repalced by: A 3893200065 | ||
| 281 | A 3893200065 | SHACKLE PIN |
| (PARTS KIT),FRONT & REAR SPRING EYES | ||
| 284 | N 071412010100 | GREASE NIPPLE |
| SHACKLE PIN | ||
| 287 | A 3523230976 | WASHER |
| AS REQUIRED | ||
| 4.00 MM | ||
| 287 | A 3523231076 | WASHER |
| AS REQUIRED | ||
| 4.20 MM | ||
| 287 | A 3523231176 | WASHER |
| Repalced by: A 3523231076 | ||
| 290 | A 0029973040 | SEAL RING |
| SHACKLE PIN TO SHACKLE | ||
| 293 | A 3529900337 | BOLT |
| SHACKLE PIN TO SHACKLE | ||
| 296 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 296 | N 000125010532 | WASHER |
| SHACKLE PIN TO SHACKLE | ||
| 299 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 299 | N 910113010000 | NUT |
| SHACKLE PIN TO SHACKLE | ||
| 302 | A 3873260320 | BEARING |
| LEFT | ||
| 302 | A 3873260320 | BEARING |
| LEFT | ||
| A 3873260420 | BEARING | |
| RIGHT | ||
| A 3873260420 | BEARING | |
| RIGHT | ||
| A 3873260520 | BEARING | |
| LEFT | ||
| A 3873260620 | BEARING | |
| RIGHT | ||
| A 3893260020 | BEARING | |
| RIGHT | ||
| 306 | A 3873510026 | SPRING CLAMPING PLATE |
| REAR AXLE TO TO REAR SPRINGS | ||
| 306 | A 6203510026 | SPRING CLAMPING PLATE |
| REAR AXLE TO TO REAR SPRINGS | ||
| 309 | A 3633510125 | U-BOLT |
| Repalced by: A 6203510125 | ||
| 309 | A 6203510125 | U-BOLT |
| REAR AXLE TO TO REAR SPRINGS | ||
| 500 MM | ||
| 309 | A 3873510125 | U-BOLT |
| REAR AXLE TO TO REAR SPRINGS | ||
| 575 MM | ||
| 313 | A 3633510128 | PAD |
| REAR AXLE TO TO REAR SPRINGS | ||
| 313 | A 3873510128 | PAD |
| REAR AXLE TO TO REAR SPRINGS | ||
| 313 | A 3893510128 | PAD |
| REAR AXLE TO TO REAR SPRINGS | ||
| 313 | A 3893510028 | PAD |
| REAR AXLE TO TO REAR SPRINGS | ||
| 313 | A 3893510428 | PAD |
| REAR AXLE TO TO REAR SPRINGS | ||
| 313 | A 3633510228 | PAD |
| REAR AXLE TO TO REAR SPRINGS | ||
| 318 | A 3893250074 | PIN |
| REAR AXLE TO TO REAR SPRINGS | ||
| 321 | N 000934024006 | NUT |
| REAR AXLE TO TO REAR SPRINGS | ||
| 323 | A 3879975026 | WASHER |
| REAR AXLE TO TO REAR SPRINGS | ||
| 326 | A 3873260065 | TORSION BAR |
| REAR AXLE TO TO REAR SPRINGS | ||
| 329 | A 0003260250 | BUSHING |
| TORSION BAR TO SHACKLE | ||
| 332 | A 3353260074 | PIN |
| Repalced by: A 3875860132 | ||
| 332 | A 3353260074 | PIN |
| Repalced by: A 3875860532 | ||
| 335 | A 0009931926 | DISC SPRING |
| TORSION BAR TO SHACKLE | ||
| 338 | N 000935027000 | NUT |
| TORSION BAR TO SHACKLE | ||
| N 000094005016 | COTTER PIN | |
| TORSION BAR TO SHACKLE | ||
| 341 | A 3129941309 | LOCK |
| TORSION BAR TO SHACKLE | ||
| 344 | N 912004008102 | LOCK WASHER |
| TORSION BAR TO SHACKLE | ||
| 347 | N 000933008145 | SCREW |
| TORSION BAR TO SHACKLE | ||
| 350 | A 3933260063 | BEARING BRACKET |
| Repalced by: A 3933200678 | ||
| 350 | A 3933200578 | CONSOLE |
| Repalced by: A 3933200678 | ||
| 350 | A 3933200678 | CONSOLE |
| Repalced by: A 3933261163 | ||
| 350 | A 3933261163 | BEARING BRACKET |
| TORSION BAR,REAR | ||
| N 000939016033 | STUD BOLT | |
| TORSION BAR,REAR | ||
| 353 | N 000137016202 | SPRING WASHER |
| BEARING BRACKET TO SIDE MEMBER | ||
| 356 | N 000961016108 | SCREW |
| BEARING BRACKET TO SIDE MEMBER | ||
| 359 | A 3633260047 | SHACKLE |
| Repalced by: A 3633260147 | ||
| 359 | A 3633260147 | SHACKLE |
| TORSION BAR TO FRAME | ||
| 359 | A 3873260247 | SHACKLE |
| Repalced by: A 3873260647 | ||
| 359 | A 3873260647 | SHACKLE |
| TORSION BAR TO FRAME | ||
| 364 | A 0003260650 | BUSHING |
| SHACKLE TO BEARING BRACKET | ||
| 367 | A 3933260052 | SPACER WASHER |
| Repalced by: A 3873230252 | ||
| 367 | A 3873230252 | SPACER WASHER |
| SHACKLE TO BEARING BRACKET | ||
| A 3209900240 | WASHER | |
| SHACKLE TO BEARING BRACKET | ||
| N 000471040002 | LOCK RING | |
| SHACKLE TO BEARING BRACKET | ||
| 370 | A 3933260152 | SPACER WASHER |
| SHACKLE TO BEARING BRACKET | ||
| 373 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 373 | N 910113016002 | NUT |
| SHACKLE TO BEARING BRACKET | ||
| N 000961016081 | SCREW | |
| SHACKLE TO BEARING BRACKET | ||
| 374 | A 0003261681 | RUBBER MOUNTING |
| TORSION BAR | ||
| 374 | A 3873260281 | RUBBER MOUNTING |
| TORSION BAR | ||
| 376 | A 3875860132 | REPAIR KIT |
| Repalced by: A 3873200128 | ||
| 376 | A 3873200128 | REPAIR KIT |
| TORSION BAR MOUNTING | ||
| 376 | A 3875860532 | REPAIR KIT |
| Repalced by: A 3873200528 | ||
| 376 | A 3873200528 | REPAIR KIT |
| TORSION BAR MOUNTING | ||
| 379 | N 000983085001 | LOCK RING |
| TORSION BAR | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
