Transporto priemonė: 1928 MBSA-RSA; VIN numerio dalis: 397114
Grupė: 42 BRAKES
42684
42685
42686
42687
42688
42689
42690
42691
42692
42693
42694
# Kodas Pavadinimas
006 A 0004291401 LINE
BRASS, AIR COMPRESSOR, PRESSUREREGULAT OR, 4-CIRCUIT PROTECTION VALVE
15 MM
009 N 915018015000 UNION NUT
009 N 915017015100 UNION NUT
012 N 003861015004 GLAND
015 N 915065015101 THRUST RING
LINE CONNECTION TO AIR COMPRESSOR
015 N 915065015101 THRUST RING
LINE CONNECTION TO AIR COMPRESSOR
018 N 915045012100 SEAL RING
LINE CONNECTION TO AIR COMPRESSOR
018 N 915045012100 SEAL RING
LINE CONNECTION TO AIR COMPRESSOR
021 N 074299026202 DOUBLE FITTING
AT AIR COMPRESSOR
021 A 6209970272 FITTING
CONNECTION:
1.1.20
023 N 007603026301 SEAL RING
FITTING TO AIR COMPRESSOR
027 A 0019972172 FITTING
BETWEEN THE LINES
027 N 003902015002 CONNECTION FITTING
BETWEEN THE LINES
030 N 003940014201 BULKHEAD FITTING
THROUGH SIDE MEMBER
030 N 003910015002 BULKHEAD FITTING
CONNECTION:
005.4
032 N 074305022202 NUT
CONNECTION:
005.4
035 A 3974290240 BRACKET
LINE MOUNTING
037 N 000931010424 SCREW
Repalced by: A 0019909804
037 A 0019909804 SCREW
BRACKET TO INJECTION PUMP
039 N 913004010008 NUT
Repalced by: A 0009906550
039 A 0009906550 NUT
BRACKET TO INJECTION PUMP
042 A 3609952001 CLAMP
Repalced by: A 6739950001
042 A 6739950001 CLAMP
MOUNTING USED FOR COMPRESSED AIR LINES
045 N 007985006145 SCREW
CLAMP TO BRACKET
051 N 913004006002 NUT
Repalced by: N 913004006001
051 N 913004006001 NUT
CLAMP TO BRACKET
051 N 913004006001 NUT
AIR RESERVOIR,FOUR-CIRCUIT PROTECTIVE VALVE,BRAKE CYLINDER
063 A 3159955010 CLAMP
MOUNTING USED FOR COMPRESSED AIR LINES
066 N 007985006145 SCREW
MOUNTING USED FOR COMPRESSED AIR LINES
070 N 000125006421 WASHER
MOUNTING USED FOR COMPRESSED AIR LINES
074 N 913004006002 NUT
Repalced by: N 913004006001
074 N 913004006001 NUT
MOUNTING USED FOR COMPRESSED AIR LINES
095 N 916027011014 HOSE
LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
540 MM
098 A 0004290541 FITTING
BRAKE HOSE
101 N 915017012100 UNION NUT
104 N 003861012007 GLAND
107 N 916017020000 CLAMP
Repalced by: N 000000000667
107 N 000000000667 CLAMP
LINE MOUNTING
20-32X13 MM
110 N 003901012014 SCREW-IN FITTING
Repalced by: A 0029971572
110 A 0029971572 FITTING
LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
113 A 0009971548 SEAL RING
LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
116 A 0004290927 THRUST RING
LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
118 A 3834290801 LINE
Repalced by: A 6194290801
118 A 6194290801 LINE
Repalced by: A 6254293501
118 A 6254293501 LINE
LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
118 A 3834290701 LINE
Repalced by: A 6194290801
119 A 3974290186 PROTECTIVE TUBE
120 A 0109975982 HOSE
Repalced by: A 0009872827
120 A 0009872827 PLASTIC PIPE
TWO-CIRCUIT BRAKE VALVE,PRESSURE RATIO VALVE,BRAKE HOSE
9X12 MM
120 A 0009872827 PLASTIC PIPE
AIR RESERVOIR,FOUR-CIRCUIT PROTECTIVE VALVE,BRAKE CYLINDER
9X12 MM
120 A 0009872827 PLASTIC PIPE
FROM AIR RESERVOIR TO TWO-CIRCUIT BRAKE VALVE
9X12 MM
120 A 0009872827 PLASTIC PIPE
CHECK VALVE,RELAY VALVE
9X12 MM
120 A 0009872827 PLASTIC PIPE
FROM AIR RESERVOIR TO DOUBLE PRESSURE GAUGE
9X12 MM
120 A 0009872827 PLASTIC PIPE
BRAKE VALVE,BRAKE POWER REGULATOR
9X12 MM
120 A 0009872827 PLASTIC PIPE
FROM TWO-CIRCUIT BRAKE VALVE TO PRESSURE RATIO VALVE
9X12 MM
120 A 0009872827 PLASTIC PIPE
LOAD/NO-LOAD VALVE,TRISTOP CYLINDERS
9X12 MM
121 A 0049971772 FITTING
Repalced by: A 0029906171
121 A 0029906171 FITTING
(PARTS KIT),LINE RUPTURE
122 A 0089979082 HOSE
Repalced by: A 0009872727
122 A 0009872727 PLASTIC PIPE
FROM 3/2-WAY VALVE TO EXHAUST BRAKE CYLINDER
122 A 0009872727 PLASTIC PIPE
FROM CHECK VALVE TO PARKING BRAKE VALVE
122 A 0009872727 PLASTIC PIPE
FROM PARKING BRAKE VALVE TO LOCKING VALVE,REAR AXLES
122 A 0009872727 PLASTIC PIPE
FROM TWO-CIRCUIT BRAKE VALVE TO BRAKE PRESSURE REGULATOR
123 A 0039978972 FITTING
Repalced by: A 0029905971
123 A 0029905971 FITTING
(PARTS KIT),LINE RUPTURE
124 N 915052006021 BANJO UNION
FROM PARKING BRAKE VALVE TO LOCKING VALVE,REAR AXLES
125 A 0009976189 COUPLING
FROM PARKING BRAKE VALVE TO LOCKING VALVE,REAR AXLES
126 A 0099973948 SEAL RING
127 N 915017012100 UNION NUT
128 N 003861012007 GLAND
131 A 0009921505 BUSHING
Repalced by: N 915062009000
131 N 915052009005 BANJO UNION
Repalced by: N 915052009009
131 N 915052009009 BANJO UNION
I.D., / HOSE WIDTH,
16/9 MM
132 A 0019901088 BANJO UNION
133 A 0019909771 ELBOW FITTING
134 N 040621013200 INSULATING HOSE
COMPRESSED AIR LINE PROTECTION
B 13X0.8
134 N 040621007200 INSULATING HOSE
COMPRESSED AIR LINE PROTECTION
B 7X0.7
136 N 915062009000 SLEEVE

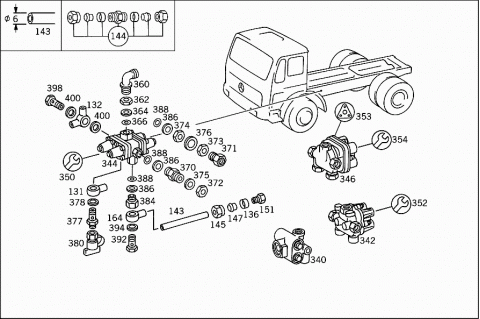

143 A 0089976082 HOSE
Repalced by: A 0009872627
143 A 0009872627 PLASTIC PIPE
BRAKE VALVE,FOUR-CIRCUIT PROTECTIVE VALVE,RELAY VALVE
6X8 MM
143 A 0009872627 PLASTIC PIPE
FROM SERVICE BRAKE VALVE TO AIR PRESSURE GAUGE
6X8 MM
143 A 0009872627 PLASTIC PIPE
FROM AIR RESERVOIR TO DOUBLE FITTING
6X8 MM
143 A 0009872627 PLASTIC PIPE
3/2-WAY VALVE,BRAKE POWER REGULATOR
6X8 MM
143 A 0009872627 PLASTIC PIPE
FROM AIR RESERVOIR TO DOUBLE PRESSURE GAUGE
6X8 MM
144 A 0039979172 FITTING
(PARTS KIT),LINE RUPTURE
145 N 915017008100 UNION NUT
147 N 003861008005 GLAND
151 A 0009904678 CONNECTOR
156 N 915052006014 BANJO UNION
12/6 MM
164 N 915052006013 BANJO UNION
168 A 0029979872 FITTING
170 N 915017006100 UNION NUT
172 N 003861006007 GLAND
174 N 915062004000 SLEEVE
174 N 915062006000 SLEEVE
175 N 915052004016 BANJO UNION
176 A 3549970081 GROMMET
LINE THRU FRAME
32/27 MM
176 A 3879970481 GROMMET
LINE THRU FRAME
38/30 MM
176 A 1869970481 GROMMET
LINE THRU FRAME
176 A 6209970181 GROMMET
LINE TO SIDE MEMBER
42/36 MM
176 A 3969970281 GROMMET
LINE TO SIDE MEMBER
61/54 MM
178 A 6204295240 BRACKET
BRACKET TO CAB CONSOLE
179 N 912004006102 LOCK WASHER
BRACKET TO CAB FLOOR
180 N 000934006007 NUT
BRACKET TO CAB FLOOR
184 A 0019978390 LOOM TIE
COMPRESSED AIR LINE MOUNTING
280 MM
184 A 0019978490 LOOM TIE
COMPRESSED AIR LINE MOUNTING
376 MM
185 A 0004294037 DISTRIBUTOR
EXHAUST BRAKE VALVE LINE CONNECTION
186 N 000931006122 SCREW
Repalced by: A 0019902104
186 A 0019902104 SCREW
DISTRIBUTOR TO FRAME
187 N 009021006205 WASHER
DISTRIBUTOR TO FRAME
188 N 913004006002 NUT
Repalced by: A 0009906250
188 A 0009906250 NUT
DISTRIBUTOR TO FRAME
189 N 915047008202 HOLLOW SCREW
AT DISTRIBUTOR
190 N 915036008202 HOLLOW SCREW
AT DISTRIBUTOR
191 N 007603012405 SEAL RING
AT DISTRIBUTOR
192 N 000908012003 SCREW PLUG
AT DISTRIBUTOR
194 A 0004296034 ADAPTER FITTING
Repalced by: A 0004296634
194 A 0004296634 ADAPTER FITTING
Repalced by: A 0004296934
194 A 0004296934 ADAPTER FITTING
COMPRESSED AIR LINE THRU FRAME
196 N 007603016401 SEAL RING
COMPRESSED AIR LINE THRU FRAME
198 N 915036012203 HOLLOW SCREW
COMPRESSED AIR LINE THRU FRAME
200 N 915047012203 HOLLOW SCREW
COMPRESSED AIR LINE THRU LEFT FRAME SIDE MEMBER
202 A 0004312031 TEST CONNECTION
COMPRESSED AIR LINE THRU FRAME
202 A 0004314531 TEST CONNECTION
COMPRESSED AIR LINE THRU FRAME
202 A 0004316131 TEST CONNECTION
COMPRESSED AIR LINE THRU FRAME
202 A 0004314831 TEST CONNECTION
COMPRESSED AIR LINE THRU FRAME
202 A 0004319431 TEST CONNECTION
COMPRESSED AIR LINE THRU FRAME
204 N 080705018002 NUT
COMPRESSED AIR LINE THRU FRAME
206 A 0019900788 BANJO UNION
COMPRESSED AIR LINE THRU LEFT FRAME SIDE MEMBER
207 A 0019907070 T-FITTING
COMPRESSED AIR LINE THRU LEFT FRAME SIDE MEMBER
208 N 000933008153 SCREW
BRACKET TO CONSOLE
210 N 913004008004 NUT
BRACKET TO CONSOLE
212 A 6204201286 BRACKET
RIGHT COMPRESSED AIR LINES
212 A 6204201286 BRACKET
RIGHT COMPRESSED AIR LINES
214 A 6204201486 BRACKET
RIGHT COMPRESSED AIR LINES
218 N 000933008147 SCREW
Repalced by: A 0019904104
218 A 0019904104 SCREW
BRACKET TO BUMPER STRUT
220 N 913004008004 NUT
Repalced by: A 0009906350
220 A 0009906350 NUT
BRACKET TO BUMPER STRUT
230 A 6204292440 BRACKET
BRAKE LINE THRU CAB FLOOR
232 A 6204290084 SEAL RING
BRACKET TO CAB FLOOR
234 N 007981005309 SHEET METAL SCREW
BRACKET TO CAB FLOOR
235 N 007981004215 SHEET METAL SCREW
BRACKET TO CAB FLOOR
236 N 009021005202 WASHER
BRACKET TO CAB FLOOR
237 A 0009946445 LOCK
BRACKET TO CAB FLOOR
238 A 6204293940 BRACKET
LINE TO SIDE MEMBER
240 N 000933008152 SCREW
Repalced by: A 0019904204
240 A 0019904204 SCREW
BRACKET TO SIDE MEMBER
242 N 913004008004 NUT
Repalced by: A 0009906350
242 A 0009906350 NUT
BRACKET TO SIDE MEMBER
248 A 0019978490 LOOM TIE
376 MM
252 A 0014310006 PRESSURE REGULATOR
Repalced by: A 0024314906
252 A 0014313406 PRESSURE REGULATOR
Repalced by: A 0024314906
252 A 0014311206 PRESSURE REGULATOR
Repalced by: A 0024314906
252 A 0024314906 PRESSURE REGULATOR
WITH REFILL CONNECTION
WESTINGHOUSE
255 A 0014310606 PRESSURE REGULATOR
Repalced by: A 0024313406
255 A 0024313406 PRESSURE REGULATOR
Repalced by: A 0024314306
255 A 0024314306 PRESSURE REGULATOR
WITH REFILL CONNECTION
BOSCH
255 A 0024318306 PRESSURE REGULATOR
WITH REFILL CONNECTION
KNORR
256 A 0004301768 REPAIR KIT
DIAPHRAGM
TO 002 431 34 06,BOSCH 0 481 039 221
256 A 0004300407 REPAIR KIT
TO 002 431 83 06,"KNORR"
256 A 0004301807 REPAIR KIT
TO 002 431 83 06,"KNORR"
257 A 0004307960 REPAIR KIT
TIRE INFLATING CONNECTION
TO 002 431 34 06,BOSCH 0 481 039 221
258 A 0014304960 REPAIR KIT
SEAL RING
TO 002 431 49 06,WEST 975 303 460 0
259 A 0024304681 REPAIR KIT
VALVE KIT
TO 001 431 00 06,WEST. 975 300 110 0
262 A 0015864343 REPAIR KIT
Repalced by: A 0004301107
262 A 0004301107 REPAIR KIT
TO 001 431 00 06,WEST. 975 300 110 0
262 A 0025866043 REPAIR KIT
TO 001 431 34 06,GRAU
262 A 0025866743 REPAIR KIT
TO 001 431 12 06,KNORR
262 A 0015868543 REPAIR KIT
Repalced by: A 0004301407
262 A 0004301407 REPAIR KIT
TO 001 431 06 06,BOSCH 0 481 039 101
264 N 000931008228 SCREW
Repalced by: A 0019905204
264 A 0019905204 SCREW
PRESSURE REGULATOR TO BRACKET
267 N 913004008004 NUT
Repalced by: A 0009906350
267 A 0009906350 NUT
PRESSURE REGULATOR TO BRACKET
270 A 0005461830 INSULATING HOSE
PRESSURE REGULATOR,CONNECTION "3"
270 A 0159975082 HOSE
PRESSURE REGULATOR,CONNECTION "3"
24X1.5 MM
273 N 916026016001 CLAMP
PRESSURE REGULATOR,CONNECTION "3"
273 N 916026020001 CLAMP
PRESSURE REGULATOR,CONNECTION "3"
276 A 0019978390 LOOM TIE
280 MM
276 A 0019978490 LOOM TIE
376 MM
279 A 0009905871 ELBOW FITTING
AT PRESSURE REGULATOR
279 A 0029902271 ELBOW FITTING
CONNECTION:
2.1.10
280 A 0019972172 FITTING
PRESSURE REGULATOR,CONNECTION "2.1"
280 A 0019972372 FITTING
PRESSURE REGULATOR,CONNECTION "2.1"
282 A 0009870446 O-RING
PRESSURE REGULATOR,CONNECTION "2.1"
284 A 0004290227 THRUST RING
PRESSURE REGULATOR,CONNECTION "2.1"
286 N 074305022202 NUT
AT PRESSURE REGULATOR
290 A 6204310740 BRACKET
292 N 000933008145 SCREW
BRACKET TO STRAP
294 N 000125008418 WASHER
BRACKET TO STRAP
296 N 913004008004 NUT
BRACKET TO STRAP

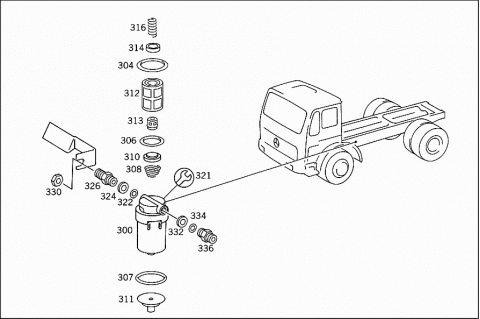

300 A 0004292595 AIR CLEANER
BOSCH
300 A 0004292695 AIR CLEANER
KNORR
300 A 0004292795 AIR CLEANER
WABCO
300 A 0004292895 AIR CLEANER
GRAU
304 A 0019974048 SEAL RING
TO 000 429 25 95,BOSCH
304 A 0089978848 SEAL RING
Repalced by: A 0049972248
304 A 0049972248 SEAL RING
Repalced by: A 0289972348
304 A 0289972348 SEAL RING
100X3 MM;TO 000 429 27 95
304 A 0089978048 SEAL RING
TO 000 429 28 95,GRAU
306 A 0089978948 SEAL RING
Repalced by: A 0009870746
306 A 0009870746 SEALING CORD
75X3 MM;TO 000 429 27 95
307 A 0059972748 SEAL RING
TO 000 429 28 95,GRAU
307 A 0119974048 SEAL RING
TO 000 429 25 95,BOSCH
308 A 0009934805 SPRING
TO 000 429 27 95
310 A 0034294944 VALVE
TO 000 429 27 95
311 A 0004290845 DIAPHRAGM
TO 000 429 28 95,GRAU
311 A 0004291045 DIAPHRAGM
TO 000 429 25 95,BOSCH
312 A 0004290797 FILTER ELEMENT
TO 000 429 25 95,BOSCH
312 A 0004290497 FILTER ELEMENT
TO 000 429 27 95
312 A 0004290397 FILTER ELEMENT
TO 000 429 28 95,GRAU
313 A 0004290597 FILTER ELEMENT
TO 000 429 27 95
314 A 0049971840 SEAL RING
TO 000 429 27 95
316 A 0059930901 SPRING
TO 000 429 27 95
321 A 0004204455 REPAIR KIT
TO 000 429 27 95
321 A 0004300369 REPAIR KIT
TO 000 429 26 95
322 A 0009870446 O-RING
AT AIR CLEANER;CONNECTION:
"1"
324 A 0004290227 THRUST RING
AT AIR CLEANER;CONNECTION:
"1"
326 A 0019972372 FITTING
AT AIR CLEANER;CONNECTION:
"1"
330 N 074305022202 NUT
AIR CLEANER TO BRACKET
332 A 0009870446 O-RING
AT AIR CLEANER;CONNECTION:
"2"
334 A 0004290227 THRUST RING
AT AIR CLEANER;CONNECTION:
"2"
336 N 074313016201 FITTING
Repalced by: A 0019972172
336 A 0019972172 FITTING
CONNECTION:
"2"
336 A 0029978972 FITTING
CONNECTION:
36.1.20
340 A 0024310206 VALVE
Repalced by: A 0024312706
340 A 0024312706 VALVE
Repalced by: A 0024319106
340 A 0024319106 VALVE
(FOUR-CIRCUIT PROTECTIVE VALVE)
GRAU
342 A 0014318706 VALVE
(FOUR-CIRCUIT PROTECTIVE VALVE)
KNORR
344 A 0014318906 VALVE
Repalced by: A 0024314006
344 A 0024314006 VALVE
(FOUR-CIRCUIT PROTECTIVE VALVE)
WABCO
346 A 0014319306 VALVE
(FOUR-CIRCUIT PROTECTIVE VALVE)
BOSCH
350 A 0035860943 REPAIR KIT
TO 001 431 89 06,002 431 40 06
352 A 0035861043 REPAIR KIT
TO 001 431 87 06
353 A 0004304706 GASKET KIT
TO 001 431 93 06,BOSCH 62401
354 A 0004300260 REPAIR KIT
TO 001 431 93 06,BOSCH 62201
360 A 0009909671 ELBOW FITTING
Repalced by: A 0029901271
360 A 0029901271 ELBOW FITTING
CONNECTION:
4.3.10
360 A 0029902271 ELBOW FITTING
CONNECTION:
4.3.10
362 N 074305022202 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"1"
364 A 0004290227 THRUST RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"1"
366 A 0009870446 O-RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"1"
370 N 074313012304 FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
371 A 0004296434 ADAPTER FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
372 N 080705018002 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
373 N 000439016206 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
374 N 080705016003 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
375 N 000125019009 WASHER
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
376 N 000125017010 WASHER
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
377 N 915039012205 HOLLOW SCREW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"23"
378 N 007603016401 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"23"
380 A 0034291044 VALVE
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"23"
384 A 0019905268 FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
386 A 0004290927 THRUST RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
"11,12,21,22,23,24"
388 A 0009971548 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
"11,12,21,22,23,24"
392 N 915047008202 HOLLOW SCREW
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
394 N 007603012405 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
398 N 915036012203 HOLLOW SCREW
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"21"
398 N 915036012203 HOLLOW SCREW
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
400 N 007603016401 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"21"
400 N 007603016401 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"

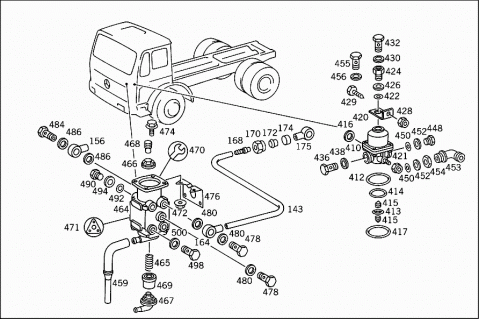

410 A 0014306481 VALVE
PRESSURE RATIO VALVE
412 A 0019871746 SEALING CORD
413 A 0089970445 SEAL RING
414 A 0089978648 SEAL RING
415 A 0004313223 VALVE
416 N 007603016401 SEAL RING
417 A 0089978748 SEAL RING
420 A 6204312440 BRACKET
PRESSURE RATIO VALVE
420 A 6204312540 BRACKET
PRESSURE RATIO VALVE
421 N 913004008004 NUT
422 A 0009971548 SEAL RING
424 A 0004296134 ADAPTER FITTING
426 A 0004290927 THRUST RING
428 N 913004008004 NUT
429 N 007976005203 SHEET METAL SCREW
BRACKET TO CAB FLOOR
430 N 007603016401 SEAL RING
PRESSURE RATIO VALVE,CONNECTION:
"1"
432 N 915036012203 HOLLOW SCREW
PRESSURE RATIO VALVE,CONNECTION:
"1"
436 N 915047012203 HOLLOW SCREW
PRESSURE RATIO VALVE,CONNECTION:
"1 U.2"
438 N 007603016401 SEAL RING
PRESSURE RATIO VALVE,CONNECTION:
"1 U.2"
448 N 000908016001 SCREW PLUG
PRESSURE RATIO VALVE,CONNECTION:
"2"
450 A 0009971548 SEAL RING
PRESSURE RATIO VALVE,CONNECTION:
"2"
452 A 0004290927 THRUST RING
PRESSURE RATIO VALVE,CONNECTION:
"2"
453 A 0029900871 ELBOW FITTING
454 N 913004008004 NUT
ELBOW FITTING TO CAB
455 N 915036012203 HOLLOW SCREW
ELBOW FITTING,CONNECTION:
"1"
455 N 915047012203 HOLLOW SCREW
ELBOW FITTING,CONNECTION:
"2"
456 N 007603016401 SEAL RING
ELBOW FITTING,CONNECTION:
"1 U.2"
459 A 6174310073 BREATHER PIPE
464 A 0024310605 BRAKE VALVE
TWO-CIRCUIT BRAKE VALVE
464 A 0024311005 BRAKE VALVE
TWO-CIRCUIT BRAKE VALVE
464 A 0024312005 BRAKE VALVE
TWO-CIRCUIT BRAKE VALVE
464 A 0014318305 BRAKE VALVE
TWO-CIRCUIT BRAKE VALVE
WESTINGHOUSE
464 A 0014318905 BRAKE VALVE
TWO-CIRCUIT BRAKE VALVE
BOSCH
464 A 0014319105 BRAKE VALVE
TWO-CIRCUIT BRAKE VALVE
KNORR
464 A 0014319905 BRAKE VALVE
TWO-CIRCUIT BRAKE VALVE
GRAU
465 A 0014316993 SPRING
TO 001 431 89 05
466 A 0004312185 FILLER RING
TO 001 431 83 05
467 A 0004310273 BREATHER PIPE
TO 001 431 83 05
468 A 0004318383 PISTON
TO 001 431 83 05
469 A 0004313623 VALVE
TO 001 431 83 05,002 431 06 05,WEST
470 A 0035861143 REPAIR KIT
Repalced by: A 0004306360
470 A 0004306360 REPAIR KIT
Repalced by: A 0004308206
470 A 0004308206 REPAIR KIT
TO 002 431 06 05
471 A 0004300060 REPAIR KIT
Repalced by: A 0014308460
471 A 0014308460 GASKET KIT
TO 002 431 10 05
471 A 0004301160 REPAIR KIT
Repalced by: A 0004306260
471 A 0004306260 REPAIR KIT
Repalced by: A 0014300460
471 A 0014300460 REPAIR KIT
Repalced by: A 0004308006
471 A 0004308006 REPAIR KIT
TO 001 431 83 05
471 A 0025868743 REPAIR KIT
Repalced by: A 0004303506
471 A 0004303506 REPAIR KIT
TO 001 431 89 05
471 A 0035861243 REPAIR KIT
TO 001 431 91 05
472 N 913004008004 NUT
Repalced by: A 0009906350
472 A 0009906350 NUT
MASTER CYLINDER TO BEARING BRACKET
474 N 000933008152 SCREW
Repalced by: A 0019904204
474 A 0019904204 SCREW
MASTER CYLINDER TO BEARING BRACKET
476 A 6202920140 BRACKET
478 N 915036012203 HOLLOW SCREW
LEFT;CONNECTIONS:
"11,12,21,22"
480 N 007603016401 SEAL RING
CONNECTIONS:
"11,12,21,22"
484 N 915036012203 HOLLOW SCREW
RIGHT;CONNECTIONS:
"21"
484 N 915036012203 HOLLOW SCREW
RIGHT;CONNECTIONS:
"11,12"
486 N 007603016401 SEAL RING
CONNECTIONS:
"21"
486 N 007603016401 SEAL RING
CONNECTIONS:
"11,12"
490 N 000908016001 SCREW PLUG
LEFT AND RIGHT;CONNECTIONS:
"21,22"
490 N 000908016001 SCREW PLUG
RIGHT;CONNECTIONS:
"21,22"
490 N 000908016001 SCREW PLUG
RIGHT;CONNECTIONS:
"11,12"
492 A 0009971548 SEAL RING
LEFT AND RIGHT;CONNECTIONS:
"21,22"
492 A 0009971548 SEAL RING
RIGHT;CONNECTIONS:
"21,22"
492 A 0009971548 SEAL RING
RIGHT;CONNECTIONS:
"11,12"
494 A 0004290927 THRUST RING
LEFT AND RIGHT;CONNECTIONS:
"21,22"
494 A 0004290927 THRUST RING
RIGHT;CONNECTIONS:
"21,22"
494 A 0004290927 THRUST RING
RIGHT;CONNECTIONS:
"11,12"
498 N 915036008202 HOLLOW SCREW
CONNECTION:
"4"
500 N 007603012405 SEAL RING
CONNECTION:
"4"

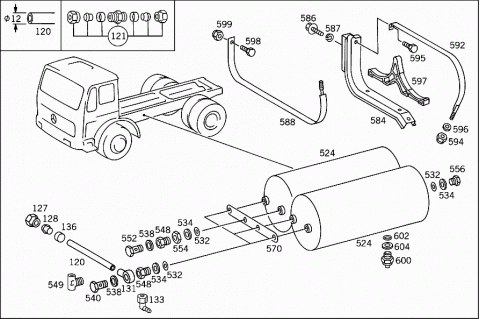

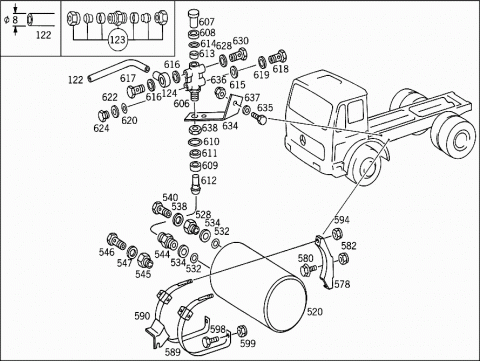

520 A 0004324801 RESERVOIR
AIR RESERVOIR I
20 L
524 A 0004322601 RESERVOIR
Repalced by: A 0034321801
524 A 0034321801 RESERVOIR
AIR RESERVOIRS II,III
30 L
528 A 0009905168 FITTING
AIR RESERVOIR,CONNECTION:
"31"
532 A 0009870446 O-RING
AIR RESERVOIR,CONNECTION:
"23"
532 A 0009870446 O-RING
AIR RESERVOIR,CONNECTION:
"13"
532 A 0009870446 O-RING
AIR RESERVOIR,CONNECTIONS:
"12,21,22"
532 A 0009870446 O-RING
AIR RESERVOIR,CONNECTION:
"11"
532 A 0009870446 O-RING
AIR RESERVOIR,CONNECTIONS:
"31,32"
532 A 0009870446 O-RING
AIR RESERVOIR,CONNECTIONS:
"11,12"
532 A 0009870446 O-RING
AIR RESERVOIR,CONNECTIONS:
"21,22"
534 A 0004290227 THRUST RING
AIR RESERVOIR,CONNECTION:
"23"
534 A 0004290227 THRUST RING
AIR RESERVOIR,CONNECTION:
"13"
534 A 0004290227 THRUST RING
AIR RESERVOIR,CONNECTIONS:
"12,21,22"
534 A 0004290227 THRUST RING
AIR RESERVOIR,CONNECTION:
"11"
534 A 0004290227 THRUST RING
AIR RESERVOIR,CONNECTIONS:
"31,32"
534 A 0004290227 THRUST RING
AIR RESERVOIR,CONNECTIONS:
"11,12"
534 A 0004290227 THRUST RING
AIR RESERVOIR,CONNECTIONS:
"21,22"
538 N 007603016401 SEAL RING
AIR RESERVOIR,CONNECTION:
"23"
538 N 007603016401 SEAL RING
AIR RESERVOIR,CONNECTION:
"11,12"
538 N 007603016401 SEAL RING
AIR RESERVOIR,CONNECTIONS:
"12,21,22"
538 N 007603016401 SEAL RING
AIR RESERVOIR,CONNECTION:
"11"
538 N 007603016401 SEAL RING
AIR RESERVOIR,CONNECTIONS:
"21,22"
538 N 007603016401 SEAL RING
AIR RESERVOIR,CONNECTIONS:
"11,12"
538 N 007603016401 SEAL RING
AIR RESERVOIR,CONNECTION:
"31"
540 N 915036012203 HOLLOW SCREW
AIR RESERVOIR,CONNECTION:
"23"
540 N 915036012203 HOLLOW SCREW
AIR RESERVOIR,CONNECTION:
"11,12"
540 N 915036012203 HOLLOW SCREW
AIR RESERVOIR,CONNECTIONS:
"12,21,22"
540 N 915036012203 HOLLOW SCREW
AIR RESERVOIR,CONNECTIONS:
"21,22"
540 N 915036012203 HOLLOW SCREW
AIR RESERVOIR,CONNECTION:
"31"
544 A 0019972172 FITTING
CONNECTION:
5.1.13
545 A 0009905168 FITTING
CONNECTION:
5.1.13
546 N 915036012203 HOLLOW SCREW
CONNECTION:
5.1.13
547 N 007603016401 SEAL RING
CONNECTION:
5.1.13
548 A 0019907368 FITTING
AIR RESERVOIR,CONNECTIONS:
"12,21,22"
548 A 0019907368 FITTING
AIR RESERVOIR,CONNECTIONS:
"11,12"
548 A 0019907368 FITTING
AIR RESERVOIR,CONNECTIONS:
"21,22"
549 A 0019907170 T-FITTING
AIR RESERVOIR,CONNECTION:
"11"
552 N 915036012203 HOLLOW SCREW
AIR RESERVOIR,CONNECTION:
"11"
554 N 074305022202 NUT
AIR RESERVOIR,CONNECTION:
"11"
556 N 000908022001 SCREW PLUG
AIR RESERVOIR,CONNECTIONS:
"31,32"
570 A 3464320073 LOCK
(PROTECTION AGAINST TORSION)
578 A 3874320540 BRACKET
AIR RESERVOIR
580 N 000933008215 SCREW
Repalced by: A 0019903804
580 A 0019903804 SCREW
Repalced by: N 910105008039
580 N 910105008039 SCREW
BRACKET TO SIDE PART,FRONT
582 N 913004008004 NUT
584 A 3874300339 SUPPORT
FROM AIR RESERVOIR TO ANTI-FREEZE DEVICE
586 N 000961012097 SCREW
Repalced by: A 0029902904
586 A 0029902904 SCREW
SUPPORT TO FRAME SIDE MEMBER
587 N 000127012100 LOCK WASHER
SUPPORT TO FRAME SIDE MEMBER
T YYYYYYYYYYYY PART NAME MISSING
FOR BATTERY/APPARATUS SUPPORT, SEE GROUP 54
588 A 6204300040 STRAP
AIR RESERVOIR
588 A 3874301340 STRAP
AIR RESERVOIR
589 A 6204300440 STRAP
AIR RESERVOIR
589 A 6204300640 STRAP
AIR RESERVOIR
589 A 6204300640 STRAP
AIR RESERVOIR
589 A 6204300240 STRAP
AIR RESERVOIR
590 A 6204300540 STRAP
AIR RESERVOIR
590 A 6204300740 STRAP
AIR RESERVOIR
590 A 6204300740 STRAP
AIR RESERVOIR
590 A 6204301240 STRAP
AIR RESERVOIR
592 A 6174300140 STRAP
Repalced by: A 3874300540
592 A 3874300540 STRAP
AIR RESERVOIR
594 N 913004010008 NUT
STRAP TO BRACKET
595 N 000933010105 SCREW
STRAP TO BRACKET
596 N 000436011006 WASHER
STRAP TO BRACKET
597 A 6204320018 BASE
AIR RESERVOIR,STRAP
598 N 000933010105 SCREW
AIR RESERVOIR,STRAP
599 N 913002010001 NUT
AIR RESERVOIR,STRAP
600 A 0004321407 VALVE
Repalced by: A 0004320807
600 A 0004320807 VALVE
MANUAL DRAIN
600 A 0004321107 VALVE
MANUAL DRAIN
600 A 0004321907 VALVE
MANUAL DRAIN
600 A 0004322107 VALVE
MANUAL DRAIN
600 A 0004322407 VALVE
MANUAL DRAIN
602 A 0009870446 O-RING
DRAIN VALVE TO AIR RESERVOIR
604 A 0004290227 THRUST RING
DRAIN VALVE TO AIR RESERVOIR
606 A 0034290444 VALVE
(CHECK VALVE)
606 A 0034291244 VALVE
(CHECK VALVE)
606 A 0024299644 VALVE
(CHECK VALVE)
607 A 0004290383 VALVE TAPPET
608 A 0004292584 SEAL RING
609 A 0109970048 SEAL RING
610 A 0109970148 SEAL RING
611 A 0004290662 THRUST WASHER
612 A 0004290728 SEAL CONE
613 A 0002950320 VALVE
TO 003 429 04 44
614 A 0089977348 SEAL RING
TO 000 429 04 44
615 N 915045012100 SEAL RING
CHECK VALVE,CONNECTION:
"10"
616 N 007603016401 SEAL RING
CHECK VALVE,CONNECTION:
"21"
617 N 915036012203 HOLLOW SCREW
CHECK VALVE,CONNECTION:
"21"
618 N 915047008202 HOLLOW SCREW
DRAIN VALVE,CONNECTIONS:
619 N 007603012405 SEAL RING
DRAIN VALVE,CONNECTIONS:
620 A 0009971548 SEAL RING
CHECK VALVE,CONNECTION:
"22"
622 A 0004290927 THRUST RING
CHECK VALVE,CONNECTION:
"22"
624 N 000908016001 SCREW PLUG
CHECK VALVE,CONNECTION:
"22"
628 N 007603014405 SEAL RING
CHECK VALVE,CONNECTION:
"23"
630 N 915036010204 HOLLOW SCREW
CHECK VALVE,CONNECTION:
"23"
634 A 6204292540 BRACKET
Repalced by: A 6164290140
634 A 6164290140 BRACKET
CHECK VALVE
635 N 000933010260 SCREW
BRACKET TO SIDE MEMBER
636 N 913004010008 NUT
BRACKET TO SIDE MEMBER
637 A 3529900640 WASHER
BRACKET TO SIDE MEMBER
638 N 074305022202 NUT
CHECK VALVE TO BRACKET

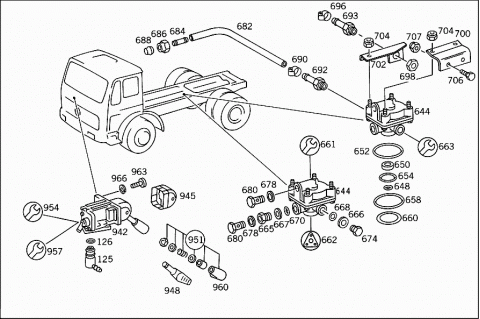

644 A 0034291644 VALVE
RELAY VALVE
644 A 0024290744 VALVE
Repalced by: A 0034295344
644 A 0034295344 VALVE
RELAY VALVE
644 A 0014296844 VALVE
RELAY VALVE
644 A 0014299144 VALVE
RELAY VALVE
648 A 0059972648 SEAL RING
22.3X2.4 MM;TO 001 429 91 44
650 A 0004312788 VALVE SEAT
TO 001 429 91 44
652 A 0059972748 SEAL RING
TO 000 429 28 95,GRAU
654 A 0014311660 SEAL RING
28X2 MM;TO 001 429 91 44
658 A 0014311760 SEAL RING
86X2 MM;TO 001 429 91 44
660 A 0004311980 GASKET
34X2X6 MM;TO 001 429 91 44
661 A 0005865742 REPAIR KIT
TO 001 429 68 44
662 A 0025865642 REPAIR KIT
Repalced by: A 0004201071
662 A 0004201071 VALVE
TO 003 429 16 44 - BOSCH:UP TO 03.82 -
662 A 0004201271 VALVE
TO 003 429 16 44 - BOSCH:FROM 04.82 -
663 A 0025865742 REPAIR KIT
Repalced by: A 0004301109
663 A 0004301109 REPAIR KIT
BLEEDER VALVE
TO 003 429 16 44
663 A 0025863542 REPAIR KIT
TO 002 429 07 44
665 A 0009905168 FITTING
RELAY VALVE,CONNECTION:
"1"
666 A 0004290927 THRUST RING
RELAY VALVE;CONNECTIONS:
"2,4"
667 A 0004290227 THRUST RING
RELAY VALVE,CONNECTION:
"1"
668 A 0009971548 SEAL RING
RELAY VALVE;CONNECTIONS:
"2,4"
670 A 0009870446 O-RING
RELAY VALVE,CONNECTION:
"1"
674 N 000908016001 SCREW PLUG
RELAY VALVE,CONNECTION:
"2"
678 N 007603016401 SEAL RING
RELAY VALVE;CONNECTIONS:
"1,2,4"
680 N 915036012203 HOLLOW SCREW
RELAY VALVE;CONNECTIONS:
"1,2,4"
682 N 916027011014 HOSE
FROM RELAY VALVE TO CONNECTOR
630 MM
682 N 916027011014 HOSE
FROM TRISTOP CYLINDER TO TRISTOP CYLINDER
684 A 0004290541 FITTING
686 N 915017012100 UNION NUT
688 N 003861012007 GLAND
690 N 916017020000 CLAMP
Repalced by: N 000000000667
690 N 000000000667 CLAMP
20-32X13 MM
692 N 074304016201 FITTING
693 A 0004290641 FITTING
696 A 0039975745 SEAL RING
Repalced by: A 1159950465
696 A 1159950465 CLAMP
FROM CONNECTOR TO BRAKE HOSE
696 A 6209950065 CLAMP
698 N 080705018002 NUT
BRAKE HOSE TO RELAY VALVE BRACKET
700 A 3634311740 BRACKET
RELAY VALVE
700 A 6204310340 BRACKET
RELAY VALVE
702 A 6204292040 BRACKET
RELAY VALVE
704 N 913004008004 NUT
706 N 000933010105 SCREW
BRACKET TO LEFT SIDE MEMBER
706 N 000933010145 SCREW
BRACKET TO LEFT SIDE MEMBER
707 N 913004010008 NUT
BRACKET TO LEFT SIDE MEMBER
706 N 000961012107 SCREW
BRACKET TO LEFT SIDE MEMBER
707 N 913004012008 NUT
BRACKET TO LEFT SIDE MEMBER

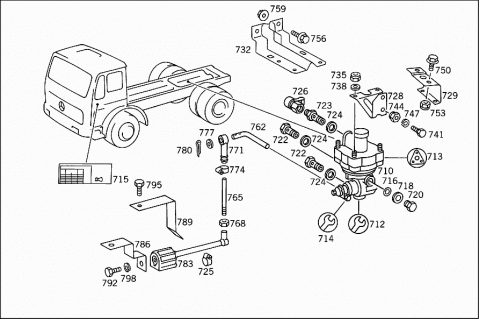

710 A 0024310412 BRAKE PRESSURE REGULATOR
LOAD-DEPENDING BRAKE
710 A 0014313212 BRAKE PRESSURE REGULATOR
LOAD-DEPENDING BRAKE
710 A 0014313612 BRAKE PRESSURE REGULATOR
LOAD-DEPENDING BRAKE
710 A 0014313312 BRAKE PRESSURE REGULATOR
LOAD-DEPENDING BRAKE
710 A 0014313512 BRAKE PRESSURE REGULATOR
LOAD-DEPENDING BRAKE
710 A 0024310512 BRAKE PRESSURE REGULATOR
LOAD-DEPENDING BRAKE
712 A 0035860243 REPAIR KIT
Repalced by: A 0004307560
712 A 0004307560 REPAIR KIT
TO 001 431 32 12
713 A 0004301868 REPAIR KIT
GASKETS
TO 001 431 35 12,36 12
714 A 0014311586 REPAIR KIT
COVERING
TO 001 431 36 12
714 A 0014311486 REPAIR KIT
COVERING
TO 001 431 35 12
714 A 0004300307 REPAIR KIT
Repalced by: A 0004300207
714 A 0004300207 REPAIR KIT
TO 002 431 05 12
714 A 0004301883 REPAIR KIT
VALVE
TO 001 431 35 12,36 12
714 A 0004300207 REPAIR KIT
TO 002 431 04 12
715 A 6215841221 GUIDE SIGN
LOAD-DEPENDING BRAKE
715 A 6215840321 GUIDE SIGN
LOAD-DEPENDING BRAKE
715 A 6215840621 GUIDE SIGN
LOAD-DEPENDING BRAKE
716 A 0009971548 SEAL RING
BRAKE POWER REGULATOR,CONNECTIONS:
"1,2"
718 A 0004290927 THRUST RING
BRAKE POWER REGULATOR,CONNECTIONS:
"1,2"
720 N 000908016001 SCREW PLUG
BRAKE POWER REGULATOR,CONNECTIONS:
"1,2"
722 N 915036012203 HOLLOW SCREW
BRAKE POWER REGULATOR,CONNECTIONS:
"1,2"
723 N 915039012205 HOLLOW SCREW FITTING
BRAKE POWER REGULATOR,CONNECTION:
"4"
724 N 007603016401 SEAL RING
BRAKE POWER REGULATOR,CONNECTIONS:
"1,2,4"
725 A 6249950065 CLAMP
726 A 0004312031 TEST CONNECTION
BRAKE POWER REGULATOR,CONNECTION:
"4"
726 A 0004314531 TEST CONNECTION
BRAKE POWER REGULATOR,CONNECTION:
"4"
726 A 0004314831 TEST CONNECTION
BRAKE POWER REGULATOR,CONNECTIONS:
"4"
726 A 0004316131 TEST CONNECTION
BRAKE POWER REGULATOR,CONNECTIONS:
"4"
726 A 0004319431 TEST CONNECTION
BRAKE POWER REGULATOR,CONNECTIONS:
"4"
728 A 3874311540 BRACKET
BRAKE POWER REGULATOR
729 A 6204311740 BRACKET
BRAKE POWER REGULATOR
729 A 6204313940 BRACKET
BRAKE POWER REGULATOR
732 A 6454310440 BRACKET
BRAKE POWER REGULATOR
735 N 913004008004 NUT
BRACKET TO BRAKE POWER REGULATOR
738 N 000125008418 WASHER
BRACKET TO BRAKE POWER REGULATOR
741 N 000933010129 SCREW
BRACKET TO SIDE MEMBER
744 N 913004010008 NUT
BRACKET TO SIDE MEMBER
747 N 912004010102 LOCK WASHER
BRACKET TO SIDE MEMBER
750 N 000961012151 SCREW
Repalced by: A 0029902804
750 A 0029902804 SCREW
BRACKET TO CROSS MEMBER
M 12X30
750 N 000961012052 SCREW
Repalced by: A 0029902704
750 A 0029902704 SCREW
BRACKET TO CROSS MEMBER
M 12X25
753 N 913004012008 NUT
BRACKET TO CROSS MEMBER
756 N 000961016057 SCREW
Repalced by: A 0039903704
756 A 0019908304 SCREW
BRACKET TO SIDE MEMBER
756 N 000933010105 SCREW
Repalced by: A 0019908304
756 A 0019908304 SCREW
BRACKET TO SIDE MEMBER
759 N 913004016004 NUT
Repalced by: A 0009907150
759 A 0009907150 NUT
BRACKET TO SIDE MEMBER
759 N 913004010008 NUT
Repalced by: A 0009906550
759 A 0009906550 NUT
BRACKET TO SIDE MEMBER
762 A 3854310239 LEVER
Repalced by: A 6204310839
762 A 6204310839 LEVER
Repalced by: A 6744310039
762 A 6744310039 LEVER
BRAKE POWER REGULATOR CONTROL
765 N 900331008419 PULL ROD
FROM BRAKE POWER REGULATOR TO BRACKET
200 MM
768 N 000934008010 NUT
Repalced by: A 0009906350
768 A 0009906350 NUT
FROM BRAKE POWER REGULATOR TO BRACKET
771 A 3434310035 CONNECTOR
BRAKE POWER REGULATOR CONTROL
774 N 916026010000 CLAMP
CONNECTOR TO ROD
777 N 000125008418 WASHER
CONNECTOR TO ROD
780 N 000094002064 COTTER PIN
CONNECTOR TO ROD
783 A 0004311418 METAL SPRING BELLOWS
Repalced by: A 0004311718
783 A 0004311718 METAL SPRING BELLOWS
BRAKE POWER REGULATOR CONTROL
783 A 0004311018 METAL SPRING BELLOWS
BRAKE POWER REGULATOR CONTROL
786 A 6204310840 BRACKET
Repalced by: A 6204313740
786 A 6204313740 BRACKET
METAL SPRING BELLOWS
789 A 6204311040 BRACKET
TRISTOP CYLINDER
792 N 000933012039 SCREW
METAL SPRING BELLOWS TO BRACKET
M 12X18
795 N 000961012047 SCREW
METAL SPRING BELLOWS TO BRACKET
M 12X1.5X18
795 N 000961012047 SCREW
METAL SPRING BELLOWS TO BRACKET
M 12X1.5X18
798 N 000127012100 LOCK WASHER
METAL SPRING BELLOWS TO BRACKET

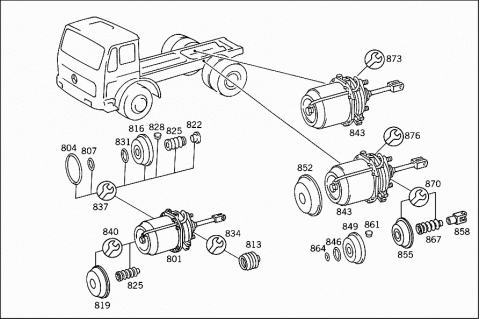

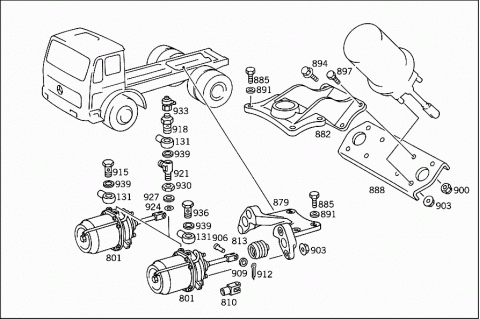

801 A 0074207018 WHEEL BRAKE CYLINDER
TRISTOP CYLINDER
WESTINGHOUSE
801 A 0084209718 WHEEL BRAKE CYLINDER
TRISTOP CYLINDER
BOSCH
801 A 0084202018 WHEEL BRAKE CYLINDER
TRISTOP CYLINDER
KNORR
804 A 0004231060 SEAL RING
TO 008 420 20 18
807 A 0004231160 SEAL RING
TO 008 420 20 18
810 A 0004211263 GUIDE
TO 008 420 97 18
813 A 0004212286 CUP
Repalced by: A 0004215286
813 A 0004215286 CUP
TO 007 420 70 18
816 A 0004311828 DIAPHRAGM
Repalced by: A 0004314128
816 A 0004311428 DIAPHRAGM
Repalced by: A 0004314128
816 A 0004314128 DIAPHRAGM
TO 008 420 20 18
819 A 0004312728 DIAPHRAGM
Repalced by: A 0004314028
819 A 0004314028 DIAPHRAGM
TO 008 420 97 18
822 A 0004234187 PROTECTIVE CAP
TO 008 420 20 18
825 A 0004233886 CUP
TO 008 420 97 18
828 A 0009978786 PLUG
TO 008 420 20 18
831 A 0099979748 SEAL RING
TO 008 420 20 18
834 A 0025862742 REPAIR KIT
SPRING LOAD ACCUMULATOR
TO 007 420 70 18
837 A 0014307260 REPAIR KIT
TO 008 420 20 18
840 A 0004303860 REPAIR KIT
TO 008 420 97 18
843 A 0074206818 WHEEL BRAKE CYLINDER
TRISTOP CYLINDER
WESTINGHOUSE
843 A 0084209518 WHEEL BRAKE CYLINDER
TRISTOP CYLINDER
BOSCH
843 A 0094202218 WHEEL BRAKE CYLINDER
TRISTOP CYLINDER
KNORR
846 A 0004231160 SEAL RING
TO 009 420 22 18
849 A 0004310728 DIAPHRAGM
TO 007 420 68 18
852 A 0004311828 DIAPHRAGM
Repalced by: A 0004314128
852 A 0004311428 DIAPHRAGM
Repalced by: A 0004314128
852 A 0004314128 DIAPHRAGM
TO 009 420 22 18
855 A 0004312728 DIAPHRAGM
Repalced by: A 0004314028
855 A 0004314028 DIAPHRAGM
TO 008 420 95 18
858 A 0004211263 GUIDE
TO 008 420 95 18
861 A 0009978786 PLUG
TO 009 420 22 18
864 A 0099979748 SEAL RING
TO 009 420 22 18
867 A 0004213886 CUP
TO 007 420 68 18
870 A 0004303860 REPAIR KIT
TO 008 420 95 18
873 A 0014307160 REPAIR KIT
Repalced by: A 0044201724
873 A 0044201724 REPAIR KIT
TO 009 420 22 18
873 A 0004302868 REPAIR KIT
TRISTOP CYLINDER
TO 007 420 68 18
876 A 0025862642 REPAIR KIT
SPRING LOAD ACCUMULATOR
TO 007 420 68 18
879 A 3894230133 BEARING BRACKET
Repalced by: A 3634230033
879 A 3634230033 BEARING BRACKET
TRISTOP CYLINDER
882 A 6214230033 BEARING BRACKET
TRISTOP CYLINDER
885 N 000961016032 SCREW
BEARING BRACKET TO REAR AXLE
M 16X1.5X40
885 N 000961016096 SCREW
BEARING BRACKET TO REAR AXLE
M 16X1.5X50
888 A 3874230006 BRAKE ANCHOR
TRISTOP CYLINDER
891 N 000125017010 WASHER
BEARING BRACKET TO REAR AXLE
891 N 000125017010 WASHER
BEARING BRACKET TO REAR AXLE
891 A 3939900240 WASHER
BEARING BRACKET TO REAR AXLE
894 N 000961014028 SCREW
Repalced by: A 0029909604
894 A 0029909604 SCREW
SUPPORT TO BEARING BRACKET
897 N 000961014054 SCREW
SUPPORT TO BEARING BRACKET
900 N 913004014002 NUT
SUPPORT TO BEARING BRACKET
903 N 913004016004 NUT
Repalced by: A 0009907150
903 A 0009907150 NUT
TRISTOP CYLINDER TO BEARING BRACKET
906 A 3619910005 PIN
TRISTOP CYLINDER TO SLACK ADJUSTER
909 N 000433015005 WASHER
TRISTOP CYLINDER TO SLACK ADJUSTER
912 N 000094004051 COTTER PIN
TRISTOP CYLINDER TO SLACK ADJUSTER
915 N 915036012203 HOLLOW SCREW
TRISTOP CYLINDER;CONNECTIONS:
"11,12"
918 N 915039012205 HOLLOW SCREW FITTING
TRISTOP CYLINDER;CONNECTIONS:
"11,12"
921 A 0019905370 T-FITTING
TRISTOP CYLINDER;CONNECTIONS:
"11,12"
924 A 0009971548 SEAL RING
TRISTOP CYLINDER;CONNECTIONS:
"11,12"
927 A 0004290927 THRUST RING
TRISTOP CYLINDER;CONNECTIONS:
"11,12"
930 N 080705016003 NUT
TRISTOP CYLINDER;CONNECTIONS:
"11,12"
930 N 080705016006 NUT
TRISTOP CYLINDER;CONNECTIONS:
"11,12"
933 A 0004312031 TEST CONNECTION
TRISTOP CYLINDER;CONNECTIONS:
"21,22"
933 A 0004314531 TEST CONNECTION
TRISTOP CYLINDER;CONNECTIONS:
"21,22"
933 A 0004314831 TEST CONNECTION
TRISTOP CYLINDER;CONNECTIONS:
"21,22"
933 A 0004316131 TEST CONNECTION
TRISTOP CYLINDER;CONNECTIONS:
"21,22"
933 A 0004319431 TEST CONNECTION
TRISTOP CYLINDER;CONNECTIONS:
"21,22"
936 N 915036012203 HOLLOW SCREW
TRISTOP CYLINDER;CONNECTIONS:
"21,22"
939 N 007603016401 SEAL RING
TRISTOP CYLINDER;CONNECTIONS:
"11,12"
942 A 0014305781 VALVE
HAND BRAKE VALVE
WESTINGHOUSE
942 A 0014304381 VALVE
HAND BRAKE VALVE
BOSCH
942 A 0014306781 VALVE
Repalced by: A 0024309981
942 A 0024309981 VALVE
HAND BRAKE VALVE
KNORR
945 A 0014310887 PROTECTIVE CAP
TO 001 430 57 81
945 A 0014311087 PROTECTIVE CAP
TO 001 430 43 81
945 A 0014311287 PROTECTIVE CAP
TO 001 430 67 81,002 430 99 81
948 A 0009975577 HANDLE
TO 002 430 99 81
951 A 0009972477 HANDLE
TO 001 430 57 81
954 A 0025867443 REPAIR KIT
Repalced by: A 0034303181
954 A 0034303181 REPAIR KIT
TO 000 430 57 81
957 A 0025866343 REPAIR KIT
TO 001 430 43 81
957 A 0035860543 REPAIR KIT
TO 001 430 67 81
957 A 0034302081 REPAIR KIT
TO 002 430 99 81
960 A 0004300027 HANDLE
PARTS KIT
963 N 007985008119 SCREW
VALVE TO CAB
966 N 912006008000 LOCK WASHER
VALVE TO CAB
Reklama
Kontaktai
Pasiūlymas
Skaitliukas



© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
