Transporto priemonė: 1928 MBSA-RSA; VIN numerio dalis: 397114
Grupė: 52 CHASSIS SHEET METAL - 001 SHEET METAL,AIR INTAKE
| # | Kodas | Pavadinimas |
|---|---|---|

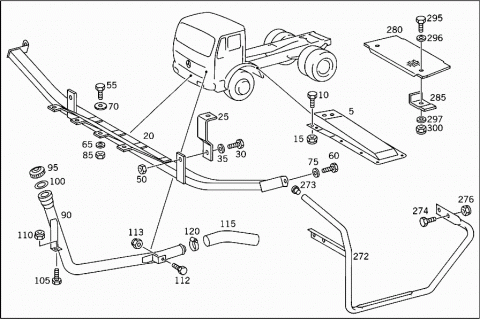

| 005 | A 3875212040 | BRACKET |
| LEFT FENDER | ||
| 005 | A 3875212140 | BRACKET |
| RIGHT FENDER | ||
| 005 | A 3875212140 | BRACKET |
| RIGHT FENDER | ||
| 005 | A 3975200241 | BRACKET |
| RIGHT FENDER | ||
| 010 | N 000961012052 | SCREW |
| Repalced by: A 0029902704 | ||
| 010 | A 0029902704 | SCREW |
| BRACKET TO CONSOLE | ||
| 010 | A 0029902704 | SCREW |
| BRACKET TO CONSOLE | ||
| 010 | A 0029902704 | SCREW |
| BRACKET TO CONSOLE | ||
| 015 | N 913004012008 | NUT |
| BRACKET TO CONSOLE | ||
| 020 | H XV3875200922 | COVERING |
| RADIATOR | ||
| 025 | H XV3875241840 | BRACKET |
| COVERING | ||
| 030 | N 000961012186 | SCREW |
| BOTTOM COVER PLATE TO BRACKET | ||
| 035 | N 009021013102 | WASHER |
| BOTTOM COVER PLATE TO BRACKET | ||
| 050 | N 913004012008 | NUT |
| BOTTOM COVER PLATE TO BRACKET | ||
| 055 | N 000961012097 | SCREW |
| Repalced by: A 0029902904 | ||
| 055 | A 0029902904 | SCREW |
| BOTTOM COVER PLATE TO BUMPER | ||
| 060 | N 000961012107 | SCREW |
| BOTTOM COVER PLATE TO BUMPER | ||
| 065 | N 000125013008 | WASHER |
| BOTTOM COVER PLATE TO BUMPER | ||
| 070 | N 009021013101 | WASHER |
| BOTTOM COVER PLATE TO BUMPER | ||
| 075 | N 007989014201 | WASHER |
| BOTTOM COVER PLATE TO BUMPER | ||
| 085 | N 913004012008 | NUT |
| BOTTOM COVER PLATE TO BUMPER | ||
| 090 | A 3975200006 | PIPE ELBOW |
| OIL REFILLING | ||
| 090 | A 3975200006 | PIPE ELBOW |
| OIL REFILLING | ||
| 090 | A 3975200106 | PIPE ELBOW |
| OIL REFILLING | ||
| 095 | A 0000180702 | CAP |
| Repalced by: A 1020180302 | ||
| 095 | A 1020180302 | CAP |
| OIL FILLING | ||
| 095 | A 1020180402 | CAP |
| OIL FILLING | ||
| 100 | A 0000180180 | GASKET |
| Repalced by: A 1020180080 | ||
| 100 | A 1020180080 | GASKET |
| Repalced by: A 1020180380 | ||
| 100 | A 1020180380 | GASKET |
| 105 | N 000933010128 | SCREW |
| Repalced by: A 0019908204 | ||
| 105 | A 0019908204 | SCREW |
| OIL FILLER NECK TO SIDE AND CROSS MEMBERS | ||
| 110 | N 913004010008 | NUT |
| OIL FILLER NECK TO SIDE AND CROSS MEMBERS | ||
| 112 | N 000961012156 | SCREW |
| OIL FILLER NECK TO SIDE AND CROSS MEMBERS | ||
| 113 | N 913004012008 | NUT |
| OIL FILLER NECK TO SIDE AND CROSS MEMBERS | ||
| 115 | A 3875280582 | HOSE |
| FROM OIL FILTER NECK TO ENGINE | ||
| 120 | N 916017040000 | CLAMP |
| Repalced by: N 000000000671 | ||
| 120 | N 000000000671 | CLAMP |
| FROM OIL FILTER NECK TO ENGINE | ||
| 40-60X13 MM | ||
| 160 | A 3815280191 | BOOT |
| AIR INTAKE | ||
| 160 | A 3815280191 | BOOT |
| AIR INTAKE | ||

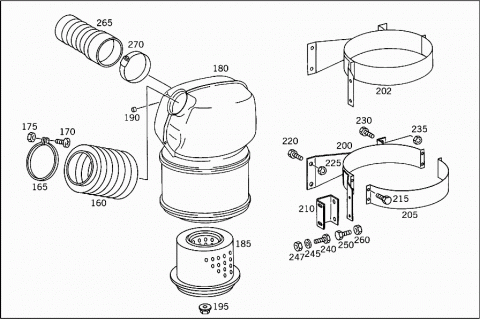

| 165 | A 3815280443 | CLAMP |
| BOOT TO AIR DUCT | ||
| 165 | A 3815280443 | CLAMP |
| BOOT TO AIR DUCT | ||
| 170 | N 000084004425 | SCREW |
| BOOT TO AIR DUCT AND TO AIR CLEANER | ||
| 170 | N 000084004425 | SCREW |
| BOOT TO AIR DUCT AND TO AIR CLEANER | ||
| 175 | N 000934004007 | NUT |
| Repalced by: N 304032004002 | ||
| 175 | N 304032004002 | NUT |
| BOOT TO AIR DUCT AND TO AIR CLEANER | ||
| 175 | N 304032004002 | NUT |
| BOOT TO AIR DUCT AND TO AIR CLEANER | ||
| 180 | A 0090945802 | AIR CLEANER |
| 180 | A 0090946002 | AIR CLEANER |
| Repalced by: A 0140948802 | ||
| 180 | A 0140948802 | AIR CLEANER |

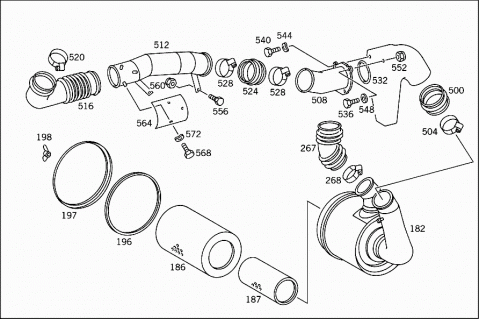

| 182 | A 0130948002 | AIR CLEANER |
| 182 | A 0140940502 | AIR CLEANER |
| DONALDSON | ||
| 185 | A 0010949304 | FILTER ELEMENT |
| TO 009 094 58 02 | ||
| 185 | A 0010948304 | FILTER ELEMENT |
| 186 | A 0030941104 | FILTER ELEMENT |
| TO 014 094 05 02 | ||
| 186 | A 0030940104 | FILTER ELEMENT |
| TO 013 094 80 02 | ||
| 187 | A 0030941204 | FILTER ELEMENT |
| TO 014 094 05 02 | ||
| 187 | A 0030940204 | FILTER ELEMENT |
| TO 013 094 80 02 | ||
| 190 | A 0000940276 | WASHER |
| 190 | A 0000940276 | WASHER |
| TO 009 094 58 02 | ||
| 195 | A 0009901550 | NUT |
| 195 | A 0009901550 | NUT |
| TO 009 094 58 02 | ||
| 196 | A 0009973548 | SEAL RING |
| TO 013 094 80 02 | ||
| 196 | A 0139977248 | SEAL RING |
| TO 014 094 05 02 | ||
| 197 | A 0000940015 | RETAINING RING |
| TO 013 094 80 02 | ||
| 197 | A 0000940115 | RETAINING RING |
| TO 014 094 05 02 | ||
| 198 | A 0000940575 | NUT |
| TO 013 094 80 02 | ||
| 198 | A 0000940675 | NUT |
| Repalced by: A 0000940575 | ||
| 198 | A 0000940575 | NUT |
| TO 014 094 05 02 | ||
| 200 | A 3855200733 | SUPPORT |
| Repalced by: A 6505200433 | ||
| 200 | A 6505200433 | SUPPORT |
| AIR CLEANER | ||
| 200 | A 3875200633 | SUPPORT |
| AIR CLEANER | ||
| 202 | A 6165200033 | SUPPORT |
| AIR CLEANER | ||
| 205 | A 3855280421 | STRAP |
| AIR CLEANER TO SUPPORT | ||
| 205 | A 3875280721 | STRAP |
| AIR CLEANER TO SUPPORT | ||
| 210 | A 3975281240 | BRACKET |
| HYDRAULIC BRAKE | ||
| 210 | A 3975281240 | BRACKET |
| HYDRAULIC BRAKE | ||
| 215 | N 000933008147 | SCREW |
| STRAP WITH AIR CLEANER TO SUPPORT | ||
| 215 | N 000933008147 | SCREW |
| STRAP WITH AIR CLEANER TO SUPPORT | ||
| 220 | N 000961014050 | SCREW |
| Repalced by: A 0029909404 | ||
| 220 | A 0029909404 | SCREW |
| AIR CLEANER SUPPORT TO SIDE MEMBER, FRONT | ||
| 220 | A 0029909404 | SCREW |
| AIR CLEANER SUPPORT TO SIDE MEMBER, FRONT | ||
| 225 | N 913004014002 | NUT |
| Repalced by: A 0009906950 | ||
| 225 | A 0009906950 | NUT |
| AIR CLEANER SUPPORT TO SIDE MEMBER, FRONT | ||
| 225 | A 0009906950 | NUT |
| AIR CLEANER SUPPORT TO SIDE MEMBER, FRONT | ||
| 230 | N 000961012097 | SCREW |
| Repalced by: A 0029902904 | ||
| 230 | N 000961012097 | SCREW |
| 230 | N 000961012122 | SCREW |
| Repalced by: A 0029902904 | ||
| 230 | A 0029902904 | SCREW |
| BRACKET TO FRAME SIDE MEMBER | ||
| 230 | A 0029902904 | SCREW |
| BRACKET TO FRAME SIDE MEMBER | ||
| 235 | N 913004012008 | NUT |
| Repalced by: A 0009906750 | ||
| 235 | A 0009906750 | NUT |
| AIR CLEANER SUPPORT TO SIDE MEMBER, REAR | ||
| 235 | A 0009906750 | NUT |
| AIR CLEANER SUPPORT TO SIDE MEMBER, REAR | ||
| 240 | N 000933010129 | SCREW |
| BRACKET TO BUMPER STRUT | ||
| 240 | N 000933010129 | SCREW |
| BRACKET TO BUMPER STRUT | ||
| 245 | N 000125010518 | WASHER |
| BRACKET TO BUMPER STRUT | ||
| 245 | N 000125010518 | WASHER |
| BRACKET TO BUMPER STRUT | ||
| 247 | N 913004010008 | NUT |
| BRACKET TO BUMPER STRUT | ||
| 247 | N 913004010008 | NUT |
| BRACKET TO BUMPER STRUT | ||
| 250 | N 000933010128 | SCREW |
| Repalced by: A 0019908204 | ||
| 250 | A 0019908204 | SCREW |
| AIR CLEANER SUPPORT TO BUMPER STRUT | ||
| 250 | A 0019908204 | SCREW |
| AIR CLEANER SUPPORT TO BUMPER STRUT | ||
| 260 | N 913004010008 | NUT |
| Repalced by: A 0009906550 | ||
| 260 | A 0009906550 | NUT |
| AIR CLEANER SUPPORT TO BUMPER STRUT | ||
| 260 | A 0009906550 | NUT |
| AIR CLEANER SUPPORT TO BUMPER STRUT | ||
| 265 | A 0010947182 | HOSE |
| FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE | ||
| 265 | A 0000949882 | HOSE |
| Repalced by: A 6205280782 | ||
| 265 | A 6205280782 | HOSE |
| FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE | ||
| 267 | A 6155280682 | HOSE |
| FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE | ||
| 268 | N 916017120000 | CLAMP |
| FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE | ||
| 270 | N 916017110001 | CLAMP |
| FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE | ||
| 270 | N 916017130000 | CLAMP |
| FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE | ||
| 272 | A 6205200130 | SUPPORT |
| BATTERY/APPARATUS | ||
| 273 | N 915042025003 | PLUG |
| 274 | N 000933010105 | SCREW |
| FROM SUPPORT TO BATTERY/APPARATUS SUPPORT | ||
| 276 | N 913004010008 | NUT |
| FROM SUPPORT TO BATTERY/APPARATUS SUPPORT | ||
| 280 | A 3975200031 | RUNNING BOARD |
| 280 | A 6205200031 | RUNNING BOARD |
| 285 | A 6205230019 | MOUNTING ANGLE |
| ROCKER PANEL TO FRAME | ||
| 295 | A 3819900901 | SCREW |
| ROCKER PANEL TO FRAME | ||
| 296 | N 007349010007 | WASHER |
| ROCKER PANEL TO FRAME | ||
| 297 | N 000125010518 | WASHER |
| ROCKER PANEL TO FRAME | ||
| 300 | N 913004010008 | NUT |
| ROCKER PANEL TO FRAME | ||

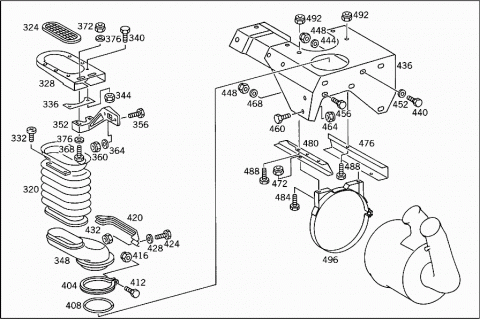

| 320 | A 6205200296 | BOOT |
| 324 | A 6205280103 | STRAINER |
| 328 | A 6205280840 | BRACKET |
| Repalced by: A 6575280040 | ||
| 328 | A 6575280040 | BRACKET |
| 332 | N 914116006403 | SCREW |
| INTAKE PIPE TO BRACKET | ||
| 336 | A 6205280940 | BRACKET |
| INTAKE PIPE TO BRACKET | ||
| 340 | N 000933008212 | SCREW |
| Repalced by: A 0019903704 | ||
| 340 | A 0019903704 | SCREW |
| INTAKE PIPE TO BRACKET | ||
| 344 | N 913004008004 | NUT |
| Repalced by: A 0009906350 | ||
| 344 | A 0009906350 | NUT |
| INTAKE PIPE TO BRACKET | ||
| 348 | A 3975200206 | PIPE ELBOW |
| AIR INTAKE | ||
| 352 | A 6205280339 | SUPPORT |
| INTAKE SCOOP TO CAB | ||
| 356 | N 000933010328 | SCREW |
| Repalced by: A 0019908804 | ||
| 356 | A 0019908804 | SCREW |
| SUPPORT TO CAB BEARING RAIL | ||
| M 10X45 | ||
| 356 | N 000933010129 | SCREW |
| Repalced by: A 0019908504 | ||
| 356 | A 0019908504 | SCREW |
| SUPPORT TO CAB BEARING RAIL | ||
| 360 | N 913004010008 | NUT |
| Repalced by: A 0009906550 | ||
| 360 | A 0009906550 | NUT |
| SUPPORT TO CAB BEARING RAIL | ||
| 364 | N 000125010518 | WASHER |
| SUPPORT TO CAB BEARING RAIL | ||
| 368 | N 000933010150 | SCREW |
| Repalced by: A 0019909004 | ||
| 368 | A 0019909004 | SCREW |
| BRACKET TO SUPPORT | ||
| 372 | N 913004010008 | NUT |
| Repalced by: A 0009906550 | ||
| 372 | A 0009906550 | NUT |
| BRACKET TO SUPPORT | ||
| 376 | N 000125010518 | WASHER |
| BRACKET TO SUPPORT | ||
| 404 | A 6209970690 | CLAMP |
| ELBOW TO AIR CLEANER | ||
| 408 | A 0099977648 | SEAL RING |
| ELBOW TO AIR CLEANER | ||
| 412 | N 000931008046 | SCREW |
| Repalced by: A 0019904304 | ||
| 412 | A 0019904304 | SCREW |
| ELBOW TO AIR CLEANER | ||
| 416 | N 913004008004 | NUT |
| Repalced by: A 0009906350 | ||
| 416 | A 0009906350 | NUT |
| ELBOW TO AIR CLEANER | ||
| 420 | A 6205280043 | CLAMP |
| BOOT TO INTAKE PIPE | ||
| 424 | N 000933008152 | SCREW |
| Repalced by: A 0019904204 | ||
| 424 | A 0019904204 | SCREW |
| BOOT TO INTAKE PIPE | ||
| 428 | N 000125008418 | WASHER |
| BOOT TO INTAKE PIPE | ||
| 432 | N 913004008004 | NUT |
| Repalced by: A 0009906350 | ||
| 432 | A 0009906350 | NUT |
| BOOT TO INTAKE PIPE | ||
| 436 | A 6205200033 | SUPPORT |
| AIR CLEANER | ||
| 440 | N 000961014064 | SCREW |
| Repalced by: A 0029909804 | ||
| 440 | A 0029909804 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| 444 | N 000125015013 | WASHER |
| SUPPORT TO SIDE MEMBER | ||
| 448 | N 913004014002 | NUT |
| Repalced by: A 0009906950 | ||
| 448 | A 0009906950 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 452 | A 3609901740 | WASHER |
| Repalced by: A 3859900440 | ||
| 452 | A 3859900440 | WASHER |
| Repalced by: A 3379900440 | ||
| 452 | A 3379900440 | WASHER |
| SUPPORT TO SIDE MEMBER | ||
| 456 | N 000961014118 | SCREW |
| Repalced by: A 0029909304 | ||
| 456 | A 0029909304 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| 460 | N 000961012151 | SCREW |
| Repalced by: A 0029902804 | ||
| 460 | A 0029902804 | SCREW |
| SUPPORT TO BEARING BRACKET | ||
| 464 | N 913004012008 | NUT |
| Repalced by: A 0009906750 | ||
| 464 | A 0009906750 | NUT |
| SUPPORT TO BEARING BRACKET | ||
| 468 | N 000125015013 | WASHER |
| AIR CLEANER TO SUPPORT | ||
| 472 | N 913004012008 | NUT |
| Repalced by: A 0009906750 | ||
| 472 | A 0009906750 | NUT |
| AIR CLEANER TO SUPPORT | ||
| 476 | A 6205282240 | BRACKET |
| AIR CLEANER TO SUPPORT | ||
| 480 | A 6205282340 | BRACKET |
| AIR CLEANER TO SUPPORT | ||
| 484 | N 000961012052 | SCREW |
| Repalced by: A 0029902704 | ||
| 484 | A 0029902704 | SCREW |
| AIR CLEANER TO SUPPORT | ||
| 488 | N 000961014028 | SCREW |
| Repalced by: A 0029909604 | ||
| 488 | A 0029909604 | SCREW |
| AIR CLEANER TO SUPPORT | ||
| 492 | N 913004014002 | NUT |
| Repalced by: A 0009906950 | ||
| 492 | A 0009906950 | NUT |
| AIR CLEANER TO SUPPORT | ||
| 496 | A 4070900081 | STRAP |
| AIR CLEANER TO SUPPORT | ||
| 500 | A 6245280082 | HOSE |
| FROM AIR CLEANER TO CAB CONSOLE | ||
| 504 | N 916017130000 | CLAMP |
| FROM AIR CLEANER TO CAB CONSOLE | ||
| 508 | A 3975280007 | PIPE ELBOW |
| FROM CAB CONSOLE TO ENGINE CONNECTION | ||
| 512 | A 3975200101 | AIR INTAKE PIPE |
| FROM CAB CONSOLE TO ENGINE CONNECTION | ||
| 516 | A 3975280582 | HOSE |
| FROM CAB CONSOLE TO ENGINE CONNECTION | ||
| 520 | N 916017130000 | CLAMP |
| FROM CAB CONSOLE TO ENGINE CONNECTION | ||
| 524 | A 6245280082 | HOSE |
| AIR INTAKE PIPE TO ELBOW | ||
| 528 | N 916017130000 | CLAMP |
| AIR INTAKE PIPE TO ELBOW | ||
| 532 | A 0069979348 | SEAL RING |
| PIPE ELBOW TO CAB CONSOLE | ||
| 536 | N 000933008152 | SCREW |
| Repalced by: A 0019904204 | ||
| 536 | A 0019904204 | SCREW |
| PIPE ELBOW TO CAB CONSOLE | ||
| 540 | N 000933008160 | SCREW |
| Repalced by: A 0019904404 | ||
| 540 | A 0019904404 | SCREW |
| PIPE ELBOW TO CAB CONSOLE | ||
| 544 | N 000137008204 | SPRING WASHER |
| PIPE ELBOW TO CAB CONSOLE | ||
| 548 | N 000125008418 | WASHER |
| PIPE ELBOW TO CAB CONSOLE | ||
| 552 | N 913004008004 | NUT |
| Repalced by: A 0009906350 | ||
| 552 | A 0009906350 | NUT |
| PIPE ELBOW TO CAB CONSOLE | ||
| 556 | N 000961012097 | SCREW |
| Repalced by: A 0029902904 | ||
| 556 | A 0029902904 | SCREW |
| INTAKE PIPE TO CAB CONSOLE | ||
| 560 | N 913004012008 | NUT |
| INTAKE PIPE TO CAB CONSOLE | ||
| 564 | A 3975280022 | COVERING |
| HEAT SHIELD | ||
| 568 | N 000933008212 | SCREW |
| Repalced by: A 0019903704 | ||
| 568 | A 0019903704 | SCREW |
| HEAT SHIELD | ||
| 572 | N 000137008204 | SPRING WASHER |
| HEAT SHIELD | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
