Transporto priemonė: 1928 MBSA-RSA; VIN numerio dalis: 397114

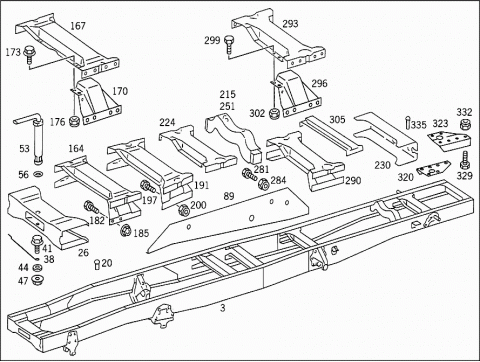

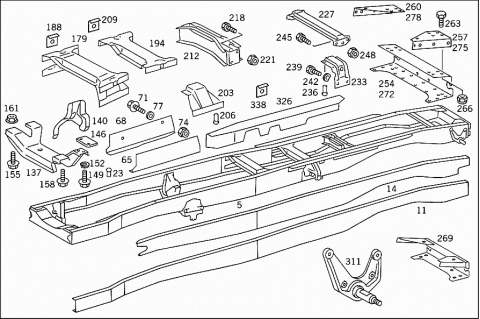

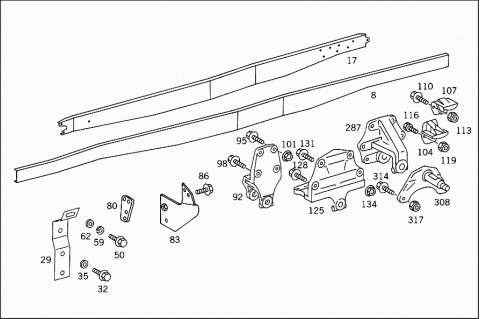

Grupė: 31 FRAME
| # | Kodas | Pavadinimas |
|---|---|---|
| 003 | A 3973104001 | FRAME |
| Repalced by: A 3973105101 | ||
| 003 | A 3973105101 | FRAME |
| 003 | A 3973100201 | FRAME |
| Repalced by: A 3973104801 | ||
| 003 | A 3973104801 | FRAME |
| 003 | A 3973100601 | FRAME |
| Repalced by: A 3973105301 | ||
| 003 | A 3973105301 | FRAME |
| 005 | A 3973100001 | FRAME |
| Repalced by: A 3973105201 | ||
| 005 | A 3973105201 | FRAME |
| 005 | A 3973105201 | FRAME |
| Repalced by: A 3973106701 | ||
| 005 | A 3973106701 | FRAME |
| 008 | A 6213114301 | SIDE MEMBER |
| LEFT | ||
| 008 | A 6213114401 | SIDE MEMBER |
| LEFT | ||
| 008 | A 6213101718 | SIDE MEMBER |
| LEFT | ||
| 008 | A 6213114002 | SIDE MEMBER |
| RIGHT | ||
| 008 | A 6213114102 | SIDE MEMBER |
| RIGHT | ||
| 008 | A 6213101419 | SIDE MEMBER |
| RIGHT | ||
| 011 | A 6203102418 | SIDE MEMBER |
| LEFT | ||
| 011 | A 6203101819 | SIDE MEMBER |
| RIGHT | ||
| 014 | A 6203113751 | TRUSS |
| LEFT | ||
| 014 | A 6203114151 | TRUSS |
| RIGHT | ||
| 017 | A 6213113151 | TRUSS |
| LEFT | ||
| 017 | A 6213113351 | TRUSS |
| RIGHT | ||
| 020 | N 910005012080 | RIVET |
| FRAME TRUSS TO SIDE MEMBER | ||
| 023 | N 910005014056 | RIVET |
| FRAME TRUSS TO SIDE MEMBER | ||
| 026 | A 3873100522 | CROSS MEMBER |
| FRONT | ||
| NO.1 | ||
| 029 | A 3975210040 | BRACKET |
| 032 | N 000961012151 | SCREW |
| Repalced by: A 0029902804 | ||
| 032 | A 0029902804 | SCREW |
| BRACKET TO CONSOLE | ||
| 035 | N 007349013003 | WASHER |
| BRACKET TO CONSOLE | ||
| 038 | A 3873150031 | LOCKING SPRING |
| TO SECURE COUPLING PIN | ||
| 041 | N 000933008152 | SCREW |
| Repalced by: A 0019904204 | ||
| 041 | A 0019904204 | SCREW |
| SPRING TO CROSS MEMBER | ||
| 044 | N 000125008418 | WASHER |
| SPRING TO CROSS MEMBER | ||
| 047 | N 913004008004 | NUT |
| Repalced by: A 0009906350 | ||
| 047 | A 0009906350 | NUT |
| SPRING TO CROSS MEMBER | ||
| 050 | N 000961012122 | SCREW |
| Repalced by: A 0029902904 | ||
| 050 | A 0029902904 | SCREW |
| BRACKET TO CONSOLE | ||
| 050 | N 000961012069 | SCREW |
| Repalced by: A 0029903304 | ||
| 050 | A 0029903304 | SCREW |
| BRACKET TO CONSOLE | ||
| 053 | A 3873150106 | COUPLING PIN |
| 056 | A 0009874346 | SEALING CORD |
| 059 | N 912004012100 | LOCK WASHER |
| BRACKET TO CONSOLE | ||
| 062 | A 3609901840 | WASHER |
| BRACKET TO CONSOLE | ||
| 065 | A 3873122087 | GUSSET PLATE |
| FRONT LEFT | ||
| 068 | A 3873122187 | GUSSET PLATE |
| Repalced by: A 6203120987 | ||
| 068 | A 6203120987 | GUSSET PLATE |
| FRONT RIGHT | ||
| 071 | N 000961012097 | SCREW |
| Repalced by: A 0029902904 | ||
| 071 | A 0029902904 | SCREW |
| CROSS MEMBER AND GUSSET PLATE TO SIDE MEMBERS | ||
| 074 | N 913004012008 | NUT |
| CROSS MEMBER AND GUSSET PLATE TO SIDE MEMBERS | ||
| 074 | N 913004012008 | NUT |
| CROSS MEMBER AND GUSSET PLATE TO SIDE MEMBERS | ||
| 077 | N 000125013008 | WASHER |
| CROSS MEMBER AND GUSSET PLATE TO SIDE MEMBERS | ||
| 080 | A 3978910596 | BASE |
| 083 | A 3975200282 | PLATE |
| 086 | N 000961012034 | SCREW |
| Repalced by: A 0029902504 | ||
| 086 | A 0029902504 | SCREW |
| PLATE TO SUPPORT | ||
| 089 | A 6203110353 | ANGLE |
| FRAME SIDE MEMBER REINFORCEMENT,FRONT LEFT | ||
| 089 | A 6203110553 | ANGLE |
| FRAME SIDE MEMBER REINFORCEMENT,FRONT LEFT | ||
| 089 | A 6203110453 | ANGLE |
| FRAME SIDE MEMBER REINFORCEMENT,FRONT RIGHT | ||
| 089 | A 6203110653 | ANGLE |
| FRAME SIDE MEMBER REINFORCEMENT,FRONT RIGHT | ||
| 092 | A 3873220301 | FRONT SPRING BRACKET |
| FRONT | ||
| 092 | A 6203220201 | FRONT SPRING BRACKET |
| Repalced by: A 6203220501 | ||
| 092 | A 6203220501 | FRONT SPRING BRACKET |
| Repalced by: A 6203220901 | ||
| 092 | A 6203220901 | FRONT SPRING BRACKET |
| FRONT | ||
| 095 | A 3879900114 | SCREW |
| Repalced by: A 0009906214 | ||
| 095 | A 0009906214 | SCREW |
| FRONT SPRING FRONT BRACKET TO SIDE MEMBER | ||
| M 16X45 | ||
| 098 | A 3879900214 | SCREW |
| Repalced by: A 0009906714 | ||
| 098 | A 0009906714 | SCREW |
| FRONT SPRING FRONT BRACKET TO SIDE MEMBER | ||
| 101 | N 913004016005 | NUT |
| Repalced by: A 0009907150 | ||
| 101 | A 0009907150 | NUT |
| FRONT SPRING FRONT BRACKET TO SIDE MEMBER | ||
| 104 | A 3893250217 | HELPER SPRING BRACKET |
| Repalced by: A 6563250017 | ||
| 104 | A 6563250017 | HELPER SPRING BRACKET |
| 107 | A 3893250117 | HELPER SPRING BRACKET |
| Repalced by: A 6843250017 | ||
| 107 | A 6843250017 | HELPER SPRING BRACKET |
| 110 | N 000961012097 | SCREW |
| Repalced by: A 0029902904 | ||
| 110 | N 000961012122 | SCREW |
| Repalced by: A 0029902904 | ||
| 110 | A 0029902904 | SCREW |
| HELPER SPRING BRACKET TO SIDE MEMBER | ||
| 113 | N 913004012008 | NUT |
| HELPER SPRING BRACKET TO SIDE MEMBER | ||
| 116 | N 000961014082 | SCREW |
| HELPER SPRING BRACKET TO SIDE MEMBER | ||
| 116 | N 000960012189 | SCREW |
| Repalced by: A 0029903404 | ||
| 116 | A 0029903404 | SCREW |
| HELPER SPRING BRACKET TO SIDE MEMBER | ||
| 119 | N 913004014002 | NUT |
| HELPER SPRING BRACKET TO SIDE MEMBER | ||
| 125 | A 6203220003 | FRONT SPRING BRACKET |
| Repalced by: A 6203220103 | ||
| 125 | A 6203220103 | FRONT SPRING BRACKET |
| REAR | ||
| 128 | N 000960014087 | SCREW |
| Repalced by: A 0029909804 | ||
| 128 | A 0029909804 | SCREW |
| FRONT SPRING REAR BRACKET TO SIDE MEMBER | ||
| 131 | N 000960014086 | SCREW |
| Repalced by: A 0029909904 | ||
| 131 | A 0029909904 | SCREW |
| FRONT SPRING REAR BRACKET TO SIDE MEMBER | ||
| 134 | N 913004014005 | NUT |
| Repalced by: A 0009906950 | ||
| 134 | A 0009906950 | NUT |
| FRONT SPRING REAR BRACKET TO SIDE MEMBER | ||
| 137 | A 3973120110 | CROSS MEMBER |
| FRONT SPRING REAR BRACKET | ||
| NO.2 | ||
| 140 | A 3973100053 | STRUT |
| Repalced by: A 6203121561 | ||
| 140 | A 6203121561 | STRUT |
| RIGHT FRONT SPRING REAR BRACKET | ||
| 140 | A 3873122561 | STRUT |
| Repalced by: A 3873100353 | ||
| 140 | A 3873100353 | STRUT |
| Repalced by: A 6203121561 | ||
| 146 | A 3873120084 | SHIM |
| Repalced by: A 6203121984 | ||
| 146 | A 6203121984 | SHIM |
| CROSS MEMBER TO FRONT SPRING REAR BRACKET | ||
| 149 | N 000961014113 | SCREW |
| Repalced by: A 0029909204 | ||
| 149 | A 0029909204 | SCREW |
| CROSS MEMBER TO FRONT SPRING REAR BRACKET | ||
| 152 | N 912004014100 | LOCK WASHER |
| CROSS MEMBER TO FRONT SPRING REAR BRACKET | ||
| 155 | N 000961014113 | SCREW |
| Repalced by: A 0029909204 | ||
| 155 | A 0029909204 | SCREW |
| STRUT TO CROSS AND SIDE MEMBERS | ||
| 158 | N 000961014028 | SCREW |
| Repalced by: A 0029909604 | ||
| 158 | A 0029909604 | SCREW |
| STRUT TO CROSS AND SIDE MEMBERS | ||
| 161 | N 913004014002 | NUT |
| Repalced by: A 0009906950 | ||
| 161 | A 0009906950 | NUT |
| STRUT TO CROSS AND SIDE MEMBERS | ||
| 164 | A 3873100136 | CROSS MEMBER |
| NO.3 | ||
| 164 | A 3873100136 | CROSS MEMBER |
| NO.3,NO.5 | ||
| 167 | A 3873120025 | CROSS MEMBER |
| 167 | A 3873120025 | CROSS MEMBER |
| 170 | A 3873121961 | STRUT |
| AT CROSS MEMBER | ||
| 170 | A 3953120261 | STRUT |
| AT CROSS MEMBER | ||
| 170 | A 3873121961 | STRUT |
| AT CROSS MEMBER | ||
| 173 | A 0039900901 | SCREW |
| STRUT TO CROSS MEMBER | ||
| M 12X28 | ||
| 173 | A 0039900901 | SCREW |
| STRUT TO CROSS MEMBER | ||
| M 12X28 | ||
| 176 | N 913004012009 | NUT |
| STRUT TO CROSS MEMBER | ||
| 176 | N 913004012009 | NUT |
| STRUT TO CROSS MEMBER | ||
| 179 | A 6203100037 | CROSS MEMBER |
| NO.3 | ||
| 179 | A 3913100136 | CROSS MEMBER |
| NO.3 | ||
| 179 | A 6203100036 | CROSS MEMBER |
| NO.3 | ||
| 182 | N 000961014100 | SCREW |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 182 | N 000961014097 | SCREW |
| Repalced by: A 0029909404 | ||
| 182 | A 0029909404 | SCREW |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 182 | N 000961014028 | SCREW |
| Repalced by: A 0029909604 | ||
| 182 | A 0029909604 | SCREW |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 185 | N 913004014002 | NUT |
| Repalced by: A 0009906950 | ||
| 185 | A 0009906950 | NUT |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 188 | A 6203121584 | SHIM |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 191 | A 3953100136 | CROSS MEMBER |
| NO.4 | ||
| 191 | A 3873100136 | CROSS MEMBER |
| NO.4 | ||
| 194 | A 3893120025 | CROSS MEMBER |
| NO.4 | ||
| 197 | N 000961014100 | SCREW |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 200 | N 913004014002 | NUT |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 203 | A 3873120161 | STRUT |
| 206 | N 910005014056 | RIVET |
| STRUT TO CROSS MEMBER | ||
| 14X45 MM | ||
| 209 | A 6203121584 | SHIM |
| CROSS MEMBER AND STRUT TO SIDE MEMBER | ||
| 212 | A 6203100437 | CROSS MEMBER |
| NO.5 | ||
| 215 | A 3873100937 | CROSS MEMBER |
| NO.5 | ||
| 218 | N 000961012164 | SCREW |
| CROSS MEMBER TO SIDE MEMBERS | ||
| M 12X28 | ||
| 218 | N 000961012097 | SCREW |
| Repalced by: A 0029902904 | ||
| 218 | N 000961012122 | SCREW |
| Repalced by: A 0029902904 | ||
| 218 | A 0029902904 | SCREW |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 221 | N 913004012008 | NUT |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 224 | A 3873120017 | CROSS MEMBER |
| NO.5 | ||
| 224 | A 3873120017 | CROSS MEMBER |
| NO.6 | ||
| 227 | A 6203120525 | CROSS MEMBER |
| NO.6 | ||
| 230 | A 3873120835 | CROSS MEMBER |
| (REAR CROSS MEMBER) | ||
| NO.6 | ||
| 230 | A 3873120835 | CROSS MEMBER |
| (REAR CROSS MEMBER) | ||
| NO.8 | ||
| 230 | A 3873120835 | CROSS MEMBER |
| (REAR CROSS MEMBER) | ||
| NO.10 | ||
| 233 | A 6203120661 | STRUT |
| LEFT | ||
| 233 | A 6203120761 | STRUT |
| RIGHT | ||
| 236 | N 910005012073 | RIVET |
| STRUT TO CROSS MEMBER | ||
| 12X28 MM | ||
| 239 | N 000961016036 | SCREW |
| CROSS MEMBER AND STRUT TO SIDE MEMBER | ||
| 242 | N 000137016202 | SPRING WASHER |
| CROSS MEMBER AND STRUT TO SIDE MEMBER | ||
| 245 | N 000933010145 | SCREW |
| CROSS MEMBER AND STRUT TO SIDE MEMBER | ||
| 248 | N 913004010008 | NUT |
| CROSS MEMBER AND STRUT TO SIDE MEMBER | ||
| 251 | A 3873100037 | CROSS MEMBER |
| NO.6 | ||
| 251 | A 3873100037 | CROSS MEMBER |
| NO.7 | ||
| A 6213100046 | CROSS MEMBER | |
| NO.7 | ||
| 254 | A 6213120435 | CROSS MEMBER |
| (REAR CROSS MEMBER) | ||
| 257 | A 6213121087 | GUSSET PLATE |
| LEFT | ||
| 260 | A 6213121187 | GUSSET PLATE |
| RIGHT | ||
| 263 | N 000961014088 | SCREW |
| REAR CROSS MEMBER TO GUSSET PLATE | ||
| M 14X1.5X35 | ||
| 263 | N 000961014088 | SCREW |
| REAR CROSS MEMBER TO GUSSET PLATE | ||
| M 14X1.5X35 | ||
| 266 | N 913004014005 | NUT |
| REAR CROSS MEMBER TO GUSSET PLATE | ||
| 266 | N 913004014005 | NUT |
| REAR CROSS MEMBER TO GUSSET PLATE | ||
| 269 | A 6213100446 | CROSS MEMBER |
| NO.7 | ||
| 272 | A 6213121235 | CROSS MEMBER |
| (REAR CROSS MEMBER) | ||
| 275 | A 6213122787 | GUSSET PLATE |
| LEFT | ||
| 278 | A 6213122887 | GUSSET PLATE |
| RIGHT | ||
| 281 | N 000961012164 | SCREW |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 284 | N 913004012008 | NUT |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 287 | A 3873250001 | REAR SPRING BRACKET |
| FRONT | ||
| 290 | A 3893100137 | CROSS MEMBER |
| NO.7 | ||
| 290 | A 3893100137 | CROSS MEMBER |
| NO.8 | ||
| 293 | A 3873120017 | CROSS MEMBER |
| 296 | A 3873120361 | STRUT |
| AT CROSS MEMBER | ||
| 299 | A 0039900901 | SCREW |
| STRUT TO CROSS MEMBER | ||
| 302 | N 913004012009 | NUT |
| STRUT TO CROSS MEMBER | ||
| 305 | A 3873120425 | CROSS MEMBER |
| NO.9 | ||
| 308 | A 3353250603 | REAR SPRING BRACKET |
| REAR | ||
| 311 | A 6213250003 | REAR SPRING BRACKET |
| REAR LEFT | ||
| 311 | A 6213250004 | REAR SPRING BRACKET |
| REAR RIGHT | ||
| 314 | N 000961014028 | SCREW |
| Repalced by: A 0029909604 | ||
| 314 | A 0029909604 | SCREW |
| REAR SPRING REAR BRACKET TO SIDE MEMBER | ||
| 317 | N 913004014002 | NUT |
| REAR SPRING REAR BRACKET TO SIDE MEMBER | ||
| 320 | A 3873120687 | GUSSET PLATE |
| LEFT BOTTOM, AND RIGHT TOP | ||
| 320 | A 3873120687 | GUSSET PLATE |
| LEFT TOP AND RIGHT BOTTOM | ||
| 323 | A 3873120787 | GUSSET PLATE |
| LEFT TOP AND RIGHT BOTTOM | ||
| 323 | A 3873120787 | GUSSET PLATE |
| LEFT BOTTOM, AND RIGHT TOP | ||
| 326 | A 3973160052 | ANGLE |
| Repalced by: A 6203160352 | ||
| 326 | A 6203160352 | ANGLE |
| REAR LEFT | ||
| 326 | A 3973160152 | ANGLE |
| Repalced by: A 6203160452 | ||
| 326 | A 6203160452 | ANGLE |
| REAR RIGHT | ||
| 329 | N 000961014100 | SCREW |
| REAR CROSS MEMBER AND GUSSET PLATES TO SIDE MEMBERS | ||
| 332 | N 913004014002 | NUT |
| REAR CROSS MEMBER AND GUSSET PLATES TO SIDE MEMBERS | ||
| 335 | N 910005012011 | RIVET |
| 12X24 MM | ||
| 335 | N 910005012012 | RIVET |
| 12X26 MM | ||
| 335 | N 910005012073 | RIVET |
| 12X28 MM | ||
| 335 | N 910005012080 | RIVET |
| 12X42 MM | ||
| 335 | N 910005014056 | RIVET |
| 14X38 MM | ||
| 335 | N 910005014056 | RIVET |
| 14X45 MM | ||
| 335 | N 910005014059 | RIVET |
| 14X55 MM | ||
| 335 | N 910005014038 | RIVET |
| 14X60 MM | ||
| 335 | N 910005014066 | RIVET |
| 14X65 MM | ||
| 335 | N 910005014042 | RIVET |
| 14X70 MM | ||
| 335 | N 910005016027 | RIVET |
| 16X68 MM | ||
| 335 | N 910005016006 | RIVET |
| 16X65 MM | ||
| 338 | A 6203121584 | SHIM |

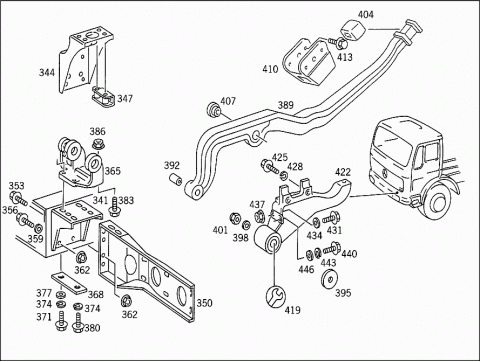

| 341 | A 3878912631 | CONSOLE |
| CAB MOUNTING,FRONT | ||
| 341 | A 3878912631 | CONSOLE |
| CAB MOUNTING,FRONT | ||
| 344 | A 3878912831 | CONSOLE |
| 347 | A 6208900232 | BOW |
| 350 | A 6203170423 | STRUT |
| BUMPER AT TORSION BAR | ||
| 350 | A 6203170423 | STRUT |
| BUMPER AT TORSION BAR | ||
| 350 | A 3973170023 | STRUT |
| BUMPER AT TORSION BAR | ||
| 350 | A 3973170023 | STRUT |
| BUMPER AT TORSION BAR | ||
| 350 | A 3973170023 | STRUT |
| BUMPER AT TORSION BAR | ||
| 353 | N 000961014101 | SCREW |
| Repalced by: A 0029909704 | ||
| 353 | A 0029909704 | SCREW |
| CONSOLE AND STRUT TO FRAME | ||
| 353 | A 0029909704 | SCREW |
| CONSOLE AND STRUT TO FRAME | ||
| 353 | A 0029909704 | SCREW |
| CONSOLE AND STRUT TO FRAME | ||
| 356 | N 000961014063 | SCREW |
| Repalced by: A 0029909604 | ||
| 356 | A 0029909604 | SCREW |
| CONSOLE AND STRUT TO FRAME | ||
| 359 | N 007349015003 | WASHER |
| 362 | N 913004014005 | NUT |
| Repalced by: A 0009906950 | ||
| 362 | A 0009906950 | NUT |
| CONSOLE AND STRUT TO FRAME | ||
| 362 | A 0009906950 | NUT |
| CONSOLE AND STRUT TO FRAME | ||
| 362 | A 0009906950 | NUT |
| CONSOLE AND STRUT TO FRAME | ||
| 365 | A 3878916020 | MOUNTING |
| Repalced by: A 6558910320 | ||
| 365 | A 6558910320 | MOUNTING |
| CAB SUSPENSION,FRONT LEFT | ||
| 365 | A 6558910320 | MOUNTING |
| CAB SUSPENSION,FRONT LEFT | ||
| 365 | A 6208910720 | MOUNTING |
| 365 | A 3878916120 | MOUNTING |
| Repalced by: A 6558910420 | ||
| 365 | A 6558910420 | MOUNTING |
| CAB SUSPENSION,FRONT RIGHT | ||
| 365 | A 6558910420 | MOUNTING |
| CAB SUSPENSION,FRONT RIGHT | ||
| 365 | A 6208910820 | MOUNTING |
| 368 | A 3878910098 | SHIM |
| MOUNTING TO SIDE MEMBER | ||
| 368 | A 3878910498 | SHIM |
| MOUNTING TO SIDE MEMBER | ||
| 368 | A 3878910498 | SHIM |
| MOUNTING TO SIDE MEMBER | ||
| 371 | N 000961014088 | SCREW |
| Repalced by: A 0029909404 | ||
| 371 | A 0029909404 | SCREW |
| MOUNTING TO SIDE MEMBER | ||
| 371 | A 0029909404 | SCREW |
| MOUNTING TO SIDE MEMBER | ||
| 371 | A 0029909404 | SCREW |
| MOUNTING TO SIDE MEMBER | ||
| 374 | N 912004014100 | LOCK WASHER |
| MOUNTING TO SIDE MEMBER | ||
| 374 | N 912004014100 | LOCK WASHER |
| MOUNTING TO SIDE MEMBER | ||
| 377 | N 007349015003 | WASHER |
| MOUNTING TO SIDE MEMBER | ||
| 380 | N 000960014248 | SCREW |
| Repalced by: A 0039900804 | ||
| 380 | A 0039900804 | SCREW |
| MOUNTING TO SIDE MEMBER | ||
| 380 | N 000960014180 | SCREW |
| Repalced by: A 0039901004 | ||
| 380 | A 0039901004 | SCREW |
| MOUNTING TO SIDE MEMBER | ||
| 383 | N 000960014087 | SCREW |
| Repalced by: A 0029909904 | ||
| 383 | A 0029909904 | SCREW |
| MOUNTING TO SIDE MEMBER | ||
| 383 | A 0029909904 | SCREW |
| MOUNTING TO SIDE MEMBER | ||
| 383 | N 000960014251 | SCREW |
| Repalced by: A 0039900504 | ||
| 383 | A 0039900504 | SCREW |
| MOUNTING TO SIDE MEMBER | ||
| 386 | N 913004014005 | NUT |
| Repalced by: A 0009906950 | ||
| 386 | A 0009906950 | NUT |
| MOUNTING TO SIDE MEMBER | ||
| 389 | A 3878912656 | LEVER |
| Repalced by: A 3878912856 | ||
| 389 | A 3878912856 | LEVER |
| 392 | A 3879920203 | BUSHING |
| LEVER | ||
| 392 | A 3879920003 | BUSHING |
| LEVER | ||
| 395 | A 3873170376 | WASHER |
| CAB SUSPENSION,FRONT | ||
| 398 | N 007349017002 | WASHER |
| CAB SUSPENSION,FRONT | ||
| 401 | N 913004016004 | NUT |
| CAB SUSPENSION,FRONT | ||
| 404 | A 3638910023 | BUFFER |
| LEVER TO BEARING | ||
| 407 | A 6208910017 | BUSHING |
| LEVER | ||
| 410 | A 3878913220 | MOUNTING |
| Repalced by: A 6208901603 | ||
| 410 | A 6208901603 | MOUNTING |
| TILTING LEVER TO CAB SIDE MEMBER | ||
| N 000933010105 | SCREW | |
| 413 | N 000961012052 | SCREW |
| Repalced by: A 0029902704 | ||
| 413 | A 0029902704 | SCREW |
| BEARING BRACKET TO CAB | ||
| N 912004012100 | LOCK WASHER | |
| N 912004010102 | LOCK WASHER | |
| 419 | A 6205860031 | REPAIR KIT |
| CAB SUSPENSION,FRONT | ||
| 422 | A 3878916420 | MOUNTING |
| CAB TO LEFT BEARING BRACKET | ||
| 422 | A 3878916520 | MOUNTING |
| CAB TO RIGHT BEARING BRACKET | ||
| 425 | N 000960012189 | SCREW |
| Repalced by: A 0029903404 | ||
| 425 | A 0029903404 | SCREW |
| LEFT AND RIGHT BEARING BRACKETS TO CAB | ||
| 428 | N 912004012100 | LOCK WASHER |
| LEFT AND RIGHT BEARING BRACKETS TO CAB | ||
| 431 | N 000960014167 | SCREW |
| Repalced by: A 0029909804 | ||
| 431 | A 0029909804 | SCREW |
| LEFT AND RIGHT BEARING BRACKETS TO CAB | ||
| 434 | A 3209901840 | WASHER |
| LEFT AND RIGHT BEARING BRACKETS TO CAB | ||
| 437 | N 913004014002 | NUT |
| Repalced by: A 0009906950 | ||
| 437 | A 0009906950 | NUT |
| LEFT AND RIGHT BEARING BRACKETS TO CAB | ||
| 440 | N 000961014097 | SCREW |
| Repalced by: A 0029909704 | ||
| 440 | A 0029909704 | SCREW |
| LEFT AND RIGHT BEARING BRACKETS TO CAB | ||
| 440 | N 000960014237 | SCREW |
| Repalced by: A 0029909604 | ||
| 440 | A 0029909604 | SCREW |
| LEFT AND RIGHT BEARING BRACKETS TO CAB | ||
| 443 | N 912004014100 | LOCK WASHER |
| LEFT AND RIGHT BEARING BRACKETS TO CAB | ||
| 446 | N 000125015012 | WASHER |
| LEFT AND RIGHT BEARING BRACKETS TO CAB | ||

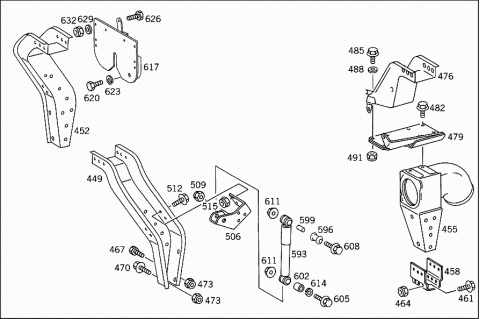

| 449 | A 3878911531 | CONSOLE |
| REAR LEFT | ||
| A 3978910031 | CONSOLE | |
| 452 | A 3878911631 | CONSOLE |
| REAR RIGHT | ||
| 452 | A 3878911631 | CONSOLE |
| REAR RIGHT | ||
| 455 | A 3978910231 | CONSOLE |
| 458 | A 3978910230 | CLAMP |
| 461 | N 000961012052 | SCREW |
| Repalced by: A 0029902704 | ||
| 461 | A 0029902704 | SCREW |
| CLAMP TO CONSOLE | ||
| 464 | N 913004012008 | NUT |
| CLAMP TO CONSOLE | ||
| 467 | N 000961014054 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 14X45 | ||
| 470 | N 000961014028 | SCREW |
| Repalced by: A 0029909604 | ||
| 470 | A 0029909604 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 14X40 | ||
| 473 | N 913004014002 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| 476 | A 3978910331 | CONSOLE |
| 479 | A 6208900131 | CONSOLE |
| 482 | N 000961012174 | SCREW |
| Repalced by: A 0029903104 | ||
| 482 | A 0029903104 | SCREW |
| CONSOLE TO CONSOLE | ||
| 485 | N 000961012097 | SCREW |
| Repalced by: A 0029902904 | ||
| 485 | N 000961012122 | SCREW |
| Repalced by: A 0029902904 | ||
| 485 | A 0029902904 | SCREW |
| 488 | A 3609900940 | WASHER |
| 491 | N 913004012008 | NUT |

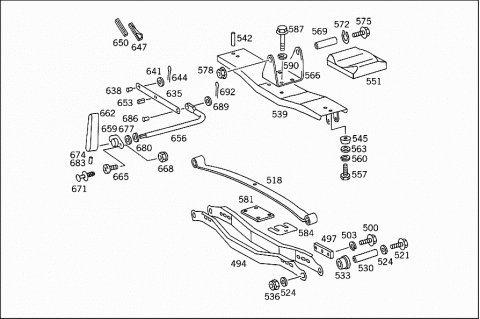

| 494 | A 3878910024 | STRUT |
| Repalced by: A 6558910224 | ||
| 494 | A 6558910224 | STRUT |
| CROSS CONNECTION | ||
| 497 | A 3878910198 | SHIM |
| CROSS CONNECTION | ||
| 500 | N 000961012052 | SCREW |
| Repalced by: A 0029902704 | ||
| 500 | A 0029902704 | SCREW |
| STRUT TO CONSOLE | ||
| 503 | N 912004012100 | LOCK WASHER |
| STRUT TO CONSOLE | ||
| 506 | A 3878908303 | MOUNTING |
| Repalced by: A 3878918520 | ||
| 506 | A 3878918520 | MOUNTING |
| LEFT | ||
| 506 | A 3878918520 | MOUNTING |
| LEFT | ||
| 506 | A 3978900003 | MOUNTING |
| SPRING STOP,LEFT | ||
| 506 | A 3878908403 | MOUNTING |
| Repalced by: A 3878918620 | ||
| 506 | A 3878918620 | MOUNTING |
| RIGHT | ||
| 506 | A 3878918620 | MOUNTING |
| RIGHT | ||
| 509 | N 913004018003 | NUT |
| Repalced by: N 910113018004 | ||
| 509 | N 910113018004 | NUT |
| MOUNTING | ||
| 512 | N 000961012052 | SCREW |
| Repalced by: A 0029902704 | ||
| 512 | A 0029902704 | SCREW |
| MOUNTING TO CONSOLE | ||
| 512 | A 0029902704 | SCREW |
| MOUNTING TO CONSOLE | ||
| 512 | A 0029902704 | SCREW |
| MOUNTING TO CONSOLE | ||
| 515 | N 913004012008 | NUT |
| MOUNTING TO CONSOLE | ||
| 515 | N 913004012008 | NUT |
| MOUNTING TO CONSOLE | ||
| 515 | N 913004012008 | NUT |
| MOUNTING TO CONSOLE | ||
| 518 | A 3878911051 | SPRING |
| CAB | ||
| 521 | N 000960012332 | SCREW |
| Repalced by: A 0029904304 | ||
| 521 | A 0029904304 | SCREW |
| SPRING TO STRUT | ||
| 524 | N 009021013101 | WASHER |
| SPRING TO STRUT | ||
| 530 | A 3638910218 | TUBE |
| SPRING TO STRUT | ||
| 533 | A 3638910717 | BUSHING |
| SPRING TO STRUT | ||
| 536 | N 913004012008 | NUT |
| SPRING TO STRUT | ||
| 539 | A 6558900122 | RAIL |
| Repalced by: A 6558900022 | ||
| 539 | A 6558900022 | RAIL |
| CAB SUSPENSION | ||
| 542 | N 000007012201 | CYLINDRICAL PIN |
| 545 | A 3878910323 | BUFFER |
| CAB SUSPENSION | ||
| 551 | A 6208910372 | MOUNTING |
| Repalced by: A 3878910072 | ||
| 551 | A 6208910472 | MOUNTING |
| Repalced by: A 3878910072 | ||
| 551 | A 3878910072 | MOUNTING |
| CONNECTING RAIL | ||
| 557 | N 000933008176 | SCREW |
| Repalced by: A 0019903804 | ||
| 557 | A 0019903804 | SCREW |
| Repalced by: N 910105008039 | ||
| 557 | N 910105008039 | SCREW |
| MOUNTING TO RAIL | ||
| 557 | N 000084008119 | SCREW |
| BUFFER AND MOUNTING TO RAIL | ||
| 557 | N 000084008119 | SCREW |
| BUFFER AND MOUNTING TO RAIL | ||
| 560 | N 912004008102 | LOCK WASHER |
| BUFFER AND MOUNTING TO RAIL | ||
| 563 | N 000125008418 | WASHER |
| BUFFER AND MOUNTING TO RAIL | ||
| 566 | A 3878916820 | MOUNTING |
| CAB LOCKING MECHANISM | ||
| 566 | A 6208911320 | MOUNTING |
| MOUNTING TO RAIL | ||
| 569 | A 3878911057 | PIN |
| CAB LOCKING MECHANISM | ||
| 569 | A 3878911653 | SPACER TUBE |
| CAB LOCKING MECHANISM | ||
| 572 | N 000471025001 | LOCK RING |
| CAB LOCKING MECHANISM | ||
| 575 | N 000960016286 | SCREW |
| Repalced by: A 0039906804 | ||
| 575 | A 0039906804 | SCREW |
| CAB LOCKING MECHANISM | ||
| 578 | N 913004016004 | NUT |
| Repalced by: A 0009907150 | ||
| 578 | A 0009907150 | NUT |
| CAB LOCKING MECHANISM | ||
| 581 | A 3878910811 | PLATE |
| CAB LOCKING MECHANISM | ||
| 584 | A 6208910296 | BASE |
| RAIL AND PLATE TO SPRING | ||
| 587 | N 000931010258 | SCREW |
| Repalced by: A 0019909004 | ||
| 587 | A 0019909004 | SCREW |
| RAIL AND PLATE TO SPRING | ||
| 590 | N 912004010102 | LOCK WASHER |
| RAIL AND PLATE TO SPRING | ||
| 593 | A 0008912205 | SHOCK ABSORBER |
| VIBRATION ABSORBER | ||
| 596 | A 0008910501 | RUBBER MOUNTING |
| 599 | A 0008910617 | BUSHING |
| 602 | A 3878910353 | SPACER TUBE |
| Repalced by: A 3878910953 | ||
| 602 | A 3878910953 | SPACER TUBE |
| 602 | A 3878910953 | SPACER TUBE |
| 602 | A 3978910053 | SPACER TUBE |
| 602 | A 3878910453 | SPACER TUBE |
| 605 | N 000960018148 | SCREW |
| Repalced by: A 0039909204 | ||
| 605 | A 0039909204 | SCREW |
| SHOCK ABSORBER TO CONSOLE | ||
| 605 | A 0039909204 | SCREW |
| SHOCK ABSORBER TO CONSOLE | ||
| 608 | N 000960018040 | SCREW |
| Repalced by: A 0039909104 | ||
| 608 | A 0039909104 | SCREW |
| SHOCK ABSORBER TO RAIL | ||
| 611 | N 000439018203 | NUT |
| Repalced by: N 308675018002 | ||
| 611 | N 308675018002 | NUT |
| SHOCK ABSORBER TO CONSOLE | ||
| 611 | N 913004018003 | NUT |
| Repalced by: A 0009907350 | ||
| 611 | A 0009907350 | NUT |
| SHOCK ABSORBER TO RAIL | ||
| 614 | N 912004018101 | LOCK WASHER |
| SHOCK ABSORBER TO CONSOLE | ||
| 617 | A 0008900089 | FASTENER |
| Repalced by: A 0008902389 | ||
| 617 | A 0008901389 | FASTENER |
| Repalced by: A 0008902389 | ||
| 617 | A 0008902389 | FASTENER |
| CAB | ||
| FA.TACK U.GABEL | ||
| 620 | N 000933010112 | SCREW |
| FASTENER AND CONSOLE TO CAB | ||
| 623 | N 912004010102 | LOCK WASHER |
| FASTENER AND CONSOLE TO CAB | ||
| 626 | N 000933010105 | SCREW |
| FASTENER AND CONSOLE TO CAB | ||
| 629 | N 000125010518 | WASHER |
| FASTENER AND CONSOLE TO CAB | ||
| 632 | N 913004010008 | NUT |
| FASTENER AND CONSOLE TO CAB | ||
| 635 | A 3878910170 | ROD |
| CAB | ||
| 635 | A 6208910170 | ROD |
| CAB | ||
| 638 | N 001444008219 | PIN |
| PULL TO FASTENER | ||
| 641 | N 000433008403 | WASHER |
| PULL TO FASTENER | ||
| 644 | N 000094002053 | COTTER PIN |
| PULL TO FASTENER | ||
| 647 | A 3878910814 | BRACKET |
| CAB SEALING | ||
| 650 | A 3878910085 | SEAL |
| CAB SEALING | ||
| 653 | N 007346005012 | CLAMPING SLEEVE |
| ROD TO BRACKET | ||
| 656 | A 3878911956 | LEVER |
| CAB LOCKING MECHANISM | ||
| 656 | A 6208910056 | LEVER |
| CAB LOCKING MECHANISM | ||
| 656 | A 6208910456 | LEVER |
| CAB LOCKING MECHANISM | ||
| 659 | A 3638910317 | BUSHING |
| CAB LOCKING MECHANISM | ||
| 662 | A 3638910073 | HANDLE |
| Repalced by: A 6208910073 | ||
| 662 | A 6208910073 | HANDLE |
| CAB LOCKING MECHANISM | ||
| 665 | N 007985008142 | SCREW |
| BUSHING AND HANDLE TO CAB | ||
| 668 | N 913004008004 | NUT |
| BUSHING AND HANDLE TO CAB | ||
| 671 | A 2019900292 | RIVET |
| BUSHING AND HANDLE TO CAB | ||
| 674 | N 007346005004 | CLAMPING SLEEVE |
| HANDLE TO LEVER | ||
| 677 | N 000125015013 | WASHER |
| LEVER MOUNTING | ||
| 680 | N 900055014401 | RETAINING RING |
| LEVER MOUNTING | ||
| TO 387 891 19 56,620 891 00 56 | ||
| 683 | N 007346005004 | CLAMPING SLEEVE |
| LEVER MOUNTING | ||
| TO 620 891 04 56 | ||
| 686 | N 001444008233 | PIN |
| ROD TO LEVER | ||
| 689 | N 000433008406 | WASHER |
| ROD TO LEVER | ||
| 692 | N 000094002053 | COTTER PIN |
| ROD TO LEVER | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
