Transporto priemonė: 1928 MBSA-RSA; VIN numerio dalis: 397114

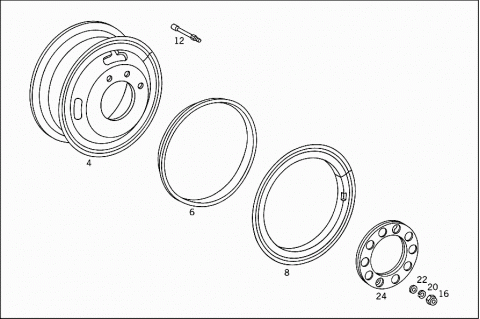

Grupė: 40 WHEELS
| # | Kodas | Pavadinimas |
|---|---|---|
| 004 | A 0014017501 | DISC WHEEL |
| 8.00-20,FA.KRONPRINZ | ||
| 004 | A 0024013601 | DISC WHEEL |
| 8.00-20,FA.LEMMERZ | ||
| 004 | A 0014016001 | DISC WHEEL |
| 8.00-20,FA.SUEDRAD | ||
| 004 | A 3974000002 | DISC WHEEL |
| 8.00-20,FA.GUESTRO | ||
| 006 | A 0004014115 | COVER RING |
| TO 397 400 00 02 | ||
| 008 | A 0004017706 | SIDE RING |
| TO 397 400 00 02 | ||
| 008 | A 0004015606 | SIDE RING |
| TO 001 401 75 01,002 401 36 01 | ||
| 008 | A 0004015606 | SIDE RING |
| TO 001 401 60 01 | ||
| 012 | A 3894010013 | VALVE |
| Repalced by: A 3854010013 | ||
| 012 | A 3854010013 | VALVE |
| EXTENSION | ||
| 012 | A 3894010113 | VALVE |
| Repalced by: A 3854010113 | ||
| 012 | A 3854010113 | VALVE |
| EXTENSION | ||
| 016 | N 074361022205 | NUT |
| DISC WHEELS TO FRONT AND REAR AXLES | ||
| 020 | N 074361022351 | LOCK WASHER |
| DISC WHEELS TO FRONT AND REAR AXLES | ||
| 022 | A 3174020175 | SPHERICAL RING |
| DISC WHEEL TO REAR DRUM HUB | ||
| 024 | A 3604000325 | HUB CAP |
| WHEEL BOLTS AND WHEEL NUTS | ||
| 026 | N 000961014054 | SCREW |
| DISC WHEEL TO SUPPORT | ||
| 026 | N 000960012225 | SCREW |
| Repalced by: A 0029903304 | ||
| 026 | A 0029903304 | SCREW |
| DISC WHEEL TO SUPPORT | ||
| 028 | N 007349015003 | WASHER |
| DISC WHEEL TO SUPPORT | ||
| 030 | N 913004014008 | NUT |
| DISC WHEEL TO SUPPORT | ||

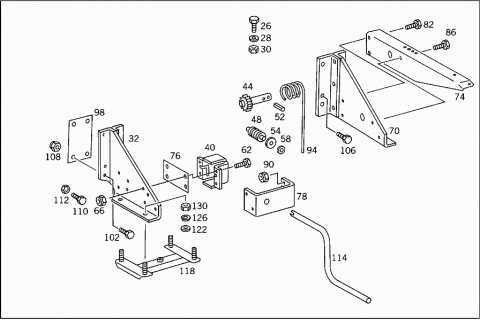

| 032 | A 3974000039 | BRACKET |
| LEFT | ||
| 040 | A 3874030003 | BEARING BRACKET |
| 044 | A 3874030083 | STOP GEAR |
| Repalced by: A 6204030683 | ||
| 044 | A 6204030683 | STOP GEAR |
| SPARE WHEEL HOIST | ||
| 048 | A 3814030185 | WORM |
| Repalced by: A 6204030085 | ||
| 048 | A 6204030085 | WORM |
| SPARE WHEEL HOIST | ||
| 052 | N 001481006027 | CLAMPING SLEEVE |
| 054 | A 3149900440 | WASHER |
| WORM AND SHAFT TO BEARING BRACKET | ||
| 058 | N 002093031201 | DISC SPRING |
| WORM AND SHAFT TO BEARING BRACKET | ||
| 062 | N 000933010145 | SCREW |
| Repalced by: A 0019908604 | ||
| 062 | A 0019908604 | SCREW |
| BEARING BRACKET TO BRACKET | ||
| 066 | N 913004010008 | NUT |
| Repalced by: A 0009906550 | ||
| 066 | A 0009906550 | NUT |
| BEARING BRACKET TO BRACKET | ||
| 070 | A 3464006039 | BRACKET |
| RIGHT | ||
| 074 | A 3874321416 | SUPPORT |
| 076 | A 3874031594 | PLATE |
| 078 | A 3874030140 | BRACKET |
| 082 | N 000961012151 | SCREW |
| Repalced by: A 0029902804 | ||
| 082 | A 0029902804 | SCREW |
| BEARING BRACKET TO BRACKET | ||
| 086 | N 000961012097 | SCREW |
| Repalced by: A 0029902904 | ||
| 086 | A 0029902904 | SCREW |
| BEARING BRACKET TO BRACKET | ||
| 090 | N 913004012008 | NUT |
| BEARING BRACKET TO BRACKET | ||
| 094 | N 083331008500 | WIRE CABLE |
| Repalced by: N 083334008000 | ||
| 094 | N 083334008000 | WIRE CABLE |
| 1250 MM | ||
| 098 | A 6204030094 | PLATE |
| BRACKET TO FRAME | ||
| 102 | N 000961014082 | SCREW |
| Repalced by: A 0029909704 | ||
| 102 | A 0029909704 | SCREW |
| BRACKET TO FRAME | ||
| 106 | N 000960014249 | SCREW |
| Repalced by: A 0029909904 | ||
| 106 | A 0029909904 | SCREW |
| BRACKET TO FRAME | ||
| 108 | N 913004014008 | NUT |
| Repalced by: A 0009906950 | ||
| 108 | A 0009906950 | NUT |
| BRACKET TO FRAME | ||
| 110 | N 000961012097 | SCREW |
| Repalced by: A 0029902904 | ||
| 110 | A 0029902904 | SCREW |
| BRACKET TO FRAME | ||
| 112 | N 913004012008 | NUT |
| Repalced by: A 0009906750 | ||
| 112 | A 0009906750 | NUT |
| BRACKET TO FRAME | ||
| 114 | A 3354030130 | CRANK |
| SPARE WHEEL HOIST | ||
| 118 | A 3894000839 | BRACKET |
| DISC WHEEL | ||
| 122 | N 000125015013 | WASHER |
| DISC WHEEL TO BRACKET | ||
| 126 | N 912004014100 | LOCK WASHER |
| DISC WHEEL TO BRACKET | ||
| 130 | N 000934014019 | NUT |
| Repalced by: A 0009908650 | ||
| 130 | A 0009908650 | NUT |
| DISC WHEEL TO BRACKET | ||
