Transporto priemonė: 1928 S MBSA; VIN numerio dalis: 621111
Grupė: 42 BRAKES
44424
44425
44426
44427
44428
44429
44430
44431
44432
44433
44434
# Kodas Pavadinimas

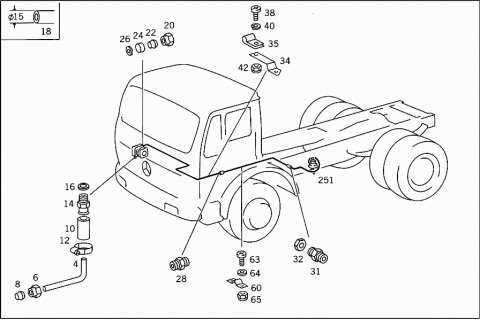

004 A 0004291601 LINE
FROM AIR CLEANER TO AIR COMPRESSOR
006 N 915017022100 UNION NUT
COMPRESSED AIR LINE TO AIR COMPRESSOR
008 N 003861022004 GLAND
COMPRESSED AIR LINE TO AIR COMPRESSOR
010 N 900271022023 HOSE
FROM AIR CLEANER TO AIR COMPRESSOR
22X31X1000
012 N 916017025000 CLAMP
Repalced by: N 000000000668
012 N 000000000668 CLAMP
HOSE TO AIR-COMPRESSOR-TO-AIR-CLEANER LINE
25-40X13 MM
014 A 4031340156 FITTING
COMPRESSED AIR LINE TO AIR CLEANER
016 N 007603026104 SEAL RING
COMPRESSED AIR LINE TO AIR CLEANER
018 A 0004291401 LINE
AIR COMPRESSOR,PRESSURE REGULATOR, FILTER,FOUR-CIRCUIT PROTECTIVE VALVE
15 MM
018 A 0004291401 LINE
FROM AIR RESERVOIR TO CHECK VALVE
15 MM
020 N 915018015000 UNION NUT
N 915017015100 UNION NUT
022 N 003861015004 GLAND
024 N 915065015101 THRUST RING
026 N 915045012100 SEAL RING
028 N 074298022203 DOUBLE FITTING
BETWEEN THE LINES
N 003902015002 CONNECTION FITTING
BETWEEN THE LINES
N 003910015002 BULKHEAD FITTING
THROUGH SIDE MEMBER
031 N 003940014201 BULKHEAD FITTING
THROUGH SIDE MEMBER
032 N 074305022202 NUT
FITTING TO FRAME SIDE MEMBER
034 A 6204294740 BRACKET
MOUNTING USED FOR COMPRESSED AIR LINES
035 A 3609952001 CLAMP
Repalced by: A 6739950001
035 A 6739950001 CLAMP
MOUNTING USED FOR COMPRESSED AIR LINES
038 N 007985006193 SCREW
CLAMP TO BRACKET
040 N 912004006102 LOCK WASHER
CLAMP TO BRACKET
042 N 913004006002 NUT
Repalced by: N 913004006001
042 N 913004006001 NUT
CLAMP TO BRACKET
060 A 3159955010 CLAMP
COMPRESSED AIR LINE TO BRACKET
063 N 007985006145 SCREW
CLAMP TO BRACKET
064 N 000125006421 WASHER
CLAMP TO BRACKET
065 N 913004006002 NUT
Repalced by: N 913004006001
065 N 913004006001 NUT
CLAMP TO BRACKET
068 A 0004296934 ADAPTER FITTING
COMPRESSED AIR LINE THRU FRAME
068 A 0004296934 ADAPTER FITTING
LEFT AND RIGHT BRAKE CYLINDERS
068 A 0004296934 ADAPTER FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"21,22"
068 A 0004296934 ADAPTER FITTING
BRAKE POWER REGULATOR,CONNECTION:
"4"
068 A 0004296934 ADAPTER FITTING
TRAILER-BRAKE-VALVE COMPRESSED-AIR LINE
A 0004296834 ADAPTER FITTING

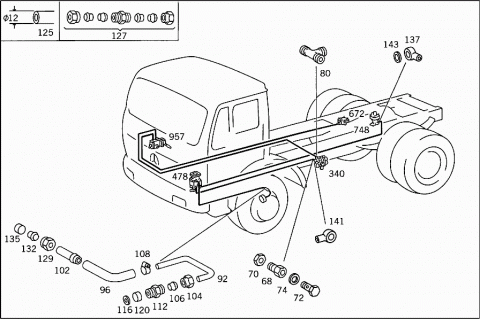

COMPRESSED AIR LINE THRU FRAME
A 0009970934 SCREW
ADAPTER FITTING,CONNECTION:
"10" M 22
070 N 080705018002 NUT
COMPRESSED AIR LINE THRU FRAME
N 000439018204 NUT
COMPRESSED AIR LINE THRU FRAME
072 N 915036012203 HOLLOW SCREW
COMPRESSED AIR LINE, BRAKE
074 N 007603016401 SEAL RING
COMPRESSED AIR LINE, BRAKE
A 0009940147 SEAL RING
COMPRESSED AIR LINE THRU FRAME
TO M 22
A 0009941448 LOCK
COMPRESSED AIR LINE THRU FRAME
TO M 22
A 6739970145 REPAIR KIT
COMPRESSED AIR LINE THRU FRAME
TO M 22
A 0019908171 ELBOW FITTING
COMPRESSED AIR LINE THRU FRAME
080 A 0019907070 T-FITTING
COMPRESSED AIR LINE, BRAKE
092 A 6194290801 LINE
Repalced by: A 6254293501
092 A 6254293501 LINE
LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
096 N 916027011014 HOSE
LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
102 A 0004290541 FITTING
BRAKE HOSE
104 N 915017012100 UNION NUT
BRAKE HOSE
106 N 003861012007 GLAND
BRAKE HOSE
108 N 916017016000 CLAMP
Repalced by: N 000000000666
108 N 000000000666 CLAMP
LINE MOUNTING
16-27X13 MM
112 A 0029971572 FITTING
LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
116 A 0009971548 SEAL RING
LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
120 A 0004290927 THRUST RING
LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
125 A 0109975982 HOSE
Repalced by: A 0009872827
125 A 0009872827 PLASTIC PIPE
AIR RESERVOIR,FOUR-CIRCUIT PROTECTIVE VALVE,BRAKE CYLINDER
9X12 MM
125 A 0009872827 PLASTIC PIPE
RELAY VALVE,BRAKE POWER REGULATOR, TRISTOP CYLINDER,CONTROL VALVE
9X12 MM
125 A 0009872827 PLASTIC PIPE
BRAKE VALVE,BRAKE POWER REGULATOR
9X12 MM
125 A 0009872827 PLASTIC PIPE
CHECK VALVE
9X12 MM
125 A 0009872827 PLASTIC PIPE
PARKING BRAKE VALVE
9X12 MM
125 A 0009872827 PLASTIC PIPE
AXLE BREATHING
9X12 MM
127 A 0049971772 FITTING
Repalced by: A 0029906171
127 A 0029906171 FITTING
(PARTS KIT),LINE RUPTURE
TO 010 997 59 82
129 N 915017012100 UNION NUT
132 N 003861012007 GLAND
135 N 915062009000 SLEEVE
137 N 915052009005 BANJO UNION
Repalced by: N 915052009009
137 N 915052009009 BANJO UNION
HOSE WIDTH, / I.D.,
141 A 0019901088 BANJO UNION
FROM FOUR-CIRCUIT PROTECTIVE VALVE TO AIR RESERVOIR
143 N 007603016401 SEAL RING
COMPRESSED AIR LINE, BRAKE
156 A 0089979082 HOSE
BRAKE VALVE,FOUR-CIRCUIT PROTECTIVE VALVE,RELAY VALVE
6X8 MM
156 A 0089979082 HOSE
3/2-WAY VALVE,BRAKE POWER REGULATOR
6X8 MM
156 A 0089979082 HOSE
PRESSURE GAUGE
6X8 MM
156 A 0089979082 HOSE
PARKING BRAKE VALVE
6X8 MM
159 A 0039978972 FITTING
Repalced by: A 0029905971
159 A 0029905971 FITTING
(PARTS KIT),LINE RUPTURE
163 N 915017008100 UNION NUT
165 N 003861008005 GLAND
169 N 915062006000 SLEEVE
171 N 915052006013 BANJO UNION
HOSE WIDTH, / I.D.,
6/12 MM
173 N 915052006021 BANJO UNION
HOSE WIDTH, / I.D.,
6/14 MM
175 N 915052006014 BANJO UNION
HOSE WIDTH, / I.D.,
6/16 MM
183 A 3549970081 GROMMET
LINE THRU FRAME
32/27 MM
185 A 0089976082 HOSE
3/2-WAY VALVE,PRESSURE GAUGE,EXHAUST BRAKE CYLINDER
4X6 MM
185 A 0089976082 HOSE
LOAD/NO-LOAD VALVE,TRUCK-TRACTOR BRAKE VALVE
4X6 MM
189 A 0039979172 FITTING
6 MM
197 N 915017006100 UNION NUT
199 N 003861006007 GLAND
201 N 915062004000 SLEEVE
204 A 3549970081 GROMMET
LINE THRU FRAME
32/27 MM
204 A 3879970481 GROMMET
LINE THRU FRAME
38/30 MM
207 A 6209970181 GROMMET
LINE THRU FRAME
42/36 MM
A 6454290081 GROMMET
LINE THRU FRAME
210 A 6204201286 BRACKET
BRAKE LINE MOUNTING
212 A 6204201486 BRACKET
BRAKE LINE MOUNTING
215 N 000933008147 SCREW
BRACKET TO BUMPER STRUT
217 N 913004008004 NUT
BRACKET TO BUMPER STRUT
220 N 000933008153 SCREW
BRACKET TO CONSOLE
222 N 913004008004 NUT
BRACKET TO CONSOLE
224 A 3609902340 WASHER
226 A 6204295240 BRACKET
228 A 6204292440 BRACKET
BRAKE LINE THRU CAB FLOOR
229 A 6204290084 SEAL RING
BRACKET TO SUBSTRUCTURE
231 N 007981004215 SHEET METAL SCREW
BRACKET TO CAB FLOOR
233 N 009021005202 WASHER
BRACKET TO CAB FLOOR
234 A 0009946445 LOCK
BRACKET TO CAB FLOOR
235 A 6204293940 BRACKET
LINE MOUNTING
243 N 000933008152 SCREW
BRACKET TO SIDE MEMBER
245 N 913004008004 NUT
BRACKET TO SIDE MEMBER
246 A 3274925419 BRACKET
Repalced by: A 6205240340
246 A 6205240340 BRACKET
LINE MOUNTING
247 A 6204294340 BRACKET
Repalced by: A 3604293140
247 A 3604293140 BRACKET
TO MOUNT PLASTIC PIPING
248 A 0019978390 LOOM TIE
280 MM
248 A 0019978490 LOOM TIE
376 MM
250 A 0004312031 TEST CONNECTION
LEFT AND RIGHT BRAKE CYLINDERS
VOSS
250 A 0004314531 TEST CONNECTION
LEFT AND RIGHT BRAKE CYLINDERS
SCHAEFER
250 A 0004314831 TEST CONNECTION
LEFT AND RIGHT BRAKE CYLINDERS
WABCO
250 A 0004316131 TEST CONNECTION
LEFT AND RIGHT BRAKE CYLINDERS
WIRA
A 0009979486 PLUG

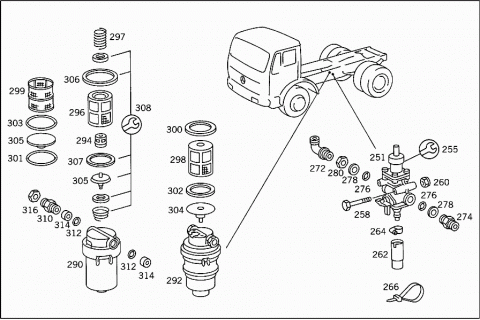

251 A 0024314906 PRESSURE REGULATOR
WITH TIRE INFLATING CONNECTION
WABCO
251 A 0024314306 PRESSURE REGULATOR
WITH TIRE INFLATING CONNECTION
BOSCH
A 0024318306 PRESSURE REGULATOR
WITH TIRE INFLATING CONNECTION
KNORR
255 A 0014304960 REPAIR KIT
TO 002 431 49 06,WABCO 975 303 460 0
255 A 0004301768 REPAIR KIT
DIAPHRAGM
TO 002 431 43 06,BOSCH.0 481 039 201
255 A 0004307960 REPAIR KIT
TIRE INFLATING CONNECTION
TO 002 431 43 06,BOSCH.0 481 039 201
A 0004300407 REPAIR KIT
TO 002 431 83 06,KNORR 903 09
258 N 000931008251 SCREW
PRESSURE REGULATOR TO BRACKET
M 8X75
260 N 913004008004 NUT
PRESSURE REGULATOR TO BRACKET
262 A 0159975082 HOSE
PRESSURE REGULATOR,CONNECTION "3"
264 N 916026020001 CLAMP
PRESSURE REGULATOR,CONNECTION "3"
266 A 0019978390 LOOM TIE
PRESSURE REGULATOR,CONNECTION "3"
272 A 0009905871 ELBOW FITTING
PRESSURE REGULATOR,CONNECTION:
"1"
N 003911015102 FITTING
PRESSURE REGULATOR,CONNECTION:
"1"
274 A 0019972172 FITTING
PRESSURE REGULATOR,CONNECTION:
"21"
276 A 0009870446 SEALING CORD
AT PRESSURE REGULATOR
278 A 0004290227 THRUST RING
AT PRESSURE REGULATOR
280 N 074305022202 NUT
AT PRESSURE REGULATOR
290 A 0004292595 AIR CLEANER
BOSCH
290 A 0004292695 AIR CLEANER
KNORR
290 A 0004292795 AIR CLEANER
WABCO
292 A 0004292895 AIR CLEANER
GRAU
294 A 0004290597 FILTER ELEMENT
TO 000 429 27 95,WABCO
296 A 0004290497 FILTER ELEMENT
TO 000 429 27 95,WABCO
297 A 0059930901 SPRING
TO 000 429 27 95,WABCO
298 A 0004290397 FILTER ELEMENT
TO 000 429 28 95,GRAU
299 A 0004290797 FILTER ELEMENT
TO 000 429 25 95,BOSCH
300 A 0089978048 SEAL RING
TO 000 429 28 95,GRAU
301 A 0019974048 SEAL RING
TO 000 429 25 95,BOSCH
302 A 0059972748 SEAL RING
TO 000 429 28 95,GRAU
303 A 0119974048 SEAL RING
TO 000 429 25 95,BOSCH
304 A 0004290845 DIAPHRAGM
TO 000 429 28 95,GRAU
305 A 0004291045 DIAPHRAGM
TO 000 429 25 95,BOSCH
306 A 0089978848 SEAL RING
TO 000 429 27 95,100X3 MM,WABCO
307 A 0009870746 SEALING CORD
TO 000 429 27 95,75X3 MM,WABCO
308 A 0004204455 REPAIR KIT
TO 000 429 27 95,WABCO
A 0004300369 REPAIR KIT
TO 000 429 26 95,KNORR
310 A 0019972172 FITTING
AIR CLEANER,CONNECTION:
"2"
A 0029978972 FITTING
AIR CLEANER,CONNECTION:
"2"
312 A 0009870446 SEALING CORD
AIR CLEANER,CONNECTION:
"1,2"
314 A 0004290227 THRUST RING
AIR CLEANER,CONNECTION:
"1,2"
316 N 074305022202 NUT
AIR CLEANER TO BRACKET

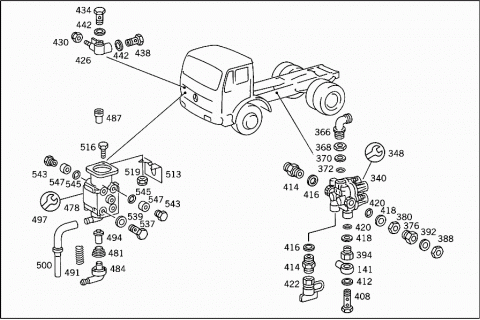

340 A 0014318706 VALVE
(FOUR-CIRCUIT PROTECTIVE VALVE)
KNORR
340 A 0024314006 VALVE
(FOUR-CIRCUIT PROTECTIVE VALVE)
WABCO
340 A 0014319306 VALVE
(FOUR-CIRCUIT PROTECTIVE VALVE)
BOSCH
340 A 0024312706 VALVE
Repalced by: A 0024319106
340 A 0024319106 VALVE
(FOUR-CIRCUIT PROTECTIVE VALVE)
GRAU
348 A 0004304706 GASKET KIT
TO 001 431 93 06,BOSCH 62401
348 A 0004300260 REPAIR KIT
TO 001 431 93 06,BOSCH 62201
A 0034300981 GASKET KIT
TO 002 431 91 06 GRAU 66001
348 A 0035861043 REPAIR KIT
TO 001 431 87 06,KNORR
366 A 0009909671 ELBOW FITTING
Repalced by: A 0029901271
366 A 0029901271 ELBOW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"1"
A 0029902271 ELBOW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"1"
368 N 074305022202 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"1"
370 A 0004290227 THRUST RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"1"
372 A 0009870446 SEALING CORD
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"1"
376 A 0004296434 ADAPTER FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
380 N 000439016206 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
388 N 080705016003 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
392 N 000125017010 WASHER
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
394 A 0019905268 FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
"24"
408 N 915047008202 HOLLOW SCREW
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
412 N 007603012405 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
"24"
414 N 915039012205 HOLLOW SCREW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"21,22,23"
416 N 007603016401 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
"21,22,23,24"
418 A 0004290927 THRUST RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
"22,24"
420 A 0009971548 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
"22,24"
422 A 0034291044 VALVE
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"23"
A 0044293744 VALVE
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"23"
426 A 0029900871 ELBOW FITTING
430 N 913004008004 NUT
FITTING TO CAB FLOOR
434 N 915036012203 HOLLOW SCREW
AT FITTING
438 N 915047012203 HOLLOW SCREW
AT FITTING
442 N 007603016401 SEAL RING
AT FITTING
478 A 0014318305 BRAKE VALVE
TWO-CIRCUIT BRAKE VALVE
WABCO
478 A 0014318905 BRAKE VALVE
TWO-CIRCUIT BRAKE VALVE
BOSCH
478 A 0014319105 BRAKE VALVE
TWO-CIRCUIT BRAKE VALVE
KNORR
478 A 0014319905 BRAKE VALVE
TWO-CIRCUIT BRAKE VALVE
GRAU
481 A 0004312185 FILLER RING
TO 001 431 83 05,WABCO
484 A 0004310273 BREATHER PIPE
TO 001 431 83 05,WABCO
487 A 0004318383 PISTON
TO 001 431 83 05,WABCO
491 A 0014316993 SPRING
TO 001 431 89 05,BOSCH
494 A 0004313623 VALVE
WABCO
497 A 0014300460 REPAIR KIT
TO 001 431 83 05,WABCO
497 A 0025868743 REPAIR KIT
Repalced by: A 0004303506
497 A 0004303506 REPAIR KIT
TO 001 431 89 05,BOSCH
497 A 0035861243 REPAIR KIT
TO 001 431 91 05,KNORR
500 A 6174310073 BREATHER PIPE
AT BRAKE VALVE
500 A 6174310173 BREATHER PIPE
AT BRAKE VALVE
513 A 6202920140 BRACKET
BRAKE VALVE TO PEDAL UNIT
516 N 000933008152 SCREW
BRAKE VALVE TO PEDAL UNIT
519 N 913004008004 NUT
BRAKE VALVE TO PEDAL UNIT
537 N 915036012203 HOLLOW SCREW
TWO-CIRCUIT BRAKE VALVE,CONNECTIONS:
"11,12,21,22"
539 N 007603016401 SEAL RING
TWO-CIRCUIT BRAKE VALVE,CONNECTIONS:
"11,12,21,22"
543 N 007604016102 SCREW PLUG
TWO-CIRCUIT BRAKE VALVE,CONNECTIONS:
"11,12,21,22"
545 A 0009971548 SEAL RING
TWO-CIRCUIT BRAKE VALVE,CONNECTIONS:
"11,12,21,22"
547 A 0004290927 THRUST RING
TWO-CIRCUIT BRAKE VALVE,CONNECTIONS:
"11,12,21,22"

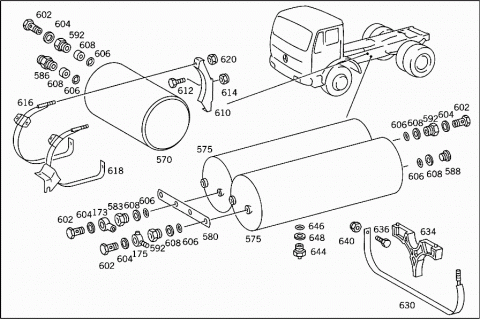

570 A 0004324801 RESERVOIR
Repalced by: A 0014327501
570 A 0014327501 RESERVOIR
Repalced by: A 0034321201
570 A 0034321201 RESERVOIR
AIR RESERVOIR I
20 L
575 A 0004322601 RESERVOIR
Repalced by: A 0034321801
575 A 0034321801 RESERVOIR
AIR RESERVOIRS II,III
30 L
580 A 3464320073 LOCK
(PROTECTION AGAINST TORSION)
583 N 915036012203 HOLLOW SCREW
AIR RESERVOIR,CONNECTIONS:
"11,12,21,22"
586 A 0019972172 FITTING
AIR RESERVOIR I,CONNECTION:
"13"
N 915036012203 HOLLOW SCREW
AIR RESERVOIR I,CONNECTION:
"13"
A 0009905168 FITTING
AIR RESERVOIR I,CONNECTION:
"13"
N 007603016401 SEAL RING
AIR RESERVOIR I,CONNECTION:
"13"
A 0019909771 ELBOW FITTING
AIR RESERVOIR I,CONNECTION:
"13"
N 915052009005 BANJO UNION
Repalced by: N 915052009009
N 915052009009 BANJO UNION
AIR RESERVOIR I,CONNECTION:
"13"
588 N 000908022001 SCREW PLUG
AIR RESERVOIR,CONNECTIONS:
"32"
592 A 0009905168 FITTING
AIR RESERVOIR,CONNECTIONS:
"23,31"
602 N 915036012203 HOLLOW SCREW
AIR RESERVOIR,CONNECTIONS:
"11,12,21,22,23,31,32"
604 N 007603016401 SEAL RING
AIR RESERVOIR,CONNECTIONS:
"11,12,21,22,23,31"
606 A 0009870446 SEALING CORD
AIR RESERVOIR,CONNECTIONS:
"11,12,13,21,22,23,31,32"
608 A 0004290227 THRUST RING
AIR RESERVOIR,CONNECTIONS:
"11,12,13,21,22,23,31,32"
610 A 3874320540 BRACKET
AIR RESERVOIR I
612 N 000933008215 SCREW
BRACKET TO SIDE PART,FRONT
M 8X22
614 N 913004008004 NUT
BRACKET TO SIDE PART,FRONT
616 A 6204301040 STRAP
AIR RESERVOIR I
616 A 6204301240 STRAP
AIR RESERVOIR I
618 A 6204300240 STRAP
AIR RESERVOIR I
620 N 913004010008 NUT
STRAP TO BRACKET
630 A 6204300040 STRAP
AIR RESERVOIR TO APPARATUS SUPPORT
634 A 6204320018 BASE
AIR RESERVOIR,STRAP
636 N 000933010105 SCREW
AIR RESERVOIR,STRAP
N 001440010002 WASHER
AIR RESERVOIR,STRAP
640 N 913004010008 NUT
AIR RESERVOIR,STRAP
644 A 0004321107 VALVE
DRAIN
644 A 0004322107 VALVE
DRAIN
644 A 0004322407 VALVE
DRAIN
646 A 0009870446 SEALING CORD
DRAIN VALVE TO AIR RESERVOIR
648 A 0004290227 THRUST RING
DRAIN VALVE TO AIR RESERVOIR

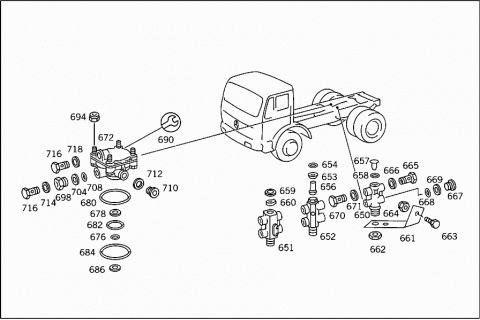

650 A 0024299644 VALVE
(CHECK VALVE)
VOSS
651 A 0034290444 VALVE
(CHECK VALVE)
WABCO
652 A 0034291244 VALVE
(CHECK VALVE)
SCHAEFER
653 A 0109970048 SEAL RING
TO 003 429 12 44;13.6X2 MM,SCHAEFER
654 A 0109970148 SEAL RING
TO 003 429 12 44,15.3X2.4 MM,SCHAEFER
655 A 0004290662 THRUST WASHER
TO 003 429 12 44,SCHAEFER
656 A 0004290728 SEAL CONE
TO 003 429 12 44,SCHAEFER
657 A 0004290383 VALVE TAPPET
TO 002 429 96 44,VOSS
658 A 0004292584 SEAL RING
TO 002 429 96 44,VOSS
659 A 0089977348 SEAL RING
TO 003 429 04 44,WABCO
660 N 915036010204 HOLLOW SCREW
TO 003 429 04 44,WABCO
661 A 6204292540 BRACKET
Repalced by: A 6164290140
661 A 6164290140 BRACKET
CHECK VALVE
662 N 074305022202 NUT
CHECK VALVE TO BRACKET
663 N 000933010129 SCREW
BRACKET TO FRAME SIDE MEMBER
664 N 913004010008 NUT
BRACKET TO FRAME SIDE MEMBER
N 915045012100 SEAL RING
CHECK VALVE,CONNECTION:
"10"
665 N 915036012203 HOLLOW SCREW
CHECK VALVE,CONNECTION:
"21"
666 N 007603016401 SEAL RING
CHECK VALVE,CONNECTION:
"21"
667 N 000908016001 SCREW PLUG
CHECK VALVE,CONNECTION:
"22"
668 A 0009971548 SEAL RING
CHECK VALVE,CONNECTION:
"22"
669 A 0004290927 THRUST RING
CHECK VALVE,CONNECTION:
"22"
670 N 915036010204 HOLLOW SCREW
CHECK VALVE,CONNECTION:
"23"
671 N 007603014405 SEAL RING
CHECK VALVE,CONNECTION:
"23"
672 A 0034291644 VALVE
RELAY VALVE
BOSCH
672 A 0034295344 VALVE
RELAY VALVE
KNORR
672 A 0014296844 VALVE
RELAY VALVE
WABCO
674 A 0014299144 VALVE
RELAY VALVE
GRAU
676 A 0059972648 SEAL RING
22.3X2.4 MM,TO 001 429 91 44,GRAU
678 A 0004312788 VALVE SEAT
TO 001 429 91 44,GRAU
680 A 0059972748 SEAL RING
TO 000 429 28 95,GRAU
682 A 0014311660 SEAL RING
28X2 MM;TO 001 429 91 44,GRAU
684 A 0014311760 SEAL RING
86X2 MM;TO 001 429 91 44,GRAU
686 A 0004311980 GASKET
34X2X6 MM;TO 001 429 91 44,GRAU
690 A 0005865742 REPAIR KIT
TO 001 429 68 44,WABCO
690 A 0025865642 REPAIR KIT
Repalced by: A 0004201071
690 A 0004201071 VALVE
GASKET KIT
TO 003 429 16 44,BOSCH;UP TO 03.82
690 A 0004201271 VALVE
GASKET KIT
TO 003 429 16 44,BOSCH; FROM 04.82
690 A 0025865742 REPAIR KIT
Repalced by: A 0004301109
690 A 0004301109 REPAIR KIT
BLEEDER VALVE
TO 003 429 16 44,BOSCH
690 A 0025863542 REPAIR KIT
TO 003 429 53 44,KNORR
694 N 913004008004 NUT
RELAY VALVE TO BRACKET
698 A 0009905168 FITTING
RELAY VALVE,CONNECTION:
"1"
704 A 0004290227 THRUST RING
RELAY VALVE,CONNECTION:
"1"
708 A 0009870446 SEALING CORD
RELAY VALVE;CONNECTIONS:
"1"
710 N 000908016001 SCREW PLUG
RELAY VALVE;CONNECTIONS:
"2"
712 A 0004290927 THRUST RING
RELAY VALVE;CONNECTIONS:
"2,4"
714 A 0009971548 SEAL RING
RELAY VALVE;CONNECTIONS:
"2,4"
716 N 915036012203 HOLLOW SCREW
RELAY VALVE;CONNECTIONS:
"1,4"
718 N 007603016401 SEAL RING
RELAY VALVE;CONNECTIONS:
"1,4"

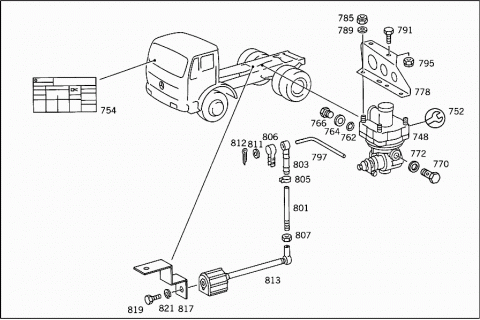

748 A 0014313312 BRAKE PRESSURE REGULATOR
LOAD-DEPENDING BRAKE
WABCO
748 A 0014313512 BRAKE PRESSURE REGULATOR
LOAD-DEPENDING BRAKE
BOSCH
748 A 0024310512 BRAKE PRESSURE REGULATOR
LOAD-DEPENDING BRAKE
KNORR
752 A 0004307560 REPAIR KIT
TO 001 431 33 12,WABCO
752 A 0004301868 REPAIR KIT
GASKETS
TO 001 431 35 12,BOSCH
752 A 0014311486 REPAIR KIT
COVERING
TO 001 431 35 12,BOSCH
752 A 0004301883 REPAIR KIT
VALVE
TO 001 431 35 12,BOSCH
A 0004300307 REPAIR KIT
Repalced by: A 0004300207
A 0004300207 REPAIR KIT
BRAKE POWER REGULATOR
TO 002 431 05 12,KNORR
754 A 6215841421 GUIDE SIGN
LOAD-DEPENDING BRAKE
A 3875840055 ADHESIVE FOIL
LOAD-DEPENDING BRAKE
762 A 0009971548 SEAL RING
BRAKE POWER REGULATOR,CONNECTION:
"1,2"
764 A 0004290927 THRUST RING
BRAKE POWER REGULATOR,CONNECTION:
"1,2"
766 N 007604016102 SCREW PLUG
BRAKE POWER REGULATOR,CONNECTION:
"1"
768 N 915039012205 HOLLOW SCREW FITTING
BRAKE POWER REGULATOR,CONNECTION:
"4"
770 N 915036012203 HOLLOW SCREW
BRAKE POWER REGULATOR,CONNECTION:
"1,2"
772 N 007603016401 SEAL RING
BRAKE POWER REGULATOR,CONNECTION:
"1,2,4"
778 A 6204313940 BRACKET
BRAKE POWER REGULATOR
785 N 913004008004 NUT
BRACKET TO BRAKE POWER REGULATOR
789 N 000125008418 WASHER
BRACKET TO BRAKE POWER REGULATOR
791 N 000961012151 SCREW
BRACKET TO SIDE MEMBER
M 12X30
795 N 913004012008 NUT
BRACKET TO SIDE MEMBER
797 A 6744310039 LEVER
BRAKE POWER REGULATOR CONTROL
801 N 900331008419 PULL ROD
BRAKE POWER REGULATOR CONTROL
803 A 0004310735 CONNECTOR
BRAKE POWER REGULATOR CONTROL
805 N 916026010000 CLAMP
CONNECTOR TO ROD
806 A 6249950065 CLAMP
T-FITTING TO REGULATING VALVE
807 N 000934008010 NUT
CONNECTOR TO ROD
811 N 000125008418 WASHER
CONNECTOR TO ROD
812 N 000094002077 COTTER PIN
CONNECTOR TO ROD
813 A 0004311218 METAL SPRING BELLOWS
BRAKE POWER REGULATOR CONTROL
813 A 0014311018 METAL SPRING BELLOWS
BRAKE POWER REGULATOR CONTROL
817 A 6204311040 BRACKET
METAL SPRING BELLOWS
819 N 000961012047 SCREW
METAL SPRING BELLOWS TO BRACKET
M 12X1.5X18
821 N 912004012100 LOCK WASHER
METAL SPRING BELLOWS TO BRACKET

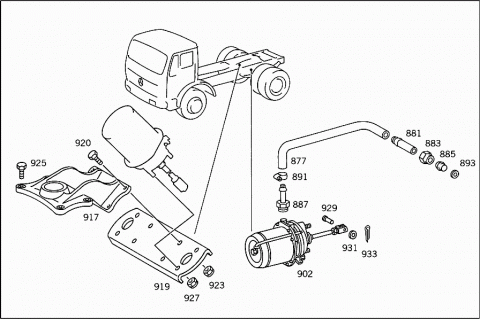

877 N 916027011014 HOSE
FROM COMPRESSED AIR LINE TO TRISTOP CYLINDER
881 A 0004290541 FITTING
BRAKE HOSE
883 N 915017012100 UNION NUT
885 N 003861012007 GLAND
887 N 074304016201 FITTING
TRISTOP CYLINDER;CONNECTION:
"12"
887 N 074304016201 FITTING
TRISTOP CYLINDER;CONNECTION:
"11"
891 N 916017016000 CLAMP
Repalced by: N 000000000666
891 N 000000000666 CLAMP
LINE MOUNTING
16-27X13 MM
893 A 0039975745 SEAL RING
BRAKE HOSE MOUNTING

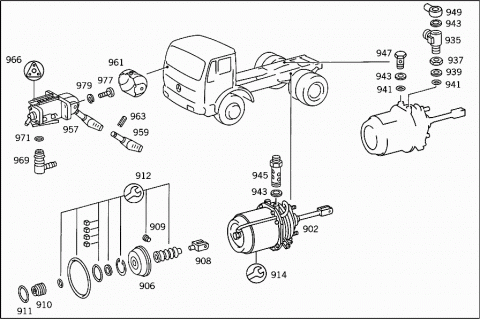

902 A 0084209518 WHEEL BRAKE CYLINDER
TRISTOP CYLINDER
BOSCH
902 A 0074206818 WHEEL BRAKE CYLINDER
TRISTOP CYLINDER
WABCO
902 A 0094202218 WHEEL BRAKE CYLINDER
TRISTOP CYLINDER
KNORR
906 A 0004310728 DIAPHRAGM
TO 007 420 68 18,WABCO
906 A 0004312728 DIAPHRAGM
Repalced by: A 0004314028
906 A 0004314028 DIAPHRAGM
TO 008 420 95 18,BOSCH
906 A 0004311828 DIAPHRAGM
Repalced by: A 0004314128
906 A 0004311428 DIAPHRAGM
Repalced by: A 0004314128
906 A 0004314128 DIAPHRAGM
KNORR
908 N 071752014000 YOKE
TO 008 420 95 18,BOSCH
909 A 0009978786 PLUG
KNORR
910 A 0004231160 SEAL RING
KNORR
911 A 0099979748 SEAL RING
KNORR
912 A 0004303860 PART NAME MISSING
TO 008 420 95 18,BOSCH
914 A 0025862642 REPAIR KIT
TO 007 420 68 18,WABCO
914 A 0014307160 REPAIR KIT
Repalced by: A 0044201724
914 A 0044201724 REPAIR KIT
TO 009 420 22 18,KNORR
917 A 6214230033 BEARING BRACKET
TRISTOP CYLINDER
919 A 3874230006 BRAKE ANCHOR
TRISTOP CYLINDER
920 N 000961014054 SCREW
SUPPORT TO BEARING BRACKET
M 14X45
920 N 000961014028 SCREW
Repalced by: A 0029909604
920 A 0029909604 SCREW
SUPPORT TO BEARING BRACKET
M 14X40
923 N 913004014002 NUT
SUPPORT TO BEARING BRACKET
925 N 000961016036 SCREW
BEARING BRACKET TO REAR AXLE
M 16X1.5X40
927 N 913004016004 NUT
TRISTOP CYLINDER TO BEARING BRACKET
929 A 3619910005 PIN
SLACK ADJUSTER TO TRISTOP CYLINDER
931 N 000433015005 WASHER
SLACK ADJUSTER TO TRISTOP CYLINDER
933 N 000094004051 COTTER PIN
SLACK ADJUSTER TO TRISTOP CYLINDER
935 A 0019905370 T-FITTING
CONNECTION TO TRISTOP CYLINDER
937 N 080705016003 NUT
CONNECTION TO TRISTOP CYLINDER
939 A 0004290927 THRUST RING
CONNECTION TO TRISTOP CYLINDER
941 A 0009971548 SEAL RING
CONNECTION TO TRISTOP CYLINDER
943 N 007603016401 SEAL RING
CONNECTION TO TRISTOP CYLINDER
945 N 915039012205 HOLLOW SCREW FITTING
TRISTOP CYLINDER;CONNECTIONS:
"11,12"
947 N 915036012203 HOLLOW SCREW
LEFT TRISTOP CYLINDER,CONNECTION:
"11"
949 N 915052009005 BANJO UNION
Repalced by: N 915052009009
949 N 915052009009 BANJO UNION
TRISTOP CYLINDER;CONNECTIONS:
"11,12"
957 A 0014304381 VALVE
PARKING BRAKE VALVE
BOSCH
957 A 0014305781 VALVE
PARKING BRAKE VALVE
WABCO
957 A 0014306781 VALVE
Repalced by: A 0024309981
957 A 0024309981 VALVE
PARKING BRAKE VALVE
KNORR
959 A 0009972477 HANDLE
TO 001 430 57 81
959 A 0009973477 HANDLE
TO 001 430 43 81
959 A 0009975577 HANDLE
KNORR
961 A 0014310887 PROTECTIVE CAP
TO 001 430 57 81,WABCO
961 A 0014311087 PROTECTIVE CAP
TO 001 430 43 81,BOSCH
961 A 0014311287 PROTECTIVE CAP
KNORR
963 N 001481003025 CLAMPING SLEEVE
KNORR
966 A 0025866343 REPAIR KIT
GASKET KIT
TO 001 430 43 81,BOSCH
966 A 0025867443 REPAIR KIT
Repalced by: A 0034303181
966 A 0034303181 REPAIR KIT
GASKET KIT
TO 001 430 57 81,WABCO
966 A 0035860543 REPAIR KIT
GASKET KIT
TO 001 430 67 81,KNORR
966 A 0034302081 REPAIR KIT
KNORR
969 A 0009976189 COUPLING
LINE TO HAND BRAKE VALVE
971 A 0099973948 SEAL RING
977 N 007985008119 SCREW
PARKING BRAKE VALVE TO INSTRUMENT PANEL
M 8X20
979 N 007980008003 LOCK WASHER
PARKING BRAKE VALVE TO INSTRUMENT PANEL
Reklama
Kontaktai
Pasiūlymas
Skaitliukas



© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
