Transporto priemonė: 1928 S MBSA; VIN numerio dalis: 621111
Grupė: 52 CHASSIS SHEET METAL
| # | Kodas | Pavadinimas |
|---|---|---|

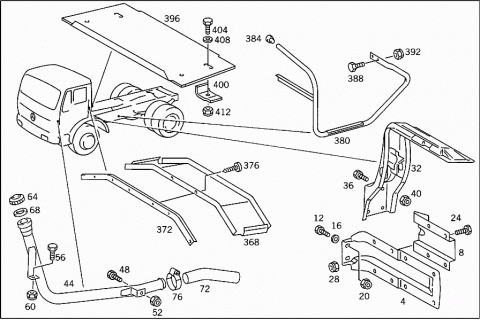

| 004 | A 3875210240 | BRACKET |
| Repalced by: A 6575210140 | ||
| 004 | A 6575210140 | BRACKET |
| FENDER | ||
| 008 | A 3875210140 | BRACKET |
| Repalced by: A 6575210040 | ||
| 008 | A 6575210040 | BRACKET |
| Repalced by: A 6575200033 | ||
| 008 | A 6575200033 | SUPPORT |
| (CONSOLE),FOR FENDER | ||
| 012 | N 000961014028 | SCREW |
| Repalced by: A 0029909604 | ||
| 012 | A 0029909604 | SCREW |
| FENDER BRACKET TO SIDE MEMBER | ||
| 016 | N 001440016001 | WASHER |
| FENDER BRACKET TO SIDE MEMBER | ||
| 020 | N 913004014002 | NUT |
| FENDER BRACKET TO SIDE MEMBER | ||
| 024 | N 000933008153 | SCREW |
| FENDER TO CONSOLE AND TO FENDER BRACKET | ||
| 028 | N 913004008004 | NUT |
| FENDER TO CONSOLE AND TO FENDER BRACKET | ||
| 032 | A 3875200241 | BRACKET |
| FENDER AND SHOCK ABSORBER,LEFT | ||
| 032 | A 3875205841 | BRACKET |
| FENDER AND SHOCK ABSORBER,RIGHT | ||
| 036 | N 000961014028 | SCREW |
| Repalced by: A 0029909604 | ||
| 036 | A 0029909604 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 040 | N 913004014002 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 044 | A 6205201206 | PIPE ELBOW |
| OIL REFILLING | ||
| 048 | N 000933010128 | SCREW |
| OIL FILLER NECK TO SIDE AND CROSS MEMBERS | ||
| 052 | N 913004010008 | NUT |
| OIL FILLER NECK TO SIDE AND CROSS MEMBERS | ||
| 056 | N 000961012122 | SCREW |
| OIL FILLER NECK TO SIDE AND CROSS MEMBERS | ||
| 060 | N 913004012008 | NUT |
| OIL FILLER NECK TO SIDE AND CROSS MEMBERS | ||
| 064 | A 0000180702 | CAP |
| OIL REFILLING | ||
| 064 | A 1020180302 | CAP |
| OIL REFILLING | ||
| 064 | A 1020180402 | CAP |
| OIL REFILLING | ||
| 068 | A 1020180080 | GASKET |
| Repalced by: A 1020180380 | ||
| 068 | A 1020180380 | GASKET |
| 072 | A 6205280282 | HOSE |
| FROM OIL FILLER NECK TO OIL PAN | ||
| 076 | N 916017040000 | CLAMP |
| Repalced by: N 000000000671 | ||
| 076 | N 000000000671 | CLAMP |
| 40-60X13 MM | ||

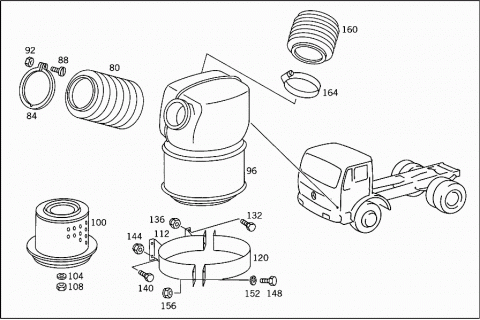

| 080 | A 3815280191 | BOOT |
| AIR INTAKE | ||
| 084 | A 3815280443 | CLAMP |
| BOOT TO AIR DUCT AND TO AIR CLEANER | ||
| 088 | N 000084004425 | SCREW |
| BOOT TO AIR DUCT AND TO AIR CLEANER | ||
| 092 | N 000934004006 | NUT |
| BOOT TO AIR DUCT AND TO AIR CLEANER | ||
| 096 | A 0090946002 | AIR CLEANER |
| Repalced by: A 0140948802 | ||
| 096 | A 0140948802 | AIR CLEANER |
| MANN & HUMMEL | ||
| 098 | A 0120946202 | AIR CLEANER |
| MANN & HUMMEL | ||
| 098 | A 0140940502 | AIR CLEANER |
| DONALDSON | ||
| 100 | A 0010948304 | FILTER ELEMENT |
| MANN U. HUMMEL | ||
| 102 | A 0020942404 | FILTER ELEMENT |
| MANN U. HUMMEL | ||
| A 0030941104 | FILTER ELEMENT | |
| DONALDSON | ||
| A 0030941204 | FILTER ELEMENT | |
| DONALDSON | ||
| A 0139977248 | SEAL RING | |
| DONALDSON | ||
| A 0000940115 | RETAINING RING | |
| DONALDSON | ||
| A 0000940675 | NUT | |
| Repalced by: A 0000940575 | ||
| A 0000940575 | NUT | |
| DONALDSON | ||
| 104 | A 0000940276 | WASHER |
| FELT | ||
| 108 | A 0009901550 | NUT |
| 112 | A 3875200633 | SUPPORT |
| AIR CLEANER | ||
| 116 | A 6205200033 | SUPPORT |
| AIR CLEANER | ||
| 120 | A 3875280721 | STRAP |
| AIR CLEANER TO SUPPORT | ||
| A 4070900081 | STRAP | |
| AIR CLEANER TO SUPPORT | ||
| TO 014 094 05 02 | ||
| A 6205282240 | BRACKET | |
| AIR CLEANER TO SUPPORT | ||
| TO 014 094 05 02 | ||
| A 6205282340 | BRACKET | |
| AIR CLEANER TO SUPPORT | ||
| TO 014 094 05 02 | ||
| 124 | N 000933008153 | SCREW |
| STRAP TO SUPPORT | ||
| 128 | N 912004008102 | LOCK WASHER |
| STRAP TO SUPPORT | ||
| 132 | N 000961014050 | SCREW |
| AIR CLEANER SUPPORT TO SIDE MEMBER, FRONT | ||
| 136 | N 913004014002 | NUT |
| AIR CLEANER SUPPORT TO SIDE MEMBER, FRONT | ||
| 140 | N 000961012151 | SCREW |
| AIR CLEANER SUPPORT TO SIDE MEMBER, REAR | ||
| 144 | N 913004012008 | NUT |
| AIR CLEANER SUPPORT TO SIDE MEMBER, REAR | ||
| 148 | N 000933010105 | SCREW |
| AIR CLEANER SUPPORT TO BUMPER STRUT | ||
| 152 | N 000125010518 | WASHER |
| AIR CLEANER SUPPORT TO BUMPER STRUT | ||
| 156 | N 913004010008 | NUT |
| AIR CLEANER SUPPORT TO BUMPER STRUT | ||
| 160 | A 6205280782 | HOSE |
| FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE | ||
| 164 | N 916017130000 | CLAMP |
| HOSE TO AIR CLEANER AND TO INTAKE PIPE | ||
| 168 | N 913004014002 | NUT |
| AIR CLEANER AND AIR INTAKE PIPE | ||

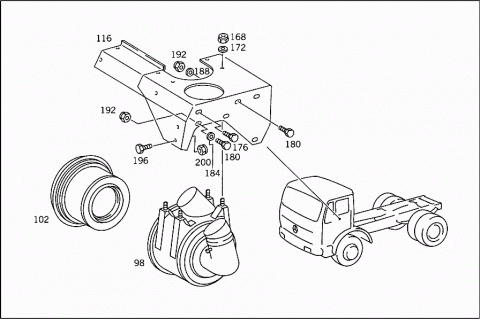

| 172 | N 000125015013 | WASHER |
| AIR CLEANER TO SUPPORT | ||
| 176 | N 000961014054 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 14X45 | ||
| 180 | N 000961014064 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 14X50 | ||
| 184 | N 000125015013 | WASHER |
| SUPPORT TO SIDE MEMBER | ||
| 188 | A 3609901740 | WASHER |
| Repalced by: A 3859900440 | ||
| 188 | A 3859900440 | WASHER |
| Repalced by: A 3379900440 | ||
| 188 | A 3379900440 | WASHER |
| SUPPORT TO SIDE MEMBER | ||
| 192 | N 913004014002 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 196 | N 000961012151 | SCREW |
| SUPPORT TO CONSOLE | ||
| 200 | N 913004012008 | NUT |
| SUPPORT TO CONSOLE | ||

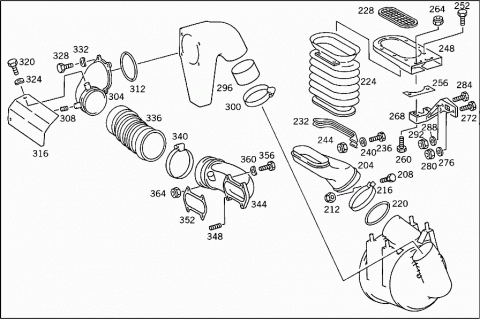

| 204 | A 6205201906 | PIPE ELBOW |
| (INTAKE PIPE) | ||
| 208 | N 000931008046 | SCREW |
| INTAKE PIPE TO AIR CLEANER | ||
| 212 | N 913004008004 | NUT |
| INTAKE PIPE TO AIR CLEANER | ||
| 216 | A 6209970690 | CLAMP |
| INTAKE PIPE TO AIR CLEANER | ||
| 220 | A 0099977648 | SEAL RING |
| INTAKE PIPE TO AIR CLEANER | ||
| 224 | A 6205200296 | BOOT |
| AIR INTAKE | ||
| 228 | A 6205280103 | STRAINER |
| BOOT | ||
| 232 | A 6205280043 | CLAMP |
| BOOT TO INTAKE PIPE | ||
| 236 | N 000933008152 | SCREW |
| BOOT TO INTAKE PIPE | ||
| 240 | N 000125008418 | WASHER |
| BOOT TO INTAKE PIPE | ||
| 244 | N 913004008004 | NUT |
| BOOT TO INTAKE PIPE | ||
| 248 | A 6205280840 | BRACKET |
| Repalced by: A 6575280040 | ||
| 248 | A 6575280040 | BRACKET |
| BOOT | ||
| 252 | N 914116006403 | SCREW |
| BOOT TO BRACKET | ||
| 256 | A 6205280940 | BRACKET |
| BOOT | ||
| 260 | N 000933008212 | SCREW |
| BOOT TO BRACKET | ||
| 264 | N 913004008004 | NUT |
| BOOT TO BRACKET | ||
| 268 | A 6205280239 | SUPPORT |
| BOOT | ||
| 272 | N 000933010150 | SCREW |
| BRACKET TO SUPPORT | ||
| 276 | N 000125010518 | WASHER |
| BRACKET TO SUPPORT | ||
| 280 | N 913004010008 | NUT |
| BRACKET TO SUPPORT | ||
| 284 | N 000933010129 | SCREW |
| SUPPORT TO CAB BEARING RAIL | ||
| M 10X30 | ||
| 284 | N 000933010094 | SCREW |
| SUPPORT TO CAB BEARING RAIL | ||
| M 10X40 | ||
| 288 | N 000125010518 | WASHER |
| SUPPORT TO CAB BEARING RAIL | ||
| 292 | N 913004010008 | NUT |
| SUPPORT TO CAB BEARING RAIL | ||
| 296 | A 6245280082 | HOSE |
| FROM AIR CLEANER TO CAB CONSOLE | ||
| 300 | N 916017130000 | CLAMP |
| HOSE TO AIR CLEANER AND CAB CONSOLE | ||
| 304 | A 6205201506 | PIPE ELBOW |
| (INTAKE PIPE) | ||
| 308 | N 900421006002 | THREADED INSERT |
| 6X12 | ||
| 308 | N 900421008004 | THREADED INSERT |
| 8X16 | ||
| 312 | A 0019976748 | SEAL RING |
| INTAKE PIPE TO CAB CONSOLE | ||
| 316 | A 6205240001 | PROTECTIVE PLATE |
| (INTAKE PIPE) | ||
| 320 | N 000933008152 | SCREW |
| INTAKE PIPE TO CAB CONSOLE | ||
| 324 | N 000137008204 | SPRING WASHER |
| INTAKE PIPE TO CAB CONSOLE | ||
| 328 | N 000933006103 | SCREW |
| PROTECTIVE PLATE TO PIPE ELBOW | ||
| 332 | N 000137006204 | SPRING WASHER |
| PROTECTIVE PLATE TO PIPE ELBOW | ||
| 336 | A 6235280082 | HOSE |
| FROM AIR INTAKE PIPE TO ENGINE | ||
| 340 | N 916017130000 | CLAMP |
| FROM AIR INTAKE PIPE TO ENGINE | ||
| 344 | A 6205201006 | PIPE ELBOW |
| (INTAKE PIPE) | ||
| 348 | N 900421010002 | THREADED INSERT |
| 352 | A 3015280080 | GASKET |
| Repalced by: A 4421411480 | ||
| 352 | A 4421411480 | GASKET |
| INTAKE PIPE TO ENGINE | ||
| 356 | N 000933010150 | SCREW |
| INTAKE PIPE TO ENGINE | ||
| M 10X55 | ||
| 356 | N 000933010095 | SCREW |
| INTAKE PIPE TO ENGINE | ||
| M 10X50 | ||
| 356 | N 000933010328 | SCREW |
| INTAKE PIPE TO ENGINE | ||
| M 10X45 | ||
| 360 | N 000137010201 | SPRING WASHER |
| INTAKE PIPE TO ENGINE | ||
| 364 | N 913004010008 | NUT |
| INTAKE PIPE TO ENGINE | ||
| 368 | A 3835240529 | COVER |
| PROTECTIVE PLATE | ||
| 372 | A 3875240084 | SHIM |
| PROTECTIVE PLATE TO FRAME | ||
| 376 | N 007981005306 | SHEET METAL SCREW |
| PROTECTIVE PLATE TO FRAME | ||
| 380 | A 6205200130 | SUPPORT |
| (ROCKER PANEL),AT APPARATUR SUPPORT | ||
| 384 | N 915042025003 | PLUG |
| 388 | N 000933010105 | SCREW |
| FROM SUPPORT TO BATTERY/APPARATUS SUPPORT | ||
| 392 | N 913004010008 | NUT |
| FROM SUPPORT TO BATTERY/APPARATUS SUPPORT | ||
| 396 | A 6205200031 | RUNNING BOARD |
| BEHIND CAB | ||
| 400 | A 6205230019 | MOUNTING ANGLE |
| ROCKER PANEL TO FRAME | ||
| 404 | A 3819900901 | SCREW |
| ROCKER PANEL TO FRAME | ||
| 408 | N 000125010518 | WASHER |
| ROCKER PANEL TO FRAME | ||
| 408 | N 007349010007 | WASHER |
| ROCKER PANEL TO FRAME | ||
| 412 | N 913004010008 | NUT |
| ROCKER PANEL TO FRAME | ||
