Transporto priemonė: 1928 S MBSA; VIN numerio dalis: 621111
Grupė: 54 ELECTRICAL EQUIPMENT AND INSTRUMENTS
| # | Kodas | Pavadinimas |
|---|---|---|

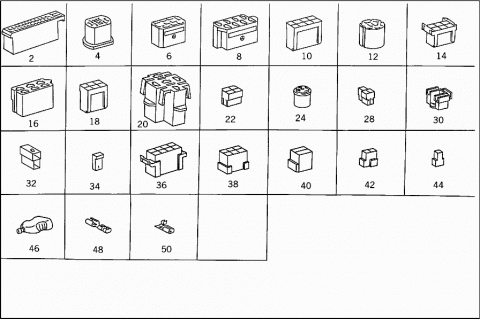

| 002 | A 0115456228 | PIN BUSHING HOUSING |
| 25-POLE | ||
| 004 | A 0065455528 | PIN BUSHING HOUSING |
| 10-POLE | ||
| 006 | A 6115450128 | PIN BUSHING HOUSING |
| 8-POLE | ||
| 008 | A 6115450028 | PIN BUSHING HOUSING |
| 8-POLE | ||
| 010 | A 0015458328 | PIN BUSHING HOUSING |
| 8-POLE | ||
| 012 | A 0055459928 | PIN BUSHING HOUSING |
| 7-POLE | ||
| 014 | A 0015458128 | PIN BUSHING HOUSING |
| 6-POLE | ||
| 016 | A 0055458428 | PIN BUSHING HOUSING |
| 6-POLE | ||
| 018 | A 0075450528 | PIN BUSHING HOUSING |
| 6-POLE | ||
| 020 | A 0065450728 | PIN BUSHING HOUSING |
| 5-POLE | ||
| 022 | A 0015458428 | PIN BUSHING HOUSING |
| 4-POLE | ||
| 024 | A 0065459128 | PIN BUSHING HOUSING |
| 4-POLE | ||
| 028 | A 0055456428 | PIN BUSHING HOUSING |
| 3-POLE | ||
| 030 | A 0015458528 | PIN BUSHING HOUSING |
| 3-POLE | ||
| 032 | A 0015458728 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| 034 | A 0025451128 | PIN BUSHING HOUSING |
| UNIPOLAR | ||
| 036 | A 0015458228 | PLUG HOUSING |
| 8-POLE | ||
| 038 | A 0015456028 | PLUG HOUSING |
| 6-POLE | ||
| 040 | A 0025451228 | PLUG HOUSING |
| 4-POLE | ||
| A 0005430140 | PLUG HOUSING | |
| MODULE | ||
| "V" | ||
| 042 | A 0015457928 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| 044 | A 0015456726 | PLUG SOCKET |
| (PLUG HOUSING),2-POLE | ||
| 046 | A 0025451328 | PIN BUSHING HOUSING |
| UNIPOLAR | ||
| 048 | A 0005453726 | PIN BUSHING |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 048 | A 0005453826 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 048 | A 0005454026 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 4-6 MM2 | ||
| 048 | A 0025454026 | FLAT PIN BUSHING |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 4-6 MM2 | ||
| 048 | A 0005454626 | PIN BUSHING |
| WITH DETENT;LESS CATCH FOR HOUSING | ||
| 4-6 MM2 | ||
| 050 | A 0005457926 | PIN BUSHING |
| OFFSET | ||
| 2.5 MM2 | ||

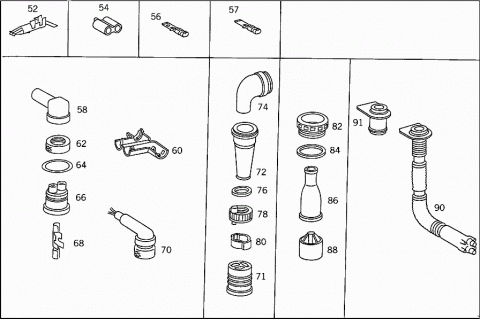

| 052 | A 0025451926 | CONTACT SPRING |
| Repalced by: A 0035450226 | ||
| 052 | A 0035450226 | CONTACT SPRING |
| TO 011 545 62 28 | ||
| 054 | A 0015456626 | PLUG SOCKET |
| (PLUG INSERT) | ||
| 056 | A 0025450628 | PLUG |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 057 | A 0015458628 | PLUG |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 057 | A 0025451428 | PLUG |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 4-6 MM2 | ||
| A 0065457328 | PLUG | |
| IDLE SWITCH CABLE TO FRAME MOUNTED CABLE HARNESS | ||
| A 0065457328 | PLUG | |
| GEAR-CLUSTER-DISPLAY-SWITCH BRANCH-OFF EXTENSION | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| 058 | A 3805460335 | BOOT |
| TO M 27X1,M 24X1 | ||
| 060 | A 6015460335 | BOOT |
| TO M 27X1;M 24X1 | ||
| 062 | A 0009903654 | NUT |
| M 27X1 | ||
| 062 | A 0009902054 | NUT |
| M 24X1 | ||
| 064 | A 3809900140 | WASHER |
| TO M 27X1 | ||
| 064 | A 0009906840 | WASHER |
| TO M 24X1 | ||
| 066 | A 3805450226 | PLUG SOCKET |
| TO M 27X1 | ||
| 066 | A 3805450026 | PLUG SOCKET |
| TO M 24X1 | ||
| 068 | A 0015454826 | ROUND PIN BUSHING |
| TO M 27X1,M 24X1 | ||
| 070 | A 3805402281 | PLUG SOCKET |
| REPAIR VERSION; NOT FOR DANGER CATEGORY VEHICLES | ||
| M 27X1 | ||
| 070 | A 3805402181 | PLUG SOCKET |
| REPAIR VERSION; NOT FOR DANGER CATEGORY VEHICLES | ||
| M 24X1 | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| PULSE-SENDER-UNIT BAYONET CAP | ||
| 071 | A 0125450928 | PIN BUSHING HOUSING |
| ELECTRONIC TACHOGRAPH | ||
| 071 | A 0125450928 | PIN BUSHING HOUSING |
| ENGINE SPEED LIMITATION/ENGINE SPEED INDICATION | ||
| 072 | A 0005463435 | BOOT |
| ELECTRONIC TACHOGRAPH | ||
| 074 | A 6175460035 | BOOT |
| ENGINE SPEED LIMITATION/ENGINE SPEED INDICATION | ||
| 076 | A 3019901440 | WASHER |
| ELECTRONIC TACHOGRAPH | ||
| 076 | A 3019901440 | WASHER |
| ENGINE SPEED LIMITATION/ENGINE SPEED INDICATION | ||
| 078 | A 0005421572 | NUT |
| ELECTRONIC TACHOGRAPH | ||
| 078 | A 0005421572 | NUT |
| ENGINE SPEED LIMITATION/ENGINE SPEED INDICATION | ||
| 080 | A 0029978590 | CLIP |
| ELECTRONIC TACHOGRAPH | ||
| 080 | A 0029978590 | CLIP |
| ENGINE SPEED LIMITATION/ENGINE SPEED INDICATION | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| LONGITUDINAL-DIFFERENTIAL-LOCK/P.T.O. CONTROL | ||
| 082 | A 0019976572 | FITTING |
| TRANSVERSE DIFFERENTIAL LOCK,REAR AXLE | ||
| M 30X1.5 | ||
| 082 | A 0019976572 | FITTING |
| P.T.O. | ||
| M 30X1.5 | ||
| 084 | A 0019906440 | WASHER |
| TRANSVERSE DIFFERENTIAL LOCK,REAR AXLE | ||
| 084 | A 0019906440 | WASHER |
| P.T.O. | ||
| 086 | A 0029970781 | GROMMET |
| TRANSVERSE DIFFERENTIAL LOCK,REAR AXLE | ||
| 086 | A 0029970781 | GROMMET |
| P.T.O. | ||
| 088 | A 0055454628 | PLUG |
| TRANSVERSE DIFFERENTIAL LOCK,REAR AXLE | ||
| 088 | A 0055454628 | PLUG |
| P.T.O. | ||
| 088 | A 0005453826 | PLUG SOCKET |
| TRANSVERSE DIFFERENTIAL LOCK,REAR AXLE | ||
| 088 | A 0005453826 | PLUG SOCKET |
| P.T.O. | ||

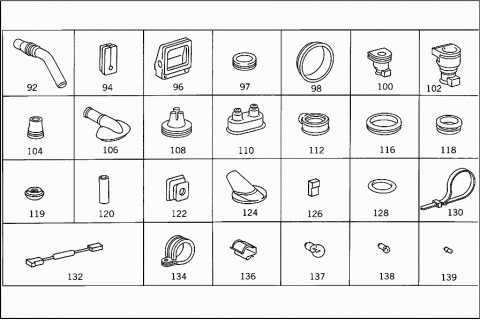

| 090 | A 6205460230 | INSULATING HOSE |
| 091 | A 0005450155 | GUIDE |
| 092 | A 3818210097 | HOSE |
| DOOR PLUG CONNECTION,OUTSIDE REARVIEW MIRROR | ||
| A 0005421181 | GROMMET | |
| Repalced by: A 0005421381 | ||
| A 0005421281 | GROMMET | |
| Repalced by: A 0019975086 | ||
| 094 | A 0019975086 | PLUG |
| ELECTRIC CABLE THRU FIRE WALL | ||
| 096 | A 0005421381 | GROMMET |
| ELECTRIC CABLE THRU FIRE WALL | ||
| 097 | A 1139870044 | EXPANSION PLUG |
| ELECTRIC CABLE THRU FIRE WALL | ||
| 098 | A 0005420481 | GROMMET |
| TACHOGRAPH | ||
| 098 | A 0005420481 | GROMMET |
| INSTRUMENT CLUSTER | ||
| 100 | A 3805462037 | GROMMET |
| 11-12 MM | ||
| 100 | A 3805461937 | GROMMET |
| 8-10.5 MM | ||
| 102 | A 3875460437 | GROMMET |
| AT CABLE CONNECTOR | ||
| 8.5 MM | ||
| 104 | A 6019972081 | GROMMET |
| AT TAIL LAMP SHELL | ||
| 106 | A 3149970181 | GROMMET |
| HEADLAMP | ||
| 108 | A 3839970181 | GROMMET |
| Repalced by: A 0089976381 | ||
| 108 | A 0089976381 | GROMMET |
| PANE WIPER | ||
| 110 | A 0069979081 | GROMMET |
| DOOR PLUG CONNECTION,OUTSIDE REARVIEW MIRROR | ||
| 112 | A 6209970481 | GROMMET |
| OUTSIDE REARVIEW MIRROR CABLE HARNESS | ||
| 116 | A 0059971981 | GROMMET |
| PASSAGE OF MAIN CABLE HARNESS | ||
| 116 | A 3549970081 | GROMMET |
| BATTERY CABLE THRU SIDE MEMBER | ||
| 32/27 MM | ||
| 116 | A 3549970081 | GROMMET |
| ELECTRIC CABLE THU SIDE MEMBER | ||
| 32/27 MM | ||
| 118 | A 1169971581 | GROMMET |
| PASSAGE OF MAIN CABLE HARNESS | ||
| 36/25 MM | ||
| 119 | A 0029970981 | GROMMET |
| FOGLAMP | ||
| 120 | A 0009970681 | GROMMET |
| 7.5 MM | ||
| 120 | A 0009970781 | GROMMET |
| 120 | A 3149970481 | GROMMET |
| 120 | A 3879970481 | GROMMET |
| 38/30 MM | ||
| 120 | A 6209970081 | GROMMET |
| 120 | A 0009970581 | GROMMET |
| 5 MM | ||
| 120 | A 0009970481 | GROMMET |
| 4 MM | ||
| 120 | A 0009970381 | GROMMET |
| 3 MM | ||
| 120 | A 0009970181 | GROMMET |
| 1.75 MM | ||
| 122 | A 6085450045 | BOOT |
| STEERING COLUMN MOUNTED SWITCH | ||
| 124 | A 6205450245 | BOOT |
| STEERING COLUMN MOUNTED SWITCH | ||
| 126 | A 0005451745 | BOOT |
| 10 MM | ||
| 126 | A 0005453545 | BOOT |
| 9 MM | ||
| 128 | A 0019875046 | SEALING CORD |
| OUTSIDE REARVIEW MIRROR CONNECTION | ||
| 130 | A 0019978390 | LOOM TIE |
| CABLE HARNESS MOUNTING | ||
| 280 MM | ||
| 130 | A 0019978490 | LOOM TIE |
| CABLE HARNESS MOUNTING | ||
| 376 MM | ||
| 132 | A 3015400265 | RESISTOR |
| HAZARD WARNING LIGHT SWITCH | ||
| 132 | A 3805400065 | RESISTOR |
| Repalced by: A 3015400265 | ||
| 132 | A 3015400265 | RESISTOR |
| GEAR CLUSTER INDICATOR RELAY,MAIN CABLE HARNESS | ||
| 134 | N 916016032201 | CLAMP |
| FRAME MOUNTED CABLE HARNESS TO BRACKET | ||
| 136 | A 0009881878 | CLIP |
| ROOF MOUNTED CABLE HARNESS | ||
| 137 | N 072601024190 | BULB |
| TAIL LAMP | ||
| 24V 21W | ||
| 138 | N 072601024702 | BULB |
| TAIL LAMP | ||
| 24V 10W | ||
| 139 | N 072601024801 | BULB |
| HAZARD WARNING LIGHT SWITCH | ||
| 24V 2W | ||
| 139 | N 072601024801 | BULB |
| PRESSURE SWITCH | ||
| 24V 2W | ||
| 139 | N 072601024801 | BULB |
| TELL-TALE LAMP | ||
| 24V 2W | ||
| 139 | N 072601024801 | BULB |
| TACHOMETER | ||
| 24V 2W | ||
| 139 | N 072601024801 | BULB |
| INSTRUMENT CLUSTER | ||
| TO 003 540 78 47,003 540 82 47 | ||
| 139 | N 072601024230 | BULB |
| HAZARD WARNING LIGHT SWITCH | ||
| 24V 1.2W | ||
| 139 | A 0015442694 | BULB |
| TACHOGRAPH | ||
| 24V,1.2W | ||
| 139 | A 0015442694 | BULB |
| INSTRUMENT CLUSTER | ||
| TO 003 540 39 47,003 542 96 47 | ||

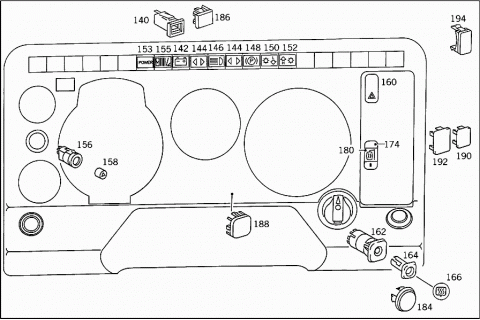

| 140 | A 0015451815 | TELL-TALE LAMP |
| LESS LENS | ||
| 142 | A 0035453290 | LENS |
| CHARGE CONTROL | ||
| 144 | A 0035455290 | LENS |
| BLINKER LIGHT CONTROL | ||
| 146 | A 0035453390 | LENS |
| Repalced by: A 0065451990 | ||
| 146 | A 0065451990 | LENS |
| HIGH BEAM | ||
| 148 | A 0035453790 | LENS |
| PARKING BRAKE | ||
| 150 | A 0025453890 | LENS |
| GEAR GROUP INDICATION,"SLOW" | ||
| 152 | A 0025453990 | LENS |
| GEAR GROUP INDICATION,"FAST" | ||
| 153 | A 0045454090 | LENS |
| "POWER" (SPEED LIMITATION OFF) | ||
| 155 | A 0035456790 | LENS |
| FAILURE | ||
| 156 | A 0045450224 | SWITCH |
| HAZARD WARNING LIGHT | ||
| 158 | A 0005453637 | BUTTON |
| HAZARD WARNING LIGHT SWITCH | ||
| N 072601024801 | BULB | |
| HAZARD WARNING LIGHT SWITCH | ||
| 160 | A 0055459224 | HAZARD WARNG.LIGHT SWITCH |
| N 072601024230 | BULB | |
| 162 | A 0015450611 | SWITCH |
| HEATED OUTSIDE REARVIEW MIRROR | ||
| 164 | A 0005452883 | CAP |
| PRESSURE SWITCH | ||
| 166 | A 0015450490 | LENS |
| HEATED OUTSIDE REARVIEW MIRROR | ||
| A 0025451207 | SWITCH | |
| Repalced by: A 0025456907 | ||
| 174 | A 0025456907 | SWITCH |
| HEATED OUTSIDE REARVIEW MIRROR | ||
| 180 | A 0045452190 | LENS |
| HEATED OUTSIDE REARVIEW MIRROR | ||
| 184 | A 3169880035 | CAP |
| TO PLUG THE HOLE USED FOR STARTER CABLE IN INSTRUMENT PANEL | ||
| 186 | A 0009974335 | PLUG |
| TO PLUG THE FREE BORES IN INSTRUMENT PANEL | ||
| 188 | A 0009974435 | PLUG |
| TO PLUG THE FREE BORES IN INSTRUMENT PANEL | ||
| 190 | A 3169880035 | CAP |
| TO PLUG THE FREE HOLES USED FOR SEAT HEATER SWITCH | ||
| 192 | A 3899880135 | CAP |
| TO PLUG THE FREE BORES USED FOR SWITCHES IN INSTRUMENT PANEL | ||
| 194 | A 6736880035 | COVER |
| TO PLUG THE FREE HOLES USED FOR SWITCH | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| BLACK,NO.9051 | ||

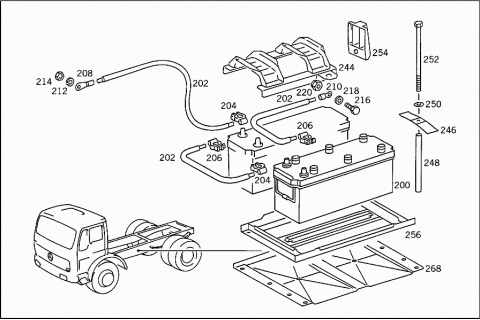

| 200 | A 0035410901 | BATTERY |
| 12V/115 AH | ||
| 202 | N 922002070000 | ELECTRIC CABLE |
| Repalced by: A 6735460013 | ||
| 202 | A 6735460013 | ELECTRIC CABLE |
| 202 | A 6735460013 | ELECTRIC CABLE |
| FROM BATTERY TO STARTING MOTOR | ||
| 202 | A 6735460013 | ELECTRIC CABLE |
| FROM BATTERY I TO BATTERY II | ||
| 202 | A 6735460013 | ELECTRIC CABLE |
| FROM BATTERY TO GROUND AT SIDE MEMBER | ||
| 204 | N 072332013100 | SOLDERING TERMINAL |
| POS. POLE | ||
| 206 | N 072332013200 | SOLDERING TERMINAL |
| NEG.POLE | ||
| N 912004010102 | LOCK WASHER | |
| CABLE TO STARTING MOTOR,TERMINAL 30 | ||
| N 913021010001 | NUT | |
| CABLE TO STARTING MOTOR,TERMINAL 30 | ||
| 208 | N 046234012006 | CABLE SHOE |
| CABLE TO STARTING MOTOR | ||
| 210 | N 046234010007 | CABLE SHOE |
| NEGATIVE CABLE TO SIDE MEMBER | ||
| 212 | N 912004012100 | LOCK WASHER |
| BATTERY CABLE TO STARTING MOTOR | ||
| 214 | N 000934012021 | NUT |
| BATTERY CABLE TO STARTING MOTOR | ||
| 216 | N 000933010094 | SCREW |
| NEGATIVE CABLE TO SIDE MEMBER | ||
| 218 | N 009021010202 | WASHER |
| NEGATIVE CABLE TO SIDE MEMBER | ||
| 220 | N 913004010008 | NUT |
| NEGATIVE CABLE TO SIDE MEMBER | ||

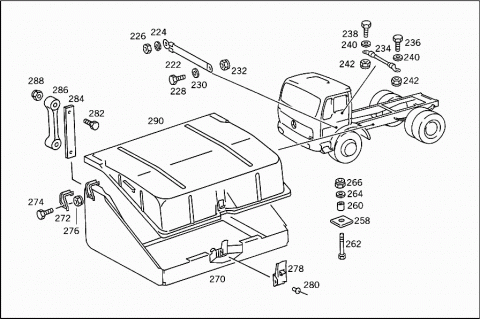

| 222 | A 3525400041 | GROUND STRAP |
| FROM STARTING MOTOR TO SIDE MEMBER | ||
| 224 | N 912004010102 | LOCK WASHER |
| GROUND STRAP TO STARTING MOTOR | ||
| 226 | N 000934010014 | NUT |
| GROUND STRAP TO STARTING MOTOR | ||
| 228 | N 000933010145 | SCREW |
| GROUND STRAP TO SIDE MEMBER | ||
| 230 | N 009021010202 | WASHER |
| GROUND STRAP TO SIDE MEMBER | ||
| 232 | N 913004010008 | NUT |
| GROUND STRAP TO SIDE MEMBER | ||
| 234 | A 3835400231 | NEG. CABLE |
| Repalced by: A 6205402339 | ||
| 234 | A 6205402339 | NEG. CABLE |
| FROM FRAME CROSS MEMBER TO CAB | ||
| 236 | N 000933008153 | SCREW |
| NEG. CABLE TO REAR CROSS MEMBER | ||
| 238 | N 000933008212 | SCREW |
| NEG.CABLE TO CAB | ||
| 240 | N 000125008418 | WASHER |
| GROUND CABLE TO FRAME AND TO CAB | ||
| 242 | N 913004008004 | NUT |
| GROUND CABLE TO FRAME AND TO CAB | ||
| 244 | A 6205400023 | MOUNTING FRAME |
| BATTERY MOUNTING | ||
| 246 | A 6205410526 | BRACKET |
| BATTERY MOUNTING | ||
| 248 | A 6205410053 | SPACER TUBE |
| BATTERY MOUNTING | ||
| 250 | N 009021008205 | WASHER |
| BATTERY MOUNTING | ||
| 252 | N 000931008396 | SCREW |
| BATTERY MOUNTING | ||
| 254 | A 6205410416 | STOP |
| BATTERY MOUNTING | ||
| 256 | A 6205400018 | BATTERY BASE FRAME |
| BATTERY BASE FRAME | ||
| 258 | A 3835410236 | INSULATING PLATE |
| BATTERY BASE FRAME TO BATTERY/APPARATUS SUPPORT | ||
| 260 | A 3859910040 | SPACER TUBE |
| BATTERY BASE FRAME TO BATTERY/APPARATUS SUPPORT | ||
| 262 | N 000931010282 | SCREW |
| BATTERY BASE FRAME TO BATTERY/APPARATUS SUPPORT | ||
| 264 | N 007349010007 | WASHER |
| BATTERY BASE FRAME TO BATTERY/APPARATUS SUPPORT | ||
| 266 | N 913004010008 | NUT |
| BATTERY BASE FRAME TO BATTERY/APPARATUS SUPPORT | ||
| 268 | A 6205410102 | BATTERY CASE |
| (BATTERY TRAY) | ||
| 270 | A 6205400016 | BATTERY SUPPORT |
| Repalced by: A 6205401916 | ||
| 270 | A 6205401916 | BATTERY SUPPORT |
| Repalced by: A 6165400316 | ||
| 270 | A 6165400316 | BATTERY SUPPORT |
| BATTERY/APPARATUS | ||
| 272 | A 6205410540 | BRACKET |
| LEFT | ||
| 272 | A 6205410440 | BRACKET |
| RIGHT | ||
| 274 | N 000933006121 | SCREW |
| BRACKET TO BATTERY/APPARATUS SUPPORT | ||
| 276 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 276 | N 913004006001 | NUT |
| BRACKET TO BATTERY/APPARATUS SUPPORT | ||
| 278 | A 0009880385 | LOCKING HANDLE |
| PROTECTIVE PLATE TO APPARATUS SUPPORT | ||
| 280 | N 910001004105 | RIVET |
| LOCKING LEVER TO BATTERY SUPPORT | ||
| 282 | N 000961014028 | SCREW |
| Repalced by: A 0029909604 | ||
| 282 | A 0029909604 | SCREW |
| APPARATUS SUPPORT TO FRAME SIDE MEMBER | ||
| M 14X40 | ||
| 282 | N 000960014249 | SCREW |
| APPARATUS SUPPORT TO FRAME SIDE MEMBER | ||
| M 14X55 | ||
| 282 | N 000960014201 | SCREW |
| APPARATUS SUPPORT TO FRAME SIDE MEMBER | ||
| M 14X95 | ||
| 282 | N 000960014244 | SCREW |
| APPARATUS SUPPORT TO FRAME SIDE MEMBER | ||
| M 14X65 | ||
| 284 | A 6204310184 | SHIM |
| APPARATUS SUPPORT TO FRAME SIDE MEMBER | ||
| 286 | A 6204310084 | SHIM |
| APPARATUS SUPPORT TO FRAME SIDE MEMBER | ||
| 288 | N 913004014002 | NUT |
| APPARATUS SUPPORT TO FRAME SIDE MEMBER | ||
| 290 | A 6205410303 | COVER |
| BATTERY/APPARATUS SUPPORT | ||

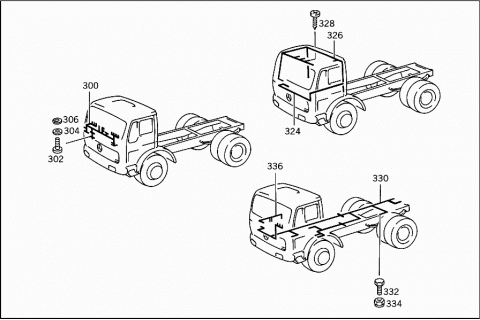

| 300 | A 6175401205 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 300 | A 6175402305 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 300 | A 6205404605 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 302 | N 007985006193 | SCREW |
| GROUND CONNECTION TO WINDOW SILL | ||
| 304 | N 000125006421 | WASHER |
| GROUND CONNECTION TO WINDOW SILL | ||
| 306 | N 912004006102 | LOCK WASHER |
| GROUND CONNECTION TO WINDOW SILL | ||

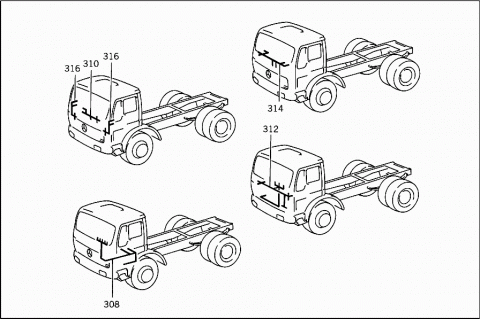

| 308 | A 6205404737 | ELECTRIC CABLE |
| CHASSIS/CAB,SPEED SENDER UNIT,SERVOMOTOR,ZERO DELIVERY SWITCH | ||
| 310 | A 6205404037 | ELECTRIC CABLE |
| FROM CHASSIS/CAB TO ENGINE-SPEED SWITCH & TO FUSE BOX | ||
| 312 | A 6205401037 | ELECTRIC CABLE |
| FROM CAB PLUG CONNECTION TO ELECTRONIC REGULATOR AND TO KICK-DOWN SWITCH | ||
| 314 | A 3875406933 | ELECTRIC CABLE |
| FROM GEAR CLUSTER INDICATOR TO PLUG CONNECTION AT CAB | ||
| 316 | A 0018207015 | ELECTRIC CABLE |
| FROM DOOR PLUG CONNECTION TO LEFT AND RIGHT OUTSIDE REARVIEW MIRRORS | ||
| 324 | A 6155401336 | ELECTRIC CABLE |
| FROM TACHOGRAPH TO PULSE TRANSMITTER | ||
| 326 | A 6175400127 | ELECTRIC CABLE |
| CAB ROOF | ||
| 326 | A 6175400727 | ELECTRIC CABLE |
| CAB ROOF | ||
| 326 | A 6175402836 | ELECTRIC CABLE |
| CAB ROOF | ||
| 326 | A 6175409436 | ELECTRIC CABLE |
| CAB ROOF | ||
| 328 | N 007981004258 | SHEET METAL SCREW |
| GROUND CABLE CONNECTION | ||
| 330 | A 6205400208 | CABLE HARNESS |
| FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR | ||
| 330 | A 6205401710 | CABLE HARNESS |
| FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR | ||
| N 000084006132 | SCREW | |
| CABLE TO STARTING MOTOR,TERMINAL 50 | ||
| N 912004006104 | LOCK WASHER | |
| CABLE TO STARTING MOTOR,TERMINAL 50 | ||
| 332 | N 000933008152 | SCREW |
| GROUND TO FRAME | ||
| M 8X30 | ||
| 334 | N 913004008004 | NUT |
| GROUND TO FRAME | ||
| M 8X30 | ||
| 336 | A 3875409737 | ELECTRIC CABLE |
| FOR FRAME MOUNTED CABLE HARNESS LEADING TO ENGINE | ||
| 338 | A 3095400581 | ELECTRIC CABLE |
| WITH TRAILER PLUG SOCKET CABLE | ||
| 340 | A 0015450628 | PLUG SOCKET |
| SAE PLUG SOCKET | ||
| 342 | N 000125008418 | WASHER |
| PLUG SOCKET | ||
| 344 | A 0015465441 | CABLE CONNECTOR |
| REAR | ||
| 344 | A 0015465441 | CABLE CONNECTOR |
| BEHIND CAB | ||
| 346 | A 0005460581 | COVERING |
| 348 | A 0095459728 | PLUG |
| CABLE CONNECTOR BEHIND CAB | ||
| 350 | A 0005460283 | ANGLE |
| REAR CABLE CONNECTOR | ||
| 350 | A 0005460283 | ANGLE |
| CABLE CONNECTOR BEHIND CAB | ||
| 354 | A 0009872844 | EXPANSION PLUG |
| TO PLUG THE BORES | ||
| 356 | N 007985005146 | SCREW |
| CABLE CONNECTOR TO BRACKET | ||
| 356 | N 007985005146 | SCREW |
| CABLE CONNECTOR BEHIND CAB | ||
| 358 | N 913004005001 | NUT |
| CABLE CONNECTOR TO BRACKET | ||
| 358 | N 913004005001 | NUT |
| CABLE CONNECTOR BEHIND CAB | ||
| 359 | A 6205450140 | BRACKET |
| REAR CABLE CONNECTOR | ||
| 361 | N 000961012097 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| 363 | N 913004012008 | NUT |
| BRACKET TO CROSS MEMBER | ||
| 364 | A 3914290140 | BRACKET |
| JUNCTION BOX BRANCH-OFF AND SERIES TRANSFORMER BEHIND CAB | ||
| 366 | N 000933008152 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 8X30 | ||
| 368 | N 913004008004 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 370 | A 3805464643 | BRACKET |
| ELECTRIC CABLE TENSILE STRESS RELIEF | ||
| 372 | A 3875450740 | BRACKET |
| TRAILER PLUG SOCKET TO SUPPORT BEHIND CAB | ||
| 374 | N 000933008153 | SCREW |
| BRACKET TO SUPPORT | ||
| 374 | N 000933008153 | SCREW |
| PLUG SOCKET TO BRACKET | ||
| 376 | N 913004008004 | NUT |
| BRACKET TO SUPPORT | ||
| 376 | N 913004008004 | NUT |
| PLUG SOCKET TO BRACKET | ||

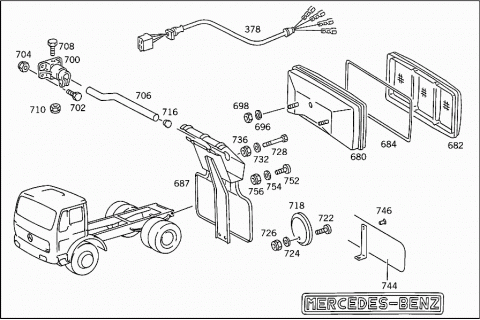

| 378 | A 6175400207 | CABLE HARNESS |
| Repalced by: A 6175401507 | ||
| 378 | A 6175401507 | CABLE HARNESS |
| LEFT TAIL LAMP | ||
| 378 | A 6215402207 | CABLE HARNESS |
| RIGHT TAIL LAMP | ||
| 380 | A 0005450940 | BRACKET |
| LEAD SEALING OF CAB/ENGINE PLUG CONNECTIONS | ||

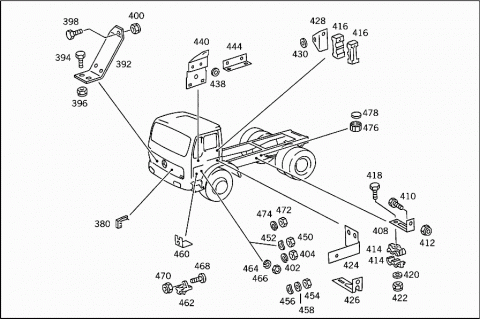

| 392 | A 3875420940 | BRACKET |
| FRAME MOUNTED CABLE HARNESS | ||
| 394 | N 000933008147 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| 396 | N 913004008004 | NUT |
| BRACKET TO CROSS MEMBER | ||
| 398 | N 000933006127 | SCREW |
| CABLE HARNESS MOUNTING | ||
| 400 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 400 | N 913004006001 | NUT |
| ELECTRIC CABLE TO BRACKET | ||
| 402 | N 912004006102 | LOCK WASHER |
| ELECTRIC CABLE TO CAB FLOOR | ||
| 404 | N 000934006007 | NUT |
| ELECTRIC CABLE TO CAB FLOOR | ||
| 408 | A 3184280240 | BRACKET |
| FRAME CABLE HARNESS & BATTERY CABLE TO SIDE MEMBER BESIDE APPARATUS SUPPORT | ||
| 410 | N 000933008150 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 8X35 | ||
| 412 | N 913004008004 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 414 | A 3835460044 | CLAMPING PIECE |
| FRAME MOUNTED CABLE HARNESS AND BATTERY CABLE | ||
| 416 | A 3635460044 | CLAMPING PIECE |
| FRAME MOUNTED CABLE HARNESS AND BATTERY CABLE TO BELL HOUSING | ||
| 418 | N 000931006122 | SCREW |
| CLAMPING PIECE TO BRACKET | ||
| M 6X45 | ||
| 418 | N 000931006136 | SCREW |
| CLAMPING PIECE TO BRACKET | ||
| M 6X40 | ||
| 420 | N 000125006421 | WASHER |
| CLAMPING PIECE TO BRACKET | ||
| 422 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 422 | N 913004006001 | NUT |
| CLAMPING PIECE TO BRACKET | ||
| 424 | A 6235460043 | BRACKET |
| FRAME MOUNTED CABLE HARNESS & BATTERY CABLE TO LEFT REAR ENGINE MOUNTING | ||
| 426 | A 3854290540 | BRACKET |
| BATTERY CABLE AND CABLE HARNESS TO SIDE MEMBER | ||
| 428 | A 3875401773 | BRACKET |
| FRAME MOUNTED CABLE HARNESS AND BATTERY CABLE TO BELL HOUSING | ||
| 430 | N 000125010518 | WASHER |
| FRAME MOUNTED CABLE HARNESS AND BATTERY CABLE TO BELL HOUSING | ||
| 438 | N 009021008205 | WASHER |
| FRAME MOUNTED CABLE HARNESS,HEADLAMP BRANCH-OFF | ||
| 440 | A 3875450540 | BRACKET |
| ENGINE CABLE HARNESS PLUG-CONNECTION | ||
| 440 | A 6205450340 | BRACKET |
| ENGINE-CABLE-HARNESS/FINAL-CONTROLELEMENT PLUG-CONNECTION | ||
| 444 | A 6205462143 | BRACKET |
| ENGINE CABLE HARNESS PLUG-CONNECTION | ||
| 450 | N 000934005008 | NUT |
| ALTERNATOR BRANCH-OFF TO ALTERNATOR | ||
| 452 | N 000137005203 | SPRING WASHER |
| ALTERNATOR BRANCH-OFF TO ALTERNATOR | ||
| 454 | N 000934006007 | NUT |
| ALTERNATOR BRANCH-OFF TO ALTERNATOR | ||
| 456 | N 000137006204 | SPRING WASHER |
| ALTERNATOR BRANCH-OFF TO ALTERNATOR | ||
| 458 | N 000125006421 | WASHER |
| ALTERNATOR BRANCH-OFF TO ALTERNATOR | ||
| 460 | A 6205461943 | BRACKET |
| Repalced by: A 6205463543 | ||
| 460 | A 6205463543 | BRACKET |
| ELECTRIC CABLE TO PIPE BEND | ||
| 460 | A 6205463543 | BRACKET |
| ELECTRIC CABLE TO PIPE BEND | ||
| A 6205463043 | BRACKET | |
| ELECTRIC CABLE TO FRAME SIDE MEMBER | ||
| N 000933008153 | SCREW | |
| ELECTRIC CABLE TO FRAME SIDE MEMBER | ||
| N 000125008418 | WASHER | |
| ELECTRIC CABLE TO FRAME SIDE MEMBER | ||
| N 913004008004 | NUT | |
| ELECTRIC CABLE TO FRAME SIDE MEMBER | ||
| 462 | A 0005462243 | BRACKET |
| ELECTRIC CABLE TO ALTERNATOR AND TO PIPE BEND | ||
| 462 | A 0005462243 | BRACKET |
| ELECTRIC CABLE TO ALTERNATOR AND TO PIPE BEND | ||
| 462 | A 0005462243 | BRACKET |
| ELECTRIC CABLE TO ALTERNATOR | ||
| 462 | A 0005462243 | BRACKET |
| ELECTRIC CABLE TO FRAME SIDE MEMBER | ||
| 464 | N 912004005103 | LOCK WASHER |
| ELECTRIC CABLE TO ALTERNATOR | ||
| 466 | N 000934005008 | NUT |
| ELECTRIC CABLE TO ALTERNATOR | ||
| 468 | N 007985005504 | SCREW |
| ELECTRIC CABLE TO PIPE BEND | ||
| 468 | N 007985005504 | SCREW |
| ELECTRIC CABLE TO FRAME SIDE MEMBER | ||
| 470 | N 913004005001 | NUT |
| ELECTRIC CABLE TO PIPE BEND | ||
| 470 | N 913004005001 | NUT |
| ELECTRIC CABLE TO FRAME SIDE MEMBER | ||
| 472 | N 000934006007 | NUT |
| CABLE TO STARTING MOTOR,TERMINAL 50 | ||
| 474 | N 912004006102 | LOCK WASHER |
| CABLE TO STARTING MOTOR,TERMINAL 50 | ||
| 476 | A 0009904954 | NUT |
| TO PLUG TRANSVERSE-DIFFERENTIAL-LOCK CONNECTION | ||
| M 30X1 | ||
| 476 | A 0009904954 | NUT |
| TO PLUG P.T.O. CONNECTION | ||
| M 30X1 | ||
| 478 | A 0009970925 | EXPANSION PLUG |
| TO PLUG TRANSVERSE-DIFFERENTIAL-LOCK CONNECTION | ||
| 478 | A 0009970925 | EXPANSION PLUG |
| TO PLUG P.T.O. CONNECTION | ||
| A 0105426910 | TACHOGRAPH | |
| Repalced by: A 0125422310 | ||

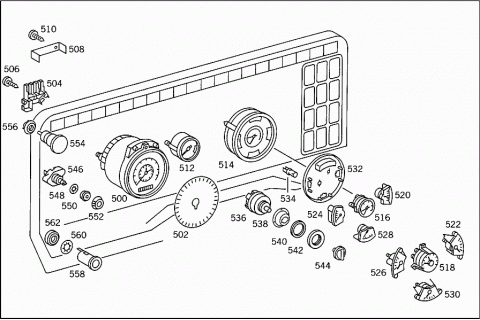

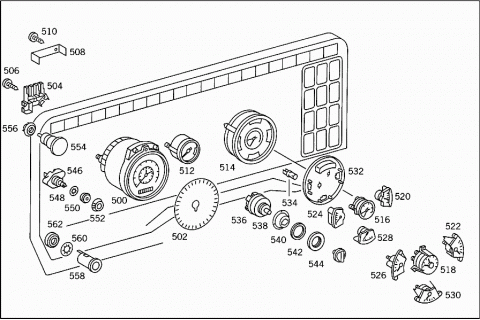

| 500 | A 0125422310 | TACHOGRAPH |
| Repalced by: A 0115423710 | ||
| 500 | A 0115423710 | TACHOGRAPH |
| MEASURING RANGE,125KM/H; ONE-DAY/DRIVER'S CHANGE REGISTRATION | ||
| 502 | A 0005423394 | DIAGRAM PAPER |
| SET = 100 PIECES | ||
| 504 | A 0005420285 | PROTECTIVE PLATE |
| TACHOGRAPH LEAD SEALING | ||
| 506 | N 007971002206 | SHEET METAL SCREW |
| TACHOGRAPH LEAD SEALING | ||
| 508 | A 6155420140 | BRACKET |
| GROMMET TO CAB | ||
| 510 | N 007981004400 | SHEET METAL SCREW |
| GROMMET TO CAB | ||
| A 0015429816 | TACHOMETER | |
| Repalced by: A 0035420316 | ||
| 512 | A 0035420316 | TACHOMETER |
| ELECTRONIC;LESS WARNING CONTACT | ||
| A 0005451219 | SOCKET | |
| ELECTRONIC;LESS WARNING CONTACT | ||
| SOCKEL | ||
| A 0035407847 | INSTRUMENT CLUSTER | |
| Repalced by: A 0035409647 | ||
| 514 | A 0035409647 | INSTRUMENT CLUSTER |
| 516 | A 0015423908 | AIR PRESSURE GAUGE |
| TO 003 540 78 47,82 47 | ||
| 518 | A 0015424208 | AIR PRESSURE GAUGE |
| TO 003 540 39 47,96 47 | ||
| 520 | A 0035428805 | TEMPERATURE GAUGE |
| TO 003 540 78 47,82 47 | ||
| 522 | A 0035427405 | TEMPERATURE GAUGE |
| TO 003 540 39 47,96 47 | ||
| 524 | A 0025422702 | OIL PRESSURE GAUGE |
| Repalced by: A 0015429902 | ||
| 524 | A 0015429902 | OIL PRESSURE GAUGE |
| TO 003 540 78 47,82 47 | ||
| 526 | A 0025421702 | OIL PRESSURE GAUGE |
| TO 003 540 39 47,96 47 | ||
| 528 | A 0025429203 | FUEL GAUGE DASH UNIT |
| TO 003 542 78 47,82 47 | ||
| 530 | A 0025428503 | FUEL GAUGE DASH UNIT |
| TO 003 542 39 47,96 47 | ||
| 532 | A 0005423178 | CONNECTION PLATE |
| TO 003 54278 47,82 477 | ||
| 534 | A 0005451219 | SOCKET |
| TO 003 540 78 47,82 47 | ||
| 536 | A 0005454813 | SWITCH |
| Repalced by: A 0005455913 | ||
| 536 | A 0005455913 | LIGHT SWITCH |
| 538 | A 6155450091 | ORNAMENTAL COVER |
| LIGHT SWITCH TO INSTRUMENT PANEL | ||
| 540 | A 0005450376 | WASHER |
| LIGHT SWITCH TO INSTRUMENT PANEL | ||
| 542 | A 0005451072 | NUT |
| LIGHT SWITCH TO INSTRUMENT PANEL | ||
| A 3875450037 | BUTTON | |
| Repalced by: A 2015400183 | ||
| 544 | A 2015400183 | HANDLE |
| LIGHT ROTARY SWITCH | ||
| 546 | A 6155420225 | POTENTIOMETER |
| INSTRUMENT LIGHTING | ||
| 548 | N 006797012153 | TOOTHED WASHER |
| POTENTIOMETER TO INSTRUMENT PANEL | ||
| 550 | A 0029906251 | NUT |
| POTENTIOMETER TO INSTRUMENT PANEL | ||
| 552 | A 0005421889 | KNOB |
| INSTRUMENT LIGHTING | ||
| 554 | A 0005422527 | WARNING INDICATOR |
| AIR CLEANER | ||
| 556 | A 3816890056 | RING |
| WARNING INDICATOR | ||
| 558 | A 0005458026 | PLUG SOCKET |
| Repalced by: A 0045454326 | ||
| 558 | A 0045454326 | PLUG SOCKET |
| INSTRUMENT PANEL | ||
| 560 | A 0009900946 | WASHER |
| PLUG SOCKET TO INSTRUMENT PANEL | ||
| 562 | A 3805450076 | WASHER |
| PLUG SOCKET TO INSTRUMENT PANEL | ||

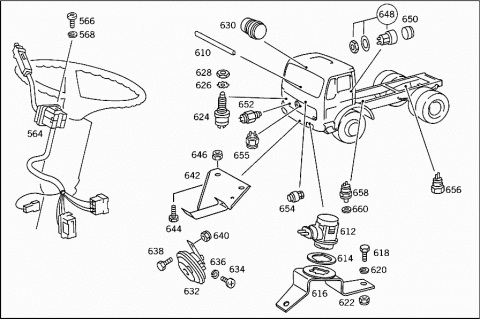

| 564 | A 0055455224 | STEERG.COLUMN MTD. SWITCH |
| 564 | A 6205400145 | STEERG.COLUMN MTD. SWITCH |
| 566 | N 007985004107 | SCREW |
| STEERING COLUMN MOUNTED SWITCH | ||
| 566 | N 007985005193 | SCREW |
| STEERING COLUMN MOUNTED SWITCH | ||
| 568 | N 912006004000 | LOCK WASHER |
| STEERING COLUMN MOUNTED SWITCH | ||
| 568 | N 912004005103 | LOCK WASHER |
| STEERING COLUMN MOUNTED SWITCH | ||
| 576 | A 6205420339 | PLATE |
| APPARATUS | ||
| NO.I | ||
| 577 | A 6205400142 | PLATE |
| APPARATUS | ||
| NO.II | ||
| 578 | A 6205401473 | BRACKET |
| APPARATUS | ||
| 580 | N 007981004244 | SHEET METAL SCREW |
| APPARATUS PLATE TO WINDOW SILL | ||
| 582 | A 0025459232 | CONTROL UNIT |
| (ENGINE-SPEED SWITCH) | ||
| 584 | A 0035457332 | REGULATOR |
| LIMITATION OF ENGINE/VEHICLE SPEED | ||
| 586 | N 007985004136 | SCREW |
| REGULATOR TO APPARATUS PANEL | ||
| NO.II | ||
| 588 | N 913004004002 | NUT |
| REGULATOR TO APPARATUS PANEL | ||
| NO.II | ||
| 590 | A 0005455405 | RELAY |
| Repalced by: A 0035459605 | ||
| 590 | A 0005458405 | RELAY |
| TRANSMISSION GEAR CLUSTER INDICATOR | ||
| 590 | A 0005458405 | RELAY |
| STEERING LOCK | ||
| 592 | A 0055450624 | SENDER UNIT |
| WIPER PULSE SENDER UNIT | ||
| 592 | A 0055451424 | SENDER UNIT |
| WIPER PULSE SENDER UNIT | ||
| 592 | A 0055451624 | SENDER UNIT |
| WIPER PULSE SENDER UNIT | ||
| 594 | A 0025445932 | SENDER UNIT |
| HAZARD WARNING LIGHT | ||
| 594 | A 0025446432 | SENDER UNIT |
| HAZARD WARNING LIGHT | ||
| 594 | A 0035440632 | SENDER UNIT |
| HAZARD WARNING LIGHT | ||
| 596 | N 007985006193 | SCREW |
| SENDER UNIT TO APPARATUS PLATE | ||
| 598 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 598 | N 913004006001 | NUT |
| SENDER UNIT TO APPARATUS PLATE | ||
| 600 | A 0005458501 | FUSE BOX |
| 12-POLE; TERMINALS 1-2,3-4,5-11 SHUNTED | ||
| 602 | A 0005458401 | FUSE BOX |
| 12-POLE;TERMINALS 1-4;5-10;11-12 SHUNTED | ||
| 604 | A 0005458134 | FUSE |
| 5A | ||
| 606 | N 007985006154 | SCREW |
| FUSE BOX TO APPARATUS PLATE | ||
| 608 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 608 | N 913004006001 | NUT |
| FUSE BOX TO APPARATUS PLATE | ||
| 610 | A 0019877625 | PLASTIC SECTION |
| MAIN CABLE HARNESS THRU WINDOW SILL | ||
| 612 | A 0003000241 | SWITCH |
| KICK-DOWN | ||
| 614 | A 1159970640 | SEAL RING |
| KICK-DOWN SWITCH | ||
| 616 | A 6173000340 | BRACKET |
| KICK-DOWN SWITCH | ||
| 618 | N 000933008145 | SCREW |
| BRACKET TO FLOOR PLATE | ||
| 620 | N 912004008102 | LOCK WASHER |
| BRACKET TO FLOOR PLATE | ||
| 622 | N 913004008004 | NUT |
| BRACKET TO FLOOR PLATE | ||
| 624 | A 0005456909 | SWITCH |
| STOP LIGHT | ||
| 626 | N 006797012251 | TOOTHED WASHER |
| STOP LIGHT SWITCH TO PEDAL BEARING BRACKET | ||
| 628 | A 0009909251 | NUT |
| STOP LIGHT SWITCH TO PEDAL BEARING BRACKET | ||
| 630 | A 0005423623 | BUZZER |
| COOLING WATER TEMPERATURE WARNING | ||
| 632 | A 0025426720 | HORN |
| Repalced by: A 0045424420 | ||
| 632 | A 0045424420 | HORN |
| LOW NOTE | ||
| HELLA | ||
| 632 | A 0025428320 | HORN |
| Repalced by: A 0045422920 | ||
| 632 | A 0045422920 | HORN |
| LOW NOTE | ||
| BOSCH | ||
| 632 | A 0035425320 | HORN |
| Repalced by: A 0025426720 | ||
| 632 | A 0025428420 | HORN |
| Repalced by: A 0045423020 | ||
| 632 | A 0045423020 | HORN |
| HIGH NOTE | ||
| BOSCH | ||
| 632 | A 0025426820 | HORN |
| Repalced by: A 0045424520 | ||
| 632 | A 0045424520 | HORN |
| HIGH NOTE | ||
| HELLA | ||
| 632 | A 0035425420 | HORN |
| Repalced by: A 0025426820 | ||
| 634 | N 007985004123 | SCREW |
| ELECTRIC CABLE TO HORN | ||
| 636 | N 912004004102 | LOCK WASHER |
| ELECTRIC CABLE TO HORN | ||
| 638 | N 000933010128 | SCREW |
| HORN TO BRACKET | ||
| 640 | N 913004010008 | NUT |
| HORN TO BRACKET | ||
| 642 | A 3875401973 | BRACKET |
| HORN | ||
| 644 | N 308676012012 | SCREW |
| BRACKET TO BUMBER STRUT | ||
| 646 | N 913004012008 | NUT |
| BRACKET TO BUMBER STRUT | ||
| 648 | A 0015454614 | SWITCH |
| Repalced by: A 0035452314 | ||
| 648 | A 0035452314 | SWITCH |
| STARTING AT ENGINE | ||
| M 24X1 | ||
| 650 | A 0005452945 | BOOT |
| SWITCH | ||
| TO 001 545 46 14 | ||
| 652 | A 0015459414 | SWITCH |
| (ZERO DELIVERY SWITCH);AT ENGINE | ||
| 654 | A 0065424617 | SENDER UNIT |
| ELECTRONIC TACHOGRAPH | ||
| 654 | A 0065424617 | SENDER UNIT |
| ENGINE SPEED LIMITATION/ENGINE SPEED INDICATION | ||
| 655 | A 0005456009 | SWITCH |
| EXHAUST BRAKE | ||
| 656 | A 0005455414 | SWITCH |
| PARKING BRAKE CONTROL | ||
| 658 | A 0015456814 | SWITCH |
| BRAKE PRESSURE CONTROL,CIRCUIT III | ||
| 660 | N 007603012405 | SEAL RING |
| BRAKE PRESSURE CONTROL,CIRCUIT III | ||
| 680 | A 0015447103 | TAIL LAMP |
| WITH LICENSE PLATE LAMP,RIGHT | ||
| HELLA | ||
| 680 | A 0015448203 | TAIL LAMP |
| WITH LICENSE PLATE LAMP,RIGHT | ||
| R & S | ||
| 680 | A 0015447003 | TAIL LAMP |
| LEFT | ||
| HELLA | ||
| 680 | A 0015448303 | TAIL LAMP |
| LEFT | ||
| R & S | ||
| 682 | A 0015448390 | LENS |
| HELLA | ||
| 682 | A 0015448490 | LENS |
| R & S | ||
| 684 | A 0005448580 | GASKET |
| 684 | A 0005448880 | GASKET |
| 687 | A 6205203941 | BRACKET |
| LEFT TAIL LAMP | ||
| 687 | A 6205204041 | BRACKET |
| RIGHT TAIL LAMP | ||
| 696 | N 912004008102 | LOCK WASHER |
| TAIL LAMP TO BRACKET | ||
| 698 | N 000934008010 | NUT |
| TAIL LAMP TO BRACKET | ||
| 700 | A 3875220292 | BEARING BRACKET |
| TAIL LAMP TO SIDE MEMBER | ||
| 702 | N 000931010094 | SCREW |
| BEARING BRACKET TO FRAME | ||
| M 10X55 | ||
| 702 | N 000931010089 | SCREW |
| BEARING BRACKET TO FRAME | ||
| M 10X50 | ||
| 704 | N 913004010008 | NUT |
| BEARING BRACKET TO FRAME | ||
| 706 | A 6205222140 | BRACKET |
| Repalced by: A 6525222240 | ||
| 706 | A 6525222240 | BRACKET |
| 706 | A 3895221340 | BRACKET |
| Repalced by: A 6525222240 | ||
| 706 | A 6525222240 | BRACKET |
| LEFT | ||
| 706 | A 6205222240 | BRACKET |
| Repalced by: A 6525222240 | ||
| 706 | A 6525222240 | BRACKET |
| 706 | A 3895221440 | BRACKET |
| Repalced by: A 6525222240 | ||
| 706 | A 6525222240 | BRACKET |
| RIGHT | ||
| 708 | N 000931008254 | SCREW |
| BRACKET TO BEARING BRACKET | ||
| 710 | N 913004008004 | NUT |
| BRACKET TO BEARING BRACKET | ||
| 716 | A 0009970620 | EXPANSION PLUG |
| TAIL LAMP BRACKET | ||
| 718 | A 0005443305 | REFLECTOR |
| 722 | N 007985005146 | SCREW |
| REFLECTOR TO BRACKET | ||
| 724 | N 000125005317 | WASHER |
| REFLECTOR TO BRACKET | ||
| 726 | N 913004005001 | NUT |
| REFLECTOR TO BRACKET | ||
| 728 | N 000931008327 | SCREW |
| BRACKET TO TAIL LAMP BRACKET | ||
| 732 | N 000125008418 | WASHER |
| BRACKET TO TAIL LAMP BRACKET | ||
| 736 | N 913004008004 | NUT |
| BRACKET TO TAIL LAMP BRACKET | ||
| 744 | A 3605840025 | NAME PLATE |
| "MERCEDES BENZ" | ||
| 746 | N 910006004018 | RIVET |
| 752 | N 000084006133 | SCREW |
| LICENSE PLATE MOUNTING | ||
| 754 | N 000125006421 | WASHER |
| LICENSE PLATE MOUNTING | ||
| 756 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 756 | N 913004006001 | NUT |
| LICENSE PLATE MOUNTING | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
