Transporto priemonė: 1928 S MBSA; VIN numerio dalis: 621111

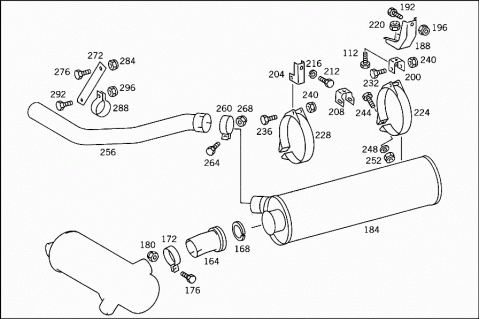

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 004 | A 6204902125 | CONNECTOR |
| LEFT FRONT | ||
| 004 | A 3874902625 | CONNECTOR |
| LEFT FRONT | ||
| 012 | A 6204902225 | CONNECTOR |
| RIGHT FRONT | ||
| 012 | A 6204902725 | CONNECTOR |
| RIGHT FRONT | ||
| 020 | N 000931012132 | SCREW |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| M 12X50 | ||
| N 000931012114 | SCREW | |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| M 12X45 | ||
| 020 | N 000931012254 | SCREW |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| M 12X70 | ||
| N 000931012179 | SCREW | |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| M 12X65 | ||
| 028 | N 913004012010 | NUT |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 032 | A 6204900365 | FLEXIBLE METAL TUBE |
| FRONT EXHAUST PIPE FRONT PART TO REAR PART | ||
| 032 | A 6204900465 | FLEXIBLE METAL TUBE |
| FRONT EXHAUST PIPE FRONT PART TO REAR PART | ||
| 040 | A 6174920008 | COLLAR |
| FRONT EXHAUST PIPE FRONT PART TO REAR PART | ||
| 040 | A 6204920208 | COLLAR |
| FRONT EXHAUST PIPE FRONT PART TO REAR PART | ||
| 048 | A 6209970490 | CLAMP |
| EXHAUST LINE FLEXIBLE METAL TUBE | ||
| 048 | A 6209970590 | CLAMP |
| EXHAUST LINE FLEXIBLE METAL TUBE | ||
| 056 | N 000933008161 | SCREW |
| CLAMP TO CONNECTOR | ||
| 060 | N 913004008004 | NUT |
| CLAMP TO CONNECTOR | ||
| 064 | A 6244900719 | EXHAUST PIPE |
| FRONT,REAR LEFT PART | ||
| 064 | A 6244901119 | EXHAUST PIPE |
| FRONT,REAR LEFT PART | ||
| 068 | A 6244900819 | EXHAUST PIPE |
| FRONT,REAR RIGHT PART | ||
| 068 | A 6244901219 | EXHAUST PIPE |
| FRONT,REAR RIGHT PART | ||
| 072 | A 6204923441 | BRACKET |
| LEFT EXHAUST PIPE | ||
| 072 | A 6204923541 | BRACKET |
| RIGHT EXHAUST PIPE | ||
| 076 | N 000933010145 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 10X35 | ||
| 080 | N 913004010008 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 084 | A 6204920840 | CLAMP |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 084 | A 6204920940 | CLAMP |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 088 | N 000933010129 | SCREW |
| FRONT EXHAUST PIPE TO BRACKET | ||
| M 10X30 | ||
| 092 | N 913004010008 | NUT |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 096 | A 6204900701 | EXHAUST MUFFLER |
| FRONT | ||
| 100 | N 071555094502 | CLAMP |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 104 | N 000933010129 | SCREW |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| M 10X30 | ||
| 108 | N 913004010008 | NUT |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 112 | A 6204900034 | SUPPORT |
| FRONT EXHAUST MUFFLER | ||
| 116 | N 000961014050 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 14X1.5X35 | ||
| 116 | N 000961014028 | SCREW |
| Repalced by: A 0029909604 | ||
| 116 | A 0029909604 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 14X1.5X40 | ||
| 120 | N 913004014002 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 124 | A 6204910141 | BRACKET |
| FRONT EXHAUST MUFFLER | ||
| 128 | A 3814920082 | DAMPING PAD |
| BRACKET TO SUPPORT | ||
| 132 | A 6204910030 | PROTECTIVE PLATE |
| FRONT EXHAUST MUFFLER | ||
| 136 | A 6204900051 | SUPPORT |
| FRONT EXHAUST MUFFLER | ||
| 140 | N 000933008147 | SCREW |
| SUPPORT AND PROTECTIVE PLATE TO BRACKET | ||
| 144 | N 000125008418 | WASHER |
| SUPPORT AND PROTECTIVE PLATE TO BRACKET | ||
| 148 | N 913004008004 | NUT |
| SUPPORT AND PROTECTIVE PLATE TO BRACKET | ||
| 152 | N 000933008119 | SCREW |
| EXHAUST MUFFLER TO SUPPORT | ||
| 156 | N 000125008418 | WASHER |
| EXHAUST MUFFLER TO SUPPORT | ||
| 160 | N 913004008004 | NUT |
| EXHAUST MUFFLER TO SUPPORT | ||
| 164 | A 6204900021 | EXHAUST PIPE |
| FROM FRONT MUFFLER TO REAR MUFFLER | ||
| 168 | A 0001424457 | SEAL RING |
| 172 | N 071555110501 | CLAMP |
| EXHAUST PIPE TO FRONT EXHAUST MUFFLER | ||
| 176 | N 000933010105 | SCREW |
| EXHAUST PIPE TO FRONT EXHAUST MUFFLER | ||
| 180 | N 913004010008 | NUT |
| EXHAUST PIPE TO FRONT EXHAUST MUFFLER | ||
| 184 | A 6204900601 | EXHAUST MUFFLER |
| REAR | ||
| 184 | A 6204900501 | EXHAUST MUFFLER |
| REAR | ||
| 188 | A 6204910615 | CONSOLE |
| REAR EXHAUST MUFFLER,FRONT | ||
| 188 | A 6204910615 | CONSOLE |
| REAR EXHAUST MUFFLER,REAR | ||
| 188 | A 6214910215 | CONSOLE |
| REAR EXHAUST MUFFLER,REAR | ||
| 192 | N 000961012097 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 12X35 | ||
| 196 | N 913004012008 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| 200 | A 6204910341 | BRACKET |
| REAR EXHAUST MUFFLER,FRONT | ||
| 204 | A 6204900140 | BRACKET |
| REAR EXHAUST MUFFLER,REAR | ||
| 208 | A 6204910541 | BRACKET |
| REAR EXHAUST MUFFLER,REAR | ||
| 212 | N 000933010128 | SCREW |
| BRACKET TO CONSOLE | ||
| M 10X20 | ||
| 216 | N 912004010102 | LOCK WASHER |
| BRACKET TO CONSOLE | ||
| 220 | N 913004010008 | NUT |
| BRACKET TO CONSOLE | ||
| 224 | A 6204900441 | STRAP |
| EXHAUST MUFFLER TO BRACKET,FRONT AND REAR | ||
| 228 | A 6204910321 | STRAP |
| Repalced by: A 6204900441 | ||
| 228 | A 6204900441 | STRAP |
| REAR EXHAUST MUFFLER,FRONT | ||
| 232 | N 000931010271 | SCREW |
| STRAP TO BRACKET | ||
| M 10X60 | ||
| 236 | N 304017010030 | SCREW |
| STRAP TO BRACKET | ||
| M 10X50 | ||
| 240 | N 913004010008 | NUT |
| STRAP TO BRACKET | ||
| 244 | N 000933008151 | SCREW |
| EXHAUST MUFFLER TO STRAP | ||
| 248 | N 000125008418 | WASHER |
| EXHAUST MUFFLER TO STRAP | ||
| 252 | N 913004008004 | NUT |
| EXHAUST MUFFLER TO STRAP | ||
| 256 | A 6244920504 | REAR EXHAUST PIPE |
| 256 | A 6244920604 | REAR EXHAUST PIPE |
| 260 | N 071555100500 | CLAMP |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 264 | N 000933010129 | SCREW |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 268 | N 913004010008 | NUT |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 272 | A 6244920741 | BRACKET |
| REAR EXHAUST PIPE | ||
| 272 | A 6244920841 | BRACKET |
| REAR EXHAUST PIPE | ||
| 276 | N 000933010105 | SCREW |
| BRACKET TO HYDRAULIC PUMP BRACKET | ||
| M 10X25 | ||
| 276 | N 000933010129 | SCREW |
| BRACKET TO AIR CLEANER SUPPORT | ||
| 284 | N 913004010008 | NUT |
| BRACKET TO BRACKET | ||
| 288 | N 071555090501 | CLAMP |
| REAR EXHAUST PIPE TO BRACKET | ||
| 288 | N 071555100500 | CLAMP |
| REAR EXHAUST PIPE TO BRACKET | ||
| 292 | N 000933008152 | SCREW |
| REAR EXHAUST PIPE TO BRACKET | ||
| 296 | N 913004008004 | NUT |
| REAR EXHAUST PIPE TO BRACKET | ||
