Transporto priemonė: 1928 S MBSA; VIN numerio dalis: 621111

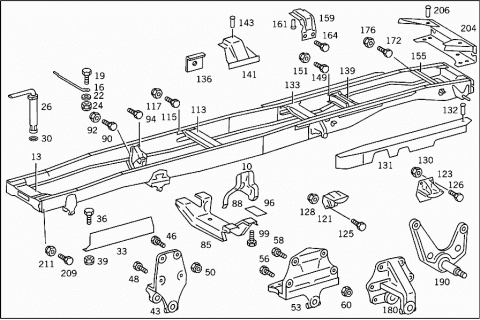

Grupė: 31 FRAME
| # | Kodas | Pavadinimas |
|---|---|---|
| 010 | A 6203106901 | FRAME |
| 010 | A 6203107001 | FRAME |
| 013 | A 3873100422 | CROSS MEMBER |
| FRONT | ||
| 016 | A 3353150031 | LOCKING SPRING |
| COUPLING PIN | ||
| 019 | N 000933008153 | SCREW |
| SPRING TO CROSS MEMBER | ||
| 022 | N 000125008418 | WASHER |
| SPRING TO CROSS MEMBER | ||
| 024 | N 913004008004 | NUT |
| SPRING TO CROSS MEMBER | ||
| 026 | A 3873150106 | COUPLING PIN |
| FOR COUPLING MOUTH | ||
| 030 | A 0009874346 | SEALING CORD |
| FOR COUPLING MOUTH | ||
| 033 | A 3873122087 | GUSSET PLATE |
| FRONT LEFT | ||
| 033 | A 6203120987 | GUSSET PLATE |
| FRONT RIGHT | ||
| 036 | N 000961012097 | SCREW |
| CROSS MEMBER AND GUSSET PLATE TO SIDE MEMBERS | ||
| N 000125013008 | WASHER | |
| CROSS MEMBER AND GUSSET PLATE TO SIDE MEMBERS | ||
| 039 | N 913004012008 | NUT |
| CROSS MEMBER AND GUSSET PLATE TO SIDE MEMBERS | ||
| 043 | A 6203220201 | FRONT SPRING BRACKET |
| Repalced by: A 6203220501 | ||
| 043 | A 6203220501 | FRONT SPRING BRACKET |
| Repalced by: A 6203220901 | ||
| 043 | A 6203220901 | FRONT SPRING BRACKET |
| FRONT | ||
| 046 | A 3879900114 | SCREW |
| FRONT SPRING FRONT BRACKET TO SIDE MEMBER | ||
| M 16X45 | ||
| 048 | A 3879900214 | SCREW |
| FRONT SPRING FRONT BRACKET TO SIDE MEMBER | ||
| M 16X55 | ||
| 050 | N 913004016005 | NUT |
| FRONT SPRING FRONT BRACKET TO SIDE MEMBER | ||
| 053 | A 6203220003 | FRONT SPRING BRACKET |
| Repalced by: A 6203220103 | ||
| 053 | A 6203220103 | FRONT SPRING BRACKET |
| REAR | ||
| 056 | N 000960014229 | SCREW |
| FRONT SPRING REAR BRACKET TO SIDE MEMBER | ||
| M 14X55 | ||
| 058 | N 000960014237 | SCREW |
| FRONT SPRING REAR BRACKET TO SIDE MEMBER | ||
| M 14X50 | ||
| 060 | N 913004014005 | NUT |
| FRONT SPRING REAR BRACKET TO SIDE MEMBER | ||
| 085 | A 3873120810 | CROSS MEMBER |
| FRONT SPRING REAR BRACKET | ||
| NO.2 | ||
| 088 | A 6203121561 | STRUT |
| FRONT SPRING REAR BRACKET | ||
| 090 | N 000961014113 | SCREW |
| STRUT TO CROSS AND SIDE MEMBERS | ||
| M 14X28 | ||
| 092 | N 913004014002 | NUT |
| STRUT TO CROSS AND SIDE MEMBERS | ||
| 094 | N 000961014028 | SCREW |
| Repalced by: A 0029909604 | ||
| 094 | A 0029909604 | SCREW |
| STRUT TO CROSS AND SIDE MEMBERS | ||
| M 14X40 | ||
| 096 | A 6203121984 | SHIM |
| CROSS MEMBER TO FRONT SPRING REAR BRACKET | ||
| 099 | N 000961014100 | SCREW |
| CROSS MEMBER TO FRONT SPRING REAR BRACKET | ||
| 113 | A 6203100037 | CROSS MEMBER |
| NO.3 | ||
| 113 | A 6203100036 | CROSS MEMBER |
| NO.3 | ||
| 115 | N 000961014028 | SCREW |
| Repalced by: A 0029909604 | ||
| 115 | A 0029909604 | SCREW |
| CROSS MEMBER TO SIDE MEMBERS | ||
| M 14X40 | ||
| 117 | N 913004014002 | NUT |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 121 | A 3893250217 | HELPER SPRING BRACKET |
| Repalced by: A 6563250017 | ||
| 121 | A 6563250017 | HELPER SPRING BRACKET |
| FRONT HELPER SPRING | ||
| 123 | A 3893250117 | HELPER SPRING BRACKET |
| Repalced by: A 6843250017 | ||
| 123 | A 6843250017 | HELPER SPRING BRACKET |
| REAR HELPER SPRING | ||
| 125 | N 000961012122 | SCREW |
| HELPER SPRING BRACKET TO SIDE MEMBER | ||
| M 12X40 | ||
| 126 | N 000960012189 | SCREW |
| HELPER SPRING BRACKET TO SIDE MEMBER | ||
| M 12X50 | ||
| 128 | N 913004012008 | NUT |
| HELPER SPRING BRACKET TO SIDE MEMBER | ||
| 131 | A 6203160352 | ANGLE |
| LEFT | ||
| 131 | A 6203160552 | ANGLE |
| LEFT | ||
| 131 | A 6203160452 | ANGLE |
| RIGHT | ||
| 131 | A 6203160652 | ANGLE |
| RIGHT | ||
| 132 | N 910005014056 | RIVET |
| CROSS MEMBER AND ANGLE TO SIDE MEMBER | ||
| 133 | A 3893120025 | CROSS MEMBER |
| NO.4 | ||
| 136 | A 6203121584 | SHIM |
| CROSS MEMBER TO SIDE MEMBERS | ||
| NO.3-4 | ||
| 139 | A 6203100437 | CROSS MEMBER |
| SHOCK ABSORBER | ||
| NO.5 | ||
| 141 | A 3873120161 | STRUT |
| AT CROSS MEMBER | ||
| 143 | N 910005012080 | RIVET |
| STRUT TO CROSS MEMBER | ||
| 149 | N 000960012225 | SCREW |
| CROSS MEMBER TO SIDE MEMBERS | ||
| M 12X45 | ||
| 149 | N 000961012097 | SCREW |
| CROSS MEMBER TO SIDE MEMBERS | ||
| M 12X35 | ||
| 151 | N 913004012008 | NUT |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 155 | A 6203120525 | CROSS MEMBER |
| NO.6 | ||
| 159 | A 6203120661 | STRUT |
| LEFT | ||
| 159 | A 6203120761 | STRUT |
| RIGHT | ||
| 161 | N 910005012073 | RIVET |
| STRUT TO CROSS MEMBER | ||
| 164 | N 000961016036 | SCREW |
| CROSS MEMBER AND STRUT TO SIDE MEMBER | ||
| 172 | N 000933010145 | SCREW |
| CROSS MEMBER AND STRUT TO SIDE MEMBER | ||
| 176 | N 913004010008 | NUT |
| CROSS MEMBER AND STRUT TO SIDE MEMBER | ||
| 180 | A 3873250001 | REAR SPRING BRACKET |
| FRONT | ||
| 190 | A 6213250003 | REAR SPRING BRACKET |
| REAR LEFT | ||
| 190 | A 6213250004 | REAR SPRING BRACKET |
| REAR RIGHT | ||
| 204 | A 6213100046 | CROSS MEMBER |
| (REAR CROSS MEMBER) | ||
| A 6213120435 | CROSS MEMBER | |
| A 6213121087 | GUSSET PLATE | |
| CROSS MEMBER TO LEFT SIDE MEMBER | ||
| A 6213121187 | GUSSET PLATE | |
| CROSS MEMBER TO RIGHT SIDE MEMBER | ||
| N 000961014088 | SCREW | |
| GUSSET PLATE TO CROSS MEMBER | ||
| N 913004014005 | NUT | |
| GUSSET PLATE TO CROSS MEMBER | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| MOUNTING USED FOR FRAME CONNECTION PARTS | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| DIMENSIONS ARE INDICATED IN THE FOLLOWING ORDER: | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| THREAD X SHANK DIA. X SHANK LENGTH X TOTAL LENGTH | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| N 000609010004 | FITTED SCREW | |
| M 10X11X14X28 | ||
| N 000610010003 | FITTED SCREW | |
| M 10X11X25X38 | ||
| N 000609010014 | FITTED SCREW | |
| M 10X11X24X40 | ||
| A 3859900514 | SCREW | |
| M 10X11X26,5X46 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| A 3859900714 | SCREW | |
| M 12X12X10X25 | ||
| A 3859901414 | SCREW | |
| M 12X12X11X26 | ||
| A 0039900901 | SCREW | |
| M 12X12X12X28 | ||
| A 3859901514 | SCREW | |
| M 12X12X13X28 | ||
| A 0029908201 | SCREW | |
| M 12X12X14X30 | ||
| A 3859902114 | SCREW | |
| M 12X12X15X30 | ||
| A 0029908301 | SCREW | |
| M 12X12X16X32 | ||
| A 3859902214 | SCREW | |
| M 12X12X17X32 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| A 6209900114 | SCREW | |
| M 12X13X12X29 | ||
| A 3969900314 | SCREW | |
| M 12X13X13X30 | ||
| A 3589901914 | SCREW | |
| M 12X13X15X32 | ||
| A 3559900014 | SCREW | |
| M 12X13X18X35 | ||
| A 3589900614 | SCREW | |
| M 12X13X21X38 | ||
| A 6179900114 | SCREW | |
| M 12X13X23X40 | ||
| A 6249900014 | SCREW | |
| M 12X13X25X42 | ||
| A 3859900214 | SCREW | |
| M 12X13X35X52 | ||
| A 6689900114 | SCREW | |
| M 12X13X58X80 | ||
| A 6689900014 | SCREW | |
| M 12X13X63X85 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| A 3229903101 | SCREW | |
| M 14X14X18X32 | ||
| A 3859900814 | SCREW | |
| M 14X14X16X32 | ||
| A 3859902014 | SCREW | |
| M 14X14X18X34 | ||
| A 3559900114 | SCREW | |
| M 12X14X13X35 | ||
| A 3219901601 | SCREW | |
| M 14X14X17X35 | ||
| A 3219901901 | SCREW | |
| M 14X14X22X40 | ||
| A 3559900501 | SCREW | |
| M 14X14X24X42 | ||
| A 3409900201 | SCREW | |
| M 14X14X27X45 | ||
| A 3609902001 | SCREW | |
| M 14X14X32X50 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| A 3589900114 | SCREW | |
| M 14X15X15X32 | ||
| A 3589900814 | SCREW | |
| M 14X15X17X34 | ||
| A 6459900014 | SCREW | |
| M 14X1KX18X35 | ||
| A 3589901014 | SCREW | |
| M 14X15X19X36 | ||
| A 3589900214 | SCREW | |
| M 14X15X21X38 | ||
| A 3589900414 | SCREW | |
| M 14X15X25X42 | ||
| A 3589900714 | SCREW | |
| M 14X15X27X44 | ||
| A 3589900914 | SCREW | |
| M 14X15X29X46 | ||
| A 3859900414 | SCREW | |
| M 14X15X31X48 | ||
| A 3859900314 | SCREW | |
| M 14X15X35X52 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| A 3859900914 | SCREW | |
| M 16X16X18X36 | ||
| A 3859901714 | SCREW | |
| M 16X16X20X38 | ||
| A 3859901014 | SCREW | |
| M 16X16X22X40 | ||
| A 3859901114 | SCREW | |
| M 16X16X24X42 | ||
| A 0029909901 | SCREW | |
| M 16X16X25X45 | ||
| A 3859901814 | SCREW | |
| M 16X16X30X48 | ||
| A 3859901914 | SCREW | |
| M 16X16X32X50 | ||
| A 6259900301 | SCREW | |
| M 16X16X38X90 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| A 3589900514 | SCREW | |
| M 16X17X22X42 | ||
| A 6459900714 | SCREW | |
| M 16X17X24X44 | ||
| A 3609900114 | SCREW | |
| M 16X17X28X48 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| A 3469900014 | SCREW | |
| M 16X18X18X40 | ||
| A 3859902314 | SCREW | |
| M 18X18X23X45 | ||
| A 6209900014 | SCREW | |
| M 16X18X26X48 | ||
| A 3469900114 | SCREW | |
| M 16X18X31X50 | ||
| A 3859902414 | SCREW | |
| M 18X18X33X55 | ||
| A 6229900014 | SCREW | |
| M 16X18X38X60 | ||
| A 3919900014 | SCREW | |
| M 16X18X63X85 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| N 000610018004 | FITTED SCREW | |
| M 18X19X25X45 | ||
| N 000610018009 | FITTED SCREW | |
| M 18X19X33X55 | ||
| N 000610018006 | FITTED SCREW | |
| M 18X19X38X60 | ||
| N 000609018000 | FITTED SCREW | |
| M 18X19X57X85 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| N 913004010011 | NUT | |
| N 913004012009 | NUT | |
| N 913004014005 | NUT | |
| N 913004016005 | NUT | |
| N 913004018004 | NUT | |
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 206 | N 910005012073 | RIVET |
| 12X28 MM | ||
| 206 | N 910005012080 | RIVET |
| 12X42 MM | ||
| 206 | N 910005014056 | RIVET |
| 14X45 MM | ||
| 206 | N 910005014059 | RIVET |
| 14X55 MM | ||
| 206 | N 910005016027 | RIVET |
| 16X58 MM | ||
| 206 | N 910005016006 | RIVET |
| 16X65 MM | ||
| 209 | N 000961014050 | SCREW |
| CROSS MEMBER NO.1 TO SIDE MEMBERS | ||
| 211 | N 913004014002 | NUT |
| CROSS MEMBER NO.1 TO SIDE MEMBERS | ||

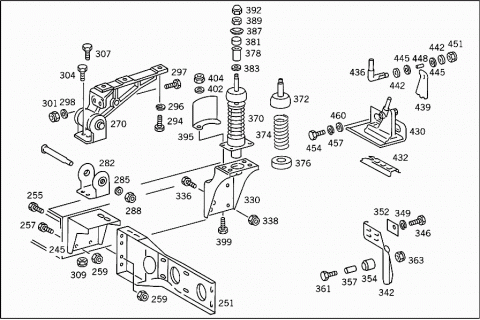

| 245 | A 3878912631 | CONSOLE |
| CAB MOUNTING,FRONT | ||
| 251 | A 6203170223 | STRUT |
| BUMPER,LEFT | ||
| 251 | A 6203170423 | STRUT |
| BUMPER,RIGHT | ||
| 255 | N 000961014101 | SCREW |
| CONSOLE AND STRUT TO FRAME | ||
| M 14X45 | ||
| 257 | N 000961014063 | SCREW |
| CONSOLE AND STRUT TO FRAME | ||
| M 14X40 | ||
| 259 | N 913004014005 | NUT |
| CONSOLE AND STRUT TO FRAME | ||
| 270 | A 6208902103 | MOUNTING |
| CAB,LEFT | ||
| 270 | A 6208902203 | MOUNTING |
| CAB, RIGHT | ||

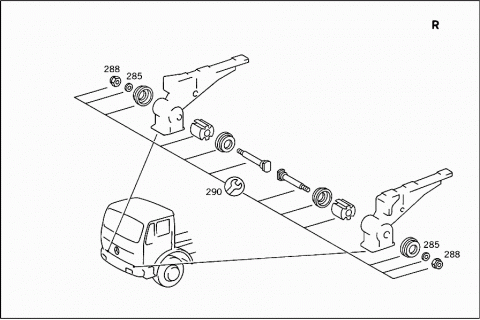

| 282 | A 6208902003 | MOUNTING |
| 285 | N 007349017002 | WASHER |
| 288 | N 913004016004 | NUT |
| 290 | A 3815860031 | REPAIR KIT |
| CAB SUSPENSION,FRONT | ||
| 294 | N 000961014028 | SCREW |
| Repalced by: A 0029909604 | ||
| 294 | A 0029909604 | SCREW |
| LEFT AND RIGHT BEARING BRACKETS TO CAB | ||
| 296 | N 912004014100 | LOCK WASHER |
| LEFT AND RIGHT BEARING BRACKETS TO CAB | ||
| 297 | N 000961014064 | SCREW |
| LEFT AND RIGHT BEARING BRACKETS TO CAB | ||
| 298 | A 3209901840 | WASHER |
| LEFT AND RIGHT BEARING BRACKETS TO CAB | ||
| 301 | N 913004014002 | NUT |
| LEFT AND RIGHT BEARING BRACKETS TO CAB | ||
| 304 | N 000961014063 | SCREW |
| CAB TO FRAME | ||
| M 14X40 | ||
| 307 | N 000961014101 | SCREW |
| CAB TO FRAME | ||
| M 14X45 | ||
| 309 | N 913004014005 | NUT |
| CAB TO FRAME | ||
| 330 | A 3873170001 | CONSOLE |
| Repalced by: A 6553170001 | ||
| 330 | A 6553170001 | CONSOLE |
| CAB MOUNTING,REAR | ||
| 336 | N 000961012097 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| 338 | N 913004012008 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| 342 | A 3873170626 | GUIDE |
| LEFT | ||
| 342 | A 3873170726 | GUIDE |
| RIGHT | ||
| 346 | N 000960012301 | SCREW |
| GUIDE TO CAB | ||
| 349 | N 912004012100 | LOCK WASHER |
| GUIDE TO CAB | ||
| 352 | A 3873170084 | SHIM |
| GUIDE TO CAB | ||
| 354 | A 3813170750 | BUSHING |
| GUIDE TO CAB | ||
| 357 | A 3813170553 | SPACER TUBE |
| GUIDE TO CAB | ||
| 361 | N 000960012230 | SCREW |
| GUIDE TO CAB | ||
| 363 | N 913004012008 | NUT |
| GUIDE TO CAB | ||
| 370 | A 6208900019 | SHOCK ABSORBER |
| Repalced by: A 6208900119 | ||
| 370 | A 6208900119 | SHOCK ABSORBER |
| (VIBRATION ABSORBER),CAB REAR SUSPENSION | ||
| 370 | A 6208900119 | SHOCK ABSORBER |
| (VIBRATION ABSORBER),CAB REAR SUSPENSION | ||
| 372 | A 0008910201 | RUBBER MOUNTING |
| TO 620 890 00 19 | ||
| 372 | A 0008910301 | RUBBER MOUNTING |
| TO 620 890 01 19 | ||
| 374 | A 0008911051 | SPRING |
| TO 620 890 00 19 | ||
| 374 | A 0008911151 | SPRING |
| TO 620 890 01 19 | ||
| 376 | A 0008910123 | BUFFER |
| TO 620 890 00 19 | ||
| 378 | A 3813170753 | SPACER TUBE |
| SHOCK ABSORBER TO CAB | ||
| 381 | A 3275045082 | RUBBER RING |
| SHOCK ABSORBER TO CAB | ||
| 383 | N 000433015005 | WASHER |
| SHOCK ABSORBER TO CAB | ||
| 387 | A 3878912010 | WASHER |
| SHOCK ABSORBER TO CAB | ||
| 389 | N 000934012022 | NUT |
| VIBRATION ABSORBER | ||
| 392 | N 001587012008 | CAP NUT |
| VIBRATION ABSORBER | ||
| 395 | A 3813170031 | COVER PLATE |
| SHOCK ABSORBER | ||
| 399 | N 000933008153 | SCREW |
| VIBRATION ABSORBER TO CONSOLE | ||
| 402 | N 009021008205 | WASHER |
| VIBRATION ABSORBER TO CONSOLE | ||
| 404 | N 913004008004 | NUT |
| VIBRATION ABSORBER TO CONSOLE | ||
| 430 | A 3813102075 | LOCKING MECHANISM |
| CAB LOCKING MECHANISM,LEFT | ||
| 430 | A 3813101975 | LOCKING MECHANISM |
| CAB LOCKING MECHANISM,RIGHT | ||
| 432 | A 3813170119 | LATCH |
| 436 | A 3813172374 | PIN |
| 439 | A 3813170924 | LEVER |
| 442 | A 3813170676 | WASHER |
| 445 | A 0009935426 | DISC SPRING |
| 448 | N 001481006041 | CLAMPING SLEEVE |
| 451 | N 913004012008 | NUT |
| 454 | N 000933010105 | SCREW |
| LOCKING MECHANISM TO CAB | ||
| 457 | N 912004010102 | LOCK WASHER |
| LOCKING MECHANISM TO CAB | ||
| 460 | N 000125010518 | WASHER |
| LOCKING MECHANISM TO CAB | ||

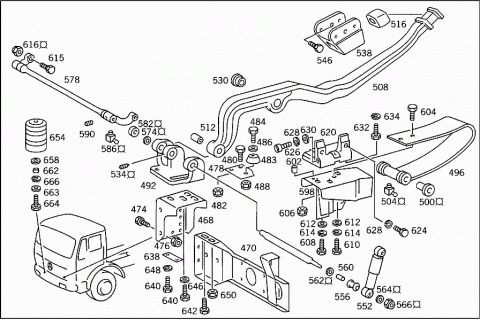

| 468 | A 3878912631 | CONSOLE |
| CAB SUSPENSION,FRONT | ||
| 470 | A 6203100253 | STRUT |
| BUMPER,LEFT | ||
| 470 | A 6203100353 | STRUT |
| BUMPER,RIGHT | ||
| 474 | N 000961014063 | SCREW |
| CONSOLE AND STRUT TO FRAME | ||
| M 14X40 | ||
| 474 | N 000961014101 | SCREW |
| CONSOLE AND STRUT TO FRAME | ||
| M 14X45 | ||
| 476 | N 913004014005 | NUT |
| CONSOLE AND STRUT TO FRAME | ||
| 478 | A 3878910914 | BRACKET |
| BUFFER | ||
| 480 | N 000961012097 | SCREW |
| BRACKET TO FRAME | ||
| M 12X35 | ||
| 480 | N 000961012151 | SCREW |
| BRACKET TO FRAME | ||
| M 12X30 | ||
| 482 | N 913004012008 | NUT |
| BRACKET TO FRAME | ||
| 483 | A 3348910072 | MOUNTING |
| BUFFER | ||
| 484 | N 000933008153 | SCREW |
| BUFFER TO BRACKET | ||
| 486 | N 009021008205 | WASHER |
| BUFFER TO BRACKET | ||
| 488 | N 913004008004 | NUT |
| BUFFER TO BRACKET | ||
| 492 | A 3878913720 | MOUNTING |
| CAB SUSPENSION,FRONT LEFT | ||
| 492 | A 3878913820 | MOUNTING |
| CAB SUSPENSION,FRONT RIGHT | ||
| 496 | A 3878910551 | SPRING |
| CAB SUSPENSION,FRONT | ||
| 500 | A 3638910617 | BUSHING |
| CAB SUSPENSION,FRONT | ||
| 504 | N 071412008200 | GREASE NIPPLE |
| CAB SUSPENSION,FRONT | ||
| 508 | A 3878912856 | LEVER |
| (TILTING LEVER),CAB | ||
| 512 | A 3879920003 | BUSHING |
| LEVER | ||
| 512 | A 3879920203 | BUSHING |
| LEVER | ||
| 516 | A 3638910023 | BUFFER |
| LEVER TO BEARING | ||
| 530 | A 6208910017 | BUSHING |
| LEVER | ||
| 534 | N 000417008004 | HEADLESS SETSCREW |
| LEVER | ||
| 538 | A 6208901603 | MOUNTING |
| LEVER | ||
| 546 | N 308676012012 | SCREW |
| BEARING BRACKET TO CAB | ||
| 552 | A 0008911805 | SHOCK ABSORBER |
| CAB SUSPENSION,FRONT | ||
| 556 | A 0008910501 | RUBBER MOUNTING |
| 560 | A 0008910617 | BUSHING |
| 562 | A 6203170176 | WASHER |
| SHOCK ABSORBER TO CONSOLE AND TO CAB | ||
| 564 | N 000125013008 | WASHER |
| SHOCK ABSORBER TO CONSOLE AND TO CAB | ||
| 566 | N 913004012008 | NUT |
| SHOCK ABSORBER TO CONSOLE AND TO CAB | ||
| 570 | A 3873100077 | REPAIR KIT |
| CAB SUSPENSION,FRONT | ||
| 574 | A 3878911910 | WASHER |
| CAB SUSPENSION,FRONT | ||

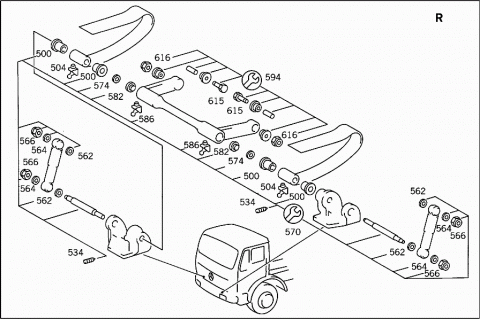

| 578 | A 6218900304 | STABILIZER |
| Repalced by: A 6528900104 | ||
| 578 | A 6528900104 | STABILIZER |
| CAB SUSPENSION,FRONT | ||
| 582 | A 0009817231 | JOINT BEARING |
| Repalced by: A 0019814631 | ||
| 582 | A 0019814631 | JOINT BEARING |
| A 0019814831 | JOINT BEARING | |
| 586 | N 071412008200 | GREASE NIPPLE |
| 590 | N 000906010000 | SCREW PLUG |
| STABILIZER | ||
| 594 | A 6203100077 | REPAIR KIT |
| CAB FRONT SUSPENSION STABILIZER | ||
| 594 | A 6203100177 | REPAIR KIT |
| CAB FRONT SUSPENSION STABILIZER | ||
| 598 | A 6218900203 | MOUNTING |
| Repalced by: A 6218900403 | ||
| 598 | A 6218900403 | MOUNTING |
| STABILIZER TO CAB,LEFT | ||
| 598 | A 6218900303 | MOUNTING |
| Repalced by: A 6218900503 | ||
| 598 | A 6218900503 | MOUNTING |
| STABILIZER TO CAB,RIGHT | ||
| 602 | A 6218910157 | PIN |
| 604 | N 000933008153 | SCREW |
| BEARING BRACKET TO CAB | ||
| 606 | N 913004008004 | NUT |
| BEARING BRACKET TO CAB | ||
| 608 | N 000961014028 | SCREW |
| Repalced by: A 0029909604 | ||
| 608 | A 0029909604 | SCREW |
| BEARING BRACKET TO CAB | ||
| M 14X40 | ||
| 610 | N 000960014138 | SCREW |
| BEARING BRACKET TO CAB | ||
| M 14X80 | ||
| 612 | N 007349015003 | WASHER |
| BEARING BRACKET TO CAB | ||
| 614 | N 912004014100 | LOCK WASHER |
| BEARING BRACKET TO CAB | ||
| 615 | N 000960014245 | SCREW |
| STABILIZER TO BEARING BRACKET | ||
| 616 | N 913004014002 | NUT |
| STABILIZER TO BEARING BRACKET | ||
| 620 | A 6208910631 | CONSOLE |
| CAB SUSPENSION,FRONT LEFT | ||
| 620 | A 6208910731 | CONSOLE |
| CAB SUSPENSION,FRONT RIGHT | ||
| 624 | N 000961012069 | SCREW |
| LEFT AND RIGHT CONSOLES TO CAB | ||
| M 12X45 | ||
| 626 | N 006912012013 | SCREW |
| LEFT AND RIGHT CONSOLES TO CAB | ||
| M 12X50 | ||
| 628 | N 912004012100 | LOCK WASHER |
| LEFT AND RIGHT CONSOLES TO CAB | ||
| 630 | A 3609900940 | WASHER |
| LEFT AND RIGHT CONSOLES TO CAB | ||
| 632 | N 000961014050 | SCREW |
| LEFT AND RIGHT CONSOLES TO CAB | ||
| 634 | N 912004014100 | LOCK WASHER |
| LEFT AND RIGHT CONSOLES TO CAB | ||
| 638 | A 3878910498 | SHIM |
| CAB ON CONSOLE AT FRAME | ||
| 640 | N 000961014008 | SCREW |
| CAB ON CONSOLE AT FRAME | ||
| M 14X30 | ||
| 640 | N 000961014088 | SCREW |
| CAB ON CONSOLE AT FRAME | ||
| M 14X35 | ||
| 640 | N 000961014103 | SCREW |
| CAB ON CONSOLE AT FRAME | ||
| M 14X55 | ||
| 646 | N 007349015003 | WASHER |
| CAB ON CONSOLE AT FRAME | ||
| 650 | N 913004014005 | NUT |
| CAB ON CONSOLE AT FRAME | ||
| 654 | A 3638910223 | BUFFER |
| (HOLLOW RUBBER SPRING),CAB | ||
| 658 | A 3638910047 | FLANGE |
| HOLLOW RUBBER SPRING | ||
| 662 | A 3638910517 | BUSHING |
| HOLLOW RUBBER SPRING | ||
| 663 | A 3878912210 | WASHER |
| HOLLOW RUBBER SPRING TO CAB | ||
| 664 | N 000933010129 | SCREW |
| HOLLOW RUBBER SPRING TO CAB | ||
| M 10X30 | ||
| 664 | N 000933010094 | SCREW |
| HOLLOW RUBBER SPRING TO CAB | ||
| M 10X40 | ||

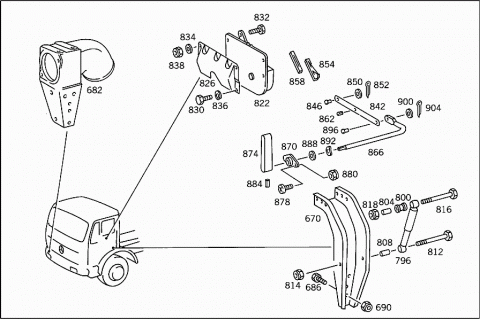

| 670 | A 3878911731 | CONSOLE |
| REAR LEFT | ||
| 682 | A 6208910831 | CONSOLE |
| AIR INTAKE | ||
| 686 | N 000961014028 | SCREW |
| Repalced by: A 0029909604 | ||
| 686 | A 0029909604 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 14X40 | ||
| 686 | N 000961014054 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 14X45 | ||
| 690 | N 913004014002 | NUT |
| CONSOLE TO SIDE MEMBER | ||

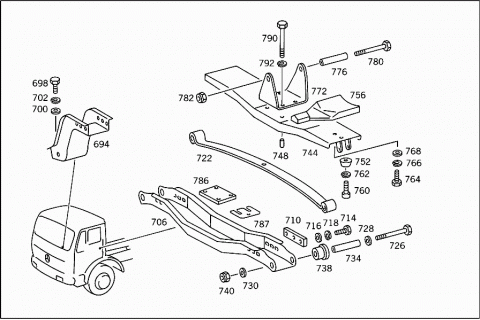

| 694 | A 6208900031 | CONSOLE |
| REAR RIGHT,TOP | ||
| 698 | N 000961012151 | SCREW |
| CONSOLE TO CONSOLE | ||
| 700 | A 3609900940 | WASHER |
| CONSOLE TO CONSOLE | ||
| 702 | N 912004012100 | LOCK WASHER |
| CONSOLE TO CONSOLE | ||
| 706 | A 3878910024 | STRUT |
| Repalced by: A 6558910224 | ||
| 706 | A 6558910224 | STRUT |
| CAB MOUNTING,REAR | ||
| 710 | A 3878910198 | SHIM |
| STRUT TO CONSOLE | ||
| 714 | N 308676012012 | SCREW |
| STRUT TO CONSOLE | ||
| 714 | N 000961012151 | SCREW |
| STRUT TO CONSOLE | ||
| 716 | N 000125013008 | WASHER |
| STRUT TO CONSOLE | ||
| 718 | N 912004012100 | LOCK WASHER |
| STRUT TO CONSOLE | ||
| 722 | A 3878911051 | SPRING |
| CAB SUSPENSION,REAR | ||
| 726 | N 000960012153 | SCREW |
| SPRING TO STRUT | ||
| 726 | N 000960012332 | SCREW |
| SPRING TO STRUT | ||
| 728 | A 3638910010 | WASHER |
| SPRING TO STRUT | ||
| 730 | N 009021013102 | WASHER |
| SPRING TO STRUT | ||
| 734 | A 3638910218 | TUBE |
| SPRING TO STRUT | ||
| 738 | A 3638910717 | BUSHING |
| SPRING TO STRUT | ||
| 740 | N 913004012008 | NUT |
| SPRING TO STRUT | ||
| 744 | A 3878900522 | RAIL |
| Repalced by: A 6558900122 | ||
| 744 | A 6558900122 | RAIL |
| CAB SUSPENSION,REAR | ||
| 748 | N 000007012200 | CYLINDRICAL PIN |
| 752 | A 3878910323 | BUFFER |
| CAB SUSPENSION,REAR | ||
| 756 | A 6208910072 | MOUNTING |
| Repalced by: A 3878910072 | ||
| 756 | A 3878910072 | MOUNTING |
| CAB SUSPENSION,REAR | ||
| 756 | A 6208910172 | MOUNTING |
| CAB SUSPENSION,REAR | ||
| 760 | N 000084008119 | SCREW |
| BUFFER AND MOUNTING TO RAIL | ||
| 762 | N 912004008102 | LOCK WASHER |
| BUFFER AND MOUNTING TO RAIL | ||
| 764 | N 000933008154 | SCREW |
| MOUNTING TO RAIL | ||
| 766 | N 912004008102 | LOCK WASHER |
| MOUNTING TO RAIL | ||
| 768 | N 000125008418 | WASHER |
| MOUNTING TO RAIL | ||
| 772 | A 6208910020 | MOUNTING |
| CAB MOUNTING,REAR | ||
| 776 | A 3878911753 | SPACER TUBE |
| MOUNTING TO CAB | ||
| 780 | N 000960016242 | SCREW |
| MOUNTING TO CAB | ||
| 782 | N 913004016004 | NUT |
| MOUNTING TO CAB | ||
| 786 | A 3878910811 | PLATE |
| CAB SUSPENSION,REAR | ||
| 787 | A 6208910296 | BASE |
| RAIL AND PLATE TO SPRING | ||
| 790 | N 000931010258 | SCREW |
| RAIL AND PLATE TO SPRING | ||
| 792 | N 912004010102 | LOCK WASHER |
| RAIL AND PLATE TO SPRING | ||
| 796 | A 0008911805 | SHOCK ABSORBER |
| CAB SUSPENSION,REAR | ||
| 800 | A 0008910501 | RUBBER MOUNTING |
| 804 | A 0008910617 | BUSHING |
| 808 | A 3878910453 | SPACER TUBE |
| SHOCK ABSORBER TO CONSOLE | ||
| 812 | N 000960018125 | SCREW |
| SHOCK ABSORBER TO CONSOLE | ||
| 814 | N 913004018003 | NUT |
| Repalced by: N 910113018004 | ||
| 814 | N 910113018004 | NUT |
| SHOCK ABSORBER TO CONSOLE | ||
| 816 | N 000960018040 | SCREW |
| SHOCK ABSORBER TO RAIL | ||
| 818 | N 913004018003 | NUT |
| Repalced by: N 910113018004 | ||
| 818 | N 910113018004 | NUT |
| SHOCK ABSORBER TO RAIL | ||
| 822 | A 0008900089 | FASTENER |
| Repalced by: A 0008902389 | ||
| 822 | A 0008901389 | FASTENER |
| Repalced by: A 0008902389 | ||
| 822 | A 0008902389 | FASTENER |
| (CENTRAL LOCK) | ||
| 826 | A 3878911131 | CONSOLE |
| CENTRAL LOCK | ||
| 830 | N 000933010128 | SCREW |
| FASTENER AND CONSOLE TO CAB | ||
| M 10X20 | ||
| 830 | N 000933010198 | SCREW |
| FASTENER AND CONSOLE TO CAB | ||
| M 10X16 | ||
| 832 | N 000933010105 | SCREW |
| FASTENER AND CONSOLE TO CAB | ||
| M 10X25 | ||
| 834 | N 000125010518 | WASHER |
| FASTENER AND CONSOLE TO CAB | ||
| 836 | N 912004010102 | LOCK WASHER |
| FASTENER AND CONSOLE TO CAB | ||
| 838 | N 913004010008 | NUT |
| FASTENER AND CONSOLE TO CAB | ||
| 842 | A 3878910070 | ROD |
| CAB LOCKING MECHANISM | ||
| 846 | N 001444008202 | PIN |
| PULL TO FASTENER | ||
| A 1269911907 | PIN | |
| PULL TO FASTENER | ||
| 850 | N 000433008406 | WASHER |
| PULL TO FASTENER | ||
| 852 | N 000094002059 | COTTER PIN |
| PULL TO FASTENER | ||
| N 912002008001 | LOCK | |
| PULL TO FASTENER | ||
| 854 | A 3878910814 | BRACKET |
| SEAL | ||
| 858 | A 3878910085 | SEAL |
| CAB LOCKING MECHANISM | ||
| 862 | N 007346005003 | CLAMPING SLEEVE |
| ROD TO BRACKET | ||
| 866 | A 6208910256 | LEVER |
| CAB LOCKING MECHANISM | ||
| 870 | A 3638910317 | BUSHING |
| CAB LOCKING MECHANISM | ||
| 874 | A 3638910073 | HANDLE |
| Repalced by: A 6208910073 | ||
| 874 | A 6208970073 | PART NAME MISSING |
| CAB LOCKING MECHANISM | ||
| 878 | N 007985008142 | SCREW |
| BUSHING AND HANDLE TO CAB | ||
| 880 | N 913004008004 | NUT |
| BUSHING AND HANDLE TO CAB | ||
| 884 | N 007346005004 | CLAMPING SLEEVE |
| HANDLE TO LEVER | ||
| 888 | N 000125015013 | WASHER |
| HANDLE TO LEVER | ||
| 892 | N 900055014002 | SPRING WASHER |
| HANDLE TO LEVER | ||
| 896 | N 001444008233 | PIN |
| ROD TO LEVER | ||
| 900 | N 000433008406 | WASHER |
| ROD TO LEVER | ||
| 904 | N 000094002059 | COTTER PIN |
| ROD TO LEVER | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
