Transporto priemonė: 1928 S MBSA; VIN numerio dalis: 621111

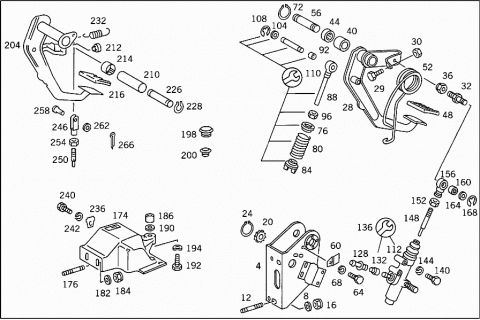

Grupė: 29 PEDAL ASSEMBLY
| # | Kodas | Pavadinimas |
|---|---|---|
| 004 | A 3812901219 | BEARING BRACKET |
| CLUTCH | ||
| 004 | A 6202900219 | BEARING BRACKET |
| CLUTCH | ||
| 008 | N 000125008418 | WASHER |
| BEARING BRACKET TO CAB | ||
| 012 | N 000939008083 | STUD BOLT |
| BEARING BRACKET TO CAB | ||
| M 8X20 | ||
| 012 | N 000939008136 | STUD BOLT |
| BEARING BRACKET TO CAB | ||
| M 8X30 | ||
| 016 | N 913004008004 | NUT |
| BEARING BRACKET TO CAB | ||
| A 0004343801 | VALVE | |
| SPLITTER BOX GEARSHIFT 3/2-WAY VALVE | ||
| A 0014307460 | GASKET KIT | |
| 3/2-WAY VALVE | ||
| A 0009940047 | SEAL RING | |
| 3/2-WAY VALVE | ||
| TO M 16 | ||
| A 0009941248 | LOCK | |
| 3/2-WAY VALVE | ||
| TO M 16 | ||
| A 0009970834 | SCREW | |
| 3/2-WAY VALVE | ||
| TO M 16 | ||
| N 074305026202 | NUT | |
| 3/2-WAY VALVE TO ANGLE | ||
| A 3609900840 | WASHER | |
| Repalced by: N 001440027000 | ||
| N 001440027000 | WASHER | |
| VALVE TO BRACKET | ||
| A 6202900133 | BRACKET | |
| 3/2-WAY VALVE TO PEDAL BEARING BRACKET | ||
| N 000933006130 | SCREW | |
| BRACKET TO PEDAL BEARING BRACKET | ||
| N 912004006102 | LOCK WASHER | |
| BRACKET TO PEDAL BEARING BRACKET | ||
| N 000433006405 | WASHER | |
| BRACKET TO PEDAL BEARING BRACKET | ||
| 020 | A 3812910186 | STOP |
| PEDAL ASSEMBLY | ||
| 024 | N 000471016001 | LOCK RING |
| STOP TO BEARING BRACKET | ||
| 028 | A 6202900216 | PEDAL |
| CLUTCH | ||
| 028 | A 6202902316 | PEDAL |
| CLUTCH | ||
| 029 | A 3529902101 | SCREW |
| 030 | N 000439008211 | NUT |
| 032 | A 3812910274 | PIN |
| 036 | N 913004008004 | NUT |
| 040 | A 3812910053 | SPACER TUBE |
| 044 | A 0119813410 | NEEDLE BEARING |
| 048 | A 1072910182 | PAD |
| CLUTCH PEDAL | ||
| 052 | A 3819930710 | SPRING |
| CLUTCH PEDAL RESET | ||
| 052 | A 6209930010 | SPRING |
| CLUTCH PEDAL RESET | ||
| 056 | A 3812940707 | PIVOT PIN |
| PEDAL TO BEARING BRACKET | ||
| 060 | A 3812910073 | LOCK |
| PEDAL TO BEARING BRACKET | ||
| 064 | N 000933006102 | SCREW |
| LOCK TO BEARING BRACKET | ||
| 068 | N 912004006102 | LOCK WASHER |
| LOCK TO BEARING BRACKET | ||
| 072 | N 000471020001 | LOCK RING |
| PEDAL TO BEARING BRACKET | ||
| 076 | A 1112910491 | SPRING RETAINER |
| DEAD CENTER SPRING,TOP | ||
| 080 | A 1109930501 | SPRING |
| (DEAD CENTER SPRING) | ||
| 35 MM | ||
| 084 | A 3092910091 | SPRING RETAINER |
| BOTTOM | ||
| 092 | A 0059813810 | NEEDLE BEARING |
| ROD TO CLUTCH PEDAL | ||
| 092 | A 0059814410 | NEEDLE BEARING |
| ROD TO CLUTCH PEDAL | ||
| 092 | A 0089811210 | NEEDLE BEARING |
| ROD TO CLUTCH PEDAL | ||
| 092 | A 0139818210 | NEEDLE BEARING |
| ROD TO CLUTCH PEDAL | ||
| 096 | N 000439010216 | NUT |
| SPRING TO PUSH ROD | ||
| 104 | N 000433008406 | WASHER |
| PUSH ROD TO PEDAL | ||
| 108 | N 006799006003 | LOCK PLATE |
| PUSH ROD TO PEDAL | ||
| 110 | A 3802900293 | REPAIR KIT |
| DEAD CENTER SPRING | ||
| 112 | A 0012952906 | MASTER CYLINDER |
| Repalced by: A 0012956006 | ||
| 112 | A 0012956006 | MASTER CYLINDER |
| CLUTCH;LESS DE-AERATION | ||
| 128 | A 0002950836 | INTERMEDIATE PIECE |
| 132 | A 0009971186 | PLUG |
| 136 | A 0005863529 | REPAIR KIT |
| Repalced by: A 0002903412 | ||
| 136 | A 0002903412 | REPAIR KIT |
| TO MASTER CYLINDER HAVING ALUMINUM PISTON | ||
| TO 001 295 29 06 | ||
| 136 | A 0002904667 | REPAIR KIT |
| TO MASTER CYLINDER HAVING SYNTHETIC PISTON | ||
| TO 001 295 60 06 | ||
| 140 | N 000931006191 | SCREW |
| MASTER CYLINDER TO BEARING BRACKET | ||
| 144 | N 912004006102 | LOCK WASHER |
| MASTER CYLINDER TO BEARING BRACKET | ||
| 148 | A 3812950033 | ROD |
| MASTER CYLINDER | ||
| 152 | N 000439008211 | NUT |
| ROD TO YOKE | ||
| 156 | A 0009961045 | ARTICULATION PIECE |
| CLUTCH MASTER CYLINDER TO CLUTCH PEDAL | ||
| 156 | A 0009961145 | ARTICULATION PIECE |
| CLUTCH MASTER CYLINDER TO CLUTCH PEDAL | ||
| 160 | A 0059813810 | NEEDLE BEARING |
| CLUTCH MASTER CYLINDER TO CLUTCH PEDAL | ||
| 160 | A 0059814410 | NEEDLE BEARING |
| CLUTCH MASTER CYLINDER TO CLUTCH PEDAL | ||
| 160 | A 0089811210 | NEEDLE BEARING |
| CLUTCH MASTER CYLINDER TO CLUTCH PEDAL | ||
| 160 | A 0139818210 | NEEDLE BEARING |
| CLUTCH MASTER CYLINDER TO CLUTCH PEDAL | ||
| 164 | N 000433008406 | WASHER |
| PISTON ROD TO LEVER | ||
| 168 | N 006799006003 | LOCK PLATE |
| PISTON ROD TO LEVER | ||
| 174 | A 3812941001 | BEARING BRACKET |
| BRAKE | ||
| 176 | N 000939008136 | STUD BOLT |
| BEARING BRACKET TO CAB | ||
| 182 | N 007349008003 | WASHER |
| BEARING BRACKET TO CAB | ||
| 184 | N 913004008004 | NUT |
| BEARING BRACKET TO CAB | ||
| 186 | A 3604270253 | SPACER TUBE |
| BEARING BRACKET TO WINDOW SILL GIRDER | ||
| 190 | A 3859901840 | WASHER |
| Repalced by: A 4039900040 | ||
| 190 | A 4039900040 | WASHER |
| BEARING BRACKET TO STEERING COLUMN BRACKET | ||
| 192 | N 000931010272 | SCREW |
| BEARING BRACKET TO STEERING COLUMN BRACKET | ||
| 194 | N 000137010201 | SPRING WASHER |
| BEARING BRACKET TO STEERING COLUMN BRACKET | ||
| 198 | A 3819970486 | PLUG |
| TO PLUG BRAKE OPENING | ||
| 29,5 MM | ||
| 200 | A 3819970386 | PLUG |
| Repalced by: A 0009972020 | ||
| 200 | A 0009972020 | EXPANSION PLUG |
| Repalced by: A 0009973220 | ||
| 200 | A 0009973220 | EXPANSION PLUG |
| TO PLUG BRAKE OPENING | ||
| 19,5 MM | ||
| 204 | A 3852900518 | PEDAL |
| BRAKE | ||
| 210 | A 3852920053 | SPACER TUBE |
| 212 | A 1152910186 | STOP |
| 214 | A 0119813410 | NEEDLE BEARING |
| 216 | A 1072910182 | PAD |
| BRAKE | ||
| 226 | A 3852940007 | PIVOT PIN |
| PEDAL TO BEARING BRACKET | ||
| 228 | N 000471020001 | LOCK RING |
| PEDAL TO BEARING BRACKET | ||
| 232 | A 3879935010 | SPRING |
| BRAKE PEDAL RELEASE SPRING | ||
| 236 | A 3852920073 | LOCK |
| Repalced by: A 6732920073 | ||
| 236 | A 6732920073 | LOCK |
| PEDAL TO BEARING BRACKET | ||
| 240 | N 000933006103 | SCREW |
| LOCK TO BEARING BRACKET | ||
| 242 | N 912004006102 | LOCK WASHER |
| LOCK TO BEARING BRACKET | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FOR BRAKE VALVE,SEE GROUP 42 | ||
| 246 | A 6209960001 | YOKE |
| PISTON ROD AND PUSH ROD | ||
| 250 | A 3852950133 | ROD |
| Repalced by: A 9702900039 | ||
| 250 | A 9702900039 | ROD |
| PISTON ROD AND PUSH ROD | ||
| 254 | N 000439008211 | NUT |
| PISTON ROD AND PUSH ROD | ||
| 258 | A 3852920174 | PIN |
| PISTON ROD TO BRAKE PEDAL | ||
| 262 | N 000433008406 | WASHER |
| PISTON ROD TO BRAKE PEDAL | ||
| 266 | N 000094002059 | COTTER PIN |
| PISTON ROD TO BRAKE PEDAL | ||
| 270 | A 0002952315 | RESERVOIR |
| RESERVOIR | ||
| 274 | A 0002950116 | LOCKING CAP |
| 278 | A 0009972940 | SEAL RING |
| 282 | A 0004314334 | STRAINER |
| 286 | A 0009885435 | CAP |
| RESERVOIR DE-AERATION | ||
| 288 | N 000000001147 | SCREW |
| EXPANSION TANK TO BRACKET | ||
| M 6X20 | ||
| 290 | N 009021006205 | WASHER |
| EXPANSION TANK TO BRACKET | ||
| 294 | N 912004006102 | LOCK WASHER |
| EXPANSION TANK TO BRACKET | ||
| 298 | A 3872900433 | BRACKET |
| RESERVOIR | ||
| 302 | N 007981005306 | SHEET METAL SCREW |
| BRACKET TO CAB | ||
| 306 | A 0009978952 | HOSE |
| BETWEEN MASTER CYLINDER AND LINES | ||
| 310 | A 6209970281 | GROMMET |
| CLUTCH LINE THRU CAB WINDOW SILL | ||
| 314 | A 3812901814 | LINE |
| FROM CLUTCH MASTER CYLINDER TO HYDRAULIC HOSE | ||
| 700 MM | ||
| 318 | A 3819970881 | GROMMET |
| 322 | A 0002951435 | HOSE |
| FROM BRACKET UNDER CAB FLOOR TO OIL TANK BRACKET | ||
| 555 MM | ||
| 326 | A 0002952435 | HOSE |
| FROM BRACKET ON SIDE MEMBER TO BRACKET ON TRANSMISSION | ||
| 300 MM | ||
| 326 | A 0002951735 | HOSE |
| FROM BRACKET ON SIDE MEMBER TO BRACKET ON TRANSMISSION | ||
| 215 MM | ||
| 330 | A 3812902314 | LINE |
| FROM BRACKET TO BRACKET | ||
| 2500 MM | ||
| 334 | A 3812902014 | LINE |
| FROM HYDRAULIC HOSE TO CLUTCH SLAVE CYLINDER | ||
| 1100 MM | ||
| 334 | A 3812901614 | LINE |
| FROM HYDRAULIC HOSE TO CLUTCH SLAVE CYLINDER | ||
| 550 MM | ||
| 338 | A 6202953040 | BRACKET |
| AT CAB FLOOR | ||
| 342 | N 000933006183 | SCREW |
| BRACKET TO CAB | ||
| 346 | N 912004006102 | LOCK WASHER |
| BRACKET TO CAB | ||
| 350 | A 6162950240 | BRACKET |
| AT OIL TANK BRACKET | ||
| 354 | N 007985006193 | SCREW |
| BRACKET TO OIL TANK | ||
| 358 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 358 | N 913004006001 | NUT |
| BRACKET TO OIL TANK | ||
| 362 | A 0049971172 | FITTING |
| CLUTCH BOOSTER | ||
| 366 | N 007603014106 | SEAL RING |
| CLUTCH BOOSTER | ||
| 370 | A 0004280473 | BRACKET |
| Repalced by: A 6525040038 | ||
| 370 | A 6525040038 | MOUNTING PLATE |
| HYDRAULIC HOSE TO BRACKET | ||
| A 3604280243 | ANGLE | |
| AT LEFT SIDE MEMBER | ||
| N 000933008152 | SCREW | |
| ANGLE TO SIDE MEMBER | ||
| N 913004008004 | NUT | |
| ANGLE TO SIDE MEMBER | ||
| 374 | A 6202950440 | BRACKET |
| CLUTCH HOSE TO FENDER BRACKET | ||
| 378 | A 6202953240 | BRACKET |
| HYDRAULIC LINE TO TRANSMISSION | ||
| 382 | N 000939008083 | STUD BOLT |
| BRACKET TO TRANSMISSION | ||
| 386 | N 913004008004 | NUT |
| BRACKET TO TRANSMISSION | ||
| 390 | A 6202952540 | BRACKET |
| AT ENGINE MOUNTING CONSOLE | ||
| 394 | A 3609950201 | CLAMP |
| Repalced by: A 3604300143 | ||
| 394 | A 3604300143 | CLAMP |
| Repalced by: N 916016008200 | ||
| 394 | N 916016008200 | CLAMP |
| HYDRAULIC LINE TO BRACKET | ||
| 398 | N 007985006193 | SCREW |
| HYDRAULIC LINE TO BRACKET | ||
| 402 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 402 | N 913004006001 | NUT |
| HYDRAULIC LINE TO BRACKET | ||
