Transporto priemonė: 1928 S MBSA; VIN numerio dalis: 621111

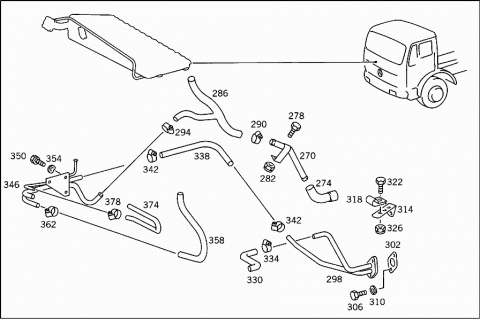

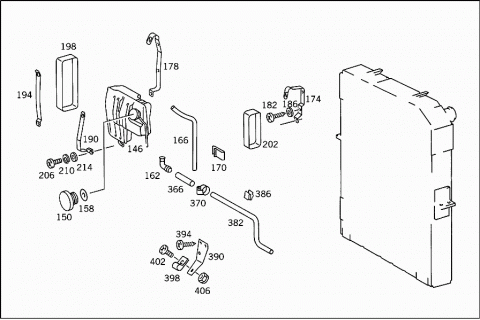

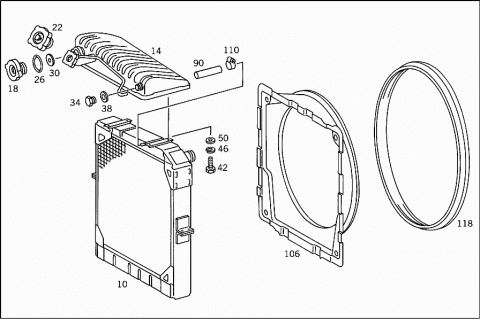

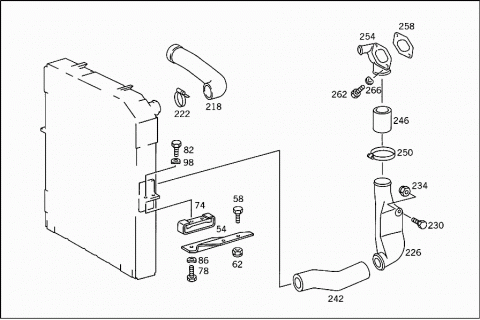

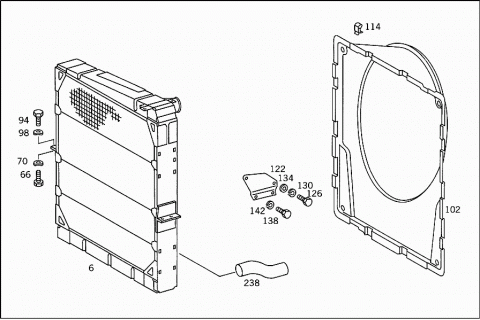

Grupė: 50 RADIATOR
| # | Kodas | Pavadinimas |
|---|---|---|
| 006 | A 0005019101 | RADIATOR |
| BEHR | ||
| 010 | A 0015010201 | RADIATOR |
| Repalced by: A 0005001103 | ||
| 010 | A 0005001103 | RADIATOR |
| BEHR | ||
| 014 | A 0005000749 | TANK |
| COOLING WATER EXPANSION | ||
| 018 | A 0005013715 | RADIATOR CAP |
| LATERAL | ||
| 018 | A 0005017115 | RADIATOR CAP |
| LATERAL | ||
| 022 | A 0005014615 | RADIATOR CAP |
| FILLER NECK | ||
| 022 | A 0005017215 | RADIATOR CAP |
| FILLER NECK | ||
| 026 | A 0005010480 | GASKET |
| O.D., | ||
| 52 MM | ||
| 030 | A 0005010880 | GASKET |
| O.D., | ||
| 37 MM | ||
| 034 | A 0019973230 | SCREW PLUG |
| Repalced by: N 007604014101 | ||
| 034 | N 007604014101 | SCREW PLUG |
| WATER DRAIN | ||
| 038 | N 007603014405 | SEAL RING |
| WATER DRAIN | ||
| 042 | N 000933008212 | SCREW |
| FROM EXPANSION TANK TO RADIATOR | ||
| 046 | N 912004008102 | LOCK WASHER |
| FROM EXPANSION TANK TO RADIATOR | ||
| 050 | N 000125008418 | WASHER |
| FROM EXPANSION TANK TO RADIATOR | ||
| 054 | A 6205040201 | SUPPORT |
| RADIATOR,LEFT | ||
| 058 | N 000961012151 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| 062 | N 913004012008 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 066 | N 000933010238 | SCREW |
| RUBBER MOUNTING TO FRAME | ||
| 070 | N 000137010201 | SPRING WASHER |
| RUBBER MOUNTING TO FRAME | ||
| 074 | A 6205040112 | RUBBER MOUNTING |
| RADIATOR TO SUPPORT | ||
| 078 | N 000933010238 | SCREW |
| RUBBER MOUNTING TO SUPPORT | ||
| M 10X22 | ||
| 082 | N 000933010105 | SCREW |
| RADIATOR TO RUBBER MOUNTING | ||
| M 10X25 | ||
| 086 | N 000137010201 | SPRING WASHER |
| RUBBER MOUNTING TO SUPPORT | ||
| 090 | A 0149975782 | HOSE |
| OVERFLOW, EXPANSION TANK | ||
| 094 | N 000933010128 | SCREW |
| RADIATOR TO RUBBER MOUNTING | ||
| M 10X20 | ||
| 098 | N 000137010201 | SPRING WASHER |
| RADIATOR TO RUBBER MOUNTING | ||
| 102 | A 6205050655 | FAN SHROUD |
| RADIATOR | ||
| 106 | A 6205050355 | FAN SHROUD |
| RADIATOR | ||
| 110 | N 916017011000 | CLAMP |
| Repalced by: N 000000000665 | ||
| 110 | N 000000000665 | CLAMP |
| OVERFLOW, EXPANSION TANK | ||
| 12-22X13 MM | ||
| 114 | A 1235040246 | CLAMP |
| FAN SHROUD TO RADIATOR | ||
| 118 | A 6205050086 | BOOT |
| FAN SHROUD | ||
| 122 | A 4220100240 | BRACKET |
| OI DIPSTICK GUIDE TUBE | ||
| 126 | N 000933008145 | SCREW |
| OIL-DIPSTICK GUIDE TUBE TO BRACKET | ||
| 130 | N 912004008102 | LOCK WASHER |
| OIL-DIPSTICK GUIDE TUBE TO BRACKET | ||
| 134 | N 007349008003 | WASHER |
| OIL-DIPSTICK GUIDE TUBE TO BRACKET | ||
| 138 | N 000933006102 | SCREW |
| OIL DIPSTICK BRACKET TO RADIATOR | ||
| 142 | N 000137006204 | SPRING WASHER |
| OIL DIPSTICK BRACKET TO RADIATOR | ||
| 146 | A 6205000349 | TANK |
| CAB,FRONT | ||
| 150 | A 0005014515 | RADIATOR CAP |
| TOP | ||
| 158 | A 0005010880 | GASKET |
| O.D., | ||
| 37 MM | ||
| 162 | A 0005010110 | DRAIN PIPE |
| 166 | A 0079972682 | HOSE |
| 170 | A 0009881878 | CLIP |
| DE-AERATION LINE TO CAB | ||
| 174 | A 6175000031 | BRACKET |
| EXPANSION TANK,LEFT | ||
| 178 | A 6175000131 | BRACKET |
| EXPANSION TANK,RIGHT | ||
| 182 | N 007981005306 | SHEET METAL SCREW |
| BRACKET TO CAB | ||
| 186 | N 000125006421 | WASHER |
| BRACKET TO CAB | ||
| 190 | A 6175010220 | STRAP |
| EXPANSION TANK,LEFT | ||
| 194 | A 6175010320 | STRAP |
| EXPANSION TANK,RIGHT | ||
| 198 | A 6175010095 | SHIM |
| EXPANSION TANK,LEFT | ||
| 202 | A 6175010195 | SHIM |
| EXPANSION TANK,RIGHT | ||
| 206 | N 007985006193 | SCREW |
| EXPANSION TANK TO BRACKET | ||
| 210 | N 912004006102 | LOCK WASHER |
| FROM EXPANSION TANK TO RADIATOR | ||
| 214 | N 009021006205 | WASHER |
| EXPANSION TANK TO BRACKET | ||
| 218 | A 6205011082 | HOSE |
| FROM RADIATOR TO THERMOSTAT | ||
| 222 | N 916017070000 | CLAMP |
| Repalced by: N 000000000674 | ||
| 222 | N 000000000674 | CLAMP |
| HOSE TO RADIATOR AND TO ENGINE | ||
| 70-90X13 MM | ||
| 226 | A 6205010456 | PIPE ELBOW |
| Repalced by: A 6205010556 | ||
| 226 | A 6205010556 | PIPE ELBOW |
| Repalced by: A 6555010756 | ||
| 226 | A 6555010756 | PIPE ELBOW |
| FROM RADIATOR TO WATER PUMP | ||
| 230 | N 000931010282 | SCREW |
| PIPE BEND TO BRACKET | ||
| 234 | N 913004010008 | NUT |
| PIPE BEND TO BRACKET | ||
| 238 | A 6205013682 | HOSE |
| FROM RADIATOR TO WATER PUMP | ||
| 242 | A 6205013882 | HOSE |
| Repalced by: A 6555011282 | ||
| 242 | A 6555011282 | HOSE |
| FROM RADIATOR TO WATER PUMP | ||
| 246 | N 900271070007 | HOSE |
| FROM RADIATOR TO WATER PUMP | ||
| 250 | N 916017070000 | CLAMP |
| Repalced by: N 000000000674 | ||
| 250 | N 000000000674 | CLAMP |
| FROM RADIATOR TO WATER PUMP | ||
| 70-90X13 MM | ||
| 254 | A 6205010123 | CONNECTOR |
| Repalced by: A 6205010423 | ||
| 254 | A 6205010423 | CONNECTOR |
| AT WATER PUMP | ||
| 258 | A 4032010480 | GASKET |
| Repalced by: A 4422010480 | ||
| 258 | A 4422010480 | GASKET |
| CONNECTOR TO WATER PUMP | ||
| 262 | N 000933010105 | SCREW |
| CONNECTOR TO WATER PUMP | ||
| 266 | N 000137010201 | SPRING WASHER |
| CONNECTOR TO WATER PUMP | ||
| 270 | A 6205000172 | LINE |
| FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE | ||
| 274 | A 6205011682 | HOSE |
| Repalced by: A 6585010082 | ||
| 274 | A 6585010082 | HOSE |
| FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE | ||
| 278 | N 000933006103 | SCREW |
| PIPE TO CONTROL BRACKET | ||
| 282 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 282 | N 913004006001 | NUT |
| PIPE TO CONTROL BRACKET | ||
| 286 | A 6205011882 | HOSE |
| FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE | ||
| 290 | N 916017032000 | CLAMP |
| Repalced by: N 000000000670 | ||
| 290 | N 000000000670 | CLAMP |
| FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE | ||
| 35-50 X13 MM | ||
| 294 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 294 | N 000000000667 | CLAMP |
| FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE | ||
| 20-32X13 MM | ||
| 298 | A 6205000279 | FLANGE |
| HEATING AND BREATHING | ||
| A 6205000579 | FLANGE | |
| DE-AERATION; FROM ENGINE TO EXPANSION TANK | ||
| 302 | N 917003040008 | GASKET |
| FLANGE TO ENGINE | ||
| 306 | N 000933010105 | SCREW |
| FLANGE TO ENGINE | ||
| 310 | N 912004010102 | LOCK WASHER |
| FLANGE TO ENGINE | ||
| 314 | A 6205010620 | BRACKET |
| HEATING PIPE | ||
| 318 | A 3609950601 | CLAMP |
| HEATING PIPE TO ENGINE | ||
| 318 | A 3609950601 | CLAMP |
| HEATING PIPE TO BRACKET | ||
| 318 | A 3609950601 | CLAMP |
| HEATING PIPE TO FAN SHROUD BRACKET | ||
| 322 | N 000933006130 | SCREW |
| HEATING PIPE TO ENGINE | ||
| 322 | N 000933006130 | SCREW |
| HEATING PIPE TO BRACKET | ||
| 322 | N 000933006130 | SCREW |
| HEATING PIPE TO FAN SHROUD BRACKET | ||
| 326 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 326 | N 913004006001 | NUT |
| HEATING PIPE TO ENGINE | ||
| 326 | N 913004006001 | NUT |
| HEATING PIPE TO BRACKET | ||
| 326 | N 913004006001 | NUT |
| HEATING PIPE TO FAN SHROUD BRACKET | ||
| 330 | A 3875011682 | HOSE |
| DE-AERATION; FROM ENGINE TO EXPANSION TANK | ||
| 334 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 334 | N 000000000667 | CLAMP |
| DE-AERATION LINE TO ENGINE AND TO EXPANSION TANK | ||
| 20-32X13 MM | ||
| 338 | A 6205060535 | HOSE |
| FROM ENGINE CONNECTION FLANGE TO HEATING PIPE AT RADIATOR | ||
| A 6205003972 | LINE | |
| (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR | ||
| N 917003022003 | GASKET | |
| HEATING PIPE TO ENGINE | ||
| N 000933008291 | SCREW | |
| Repalced by: A 4609900601 | ||
| A 4609900601 | SCREW | |
| HEATING PIPE TO ENGINE | ||
| M 8X20 | ||
| N 000137008204 | SPRING WASHER | |
| HEATING PIPE TO ENGINE | ||
| A 3818320714 | BRACKET | |
| HEATING PIPE TO FAN SHROUD BRACKET | ||
| A 6205062340 | BRACKET | |
| BRACKET TO WATER PUMP | ||
| A 6205062935 | HOSE | |
| FROM HEATING PIPE AT ENGINE TO HEATING PIPE AT RADIATOR | ||
| 342 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 342 | N 000000000667 | CLAMP |
| HOSE TO FLANGE AND TO HEATING PIPE | ||
| 20-32X13 MM | ||
| 346 | A 6205002972 | LINE |
| Repalced by: A 6205003072 | ||
| 346 | A 6205003072 | LINE |
| HEATING AND BREATHING | ||
| 350 | N 000933006183 | SCREW |
| HEATING PIPE TO RADIATOR | ||
| 354 | N 000137006201 | SPRING WASHER |
| HEATING PIPE TO RADIATOR | ||
| 358 | A 6205062035 | HOSE |
| FROM HEATING PIPE AT RADIATOR TO CAB HEATING PIPE | ||
| 362 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 362 | N 000000000667 | CLAMP |
| HEATING; TO CAB | ||
| 20-32X13 MM | ||
| 366 | A 6205013282 | HOSE |
| Repalced by: A 6205012882 | ||
| 366 | A 6205012882 | HOSE |
| (DE-AERATION LINE) FROM RADIATOR TO EXPANSION TANK | ||
| 370 | N 916017011000 | CLAMP |
| Repalced by: N 000000000665 | ||
| 370 | N 000000000665 | CLAMP |
| HOSE TO EXPANSION TANK AND TO BREATHER PIPE | ||
| 12-22X13 MM | ||
| 370 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 370 | N 000000000667 | CLAMP |
| HOSE TO EXPANSION TANK AND TO BREATHER PIPE | ||
| 20-32X13 MM | ||
| 374 | N 900271008043 | HOSE |
| 8X17 MM | ||
| 374 | N 900271008043 | HOSE |
| FROM EXPANSION TANK TO HEATING PIPE | ||
| 8X17 MM | ||
| 374 | N 900271008043 | HOSE |
| FROM PIPE LINE AT CAB TO HEATING PIPE AT RADIATOR | ||
| 8X17 MM | ||
| 378 | N 916017011000 | CLAMP |
| Repalced by: N 000000000665 | ||
| 378 | N 000000000665 | CLAMP |
| HEATING PIPE | ||
| 12-22X13 MM | ||
| 382 | A 6205010725 | BREATHER PIPE |
| VENTILATION, FROM RADIATOR TO EXPANSION TANK | ||
| 386 | A 0009881878 | CLIP |
| DE-AERATION LINE TO CAB | ||
| 390 | A 6175010420 | BRACKET |
| DE-AERATION LINE | ||
| 394 | N 007981005306 | SHEET METAL SCREW |
| BRACKET TO CAB | ||
| 398 | A 3609950201 | CLAMP |
| Repalced by: A 3604300143 | ||
| 398 | A 3604300143 | CLAMP |
| Repalced by: N 916016008200 | ||
| 398 | N 916016008200 | CLAMP |
| DE-AERATION LINE TO BRACKET | ||
| 402 | N 007985006193 | SCREW |
| DE-AERATION LINE TO BRACKET | ||
| 406 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 406 | N 913004006001 | NUT |
| DE-AERATION LINE TO BRACKET | ||
