Transporto priemonė: 1928 S MBSA; VIN numerio dalis: 621111
Grupė: 32 SPRINGS AND SUSPENSION
| # | Kodas | Pavadinimas |
|---|---|---|

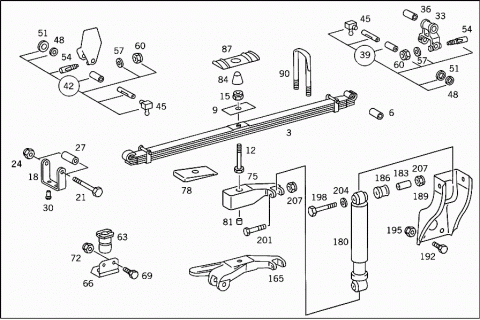

| 003 | A 6203200002 | FRONT SPRING |
| (PARABOLIC SPRING);NUMBER OF LEAVES: | ||
| 4 | ||
| 006 | A 3043210150 | BUSHING |
| 006 | A 6203210050 | BUSHING |
| 009 | A 3933210284 | SHIM |
| BETWEEN THE SPRING LEAVES | ||
| 012 | A 3913210171 | SCREW |
| (SPRING BOLT) | ||
| 015 | N 913004014005 | NUT |
| SPRING BOLT | ||
| 018 | A 0003244233 | SPRING CLAMP |
| Repalced by: A 6203240533 | ||
| 018 | A 6203240533 | SPRING CLAMP |
| FRONT SPRING | ||
| 021 | N 000960012222 | SCREW |
| SPRING CLAMP | ||
| 021 | N 000963012011 | SCREW |
| SPRING CLAMP | ||
| 024 | N 913004012008 | NUT |
| SPRING CLAMP | ||
| 027 | A 0003212753 | SPACER TUBE |
| SPRING CLAMP | ||
| 030 | N 910006008024 | RIVET |
| SPRING CLAMP TO SPRING LEAF NO.3 | ||
| 033 | A 3873200162 | SHACKLE |
| FRONT SPRING REAR BRACKET | ||
| 036 | A 3043210150 | BUSHING |
| 036 | A 6203210050 | BUSHING |
| 039 | A 3953200265 | SHACKLE PIN |
| (PARTS KIT), SPRING SHACKLE | ||
| 042 | A 3953200165 | SHACKLE PIN |
| (PARTS KIT) FRONT SPRING TO FRONT SPRING BRACKET | ||
| 045 | N 071412010300 | GREASE NIPPLE |
| SHACKLE PIN | ||
| 048 | A 3523230376 | WASHER |
| AS REQUIRED | ||
| 4.00 MM | ||
| 048 | A 3523230476 | WASHER |
| AS REQUIRED | ||
| 4.20 MM | ||
| 048 | A 3523230576 | WASHER |
| AS REQUIRED | ||
| 4.30 MM | ||
| 051 | A 0029973140 | SEAL RING |
| SPRING SUSPENSION | ||
| 054 | A 3529900337 | BOLT |
| SPRING PIN LOCK | ||
| 057 | N 000125010518 | WASHER |
| SPRING PIN LOCK | ||
| 060 | N 913004010008 | NUT |
| SPRING PIN LOCK | ||
| 063 | A 3833240008 | HELPER SPRING |
| SPRING STOP TO FRAME BOTTOM SIDE | ||
| 066 | A 3953210040 | BRACKET |
| SPRING STOP TO FRAME BOTTOM SIDE | ||
| 069 | N 000933010145 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 072 | N 913004010008 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 075 | A 6213310428 | SHIM |
| LEFT SHOCK ABSORBER | ||
| 075 | A 6213310328 | SHIM |
| RIGHT SHOCK ABSORBER | ||
| 078 | A 3953310028 | SHIM |
| BETWEEN SPRING AND SHIM,RIGHT | ||
| 081 | A 3893230074 | PIN |
| FRONT SPRINGS TO FRONT AXLE | ||
| 084 | A 3263310044 | RUBBER BUFFER |
| FRONT SPRINGS TO FRONT AXLE | ||
| 087 | A 3043310027 | SPACER |
| FRONT SPRINGS TO FRONT AXLE | ||
| 090 | A 3873310925 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 230 MM | ||
| 090 | A 3873310925 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 230 MM | ||
| 093 | A 3043311625 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 245 MM | ||
| 096 | N 913004020004 | NUT |
| FRONT SPRINGS TO FRONT AXLE | ||

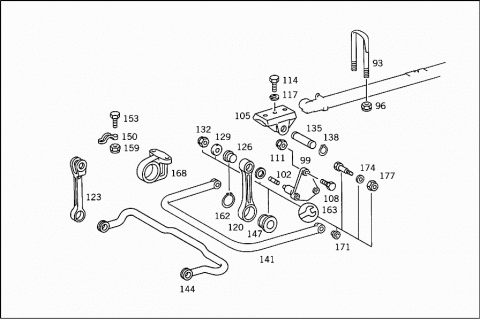

| 099 | A 3873200178 | CONSOLE |
| Repalced by: A 3873230563 | ||
| 099 | A 3873230563 | BEARING BRACKET |
| TORSION BAR,FRONT | ||
| 099 | A 6203200078 | CONSOLE |
| Repalced by: A 6203230363 | ||
| 099 | A 6203230363 | BEARING BRACKET |
| TORSION BAR,FRONT | ||
| 102 | N 000939012102 | STUD BOLT |
| 102 | N 000939012102 | STUD BOLT |
| 105 | A 6203230063 | BEARING BRACKET |
| TORSION BAR,FRONT | ||
| 108 | N 000961016040 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 16X45 | ||
| 108 | N 000961016040 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 16X45 | ||
| 108 | N 000961016057 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 16X30 | ||
| 111 | N 913004016004 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| 111 | N 913004016004 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| 114 | N 000933008150 | SCREW |
| BEARING BRACKET TO SIDE MEMBER | ||
| 117 | N 912004008102 | LOCK WASHER |
| BEARING BRACKET TO SIDE MEMBER | ||
| 120 | A 3893230116 | SHACKLE |
| TORSION BAR,FRONT | ||
| 123 | A 6203230216 | SHACKLE |
| TORSION BAR,FRONT | ||
| 126 | A 0003232150 | BUSHING |
| LINK TO CONSOLE | ||
| 129 | A 3873230152 | SPACER WASHER |
| LINK TO CONSOLE | ||
| 132 | N 913004012008 | NUT |
| LINK TO CONSOLE | ||
| 135 | A 6203230074 | PIN |
| LINK TO BEARING BRACKET | ||
| 138 | N 000471032000 | LOCK RING |
| LINK TO BEARING BRACKET | ||
| 141 | A 3873230165 | TORSION BAR |
| FRONT | ||
| 144 | A 6203230165 | TORSION BAR |
| Repalced by: A 6523230765 | ||
| 144 | A 6523230765 | TORSION BAR |
| FRONT | ||
| 147 | A 3873230285 | RUBBER MOUNTING |
| TORSION BAR | ||
| 150 | A 6203230140 | BRACKET |
| Repalced by: A 6213230340 | ||
| 150 | A 6213230340 | BRACKET |
| TORSION BAR | ||
| 153 | N 308676012012 | SCREW |
| BRACKET TO TORSION BAR | ||
| 159 | N 913004012008 | NUT |
| BRACKET TO TORSION BAR | ||
| 162 | N 000983068000 | LOCK RING |
| TORSION BAR TO SHACKLE | ||
| 163 | A 6203200428 | REPAIR KIT |
| TORSION BAR MOUNTING | ||
| 163 | A 6203200628 | REPAIR KIT |
| TORSION BAR MOUNTING | ||
| 165 | A 6203231420 | BEARING |
| TORSION BAR,SHOCK ABSORBER,LEFT | ||
| 165 | A 6203231320 | BEARING |
| TORSION BAR,SHOCK ABSORBER,RIGHT | ||
| 168 | A 6193230063 | BEARING BRACKET |
| TORSION BAR,FRONT | ||
| 171 | A 6203230050 | BUSHING |
| TORSION BAR TO BEARING BRACKET | ||
| 171 | A 6203230250 | BUSHING |
| TORSION BAR TO SHACKLE | ||
| 174 | N 007349017002 | WASHER |
| TORSION BAR MOUNTING | ||
| 177 | N 913004016005 | NUT |
| TORSION BAR MOUNTING | ||
| 180 | A 0043234600 | SHOCK ABSORBER |
| Repalced by: A 0063230800 | ||
| 180 | A 0043230100 | SHOCK ABSORBER |
| Repalced by: A 0063230800 | ||
| 180 | A 0063230800 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 183 | A 0003233150 | BUSHING |
| TO 004 323 46 00,006 323 08 00 | ||
| 183 | A 0003235250 | BUSHING |
| TO 004 323 01 00 | ||
| 186 | A 0003232885 | RUBBER MOUNTING |
| TO 004 323 46 00,006 323 08 00 | ||
| 186 | A 0003233044 | RUBBER BUFFER |
| TO 004 323 01 00 | ||
| 189 | A 6243230340 | BRACKET |
| SHOCK ABSORBER,TOP | ||
| 192 | N 000961014050 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 195 | N 913004014002 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 198 | N 000960016164 | SCREW |
| SHOCK ABSORBER TO TOP BRACKET | ||
| M 16X85 | ||
| 198 | N 000960016065 | SCREW |
| SHOCK ABSORBER TO TOP BRACKET | ||
| M 16X95 | ||
| 201 | N 000960016244 | SCREW |
| SHOCK ABSORBER TO FRONT SPRING | ||
| M 16X90 | ||
| 204 | A 3939900240 | WASHER |
| SHOCK ABSORBER TO TOP BRACKET | ||
| 207 | N 913004016004 | NUT |
| SHOCK ABSORBER TO TOP BRACKET | ||
| 207 | N 913004016004 | NUT |
| SHOCK ABSORBER TO FRONT SPRING | ||

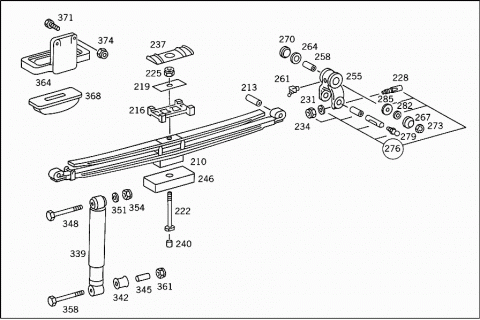

| 210 | A 3893200908 | REAR SPRING |
| WITH HELPER SPRING | ||
| 213 | A 3353240350 | BUSHING |
| 213 | A 6203240050 | BUSHING |
| 216 | A 3873240035 | SPACER |
| 219 | A 3873210084 | SHIM |
| 222 | A 3873240071 | SPRING BOLT |
| 225 | N 913004018004 | NUT |
| SPRING BOLT | ||
| 228 | A 3529900337 | BOLT |
| SPRING PIN LOCK | ||
| 231 | N 000125010518 | WASHER |
| SPRING PIN LOCK | ||
| 234 | N 913004010008 | NUT |
| SPRING PIN LOCK | ||
| 237 | A 3873510026 | SPRING CLAMPING PLATE |
| SPRING PIN LOCK | ||
| 237 | A 6203510026 | SPRING CLAMPING PLATE |
| REAR SPRING TO REAR AXLE | ||
| 240 | A 3893250074 | PIN |
| REAR SPRING TO REAR AXLE | ||

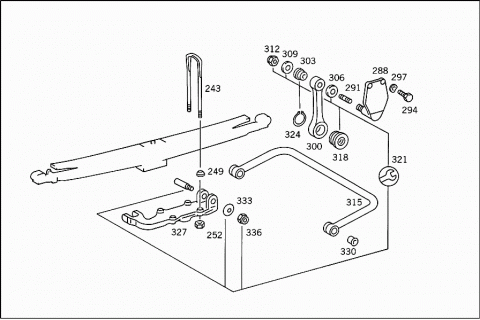

| 243 | A 3353510125 | U-BOLT |
| Repalced by: A 9433510225 | ||
| 243 | A 9433510225 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 246 | A 3873510328 | PAD |
| REAR SPRING TO REAR AXLE | ||
| 249 | A 3879975026 | WASHER |
| REAR SPRING TO REAR AXLE | ||
| 252 | N 000934024006 | NUT |
| REAR SPRING TO REAR AXLE | ||
| 255 | A 3873200163 | SHACKLE |
| REAR SPRING | ||
| 258 | A 3353240050 | BUSHING |
| 261 | N 071412008200 | GREASE NIPPLE |
| 264 | A 6213250062 | THRUST WASHER |
| SHACKLE TO REAR-SPRING REAR BRACKET | ||
| 267 | A 6213250162 | THRUST WASHER |
| SHACKLE TO REAR-SPRING REAR BRACKET | ||
| 270 | A 0029973640 | SEAL RING |
| SHACKLE TO REAR-SPRING REAR BRACKET | ||
| 273 | N 000439024200 | NUT |
| SHACKLE TO REAR-SPRING REAR BRACKET | ||
| 276 | A 6583200065 | SHACKLE PIN |
| (PARTS KIT),FRONT SPRING EYE | ||
| 276 | A 3893200065 | SHACKLE PIN |
| (PARTS KIT),REAR SPRING EYE | ||
| 279 | N 071412010100 | GREASE NIPPLE |
| SHACKLE PIN | ||
| 282 | A 3523230976 | WASHER |
| AS REQUIRED | ||
| 4.00 MM | ||
| 282 | A 3523231076 | WASHER |
| AS REQUIRED | ||
| 4.20 MM | ||
| 285 | A 0029973040 | SEAL RING |
| REAR SPRING TO REAR SPRING REAR BRACKET | ||
| 288 | A 3933200678 | CONSOLE |
| Repalced by: A 3933261163 | ||
| 288 | A 3933261163 | BEARING BRACKET |
| REAR STABILIZER | ||
| 291 | N 000939016033 | STUD BOLT |
| 294 | N 000961016100 | SCREW |
| BEARING BRACKET TO SIDE MEMBER | ||
| M 16X35 | ||
| 297 | N 000137016202 | SPRING WASHER |
| BEARING BRACKET TO SIDE MEMBER | ||
| 300 | A 3873260947 | SHACKLE |
| TORSION BAR,REAR | ||
| 303 | A 0003260650 | BUSHING |
| SHACKLE TO BEARING BRACKET | ||
| 306 | A 3873230252 | SPACER WASHER |
| SHACKLE TO BEARING BRACKET | ||
| 309 | A 3933260152 | SPACER WASHER |
| SHACKLE TO BEARING BRACKET | ||
| 312 | N 913004016004 | NUT |
| SHACKLE TO BEARING BRACKET | ||
| 315 | A 3873260065 | TORSION BAR |
| REAR AXLE | ||
| 318 | A 3873260281 | RUBBER MOUNTING |
| TORSION BAR | ||
| 321 | A 6203200028 | REPAIR KIT |
| TORSION BAR MOUNTING | ||
| 324 | N 000983085001 | LOCK RING |
| TORSION BAR TO SHACKLE | ||
| 327 | A 3873260720 | BEARING |
| TORSION BAR,LEFT | ||
| 327 | A 3873260820 | BEARING |
| TORSION BAR,RIGHT | ||
| 330 | A 3873260050 | BUSHING |
| TORSION BAR TO BEARING BRACKET | ||
| 333 | N 007349019002 | WASHER |
| TORSION BAR TO BEARING BRACKET | ||
| 336 | N 913004018003 | NUT |
| Repalced by: N 910113018004 | ||
| 336 | N 910113018004 | NUT |
| TORSION BAR TO BEARING BRACKET | ||
| 339 | A 0033264400 | SHOCK ABSORBER |
| 339 | A 0023268800 | SHOCK ABSORBER |
| 342 | A 0003232885 | RUBBER MOUNTING |
| TO 002 326 88 00 | ||
| 342 | A 0003233044 | RUBBER BUFFER |
| TO 003 326 44 00 | ||
| 345 | A 0003233150 | BUSHING |
| TO 002 326 88 00 | ||
| 345 | A 0003234550 | BUSHING |
| TO 003 326 44 00 | ||
| 348 | N 000960016244 | SCREW |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| 351 | N 007349017002 | WASHER |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| 354 | N 913004016004 | NUT |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| 358 | N 000960016066 | SCREW |
| SHOCK ABSORBER TO BEARING BRACKET | ||
| 361 | N 913004016004 | NUT |
| SHOCK ABSORBER TO BEARING BRACKET | ||
| 364 | A 3873250040 | BRACKET |
| RUBBER BUFFER | ||
| 368 | A 3873250144 | RUBBER BUFFER |
| 371 | N 000931010282 | SCREW |
| BRACKET TO FRAME | ||
| 374 | N 913004010008 | NUT |
| BRACKET TO FRAME | ||
