Transporto priemonė: 1928 S MBSA; VIN numerio dalis: 621111
Grupė: 46 STEERING
| # | Kodas | Pavadinimas |
|---|---|---|

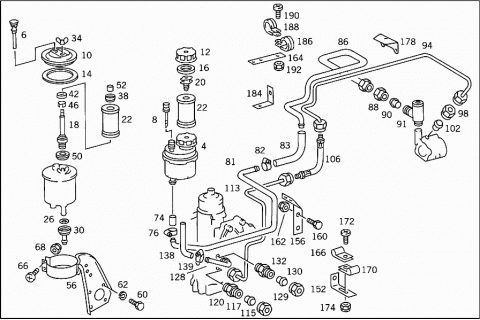

| 004 | A 0004663802 | TANK |
| Repalced by: A 0004664502 | ||
| 004 | A 0004664502 | TANK |
| 006 | A 0004660218 | PIPE |
| TO 000 466 38 02 | ||
| 008 | A 0004660267 | OIL DIPSTICK |
| Repalced by: A 0004660867 | ||
| 008 | A 0004660867 | OIL DIPSTICK |
| TO 000 466 45 02 | ||
| A 1233270059 | PROTECTIVE CAP | |
| 010 | A 0004662005 | COVER |
| TO 000 466 38 02 | ||
| 012 | A 0004660068 | FILLER CAP |
| TO 000 466 45 02 | ||
| 014 | A 0004660260 | SEAL RING |
| TO 000 466 38 02 | ||
| 016 | A 0004661760 | SEAL RING |
| TO 000 466 45 02 | ||
| 018 | A 0014664465 | FILTER CARRIER |
| TO 000 466 38 02 | ||
| 020 | A 0004660740 | BRACKET |
| TO 000 466 45 02 | ||
| 022 | A 0004660604 | FILTER |
| 026 | A 0059970848 | SEAL RING |
| TO 000 466 38 02 | ||
| 030 | A 0004660558 | CONNECTOR |
| TO 000 466 38 02 | ||
| 034 | N 000315008006 | NUT |
| TO 000 466 38 02 | ||
| 038 | A 0004660675 | CENTERING RING |
| TO 000 466 38 02 | ||
| 042 | A 0004660275 | WASHER |
| TO 000 466 38 02 | ||
| 046 | A 0004660153 | SPACER TUBE |
| TO 000 466 38 02 | ||
| 050 | A 0004660238 | COVER PLATE |
| TO 000 466 38 02 | ||
| 052 | A 0009870643 | RUBBER SLEEVE |
| TO 000 466 38 02 | ||
| 056 | A 6204600335 | BRACKET |
| OIL TANK | ||
| 060 | N 000933010238 | SCREW |
| BRACKET TO STEERING | ||
| M 10X18 | ||
| 062 | N 912004010102 | LOCK WASHER |
| BRACKET TO STEERING | ||
| 066 | N 007985006139 | SCREW |
| OIL TANK TO BRACKET | ||
| M 6X30 | ||
| 068 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 068 | N 913004006001 | NUT |
| OIL TANK TO BRACKET | ||
| 074 | A 3609970982 | HOSE |
| Repalced by: A 3859971582 | ||
| 074 | A 3859971582 | HOSE |
| (SUCTION LINE),FROM OIL TANK TO PUMP | ||
| 076 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 076 | N 000000000667 | CLAMP |
| HOSE TO OIL LINE | ||
| 20-32X13 MM | ||
| 081 | A 6204661765 | LINE |
| (SUCTION LINE),FROM OIL TANK TO PUMP | ||
| 082 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 082 | N 000000000667 | CLAMP |
| HOSE TO OIL LINE | ||
| 20-32X13 MM | ||
| 083 | A 3609970982 | HOSE |
| Repalced by: A 3859971582 | ||
| 083 | A 3859971582 | HOSE |
| OIL LINE CONNECTION | ||
| 086 | A 6204601824 | LINE |
| (SUCTION LINE),FROM OIL TANK TO PUMP | ||
| A 6244600024 | LINE | |
| (SUCTION LINE),FROM OIL TANK TO PUMP | ||
| 086 | A 6204600324 | LINE |
| (SUCTION LINE),FROM OIL TANK TO PUMP | ||
| 088 | N 915017022100 | UNION NUT |
| 090 | N 003861022004 | GLAND |
| 091 | A 0009906171 | ELBOW FITTING |
| POWER STEERING PUMP | ||
| 091 | A 0009907168 | FITTING |
| POWER STEERING PUMP | ||
| 094 | A 6204601724 | LINE |
| FROM PUMP TO HIGH PRESSURE HOSE | ||
| 094 | A 6244600124 | LINE |
| FROM PUMP TO HIGH PRESSURE HOSE | ||
| 094 | A 6204600124 | LINE |
| FROM PUMP TO HIGH PRESSURE HOSE | ||
| 098 | N 915017012100 | UNION NUT |
| 102 | N 003861012007 | GLAND |
| 106 | A 0009978152 | HOSE |
| FROM POWER STEERING PUMP TO STEERING | ||
| 106 | A 0129972482 | HOSE |
| FROM POWER STEERING PUMP TO STEERING | ||
| 106 | A 0019976352 | HOSE |
| FROM POWER STEERING PUMP TO STEERING | ||
| 113 | A 3854600124 | LINE |
| (DELIVERY LINE) FROM HIGH PRESSURE HOSE TO STEERING BOX | ||
| 115 | N 915017012100 | UNION NUT |
| 117 | N 003861012007 | GLAND |
| 120 | N 003901012011 | SCREW-IN FITTING |
| LINE TO STEERING | ||
| 128 | A 3854660265 | LINE |
| FROM STEERING TO OIL TANK | ||
| 129 | N 915017015100 | UNION NUT |
| OIL LINES | ||
| 130 | N 003861015004 | GLAND |
| OIL LINES | ||
| 132 | N 003901015005 | SCREW-IN FITTING |
| PIPE LINE TO STEERING | ||
| 138 | A 3439970582 | HOSE |
| Repalced by: A 3859971682 | ||
| 138 | A 3859971682 | HOSE |
| FROM STEERING TO OIL TANK | ||
| 139 | N 916017016000 | CLAMP |
| Repalced by: N 000000000666 | ||
| 139 | N 000000000666 | CLAMP |
| HOSE TO OIL LINE | ||
| 16-27X13 MM | ||
| 152 | A 3812950440 | BRACKET |
| LINE TO STEERING | ||
| 156 | A 3874660940 | BRACKET |
| AT FRAME | ||
| 160 | N 000961012097 | SCREW |
| BRACKET TO FRAME | ||
| M 12X35 | ||
| 162 | N 913004012008 | NUT |
| BRACKET TO FRAME | ||
| 164 | A 3814661140 | BRACKET |
| Repalced by: A 3604293140 | ||
| 164 | A 3604293140 | BRACKET |
| BRACKET TO COMPRESSED-AIR-LINE BRACKET | ||
| 166 | A 3609950701 | CLAMP |
| LINES TO BRACKET | ||
| 170 | A 3609950401 | CLAMP |
| LINES TO BRACKET | ||
| 172 | N 000000001147 | SCREW |
| DELIVERY AND SUCTION LINES TO BRACKET | ||
| M 6X20 | ||
| 174 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 174 | N 913004006001 | NUT |
| DELIVERY AND SUCTION LINES TO BRACKET | ||
| 178 | A 3852700341 | BRACKET |
| OIL LINE TO ENGINE | ||
| 184 | A 6204660840 | BRACKET |
| Repalced by: A 3552711140 | ||
| 184 | A 3552711140 | BRACKET |
| Repalced by: A 3604292940 | ||
| 184 | A 3604292940 | BRACKET |
| RIGHT TRANSVERSE INTAKE PIPE | ||
| 186 | N 916016012200 | CLAMP |
| LINES TO BRACKET | ||
| 188 | N 916016022206 | CLAMP |
| LINES TO BRACKET | ||
| 190 | N 007985006176 | SCREW |
| OIL LINE TO ENGINE | ||
| 192 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 192 | N 913004006001 | NUT |
| OIL LINE TO ENGINE | ||

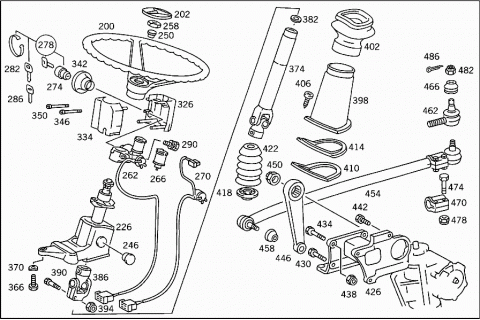

| 200 | A 3834640201 | STEERING WHEEL |
| 202 | A 0004640432 | BADGE |
| STEERING WHEEL | ||
| 206 | A 3834601652 | STEERING COLUMN END |
| Repalced by: A 3054600452 | ||
| 206 | A 3054600452 | STEERING COLUMN END |
| ADJUSTABLE STEERING COLUMN | ||
| 210 | A 3834620650 | BUSHING |
| STEERING COLUMN BRACKET | ||
| 214 | N 900421010012 | THREADED INSERT |
| Repalced by: A 6559970115 | ||
| 214 | A 6559970115 | THREADED CHUCK |
| 10X1X12.5 MM | ||
| 218 | A 3834620775 | WASHER |
| STEERING MOUNTING | ||
| 222 | A 3834601637 | BEARING |
| STEERING SHAFT | ||
| A 6204600337 | BEARING | |
| STEERING SHAFT | ||
| A 6204600737 | BEARING | |
| STEERING SHAFT | ||
| 226 | A 3814602531 | STEERING COLUMN BRACKET |
| A 6154601331 | STEERING COLUMN BRACKET | |
| 230 | A 3834600931 | STEERING COLUMN BRACKET |
| ADJUSTABLE STEERING COLUMN | ||
| 234 | A 3834610349 | RUBBER PAD |
| 238 | A 3834620975 | WASHER |
| 242 | N 000965005004 | SCREW |
| WASHER TO STEERING COLUMN BRACKET | ||
| 246 | A 3839970286 | PLUG |
| LATERAL | ||
| 250 | A 3819971186 | PLUG |
| STEERING WHEEL TO STEERING COLUMN | ||
| 254 | A 3834620674 | PIN |
| STEERING COLUMN END | ||
| 258 | N 000439022200 | NUT |
| STEERING WHEEL TO STEERING COLUMN | ||
| 262 | A 0014621130 | STEERING LOCK |
| LESS TUMBLER | ||
| 266 | A 0005451367 | CONTACTOR |
| SOLENOID SWITCH | ||
| 270 | A 0005455413 | SWITCH |
| IGNITION SWITCH | ||
| 274 | A 3814600104 | TUMBLER |
| HUF | ||
| 274 | A 3094600004 | TUMBLER |
| LESS KEY | ||
| YMOS | ||
| 278 | A 3814600004 | TUMBLER |
| WITH 2 KEYS | ||
| HUF | ||
| 278 | A 3094620079 | TUMBLER |
| WITH 2 KEYS | ||
| YMOS | ||
| 282 | A 0007600006 | KEY |
| HUF | ||
| 282 | A 0007600606 | KEY |
| STEERING LOCK | ||
| YMOS | ||
| 286 | A 0007663706 | KEY |
| BLANK | ||
| HUF | ||
| 286 | A 0007665306 | KEY |
| BLANK | ||
| YMOS | ||
| 290 | A 0004622371 | SCREW |
| (BREAK-OFF BOLT),STEERING LOCK MOUNTING | ||
| A 3834601869 | HANDLE | |
| Repalced by: A 6754600369 | ||
| A 6754600369 | HANDLE | |
| Repalced by: A 6554600369 | ||
| A 6554600369 | HANDLE | |
| STEERING WHEEL HEIGHT ADJUSTMENT | ||
| 298 | A 3834620763 | THRUST PLATE |
| STEERING WHEEL HEIGHT ADJUSTMENT | ||
| 302 | N 001481003011 | CLAMPING SLEEVE |
| Repalced by: A 6559910061 | ||
| 302 | A 6559910061 | DOWEL PIN |
| STEERING WHEEL HEIGHT ADJUSTMENT | ||
| 306 | N 001481002512 | CLAMPING SLEEVE |
| STEERING WHEEL TILT ADJUSTMENT | ||
| 310 | A 3834601969 | HANDLE |
| Repalced by: A 6554600469 | ||
| 310 | A 6554600469 | HANDLE |
| STEERING WHEEL TILT ADJUSTMENT | ||
| 314 | A 3834620363 | THRUST PLATE |
| Repalced by: A 6554620163 | ||
| 314 | A 6554620163 | THRUST PLATE |
| STEERING WHEEL TILT ADJUSTMENT | ||
| 318 | A 0009936426 | DISC SPRING |
| STEERING WHEEL TILT ADJUSTMENT | ||
| 322 | N 000417004006 | HEADLESS SETSCREW |
| STEERING WHEEL HEIGHT ADJUSTMENT | ||
| 326 | A 3814622243 | SHELL |
| STEERING COLUMN PANELLING,REAR | ||
| 330 | A 3834621343 | SHELL |
| STEERING COLUMN PANELLING,REAR | ||
| 334 | A 3814622343 | SHELL |
| STEERING COLUMN PANELLING,FRONT | ||
| 338 | A 3834621443 | SHELL |
| STEERING COLUMN PANELLING,FRONT | ||
| 342 | A 3814620486 | GROMMET |
| STEERING COLUMN | ||
| A 6204620243 | SHELL | |
| STEERING COLUMN PANELLING; BLACK,NO.9051 | ||
| A 6204620543 | SHELL | |
| STEERING COLUMN PANELLING; BLACK,NO.9051 | ||
| A 6204620043 | SHELL | |
| STEERING COLUMN PANELLING; BLACK,NO.9051 | ||
| A 6204620443 | SHELL | |
| STEERING COLUMN PANELLING; BLACK,NO.9051 | ||
| A 3574620096 | BOOT | |
| STEERING COLUMN PANELLING; BLACK,NO.9051 | ||
| A 3574620196 | BOOT | |
| STEERING COLUMN PANELLING | ||
| 346 | A 3819900221 | SCREW |
| STEERING COLUMN PANELLING | ||
| 350 | A 3019900021 | SCREW |
| Repalced by: A 3819900321 | ||
| 350 | A 3819900321 | SCREW |
| STEERING COLUMN PANELLING | ||
| 354 | A 3819900521 | SCREW |
| STEERING COLUMN PANELLING | ||
| 358 | A 3834600036 | GUIDE |
| Repalced by: A 3834600136 | ||
| 358 | A 3834600136 | GUIDE |
| STEERING SHAFT | ||
| 362 | N 000965004006 | SCREW |
| GUIDE TO STEERING COLUMN END | ||
| 366 | N 000933010145 | SCREW |
| STEERING COLUMN TO CAB | ||
| M 10X35 | ||
| 370 | N 000137010201 | SPRING WASHER |
| STEERING COLUMN TO CAB | ||
| 374 | A 3814600609 | STEERING SHAFT |
| Repalced by: A 6504600209 | ||
| 374 | A 6504600209 | STEERING SHAFT |
| LEMFOERDER | ||
| 374 | A 6504600609 | STEERING SHAFT |
| ELBE | ||
| 378 | A 3874603109 | STEERING SHAFT |
| Repalced by: A 6554600709 | ||
| 378 | A 6554600709 | STEERING SHAFT |
| 378 | A 6554600309 | STEERING SHAFT |
| 382 | A 3814620251 | RING |
| STEERING SHAFT | ||
| TO A 381 460 06 09 | ||
| 386 | A 3814600057 | UNIVERSAL JOINT |
| Repalced by: A 3164600057 | ||
| A 3164600057 | UNIVERSAL JOINT | |
| Repalced by: A 0004600057 | ||
| A 0004600057 | UNIVERSAL JOINT | |
| A 3164600157 | UNIVERSAL JOINT | |
| Repalced by: A 0004600157 | ||
| A 0004600157 | UNIVERSAL JOINT | |
| 390 | A 3819900114 | SCREW |
| STEERING SHAFT TO JOINT | ||
| M 8X42 MM | ||
| 390 | A 3819900114 | SCREW |
| STEERING SHAFT TO JOINT | ||
| M 8X42 MM | ||
| 390 | A 3819900114 | SCREW |
| STEERING SHAFT TO STEERING COLUMN | ||
| M 8X42 MM | ||
| A 3169900114 | SCREW | |
| STEERING SHAFT TO JOINT | ||
| M 8X38 MM | ||
| 394 | N 913004008005 | NUT |
| STEERING SHAFT TO JOINT | ||
| 394 | N 913004008005 | NUT |
| STEERING SHAFT TO STEERING COLUMN | ||
| 398 | A 3874611297 | PROTECTIVE SLEEVE |
| PROTECTIVE SLEEVE TO CAB FLOOR | ||
| 402 | A 3874610396 | BOOT |
| STEERING COLUMN COVERING,TOP | ||
| 406 | N 007981005309 | SHEET METAL SCREW |
| PROTECTIVE SLEEVE TO CAB FLOOR | ||
| 410 | A 3874610180 | GASKET |
| PROTECTIVE SLEEVE TO CAB FLOOR | ||
| 414 | A 3874620024 | REINFORCEMENT |
| PROTECTIVE SLEEVE TO CAB FLOOR | ||
| 418 | A 3814620475 | WASHER |
| UNIVERSAL JOINT COVERING | ||
| 422 | A 3814621196 | BOOT |
| UNIVERSAL JOINT COVERING | ||
| 426 | A 3874610340 | STEERING SUPPORT |
| AT FRAME | ||
| 430 | N 000960014237 | SCREW |
| STEERING SUPPORT TO FRAME | ||
| M 14X50 | ||
| 430 | A 6529900614 | SCREW |
| STEERING SUPPORT TO FRAME | ||
| 434 | N 000960014229 | SCREW |
| STEERING SUPPORT TO FRAME | ||
| M 14X55 | ||
| 438 | N 913004014005 | NUT |
| STEERING SUPPORT TO FRAME | ||
| 442 | N 000961016077 | SCREW |
| STEERING TO STEERING BRACKET | ||
| M 16X1.5X45 | ||
| 446 | A 3874630801 | PITMAN ARM |
| 450 | A 0029905051 | NUT |
| PITMAN ARM TO STEERING BOX ASSEMBLY | ||
| M 45X1,5 | ||
| 450 | A 0019908151 | NUT |
| PITMAN ARM TO STEERING BOX ASSEMBLY | ||
| M 42X1,5 | ||
| 454 | A 6204603805 | DRAG LINK |
| LEMFOERDER | ||
| 454 | A 6204603905 | DRAG LINK |
| EHRENREICH | ||
| 458 | A 3354600096 | BOOT |
| Repalced by: A 0004621796 | ||
| 458 | A 0004621796 | BOOT |
| 462 | A 0004602848 | DRAG LINK END |
| Repalced by: A 0014600848 | ||
| 462 | A 0014600848 | DRAG LINK END |
| Repalced by: A 0014602248 | ||
| 462 | A 0014602248 | DRAG LINK END |
| ADJUSTABLE | ||
| LEMFOERDER | ||
| 462 | A 0004602948 | DRAG LINK END |
| ADJUSTABLE | ||
| EHRENREICH | ||
| 466 | A 3354600096 | BOOT |
| Repalced by: A 0004621796 | ||
| 466 | A 0004621796 | BOOT |
| 470 | A 0003382545 | CLAMP |
| DRAG LINK END TO DRAG LINK | ||
| LEMFOERDER,42 MM | ||
| 470 | A 0003383145 | CLAMP |
| DRAG LINK END TO DRAG LINK | ||
| EHRENREICH,42 MM | ||
| 470 | A 0003382445 | CLAMP |
| DRAG LINK END TO DRAG LINK | ||
| LEMFOERDER,40 MM | ||
| 470 | A 0003383445 | CLAMP |
| DRAG LINK END TO DRAG LINK | ||
| EHRENREICH,40 MM | ||
| 474 | N 000960012077 | SCREW |
| CLAMP TO DRAG LINK | ||
| TO 42 MM | ||
| 474 | N 000960012246 | SCREW |
| CLAMP TO DRAG LINK | ||
| TO 40 MM | ||
| 478 | N 913004012008 | NUT |
| CLAMP TO DRAG LINK | ||
| 482 | N 000937024002 | NUT |
| DRAG LINK TO LEVER | ||
| 486 | N 000094005045 | COTTER PIN |
| DRAG LINK TO LEVER | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
