Transporto priemonė: 1928 S MBSA; VIN numerio dalis: 621111
Grupė: 26 TRANSMISSION
| # | Kodas | Pavadinimas |
|---|---|---|
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FOR TRANSMISSION,SEE UNIT STANDARD VERSION,MODEL: | ||
| 717.2 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FOR TRANSMISSION,SEE UNIT STANDARD VERSION,MODEL: | ||
| 717.5 | ||

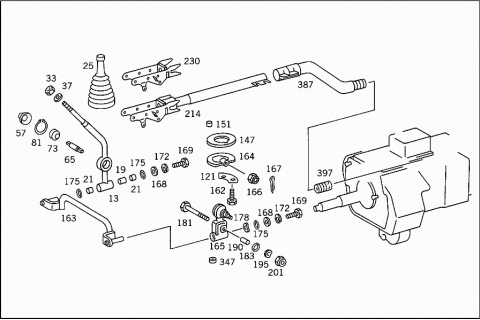

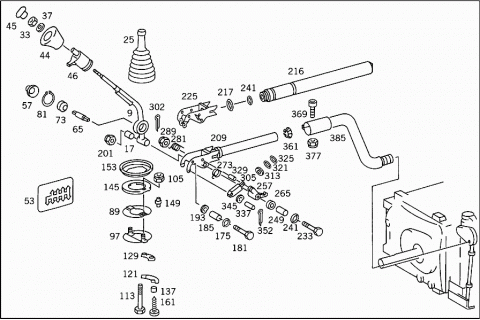

| 009 | A 3852607039 | SHIFT LEVER |
| 013 | A 6202600939 | SHIFT LEVER |
| 017 | A 3359920203 | BUSHING |
| 019 | A 6202680050 | BUSHING |
| 021 | A 0109818010 | NEEDLE BEARING |
| 021 | A 0119812910 | NEEDLE BEARING |
| 029 | A 6202680097 | BOOT |
| 033 | N 000936010010 | NUT |
| GEARSHIFT LEVER KNOB TO GEARSHIFT LEVER | ||
| 037 | N 000125010518 | WASHER |
| GEARSHIFT LEVER KNOB TO GEARSHIFT LEVER | ||
| 044 | A 6202600040 | HANDLE |
| (SHIFT LEVER HANDLE) | ||
| 045 | A 6202680157 | COVER |
| LESS GEAR INDICATOR | ||
| 046 | A 0012602457 | VALVE |
| Repalced by: A 0012605357 | ||
| 046 | A 0012605357 | VALVE |
| (SHIFT LEVER VALVE) | ||
| 046 | A 0012602557 | VALVE |
| Repalced by: A 0012602457 | ||
| 046 | A 0012602457 | VALVE |
| Repalced by: A 0012605357 | ||
| 046 | A 0012605357 | VALVE |
| (SHIFT LEVER VALVE) | ||
| 053 | A 6205840238 | GUMMED LABEL |
| NINE-SPEED,ASHTRAY | ||
| 057 | A 3852680696 | BOOT |
| Repalced by: A 6202680196 | ||
| 057 | A 6202680196 | BOOT |
| SHIFT LEVER BEARING | ||
| 065 | A 3852681474 | PIN |
| SHIFT LEVER BEARING | ||
| 073 | A 0009815531 | JOINT BEARING |
| Repalced by: A 0019813931 | ||
| 073 | A 0019813931 | JOINT BEARING |
| SHIFT LEVER BEARING | ||
| 073 | A 0009814531 | JOINT BEARING |
| SHIFT LEVER BEARING | ||
| 081 | N 000472042001 | LOCK RING |
| SHIFT LEVER BEARING | ||
| 089 | A 3892680440 | BRACKET |
| SHIFT LEVER UPPER PART | ||
| 097 | A 3892605262 | BRACKET |
| SHIFT LEVER LOWER PART | ||
| 105 | N 913004008004 | NUT |
| BRACKET TO BRACKET | ||
| 113 | N 000931008046 | SCREW |
| SHIFT LEVER BEARING TO CAB FLOOR | ||
| M 8X35 | ||
| 121 | A 3852681640 | BRACKET |
| SHIFT LEVER TO CAB FLOOR | ||
| 121 | A 3852681640 | BRACKET |
| SHIFTING TRANSFER,LEFT | ||
| 129 | A 3852680492 | RUBBER PAD |
| SHIFT LEVER TO CAB FLOOR | ||
| 129 | A 3852680492 | RUBBER PAD |
| SHIFTING TRANSFER,LEFT | ||
| 137 | A 3892680525 | BUSHING |
| SHIFT LEVER TO CAB FLOOR | ||
| 137 | A 3892680525 | BUSHING |
| SHIFTING TRANSFER,LEFT | ||
| 145 | A 3852680392 | RUBBER PAD |
| SHIFT LEVER TO CAB FLOOR | ||
| 147 | A 6202680092 | RUBBER PAD |
| SHIFTING TRANSFER,LEFT | ||
| 149 | A 3852681950 | BUSHING |
| COMPRESSED AIR LINE THRU CAB FLOOR | ||
| 151 | A 6202680053 | SPACER TUBE |
| SHIFTING TRANSFER,LEFT | ||
| 153 | A 3852601962 | BRACKET |
| BOOT | ||
| 161 | N 007981003203 | SHEET METAL SCREW |
| BRACKET TO CAB FLOOR | ||
| 162 | N 000933008152 | SCREW |
| SHIFTING TRANSFER TO CAB FLOOR | ||
| M 8X30 | ||
| 162 | N 000933008147 | SCREW |
| SHIFTING TRANSFER TO CAB FLOOR | ||
| M 8X20 | ||
| 163 | A 6202606833 | SHIFTING ROD |
| FRONT; TRANSVERSE | ||
| 164 | A 6202600662 | BRACKET |
| SHIFTING TRANSFER,LEFT | ||
| 165 | A 6202680089 | JOINT |
| SHIFTING TRANSFER,LEFT | ||
| A 0002686089 | JOINT | |
| A 6732680189 | JOINT | |
| Repalced by: A 0009965245 | ||
| A 0009965245 | ARTICULATION PIECE | |
| A 2013300185 | REPAIR KIT | |
| N 000439014206 | NUT | |
| 166 | N 000979010005 | NUT |
| JOINT TO BRACKET | ||
| 167 | N 000094002077 | COTTER PIN |
| JOINT TO BRACKET | ||
| 168 | A 3859900740 | WASHER |
| SHIFTING ROD TO SHIFT LEVER | ||
| 169 | N 000933010128 | SCREW |
| SHIFTING ROD TO SHIFT LEVER | ||
| 172 | N 912004010102 | LOCK WASHER |
| SHIFTING ROD TO SHIFT LEVER | ||
| 175 | A 0009978648 | SEAL RING |
| SHIFTING ROD TO SHIFT LEVER | ||
| 175 | A 0099972648 | SEAL RING |
| SHIFTING ROD TO SHIFT LEVER | ||
| 178 | N 900055016001 | SPRING WASHER |
| PIVOT PIN TO SUBSTRUCTURE | ||
| 181 | N 000931010357 | SCREW |
| SHIFTING ROD TO SHIFT LEVER | ||
| 183 | A 0099972648 | SEAL RING |
| SHIFTING ROD TO SHIFT LEVER | ||
| 185 | A 3852680153 | SPACER TUBE |
| SHIFTING ROD TO SHIFT LEVER | ||
| 190 | A 6202680074 | PIN |
| SHIFTING ROD TO JOINT | ||
| 193 | N 900055018001 | SPRING WASHER |
| SHIFTING TUBE TO SHIFT LEVER | ||
| 195 | N 900055016001 | SPRING WASHER |
| SHIFTING ROD TO JOINT | ||
| 201 | N 913004010008 | NUT |
| SHIFTING TUBE TO SHIFT LEVER | ||
| 209 | A 3852609333 | SHIFTING ROD |
| (TELESCOPIC SHIFTING ROD) | ||
| 214 | A 6202607033 | SHIFTING ROD |
| (TELESCOPIC SHIFTING ROD) | ||
| 216 | A 3852603882 | SHIFTING TUBE |
| (TELESCOPIC TUBE) | ||
| 216 | A 6202603082 | SHIFTING TUBE |
| (TELESCOPIC TUBE) | ||
| 217 | A 0009978748 | SEAL RING |
| 30.20 MM | ||
| 225 | A 3852600534 | ROD END |
| HYDRAULIC RELEASE | ||
| 230 | A 6202600034 | ROD END |
| HYDRAULIC RELEASE | ||
| 233 | N 000931010357 | SCREW |
| PAWL TO ROD END | ||
| 241 | A 0009978648 | SEAL RING |
| PAWL TO ROD END | ||
| 17.20 MM | ||
| 249 | A 3852680153 | SPACER TUBE |
| PAWL TO ROD END | ||
| 257 | A 3852600387 | PAWL |
| SHIFTING ROD | ||
| 265 | A 3359920203 | BUSHING |
| PAWL TO ROD END | ||
| 273 | A 3859930020 | SPRING |
| PAWL TO ROD END | ||
| 281 | A 3859930120 | SPRING |
| PAWL TO ROD END | ||
| 289 | N 913004010008 | NUT |
| PAWL TO ROD END | ||
| 302 | N 000094003240 | COTTER PIN |
| PAWL TO ROD END | ||
| 305 | A 3852600063 | SHIFTING CYLINDER |
| HYDRAULIC RELEASE | ||
| WABCO | ||
| 305 | A 3852600563 | SHIFTING CYLINDER |
| HYDRAULIC RELEASE | ||
| TECHNOMATIK | ||
| 313 | A 0069976748 | SEAL RING |
| PISTON RINGS | ||
| TO 385 260 00 63 | ||
| 321 | A 0069976848 | SEAL RING |
| SCREW FITTING | ||
| TO 385 260 00 63 | ||
| 325 | A 0019970641 | SEAL RING |
| OUTSIDE | ||
| TO 385 260 00 63 | ||
| 329 | N 001443008203 | PIN |
| Repalced by: N 001444008235 | ||
| 329 | N 001444008235 | PIN |
| SHIFTING CYLINDER TO PAWL | ||
| 8X22 MM | ||
| 337 | N 001444008234 | PIN |
| SHIFTING CYLINDER TO YOKE | ||
| 8X45 MM | ||
| 337 | N 001444008237 | PIN |
| SHIFTING CYLINDER TO YOKE | ||
| 8X60 MM | ||
| 345 | N 900055008002 | SPRING WASHER |
| SHIFTING CYLINDER TO YOKE | ||
| 347 | A 6209900340 | WASHER |
| SHIFTING CYLINDER TO YOKE | ||
| 352 | N 000094002059 | COTTER PIN |
| SHIFTING CYLINDER TO YOKE | ||
| 361 | A 3852680776 | WASHER |
| BETWEEN FRONT AND REAR SHIFTING TUBES | ||
| 369 | N 006912010021 | SCREW |
| FRONT SHIFTING ROD TO REAR SHIFTING ROD | ||
| 377 | N 913004010008 | NUT |
| FRONT SHIFTING ROD TO REAR SHIFTING ROD | ||
| 385 | A 6202603947 | ROD |
| REAR | ||
| 387 | A 6202608547 | ROD |
| REAR | ||
| 397 | A 6202680028 | CONNECTOR |
| SHIFTING ROD TO TRANSMISSION | ||

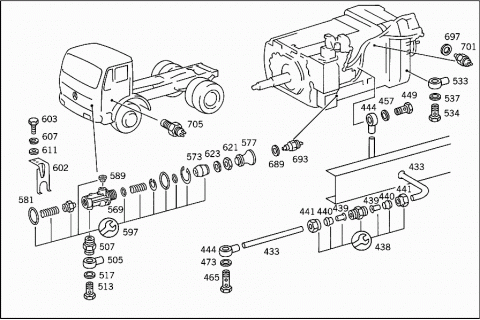

| 433 | A 0089979082 | HOSE |
| FOUR-CIRCUIT PROTECTIVE VALVE,CLUTCH BOOSTER,DISTRIBUTOR,3/2-WAY VALVE | ||
| 6X8 MM | ||
| 438 | A 0039978972 | FITTING |
| Repalced by: A 0029905971 | ||
| 438 | A 0029905971 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 439 | N 915062006000 | SLEEVE |
| LINE CONNECTIONS | ||
| 440 | N 003861008005 | GLAND |
| LINE CONNECTIONS | ||
| 441 | N 915052006013 | BANJO UNION |
| LINE CONNECTIONS | ||
| 444 | N 915052006013 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 6/12 MM | ||
| 444 | N 915052006014 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 6/16 MM | ||
| 449 | N 915036008202 | HOLLOW SCREW |
| 3/2-WAY VALVE;CONNECTION: | ||
| "1" | ||
| 449 | N 915036008202 | HOLLOW SCREW |
| SUPPLY LINE TO 3/2-WAY VALVE | ||
| 449 | N 915047012203 | HOLLOW SCREW |
| SUPPLY LINE TO CLUTCH BOOSTER | ||
| 457 | N 007603012405 | SEAL RING |
| SUPPLY LINE TO 3/2-WAY VALVE | ||
| 457 | N 007603016401 | SEAL RING |
| SUPPLY LINE TO CLUTCH BOOSTER | ||
| 465 | N 915047008100 | HOLLOW SCREW |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: | ||
| "24" | ||
| 473 | N 007603012405 | SEAL RING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: | ||
| "24" | ||
| 476 | A 3604293140 | BRACKET |
| LINE MOUNTING | ||
| 479 | A 0019978490 | LOOM TIE |
| LINE TO BRACKET | ||
| 481 | A 0089976082 | HOSE |
| DISTRIBUTOR,3/2-WAY VALVE,ADDITIONAL GEARBOX VALVE | ||
| 4X6 MM | ||
| 483 | A 0039979172 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 485 | N 915062004000 | SLEEVE |
| LINE CONNECTIONS | ||
| 489 | N 003861006008 | GLAND |
| LINE CONNECTIONS | ||
| 489 | N 003861006007 | GLAND |
| LINE CONNECTIONS | ||
| 497 | N 915017006104 | UNION NUT |
| LINE CONNECTIONS | ||
| 497 | N 915052004016 | BANJO UNION |
| LINE CONNECTIONS | ||
| 505 | N 915052004015 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 4/10 MM | ||
| 505 | N 915052004015 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 4/12 MM | ||
| 507 | N 915047008202 | HOLLOW SCREW |
| LINE CONNECTIONS | ||
| 509 | N 915047008202 | HOLLOW SCREW |
| DISTRIBUTOR | ||
| 513 | N 915036008202 | HOLLOW SCREW |
| (PILOT VALVE),SPLITTER BOX | ||
| 513 | N 915036008202 | HOLLOW SCREW |
| SHIFTING CYLINDER,CONNECTION: | ||
| "1" | ||
| 513 | N 915036006202 | HOLLOW SCREW |
| SHIFTING CYLINDER,CONNECTION: | ||
| "41" | ||
| 517 | N 007603010103 | SEAL RING |
| SHIFTING CYLINDER,CONNECTION: | ||
| "41" | ||
| 517 | N 007603012405 | SEAL RING |
| LINE CONNECTIONS | ||
| 524 | N 007603010103 | SEAL RING |
| 3/2-WAY VALVE;CONNECTIONS: | ||
| "1,2" | ||
| 529 | N 915052004015 | BANJO UNION |
| 3/2-WAY VALVE;CONNECTIONS: | ||
| "1,2" | ||
| 530 | N 915052004016 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 4/12 MM | ||
| 533 | N 915052004015 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 4/10 MM | ||
| 533 | N 915036008202 | HOLLOW SCREW |
| HOSE WIDTH, / I.D., | ||
| 4/12 MM | ||
| 534 | N 915036008202 | HOLLOW SCREW |
| SHIFTING CYLINDER,CONNECTION: | ||
| "1" | ||
| 535 | N 915036008202 | HOLLOW SCREW |
| OPERATING VALVE | ||
| 537 | N 007603012405 | SEAL RING |
| COMPRESSED AIR LINE TO DISTRIBUTOR | ||
| 541 | N 915036008202 | HOLLOW SCREW |
| COMPRESSED AIR LINE TO DISTRIBUTOR | ||
| A 4063580065 | BREATHER | |
| Repalced by: A 3933280065 | ||
| A 3933280065 | PIPE SOCKET | |
| SPLITTER-BOX PILOT VALVE | ||
| A 0019907871 | ELBOW FITTING | |
| Repalced by: A 0049905271 | ||
| A 0049905271 | ELBOW FITTING | |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| TO M 16 | ||
| A 0009941248 | LOCK | |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| TO M 16 | ||
| A 6739970045 | REPAIR KIT | |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| TO M 16 | ||
| A 0019978390 | LOOM TIE | |
| LINE MOUNTING | ||
| 280 MM | ||
| A 0019978490 | LOOM TIE | |
| LINE MOUNTING | ||
| 376 MM | ||
| A 3816820086 | BRACKET | |
| LINE MOUNTING | ||
| N 915052004016 | BANJO UNION | |
| BRACKET TO CAB | ||

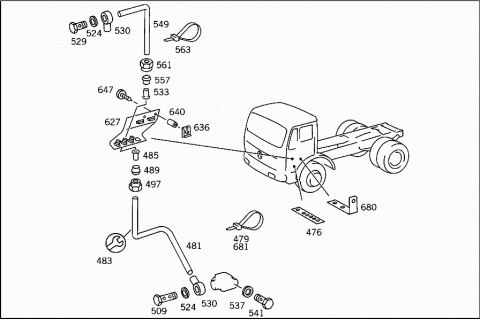

| 549 | A 0109975482 | PLASTIC TUBE |
| 553 | N 915062002000 | SLEEVE |
| LINE CONNECTIONS | ||
| 557 | N 003861004001 | GLAND |
| LINE CONNECTIONS | ||
| 561 | N 915017004101 | UNION NUT |
| LINE CONNECTIONS | ||
| 563 | A 0019978390 | LOOM TIE |
| LINE MOUNTING | ||
| 569 | A 0004342201 | VALVE |
| (PILOT VALVE),SPLITTER BOX | ||
| WABCO | ||
| 573 | A 0004340586 | CUP |
| 577 | A 0009971977 | HANDLE |
| 581 | A 0079972548 | SEAL RING |
| 589 | A 0003280191 | CLEANER |
| 597 | A 0025869843 | REPAIR KIT |
| SPLITTER-BOX PILOT VALVE | ||
| 602 | A 6202900133 | BRACKET |
| 3/2-WAY VALVE | ||
| 603 | N 000933006130 | SCREW |
| BRACKET TO PEDAL BEARING BRACKET | ||
| 607 | N 912004006102 | LOCK WASHER |
| BRACKET TO PEDAL BEARING BRACKET | ||
| 611 | N 000433006405 | WASHER |
| BRACKET TO PEDAL BEARING BRACKET | ||
| 621 | N 074305026202 | NUT |
| 3/2-WAY VALVE TO CAB FRONT PANEL | ||
| 623 | A 3609900840 | WASHER |
| Repalced by: N 001440027000 | ||
| 623 | N 001440027000 | WASHER |
| VALVE TO BRACKET | ||
| 627 | A 6172600162 | BRACKET |
| LINE MOUNTING | ||
| 636 | A 0009940445 | LOCK |
| Repalced by: A 1409941045 | ||
| 636 | A 1409941045 | LOCK |
| BRACKET TO CAB | ||
| 640 | A 3479915040 | SPACER TUBE |
| BRACKET TO CAB | ||
| 647 | N 007981004254 | SHEET METAL SCREW |
| BRACKET TO CAB | ||
| 680 | A 3854760036 | BRACKET |
| Repalced by: A 6205240340 | ||
| 680 | A 6205240340 | BRACKET |
| COMPRESSED AIR LINE TO TRANSMISSION | ||
| 681 | A 0019978390 | LOOM TIE |
| LINE MOUNTING | ||
| 681 | A 0019978490 | LOOM TIE |
| LINE MOUNTING | ||
| 689 | A 0002682059 | SEAL RING |
| IDLE POSITION SWITCH TO TRANSMISSION CASE COVER; AS REQUIRED | ||
| 1.60 MM | ||
| 689 | A 0002681959 | SEAL RING |
| IDLE POSITION SWITCH TO TRANSMISSION CASE COVER; AS REQUIRED | ||
| 1.80 MM | ||
| 689 | A 0002681559 | SEAL RING |
| IDLE POSITION SWITCH TO TRANSMISSION CASE COVER; AS REQUIRED | ||
| 2.00 MM | ||
| 689 | A 0002681659 | SEAL RING |
| IDLE POSITION SWITCH TO TRANSMISSION CASE COVER; AS REQUIRED | ||
| 2.20 MM | ||
| 689 | A 0002681759 | SEAL RING |
| IDLE POSITION SWITCH TO TRANSMISSION CASE COVER; AS REQUIRED | ||
| 2.40 MM | ||
| 689 | A 0002682159 | SEAL RING |
| IDLE POSITION SWITCH TO TRANSMISSION CASE COVER; AS REQUIRED | ||
| 2.60 MM | ||
| 689 | A 0002682259 | SEAL RING |
| IDLE POSITION SWITCH TO TRANSMISSION CASE COVER; AS REQUIRED | ||
| 2.80 MM | ||
| 689 | A 0002682359 | SEAL RING |
| IDLE POSITION SWITCH TO TRANSMISSION CASE COVER; AS REQUIRED | ||
| 3.00 MM | ||
| 693 | A 0005457909 | SWITCH |
| NEUTRAL POSITION SWITCH | ||
| 697 | A 0002680359 | SEAL RING |
| Repalced by: N 007603018100 | ||
| 697 | N 007603018100 | SEAL RING |
| GEAR CLUSTER INDICATION | ||
| 697 | N 007603018100 | SEAL RING |
| OVERREVVING | ||
| 701 | A 0015453414 | SWITCH |
| Repalced by: A 0025458114 | ||
| 701 | A 0025458114 | SWITCH |
| Repalced by: A 0035451614 | ||
| 701 | A 0035451614 | SWITCH |
| GEAR CLUSTER INDICATION | ||
| 701 | A 0035451614 | SWITCH |
| OVERREVVING | ||
| 705 | A 0065426917 | SENDER UNIT |
| OVERREVVING | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
