Transporto priemonė: 1928 S MBSA-RSA; VIN numerio dalis: 397115
Grupė: 25 CLUTCH

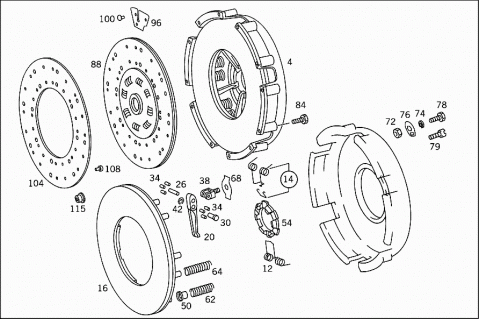

16978
16979
# Kodas Pavadinimas
004 A 0032507104 CLUTCH PRESSURE PLATE
004 A 0032502504 CLUTCH PRESSURE PLATE
004 A 0032503304 CLUTCH PRESSURE PLATE
004 A 0032507004 CLUTCH PRESSURE PLATE
004 A 0032508804 CLUTCH PRESSURE PLATE
012 A 0002520727 SPRING
RELEASE LEVER
012 A 0002520727 SPRING
RELEASE LEVER
TO 003 250 70 04
012 A 0002523727 SPRING
TO 003 250 88 04
012 A 0002523827 SPRING
TO 003 250 88 04
014 A 0002523227 SPRING
RELEASE LEVER
014 A 0002523227 SPRING
RELEASE LEVER
TO 003 250 70 04
016 A 0002520412 PRESSURE PLATE
016 A 0002524912 PRESSURE PLATE
TO 003 250 70 04
016 A 0002524912 PRESSURE PLATE
TO 003 250 33 04
016 A 0002525612 PRESSURE PLATE
TO 003 250 88 04
020 A 0002524613 RELEASE LEVER
020 A 0002524613 RELEASE LEVER
TO 003 250 70 04
020 A 0002526013 RELEASE LEVER
TO 003 250 88 04
026 A 0002522916 SPINDLE
Repalced by: A 0002520616
026 A 0002520616 SPINDLE
RELEASE LEVER,CLUTCH PRESSURE PLATE
026 A 0002522216 SPINDLE
RELEASE LEVER,CLUTCH PRESSURE PLATE
TO 003 250 70 04
026 A 0002522216 SPINDLE
RELEASE LEVER,CLUTCH PRESSURE PLATE
TO 003 250 33 04
026 A 0002523216 SPINDLE
TO 003 250 88 04
030 A 0002522116 SPINDLE
Repalced by: A 0002522816
030 A 0002522816 SPINDLE
RELEASE LEVER,BRACKET
030 A 0002523116 SPINDLE
RELEASE LEVER,BRACKET
TO 003 250 70 04
030 A 0002523316 SPINDLE
TO 003 250 88 04
034 A 0002520118 ROLLER
034 A 0002520118 ROLLER
TO 003 250 70 04
034 A 0002520418 ROLLER
TO 003 250 88 04
038 A 0002520614 BRACKET
038 A 0002522614 BRACKET
TO 003 250 70 04
038 A 0002522814 BRACKET
TO 003 250 88 04
042 N 006799007007 LOCK PLATE
050 A 0002520535 SLEEVE
054 A 0002522145 FLANGE
054 A 0002521245 FLANGE
054 A 0002521245 FLANGE
TO 003 250 70 04
054 A 0002522345 FLANGE
TO 003 250 88 04
062 A 0002524420 PRESSURE SPRING
062 A 0002524420 PRESSURE SPRING
062 A 0002524320 PRESSURE SPRING
TO 003 250 70 04
062 A 0002524320 PRESSURE SPRING
TO 003 250 25 04
062 A 0002524320 PRESSURE SPRING
TO 003 250 33 04
064 A 0002527820 PRESSURE SPRING
Repalced by: A 0002528620
064 A 0002528620 PRESSURE SPRING
064 A 0002528620 PRESSURE SPRING
TO 003 250 88 04
064 A 0002524820 PRESSURE SPRING
TO 003 250 70 04
064 A 0002524820 PRESSURE SPRING
TO 003 250 33 04
064 A 0002524420 PRESSURE SPRING
TO 003 250 88 04
068 A 0002520519 LEAF SPRING
068 A 0002520519 LEAF SPRING
TO 003 250 70 04
068 A 0002523619 LEAF SPRING
TO 003 250 88 04
072 A 0002521372 NUT
Repalced by: A 0002523072
072 A 0002523072 NUT
072 A 0002523572 NUT
TO 003 250 88 04
074 A 0009901647 LOCK WASHER
TO 003 250 33 04
076 A 0002521073 LOCK
076 A 0002521073 LOCK
TO 003 250 70 04
076 A 0002521273 LOCK
TO 003 250 88 04
078 A 0002522971 SCREW
078 A 0002522971 SCREW
079 N 000085005106 SCREW
TO 003 250 33 04
N 912004010102 LOCK WASHER
CLUTCH TO FLYWHEEL
084 N 000931010268 SCREW
CLUTCH TO FLYWHEEL
10X70 MM
084 N 000931010239 SCREW
Repalced by: N 304017010034
084 N 304017010034 HEXAGON HEAD BOLT
CLUTCH TO FLYWHEEL
M10X80
084 N 304017010034 HEXAGON HEAD BOLT
CLUTCH TO FLYWHEEL
M10X80
088 A 0052504303 CLUTCH DISC
Repalced by: A 0062504503
088 A 0062504503 CLUTCH DISC
Repalced by: A 0072500803
088 A 0072500803 CLUTCH DISC
LINING CONTAINING ASBESTOS
088 A 0052506403 CLUTCH DISC
Repalced by: A 0062504603
088 A 0062504603 CLUTCH DISC
LINING CONTAINING ASBESTOS
088 A 0072500903 CLUTCH DISC
ASBESTOS-FREE LINING
088 A 0072501003 CLUTCH DISC
ASBESTOS-FREE LINING
088 A 0042501403 CLUTCH DISC
LINING CONTAINING ASBESTOS
088 A 0052500103 CLUTCH DISC
088 A 0052500203 CLUTCH DISC
088 A 0032507903 CLUTCH DISC
096 A 0002520419 LEAF SPRING
096 A 0002522419 LEAF SPRING
TO 004 250 14 03
100 A 0002522075 RIVET
LEAF SPRING TO CLUTCH DISC
100 A 0002520675 RIVET
TO 004 250 14 03
104 A 0012522910 CLUTCH LINING
CONTAINING ASBESTOS
104 A 0002528510 CLUTCH LINING
CONTAINING ASBESTOS
TO 004 250 14 03
108 A 0002521475 RIVET
LINING WITH CLUTCH DISC
108 A 0002521275 RIVET
LINING WITH INTERMEDIATE SPRING
115 A 0002522375 RIVET
TO 004 250 14 03
120 A 3972500405 HOUSING
Repalced by: A 6202501105
120 A 6202501105 HOUSING
BELL HOUSING WITH BUSHINGS
120 A 3972500305 HOUSING
Repalced by: A 6202501205
120 A 6202501205 HOUSING
BELL HOUSING WITH BUSHINGS
124 A 3432510150 BUSHING
BOTTOM
128 A 3439920103 BUSHING
BOTTOM
24X27 MM
132 A 3852510450 BUSHING
TOP
132 A 6202510050 BUSHING
TOP
136 A 3389920103 BUSHING
TOP
35X39 MM
140 A 3859970040 SEAL RING
TOP
142 A 0119978846 SEAL RING
TOP
142 A 0099971547 SEAL RING
TOP
144 A 3852930027 COVER PLATE
TOP
158 A 3895860025 REPAIR KIT
Repalced by: A 3892500014
158 A 3892500014 SHAFT
(PARTS KIT),RELEASE SHAFT
162 A 3172930177 WASHER
AS REQUIRED
0.80 MM
162 A 3172930277 WASHER
AS REQUIRED
0.90 MM
162 A 3172930377 WASHER
AS REQUIRED
1.00 MM
162 A 3172930477 WASHER
AS REQUIRED
1.10 MM
162 A 3172930577 WASHER
AS REQUIRED
1.20 MM
162 A 3172930677 WASHER
AS REQUIRED
1.30 MM
166 A 3379975040 SEAL RING
BOTTOM
170 A 3432930052 SPACER WASHER
BOTTOM
174 N 000471024000 LOCK RING
BOTTOM
178 A 6202540108 RELEASE LEVER
184 N 000931012033 SCREW
RELEASE LEVER TO SHAFT
190 N 000931010264 SCREW
Repalced by: N 304017010023
190 N 304017010023 SCREW
BELL HOUSING TO TIMING GEAR CASE
194 N 000125010518 WASHER
BELL HOUSING TO TIMING GEAR CASE
198 A 0002507415 RELEASE BEARING
198 A 0002507715 RELEASE BEARING
202 A 3179930225 SPRING
RELEASE COLLAR TO RELEASE YOKE
203 A 3852510083 PLUG
BELL HOUSING
203 A 6202510383 PLUG
BELL HOUSING
TO 620 250 12 05
204 A 3852510210 COVER PLATE
Repalced by: A 0002510283
204 A 0002510283 PLUG
BELL HOUSING
TO 620 250 12 05
205 N 000933008212 SCREW
COVER PLATE TO BELL HOUSING
206 N 912004008102 LOCK WASHER
COVER PLATE TO BELL HOUSING
207 A 0002510183 PLUG
BELL HOUSING
208 N 071428004102 SCREW-IN FITTING
RELEASE BEARING LUBRICATION
210 A 3859970582 HOSE
RELEASE BEARING LUBRICATION
214 N 003871004102 UNION SCREW
RELEASE BEARING LUBRICATION
218 N 003862004001 DOUBLE TAPER RING
RELEASE BEARING LUBRICATION
222 N 912004014100 LOCK WASHER
RELEASE BEARING LUBRICATION
226 N 000936014010 NUT
RELEASE BEARING LUBRICATION
230 A 3872510108 INTERMEDIATE PIECE
Repalced by: A 6209970088
230 A 6209970088 GREASE NIPPLE
RELEASE BEARING LUBRICATION
234 A 6209880135 CAP
RELEASE BEARING LUBRICATION
TO 620 997 00 88
234 N 003411002001 GREASE CUP
RELEASE BEARING LUBRICATION
TO 387 251 01 08
238 A 3972900234 LEVER
(PARTS KIT),CLUTCH ACTUATION
238 A 6202900534 LEVER
(PARTS KIT),CLUTCH ACTUATION
240 A 3072950228 LEVER
CLUTCH ACTUATION
TO 620 290 05 34
240 A 3072950228 LEVER
CLUTCH ACTUATION
TO 620 290 05 34
240 A 3972950028 LEVER
Repalced by: A 3972950128
240 A 3972950128 LEVER
CLUTCH ACTUATION
TO 397 290 02 34
246 A 3072560074 PIN
CLUTCH ACTUATION
250 A 0019970041 SEAL RING
Repalced by: A 0019972141
250 A 0019972141 SEAL RING
CLUTCH ACTUATION
254 N 000471012001 LOCK RING
CLUTCH ACTUATION
255 N 304017010053 SCREW
LEVER TO RELEASE SHAFT
256 A 0009966440 ROD END
CLUTCH ACTUATION
258 A 3852540576 WASHER
Repalced by: A 6202540176
258 A 6202540176 WASHER
RELEASE SHAFT,TOP
258 A 6202500155 COVER
RELEASE SHAFT,TOP
262 A 0029972948 SEAL RING
RELEASE SHAFT,TOP
274 A 3852951740 BRACKET
SLAVE CYLINDER
274 A 3852951740 BRACKET
SLAVE CYLINDER
274 A 3852952240 BRACKET
SLAVE CYLINDER
274 A 3852952240 BRACKET
SLAVE CYLINDER
274 A 3972950640 BRACKET
Repalced by: A 3972950740
274 A 3972950740 BRACKET
SLAVE CYLINDER
N 912004010102 LOCK WASHER
BRACKET TO BELL HOUSING
282 N 000933010129 SCREW
Repalced by: N 304017010038
282 N 304017010038 HEXAGON HEAD BOLT
BRACKET TO BELL HOUSING
286 A 0012951007 SLAVE CYLINDER
Repalced by: A 0012958907
286 A 0012958907 SLAVE CYLINDER
CLUTCH ACTUATION
289 A 0002952983 BOOT
TO 001 295 89 07
294 A 0004202155 BLEEDER VALVE
Repalced by: A 0004310265
294 A 0004310265 VALVE
Repalced by: A 3075530107
294 A 3075530107 VALVE
BREATHER
TO 001 295 10 07; 89 07
302 A 0004210887 PROTECTIVE CAP
Repalced by: A 0004217187
302 A 0004217187 PROTECTIVE CAP
Repalced by: A 0004210887
302 A 0004210887 PROTECTIVE CAP
TO 001 295 10 07; 89 07
306 A 0002952683 BOOT
Repalced by: A 0005863129
306 A 0005863129 REPAIR KIT
Repalced by: A 0002900911
306 A 0002900911 REPAIR KIT
TO 001 295 10 07
306 A 0002902167 REPAIR KIT
TO 001 295 89 07
N 912004010102 LOCK WASHER
CLUTCH SLAVE CYLINDER TO BRACKET
314 N 000933010129 SCREW
Repalced by: N 304017010038
314 N 304017010038 HEXAGON HEAD BOLT
CLUTCH SLAVE CYLINDER TO BRACKET
