Transporto priemonė: 1933 LS; VIN numerio dalis: 621542
Grupė: 52 CHASSIS SHEET METAL
| # | Kodas | Pavadinimas |
|---|---|---|

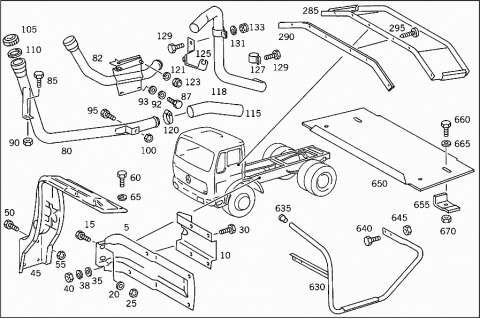

| 005 | A 3875210240 | BRACKET |
| Repalced by: A 6575210140 | ||
| 005 | A 6575210140 | BRACKET |
| FENDER | ||
| 010 | A 3875210140 | BRACKET |
| Repalced by: A 6575210040 | ||
| 010 | A 6575210040 | BRACKET |
| Repalced by: A 6575200033 | ||
| 010 | A 6575200033 | SUPPORT |
| (CONSOLE),FOR FENDER | ||
| 015 | N 000961014028 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 14X40 | ||
| 015 | N 000961014028 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 14X40 | ||
| 015 | N 000961014054 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 14X45 | ||
| 020 | N 001440016001 | WASHER |
| FENDER BRACKET TO SIDE MEMBER | ||
| 025 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 025 | N 910113014001 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 030 | N 000933008150 | SCREW |
| Repalced by: N 304017008018 | ||
| 030 | N 304017008018 | SCREW |
| FENDER TO FENDER BRACKET | ||
| M 8X35 | ||
| 030 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 030 | N 304017008027 | SCREW |
| FENDER TO FENDER BRACKET | ||
| M 8X30 | ||
| 030 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 030 | N 304017008034 | SCREW |
| FENDER TO FENDER BRACKET | ||
| M 8X25 | ||
| 030 | N 304017008034 | SCREW |
| FENDER TO FENDER BRACKET | ||
| M 8X25 | ||
| 030 | N 000933008145 | SCREW |
| FENDER TO FENDER BRACKET | ||
| M 8X18 | ||
| 035 | A 1159904540 | WASHER |
| Repalced by: A 6312670276 | ||
| 035 | A 6312670276 | WASHER |
| FENDER TO FENDER BRACKET | ||
| 038 | N 912004008102 | LOCK WASHER |
| FENDER TO FENDER BRACKET | ||
| 038 | N 912004008102 | LOCK WASHER |
| FENDER TO CONSOLE AND TO FENDER BRACKET | ||
| 040 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 040 | N 913004008001 | NUT |
| FENDER TO FENDER BRACKET | ||
| 040 | N 913004008001 | NUT |
| FENDER TO FENDER BRACKET | ||
| 045 | A 3875200241 | BRACKET |
| FENDER AND SHOCK ABSORBER,LEFT | ||
| 045 | A 3875205841 | BRACKET |
| FENDER AND SHOCK ABSORBER,RIGHT | ||
| 050 | N 000961014028 | SCREW |
| BRACKET TO FRAME SIDE MEMBER | ||
| M 14X40 | ||
| 050 | N 000961014100 | SCREW |
| BRACKET TO FRAME SIDE MEMBER | ||
| M 14X35 | ||
| 055 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 055 | N 910113014001 | NUT |
| BRACKET TO FRAME SIDE MEMBER | ||
| 060 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 060 | N 304017008027 | SCREW |
| FENDER TO BRACKET | ||
| M 8X30 | ||
| 060 | N 000933008145 | SCREW |
| FENDER TO BRACKET | ||
| 065 | N 912004008102 | LOCK WASHER |
| FENDER TO BRACKET | ||
| 080 | A 6205201206 | PIPE ELBOW |
| OIL REFILLING | ||
| 080 | A 6205201406 | PIPE ELBOW |
| Repalced by: A 6205202406 | ||
| 080 | A 6205202406 | PIPE ELBOW |
| OIL REFILLING | ||
| 082 | A 6205202206 | PIPE ELBOW |
| Repalced by: A 6455200106 | ||
| 082 | A 6455200106 | PIPE ELBOW |
| Repalced by: A 6555200406 | ||
| 082 | A 6555200406 | PIPE ELBOW |
| OIL REFILLING | ||
| 085 | N 000933010105 | SCREW |
| OIL FILLER NECK TO SIDE AND CROSS MEMBERS | ||
| M 10X25 | ||
| 085 | N 000933010128 | SCREW |
| OIL FILLER NECK TO SIDE AND CROSS MEMBERS | ||
| M 10X20 | ||
| 085 | N 000933010128 | SCREW |
| OIL FILLER NECK TO SIDE AND CROSS MEMBERS | ||
| M 10X20 | ||
| 087 | N 000933006183 | SCREW |
| Repalced by: N 304017006016 | ||
| 087 | N 304017006016 | SCREW |
| OIL FILLER NECK TO SIDE AND CROSS MEMBERS | ||
| 090 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 090 | N 910113010000 | NUT |
| OIL FILLER NECK TO SIDE AND CROSS MEMBERS | ||
| 090 | N 910113010000 | NUT |
| OIL FILLER NECK TO SIDE AND CROSS MEMBERS | ||
| 092 | N 912004006102 | LOCK WASHER |
| OIL FILLER NECK TO SIDE AND CROSS MEMBERS | ||
| 093 | N 000125006421 | WASHER |
| OIL FILLER NECK TO SIDE AND CROSS MEMBERS | ||
| 093 | N 000125006421 | WASHER |
| OIL FILLER NECK TO SIDE AND CROSS MEMBERS | ||
| 095 | N 000933010128 | SCREW |
| OIL FILLER NECK TO SIDE AND CROSS MEMBERS | ||
| 095 | N 000961012122 | SCREW |
| OIL FILLER NECK TO SIDE AND CROSS MEMBERS | ||
| 100 | N 910113012002 | NUT |
| OIL FILLER NECK TO SIDE AND CROSS MEMBERS | ||
| 105 | A 0000180702 | CAP |
| OIL REFILLING | ||
| A 1020180302 | CAP | |
| OIL REFILLING | ||
| A 1020180402 | CAP | |
| OIL REFILLING | ||
| 110 | A 0000180180 | GASKET |
| Repalced by: A 1020180080 | ||
| 110 | A 1020180080 | GASKET |
| Repalced by: A 1020180380 | ||
| 110 | A 1020180380 | GASKET |
| 115 | A 6205280282 | HOSE |
| FROM OIL FILLER NECK TO OIL PAN | ||
| 118 | A 6205280482 | HOSE |
| FROM OIL FILLER NECK TO OIL PAN | ||
| 120 | N 916017040000 | CLAMP |
| Repalced by: N 000000000671 | ||
| 120 | N 000000000671 | CLAMP |
| 121 | N 912004008102 | LOCK WASHER |
| OIL DIPSTICK TO OIL FILLER PIPE | ||
| 123 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 123 | N 913004008001 | NUT |
| OIL DIPSTICK TO OIL FILLER PIPE | ||
| 125 | A 6205205541 | BRACKET |
| HOSE | ||
| 127 | A 6205280143 | CLAMP |
| HOSE | ||
| 129 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 129 | N 304017008034 | SCREW |
| CLAMP TO BRACKET | ||
| 131 | N 912004008102 | LOCK WASHER |
| CLAMP TO BRACKET | ||
| 133 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 133 | N 913004008001 | NUT |
| CLAMP TO BRACKET | ||

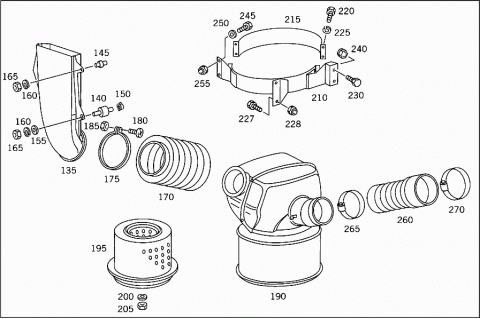

| 135 | A 3855200201 | AIR INTAKE PIPE |
| RIGHT | ||
| 135 | A 3855200301 | AIR INTAKE PIPE |
| LEFT | ||
| 140 | A 3879880011 | BUFFER |
| AIR INTAKE PIPE TO CAB | ||
| 145 | A 3879880111 | BUFFER |
| AIR INTAKE PIPE TO CAB | ||
| 150 | A 0019901791 | NUT RETAINER |
| AIR INTAKE PIPE TO CAB | ||
| 155 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 155 | N 000125008443 | WASHER |
| AIR INTAKE PIPE TO CAB | ||
| 160 | N 912004008102 | LOCK WASHER |
| AIR INTAKE PIPE TO CAB | ||
| 165 | N 304032008006 | NUT |
| AIR INTAKE PIPE TO CAB | ||
| 170 | A 3815280191 | BOOT |
| AIR INTAKE | ||
| 175 | A 3815280443 | CLAMP |
| BOOT TO AIR DUCT AND TO AIR CLEANER | ||
| 180 | N 000084004425 | SCREW |
| BOOT TO AIR DUCT AND TO AIR CLEANER | ||
| 185 | N 000934004006 | NUT |
| BOOT TO AIR DUCT AND TO AIR CLEANER | ||
| 190 | A 0090945702 | AIR CLEANER |
| MANN U.HUMMEL | ||
| 190 | A 0090945902 | AIR CLEANER |
| Repalced by: A 0110942602 | ||
| 190 | A 0110942602 | AIR CLEANER |
| MANN U.HUMMEL | ||
| 190 | A 0090945802 | AIR CLEANER |
| MANN U.HUMMEL | ||
| 190 | A 0090946002 | AIR CLEANER |
| Repalced by: A 0140948802 | ||
| 190 | A 0140948802 | AIR CLEANER |
| MANN U.HUMMEL | ||
| 195 | A 0010949304 | FILTER ELEMENT |
| TO 009 094 57 02,009 094 58 02 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 009 094 59 02,009 094 60 02 | ||
| 195 | A 0010948304 | FILTER ELEMENT |
| TO 009 094 59 02, 009 094 60 02 | ||
| 200 | A 0000940276 | WASHER |
| FELT | ||
| TO 009 094 57 02,009 094 58 02 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 009 094 60 02 | ||
| 205 | A 0009901550 | NUT |
| TO 009 094 57 02,009 094 59 02, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 009 094 60 02 | ||
| 210 | A 3855200633 | SUPPORT |
| Repalced by: A 6505200333 | ||
| 210 | A 6505200333 | SUPPORT |
| AIR CLEANER | ||
| 210 | A 3875200533 | SUPPORT |
| Repalced by: A 6565200033 | ||
| 210 | A 6565200033 | SUPPORT |
| AIR CLEANER | ||
| 210 | A 3855200733 | SUPPORT |
| Repalced by: A 6505200433 | ||
| 210 | A 6505200433 | SUPPORT |
| AIR CLEANER | ||
| 210 | A 3875200633 | SUPPORT |
| Repalced by: A 6565200133 | ||
| 210 | A 6565200133 | SUPPORT |
| AIR CLEANER | ||
| 215 | A 3855280421 | STRAP |
| AIR CLEANER TO SUPPORT | ||
| 215 | A 3875280721 | STRAP |
| AIR CLEANER TO SUPPORT | ||
| 220 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 220 | N 304017008034 | SCREW |
| STRAP TO SUPPORT | ||
| 225 | N 912004008102 | LOCK WASHER |
| STRAP TO SUPPORT | ||
| 227 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 227 | N 308676014020 | SCREW |
| AIR CLEANER SUPPORT TO SIDE MEMBER, FRONT | ||
| 228 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 228 | N 910113014001 | NUT |
| AIR CLEANER SUPPORT TO SIDE MEMBER, FRONT | ||
| 230 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 230 | N 308676012026 | SCREW |
| AIR CLEANER SUPPORT TO SIDE MEMBER, REAR | ||
| 230 | N 308676012026 | SCREW |
| AIR CLEANER SUPPORT TO SIDE MEMBER, REAR | ||
| 240 | N 910113012002 | NUT |
| AIR CLEANER SUPPORT TO SIDE MEMBER, REAR | ||
| 240 | N 910113012002 | NUT |
| AIR CLEANER SUPPORT TO SIDE MEMBER, REAR | ||
| 245 | N 000933010105 | SCREW |
| AIR CLEANER SUPPORT TO BUMPER STRUT | ||
| 250 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 250 | N 000125010532 | WASHER |
| AIR CLEANER SUPPORT TO BUMPER STRUT | ||
| 255 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 255 | N 910113010000 | NUT |
| AIR CLEANER SUPPORT TO BUMPER STRUT | ||
| 260 | A 0010942682 | HOSE |
| FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE | ||
| 260 | A 0000949882 | HOSE |
| Repalced by: A 6205280782 | ||
| 260 | A 6205280782 | HOSE |
| FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE | ||
| 265 | N 916017110001 | CLAMP |
| Repalced by: A 0059971490 | ||
| 265 | A 0059971490 | LOOM TIE |
| HOSE TO PICO AIR CLEANER | ||
| 265 | N 916017130000 | CLAMP |
| Repalced by: N 000000000678 | ||
| 265 | N 000000000678 | CLAMP |
| HOSE TO PICO AIR CLEANER | ||
| 270 | N 916017130000 | CLAMP |
| Repalced by: N 000000000678 | ||
| 270 | N 000000000678 | CLAMP |
| HOSE TO SCOOP | ||
| 285 | A 3835240529 | COVER |
| PROTECTIVE PLATE | ||
| 285 | A 3875240429 | COVER |
| PROTECTIVE PLATE | ||
| 290 | A 3875240084 | SHIM |
| PROTECTIVE PLATE TO FRAME | ||
| 295 | N 007981005306 | SHEET METAL SCREW |
| PROTECTIVE PLATE TO FRAME | ||

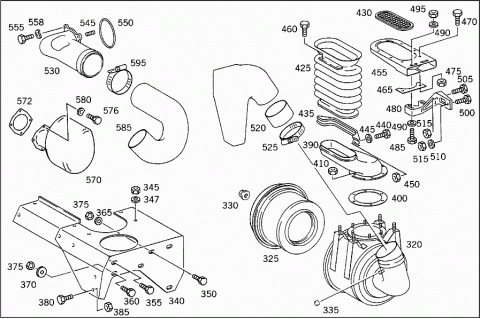

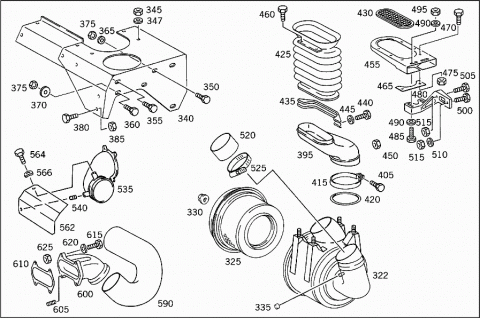

| 320 | A 0110940202 | AIR CLEANER |
| MANN & HUMMEL | ||
| A 0120946102 | AIR CLEANER | |
| Repalced by: A 0120946202 | ||
| 322 | A 0120946202 | AIR CLEANER |
| MANN & HUMMEL | ||
| 325 | A 0020942404 | FILTER ELEMENT |
| TO 012 094 61 02,012 094 62 02 | ||
| 325 | A 0010948304 | FILTER ELEMENT |
| TO 011 094 02 02,012 094 61 02 | ||
| 330 | A 0009901550 | NUT |
| TO 011 094 02 02;012 094 61 02 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 012 094 62 02 | ||
| 335 | A 0000940276 | WASHER |
| FELT | ||
| TO 011 094 02 02;012 094 61 02 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 012 094 62 02 | ||
| 340 | A 6205200033 | SUPPORT |
| AIR CLEANER | ||
| 345 | N 910113012002 | NUT |
| AIR CLEANER TO SUPPORT | ||
| 345 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 345 | N 910113014001 | NUT |
| AIR CLEANER TO SUPPORT | ||
| 347 | N 000125013008 | WASHER |
| N 000125015013 | WASHER | |
| Repalced by: N 000125015019 | ||
| N 000125015019 | WASHER | |
| AIR CLEANER TO SUPPORT | ||
| 350 | N 000961014028 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 14X40 | ||
| 355 | N 000961014054 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 14X45 | ||
| 360 | N 000961014029 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 14X48 | ||
| N 000961014064 | SCREW | |
| SUPPORT TO SIDE MEMBER | ||
| M 14X50 | ||
| 365 | N 000125015013 | WASHER |
| Repalced by: N 000125015019 | ||
| 365 | N 000125015019 | WASHER |
| SUPPORT TO SIDE MEMBER | ||
| 370 | A 3609901740 | WASHER |
| Repalced by: A 3859900440 | ||
| 370 | A 3859900440 | WASHER |
| Repalced by: A 3379900440 | ||
| 370 | A 3379900440 | WASHER |
| SUPPORT TO SIDE MEMBER | ||
| 375 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 375 | N 910113014001 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 380 | N 000961012151 | SCREW |
| SUPPORT TO CONSOLE | ||
| 385 | N 910113012002 | NUT |
| SUPPORT TO CONSOLE | ||
| 390 | A 6205200206 | PIPE ELBOW |
| (INTAKE PIPE) | ||
| 395 | A 6205201906 | PIPE ELBOW |
| (INTAKE PIPE) | ||
| 400 | A 0010946280 | GASKET |
| INTAKE PIPE TO AIR CLEANER | ||
| 405 | N 000931008047 | SCREW |
| Repalced by: N 304017008018 | ||
| 405 | N 304017008018 | SCREW |
| INTAKE PIPE TO AIR CLEANER | ||
| 410 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 410 | N 913004008001 | NUT |
| INTAKE PIPE TO AIR CLEANER | ||
| 410 | N 913004008001 | NUT |
| INTAKE PIPE TO AIR CLEANER | ||
| 415 | A 6209970690 | CLAMP |
| INTAKE PIPE TO AIR CLEANER | ||
| 420 | A 0099977648 | SEAL RING |
| INTAKE PIPE TO AIR CLEANER | ||
| 425 | A 6205200096 | BOOT |
| Repalced by: A 6205200296 | ||
| 425 | A 6205200296 | BOOT |
| AIR INTAKE | ||
| 430 | A 6205200003 | STRAINER |
| Repalced by: A 6205280103 | ||
| 430 | A 6205280103 | STRAINER |
| BOOT | ||
| 435 | A 6205280043 | CLAMP |
| BOOT TO INTAKE PIPE | ||
| 440 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 440 | N 304017008027 | SCREW |
| BOOT TO INTAKE PIPE | ||
| 445 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 445 | N 000125008443 | WASHER |
| BOOT TO INTAKE PIPE | ||
| 450 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 450 | N 913004008001 | NUT |
| BOOT TO INTAKE PIPE | ||
| 455 | A 6205280840 | BRACKET |
| Repalced by: A 6575280040 | ||
| 455 | A 6575280040 | BRACKET |
| BOOT | ||
| 460 | N 914116006410 | SCREW |
| BOOT TO BRACKET | ||
| 465 | A 6205280940 | BRACKET |
| BOOT | ||
| 470 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 470 | N 304017008016 | SCREW |
| BRACKET TO BRACKET | ||
| 475 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 475 | N 913004008001 | NUT |
| BRACKET TO BRACKET | ||
| 480 | A 6205280139 | SUPPORT |
| BOOT | ||
| 480 | A 6205280239 | SUPPORT |
| BOOT | ||
| 485 | N 000933010150 | SCREW |
| BRACKET TO SUPPORT | ||
| 490 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 490 | N 000125010532 | WASHER |
| BRACKET TO SUPPORT | ||
| 495 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 495 | N 910113010000 | NUT |
| BRACKET TO SUPPORT | ||
| 500 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 500 | N 304017010002 | SCREW |
| SUPPORT TO CAB BEARING RAIL | ||
| 505 | N 000933010094 | SCREW |
| SUPPORT TO CAB BEARING RAIL | ||
| 510 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 510 | N 000125010532 | WASHER |
| SUPPORT TO CAB BEARING RAIL | ||
| 515 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 515 | N 910113010000 | NUT |
| SUPPORT TO CAB BEARING RAIL | ||
| 520 | A 6245280082 | HOSE |
| FROM AIR CLEANER TO CAB CONSOLE | ||
| 525 | N 916017130000 | CLAMP |
| Repalced by: N 000000000678 | ||
| 525 | N 000000000678 | CLAMP |
| HOSE TO AIR CLEANER AND CAB CONSOLE | ||
| 530 | A 6205200606 | PIPE ELBOW |
| (INTAKE PIPE) | ||
| 530 | A 6205201706 | PIPE ELBOW |
| (INTAKE PIPE) | ||
| 535 | A 6205201506 | PIPE ELBOW |
| (INTAKE PIPE) | ||
| 535 | A 6205201806 | PIPE ELBOW |
| (INTAKE PIPE) | ||
| 540 | N 900421006002 | THREADED INSERT |
| M 6X12 | ||
| 545 | N 900421008004 | THREADED INSERT |
| M 8X16 | ||
| 550 | A 0069979348 | SEAL RING |
| INTAKE PIPE TO CAB CONSOLE | ||
| 550 | A 0019976748 | SEAL RING |
| INTAKE PIPE TO CAB CONSOLE | ||
| 555 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 555 | N 304017008027 | SCREW |
| INTAKE PIPE TO CAB CONSOLE | ||
| 558 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 558 | N 000137008212 | SPRING WASHER |
| INTAKE PIPE TO CAB CONSOLE | ||
| 562 | A 6205240001 | PROTECTIVE PLATE |
| 564 | N 000933006103 | SCREW |
| Repalced by: N 304017006018 | ||
| 564 | N 304017006018 | SCREW |
| PROTECTIVE PLATE TO PIPE ELBOW | ||
| 566 | N 000137006204 | SPRING WASHER |
| PROTECTIVE PLATE TO PIPE ELBOW | ||
| 570 | A 6205200002 | AIR INTAKE CASE |
| 572 | A 6205280180 | GASKET |
| 576 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 576 | N 304017010002 | SCREW |
| 580 | N 000137010201 | SPRING WASHER |
| 585 | A 0010941282 | HOSE |
| Repalced by: A 0010941182 | ||
| 585 | A 0010941182 | HOSE |
| FROM AIR INTAKE PIPE TO ENGINE | ||
| 585 | A 0000949482 | HOSE |
| Repalced by: A 6235280082 | ||
| 585 | A 6235280082 | HOSE |
| FROM AIR INTAKE PIPE TO ENGINE | ||
| 590 | A 6235280082 | HOSE |
| FROM AIR INTAKE PIPE TO ENGINE | ||
| 590 | A 0010941182 | HOSE |
| FROM AIR INTAKE PIPE TO ENGINE | ||
| 595 | N 916017130000 | CLAMP |
| Repalced by: N 000000000678 | ||
| 595 | N 000000000678 | CLAMP |
| HOSE TO INTAKE PIPE AND TO ENGINE | ||
| 600 | A 6205201006 | PIPE ELBOW |
| (INTAKE PIPE) | ||
| 600 | A 6205200706 | PIPE ELBOW |
| (INTAKE PIPE) | ||
| 605 | N 900421010002 | THREADED INSERT |
| 610 | A 3015280080 | GASKET |
| Repalced by: A 4421411480 | ||
| 610 | A 4421411480 | GASKET |
| INTAKE PIPE TO ENGINE | ||
| 615 | N 000933010328 | SCREW |
| INTAKE PIPE TO ENGINE | ||
| M 10X45 | ||
| 615 | N 000933010095 | SCREW |
| Repalced by: N 304017010030 | ||
| 615 | N 304017010030 | SCREW |
| Repalced by: N 304017010053 | ||
| 615 | N 304017010053 | SCREW |
| INTAKE PIPE TO ENGINE | ||
| M 10X50 | ||
| 615 | N 000933010150 | SCREW |
| INTAKE PIPE TO ENGINE | ||
| M 10X55 | ||
| 620 | N 000137010201 | SPRING WASHER |
| INTAKE PIPE TO ENGINE | ||
| 625 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 625 | N 910113010000 | NUT |
| INTAKE PIPE TO ENGINE | ||
| 630 | A 6205200130 | SUPPORT |
| 635 | N 915042025003 | PLUG |
| 640 | N 000933010105 | SCREW |
| SUPPORT TO FRONT APPARATUS SUPPORT | ||
| 645 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 645 | N 910113010000 | NUT |
| SUPPORT TO FRONT APPARATUS SUPPORT | ||
| 650 | A 6205200031 | RUNNING BOARD |
| 655 | A 6205230019 | MOUNTING ANGLE |
| ROCKER PANEL TO FRAME | ||
| 660 | A 3819900901 | SCREW |
| ROCKER PANEL TO FRAME | ||
| 665 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 665 | N 000125010532 | WASHER |
| ROCKER PANEL TO FRAME | ||
| 665 | N 007349010003 | WASHER |
| Repalced by: N 007349010007 | ||
| 665 | N 007349010007 | WASHER |
| ROCKER PANEL TO FRAME | ||
| 670 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 670 | N 910113010000 | NUT |
| ROCKER PANEL TO FRAME | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
