Transporto priemonė: 1933 LS; VIN numerio dalis: 621542

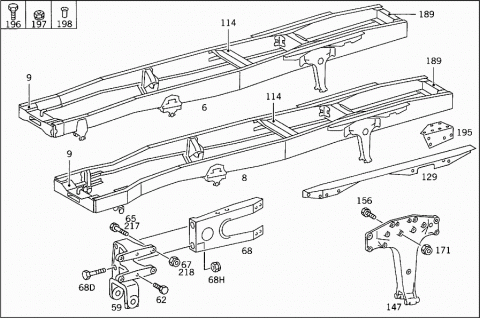

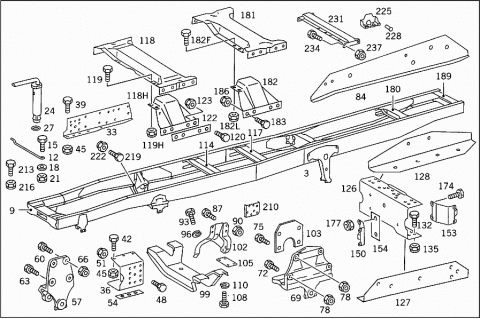

Grupė: 31 FRAME
| # | Kodas | Pavadinimas |
|---|---|---|
| 003 | A 6213104601 | FRAME |
| 003 | A 6213106501 | FRAME |
| 003 | A 6463100501 | FRAME |
| 003 | A 6213104701 | FRAME |
| 003 | A 6463100601 | FRAME |
| 006 | A 6213103001 | FRAME |
| Repalced by: A 6203100301 | ||
| 006 | A 6203100301 | FRAME |
| 006 | A 6203107401 | FRAME |
| 006 | A 6463100701 | FRAME |
| 006 | A 6213100001 | FRAME |
| Repalced by: A 6203100501 | ||
| 006 | A 6203100501 | FRAME |
| 006 | A 6203107501 | FRAME |
| 006 | A 6203107501 | FRAME |
| 006 | A 6203107501 | FRAME |
| 006 | A 6453100101 | FRAME |
| 006 | A 6203107601 | FRAME |
| 006 | A 6203102501 | FRAME |
| 006 | A 6463100001 | FRAME |
| 008 | A 6203101702 | FRAME |
| 008 | A 6203101802 | FRAME |
| 009 | A 6203100122 | CROSS MEMBER |
| FRONT | ||
| 009 | A 3873100422 | CROSS MEMBER |
| FRONT | ||
| 009 | A 6203100222 | CROSS MEMBER |
| FRONT | ||
| 012 | A 3353150031 | LOCKING SPRING |
| COUPLING PIN | ||
| 015 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 015 | N 304017008034 | SCREW |
| SPRING TO CROSS MEMBER | ||
| 018 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 018 | N 000125008443 | WASHER |
| SPRING TO CROSS MEMBER | ||
| 021 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 021 | N 913004008001 | NUT |
| SPRING TO CROSS MEMBER | ||
| 024 | A 3873150106 | COUPLING PIN |
| FOR COUPLING MOUTH | ||
| 024 | A 6203150006 | COUPLING PIN |
| FOR COUPLING MOUTH | ||
| 027 | A 0009874346 | SEALING CORD |
| FOR COUPLING MOUTH | ||
| 033 | A 3873122087 | GUSSET PLATE |
| FRONT LEFT | ||
| 033 | A 3873122187 | GUSSET PLATE |
| Repalced by: A 6203120987 | ||
| 033 | A 6203120987 | GUSSET PLATE |
| FRONT RIGHT | ||
| 036 | A 3878900032 | BOW |
| FRONT LEFT | ||
| 036 | A 3878900132 | BOW |
| FRONT RIGHT | ||
| 039 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 039 | N 308676012026 | SCREW |
| CROSS MEMBER AND GUSSET PLATE TO SIDE MEMBERS | ||
| M 12X35 | ||
| 042 | N 000961012069 | SCREW |
| Repalced by: N 308676012015 | ||
| 042 | N 308676012015 | SCREW |
| CROSS MEMBER AND GUSSET PLATE TO SIDE MEMBERS | ||
| M 12X45 | ||
| N 000125013008 | WASHER | |
| 045 | N 910113012002 | NUT |
| CROSS MEMBER AND GUSSET PLATE TO SIDE MEMBERS | ||
| 048 | N 000961014028 | SCREW |
| CLAMP TO SIDE MEMBER | ||
| 051 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 051 | N 910113014001 | NUT |
| CLAMP TO SIDE MEMBER | ||
| 054 | A 3878910696 | BASE |
| AS REQUIRED | ||
| 3.00 MM | ||
| 054 | A 3878910796 | BASE |
| AS REQUIRED | ||
| 4.00 MM | ||
| 054 | A 3878910896 | BASE |
| AS REQUIRED | ||
| 5.00 MM | ||
| 057 | A 3873220301 | FRONT SPRING BRACKET |
| FRONT | ||
| 057 | A 6203220201 | FRONT SPRING BRACKET |
| Repalced by: A 6203220501 | ||
| 057 | A 6203220501 | FRONT SPRING BRACKET |
| Repalced by: A 6203220901 | ||
| 057 | A 6203220901 | FRONT SPRING BRACKET |
| FRONT | ||
| 057 | A 6203220901 | FRONT SPRING BRACKET |
| FRONT | ||
| 059 | A 6203220301 | FRONT SPRING BRACKET |
| Repalced by: A 6203220601 | ||
| 059 | A 6203220601 | FRONT SPRING BRACKET |
| FRONT | ||
| 060 | A 3879900114 | SCREW |
| FRONT SPRING FRONT BRACKET TO SIDE MEMBER | ||
| M16X45 | ||
| 062 | N 000961016108 | SCREW |
| FRONT SPRING FRONT BRACKET TO SIDE MEMBER | ||
| M 16X30 | ||
| 063 | A 3879900214 | SCREW |
| FRONT SPRING FRONT BRACKET TO SIDE MEMBER | ||
| M 16X55 | ||
| 065 | N 000961016096 | SCREW |
| Repalced by: N 308676016007 | ||
| 065 | N 308676016007 | SCREW |
| FRONT SPRING FRONT BRACKET TO SIDE MEMBER | ||
| M 16X50 | ||
| 066 | N 913004016005 | NUT |
| Repalced by: N 910113016001 | ||
| 066 | N 910113016001 | NUT |
| FRONT SPRING FRONT BRACKET TO SIDE MEMBER | ||
| 067 | N 913004016005 | NUT |
| Repalced by: N 910113016001 | ||
| 067 | N 910113016001 | NUT |
| FRONT SPRING FRONT BRACKET TO SIDE MEMBER | ||
| 068 | A 6203121261 | STRUT |
| FRONT LEFT | ||
| 068 | A 6203100653 | STRUT |
| Repalced by: A 6553100453 | ||
| 068 | A 6553100453 | STRUT |
| FRONT LEFT | ||
| 068 | A 6203121361 | STRUT |
| FRONT RIGHT | ||
| 068 | A 6203100753 | STRUT |
| FRONT RIGHT | ||
| 068D | N 000960016250 | SCREW |
| STRUT TO SPRING BRACKET | ||
| 068H | N 913004016005 | NUT |
| Repalced by: N 910113016001 | ||
| 068H | N 910113016001 | NUT |
| STRUT TO SPRING BRACKET | ||
| 069 | A 6203220003 | FRONT SPRING BRACKET |
| Repalced by: A 6203220103 | ||
| 069 | A 6203220103 | FRONT SPRING BRACKET |
| REAR | ||
| 072 | N 000960014229 | SCREW |
| FRONT SPRING REAR BRACKET TO SIDE MEMBER | ||
| M14X55 | ||
| 072 | N 000960014229 | SCREW |
| FRONT SPRING REAR BRACKET TO SIDE MEMBER | ||
| M14X55 | ||
| 072 | N 000961014101 | SCREW |
| Repalced by: N 308676014012 | ||
| 072 | N 308676014012 | SCREW |
| FRONT SPRING REAR BRACKET TO SIDE MEMBER | ||
| M 14X45 | ||
| 072 | N 308676014012 | SCREW |
| FRONT SPRING REAR BRACKET TO SIDE MEMBER | ||
| M 14X45 | ||
| 075 | N 000960014237 | SCREW |
| FRONT SPRING REAR BRACKET TO SIDE MEMBER | ||
| M 14X50 | ||
| 075 | N 000961014063 | SCREW |
| Repalced by: A 9429901304 | ||
| 075 | A 9429901304 | SCREW |
| FRONT SPRING REAR BRACKET TO SIDE MEMBER | ||
| M 14X40 | ||
| 078 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 078 | N 910113014000 | NUT |
| FRONT SPRING REAR BRACKET TO SIDE MEMBER | ||
| 084 | A 6203110353 | ANGLE |
| LEFT REINFORCEMENT | ||
| 084 | A 6203110453 | ANGLE |
| RIGHT REINFORCEMENT | ||
| 087 | N 000961014113 | SCREW |
| STRUT TO CROSS AND SIDE MEMBERS | ||
| M 14X28 | ||
| 087 | N 000961014113 | SCREW |
| STRUT TO CROSS AND SIDE MEMBERS | ||
| M 14X28 | ||
| 090 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 090 | N 910113014001 | NUT |
| STRUT TO CROSS AND SIDE MEMBERS | ||
| 093 | N 000961014028 | SCREW |
| STRUT TO CROSS AND SIDE MEMBERS | ||
| M 14X40 | ||
| 096 | N 912004014100 | LOCK WASHER |
| STRUT TO CROSS AND SIDE MEMBERS | ||
| 099 | A 3873120810 | CROSS MEMBER |
| FRONT SPRING REAR BRACKET | ||
| NO.2 | ||
| 102 | A 3873122561 | STRUT |
| Repalced by: A 3873100353 | ||
| A 3873100353 | STRUT | |
| Repalced by: A 6203121561 | ||
| 102 | A 6203121561 | STRUT |
| FRONT SPRING REAR BRACKET | ||
| 103 | A 6203120384 | SHIM |
| FRONT SPRING REAR BRACKET | ||
| 105 | A 3873120084 | SHIM |
| Repalced by: A 6203121984 | ||
| 105 | A 6203121984 | SHIM |
| CROSS MEMBER TO FRONT SPRING REAR BRACKET | ||
| 108 | N 000961014113 | SCREW |
| CROSS MEMBER TO FRONT SPRING REAR BRACKET | ||
| 110 | N 912004014100 | LOCK WASHER |
| CROSS MEMBER TO FRONT SPRING REAR BRACKET | ||
| 114 | A 6203100137 | CROSS MEMBER |
| NO.3 | ||
| 114 | A 3913100136 | CROSS MEMBER |
| NO.3 | ||
| 117 | A 3953100136 | CROSS MEMBER |
| NO.3,NO.4 | ||
| 117 | A 3953100136 | CROSS MEMBER |
| NO.4 | ||
| 117 | A 3953100136 | CROSS MEMBER |
| NO.3,NO.4 | ||
| 117 | A 3873100136 | CROSS MEMBER |
| NO.3 | ||
| 117 | A 3873100136 | CROSS MEMBER |
| NO.3 | ||
| 117 | A 3873101037 | CROSS MEMBER |
| NO.3 | ||
| 118 | A 3873120025 | CROSS MEMBER |
| NO.3,NO.4 | ||
| 118 | A 3893120125 | CROSS MEMBER |
| NO.3 | ||
| 118H | A 3953120261 | STRUT |
| NO.3,NO.4 | ||
| 118H | A 3953120261 | STRUT |
| NO.4 | ||
| 118H | A 3953120261 | STRUT |
| NO.3,NO.4 | ||
| 118H | A 3873121961 | STRUT |
| NO.3 | ||
| 118H | A 3873121961 | STRUT |
| NO.3 | ||
| 119 | A 0039900901 | SCREW |
| Repalced by: A 0029908201 | ||
| 119 | A 0029908201 | SCREW |
| STRUT TO CROSS MEMBER | ||
| M 12X28 | ||
| 119H | N 913004012009 | NUT |
| Repalced by: N 910113012003 | ||
| 119H | N 910113012003 | NUT |
| STRUT TO CROSS MEMBER | ||
| A 6203121584 | SHIM | |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 120 | N 000961014100 | SCREW |
| CROSS MEMBER TO SIDE MEMBERS | ||
| M 14X30 | ||
| 120 | N 000961014028 | SCREW |
| CROSS MEMBER TO SIDE MEMBERS | ||
| M 14X40 | ||
| 122 | A 6453120084 | SHIM |
| AT CROSS MEMBER | ||
| 123 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 123 | N 910113014000 | NUT |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 126 | A 6203120024 | CROSS MEMBER |
| CENTRAL BEARING | ||
| NO.4 | ||
| 126 | A 6203120024 | CROSS MEMBER |
| CENTRAL BEARING | ||
| NO.4 | ||
| 126 | A 6203120024 | CROSS MEMBER |
| CENTRAL BEARING | ||
| NO.5 | ||
| 126 | A 6453120024 | CROSS MEMBER |
| CENTRAL BEARING | ||
| NO.4 | ||
| 126 | A 6453120024 | CROSS MEMBER |
| CENTRAL BEARING | ||
| NO.5 | ||
| 127 | A 6453120087 | GUSSET PLATE |
| LEFT TOP | ||
| 127 | A 6453120187 | GUSSET PLATE |
| RIGHT TOP | ||
| 128 | A 6453120287 | GUSSET PLATE |
| LEFT BOTTOM | ||
| 128 | A 6453120387 | GUSSET PLATE |
| RIGHT BOTTOM | ||
| 129 | A 6203160052 | ANGLE |
| LEFT | ||
| 129 | A 6203160152 | ANGLE |
| RIGHT | ||
| 132 | N 000961016075 | SCREW |
| Repalced by: N 308676016020 | ||
| 132 | N 308676016020 | SCREW |
| CROSS MEMBER TO FRAME TRUSSING | ||
| M 16X35 | ||
| 135 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 135 | N 910113014000 | NUT |
| CROSS MEMBER TO FRAME TRUSSING | ||
| 147 | A 3933253209 | BEARING BRACKET |
| Repalced by: A 6583250109 | ||
| 147 | A 6583250109 | BEARING BRACKET |
| Repalced by: A 6583250509 | ||
| 147 | A 6583250509 | BEARING BRACKET |
| AIR-SPRING-BELLOWS SUPPORT | ||
| 147 | A 3933252109 | BEARING BRACKET |
| Repalced by: A 6203250009 | ||
| 147 | A 6203250009 | BEARING BRACKET |
| Repalced by: A 6553250009 | ||
| 147 | A 6553250009 | BEARING BRACKET |
| Repalced by: A 6553250109 | ||
| 147 | A 6553250109 | BEARING BRACKET |
| CENTRAL BEARING | ||
| 150 | A 3933250809 | BEARING BRACKET |
| Repalced by: A 6553120240 | ||
| 150 | A 3933250809 | BEARING BRACKET |
| Repalced by: A 6553120240 | ||
| 150 | A 3933253509 | BEARING BRACKET |
| Repalced by: A 3933250809 | ||
| 150 | A 6553120240 | BRACKET |
| CONTROL ARM,FRONT | ||
| 153 | A 3933250609 | BEARING BRACKET |
| CONTROL ARM,REAR | ||
| 153 | A 3933253409 | BEARING BRACKET |
| CONTROL ARM,REAR | ||
| A 6583250053 | SPACER TUBE | |
| Repalced by: A 6583250253 | ||
| A 6583250253 | SPACER TUBE | |
| BEARING BRACKET TO SIDE MEMBER | ||
| 154 | A 6453120184 | SHIM |
| BEARING BRACKET TO CROSS MEMBER | ||
| 154 | A 6453120184 | SHIM |
| BEARING BRACKET TO CROSS MEMBER | ||
| 156 | N 000960018145 | SCREW |
| Repalced by: A 0039909304 | ||
| 156 | A 0039909304 | SCREW |
| BEARING BRACKET TO SIDE MEMBER | ||
| M 18X80 | ||
| 156 | N 000961018043 | SCREW |
| BEARING BRACKET TO SIDE MEMBER | ||
| M 18X055 | ||
| 156 | N 000961018043 | SCREW |
| BEARING BRACKET TO SIDE MEMBER | ||
| M 18X055 | ||
| 156 | N 000960018142 | SCREW |
| BEARING BRACKET TO SIDE MEMBER | ||
| M18X65 | ||
| 156 | N 000960018119 | SCREW |
| BEARING BRACKET TO SIDE MEMBER | ||
| M 18X85 | ||
| 156 | N 000960018119 | SCREW |
| BEARING BRACKET TO SIDE MEMBER | ||
| M 18X85 | ||
| 156 | N 000960018145 | SCREW |
| Repalced by: A 0039909304 | ||
| 156 | A 0039909304 | SCREW |
| BEARING BRACKET TO SIDE MEMBER | ||
| M 18X80 | ||
| 156 | A 0039909304 | SCREW |
| BEARING BRACKET TO SIDE MEMBER | ||
| M 18X80 | ||
| 156 | N 000960018133 | SCREW |
| BEARING BRACKET TO SIDE MEMBER | ||
| M 18X75 | ||
| 156 | N 000960018109 | SCREW |
| BEARING BRACKET TO SIDE MEMBER | ||
| M 18X60 | ||
| N 007349019002 | WASHER | |
| BEARING BRACKET TO SIDE MEMBER | ||
| 171 | N 913004018004 | NUT |
| BEARING BRACKET TO SIDE MEMBER | ||
| 174 | N 000960018025 | SCREW |
| BEARING BRACKET TO CROSS MEMBER | ||
| M 18X85 | ||
| 174 | N 000960018013 | SCREW |
| Repalced by: N 000960018109 | ||
| 174 | N 000960018109 | SCREW |
| BEARING BRACKET TO CROSS MEMBER | ||
| M 18X60 | ||
| 177 | N 913004018003 | NUT |
| Repalced by: N 910113018004 | ||
| 177 | N 910113018004 | NUT |
| BEARING BRACKET TO CROSS MEMBER | ||
| 180 | A 3893100337 | CROSS MEMBER |
| NO.6 | ||
| 180 | A 3893100137 | CROSS MEMBER |
| NO.6 | ||
| 181 | A 3893120025 | CROSS MEMBER |
| 181 | A 3873120017 | CROSS MEMBER |
| 182 | A 3873120361 | STRUT |
| AT CROSS MEMBER | ||
| 182F | A 0039900901 | SCREW |
| Repalced by: A 0029908201 | ||
| 182F | A 0029908201 | SCREW |
| STRUT TO CROSS MEMBER | ||
| M 12X28 | ||
| 182L | N 913004012009 | NUT |
| Repalced by: N 910113012003 | ||
| 182L | N 910113012003 | NUT |
| STRUT TO CROSS MEMBER | ||
| 183 | N 000961014028 | SCREW |
| CROSS MEMBER TO SIDE MEMBERS | ||
| M 14X40 | ||
| 183 | N 000961014100 | SCREW |
| CROSS MEMBER TO SIDE MEMBERS | ||
| M 14X30 | ||
| 186 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 186 | N 910113014000 | NUT |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 189 | A 3933100246 | CROSS MEMBER |
| Repalced by: A 3873120735 | ||
| 189 | A 3873120735 | CROSS MEMBER |
| REAR | ||
| 189 | A 6213120635 | CROSS MEMBER |
| Repalced by: A 6213120335 | ||
| 189 | A 6213120335 | CROSS MEMBER |
| Repalced by: A 6553120435 | ||
| 189 | A 6553120435 | CROSS MEMBER |
| REAR | ||
| 195 | A 6213120487 | GUSSET PLATE |
| Repalced by: A 6213120287 | ||
| 195 | A 6213120287 | GUSSET PLATE |
| LEFT | ||
| 195 | A 6213120587 | GUSSET PLATE |
| Repalced by: A 6213120387 | ||
| 195 | A 6213120387 | GUSSET PLATE |
| RIGHT | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| MOUNTING USED FOR FRAME CONNECTION PARTS | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| DIMENSIONS ARE INDICATED IN THE FOLLOWING ORDER: | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| THREAD X SHANK DIA. X SHANK LENGTH X TOTAL LENGTH | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 196 | N 000609010004 | FITTED SCREW |
| M 10X11X14X28 | ||
| 196 | N 000610010003 | FITTED SCREW |
| M 10X11X25X38 | ||
| 196 | N 000609010014 | FITTED SCREW |
| M 10X11X24X40 | ||
| 196 | A 3859900514 | SCREW |
| M 10X11X26.5X46 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 196 | A 3859900714 | SCREW |
| M 12X12X10X25 | ||
| 196 | A 3859901414 | SCREW |
| M 12X12X11X26 | ||
| 196 | A 0039900901 | SCREW |
| Repalced by: A 0029908201 | ||
| 196 | A 0029908201 | SCREW |
| M 12X12X12X28 | ||
| 196 | A 3859901514 | SCREW |
| M 12X12X13X28 | ||
| 196 | A 0029908201 | SCREW |
| M 12X12X14X30 | ||
| 196 | A 3859902114 | SCREW |
| M 12X12X15X30 | ||
| 196 | A 0029908301 | SCREW |
| Repalced by: N 308676012013 | ||
| 196 | N 308676012013 | SCREW |
| M 12X12X16X32 | ||
| 196 | A 3859902214 | SCREW |
| M 12X12X17X32 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 196 | A 6209900114 | SCREW |
| M 12X13X12X29 | ||
| 196 | A 3969900314 | SCREW |
| M 12X13X13X30 | ||
| 196 | A 3589901914 | SCREW |
| M 12X13X15X32 | ||
| 196 | A 3559900014 | SCREW |
| M 12X13X18X35 | ||
| 196 | A 3589900614 | SCREW |
| M 12X13X21X38 | ||
| 196 | A 6179900114 | SCREW |
| M 12X13X23X40 | ||
| 196 | A 6249900014 | SCREW |
| M 12X13X25X42 | ||
| 196 | A 3859900214 | SCREW |
| M 12X13X35X52 | ||
| 196 | A 6689900114 | SCREW |
| M 12X13X58X80 | ||
| 196 | A 6689900014 | SCREW |
| M 12X13X63X85 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 196 | A 3859900814 | SCREW |
| Repalced by: A 3229903101 | ||
| 196 | A 3229903101 | SCREW |
| M 14X14X18X32 | ||
| 196 | A 3859902014 | SCREW |
| M 14X14X18X34 | ||
| 196 | A 3559900114 | SCREW |
| M 12X14X13X35 | ||
| 196 | A 3219901601 | SCREW |
| M 14X14X17X35 | ||
| 196 | A 3219901901 | SCREW |
| M 14X14X22X40 | ||
| 196 | A 3559900501 | SCREW |
| M 14X14X24X42 | ||
| 196 | A 3409900201 | SCREW |
| M 14X14X27X45 | ||
| 196 | A 3609902001 | SCREW |
| M 14X14X32X50 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 196 | A 3589900114 | SCREW |
| M 14X15X15X32 | ||
| 196 | A 3589900814 | SCREW |
| M 14X15X17X34 | ||
| 196 | A 6459900014 | SCREW |
| M 14X15X18X35 | ||
| 196 | A 3589901014 | SCREW |
| M 14X15X19X36 | ||
| 196 | A 3589900214 | SCREW |
| M 14X15X21X38 | ||
| 196 | A 3589900414 | SCREW |
| M 14X15X25X42 | ||
| 196 | A 3589900714 | SCREW |
| M 14X15X27X44 | ||
| 196 | A 3589900914 | SCREW |
| M 14X15X29X46 | ||
| 196 | A 3859900414 | SCREW |
| M 14X15X31X48 | ||
| 196 | A 3859900314 | SCREW |
| M 14X15X35X52 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 196 | A 3859900914 | SCREW |
| Repalced by: N 308676016020 | ||
| 196 | N 308676016020 | SCREW |
| M 16X16X18X36 | ||
| 196 | A 3859901714 | SCREW |
| M 16X16X20X38 | ||
| 196 | A 3859901014 | SCREW |
| M 16X16X22X40 | ||
| 196 | A 3859901114 | SCREW |
| M 16X16X24X42 | ||
| 196 | A 0029909901 | SCREW |
| Repalced by: A 3959900501 | ||
| 196 | A 3959900501 | SCREW |
| M 16X16X20X45 | ||
| 196 | A 3859901814 | SCREW |
| M 16X16X30X48 | ||
| 196 | A 3859901914 | SCREW |
| M 16X16X32X50 | ||
| 196 | A 6259900301 | SCREW |
| M 16X16X38X90 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 196 | A 3589900514 | SCREW |
| M 16X17X22X42 | ||
| 196 | A 6459900714 | SCREW |
| M 16X17X24X44 | ||
| 196 | A 3609900114 | SCREW |
| M 16X17X28X48 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 196 | A 3469900014 | SCREW |
| M 16X18X18X40 | ||
| 196 | A 3859902314 | SCREW |
| M 18X18X23X45 | ||
| 196 | A 6209900014 | SCREW |
| M 16X18X26X48 | ||
| 196 | A 3469900114 | SCREW |
| M 16X18X31X50 | ||
| 196 | A 3859902414 | SCREW |
| M 18X18X33X55 | ||
| 196 | A 6229900014 | SCREW |
| M 16X18X38X60 | ||
| 196 | A 3919900014 | SCREW |
| M 16X18X63X85 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 196 | N 000610018004 | FITTED SCREW |
| M 18X19X25X45 | ||
| 196 | N 000610018009 | FITTED SCREW |
| M 18X19X33X55 | ||
| 196 | N 000610018006 | FITTED SCREW |
| M 18X19X38X60 | ||
| 196 | N 000609018000 | FITTED SCREW |
| M 18X19X57X85 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 197 | N 913004010011 | NUT |
| 197 | N 913004012009 | NUT |
| Repalced by: N 910113012003 | ||
| 197 | N 910113012003 | NUT |
| 197 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 197 | N 910113014000 | NUT |
| 197 | N 913004016005 | NUT |
| Repalced by: N 910113016001 | ||
| 197 | N 910113016001 | NUT |
| 197 | N 913004018004 | NUT |
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 198 | N 910005012033 | RIVET |
| 12X22 MM | ||
| 198 | N 910005012080 | RIVET |
| 12X42 MM | ||
| 198 | N 910005014056 | RIVET |
| 14X45 MM | ||
| 198 | N 910005016000 | RIVET |
| 16X38 MM | ||
| 210 | A 6203110160 | REINFORCEMENT |
| Repalced by: A 3873110060 | ||
| 210 | A 3873110060 | REINFORCEMENT |
| LEFT,FOR TORSION BAR | ||
| 210 | A 6203110260 | REINFORCEMENT |
| Repalced by: A 3873110160 | ||
| 210 | A 3873110160 | REINFORCEMENT |
| RIGHT,FOR TORSION BAR | ||
| 213 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 213 | N 308676014020 | SCREW |
| CROSS MEMBER NO.1 TO SIDE MEMBERS | ||
| 216 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 216 | N 910113014001 | NUT |
| CROSS MEMBER NO.1 TO SIDE MEMBERS | ||
| 217 | N 000961016096 | SCREW |
| Repalced by: N 308676016007 | ||
| 217 | N 308676016007 | SCREW |
| FRONT SPRING FRONT BRACKET TO SIDE MEMBER | ||
| 218 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 218 | N 910113016002 | NUT |
| FRONT SPRING FRONT BRACKET TO SIDE MEMBER | ||
| 219 | N 000961014028 | SCREW |
| NO.2 CROSS MEMBER TO FRAME SIDE MEMBERS | ||
| 222 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 222 | N 910113014001 | NUT |
| NO.2 CROSS MEMBER TO FRAME SIDE MEMBERS | ||
| 225 | A 3874030701 | SUPPORT |
| SPARE WHEEL MOUNTING | ||
| 228 | N 910005012087 | RIVET |
| CONSOLE TO FRAME | ||
| 12X58 MM | ||
| 231 | A 3874030401 | SUPPORT |
| SPARE WHEEL MOUNTING | ||
| 234 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 234 | N 304017010002 | SCREW |
| CROSS MEMBER TO FRAME | ||
| 237 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 237 | N 910113010000 | NUT |
| CROSS MEMBER TO FRAME | ||

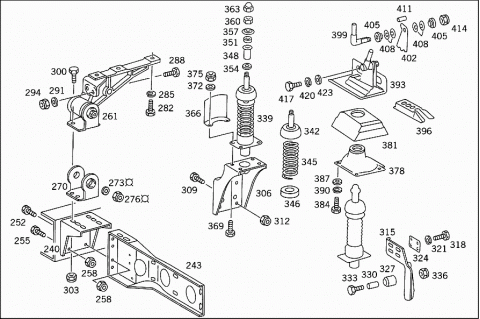

| 240 | A 3878912631 | CONSOLE |
| CAB MOUNTING,FRONT | ||
| 243 | A 3873170423 | STRUT |
| BUMPER AT TORSION BAR | ||
| 243 | A 6203170223 | STRUT |
| BUMPER,LEFT | ||
| 243 | A 6203170223 | STRUT |
| BUMPER,LEFT | ||
| 243 | A 6203170423 | STRUT |
| BUMPER,RIGHT | ||
| 243 | A 6203170423 | STRUT |
| BUMPER,RIGHT | ||
| 252 | N 000961014101 | SCREW |
| Repalced by: N 308676014012 | ||
| 252 | N 308676014012 | SCREW |
| CONSOLE AND STRUT TO FRAME | ||
| M 14X45 | ||
| 255 | N 000961014063 | SCREW |
| Repalced by: A 9429901304 | ||
| 255 | A 9429901304 | SCREW |
| CONSOLE AND STRUT TO FRAME | ||
| M 14X40 | ||
| 258 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 258 | N 910113014000 | NUT |
| CONSOLE AND STRUT TO FRAME | ||
| 261 | A 3813106509 | BRACKET |
| CAB,LEFT | ||
| 261 | A 6208902103 | MOUNTING |
| CAB,LEFT | ||
| 261 | A 3813106609 | BRACKET |
| CAB, RIGHT | ||
| 261 | A 6208902203 | MOUNTING |
| CAB, RIGHT | ||
| A 3813171512 | RUBBER BUFFER | |
| A 3813171412 | RUBBER BUFFER | |
| 270 | A 3878902903 | MOUNTING |
| 270 | A 6208902003 | MOUNTING |

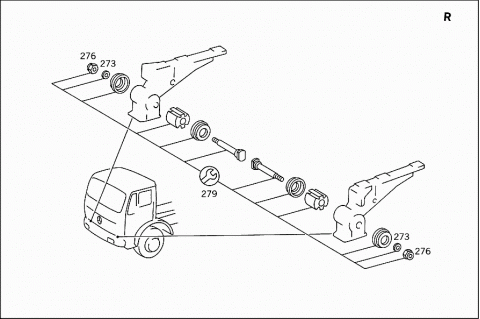

| 273 | N 007349017002 | WASHER |
| 276 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 276 | N 910113016002 | NUT |
| 279 | A 3815860031 | REPAIR KIT |
| CAB SUSPENSION,FRONT | ||
| 282 | N 000961014028 | SCREW |
| LEFT AND RIGHT BEARING BRACKETS TO CAB | ||
| M 14X40 | ||
| 285 | N 912004014100 | LOCK WASHER |
| LEFT AND RIGHT BEARING BRACKETS TO CAB | ||
| 288 | N 000961014064 | SCREW |
| LEFT AND RIGHT BEARING BRACKETS TO CAB | ||
| M 14X50 | ||
| 291 | A 3209901840 | WASHER |
| LEFT AND RIGHT BEARING BRACKETS TO CAB | ||
| 294 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 294 | N 910113014001 | NUT |
| LEFT AND RIGHT BEARING BRACKETS TO CAB | ||
| 300 | N 000961014063 | SCREW |
| Repalced by: A 9429901304 | ||
| 300 | A 9429901304 | SCREW |
| CAB TO FRAME | ||
| M 14X40 | ||
| 300 | N 000961014101 | SCREW |
| Repalced by: N 308676014012 | ||
| 300 | N 308676014012 | SCREW |
| CAB TO FRAME | ||
| M 14X45 | ||
| 303 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 303 | N 910113014000 | NUT |
| CAB TO FRAME | ||
| 306 | A 3873170001 | CONSOLE |
| Repalced by: A 6553170001 | ||
| 306 | A 6553170001 | CONSOLE |
| Repalced by: A 3873170001 | ||
| 306 | A 3873170001 | CONSOLE |
| CAB MOUNTING,REAR | ||
| 309 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 309 | N 308676012026 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| 312 | N 910113012002 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| 315 | A 3873170626 | GUIDE |
| CAB SUSPENSION,REAR LEFT | ||
| 315 | A 3873170726 | GUIDE |
| CAB SUSPENSION,REAR RIGHT | ||
| 318 | N 000960012301 | SCREW |
| GUIDE TO CAB | ||
| 321 | N 912004012100 | LOCK WASHER |
| GUIDE TO CAB | ||
| 324 | A 3873170084 | SHIM |
| GUIDE TO CAB | ||
| 327 | A 3813170750 | BUSHING |
| GUIDE TO CAB | ||
| 330 | A 3813170553 | SPACER TUBE |
| GUIDE TO CAB | ||
| 333 | N 000960012230 | SCREW |
| GUIDE TO CAB | ||
| 336 | N 910113012002 | NUT |
| GUIDE TO CAB | ||
| 339 | A 3878901619 | SHOCK ABSORBER |
| Repalced by: A 3878901319 | ||
| 339 | A 3878901319 | SHOCK ABSORBER |
| CAB SUSPENSION,REAR | ||
| 339 | A 3878901319 | SHOCK ABSORBER |
| CAB SUSPENSION,REAR | ||
| 339 | A 6208900019 | SHOCK ABSORBER |
| Repalced by: A 6208900119 | ||
| 339 | A 6208900119 | SHOCK ABSORBER |
| CAB SUSPENSION,REAR | ||
| 339 | A 6208900119 | SHOCK ABSORBER |
| CAB SUSPENSION,REAR | ||
| 342 | A 0008910201 | RUBBER MOUNTING |
| TO 387 890 16 19,620 890 00 19 | ||
| 342 | A 0008900148 | JOINT |
| Repalced by: A 0008910301 | ||
| 342 | A 0008910301 | RUBBER MOUNTING |
| TO 620 890 01 19,387 890 13 19 | ||
| 345 | A 0008910751 | SPRING |
| Repalced by: A 0008910451 | ||
| 345 | A 0008910451 | SPRING |
| 345 | A 0008911051 | SPRING |
| TO 620 890 00 19 | ||
| 345 | A 0008911151 | SPRING |
| TO 620 890 01 19 | ||
| 346 | A 0008910123 | BUFFER |
| TO 620 890 00 19 | ||
| 348 | A 3813170753 | SPACER TUBE |
| VIBRATION ABSORBER | ||
| 351 | A 3275045082 | RUBBER RING |
| VIBRATION ABSORBER | ||
| 354 | N 000433015005 | WASHER |
| VIBRATION ABSORBER | ||
| 357 | A 3878912010 | WASHER |
| VIBRATION ABSORBER | ||
| 360 | N 000934012022 | NUT |
| VIBRATION ABSORBER | ||
| 363 | N 001587012008 | CAP NUT |
| Repalced by: N 001587012010 | ||
| 363 | N 001587012010 | CAP NUT |
| VIBRATION ABSORBER | ||
| 366 | A 3813170031 | COVER PLATE |
| SHOCK ABSORBER | ||
| 369 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 369 | N 304017008034 | SCREW |
| VIBRATION ABSORBER TO CONSOLE | ||
| 372 | N 009021008205 | WASHER |
| Repalced by: N 009021008213 | ||
| 372 | N 009021008213 | WASHER |
| VIBRATION ABSORBER TO CONSOLE | ||
| 375 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 375 | N 913004008001 | NUT |
| VIBRATION ABSORBER TO CONSOLE | ||
| 378 | A 3813177840 | BRACKET |
| VIBRATION ABSORBER TO CAB,LEFT | ||
| 378 | A 3813177940 | BRACKET |
| VIBRATION ABSORBER TO CAB,RIGHT | ||
| 381 | A 3813170097 | BOOT |
| VIBRATION ABSORBER | ||
| 384 | N 000933010105 | SCREW |
| BRACKET AND BOOT TO SIDE MEMBER | ||
| 387 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 387 | N 000125010532 | WASHER |
| BRACKET AND BOOT TO SIDE MEMBER | ||
| 390 | N 912004010102 | LOCK WASHER |
| BRACKET AND BOOT TO SIDE MEMBER | ||
| 393 | A 3813102075 | LOCKING MECHANISM |
| CAB,LEFT | ||
| 393 | A 3813101975 | LOCKING MECHANISM |
| CAB, RIGHT | ||
| 396 | A 3813170119 | LATCH |
| 399 | A 3813172374 | PIN |
| 402 | A 3813170924 | LEVER |
| 405 | A 3813170676 | WASHER |
| 408 | A 0009935426 | DISC SPRING |
| 411 | N 001481006041 | CLAMPING SLEEVE |
| 414 | N 910113012002 | NUT |
| 417 | N 000933010105 | SCREW |
| LOCKING MECHANISM TO CAB | ||
| 420 | N 912004010102 | LOCK WASHER |
| LOCKING MECHANISM TO CAB | ||
| 423 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 423 | N 000125010532 | WASHER |
| LOCKING MECHANISM TO CAB | ||
| 426 | A 3878912831 | CONSOLE |
| CAB SUSPENSION,FRONT | ||
| 428 | A 3878912631 | CONSOLE |
| CAB SUSPENSION,FRONT | ||
| 432 | A 6208900232 | BOW |
| CAB SUSPENSION,FRONT | ||
| 435 | A 6203100053 | STRUT |
| BUMPER,LEFT | ||
| 435 | A 6203100253 | STRUT |
| BUMPER,LEFT | ||
| 435 | A 6203100153 | STRUT |
| BUMPER,RIGHT | ||
| 435 | A 6203100353 | STRUT |
| BUMPER,RIGHT | ||
| 438 | A 3939900240 | WASHER |
| CONSOLE AND STRUT TO FRAME | ||
| 444 | N 000961014088 | SCREW |
| Repalced by: N 308676014008 | ||
| 444 | N 308676014008 | SCREW |
| CONSOLE AND STRUT TO FRAME | ||
| M 14X35 | ||
| 444 | N 000961014063 | SCREW |
| Repalced by: A 9429901304 | ||
| 444 | A 9429901304 | SCREW |
| CONSOLE AND STRUT TO FRAME | ||
| M 14X40 | ||
| 446 | N 000961014101 | SCREW |
| Repalced by: N 308676014012 | ||
| 446 | N 308676014012 | SCREW |
| CONSOLE AND STRUT TO FRAME | ||
| M 14X45 | ||
| 447 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 447 | N 910113014000 | NUT |
| CONSOLE AND STRUT TO FRAME | ||
| 450 | A 3469900014 | SCREW |
| CONSOLE AND STRUT TO FRAME | ||
| 450 | A 6209900014 | SCREW |
| CONSOLE AND STRUT TO FRAME | ||
| 453 | N 913004016005 | NUT |
| Repalced by: N 910113016001 | ||
| 453 | N 910113016001 | NUT |
| CONSOLE AND STRUT TO FRAME | ||
| 456 | A 3878900314 | BRACKET |
| LEFT BUFFER | ||
| 456 | A 3878900414 | BRACKET |
| RIGHT BUFFER | ||
| 456 | A 3878910914 | BRACKET |
| BUFFER | ||
| 462 | N 000961014028 | SCREW |
| BRACKET TO CONSOLE | ||
| 462 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 462 | N 308676012026 | SCREW |
| BRACKET TO FRAME | ||
| M 12X35 | ||
| 462 | N 000961012151 | SCREW |
| BRACKET TO FRAME | ||
| M 12X30 | ||
| 471 | N 007349015003 | WASHER |
| BRACKET TO CONSOLE | ||
| 474 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 474 | N 910113014001 | NUT |
| BRACKET TO CONSOLE | ||
| 474 | N 910113012002 | NUT |
| BRACKET TO FRAME | ||
| 480 | A 3348910072 | MOUNTING |
| BUFFER | ||
| 483 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 483 | N 304017008034 | SCREW |
| BUFFER TO BRACKET | ||
| 486 | N 009021008205 | WASHER |
| Repalced by: N 009021008213 | ||
| 486 | N 009021008213 | WASHER |
| BUFFER TO BRACKET | ||
| 489 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 489 | N 913004008001 | NUT |
| BUFFER TO BRACKET | ||
| 490 | A 6208910420 | MOUNTING |
| CAB SUSPENSION,FRONT LEFT | ||
| 490 | A 3878913720 | MOUNTING |
| CAB SUSPENSION,FRONT LEFT | ||
| M 14X45 | ||
| 492 | A 6208910520 | MOUNTING |
| CAB SUSPENSION,FRONT RIGHT | ||
| 492 | A 3878913820 | MOUNTING |
| CAB SUSPENSION,FRONT RIGHT | ||
| 493 | N 000417008004 | HEADLESS SETSCREW |
| CAB SUSPENSION,FRONT | ||
| 495 | A 3878910498 | SHIM |
| CAB ON CONSOLE AT FRAME | ||
| 498 | N 000961014008 | SCREW |
| Repalced by: N 308676014003 | ||
| 498 | N 308676014003 | SCREW |
| CAB ON CONSOLE AT FRAME | ||
| M 14X30 | ||
| 501 | N 000960014251 | SCREW |
| CAB ON CONSOLE AT FRAME | ||
| M 14X85 | ||
| 501 | N 000961014088 | SCREW |
| Repalced by: N 308676014008 | ||
| 501 | N 308676014008 | SCREW |
| CAB ON CONSOLE AT FRAME | ||
| M 14X35 | ||
| 504 | N 000960014248 | SCREW |
| Repalced by: N 308765014008 | ||
| 504 | N 308765014008 | SCREW |
| CAB ON CONSOLE AT FRAME | ||
| M 14X100 | ||
| 504 | N 000961014103 | SCREW |
| CAB ON CONSOLE AT FRAME | ||
| M 14X55 | ||
| 507 | N 007349015003 | WASHER |
| CAB ON CONSOLE AT FRAME | ||
| 510 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 510 | N 910113014000 | NUT |
| CAB ON CONSOLE AT FRAME | ||
| 513 | A 3878912856 | LEVER |
| (TILTING LEVER),CAB | ||
| 513 | A 3878912556 | LEVER |
| (TILTING LEVER),CAB | ||
| 513 | A 3878912656 | LEVER |
| Repalced by: A 3878912856 | ||
| 513 | A 3878912856 | LEVER |
| (TILTING LEVER),CAB | ||
| 522 | A 3879920003 | BUSHING |
| LEVER | ||
| 522 | A 3879920203 | BUSHING |
| LEVER | ||
| 525 | A 3638910023 | BUFFER |
| LEVER TO BEARING | ||
| 528 | A 6208910257 | PIN |
| LEVER | ||
| 531 | A 3875530376 | WASHER |
| LEVER | ||
| 534 | N 000979016005 | NUT |
| Repalced by: N 000979016008 | ||
| 534 | N 000979016008 | NUT |
| LEVER | ||
| 537 | N 000094004065 | COTTER PIN |
| LEVER | ||
| 540 | A 6208910017 | BUSHING |
| LEVER | ||
| A 3875860431 | REPAIR KIT | |
| Repalced by: A 3879920003 | ||
| A 3879920003 | BUSHING | |
| CAB MOUNTING | ||
| 541 | A 6208901603 | MOUNTING |
| TILTING LEVER TO CAB SIDE MEMBER | ||
| 543 | N 000933010105 | SCREW |
| MOUNTING TO CAB | ||
| 543 | N 000961012052 | SCREW |
| Repalced by: N 308676012012 | ||
| 543 | N 308676012012 | SCREW |
| MOUNTING TO CAB | ||
| 543 | N 308676012012 | SCREW |
| MOUNTING TO CAB | ||
| 546 | N 912004010102 | LOCK WASHER |
| MOUNTING TO CAB | ||
| 546 | N 912004012100 | LOCK WASHER |
| MOUNTING TO CAB | ||
| 546 | N 912004012100 | LOCK WASHER |
| MOUNTING TO CAB | ||
| 555 | A 6208910151 | SPRING |
| CAB SUSPENSION,FRONT | ||
| 555 | A 3878910551 | SPRING |
| CAB SUSPENSION,FRONT | ||
| 561 | A 3638910617 | BUSHING |
| CAB SUSPENSION,FRONT | ||
| 564 | N 071412008200 | GREASE NIPPLE |
| CAB SUSPENSION,FRONT | ||
| 567 | A 3875860131 | REPAIR KIT |
| Repalced by: A 3873100077 | ||
| 567 | A 3873100077 | REPAIR KIT |
| CAB SUSPENSION,FRONT | ||
| 570 | A 6218900203 | MOUNTING |
| Repalced by: A 6218900403 | ||
| 570 | A 6218900403 | MOUNTING |
| STABILIZER TO CAB,LEFT | ||
| 570 | A 6218900303 | MOUNTING |
| Repalced by: A 6218900503 | ||
| 570 | A 6218900503 | MOUNTING |
| STABILIZER TO CAB,RIGHT | ||
| 576 | A 6218910157 | PIN |
| 579 | A 3878910831 | CONSOLE |
| Repalced by: A 6208910631 | ||
| 579 | A 6208910631 | CONSOLE |
| CAB SUSPENSION,FRONT LEFT | ||
| 579 | A 3878910931 | CONSOLE |
| Repalced by: A 6208910731 | ||
| 579 | A 6208910731 | CONSOLE |
| CAB SUSPENSION,FRONT RIGHT | ||
| 585 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 585 | N 304017008034 | SCREW |
| SPRING TO BEARING | ||
| 588 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 588 | N 913004008001 | NUT |
| SPRING TO BEARING | ||
| 591 | N 000961012069 | SCREW |
| Repalced by: N 308676012015 | ||
| 591 | N 308676012015 | SCREW |
| LEFT AND RIGHT CONSOLES TO CAB | ||
| M 12X45 | ||
| 594 | N 006912012013 | SCREW |
| LEFT AND RIGHT CONSOLES TO CAB | ||
| M 12X30 | ||
| 597 | N 912004012100 | LOCK WASHER |
| LEFT AND RIGHT CONSOLES TO CAB | ||
| 600 | A 3609900940 | WASHER |
| LEFT AND RIGHT CONSOLES TO CAB | ||
| 603 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 603 | N 308676014020 | SCREW |
| LEFT AND RIGHT CONSOLES TO CAB | ||
| 606 | N 912004014100 | LOCK WASHER |
| LEFT AND RIGHT CONSOLES TO CAB | ||
| 609 | N 000961014028 | SCREW |
| BEARING BRACKET TO CAB | ||
| M 14X40 | ||
| 612 | N 000960014061 | SCREW |
| BEARING BRACKET TO CAB | ||
| M 14X80 | ||
| 615 | N 912004014100 | LOCK WASHER |
| BEARING BRACKET TO CAB | ||
| 618 | N 007349015003 | WASHER |
| BEARING BRACKET TO CAB | ||

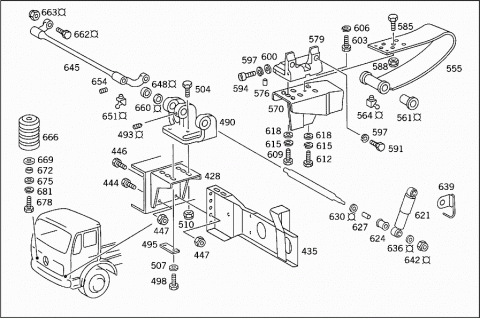

| 621 | A 0008911805 | SHOCK ABSORBER |
| CAB SUSPENSION,FRONT | ||
| 621 | A 0008911805 | SHOCK ABSORBER |
| Repalced by: A 0008912205 | ||
| 621 | A 0008912205 | SHOCK ABSORBER |
| CAB SUSPENSION,FRONT | ||
| 624 | A 0008910501 | RUBBER MOUNTING |
| 627 | A 0008910617 | BUSHING |
| 630 | A 3873170176 | WASHER |
| Repalced by: A 6203170176 | ||
| 630 | A 6203170176 | WASHER |
| SHOCK ABSORBER TO CONSOLE AND TO CAB | ||
| 636 | A 3873170276 | WASHER |
| Repalced by: N 000125013008 | ||
| 636 | N 000125013008 | WASHER |
| 636 | N 000125013008 | WASHER |
| 639 | A 6208900332 | BOW |
| SHOCK ABSORBER TO CONSOLE AND TO CAB | ||
| 642 | N 910113012002 | NUT |
| SHOCK ABSORBER TO CONSOLE AND TO CAB | ||
| 645 | A 6218900504 | STABILIZER |
| Repalced by: A 6558900004 | ||
| 645 | A 6558900004 | STABILIZER |
| CAB SUSPENSION,FRONT | ||
| 645 | A 6218900304 | STABILIZER |
| Repalced by: A 6528900104 | ||
| 645 | A 6528900104 | STABILIZER |
| CAB SUSPENSION,FRONT | ||
| 648 | A 0009817331 | JOINT BEARING |
| Repalced by: A 0009817231 | ||
| 648 | A 0009817231 | JOINT BEARING |
| Repalced by: A 0019814631 | ||
| 648 | A 0019814631 | JOINT BEARING |
| 648 | A 0019814831 | JOINT BEARING |
| 651 | N 071412008200 | GREASE NIPPLE |
| 654 | N 000906010000 | SCREW PLUG |
| STABILIZER | ||
| 657 | A 6203100077 | REPAIR KIT |
| CAB FRONT SUSPENSION STABILIZER | ||
| 657 | A 6203100177 | REPAIR KIT |
| CAB FRONT SUSPENSION STABILIZER | ||
| 660 | A 3878911910 | WASHER |
| CAB SUSPENSION,FRONT | ||
| 662 | N 000960014245 | SCREW |
| STABILIZER TO BEARING BRACKET | ||
| 663 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 663 | N 910113014001 | NUT |
| STABILIZER TO BEARING BRACKET | ||
| 666 | A 3638910223 | BUFFER |
| (HOLLOW RUBBER SPRING),CAB | ||
| 669 | A 3638910047 | FLANGE |
| HOLLOW RUBBER SPRING | ||
| 672 | A 3638910517 | BUSHING |
| HOLLOW RUBBER SPRING | ||
| 675 | A 3878912210 | WASHER |
| Repalced by: A 4432610076 | ||
| 675 | A 4432610076 | WASHER |
| HOLLOW RUBBER SPRING | ||
| 678 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 678 | N 304017010002 | SCREW |
| HOLLOW RUBBER SPRING TO CAB | ||
| M 10X30 | ||
| 678 | N 000933010094 | SCREW |
| HOLLOW RUBBER SPRING TO CAB | ||
| M 10X40 | ||
| 681 | N 912004010102 | LOCK WASHER |
| HOLLOW RUBBER SPRING TO CAB | ||

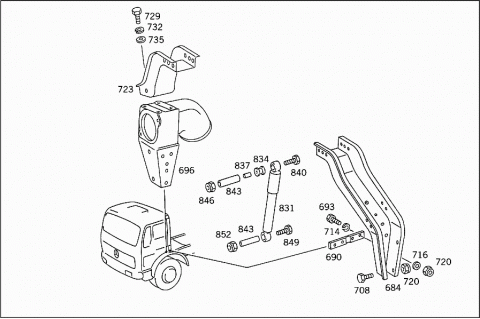

| 684 | A 6208910031 | CONSOLE |
| REAR LEFT | ||
| 684 | A 3878911731 | CONSOLE |
| REAR LEFT | ||
| 690 | A 6208910096 | BASE |
| REAR CONSOLE TO FRAME | ||
| 693 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 693 | N 308676014020 | SCREW |
| SHIM | ||
| 696 | A 6208910231 | CONSOLE |
| REAR RIGHT BOTTOM | ||
| 696 | A 6208911231 | CONSOLE |
| REAR RIGHT BOTTOM | ||
| 696 | A 6208911031 | CONSOLE |
| REAR RIGHT BOTTOM | ||
| 696 | A 6208910831 | CONSOLE |
| REAR RIGHT BOTTOM | ||
| 708 | N 000961014028 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 14X40 | ||
| 708 | N 000961014028 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 14X40 | ||
| 708 | N 000961014028 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 14X40 | ||
| 708 | N 000961014054 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 14X45 | ||
| 708 | N 000961014054 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 14X45 | ||
| 708 | N 000961014054 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 14X45 | ||
| 714 | N 912004014100 | LOCK WASHER |
| CONSOLE TO SIDE MEMBER | ||
| 714 | N 912004016101 | LOCK WASHER |
| CONSOLE TO SIDE MEMBER | ||
| 716 | N 007349015003 | WASHER |
| CONSOLE TO SIDE MEMBER | ||
| 720 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 720 | N 910113014001 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| 723 | A 6208910131 | CONSOLE |
| REAR RIGHT,TOP | ||
| 723 | A 6208900031 | CONSOLE |
| REAR RIGHT,TOP | ||
| 729 | N 000961012151 | SCREW |
| CONSOLE TO CONSOLE | ||
| 732 | N 912004012100 | LOCK WASHER |
| CONSOLE TO CONSOLE | ||
| 735 | A 3609900940 | WASHER |
| CONSOLE TO CONSOLE | ||

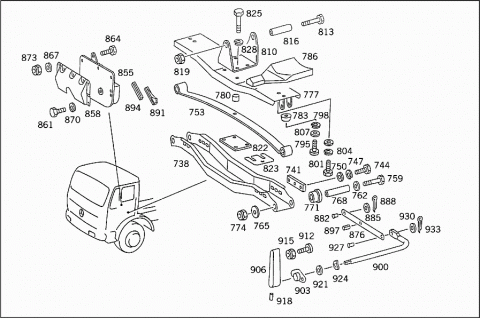

| 738 | A 3878910024 | STRUT |
| Repalced by: A 6558910224 | ||
| 738 | A 6558910224 | STRUT |
| CAB MOUNTING,REAR | ||
| 741 | A 3878910198 | SHIM |
| STRUT TO CONSOLE | ||
| 744 | N 000961012052 | SCREW |
| Repalced by: N 308676012012 | ||
| 744 | N 308676012012 | SCREW |
| STRUT TO CONSOLE | ||
| M 12X25 | ||
| 744 | N 000961012151 | SCREW |
| STRUT TO CONSOLE | ||
| M 12X30 | ||
| 747 | N 912004012100 | LOCK WASHER |
| STRUT TO CONSOLE | ||
| 750 | N 000125013008 | WASHER |
| 753 | A 6208910051 | SPRING |
| CAB SUSPENSION,REAR | ||
| 753 | A 3878911051 | SPRING |
| CAB SUSPENSION,REAR | ||
| 759 | N 000960012153 | SCREW |
| SPRING TO STRUT | ||
| 759 | N 000960012332 | SCREW |
| SPRING TO STRUT | ||
| 762 | A 3638910010 | WASHER |
| SPRING TO STRUT | ||
| 765 | N 009021013200 | WASHER |
| SPRING TO STRUT | ||
| 768 | A 3638910218 | TUBE |
| SPRING TO STRUT | ||
| 771 | A 3638910717 | BUSHING |
| SPRING TO STRUT | ||
| 774 | N 910113012002 | NUT |
| SPRING TO STRUT | ||
| 777 | A 3878900522 | RAIL |
| Repalced by: A 6558900122 | ||
| 777 | A 6558900122 | RAIL |
| CAB SUSPENSION,REAR | ||
| 780 | N 000007012201 | CYLINDRICAL PIN |
| 783 | A 3878910323 | BUFFER |
| CAB SUSPENSION,REAR | ||
| 786 | A 6208910272 | MOUNTING |
| CAB SUSPENSION,REAR | ||
| 786 | A 6208910072 | MOUNTING |
| Repalced by: A 3878910072 | ||
| 786 | A 3878910072 | MOUNTING |
| CAB SUSPENSION,REAR LEFT | ||
| 786 | A 6208910172 | MOUNTING |
| CAB SUSPENSION,REAR RIGHT | ||
| 795 | N 000084008119 | SCREW |
| BUFFER AND MOUNTING TO RAIL | ||
| M 8X20 | ||
| 798 | N 912004008102 | LOCK WASHER |
| BUFFER AND MOUNTING TO RAIL | ||
| 801 | N 000933008154 | SCREW |
| Repalced by: N 304017008021 | ||
| 801 | N 304017008021 | SCREW |
| MOUNTING TO RAIL | ||
| M 8X22 | ||
| 804 | N 912004008102 | LOCK WASHER |
| MOUNTING TO RAIL | ||
| 807 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 807 | N 000125008443 | WASHER |
| MOUNTING TO RAIL | ||
| 810 | A 6208910020 | MOUNTING |
| CAB MOUNTING,REAR | ||
| 813 | N 000960016242 | SCREW |
| Repalced by: N 000960016251 | ||
| 813 | N 000960016251 | SCREW |
| MOUNTING TO CAB | ||
| 816 | A 3878911753 | SPACER TUBE |
| MOUNTING TO CAB | ||
| 819 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 819 | N 910113016002 | NUT |
| MOUNTING TO CAB | ||
| 822 | A 3878910811 | PLATE |
| CAB SUSPENSION,REAR | ||
| 823 | A 6208910296 | BASE |
| RAIL AND PLATE TO SPRING | ||
| 825 | N 000931010258 | SCREW |
| RAIL AND PLATE TO SPRING | ||
| 828 | N 912004010102 | LOCK WASHER |
| RAIL AND PLATE TO SPRING | ||
| 831 | A 0008911805 | SHOCK ABSORBER |
| CAB SUSPENSION,REAR | ||
| 831 | A 0008911805 | SHOCK ABSORBER |
| Repalced by: A 0008912205 | ||
| 831 | A 0008912205 | SHOCK ABSORBER |
| CAB SUSPENSION,REAR | ||
| 834 | A 0008910501 | RUBBER MOUNTING |
| 837 | A 0008910617 | BUSHING |
| 840 | N 000960018125 | SCREW |
| Repalced by: N 000960018072 | ||
| 840 | N 000960018072 | SCREW |
| SHOCK ABSORBER TO CONSOLE | ||
| 843 | A 3878910453 | SPACER TUBE |
| SHOCK ABSORBER TO CONSOLE | ||
| 846 | N 913004018003 | NUT |
| Repalced by: N 910113018004 | ||
| 846 | N 910113018004 | NUT |
| SHOCK ABSORBER TO CONSOLE | ||
| 849 | N 000960018040 | SCREW |
| Repalced by: N 000960018142 | ||
| 849 | N 000960018142 | SCREW |
| SHOCK ABSORBER TO RAIL | ||
| 852 | N 913004018003 | NUT |
| Repalced by: N 910113018004 | ||
| 852 | N 910113018004 | NUT |
| SHOCK ABSORBER TO RAIL | ||
| 855 | A 0008900089 | FASTENER |
| Repalced by: A 0008902389 | ||
| 855 | A 0008901389 | FASTENER |
| Repalced by: A 0008902389 | ||
| 855 | A 0008902389 | FASTENER |
| CAB | ||
| 858 | A 3878911131 | CONSOLE |
| CAB LOCKING MECHANISM | ||
| 861 | N 000933010128 | SCREW |
| FASTENER TO CAB | ||
| M 10X20 | ||
| 861 | N 000933010198 | SCREW |
| FASTENER TO CAB | ||
| M 10X16 | ||
| 861 | N 000933010198 | SCREW |
| FASTENER TO CAB | ||
| M 10X16 | ||
| 864 | N 000933010105 | SCREW |
| FASTENER TO CAB | ||
| M 10X25 | ||
| 867 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 867 | N 000125010532 | WASHER |
| FASTENER TO CAB | ||
| 870 | N 912004010102 | LOCK WASHER |
| FASTENER TO CAB | ||
| 873 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 873 | N 910113010000 | NUT |
| FASTENER TO CAB | ||
| 876 | A 6208910070 | ROD |
| Repalced by: A 6208910270 | ||
| 876 | A 6208910270 | ROD |
| CAB LOCKING MECHANISM | ||
| 876 | A 3878910070 | ROD |
| CAB LOCKING MECHANISM | ||
| 882 | N 001444008202 | PIN |
| PULL TO FASTENER | ||
| 882 | A 1269911907 | PIN |
| PULL TO FASTENER | ||
| 885 | N 000433008406 | WASHER |
| PULL TO FASTENER | ||
| 888 | N 000094002059 | COTTER PIN |
| PULL TO FASTENER | ||
| N 912002008001 | LOCK | |
| Repalced by: N 912002008003 | ||
| N 912002008003 | LOCK | |
| PULL TO FASTENER | ||
| 891 | A 3878910814 | BRACKET |
| SEAL | ||
| 894 | A 3878910085 | SEAL |
| CAB LOCKING MECHANISM | ||
| 897 | N 007346005003 | CLAMPING SLEEVE |
| ROD TO BRACKET | ||
| 900 | A 3878911456 | LEVER |
| CAB LOCKING MECHANISM | ||
| 900 | A 6208910256 | LEVER |
| CAB LOCKING MECHANISM | ||
| 900 | A 6208910256 | LEVER |
| CAB LOCKING MECHANISM | ||
| 900 | A 6208910556 | LEVER |
| CAB LOCKING MECHANISM | ||
| 903 | A 3638910317 | BUSHING |
| 906 | A 6208910073 | HANDLE |
| CAB LOCKING MECHANISM | ||
| 912 | N 007985008142 | SCREW |
| BUSHING AND HANDLE TO CAB | ||
| 915 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 915 | N 913004008001 | NUT |
| BUSHING AND HANDLE TO CAB | ||
| A 2019900292 | RIVET | |
| BUSHING AND HANDLE TO CAB | ||
| 918 | N 007346005004 | CLAMPING SLEEVE |
| Repalced by: N 001481005039 | ||
| 918 | N 001481005039 | CLAMPING SLEEVE |
| HANDLE TO LEVER | ||
| 918 | N 001481005039 | CLAMPING SLEEVE |
| LEVER MOUNTING | ||
| 921 | N 000125015013 | WASHER |
| Repalced by: N 000125015019 | ||
| 921 | N 000125015019 | WASHER |
| LEVER MOUNTING | ||
| 924 | N 900055014401 | LOCK RING |
| LEVER MOUNTING | ||
| 927 | N 001444008233 | PIN |
| ROD TO LEVER | ||
| 930 | N 000433008406 | WASHER |
| ROD TO LEVER | ||
| 933 | N 000094002059 | COTTER PIN |
| ROD TO LEVER | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
