Transporto priemonė: 1933 LS; VIN numerio dalis: 621542
Grupė: 41 PROPELLER SHAFT
| # | Kodas | Pavadinimas |
|---|---|---|

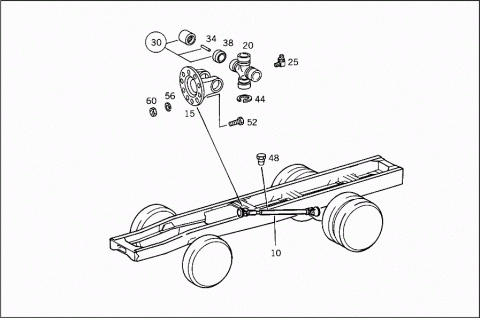

| 010 | A 3954104601 | PROPELLER SHAFT |
| Repalced by: A 3874108501 | ||
| 010 | A 3874108501 | PROPELLER SHAFT |
| Repalced by: A 3954101202 | ||
| 010 | A 3954101202 | PROPELLER SHAFT |
| FROM TRANSMISSION TO REAR AXLE | ||
| 1467 MM | ||
| 010 | A 3894105701 | PROPELLER SHAFT |
| Repalced by: A 3874108904 | ||
| 010 | A 3874108904 | PROPELLER SHAFT |
| FROM TRANSMISSION TO REAR AXLE | ||
| 1770 MM | ||
| 010 | A 6204100302 | PROPELLER SHAFT |
| FROM TRANSMISSION TO REAR AXLE | ||
| 1537 MM | ||
| 010 | A 6204100102 | PROPELLER SHAFT |
| FROM TRANSMISSION TO REAR AXLE | ||
| 1688 MM | ||
| 010 | A 3954101802 | PROPELLER SHAFT |
| FROM TRANSMISSION TO REAR AXLE | ||
| 1998 MM | ||
| 010 | A 6204100002 | PROPELLER SHAFT |
| FROM TRANSMISSION TO REAR AXLE | ||
| 1872 MM | ||
| 010 | A 3954100102 | PROPELLER SHAFT |
| FROM TRANSMISSION TO REAR AXLE | ||
| 1618 MM | ||
| 015 | A 3634110111 | DRIVE FLANGE |
| Repalced by: A 3954110211 | ||
| 015 | A 3954110211 | DRIVE FLANGE |
| Repalced by: A 3954110811 | ||
| 015 | A 3954110811 | DRIVE FLANGE |
| 015 | A 3874110111 | DRIVE FLANGE |
| Repalced by: A 3894110611 | ||
| 015 | A 3894110611 | DRIVE FLANGE |
| 020 | A 3874100031 | UNIVERSAL JOINT CROSS |
| Repalced by: A 6204100031 | ||
| 020 | A 6204100031 | UNIVERSAL JOINT CROSS |
| Repalced by: A 9404100031 | ||
| 020 | A 9404100031 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| 020 | A 6204100131 | UNIVERSAL JOINT CROSS |
| Repalced by: A 0004100231 | ||
| 020 | A 0004100231 | UNIVERSAL JOINT CROSS |
| Repalced by: A 0004101628 | ||
| 020 | A 0004101628 | UNIVERSAL JOINT |
| Repalced by: A 9424100131 | ||
| 020 | A 9424100131 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| 025 | N 071412008302 | GREASE NIPPLE |
| 030 | A 3874100142 | BEARING BUSHING |
| 034 | A 3879810487 | NEEDLE |
| Repalced by: A 3879810787 | ||
| 034 | A 3879810787 | NEEDLE |
| SET = 164 PIECES | ||
| TO 387 410 00 31 | ||
| 038 | A 3634110280 | GASKET |
| 044 | A 3634110773 | LOCK |
| Repalced by: A 0069943141 | ||
| 044 | A 0069943141 | LOCK |
| AS REQUIRED | ||
| 2.00 MM | ||
| 044 | A 3634110973 | LOCK |
| Repalced by: A 0069943541 | ||
| 044 | A 0069943541 | LOCK |
| AS REQUIRED | ||
| 2.10 MM | ||
| 044 | A 3634111173 | LOCK |
| Repalced by: A 0069943941 | ||
| 044 | A 0069943941 | LOCK |
| AS REQUIRED | ||
| 2.20 MM | ||
| 044 | A 3634110173 | LOCK |
| Repalced by: A 0069941941 | ||
| 044 | A 0069941941 | LOCK |
| AS REQUIRED | ||
| 2.00 MM | ||
| 044 | A 3634110573 | LOCK |
| Repalced by: A 0069942341 | ||
| 044 | A 0069942341 | LOCK |
| AS REQUIRED | ||
| 2.10 MM | ||
| 044 | A 3634111373 | LOCK |
| Repalced by: A 0069942741 | ||
| 044 | A 0069942741 | LOCK |
| AS REQUIRED | ||
| 2.20 MM | ||
| A 3954110059 | SEAL RING | |
| PROTECTIVE TUBE | ||
| 105X17 MM | ||
| A 0004110159 | SEAL RING | |
| PROTECTIVE TUBE | ||
| 102.5X22 MM | ||
| A 3894110080 | GASKET | |
| PROTECTIVE TUBE | ||
| 048 | N 900087008000 | PLUG |
| N 071412008101 | GREASE NIPPLE | |
| Repalced by: N 071412008102 | ||
| N 071412008102 | GREASE NIPPLE | |
| 052 | A 0029909901 | SCREW |
| Repalced by: A 3959900501 | ||
| 052 | A 3959900501 | SCREW |
| PROPELLER SHAFT TO REAR AXLE | ||
| 056 | N 912004016101 | LOCK WASHER |
| PROPELLER SHAFT TO TRANSMISSION AND TO REAR AXLE | ||
| 060 | N 000934016013 | NUT |
| Repalced by: N 308673016001 | ||
| 060 | N 308673016001 | NUT |
| PROPELLER SHAFT TO TRANSMISSION AND TO REAR AXLE | ||

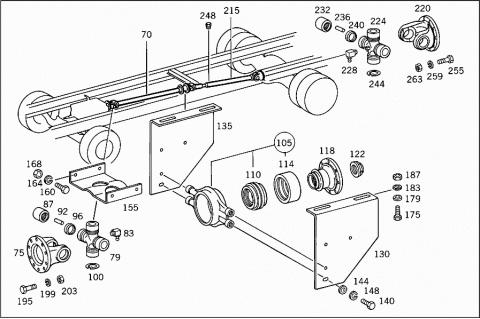

| 070 | A 3464101104 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 1686 MM | ||
| 070 | A 3874100118 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 1623 MM | ||
| 075 | A 3634110111 | DRIVE FLANGE |
| Repalced by: A 3954110211 | ||
| 075 | A 3954110211 | DRIVE FLANGE |
| Repalced by: A 3954110811 | ||
| 075 | A 3954110811 | DRIVE FLANGE |
| 075 | A 3874110111 | DRIVE FLANGE |
| Repalced by: A 3894110611 | ||
| 075 | A 3894110611 | DRIVE FLANGE |
| 079 | A 3874100031 | UNIVERSAL JOINT CROSS |
| Repalced by: A 6204100031 | ||
| 079 | A 6204100031 | UNIVERSAL JOINT CROSS |
| Repalced by: A 9404100031 | ||
| 079 | A 9404100031 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| 079 | A 6204100131 | UNIVERSAL JOINT CROSS |
| Repalced by: A 0004100231 | ||
| 079 | A 0004100231 | UNIVERSAL JOINT CROSS |
| Repalced by: A 0004101628 | ||
| 079 | A 0004101628 | UNIVERSAL JOINT |
| Repalced by: A 9424100131 | ||
| 079 | A 9424100131 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| 083 | N 071412008302 | GREASE NIPPLE |
| 087 | A 3874100142 | BEARING BUSHING |
| 092 | A 3879810487 | NEEDLE |
| Repalced by: A 3879810787 | ||
| 092 | A 3879810787 | NEEDLE |
| SET = 164 PIECES | ||
| TO 387 410 00 31 | ||
| 096 | A 3634110280 | GASKET |
| 100 | A 3634110773 | LOCK |
| Repalced by: A 0069943141 | ||
| 100 | A 0069943141 | LOCK |
| AS REQUIRED | ||
| 2.00 MM | ||
| 100 | A 3634110973 | LOCK |
| Repalced by: A 0069943541 | ||
| 100 | A 0069943541 | LOCK |
| AS REQUIRED | ||
| 2.10 MM | ||
| 100 | A 3634111173 | LOCK |
| Repalced by: A 0069943941 | ||
| 100 | A 0069943941 | LOCK |
| AS REQUIRED | ||
| 2.20 MM | ||
| 100 | A 3634110173 | LOCK |
| Repalced by: A 0069941941 | ||
| 100 | A 0069941941 | LOCK |
| AS REQUIRED | ||
| 2.00 MM | ||
| 100 | A 3634110573 | LOCK |
| Repalced by: A 0069942341 | ||
| 100 | A 0069942341 | LOCK |
| AS REQUIRED | ||
| 2.10 MM | ||
| 100 | A 3634111373 | LOCK |
| Repalced by: A 0069942741 | ||
| 100 | A 0069942741 | LOCK |
| AS REQUIRED | ||
| 2.20 MM | ||
| A 3874130061 | PROTECTIVE CAP | |
| A 3894130161 | PROTECTIVE CAP | |
| A 3894130361 | PROTECTIVE CAP | |
| 105 | A 3874100010 | REPAIR KIT |
| INTERMEDIATE SHAFT BEARING | ||
| 110 | A 3634100151 | BALL BEARING |
| PROPELLER SHAFT BEARING | ||
| 114 | A 3634130012 | RUBBER MOUNTING |
| PROPELLER SHAFT BEARING | ||
| A 3894100122 | INTERMEDIATE BEARING | |
| Repalced by: A 3894100222 | ||
| A 3894100222 | INTERMEDIATE BEARING | |
| Repalced by: A 6544100022 | ||
| A 6544100022 | INTERMEDIATE BEARING | |
| PROPELLER SHAFT | ||
| A 0029819625 | BALL BEARING | |
| A 0029819725 | BALL BEARING | |
| N 912009110200 | SNAP RING | |
| A 3894130261 | PROTECTIVE CAP | |
| A 6544110052 | SPACER WASHER | |
| PROPELLER SHAFT BEARING | ||
| 118 | A 3954100030 | CENTERING FLANGE |
| Repalced by: A 3894110146 | ||
| 118 | A 3894100030 | CENTERING FLANGE |
| Repalced by: A 3894110146 | ||
| 118 | A 3894110146 | FLANGE |
| PLEASE REFER TO ADDITIONAL PARTS | ||
| A 3874130061 | PROTECTIVE CAP | |
| A 3894130161 | PROTECTIVE CAP | |
| A 3894130361 | PROTECTIVE CAP | |
| 122 | A 3663530072 | NUT |
| Repalced by: A 3853510672 | ||
| 122 | A 3853510672 | NUT |
| FOLLOWER FLANGE TO PROPELLER SHAFT | ||
| A 3894110162 | THRUST WASHER | |
| FOLLOWER FLANGE TO PROPELLER SHAFT | ||
| A 3839900019 | SCREW | |
| FOLLOWER FLANGE TO PROPELLER SHAFT | ||
| 130 | A 6204133742 | BRACKET |
| PROPELLER SHAFT BEARING,LEFT | ||
| 130 | A 6204134142 | BRACKET |
| PROPELLER SHAFT BEARING,LEFT | ||
| 135 | A 6204133642 | BRACKET |
| PROPELLER SHAFT BEARING,RIGHT | ||
| 135 | A 6204134042 | BRACKET |
| PROPELLER SHAFT BEARING,RIGHT | ||
| 140 | N 000961012106 | SCREW |
| BRACKET TO HOUSING | ||
| 144 | A 6739900640 | WASHER |
| Repalced by: A 3879900040 | ||
| 144 | A 3879900040 | WASHER |
| Repalced by: N 007349013003 | ||
| 144 | N 007349013005 | WASHER |
| BRACKET TO HOUSING | ||
| 148 | N 912004012100 | LOCK WASHER |
| BRACKET TO HOUSING | ||
| 155 | A 3954130011 | REINFORCEMENT |
| PROPELLER SHAFT | ||
| 160 | N 000961012106 | SCREW |
| REINFORCEMENT TO BRACKET | ||
| 164 | N 912004012100 | LOCK WASHER |
| REINFORCEMENT TO BRACKET | ||
| 168 | N 913004012009 | NUT |
| Repalced by: N 910113012003 | ||
| 168 | N 910113012003 | NUT |
| REINFORCEMENT TO BRACKET | ||
| 175 | N 000961012108 | SCREW |
| PROPELLER SHAFT BEARING TO CROSS MEMBER | ||
| 179 | A 6739900640 | WASHER |
| Repalced by: A 3879900040 | ||
| 179 | A 3879900040 | WASHER |
| Repalced by: N 007349013003 | ||
| 179 | N 007349013005 | WASHER |
| PROPELLER SHAFT BEARING TO CROSS MEMBER | ||
| 183 | N 912004012100 | LOCK WASHER |
| PROPELLER SHAFT BEARING TO CROSS MEMBER | ||
| 187 | N 913004012009 | NUT |
| Repalced by: N 910113012003 | ||
| 187 | N 910113012003 | NUT |
| PROPELLER SHAFT BEARING TO CROSS MEMBER | ||
| 195 | A 0029909901 | SCREW |
| Repalced by: A 3959900501 | ||
| 195 | A 3959900501 | SCREW |
| PROPELLER SHAFT TO TRANSMISSION | ||
| 199 | N 912004016101 | LOCK WASHER |
| PROPELLER SHAFT TO TRANSMISSION | ||
| 203 | N 000934016013 | NUT |
| Repalced by: N 308673016001 | ||
| 203 | N 308673016001 | NUT |
| PROPELLER SHAFT TO TRANSMISSION | ||
| 215 | A 3954102101 | PROPELLER SHAFT |
| Repalced by: A 6244100101 | ||
| 215 | A 6244100101 | PROPELLER SHAFT |
| Repalced by: A 3954101702 | ||
| 215 | A 3954101702 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| 1411 MM | ||
| 215 | A 3874108304 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| 1402 MM | ||
| 220 | A 3634110111 | DRIVE FLANGE |
| Repalced by: A 3954110211 | ||
| 220 | A 3954110211 | DRIVE FLANGE |
| Repalced by: A 3954110811 | ||
| 220 | A 3954110811 | DRIVE FLANGE |
| 220 | A 3874110111 | DRIVE FLANGE |
| Repalced by: A 3894110611 | ||
| 220 | A 3894110611 | DRIVE FLANGE |
| 224 | A 3874100031 | UNIVERSAL JOINT CROSS |
| Repalced by: A 6204100031 | ||
| 224 | A 6204100031 | UNIVERSAL JOINT CROSS |
| Repalced by: A 9404100031 | ||
| 224 | A 9404100031 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| 224 | A 6204100131 | UNIVERSAL JOINT CROSS |
| Repalced by: A 0004100231 | ||
| 224 | A 0004100231 | UNIVERSAL JOINT CROSS |
| Repalced by: A 0004101628 | ||
| 224 | A 0004101628 | UNIVERSAL JOINT |
| Repalced by: A 9424100131 | ||
| 224 | A 9424100131 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| 228 | N 071412008302 | GREASE NIPPLE |
| 232 | A 3874100142 | BEARING BUSHING |
| 236 | A 3879810487 | NEEDLE |
| Repalced by: A 3879810787 | ||
| 236 | A 3879810787 | NEEDLE |
| SET = 164 PIECES | ||
| TO 387 410 00 31 | ||
| 240 | A 3634110280 | GASKET |
| TO 387 410 00 31 | ||
| 244 | A 3634110773 | LOCK |
| Repalced by: A 0069943141 | ||
| 244 | A 0069943141 | LOCK |
| AS REQUIRED | ||
| 2.00 MM | ||
| 244 | A 3634110973 | LOCK |
| Repalced by: A 0069943541 | ||
| 244 | A 0069943541 | LOCK |
| AS REQUIRED | ||
| 2.10 MM | ||
| 244 | A 3634111173 | LOCK |
| Repalced by: A 0069943941 | ||
| 244 | A 0069943941 | LOCK |
| AS REQUIRED | ||
| 2.20 MM | ||
| 244 | A 3634110173 | LOCK |
| Repalced by: A 0069941941 | ||
| 244 | A 0069941941 | LOCK |
| AS REQUIRED | ||
| 2.00 MM | ||
| 244 | A 3634110573 | LOCK |
| Repalced by: A 0069942341 | ||
| 244 | A 0069942341 | LOCK |
| AS REQUIRED | ||
| 2.10 MM | ||
| 244 | A 3634111373 | LOCK |
| Repalced by: A 0069942741 | ||
| 244 | A 0069942741 | LOCK |
| AS REQUIRED | ||
| 2.20 MM | ||
| A 3954110059 | SEAL RING | |
| A 3894110080 | GASKET | |
| 248 | N 900087008000 | PLUG |
| N 071412008101 | GREASE NIPPLE | |
| Repalced by: N 071412008102 | ||
| N 071412008102 | GREASE NIPPLE | |
| 255 | A 0029909901 | SCREW |
| Repalced by: A 3959900501 | ||
| 255 | A 3959900501 | SCREW |
| PROPELLER SHAFT TO PROPELLER SHAFT BEARING AND TO REAR AXLE | ||
| 259 | N 912004016101 | LOCK WASHER |
| PROPELLER SHAFT TO PROPELLER SHAFT BEARING AND TO REAR AXLE | ||
| 263 | N 000934016013 | NUT |
| Repalced by: N 308673016001 | ||
| 263 | N 308673016001 | NUT |
| PROPELLER SHAFT TO PROPELLER SHAFT BEARING AND TO REAR AXLE | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
