Transporto priemonė: 1933 LS; VIN numerio dalis: 621542
Grupė: 50 RADIATOR

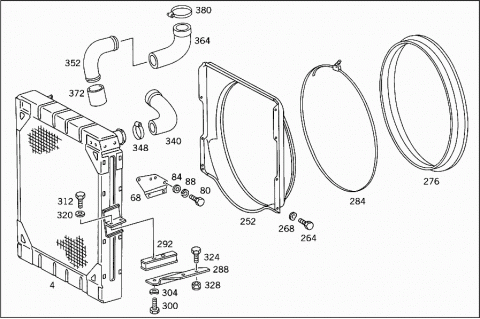

62169

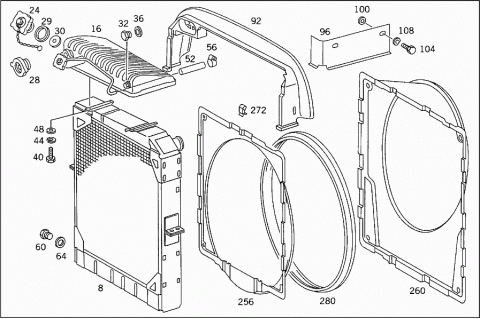

62170

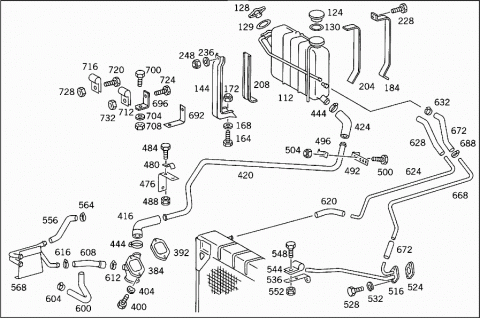

62171

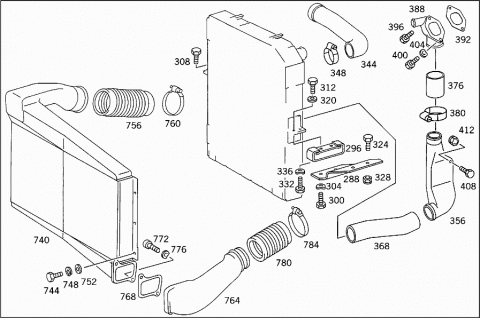

62172

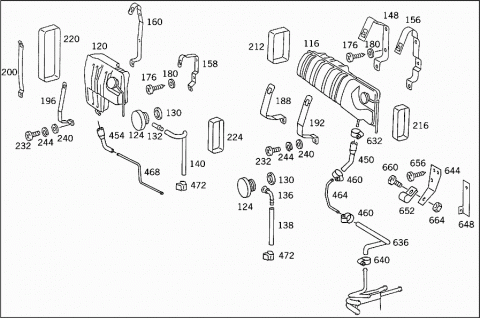

62173

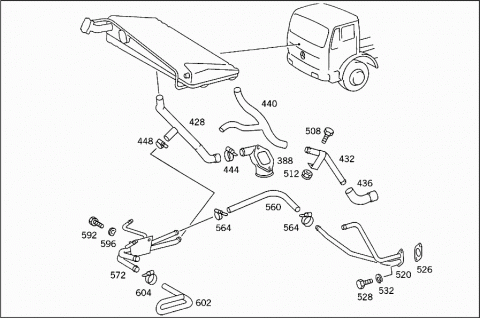

62174

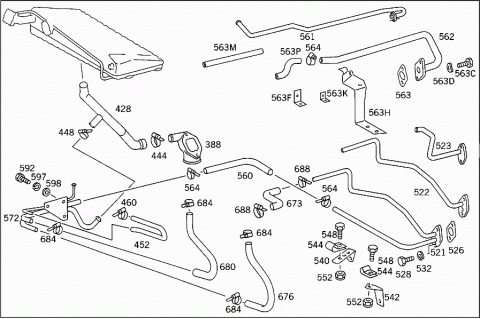

62175
# Kodas Pavadinimas
004 A 3855010401 RADIATOR
Repalced by: A 3875002903
004 A 3875002903 RADIATOR
A 0005015701 RADIATOR
Repalced by: A 0005019101
008 A 0005019101 RADIATOR
008 A 0005019101 RADIATOR
A 0005019001 RADIATOR
Repalced by: A 0015010201
008 A 0015010201 RADIATOR
Repalced by: A 0005001103
008 A 0005001103 RADIATOR
008 A 0005001103 RADIATOR
A 0005017801 RADIATOR
Repalced by: A 0015010301
008 A 0015010301 RADIATOR
016 A 0005000749 TANK
EXPANSION TANK
016 A 0005000749 TANK
EXPANSION TANK
016 A 0005001149 TANK
EXPANSION TANK
016 A 0005001049 TANK
EXPANSION TANK
024 A 0005014615 RADIATOR CAP
FILLER NECK
024 A 0005017215 RADIATOR CAP
FILLER NECK
028 A 0005013715 RADIATOR CAP
LATERAL
028 A 0005017115 RADIATOR CAP
LATERAL
029 A 0005010480 GASKET
O.D.,
52 MM
030 A 0005010880 GASKET
O.D.,
37 MM
A 0019973230 SCREW PLUG
Repalced by: N 007604014101
032 N 007604014101 SCREW PLUG
WATER DRAIN
036 N 007603014405 SEAL RING
WATER DRAIN
040 N 000933008212 SCREW
Repalced by: N 304017008016
040 N 304017008016 SCREW
FROM EXPANSION TANK TO RADIATOR
044 N 912004008102 LOCK WASHER
FROM EXPANSION TANK TO RADIATOR
048 N 000125008418 WASHER
Repalced by: N 000125008443
048 N 000125008443 WASHER
FROM EXPANSION TANK TO RADIATOR
052 A 0149975782 HOSE
OVERFLOW, EXPANSION TANK
056 N 916017011000 CLAMP
Repalced by: N 916017011001
056 N 000000000665 CLAMP
OVERFLOW, EXPANSION TANK
A 0019973230 SCREW PLUG
Repalced by: N 007604014101
060 N 007604014101 SCREW PLUG
WATER DRAIN
064 N 007603014405 SEAL RING
WATER DRAIN
068 A 4030100340 BRACKET
OI DIPSTICK GUIDE TUBE
A 4220100040 BRACKET
Repalced by: A 4220100240
068 A 4220100240 BRACKET
OI DIPSTICK GUIDE TUBE
068 A 4220100140 BRACKET
OI DIPSTICK GUIDE TUBE
080 N 000933008145 SCREW
OIL-DIPSTICK GUIDE TUBE TO BRACKET
084 N 007349008003 WASHER
OIL-DIPSTICK GUIDE TUBE TO BRACKET
088 N 912004008102 LOCK WASHER
OIL-DIPSTICK GUIDE TUBE TO BRACKET
092 A 6205050286 BOOT
(SEALING LIP)
092 A 6205050486 BOOT
(SEALING LIP)
092 A 6205050186 BOOT
(SEALING LIP)
096 A 6205050140 BRACKET
SEALING LIP TO RADIATOR
A 6360150051 SPACER RING
Repalced by: A 3059900740
100 A 3059900740 WASHER
Repalced by: N 000125006421
100 N 000125006421 WASHER
SEALING LIP TO RADIATOR
104 N 000933006121 SCREW
Repalced by: N 304017006020
104 N 304017006020 SCREW
SEALING LIP TO RADIATOR
108 N 000137006204 SPRING WASHER
SEALING LIP TO RADIATOR
112 A 3815000749 TANK
COOLING WATER EXPANSION
116 A 6205000149 TANK
(EXPANSION TANK)
A 6175000049 TANK
Repalced by: A 6205000349
120 A 6205000349 TANK
(EXPANSION TANK)
120 A 6205000349 TANK
(EXPANSION TANK)
124 A 0005014515 RADIATOR CAP
TOP
TO 381 500 07 49,620 500 01 49
124 A 0005014515 RADIATOR CAP
TOP
TO 617 500 00 49,620 500 03 49
128 A 0005014615 RADIATOR CAP
FILLER NECK
TO 381 500 07 49
128 A 0005017215 RADIATOR CAP
FILLER NECK
TO 381 500 07 49
129 A 0005010480 GASKET
O.D.,
52 MM,TO 000 501 46 15
130 A 0005010880 GASKET
O.D.,
37 MM,TO 000 501 45 15,000 501 46 15
132 A 0005010010 DRAIN PIPE
TO 617 500 00 49
136 A 0005010110 DRAIN PIPE
TO 620 500 01 49,620 500 03 49
138 A 0139978682 HOSE
TO 620 500 01 49,617 500 00 49
140 A 0079972682 HOSE
Repalced by: A 0219977682
140 A 0219977682 HOSE
TO 620 500 03 49
144 A 3815000731 BRACKET
EXPANSION TANK
148 A 6205000031 BRACKET
EXPANSION TANK,RIGHT
156 A 6205000131 BRACKET
EXPANSION TANK,LEFT
158 A 6175000031 BRACKET
EXPANSION TANK,RIGHT
158 A 6175000031 BRACKET
EXPANSION TANK,RIGHT
160 A 6175000131 BRACKET
EXPANSION TANK,LEFT
160 A 6175000131 BRACKET
EXPANSION TANK,LEFT
164 N 000933010164 SCREW
BRACKET TO RIGHT FENDER
168 N 006902011101 WASHER
BRACKET TO RIGHT FENDER
172 N 913004010008 NUT
Repalced by: N 910113010000
172 N 910113010000 NUT
BRACKET TO RIGHT FENDER
176 N 007981005306 SHEET METAL SCREW
BRACKET TO CAB
176 N 007981005306 SHEET METAL SCREW
BRACKET TO CAB
180 N 000125006421 WASHER
BRACKET TO CAB
180 N 000125006421 WASHER
BRACKET TO CAB
184 A 3815012520 BRACKET
(STRAP)
188 A 6205010320 STRAP
EXPANSION TANK,RIGHT
192 A 6205010420 STRAP
EXPANSION TANK,LEFT
196 A 6175010220 STRAP
EXPANSION TANK,LEFT
196 A 6175010220 STRAP
EXPANSION TANK,LEFT
200 A 6175010320 STRAP
EXPANSION TANK,RIGHT
200 A 6175010320 STRAP
EXPANSION TANK,RIGHT
204 A 3634750220 PAD
EXPANSION TANK TO BRACKET
425 MM
A 3815010295 SHIM
Repalced by: A 3815010495
208 A 3815010495 SHIM
STRAP
212 A 6205010195 SHIM
EXPANSION TANK,RIGHT
216 A 6205010295 SHIM
EXPANSION TANK,LEFT
220 A 6175010095 SHIM
EXPANSION TANK,LEFT
220 A 6175010095 SHIM
EXPANSION TANK,LEFT
224 A 6175010195 SHIM
EXPANSION TANK,RIGHT
224 A 6175010195 SHIM
EXPANSION TANK,RIGHT
228 N 000933010105 SCREW
EXPANSION TANK TO BRACKET
232 N 007985006193 SCREW
Repalced by: N 000000001146
232 N 000000001146 SCREW
EXPANSION TANK TO BRACKET
M 6X16
232 N 000000001146 SCREW
EXPANSION TANK TO BRACKET
M 6X16
236 N 000125010518 WASHER
Repalced by: N 000125010532
236 N 000125010532 WASHER
EXPANSION TANK TO BRACKET
240 N 009021006205 WASHER
Repalced by: N 009021006208
240 N 009021006208 WASHER
EXPANSION TANK TO BRACKET
240 N 009021006208 WASHER
EXPANSION TANK TO BRACKET
244 N 912004006102 LOCK WASHER
EXPANSION TANK TO BRACKET
244 N 912004006102 LOCK WASHER
EXPANSION TANK TO BRACKET
248 N 913004010008 NUT
Repalced by: N 910113010000
248 N 910113010000 NUT
EXPANSION TANK TO BRACKET
252 A 3875052230 AIR BAFFLE
RADIATOR
256 A 6205050655 FAN SHROUD
RADIATOR
256 A 6205050655 FAN SHROUD
RADIATOR
256 A 6205050355 FAN SHROUD
RADIATOR
260 A 6205050855 FAN SHROUD
RADIATOR
264 N 000933006102 SCREW
AIR BAFFLE AND BRACKET TO RADIATOR
264 N 000933006102 SCREW
GUIDE TUBE BRACKET TO RADIATOR
264 N 000933006102 SCREW
AIR BAFFLE AND BRACKET TO RADIATOR
268 N 000137006204 SPRING WASHER
AIR BAFFLE AND BRACKET TO RADIATOR
268 N 000137006204 SPRING WASHER
GUIDE TUBE BRACKET TO RADIATOR
268 N 000137006204 SPRING WASHER
AIR BAFFLE AND BRACKET TO RADIATOR
272 A 1235040246 CLAMP
FAN SHROUD TO RADIATOR
272 A 1235040246 CLAMP
FAN SHROUD TO RADIATOR
276 A 3635050180 BOOT
AIR BAFFLE TO RADIATOR
280 A 6205050086 BOOT
FAN SHROUD
280 A 6205050086 BOOT
FAN SHROUD
284 A 3639950065 CLAMP
AIR BAFFLE TO RADIATOR
288 A 6205040201 SUPPORT
RADIATOR,LEFT
288 A 6205040801 SUPPORT
288 A 6205040301 SUPPORT
RADIATOR,RIGHT
292 A 3875040012 RUBBER MOUNTING
RADIATOR TO SUPPORT
296 A 6205040112 RUBBER MOUNTING
RADIATOR TO SUPPORT
296 A 6205040112 RUBBER MOUNTING
RADIATOR TO SUPPORT
300 N 000933010238 SCREW
Repalced by: N 304017010028
300 N 304017010028 SCREW
RUBBER MOUNTING TO SUPPORT
M 10X18
300 N 304017010028 SCREW
RUBBER MOUNTING TO SUPPORT
M 10X18
300 N 304017010028 SCREW
RUBBER MOUNTING TO SUPPORT
M 10X18
304 N 000137010201 SPRING WASHER
RUBBER MOUNTING TO SUPPORT
308 N 000933010164 SCREW
RADIATOR TO RUBBER MOUNTING
M 10X22
312 N 000933010105 SCREW
RADIATOR TO RUBBER MOUNTING
M 10X25
312 N 000933010105 SCREW
RADIATOR TO RUBBER MOUNTING
M 10X25
312 N 000933010105 SCREW
RUBBER MOUNTING TO FRAME
M 10X25
320 N 000125010518 WASHER
Repalced by: N 000125010532
320 N 000125010532 WASHER
RADIATOR TO RUBBER MOUNTING
324 N 000961012151 SCREW
SUPPORT TO SIDE MEMBER
324 N 000961012151 SCREW
SUPPORT TO SIDE MEMBER
324 N 000961012151 SCREW
SUPPORT TO SIDE MEMBER
324 N 000961012122 SCREW
SUPPORT TO SIDE MEMBER
328 N 910113012002 NUT
SUPPORT TO SIDE MEMBER
328 N 910113012002 NUT
SUPPORT TO SIDE MEMBER
328 N 910113012002 NUT
SUPPORT TO SIDE MEMBER
332 N 000933010238 SCREW
Repalced by: N 304017010028
332 N 304017010028 SCREW
RUBBER MOUNTING TO FRAME
332 N 304017010028 SCREW
RUBBER MOUNTING TO FRAME
336 N 000137010201 SPRING WASHER
RUBBER MOUNTING TO FRAME
336 N 000137010201 SPRING WASHER
RUBBER MOUNTING TO FRAME
340 A 3875010982 HOSE
FROM RADIATOR TO THERMOSTAT
344 A 6205011082 HOSE
FROM RADIATOR TO THERMOSTAT
344 A 6205011082 HOSE
FROM RADIATOR TO THERMOSTAT
344 A 6205012982 HOSE
FROM RADIATOR TO THERMOSTAT
348 N 916017070000 CLAMP
Repalced by: N 000000000674
348 N 000000000674 CLAMP
HOSE TO RADIATOR AND TO ENGINE
352 A 3875010356 PIPE ELBOW
FROM RADIATOR TO WATER PUMP
A 6205010056 PIPE ELBOW
Repalced by: A 6205010156
356 A 6205010156 PIPE ELBOW
Repalced by: A 6205010056
356 A 6205010056 PIPE ELBOW
FROM RADIATOR TO WATER PUMP
356 A 6205010056 PIPE ELBOW
FROM RADIATOR TO WATER PUMP
A 6205010456 PIPE ELBOW
Repalced by: A 6205010556
A 6205010556 PIPE ELBOW
Repalced by: A 6555010756
356 A 6555010756 PIPE ELBOW
FROM RADIATOR TO WATER PUMP
356 A 6555010756 PIPE ELBOW
FROM RADIATOR TO WATER PUMP
356 A 6555011556 PIPE ELBOW
FROM RADIATOR TO WATER PUMP
364 A 3875012982 HOSE
FROM RADIATOR TO WATER PUMP
368 A 6205010382 HOSE
FROM RADIATOR TO WATER PUMP
368 A 6205010382 HOSE
FROM RADIATOR TO WATER PUMP
A 6205013882 HOSE
Repalced by: A 6555011282
368 A 6555011282 HOSE
FROM RADIATOR TO WATER PUMP
368 A 6205010482 HOSE
FROM RADIATOR TO WATER PUMP
A 6205013882 HOSE
Repalced by: A 6555011282
368 A 6555011282 HOSE
FROM RADIATOR TO WATER PUMP
368 A 6205010682 HOSE
FROM RADIATOR TO WATER PUMP
368 A 6205013782 HOSE
FROM RADIATOR TO WATER PUMP
372 N 900271065003 HOSE
FROM RADIATOR TO WATER PUMP
376 N 900271070007 HOSE
FROM RADIATOR TO WATER PUMP
376 N 900271070007 HOSE
FROM RADIATOR TO WATER PUMP
380 N 916017070000 CLAMP
Repalced by: N 000000000674
380 N 000000000674 CLAMP
FROM RADIATOR TO WATER PUMP
A 3875010223 CONNECTOR
Repalced by: A 3875010423
384 A 3875010423 CONNECTOR
AT WATER PUMP
A 6205010023 CONNECTOR
Repalced by: A 6205010323
388 A 6205010323 CONNECTOR
AT WATER PUMP
388 A 6205010323 CONNECTOR
AT WATER PUMP
388 A 6205010323 CONNECTOR
AT WATER PUMP
A 6205010123 CONNECTOR
Repalced by: A 6205010423
388 A 6205010423 CONNECTOR
AT WATER PUMP
388 A 6205010423 CONNECTOR
AT WATER PUMP
A 4032010480 GASKET
Repalced by: A 4422010480
392 A 4422010480 GASKET
CONNECTOR TO WATER PUMP
396 N 000931010271 SCREW
CONNECTOR TO WATER PUMP
396 N 000931010271 SCREW
CONNECTOR TO WATER PUMP
396 N 000931010271 SCREW
CONNECTOR TO WATER PUMP
400 N 000933010105 SCREW
CONNECTOR TO WATER PUMP
400 N 000933010105 SCREW
CONNECTOR TO WATER PUMP
400 N 000933010105 SCREW
CONNECTOR TO WATER PUMP
400 N 000933010105 SCREW
CONNECTOR TO WATER PUMP
400 N 000933010105 SCREW
CONNECTOR TO WATER PUMP
404 N 000137010201 SPRING WASHER
CONNECTOR TO WATER PUMP
408 N 000931010282 SCREW
PIPE BEND TO BRACKET
412 N 913004010008 NUT
Repalced by: N 910113010000
412 N 910113010000 NUT
PIPE BEND TO BRACKET
412 N 910113010000 NUT
PIPE BEND TO BRACKET
416 A 3875011082 HOSE
FROM WATER PUMP TO EXPANSION TANK
420 A 3875010624 COOLING WATER PIPE
FROM WATER PUMP TO EXPANSION TANK
424 A 3875011782 HOSE
FROM WATER PUMP TO EXPANSION TANK
428 A 6205012082 HOSE
FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
428 A 6205012082 HOSE
FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
428 A 6205013082 HOSE
FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
432 A 6205000172 LINE
FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
432 A 6205000172 LINE
FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
436 A 6205011682 HOSE
Repalced by: A 6585010082
436 A 6585010082 HOSE
FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
436 A 6585010082 HOSE
FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
440 A 6205011882 HOSE
FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
440 A 6205011882 HOSE
FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
444 N 916017032000 CLAMP
Repalced by: N 000000000670
444 N 000000000670 CLAMP
FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
444 N 000000000670 CLAMP
FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
444 N 000000000670 CLAMP
FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
448 N 916017020000 CLAMP
Repalced by: N 000000000667
448 N 000000000667 CLAMP
FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
448 N 000000000667 CLAMP
(DE-AERATION LINE) FROM RADIATOR TO EXPANSION TANK
448 N 000000000667 CLAMP
(DE-AERATION LINE) FROM RADIATOR TO EXPANSION TANK
450 A 6205012882 HOSE
(DE-AERATION LINE) FROM RADIATOR TO EXPANSION TANK
452 N 900271008043 HOSE
(DE-AERATION LINE) FROM RADIATOR TO EXPANSION TANK
452 N 900271008043 HOSE
(DE-AERATION LINE) FROM RADIATOR TO EXPANSION TANK
A 6205013282 HOSE
Repalced by: A 6205012882
454 A 6205012882 HOSE
(DE-AERATION LINE) FROM RADIATOR TO EXPANSION TANK
454 A 6205012882 HOSE
(DE-AERATION LINE) FROM RADIATOR TO EXPANSION TANK
460 N 916017011000 CLAMP
Repalced by: N 916017011001
460 N 000000000665 CLAMP
HOSE TO EXPANSION TANK AND TO BREATHER PIPE
460 N 000000000665 CLAMP
HOSE TO EXPANSION TANK AND TO BREATHER PIPE
460 N 000000000665 CLAMP
HOSE TO EXPANSION TANK AND TO BREATHER PIPE
460 N 000000000665 CLAMP
HOSE TO EXPANSION TANK AND TO BREATHER PIPE
464 A 6175010225 BREATHER PIPE
468 A 6205010725 BREATHER PIPE
DE-AERATION LINE TO HEATER AND TO RADIATOR
468 A 6205010725 BREATHER PIPE
DE-AERATION LINE TO HEATER AND TO RADIATOR
472 A 0009881878 CLIP
DE-AERATION
472 A 0009881878 CLIP
DE-AERATION
476 A 3875010820 BRACKET
Repalced by: A 3834929141
476 A 3834929141 BRACKET
COOLING WATER LINE TO FRAME
480 A 3879950020 CLAMP
COOLING WATER LINE TO FRAME
484 N 000933008212 SCREW
Repalced by: N 304017008016
484 N 304017008016 SCREW
COOLING WATER LINE TO FRAME
488 N 913004008004 NUT
Repalced by: N 913004008001
488 N 913004008001 NUT
COOLING WATER LINE TO FRAME
492 A 3604292940 BRACKET
COOLING WATER LINE TO BRACKET
496 A 3879950020 CLAMP
COOLING WATER LINE TO BRACKET & CONSOLE,RESP.
500 N 000933008147 SCREW
Repalced by: N 304017008021
500 N 304017008021 SCREW
COOLING WATER LINE TO BRACKET & CONSOLE,RESP.
504 N 913004008004 NUT
Repalced by: N 913004008001
504 N 913004008001 NUT
COOLING WATER LINE TO BRACKET & CONSOLE,RESP.
508 N 000933006103 SCREW
Repalced by: N 304017006018
508 N 304017006018 SCREW
PIPE TO CONTROL BRACKET
508 N 304017006018 SCREW
PIPE TO CONTROL BRACKET
512 N 913004006002 NUT
Repalced by: N 913004006001
512 N 913004006001 NUT
PIPE TO CONTROL BRACKET
512 N 913004006001 NUT
PIPE TO CONTROL BRACKET
516 A 3875000079 FLANGE
HEATING AND BREATHING
520 A 6205000079 FLANGE
HEATING AND BREATHING
520 A 6205000079 FLANGE
HEATING AND BREATHING
520 A 6205000279 FLANGE
HEATING AND BREATHING
520 A 6205000279 FLANGE
HEATING AND BREATHING
521 A 6205000879 FLANGE
HEATING AND BREATHING
522 A 6205000779 FLANGE
DE-AERATION; FROM ENGINE TO EXPANSION TANK
523 A 6205000579 FLANGE
DE-AERATION; FROM ENGINE TO EXPANSION TANK
524 N 917003040008 GASKET
FLANGE TO ENGINE
526 N 917003040008 GASKET
FLANGE TO ENGINE
526 N 917003040008 GASKET
FLANGE TO ENGINE
528 N 000933010105 SCREW
FLANGE TO ENGINE
532 N 912004010102 LOCK WASHER
FLANGE TO ENGINE
536 A 3875011420 BRACKET
HEATING PIPE
536 A 3875011420 BRACKET
HEATING PIPE
536 A 3875011420 BRACKET
HEATING PIPE
536 A 3875011220 BRACKET
HEATING PIPE
540 A 6205010620 BRACKET
HEATING PIPE
540 A 6205010620 BRACKET
HEATING PIPE
540 A 6205011420 BRACKET
HEATING PIPE
542 A 3875016420 BRACKET
DE-AERATION LINE
544 A 3609950601 CLAMP
HEATING PIPE TO ENGINE
544 A 3609950601 CLAMP
DE-AERATION LINE
544 A 3609950601 CLAMP
HEATING PIPE TO FAN SHROUD BRACKET
548 N 000933006130 SCREW
HEATING PIPE TO ENGINE
548 N 000933006130 SCREW
DE-AERATION LINE
552 N 913004006002 NUT
Repalced by: N 913004006001
552 N 913004006001 NUT
HEATING PIPE TO ENGINE
552 N 913004006001 NUT
DE-AERATION LINE
556 A 3875060135 HOSE
FROM ENGINE CONNECTION FLANGE TO HEATING PIPE AT RADIATOR
560 A 6205060035 HOSE
FROM ENGINE CONNECTION FLANGE TO HEATING PIPE AT RADIATOR
560 A 6205060035 HOSE
FROM ENGINE CONNECTION FLANGE TO HEATING PIPE AT RADIATOR
560 A 6205060535 HOSE
FROM ENGINE CONNECTION FLANGE TO HEATING PIPE AT RADIATOR
560 A 6205060535 HOSE
FROM ENGINE CONNECTION FLANGE TO HEATING PIPE AT RADIATOR
560 A 6205060635 HOSE
FROM ENGINE CONNECTION FLANGE TO HEATING PIPE AT RADIATOR
561 A 6205003672 LINE
(HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR
562 A 6205003972 LINE
(HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR
562 A 6205003572 LINE
(HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR
562 A 6205004172 LINE
(HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR
562 A 6205003172 LINE
(HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR
562 A 6205003772 LINE
(HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR
562 A 6205003772 LINE
(HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR
562 A 6205004272 LINE
(HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR
563 N 917003022003 GASKET
HEATING PIPE TO ENGINE
N 000933008291 SCREW
Repalced by: A 4609900601
563C A 4609900601 SCREW
HEATING PIPE TO ENGINE
563D N 000137008204 SPRING WASHER
Repalced by: N 000137008212
563D N 000137008212 SPRING WASHER
HEATING PIPE TO ENGINE
563F A 3818320714 BRACKET
HEATING PIPE TO FAN SHROUD BRACKET
563H A 6205062340 BRACKET
BRACKET TO WATER PUMP
563K A 3604280243 ANGLE
HEATING PIPE
563K A 3604280243 ANGLE
HEATING PIPE
563M N 900271018038 HOSE
FROM HEATING PIPE AT ENGINE TO HEATING PIPE AT RADIATOR
563P A 6205062935 HOSE
FROM HEATING PIPE AT ENGINE TO HEATING PIPE AT RADIATOR
563P A 6205062935 HOSE
FROM HEATING PIPE AT ENGINE TO HEATING PIPE AT RADIATOR
563P A 6205062335 HOSE
FROM HEATING PIPE AT ENGINE TO HEATING PIPE AT RADIATOR
564 N 916017020000 CLAMP
Repalced by: N 000000000667
564 N 000000000667 CLAMP
FROM FLANGE TO HEATING PIPE
568 A 3875000072 LINE
HEATING PIPE TO ENGINE
A 6205000272 LINE
Repalced by: A 6205002672
A 6205002672 LINE
Repalced by: A 6205002872
572 A 6205002872 LINE
HEATING AND BREATHING
572 A 6205002872 LINE
HEATING AND BREATHING
572 A 6205000572 LINE
HEATING AND BREATHING
A 6205001572 LINE
Repalced by: A 6205002872
572 A 6205002872 LINE
HEATING AND BREATHING
A 6205000372 LINE
Repalced by: A 6205001672
572 A 6205001672 LINE
HEATING AND BREATHING
A 6205001672 LINE
Repalced by: A 6205002972
A 6205002972 LINE
Repalced by: A 6205003072
572 A 6205003072 LINE
HEATING AND BREATHING
572 A 6205003072 LINE
HEATING AND BREATHING
A 6205001772 LINE
Repalced by: A 6205003072
572 A 6205003072 LINE
HEATING AND BREATHING
572 A 6205001372 LINE
HEATING AND BREATHING
592 N 000933006102 SCREW
HEATING PIPE TO RADIATOR
592 N 000933006102 SCREW
HEATING PIPE TO RADIATOR
596 N 000137006204 SPRING WASHER
HEATING PIPE TO RADIATOR
596 N 000137006204 SPRING WASHER
HEATING PIPE TO RADIATOR
596 N 000137006204 SPRING WASHER
HEATING PIPE TO RADIATOR
597 N 912004006102 LOCK WASHER
HEATING PIPE TO RADIATOR
597 N 912004006102 LOCK WASHER
HEATING PIPE TO RADIATOR
598 N 000125006421 WASHER
HEATING PIPE TO RADIATOR
598 N 000125006421 WASHER
HEATING PIPE TO RADIATOR
600 A 3835060035 HOSE
FROM HEATING PIPE AT RADIATOR TO CAB HEATING PIPE
602 A 6205062035 HOSE
FROM HEATING PIPE AT RADIATOR TO CAB HEATING PIPE
604 N 916017020000 CLAMP
Repalced by: N 000000000667
604 N 000000000667 CLAMP
HEATING; TO CAB
A 3875060435 HOSE
Repalced by: A 3635060135
608 A 3635060135 HOSE
Repalced by: A 3635060235
608 A 3635060235 HOSE
HEATING; TO CONNECTOR
612 N 916017025000 CLAMP
Repalced by: N 000000000668
612 N 000000000668 CLAMP
HEATING; TO CONNECTOR
616 N 916017020000 CLAMP
Repalced by: N 000000000667
616 N 000000000667 CLAMP
HEATING; TO CONNECTOR
620 A 3875011482 HOSE
VENTILATION, FROM RADIATOR TO EXPANSION TANK
624 A 3875012125 BREATHER PIPE
VENTILATION, FROM RADIATOR TO EXPANSION TANK
624 A 3875012225 BREATHER PIPE
VENTILATION, FROM RADIATOR TO EXPANSION TANK
628 N 900271012018 HOSE
12X21 MM
628 N 900271012018 HOSE
BETWEEN DE-AERATION LINE AND EXPANSION TANK
12X21 MM
632 N 916017020000 CLAMP
Repalced by: N 000000000667
632 N 000000000667 CLAMP
VENTILATION, FROM RADIATOR TO EXPANSION TANK
636 N 900271008043 HOSE
636 N 900271008043 HOSE
FROM EXPANSION TANK TO HEATING PIPE
636 N 900271008043 HOSE
636 N 900271008043 HOSE
FROM HEATING PIPE AT RADIATOR TO CAB HEATING PIPE
636 N 900271008043 HOSE
640 N 916017011000 CLAMP
Repalced by: N 916017011001
640 N 000000000665 CLAMP
FROM EXPANSION TANK TO HEATING PIPE
640 N 000000000665 CLAMP
FROM EXPANSION TANK TO HEATING PIPE
640 N 000000000665 CLAMP
FROM HEATING PIPE AT RADIATOR TO CAB HEATING PIPE
640 N 000000000665 CLAMP
FROM EXPANSION TANK TO HEATING PIPE
644 A 6175010420 BRACKET
DE-AERATION LINE TO CAB
648 A 6205010920 BRACKET
DE-AERATION LINE TO CAB
652 A 3609950201 CLAMP
Repalced by: A 3604300143
652 A 3604300143 CLAMP
Repalced by: N 916016008200
652 N 916016008200 CLAMP
DE-AERATION LINE TO CAB
652 N 916016008200 CLAMP
DE-AERATION LINE TO CAB
656 N 007981005306 SHEET METAL SCREW
DE-AERATION LINE TO CAB
656 N 007981005306 SHEET METAL SCREW
DE-AERATION LINE TO CAB
660 N 007985006193 SCREW
Repalced by: N 000000001146
660 N 000000001146 SCREW
DE-AERATION LINE TO CAB
M 6X16
660 N 000000001146 SCREW
DE-AERATION LINE TO CAB
M 6X16
664 N 913004006002 NUT
Repalced by: N 913004006001
664 N 913004006001 NUT
DE-AERATION LINE TO CAB
664 N 913004006001 NUT
DE-AERATION LINE TO CAB
668 A 3875016825 BREATHER PIPE
FROM ENGINE TO EXPANSION TANK
672 N 900271015037 HOSE
15X24 MM
672 N 900271015037 HOSE
BETWEEN THE DE-AERATION LINES
15X24 MM
672 N 900271015037 HOSE
BETWEEN DE-AERATION LINE AND EXPANSION TANK
400 MM
673 A 3875011682 HOSE
DE-AERATION; FROM FLANGE TO COOLING WATER EXPANSION TANK
673 A 3875011682 HOSE
DE-AERATION; FROM FLANGE TO COOLING WATER EXPANSION TANK
676 A 6205060235 HOSE
FROM HEATING PIPE AT RADIATOR TO CAB HEATING PIPE
676 A 6205060235 HOSE
FROM HEATING PIPE AT RADIATOR TO CAB HEATING PIPE
680 A 6205060335 HOSE
FROM HEATING PIPE AT RADIATOR TO CAB HEATING PIPE
680 A 6205060335 HOSE
FROM HEATING PIPE AT RADIATOR TO CAB HEATING PIPE
684 N 916017020000 CLAMP
Repalced by: N 000000000667
684 N 000000000667 CLAMP
HOSE TO HEATING PIPE
684 N 000000000667 CLAMP
HOSE TO HEATING PIPE
688 N 916017020000 CLAMP
Repalced by: N 000000000667
688 N 000000000667 CLAMP
HOSE TO BREATHER PIPE AND TO ESPANSION TANK
688 N 000000000667 CLAMP
HOSE TO BREATHER PIPE AND TO ESPANSION TANK
688 N 000000000667 CLAMP
HOSE TO BREATHER PIPE AND TO ESPANSION TANK
A 3875015920 BRACKET
Repalced by: A 6454310740
692 A 6454310740 BRACKET
RADIATOR AND ENGINE BREATHING,AT ENGINE
A 3875015820 BRACKET
Repalced by: A 3524290740
696 A 3524290740 BRACKET
RADIATOR AND ENGINE BREATHING,AT ENGINE
700 N 000933010094 SCREW
RADIATOR AND ENGINE BREATHING,AT ENGINE
704 N 000125010518 WASHER
Repalced by: N 000125010532
704 N 000125010532 WASHER
RADIATOR AND ENGINE BREATHING,AT ENGINE
708 N 913004010008 NUT
Repalced by: N 910113010000
708 N 910113010000 NUT
RADIATOR AND ENGINE BREATHING,AT ENGINE
712 A 3609952001 CLAMP
Repalced by: A 6739950001
712 A 6739950001 CLAMP
RADIATOR AND ENGINE BREATHING,AT ENGINE
15 MM
712 A 3609950401 CLAMP
RADIATOR AND ENGINE BREATHING,AT ENGINE
12 MM
716 A 3609951401 CLAMP
Repalced by: N 916016011202
716 N 916016011202 CLAMP
RADIATOR AND ENGINE BREATHING,AT ENGINE
15 MM
716 A 3609951201 CLAMP
RADIATOR AND ENGINE BREATHING,AT ENGINE
10 MM
720 N 000933008212 SCREW
Repalced by: N 304017008016
720 N 304017008016 SCREW
RADIATOR AND ENGINE BREATHING,AT ENGINE
724 N 000933006102 SCREW
RADIATOR AND ENGINE BREATHING,AT ENGINE
728 N 913004008004 NUT
Repalced by: N 913004008001
728 N 913004008001 NUT
RADIATOR AND ENGINE BREATHING,AT ENGINE
732 N 913004006003 NUT
Repalced by: N 910113006001
732 N 910113006001 NUT
RADIATOR AND ENGINE BREATHING,AT ENGINE
A 6205010101 RADIATOR
Repalced by: A 6205010201
740 A 6205010201 RADIATOR
(CHARGING AIR INTERCOOLER)
744 N 000933006121 SCREW
Repalced by: N 304017006020
744 N 304017006020 SCREW
CHARGING AIR INTERCOOLER TO RADIATOR
748 N 912004006102 LOCK WASHER
CHARGING AIR INTERCOOLER TO RADIATOR
752 N 000125006421 WASHER
CHARGING AIR INTERCOOLER TO RADIATOR
756 A 0010947882 HOSE
Repalced by: A 0020945282
756 A 0020945282 HOSE
FROM ENGINE TO CHARGE AIR INTERCOOLER
760 N 000000000676 CLAMP
764 A 6205200406 PIPE ELBOW
FROM CHARGING AIR INTERCOOLER TO ENGINE
768 A 6205280080 GASKET
Repalced by: A 6555280080
768 A 6555280080 GASKET
PIPE TO CHARGING AIR INTERCOOLER
772 N 000912010119 SCREW
Repalced by: N 000912010219
772 N 000912010219 SCREW
PIPE TO CHARGING AIR INTERCOOLER
776 N 000137010201 SPRING WASHER
PIPE TO CHARGING AIR INTERCOOLER
A 0010947982 HOSE
Repalced by: A 0020941782
A 0020941782 HOSE
Repalced by: A 0010947982
780 A 0010947982 HOSE
FROM CHARGING AIR INTERCOOLER TO ENGINE
784 N 000000000676 CLAMP
Reklama
Kontaktai
Pasiūlymas
Skaitliukas



© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
