Transporto priemonė: 1933 LS; VIN numerio dalis: 621542

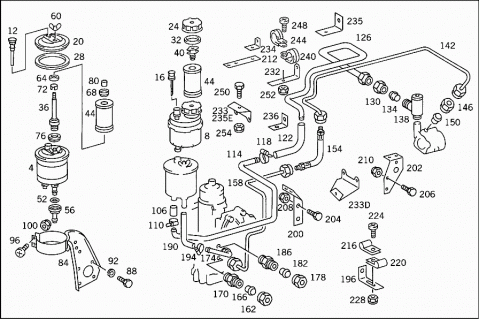

Grupė: 46 STEERING
| # | Kodas | Pavadinimas |
|---|---|---|
| 004 | A 0004663802 | TANK |
| Repalced by: A 0004664502 | ||
| 008 | A 0004664502 | TANK |
| OIL | ||
| 012 | A 0004660218 | PIPE |
| TO 000 466 38 02 | ||
| 016 | A 0004660267 | OIL DIPSTICK |
| Repalced by: A 0004660867 | ||
| 016 | A 0004660867 | OIL DIPSTICK |
| TO 000 466 45 02 | ||
| A 1233270059 | PROTECTIVE CAP | |
| 020 | A 0004662005 | COVER |
| TO 000 466 38 02 | ||
| 024 | A 0004660068 | FILLER CAP |
| TO 000 466 45 02 | ||
| 028 | A 0004660260 | SEAL RING |
| TO 000 466 38 02 | ||
| 032 | A 0004661760 | SEAL RING |
| TO 000 466 45 02 | ||
| 036 | A 0014664465 | FILTER CARRIER |
| TO 000 466 38 02 | ||
| 040 | A 0004660740 | BRACKET |
| TO 000 466 45 02 | ||
| 044 | A 0004660604 | FILTER |
| TO 000 466 38 02,000 466 45 02 | ||
| 052 | A 0059970848 | SEAL RING |
| TO 000 466 38 02 | ||
| 056 | A 0004660558 | CONNECTOR |
| TO 000 466 38 02 | ||
| 060 | N 000315008006 | NUT |
| TO 000 466 38 02 | ||
| 064 | A 0004660675 | CENTERING RING |
| TO 000 466 38 02 | ||
| 068 | A 0004660275 | WASHER |
| Repalced by: A 9402680552 | ||
| 068 | A 9402680552 | SPACER WASHER |
| TO 000 466 38 02 | ||
| 072 | A 0004660153 | SPACER TUBE |
| TO 000 466 38 02 | ||
| 076 | A 0004660238 | COVER PLATE |
| TO 000 466 38 20 | ||
| 080 | A 0009870643 | RUBBER SLEEVE |
| TO 000 466 38 02 | ||
| A 3874600235 | BRACKET | |
| Repalced by: A 6204600235 | ||
| 084 | A 6204600235 | BRACKET |
| OIL TANK | ||
| 084 | A 3874600335 | BRACKET |
| OIL TANK | ||
| 084 | A 6204600335 | BRACKET |
| OIL TANK | ||
| 088 | N 000933010238 | SCREW |
| Repalced by: N 304017010028 | ||
| 088 | N 304017010028 | SCREW |
| BRACKET TO STEERING | ||
| 092 | N 912004010102 | LOCK WASHER |
| BRACKET TO STEERING | ||
| 096 | N 007985006154 | SCREW |
| Repalced by: A 0029903712 | ||
| 096 | A 0029903712 | SCREW |
| Repalced by: N 000000001149 | ||
| 096 | N 000000001149 | SCREW |
| OIL TANK TO BRACKET | ||
| M 6X25 | ||
| 096 | N 007985006139 | SCREW |
| OIL TANK TO BRACKET | ||
| M 6X30 | ||
| 100 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 100 | N 913004006001 | NUT |
| OIL TANK TO BRACKET | ||
| 100 | N 913002006001 | NUT |
| Repalced by: N 913002006009 | ||
| 100 | N 913002006009 | NUT |
| OIL TANK TO BRACKET | ||
| A 3609970982 | HOSE | |
| Repalced by: A 3859971582 | ||
| 106 | A 3859971582 | HOSE |
| FROM LINE TO OIL TANK | ||
| 110 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 110 | N 000000000667 | CLAMP |
| HOSE TO OIL LINE | ||
| 114 | A 3834660765 | LINE |
| FROM RETURN LINE TO OIL TANK | ||
| 114 | A 6204660665 | LINE |
| FROM RETURN LINE TO OIL TANK | ||
| 114 | A 6204661665 | LINE |
| FROM RETURN LINE TO OIL TANK | ||
| 114 | A 6204661665 | LINE |
| FROM RETURN LINE TO OIL TANK | ||
| 114 | A 6204661465 | LINE |
| FROM RETURN LINE TO OIL TANK | ||
| 114 | A 3834660865 | LINE |
| FROM RETURN LINE TO OIL TANK | ||
| 114 | A 6204661765 | LINE |
| FROM RETURN LINE TO OIL TANK | ||
| 114 | A 6204660765 | LINE |
| FROM RETURN LINE TO OIL TANK | ||
| 114 | A 6204662365 | LINE |
| FROM RETURN LINE TO OIL TANK | ||
| 118 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 118 | N 000000000667 | CLAMP |
| HOSE TO OIL LINE | ||
| A 3609970982 | HOSE | |
| Repalced by: A 3859971582 | ||
| 122 | A 3859971582 | HOSE |
| OIL LINE CONNECTION | ||
| 126 | A 3874602424 | LINE |
| FROM HOSE TO OIL PUMP | ||
| 126 | A 6204601324 | LINE |
| FROM HOSE TO OIL PUMP | ||
| 126 | A 6204602024 | LINE |
| FROM HOSE TO OIL PUMP | ||
| 126 | A 6204602424 | LINE |
| FROM HOSE TO OIL PUMP | ||
| 126 | A 6204600224 | LINE |
| FROM HOSE TO OIL PUMP | ||
| 126 | A 6204600824 | LINE |
| FROM HOSE TO OIL PUMP | ||
| 126 | A 3874605224 | LINE |
| FROM HOSE TO OIL PUMP | ||
| 126 | A 6204601824 | LINE |
| FROM HOSE TO OIL PUMP | ||
| 126 | A 6204601824 | LINE |
| FROM HOSE TO OIL PUMP | ||
| A 6244600024 | LINE | |
| FROM HOSE TO OIL PUMP | ||
| A 6244600824 | LINE | |
| FROM HOSE TO OIL PUMP | ||
| 126 | A 3874604924 | LINE |
| FROM HOSE TO OIL PUMP | ||
| 126 | A 6244600324 | LINE |
| FROM HOSE TO OIL PUMP | ||
| 126 | A 6244600624 | LINE |
| FROM HOSE TO OIL PUMP | ||
| 126 | A 6204600324 | LINE |
| FROM HOSE TO OIL PUMP | ||
| 126 | A 6204601624 | LINE |
| FROM HOSE TO OIL PUMP | ||
| 130 | N 915017022100 | UNION NUT |
| 134 | N 003861022004 | GLAND |
| Repalced by: A 0019901267 | ||
| 134 | A 0019901267 | SEAL CONE |
| N 003901012011 | SCREW-IN FITTING | |
| DELIVERY LINE TO PUMP | ||
| 138 | A 0009906171 | ELBOW FITTING |
| LINE TO OIL PUMP | ||
| 138 | A 0009906171 | ELBOW FITTING |
| LINE TO OIL PUMP | ||
| 138 | A 0009906171 | ELBOW FITTING |
| LINE TO OIL PUMP | ||
| N 003901022006 | SCREW-IN FITTING | |
| LINE TO OIL PUMP | ||
| N 003901022006 | SCREW-IN FITTING | |
| LINE TO OIL PUMP | ||
| 138 | A 0009907168 | FITTING |
| LINE TO OIL PUMP | ||
| 142 | A 3874600924 | LINE |
| FROM PUMP TO HIGH PRESSURE HOSE | ||
| 142 | A 6204601224 | LINE |
| FROM PUMP TO HIGH PRESSURE HOSE | ||
| 142 | A 6204601924 | LINE |
| FROM PUMP TO HIGH PRESSURE HOSE | ||
| 142 | A 6204602324 | LINE |
| FROM PUMP TO HIGH PRESSURE HOSE | ||
| 142 | A 6204600024 | LINE |
| FROM PUMP TO HIGH PRESSURE HOSE | ||
| 142 | A 6204600624 | LINE |
| Repalced by: A 0005516156 | ||
| 142 | A 0005516156 | TUBE |
| FROM PUMP TO HIGH PRESSURE HOSE | ||
| 142 | A 3874603724 | LINE |
| FROM PUMP TO HIGH PRESSURE HOSE | ||
| 142 | A 6204601724 | LINE |
| FROM PUMP TO HIGH PRESSURE HOSE | ||
| 142 | A 6204601724 | LINE |
| FROM PUMP TO HIGH PRESSURE HOSE | ||
| 142 | A 6244600124 | LINE |
| FROM PUMP TO HIGH PRESSURE HOSE | ||
| 142 | A 6244600724 | LINE |
| FROM PUMP TO HIGH PRESSURE HOSE | ||
| 142 | A 3874603224 | LINE |
| FROM PUMP TO HIGH PRESSURE HOSE | ||
| 142 | A 6244600224 | LINE |
| FROM PUMP TO HIGH PRESSURE HOSE | ||
| 142 | A 6244600424 | LINE |
| 142 | A 6204600124 | LINE |
| FROM PUMP TO HIGH PRESSURE HOSE | ||
| 142 | A 6204601424 | LINE |
| FROM PUMP TO HIGH PRESSURE HOSE | ||
| 146 | N 915017012100 | UNION NUT |
| 150 | N 003861012007 | GLAND |
| Repalced by: A 0019901967 | ||
| 150 | A 0019901967 | SEAL CONE |
| N 003901012011 | SCREW-IN FITTING | |
| DELIVERY LINE TO PUMP | ||
| N 003901012011 | SCREW-IN FITTING | |
| DELIVERY LINE TO PUMP | ||
| N 915043012200 | SCREW CONNECTION | |
| DELIVERY LINE TO PUMP | ||
| 154 | A 0009978152 | HOSE |
| FROM POWER STEERING PUMP TO STEERING | ||
| 154 | A 0009978152 | HOSE |
| FROM POWER STEERING PUMP TO STEERING | ||
| 154 | A 0019976352 | HOSE |
| FROM POWER STEERING PUMP TO STEERING | ||
| 154 | A 0019976352 | HOSE |
| FROM POWER STEERING PUMP TO STEERING | ||
| 154 | A 0129972482 | HOSE |
| FROM POWER STEERING PUMP TO STEERING | ||
| 154 | A 0129972482 | HOSE |
| FROM POWER STEERING PUMP TO STEERING | ||
| 154 | A 0009978252 | HOSE |
| FROM POWER STEERING PUMP TO STEERING | ||
| 154 | A 0019976452 | HOSE |
| FROM POWER STEERING PUMP TO STEERING | ||
| 154 | A 0129972582 | HOSE |
| FROM POWER STEERING PUMP TO STEERING | ||
| 158 | A 3854600024 | LINE |
| FROM HIGH PRESSURE HOSE TO STEERING | ||
| 158 | A 6204600424 | LINE |
| FROM HIGH PRESSURE HOSE TO STEERING | ||
| 158 | A 6204601024 | LINE |
| FROM HIGH PRESSURE HOSE TO STEERING | ||
| 158 | A 3854600124 | LINE |
| FROM HIGH PRESSURE HOSE TO STEERING | ||
| 158 | A 6204600524 | LINE |
| FROM HIGH PRESSURE HOSE TO STEERING | ||
| 158 | A 6204601524 | LINE |
| FROM HIGH PRESSURE HOSE TO STEERING | ||
| 162 | N 915017012100 | UNION NUT |
| 166 | N 003861012007 | GLAND |
| Repalced by: A 0019901967 | ||
| 166 | A 0019901967 | SEAL CONE |
| 170 | N 003901012011 | SCREW-IN FITTING |
| LINE TO STEERING | ||
| 174 | A 3854660265 | LINE |
| FROM STEERING TO OIL TANK | ||
| 178 | N 915017015100 | UNION NUT |
| OIL LINES | ||
| 182 | N 003861015004 | GLAND |
| OIL LINES | ||
| 186 | N 003901015005 | SCREW-IN FITTING |
| RETURN LINE TO STEERING | ||
| A 3439970582 | HOSE | |
| Repalced by: A 6999974082 | ||
| A 6999974082 | HOSE | |
| Repalced by: A 3859971682 | ||
| 190 | A 3859971682 | HOSE |
| FROM STEERING TO OIL TANK | ||
| 194 | N 916017016000 | CLAMP |
| Repalced by: N 000000000666 | ||
| 194 | N 000000000666 | CLAMP |
| HOSE TO OIL LINE | ||
| A 3144290240 | BRACKET | |
| Repalced by: A 3812950440 | ||
| 196 | A 3812950440 | BRACKET |
| LINE TO STEERING | ||
| A 3874660240 | BRACKET | |
| Repalced by: A 6564660040 | ||
| 200 | A 6564660040 | BRACKET |
| LINE TO FRAME | ||
| 200 | A 3874660940 | BRACKET |
| LINE TO FRAME | ||
| 202 | A 6214660040 | BRACKET |
| LINE TO FRAME | ||
| 202 | A 6214660140 | BRACKET |
| LINE TO FRAME | ||
| 204 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 204 | N 308676012026 | SCREW |
| BRACKET TO FRAME | ||
| M 12X1,5X35 | ||
| 204 | N 308676012026 | SCREW |
| BRACKET TO FRAME | ||
| M 12X1,5X35 | ||
| 204 | N 000961012122 | SCREW |
| BRACKET TO FRAME | ||
| M 12X1.5X40 | ||
| 206 | N 000933010145 | SCREW |
| BRACKET TO FRAME | ||
| 208 | N 910113012002 | NUT |
| BRACKET TO FRAME | ||
| 210 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 210 | N 910113010000 | NUT |
| BRACKET TO FRAME | ||
| A 3814661140 | BRACKET | |
| Repalced by: A 3604293140 | ||
| 212 | A 3604293140 | BRACKET |
| BRACKET TO COMPRESSED-AIR-LINE BRACKET | ||
| 216 | A 3609950701 | CLAMP |
| Repalced by: N 916016018202 | ||
| 216 | N 916016018202 | CLAMP |
| LINES TO BRACKET | ||
| 220 | A 3609950401 | CLAMP |
| LINES TO BRACKET | ||
| 224 | N 000000001147 | SCREW |
| DELIVERY AND SUCTION LINES TO BRACKET | ||
| M 6X20 | ||
| 228 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 228 | N 913004006001 | NUT |
| DELIVERY AND SUCTION LINES TO BRACKET | ||
| A 3874660440 | BRACKET | |
| Repalced by: A 6205244040 | ||
| 232 | A 6205244040 | BRACKET |
| DELIVERY AND SUCTION LINES TO ENGINE | ||
| 233 | A 6204660540 | BRACKET |
| DELIVERY AND SUCTION LINES TO ENGINE | ||
| 233D | A 6204660640 | BRACKET |
| DELIVERY AND SUCTION LINES TO ENGINE | ||
| A 3874660840 | BRACKET | |
| Repalced by: A 3875015820 | ||
| A 3875015820 | BRACKET | |
| Repalced by: A 3524290740 | ||
| 234 | A 3524290740 | BRACKET |
| DELIVERY AND SUCTION LINES TO ENGINE | ||
| A 6204660740 | BRACKET | |
| Repalced by: A 6205240340 | ||
| 235 | A 6205240340 | BRACKET |
| DELIVERY AND SUCTION LINES TO ENGINE | ||
| 235E | A 3852700341 | BRACKET |
| DELIVERY AND SUCTION LINES TO ENGINE | ||
| 235E | A 3852700341 | BRACKET |
| DELIVERY AND SUCTION LINES TO ENGINE | ||
| 235E | A 3852700341 | BRACKET |
| DELIVERY AND SUCTION LINES TO ENGINE | ||
| A 6204660840 | BRACKET | |
| Repalced by: A 3552711140 | ||
| A 3552711140 | BRACKET | |
| Repalced by: A 3604292940 | ||
| 236 | A 3604292940 | BRACKET |
| DELIVERY AND SUCTION LINES TO ENGINE | ||
| 236 | A 3604292940 | BRACKET |
| DELIVERY AND SUCTION LINES TO ENGINE | ||
| 236 | A 3604292940 | BRACKET |
| DELIVERY AND SUCTION LINES TO ENGINE | ||
| 240 | N 916016012200 | CLAMP |
| LINES TO BRACKET | ||
| 244 | N 916016022206 | CLAMP |
| LINES TO BRACKET | ||
| 248 | N 000000001147 | SCREW |
| OIL LINE TO ENGINE | ||
| M 6X20 | ||
| 250 | N 000933010105 | SCREW |
| BRACKET TO TRANSVERSE INTAKE PIPE | ||
| 252 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 252 | N 913004006001 | NUT |
| OIL LINE TO ENGINE | ||
| 254 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 254 | N 910113010000 | NUT |
| BRACKET TO TRANSVERSE INTAKE PIPE | ||
| 256 | A 3834640201 | STEERING WHEEL |
| 260 | N 308675022001 | NUT |
| STEERING WHEEL TO STEERING COLUMN | ||
| 264 | A 0004640432 | BADGE |
| STEERING WHEEL | ||
| A 3834601652 | STEERING COLUMN END | |
| Repalced by: A 3054600452 | ||
| 268 | A 3054600452 | STEERING COLUMN END |
| ADJUSTABLE STEERING COLUMN | ||
| 272 | A 3834620650 | BUSHING |
| 276 | A 3834620775 | WASHER |
| N 900421010012 | THREADED INSERT | |
| Repalced by: A 6559970115 | ||
| 280 | A 6559970115 | THREADED CHUCK |
| M10X1X12.5 | ||
| N 900421014009 | THREADED INSERT | |
| Repalced by: A 6559970015 | ||
| 284 | A 6559970015 | THREADED CHUCK |
| A 3834601137 | BEARING | |
| Repalced by: A 3834601537 | ||
| 288 | A 3834601537 | BEARING |
| STEERING SHAFT | ||
| A 6204600237 | BEARING | |
| STEERING SHAFT | ||
| A 6204600637 | BEARING | |
| STEERING SHAFT | ||
| A 3834601237 | BEARING | |
| Repalced by: A 3834601637 | ||
| 288 | A 3834601637 | BEARING |
| STEERING SHAFT | ||
| A 6204600337 | BEARING | |
| STEERING SHAFT | ||
| A 6204600737 | BEARING | |
| STEERING SHAFT | ||
| 292 | A 3814601831 | STEERING COLUMN BRACKET |
| A 6154601031 | STEERING COLUMN BRACKET | |
| 292 | A 3814602531 | STEERING COLUMN BRACKET |
| A 6154601331 | STEERING COLUMN BRACKET | |
| 296 | A 3834600931 | STEERING COLUMN BRACKET |
| 300 | A 3839970286 | PLUG |
| BOTTOM LATERAL | ||
| 304 | A 3819971186 | PLUG |
| STEERING WHEEL TO STEERING COLUMN | ||
| 308 | A 3834620975 | WASHER |
| 312 | N 914146005702 | SCREW |
| M 5X12 | ||
| 316 | A 3819970386 | PLUG |
| Repalced by: A 0009972020 | ||
| 316 | A 0009972020 | EXPANSION PLUG |
| Repalced by: A 0009973220 | ||
| 316 | A 0009973220 | EXPANSION PLUG |
| LATERAL | ||
| 316 | A 3839970286 | PLUG |
| LATERAL | ||
| 320 | A 3834620674 | PIN |
| STEERING COLUMN END | ||
| 324 | A 3819971186 | PLUG |
| STEERING WHEEL TO STEERING COLUMN | ||
| 328 | A 0014621130 | STEERING LOCK |
| 332 | A 0005451367 | CONTACTOR |
| SOLENOID SWITCH | ||
| 336 | A 0005455413 | SWITCH |
| IGNITION SWITCH | ||
| 338 | A 3814600104 | TUMBLER |
| HUF | ||
| 338 | A 3094600004 | TUMBLER |
| LESS KEY | ||
| YMOS | ||
| 340 | A 3814600004 | TUMBLER |
| WITH 2 KEYS | ||
| HUF | ||
| 340 | A 3094620079 | TUMBLER |
| WITH 2 KEYS | ||
| YMOS | ||
| 342 | A 0007600006 | KEY |
| HUF | ||
| 342 | A 0007600606 | KEY |
| YMOS | ||
| 343 | A 0007663706 | KEY |
| BLANK | ||
| HUF | ||
| 343 | A 0007665306 | KEY |
| BLANK | ||
| YMOS | ||
| 344 | A 0004622371 | SCREW |
| (BREAK-OFF BOLT),STEERING LOCK MOUNTING | ||
| A 3834601869 | HANDLE | |
| Repalced by: A 6754600369 | ||
| A 6754600369 | HANDLE | |
| Repalced by: A 6554600369 | ||
| 348 | A 6554600369 | HANDLE |
| STEERING WHEEL HEIGHT ADJUSTMENT | ||
| 352 | A 3834620763 | THRUST PLATE |
| STEERING WHEEL HEIGHT ADJUSTMENT | ||
| N 001481003011 | CLAMPING SLEEVE | |
| Repalced by: A 6559910061 | ||
| 356 | A 6559910061 | DOWEL PIN |
| STEERING WHEEL HEIGHT ADJUSTMENT | ||
| A 3834601969 | HANDLE | |
| Repalced by: A 6554600469 | ||
| 360 | A 6554600469 | HANDLE |
| STEERING WHEEL TILT ADJUSTMENT | ||
| 364 | N 001481002512 | CLAMPING SLEEVE |
| STEERING WHEEL TILT ADJUSTMENT | ||
| 368 | A 6554620163 | THRUST PLATE |
| Repalced by: A 3834620363 | ||
| 368 | A 3834620363 | THRUST PLATE |
| 372 | A 0009936426 | DISC SPRING |
| STEERING WHEEL TILT ADJUSTMENT | ||
| 376 | N 000417004006 | HEADLESS SETSCREW |
| Repalced by: N 000417004011 | ||
| 376 | N 000417004011 | HEADLESS SETSCREW |
| STEERING WHEEL TILT ADJUSTMENT | ||
| 380 | A 3814622143 | SHELL |
| STEERING COLUMN PANELLING,REAR | ||
| 380 | A 3814622243 | SHELL |
| STEERING COLUMN PANELLING,REAR | ||
| 384 | A 3834621243 | SHELL |
| STEERING COLUMN PANELLING,REAR | ||
| 384 | A 3834621343 | SHELL |
| STEERING COLUMN PANELLING,REAR | ||
| A 3814620143 | SHELL | |
| Repalced by: A 3814622443 | ||
| 388 | A 3814622443 | SHELL |
| STEERING COLUMN PANELLING,FRONT | ||
| 388 | A 3814622343 | SHELL |
| STEERING COLUMN PANELLING,FRONT | ||
| A 3834620143 | SHELL | |
| Repalced by: A 3834621543 | ||
| 392 | A 3834621543 | SHELL |
| STEERING COLUMN PANELLING,FRONT | ||
| 392 | A 3834621443 | SHELL |
| STEERING COLUMN PANELLING,FRONT | ||
| 396 | A 3814620486 | GROMMET |
| STEERING COLUMN PANELLING | ||
| A 6204620043 | SHELL | |
| STEERING COLUMN PANELLING; BLACK,NO.9051 | ||
| A 6204620443 | SHELL | |
| STEERING COLUMN PANELLING; BLACK,NO.9051 | ||
| A 6204620243 | SHELL | |
| STEERING COLUMN PANELLING; BLACK,NO.9051 | ||
| A 6204620543 | SHELL | |
| STEERING COLUMN PANELLING; BLACK,NO.9051 | ||
| A 3574620096 | BOOT | |
| STEERING COLUMN PANELLING; BLACK,NO.9051 | ||
| A 3574620196 | BOOT | |
| STEERING COLUMN PANELLING; BLACK,NO.9051 | ||
| 400 | A 3819900221 | SCREW |
| STEERING COLUMN PANELLING | ||
| M 5X75.5 | ||
| A 3019900021 | SCREW | |
| Repalced by: A 3819900321 | ||
| 404 | A 3819900321 | SCREW |
| STEERING COLUMN PANELLING | ||
| M 5X83 | ||
| 408 | A 3819900521 | SCREW |
| STEERING COLUMN PANELLING | ||
| A 3834600036 | GUIDE | |
| Repalced by: A 3834600136 | ||
| 412 | A 3834600136 | GUIDE |
| STEERING COLUMN PANELLING | ||
| 416 | N 000965004006 | SCREW |
| STEERING COLUMN PANELLING | ||
| 420 | N 000933010145 | SCREW |
| STEERING COLUMN TO CAB | ||
| 420 | N 000933010145 | SCREW |
| STEERING COLUMN TO CAB | ||
| 424 | N 000137010201 | SPRING WASHER |
| STEERING COLUMN TO CAB | ||
| 424 | N 000137010201 | SPRING WASHER |
| STEERING COLUMN TO CAB | ||
| A 3814600609 | STEERING SHAFT | |
| Repalced by: A 6504600209 | ||
| 428 | A 6504600209 | STEERING SHAFT |
| LEMFOERDER | ||
| 428 | A 6504600609 | STEERING SHAFT |
| ELBE | ||
| 428 | A 3814607109 | STEERING SHAFT |
| 436 | A 3814620175 | WASHER |
| TO A 381 460 06 09 | ||
| 440 | A 3814620260 | SEAL RING |
| TO A 381 460 06 09 | ||
| 444 | A 3814620061 | SEAL HOLDER |
| TO A 381 460 06 09 | ||
| 448 | A 3874602709 | STEERING SHAFT |
| Repalced by: A 6554600809 | ||
| 448 | A 6554600809 | STEERING SHAFT |
| 448 | A 6554600509 | STEERING SHAFT |
| A 3874601409 | STEERING SHAFT | |
| Repalced by: A 3874603109 | ||
| 448 | A 3874603109 | STEERING SHAFT |
| Repalced by: A 6554600709 | ||
| 448 | A 6554600709 | STEERING SHAFT |
| 448 | A 6554600309 | STEERING SHAFT |
| 452 | A 3879930101 | SPRING |
| 456 | A 1083500048 | SLEEVE |
| STEERING COLUMN BEARING | ||
| 460 | A 1809810086 | ROLLER |
| STEERING COLUMN BEARING | ||
| 464 | A 3634620175 | WASHER |
| TOP | ||
| 468 | A 0009949841 | LOCK |
| TOP | ||
| 472 | A 0029970047 | SEAL RING |
| TOP | ||
| 476 | A 3814620403 | SLEEVE |
| STEERING SHAFT | ||
| 480 | A 3814620251 | RING |
| STEERING SHAFT | ||
| TO A 381 460 06 09 | ||
| A 3814600057 | UNIVERSAL JOINT | |
| Repalced by: A 3164600057 | ||
| A 3164600057 | UNIVERSAL JOINT | |
| Repalced by: A 0004600057 | ||
| 484 | A 0004600057 | UNIVERSAL JOINT |
| A 3164600157 | UNIVERSAL JOINT | |
| Repalced by: A 0004600157 | ||
| 484 | A 0004600157 | UNIVERSAL JOINT |
| 488 | A 3819900114 | SCREW |
| STEERING SHAFT TO JOINT | ||
| M 8X42 | ||
| 488 | A 3819900114 | SCREW |
| STEERING SHAFT TO STEERING COLUMN | ||
| M 8X42 | ||
| 488 | A 3819900114 | SCREW |
| STEERING SHAFT TO JOINT | ||
| M 8X42 | ||
| 488 | A 3169900114 | SCREW |
| STEERING SHAFT TO JOINT | ||
| M 8X38 | ||
| 492 | N 910113008001 | NUT |
| STEERING SHAFT TO JOINT | ||
| 492 | N 910113008001 | NUT |
| STEERING SHAFT TO STEERING COLUMN | ||
| 496 | A 3874611297 | PROTECTIVE SLEEVE |
| PROTECTIVE SLEEVE TO CAB FLOOR | ||
| 500 | A 3874610396 | BOOT |
| STEERING COLUMN COVERING,TOP | ||
| 504 | N 007981005309 | SHEET METAL SCREW |
| Repalced by: N 007981005321 | ||
| 504 | N 007981005321 | SHEET METAL SCREW |
| PROTECTIVE SLEEVE TO CAB FLOOR | ||
| 508 | A 3874610180 | GASKET |
| PROTECTIVE SLEEVE TO CAB FLOOR | ||
| 512 | A 3874620024 | REINFORCEMENT |
| PROTECTIVE SLEEVE TO CAB FLOOR | ||
| 516 | A 3814620475 | WASHER |
| UNIVERSAL JOINT COVERING | ||
| 520 | A 3814621196 | BOOT |
| UNIVERSAL JOINT COVERING | ||
| 524 | A 3874610240 | STEERING SUPPORT |
| AT FRAME | ||
| 524 | A 6204610440 | STEERING SUPPORT |
| AT FRAME | ||
| 524 | A 6204610640 | STEERING SUPPORT |
| AT FRAME | ||
| 524 | A 3874610340 | STEERING SUPPORT |
| AT FRAME | ||
| 524 | A 6204610540 | STEERING SUPPORT |
| AT FRAME | ||
| 524 | A 6204610740 | STEERING SUPPORT |
| AT FRAME | ||
| 528 | N 000960014237 | SCREW |
| STEERING SUPPORT TO FRAME | ||
| M 14X1.5X50 | ||
| 528 | N 000960014237 | SCREW |
| STEERING SUPPORT TO FRAME | ||
| M 14X1.5X50 | ||
| 528 | N 000960016207 | SCREW |
| STEERING SUPPORT TO FRAME | ||
| M 16X15X55 | ||
| 532 | N 000960014229 | SCREW |
| STEERING SUPPORT TO FRAME | ||
| M 14X1.5X55 | ||
| 532 | N 000960014229 | SCREW |
| STEERING SUPPORT TO FRAME | ||
| M 14X1.5X55 | ||
| 532 | N 000960016241 | SCREW |
| STEERING SUPPORT TO FRAME | ||
| M 16X1.5X75 | ||
| 536 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 536 | N 910113014000 | NUT |
| STEERING BOX ASSEMBLY TO STEERING SUPPORT | ||
| 536 | N 913004016005 | NUT |
| Repalced by: N 910113016001 | ||
| 536 | N 910113016001 | NUT |
| STEERING TO STEERING BRACKET | ||
| 540 | N 000961016077 | SCREW |
| Repalced by: N 308676016006 | ||
| 540 | N 308676016006 | SCREW |
| STEERING TO STEERING BRACKET | ||
| 544 | A 3874630801 | PITMAN ARM |
| 548 | A 6204630001 | PITMAN ARM |
| 552 | A 0029905051 | NUT |
| PITMAN ARM TO STEERING BOX ASSEMBLY | ||
| 552 | A 0019908151 | NUT |
| PITMAN ARM TO STEERING BOX ASSEMBLY | ||
| A 3874601405 | DRAG LINK | |
| Repalced by: A 3874603205 | ||
| A 3874603205 | DRAG LINK | |
| LEMFOERDER | ||
| 556 | A 3874603305 | DRAG LINK |
| EHRENREICH | ||
| A 6204600005 | DRAG LINK | |
| Repalced by: A 6204602805 | ||
| 556 | A 6204602805 | DRAG LINK |
| LEMFOERDER | ||
| A 6204602005 | DRAG LINK | |
| Repalced by: A 6204603705 | ||
| 556 | A 6204603705 | DRAG LINK |
| EHRENREICH | ||
| A 6204600105 | DRAG LINK | |
| Repalced by: A 6204603805 | ||

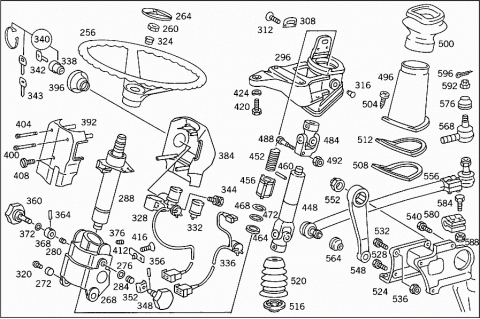

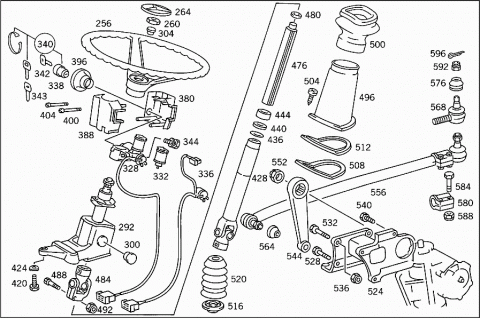

| 556 | A 6204603805 | DRAG LINK |
| LEMFOERDER | ||
| A 6204602105 | DRAG LINK | |
| Repalced by: A 6204603905 | ||
| 556 | A 6204603905 | DRAG LINK |
| EHRENREICH | ||
| A 3354600096 | BOOT | |
| Repalced by: A 0004621796 | ||
| 564 | A 0004621796 | BOOT |
| A 0004600348 | DRAG LINK END | |
| Repalced by: A 0004602848 | ||
| 568 | A 0004602848 | DRAG LINK END |
| Repalced by: A 0014600848 | ||
| 568 | A 0014600848 | DRAG LINK END |
| Repalced by: A 0014602248 | ||
| 568 | A 0014602248 | DRAG LINK END |
| R.H. THREAD | ||
| LEMFOERDER | ||
| A 0004601048 | DRAG LINK END | |
| Repalced by: A 0004602948 | ||
| 568 | A 0004602948 | DRAG LINK END |
| Repalced by: A 0014601248 | ||
| 568 | A 0014601248 | DRAG LINK END |
| Repalced by: A 0014602248 | ||
| 568 | A 0014602248 | DRAG LINK END |
| R.H. THREAD | ||
| EHRENREICH | ||
| A 3354600096 | BOOT | |
| Repalced by: A 0004621796 | ||
| 576 | A 0004621796 | BOOT |
| 580 | A 0003382545 | CLAMP |
| DRAG LINK END TO DRAG LINK | ||
| LEMFOERDER | ||
| 580 | A 0003383145 | CLAMP |
| DRAG LINK END TO DRAG LINK | ||
| EHRENREICH | ||
| 580 | A 0003382445 | CLAMP |
| DRAG LINK END TO DRAG LINK | ||
| LEMFOERDER | ||
| 580 | A 0003383445 | CLAMP |
| DRAG LINK END TO DRAG LINK | ||
| EHRENREICH | ||
| 584 | N 000960012453 | SCREW |
| Repalced by: N 308676012017 | ||
| 584 | N 308676012017 | SCREW |
| CLAMP TO DRAG LINK | ||
| 584 | N 000960012246 | SCREW |
| Repalced by: N 000960012353 | ||
| 584 | N 000960012353 | SCREW |
| CLAMP TO DRAG LINK | ||
| 588 | N 913004012009 | NUT |
| Repalced by: N 910113012003 | ||
| 588 | N 910113012003 | NUT |
| CLAMP TO DRAG LINK | ||
| A 0019905451 | NUT | |
| DRAG LINK TO LEVER | ||
| 592 | N 000937024002 | NUT |
| DRAG LINK TO LEVER | ||
| 596 | N 000094005045 | COTTER PIN |
| DRAG LINK TO LEVER | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
