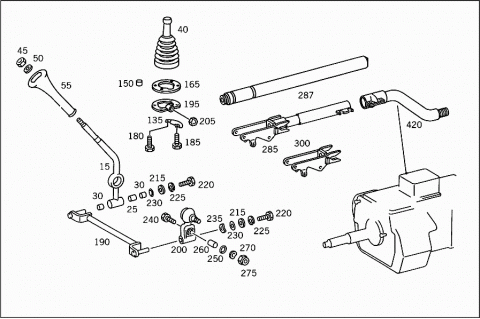

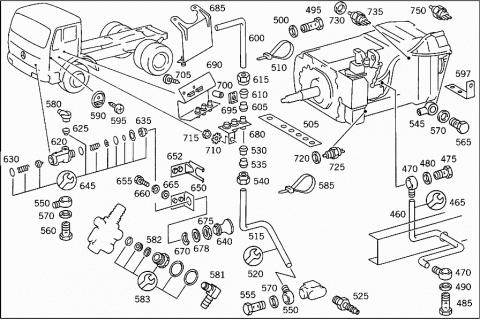

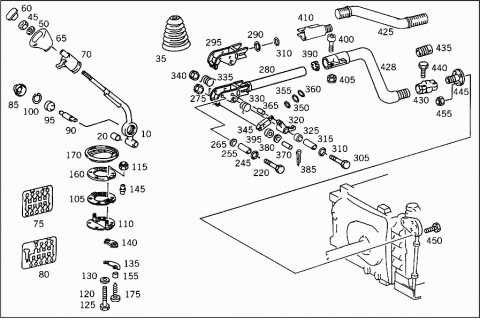

Transporto priemonė: 1933 LS; VIN numerio dalis: 621542
Grupė: 26 TRANSMISSION
| # | Kodas | Pavadinimas |
|---|---|---|
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FOR TRANSMISSION,SEE UNIT STANDARD VERSION,MODEL: | ||
| 717.2 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FOR TRANSMISSION,SEE UNIT STANDARD VERSION,MODEL: | ||
| 717.5 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FOR TRANSMISSION,SEE UNIT STANDARD VERSION,MODEL: | ||
| 717.3 | ||
| 010 | A 3852607039 | SHIFT LEVER |
| 010 | A 3852607039 | SHIFT LEVER |
| 010 | A 3852607039 | SHIFT LEVER |
| 010 | A 6202600139 | SHIFT LEVER |
| Repalced by: A 6202601639 | ||
| 010 | A 6202601639 | SHIFT LEVER |
| A 6202601339 | SHIFT LEVER | |
| Repalced by: A 6202601239 | ||
| 015 | A 6202601239 | SHIFT LEVER |
| A 6202600839 | SHIFT LEVER | |
| Repalced by: A 6202600939 | ||
| 015 | A 6202600939 | SHIFT LEVER |
| 015 | A 6202600939 | SHIFT LEVER |
| 020 | A 3359920203 | BUSHING |
| 020 | A 3359920203 | BUSHING |
| 020 | A 3359920203 | BUSHING |
| 025 | A 6202680050 | BUSHING |
| 025 | A 6202680050 | BUSHING |
| 030 | A 0109818010 | NEEDLE BEARING |
| 030 | A 0109818010 | NEEDLE BEARING |
| 030 | A 0119812910 | NEEDLE BEARING |
| 035 | A 3892680097 | BOOT |
| 035 | A 3892680097 | BOOT |
| 040 | A 6202680097 | BOOT |
| 040 | A 6202680097 | BOOT |
| 040 | A 6202680097 | BOOT |
| 040 | A 6202680197 | BOOT |
| 045 | N 000936010010 | NUT |
| GEARSHIFT LEVER KNOB TO GEARSHIFT LEVER | ||
| 050 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 050 | N 000125010532 | WASHER |
| GEARSHIFT LEVER KNOB TO GEARSHIFT LEVER | ||
| A 3852670001 | SHIFT LEVER | |
| Repalced by: A 6202680042 | ||
| 055 | A 6202680042 | KNOB |
| (SHIFT LEVER HANDLE) | ||
| 055 | A 6202680042 | KNOB |
| (SHIFT LEVER HANDLE) | ||
| 060 | A 6202680157 | COVER |
| LESS GEAR INDICATOR | ||
| A 6202670010 | HANDLE | |
| Repalced by: A 6202680142 | ||
| 065 | A 6202680142 | KNOB |
| Repalced by: A 6202600040 | ||
| 065 | A 6202600040 | HANDLE |
| (SHIFT LEVER HANDLE) | ||
| 065 | A 6202600040 | HANDLE |
| (SHIFT LEVER HANDLE) | ||
| 065 | A 6202600040 | HANDLE |
| (SHIFT LEVER HANDLE) | ||
| 070 | A 0002609557 | VALVE |
| Repalced by: A 0012602457 | ||
| 070 | A 0012602557 | VALVE |
| Repalced by: A 0012602457 | ||
| 070 | A 0012602457 | VALVE |
| Repalced by: A 0012605357 | ||
| 070 | A 0012605357 | VALVE |
| Repalced by: A 0012606357 | ||
| 070 | A 0012606357 | VALVE |
| (SHIFT LEVER VALVE) | ||
| HERION | ||
| 070 | A 0012606357 | VALVE |
| (SHIFT LEVER VALVE) | ||
| HERION | ||
| 070 | A 0012606357 | VALVE |
| (SHIFT LEVER VALVE) | ||
| HERION | ||
| 070 | A 0012606457 | VALVE |
| (SHIFT LEVER VALVE) | ||
| WABCO | ||
| 070 | A 0012606457 | VALVE |
| (SHIFT LEVER VALVE) | ||
| WABCO | ||
| 070 | A 0012606457 | VALVE |
| (SHIFT LEVER VALVE) | ||
| WABCO | ||
| 075 | A 3855840138 | GUMMED LABEL |
| GEAR INDICATOR | ||
| 075 | A 3855840138 | GUMMED LABEL |
| GEAR INDICATOR | ||
| 080 | A 6205840238 | GUMMED LABEL |
| GEAR INDICATOR | ||
| 080 | A 6205840238 | GUMMED LABEL |
| GEAR INDICATOR | ||
| 080 | A 6205840238 | GUMMED LABEL |
| GEAR INDICATOR | ||
| 085 | A 3852680696 | BOOT |
| Repalced by: A 6202680196 | ||
| 085 | A 6202680196 | BOOT |
| 090 | A 3852681474 | PIN |
| SHIFT LEVER BEARING | ||
| 095 | A 0009815531 | JOINT BEARING |
| Repalced by: A 0019813931 | ||
| 095 | A 0019813931 | JOINT BEARING |
| SHIFT LEVER BEARING | ||
| 095 | A 0009814531 | JOINT BEARING |
| SHIFT LEVER BEARING | ||
| 100 | N 000472042001 | LOCK RING |
| SHIFT LEVER BEARING | ||
| 105 | A 3892680440 | BRACKET |
| SHIFT LEVER UPPER PART | ||
| 110 | A 3892605262 | BRACKET |
| SHIFT LEVER LOWER PART | ||
| 115 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 115 | N 913004008001 | NUT |
| BRACKET TO BRACKET | ||
| 120 | N 000931008046 | SCREW |
| Repalced by: N 304017008018 | ||
| 120 | N 304017008018 | SCREW |
| SHIFT LEVER BEARING TO CAB FLOOR | ||
| M 8X35 | ||
| 125 | N 000931008266 | SCREW |
| SHIFT LEVER BEARING TO CAB FLOOR | ||
| M 8X40 | ||
| 130 | N 007349008003 | WASHER |
| SHIFT LEVER BEARING TO CAB FLOOR | ||
| 135 | A 3852681640 | BRACKET |
| SHIFT LEVER TO CAB FLOOR | ||
| 135 | A 3852681640 | BRACKET |
| SHIFTING TRANSFER,LEFT | ||
| 135 | A 3852681640 | BRACKET |
| SHIFT LEVER TO CAB FLOOR | ||
| 140 | A 3852680492 | RUBBER PAD |
| SHIFT LEVER TO CAB FLOOR | ||
| 140 | A 3852680492 | RUBBER PAD |
| SHIFTING TRANSFER,LEFT | ||
| 140 | A 3852680492 | RUBBER PAD |
| SHIFT LEVER TO CAB FLOOR | ||
| 145 | A 3852681950 | BUSHING |
| COMPRESSED AIR LINE THRU CAB FLOOR | ||
| 145 | A 3852681950 | BUSHING |
| COMPRESSED AIR LINE THRU CAB FLOOR | ||
| 145 | A 3852681950 | BUSHING |
| COMPRESSED AIR LINE THRU CAB FLOOR | ||
| 150 | A 6202680053 | SPACER TUBE |
| SHIFTING TRANSFER,LEFT | ||
| 150 | A 6202680053 | SPACER TUBE |
| SHIFTING TRANSFER,LEFT | ||
| 155 | A 3892680525 | BUSHING |
| SHIFT LEVER TO CAB FLOOR | ||
| 155 | A 3892680525 | BUSHING |
| SHIFTING TRANSFER,LEFT | ||
| 155 | A 3892680525 | BUSHING |
| SHIFT LEVER TO CAB FLOOR | ||
| 160 | A 3852680392 | RUBBER PAD |
| SHIFT LEVER TO CAB FLOOR | ||
| 165 | A 6202680092 | RUBBER PAD |
| SHIFT LEVER TO CAB FLOOR | ||
| 165 | A 6202680092 | RUBBER PAD |
| SHIFT LEVER TO CAB FLOOR | ||
| 170 | A 3852601962 | BRACKET |
| BOOT | ||
| 175 | N 007981003203 | SHEET METAL SCREW |
| BRACKET TO CAB | ||
| 180 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 180 | N 304017008021 | SCREW |
| SHIFTING TRANSFER TO CAB FLOOR | ||
| M 8X20 | ||
| 180 | N 304017008021 | SCREW |
| SHIFTING TRANSFER TO CAB FLOOR | ||
| M 8X20 | ||
| 185 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 185 | N 304017008027 | SCREW |
| SHIFTING TRANSFER TO CAB FLOOR | ||
| M 8X30 | ||
| 185 | N 304017008027 | SCREW |
| SHIFTING TRANSFER TO CAB FLOOR | ||
| M 8X30 | ||
| 190 | A 6202600147 | ROD |
| FRONT; TRANSVERSE | ||
| 190 | A 6202606833 | SHIFTING ROD |
| FRONT; TRANSVERSE | ||
| 190 | A 6202606833 | SHIFTING ROD |
| FRONT; TRANSVERSE | ||
| 195 | A 6202600662 | BRACKET |
| SHIFTING TRANSFER,LEFT | ||
| 195 | A 6202600662 | BRACKET |
| SHIFTING TRANSFER,LEFT | ||
| 200 | A 6202680189 | JOINT |
| SHIFTING TRANSFER,LEFT | ||
| 200 | A 6202680089 | JOINT |
| SHIFTING TRANSFER,LEFT | ||
| 200 | A 6202680089 | JOINT |
| SHIFTING TRANSFER,LEFT | ||
| A 0002686089 | JOINT | |
| A 0002686089 | JOINT | |
| A 0002685989 | JOINT | |
| A 6732680189 | JOINT | |
| Repalced by: A 0009965245 | ||
| A 0009965245 | ARTICULATION PIECE | |
| A 0009965245 | ARTICULATION PIECE | |
| A 2013300185 | REPAIR KIT | |
| A 2013300185 | REPAIR KIT | |
| N 000439014206 | NUT | |
| N 000439014206 | NUT | |
| 205 | N 000979010005 | NUT |
| JOINT TO BRACKET | ||
| N 000094002077 | COTTER PIN | |
| JOINT TO BRACKET | ||
| 215 | A 3859900740 | WASHER |
| SHIFTING ROD TO SHIFT LEVER | ||
| 220 | N 000933010128 | SCREW |
| SHIFTING ROD TO SHIFT LEVER | ||
| 225 | N 912004010102 | LOCK WASHER |
| SHIFTING ROD TO SHIFT LEVER | ||
| 230 | A 0099972648 | SEAL RING |
| SHIFTING ROD TO SHIFT LEVER | ||
| 230 | A 0099972648 | SEAL RING |
| SHIFTING ROD TO SHIFT LEVER | ||
| 235 | N 900055016001 | SPRING WASHER |
| SHIFTING ROD TO SHIFT LEVER | ||
| 240 | N 000931010357 | SCREW |
| Repalced by: N 000933010192 | ||
| 240 | A 0019909404 | SCREW |
| GEARSHIFT MECHANISM | ||
| 245 | A 0009978648 | SEAL RING |
| SHIFTING TUBE TO SHIFT LEVER | ||
| 245 | A 0009978648 | SEAL RING |
| SHIFTING TUBE TO SHIFT LEVER | ||
| 245 | A 0009978648 | SEAL RING |
| SHIFTING TUBE TO SHIFT LEVER | ||
| 250 | A 0099972648 | SEAL RING |
| SHIFTING ROD TO JOINT | ||
| 250 | A 0099972648 | SEAL RING |
| SHIFTING ROD TO JOINT | ||
| 255 | A 3852680153 | SPACER TUBE |
| SHIFTING TUBE TO SHIFT LEVER | ||
| 255 | A 3852680153 | SPACER TUBE |
| SHIFTING TUBE TO SHIFT LEVER | ||
| 255 | A 3852680153 | SPACER TUBE |
| SHIFTING TUBE TO SHIFT LEVER | ||
| 260 | A 6202680074 | PIN |
| SHIFTING ROD TO JOINT | ||
| 260 | A 6202680074 | PIN |
| SHIFTING ROD TO JOINT | ||
| 265 | N 900055018001 | SPRING WASHER |
| SHIFTING TUBE TO SHIFT LEVER | ||
| 270 | N 900055016001 | SPRING WASHER |
| SHIFTING ROD TO JOINT | ||
| 275 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 275 | N 910113010000 | NUT |
| SHIFTING ROD TO JOINT | ||
| 280 | A 3852609333 | SHIFTING ROD |
| (TELESCOPIC SHIFTING ROD) | ||
| 280 | A 3852609333 | SHIFTING ROD |
| (TELESCOPIC SHIFTING ROD) | ||
| 280 | A 3852609333 | SHIFTING ROD |
| (TELESCOPIC SHIFTING ROD) | ||
| 280 | A 3852609433 | SHIFTING ROD |
| (TELESCOPIC SHIFTING ROD) | ||
| 280 | A 3852609433 | SHIFTING ROD |
| (TELESCOPIC SHIFTING ROD) | ||
| 280 | A 3852609433 | SHIFTING ROD |
| (TELESCOPIC SHIFTING ROD) | ||
| 285 | A 6202607033 | SHIFTING ROD |
| (TELESCOPIC SHIFTING ROD) | ||
| 285 | A 6202607033 | SHIFTING ROD |
| (TELESCOPIC SHIFTING ROD) | ||
| 287 | A 3852603882 | SHIFTING TUBE |
| (TELESCOPIC TUBE) | ||
| 287 | A 3852603882 | SHIFTING TUBE |
| (TELESCOPIC TUBE) | ||
| 287 | A 3852603882 | SHIFTING TUBE |
| (TELESCOPIC TUBE) | ||
| 287 | A 6202603082 | SHIFTING TUBE |
| (TELESCOPIC TUBE) | ||
| 287 | A 6202603082 | SHIFTING TUBE |
| (TELESCOPIC TUBE) | ||
| 290 | A 0009978748 | SEAL RING |
| SHIFTING ROD | ||
| 30.20 MM | ||
| 295 | A 3852600534 | ROD END |
| HYDRAULIC RELEASE | ||
| 295 | A 3852600534 | ROD END |
| HYDRAULIC RELEASE | ||
| 295 | A 3852600534 | ROD END |
| HYDRAULIC RELEASE | ||
| 300 | A 6202600034 | ROD END |
| HYDRAULIC RELEASE | ||
| 300 | A 6202600034 | ROD END |
| HYDRAULIC RELEASE | ||
| 305 | N 000931010357 | SCREW |
| Repalced by: N 000933010192 | ||
| 305 | A 0019909404 | SCREW |
| PAWL TO ROD END | ||
| 310 | A 0009978648 | SEAL RING |
| PAWL TO ROD END | ||
| 17.20 MM | ||
| 315 | A 3852680153 | SPACER TUBE |
| PAWL TO ROD END | ||
| 320 | A 3852600387 | PAWL |
| Repalced by: A 6202600087 | ||
| 320 | A 6202600087 | PAWL |
| SHIFTING ROD | ||
| 325 | A 3359920203 | BUSHING |
| PAWL TO ROD END | ||
| A 6209920003 | BUSHING | |
| PAWL TO ROD END | ||
| A 6202680150 | BUSHING | |
| PAWL TO ROD END | ||
| 330 | A 3859930020 | SPRING |
| PAWL TO ROD END | ||
| 335 | A 3859930120 | SPRING |
| PAWL TO ROD END | ||
| 340 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 340 | N 910113010000 | NUT |
| PAWL TO ROD END | ||
| 345 | A 3852600063 | SHIFTING CYLINDER |
| HYDRAULIC RELEASE | ||
| WABCO | ||
| 345 | A 3852600563 | SHIFTING CYLINDER |
| HYDRAULIC RELEASE | ||
| TECHNOMATIK | ||
| 350 | A 0069976748 | SEAL RING |
| PISTON RINGS | ||
| TO 385 260 00 63 | ||
| 355 | A 0069976848 | SEAL RING |
| SCREW FITTING | ||
| TO 385 260 00 63 | ||
| 360 | A 0019970641 | SEAL RING |
| OUTSIDE | ||
| TO 385 260 00 63 | ||
| 365 | N 001443008203 | PIN |
| Repalced by: N 001444008235 | ||
| 365 | N 001444008235 | PIN |
| SHIFTING CYLINDER TO PAWL | ||
| 8X22 MM | ||
| 370 | N 001444008234 | PIN |
| SHIFTING CYLINDER TO YOKE | ||
| 8X45 MM | ||
| 370 | N 001444008234 | PIN |
| SHIFTING CYLINDER TO YOKE | ||
| 8X45 MM | ||
| 370 | N 001444008234 | PIN |
| SHIFTING CYLINDER TO YOKE | ||
| 8X45 MM | ||
| 370 | N 001444008237 | PIN |
| SHIFTING CYLINDER TO YOKE | ||
| 8X60 MM | ||
| 370 | N 001444008237 | PIN |
| SHIFTING CYLINDER TO YOKE | ||
| 8X60 MM | ||
| 380 | N 900055008002 | SPRING WASHER |
| SHIFTING CYLINDER TO YOKE | ||
| 385 | N 000094002059 | COTTER PIN |
| SHIFTING CYLINDER TO YOKE | ||
| 390 | A 3852680776 | WASHER |
| BETWEEN FRONT AND REAR SHIFTING TUBES | ||
| 395 | A 6209900340 | WASHER |
| SHIFTING CYLINDER TO YOKE | ||
| 395 | A 6209900340 | WASHER |
| SHIFTING CYLINDER TO YOKE | ||
| 400 | N 006912010021 | SCREW |
| FRONT SHIFTING ROD TO REAR SHIFTING ROD | ||
| 405 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 405 | N 910113010000 | NUT |
| FRONT SHIFTING ROD TO REAR SHIFTING ROD | ||
| 410 | A 3852602062 | BRACKET |
| FRONT SHIFTING ROD TO REAR SHIFTING ROD | ||
| 420 | A 3872601533 | SHIFTING ROD |
| REAR | ||
| 420 | A 6202604133 | SHIFTING ROD |
| REAR | ||
| 420 | A 6202604133 | SHIFTING ROD |
| REAR | ||
| 420 | A 6202601733 | SHIFTING ROD |
| REAR | ||
| 420 | A 6202609033 | SHIFTING ROD |
| REAR | ||
| 420 | A 6202603947 | ROD |
| REAR | ||
| 420 | A 3872603033 | SHIFTING ROD |
| REAR | ||
| 420 | A 6202604147 | ROD |
| REAR | ||
| 420 | A 6202606747 | ROD |
| REAR | ||
| 420 | A 6202602933 | SHIFTING ROD |
| REAR | ||
| 420 | A 6202600282 | SHIFTING TUBE |
| REAR | ||
| 425 | A 6202607833 | SHIFTING ROD |
| REAR | ||
| 428 | A 6202608547 | ROD |
| REAR | ||
| 430 | A 3852680188 | CLAMPING PIECE |
| FLANGE TO SHIFTING TUBE | ||
| 430 | A 3852680188 | CLAMPING PIECE |
| FLANGE TO SHIFTING TUBE | ||
| 430 | A 3852680188 | CLAMPING PIECE |
| FRONT SHIFTING ROD TO REAR SHIFTING ROD | ||
| 435 | A 6202680028 | CONNECTOR |
| REAR SHIFTING ROD TO CONNECTOR | ||
| 435 | A 6202680028 | CONNECTOR |
| REAR SHIFTING ROD TO CONNECTOR | ||
| 435 | A 6202680028 | CONNECTOR |
| REAR SHIFTING ROD TO CONNECTOR | ||
| 440 | N 000933010202 | SCREW |
| Repalced by: N 304017010047 | ||
| 440 | N 304017010047 | SCREW |
| FLANGE TO SHIFTING TUBE | ||
| M 10X35 | ||
| 440 | N 304017010047 | SCREW |
| FLANGE TO SHIFTING TUBE | ||
| M 10X35 | ||
| 440 | N 304017010047 | SCREW |
| FRONT SHIFTING ROD TO REAR SHIFTING ROD | ||
| M 10X35 | ||
| 445 | A 3892609233 | SHIFTING ROD |
| WITH FLANGE | ||
| 445 | A 3892609233 | SHIFTING ROD |
| WITH FLANGE | ||
| 450 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 450 | N 304017008027 | SCREW |
| SHIFTING ROD TO CONNECTOR | ||
| M 8X30 | ||
| 450 | N 304017008027 | SCREW |
| SHIFTING ROD TO CONNECTOR | ||
| M 8X30 | ||
| 455 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 455 | N 913004008001 | NUT |
| SHIFTING ROD TO CONNECTOR | ||
| 455 | N 913004008001 | NUT |
| SHIFTING ROD TO CONNECTOR | ||
| 460 | A 0089979082 | HOSE |
| FOUR-CIRCUIT PROTECTIVE VALVE,CLUTCH BOOSTER,DISTRIBUTOR,3/2-WAY VALVE | ||
| 6X8 MM | ||
| 460 | A 0089979082 | HOSE |
| SUPPLY LINE FOR TRANSMISSION | ||
| 6X8 MM | ||
| 465 | A 0039978972 | FITTING |
| Repalced by: A 0029905971 | ||
| 465 | A 0029905971 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| A 0009906688 | BANJO UNION | |
| Repalced by: N 915052006013 | ||
| 470 | N 915052006013 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 6/12 MM | ||
| 470 | N 915052006014 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 6/16 MM | ||
| 475 | N 915039008202 | HOLLOW SCREW FITTING |
| 3/2-WAY VALVE | ||
| 475 | N 915036008202 | HOLLOW SCREW |
| 3/2-WAY VALVE | ||
| 480 | N 007603012405 | SEAL RING |
| 3/2-WAY VALVE | ||
| 485 | N 915047008202 | HOLLOW SCREW |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "23" | ||
| 490 | N 007603012405 | SEAL RING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "23" | ||
| 495 | N 915047012203 | HOLLOW SCREW |
| SUPPLY LINE TO CLUTCH BOOSTER | ||
| 500 | N 007603016401 | SEAL RING |
| SUPPLY LINE TO CLUTCH BOOSTER | ||
| 505 | A 3604293140 | BRACKET |
| LINE MOUNTING | ||
| 510 | A 0019978490 | LOOM TIE |
| LINE TO BRACKET | ||
| 515 | A 0089976082 | HOSE |
| Repalced by: A 0009872627 | ||
| 515 | A 0009872627 | PLASTIC PIPE |
| DISTRIBUTOR,3/2-WAY VALVE,ADDITIONAL GEARBOX VALVE | ||
| 4X6 MM | ||
| 515 | A 0009872627 | PLASTIC PIPE |
| FROM 3/2-WAY VALVE TO SHIFTING CYLINDER | ||
| 4X6 MM | ||
| 520 | A 0039979172 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 525 | N 915059004001 | FITTING |
| LINE CONNECTIONS | ||
| 530 | N 915062004000 | SLEEVE |
| LINE CONNECTIONS | ||
| 535 | N 003861006008 | GLAND |
| LINE CONNECTIONS | ||
| 535 | N 003861006007 | GLAND |
| Repalced by: A 0019901667 | ||
| 535 | A 0019901667 | SEAL CONE |
| LINE CONNECTIONS | ||
| 540 | N 915017006104 | UNION NUT |
| LINE CONNECTIONS | ||
| 540 | N 915017006100 | UNION NUT |
| LINE CONNECTIONS | ||
| 545 | N 915052004016 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 4/10 MM | ||
| 550 | N 915052004015 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 4/12 MM | ||
| 555 | N 915047008202 | HOLLOW SCREW |
| DISTRIBUTOR | ||
| 560 | N 915036008202 | HOLLOW SCREW |
| SPLITTER-BOX PILOT VALVE | ||
| 560 | N 915036008202 | HOLLOW SCREW |
| SHIFTING CYLINDER,CONNECTION: | ||
| "1" | ||
| 565 | N 915036006202 | HOLLOW SCREW |
| SHIFTING CYLINDER,CONNECTION: | ||
| "41" | ||
| 570 | N 007603012405 | SEAL RING |
| DISTRIBUTOR | ||
| 570 | N 007603010404 | SEAL RING |
| SHIFTING CYLINDER,CONNECTION: | ||
| "41" | ||
| A 3933280065 | PIPE SOCKET | |
| Repalced by: A 4063580065 | ||
| 580 | A 4063580065 | BREATHER |
| Repalced by: A 3933280065 | ||
| 580 | A 3933280065 | PIPE SOCKET |
| 3/2-WAY VALVE | ||
| 580 | A 3933280065 | PIPE SOCKET |
| 3/2-WAY VALVE | ||
| 581 | A 0019907871 | ELBOW FITTING |
| Repalced by: A 0049905271 | ||
| 581 | A 0049905271 | ELBOW FITTING |
| SPLITTER-BOX PILOT-VALVE PLUGCONNECTION | ||
| TO M 16 | ||
| A 0009940047 | LOCK RING | |
| Repalced by: A 0009940747 | ||
| A 0009940747 | LOCK RING | |
| SPLITTER-BOX PILOT-VALVE PLUGCONNECTION | ||
| TO M 16 | ||
| 582 | A 0009941248 | LOCK |
| Repalced by: A 0009945448 | ||
| 582 | A 0009945448 | LOCK |
| SPLITTER-BOX PILOT-VALVE PLUGCONNECTION | ||
| TO M 16 | ||
| 583 | A 6739970045 | REPAIR KIT |
| Repalced by: A 0309971748 | ||
| 583 | A 0309971748 | REPAIR KIT |
| SPLITTER-BOX PILOT-VALVE PLUGCONNECTION | ||
| TO M 16 | ||
| 585 | A 0019978390 | LOOM TIE |
| LINE TO BRACKET | ||
| 585 | A 0019978490 | LOOM TIE |
| LINE TO BRACKET | ||
| 590 | A 3816820086 | BRACKET |
| LINE MOUNTING | ||
| 595 | N 007981004244 | SHEET METAL SCREW |
| Repalced by: N 000000000453 | ||
| 595 | N 000000000453 | SHEET METAL SCREW |
| BRACKET TO CAB | ||
| 597 | A 3854760036 | BRACKET |
| Repalced by: A 6205240340 | ||
| 597 | A 6205240340 | BRACKET |
| COMPRESSED AIR LINE TO TRANSMISSION | ||
| A 0139977582 | HOSE | |
| Repalced by: A 0109975482 | ||
| 600 | A 0109975482 | PLASTIC TUBE |
| 605 | N 915062002000 | SLEEVE |
| LINE CONNECTIONS | ||
| 610 | N 003861004001 | GLAND |
| LINE CONNECTIONS | ||
| 615 | N 915017004101 | UNION NUT |
| LINE CONNECTIONS | ||
| 620 | A 0004342201 | VALVE |
| (PILOT VALVE),SPLITTER BOX | ||
| 620 | A 0004342201 | VALVE |
| (PILOT VALVE),SPLITTER BOX | ||
| 625 | A 0003280191 | CLEANER |
| 625 | A 0003280191 | CLEANER |
| 630 | A 0079972548 | SEAL RING |
| 630 | A 0079972548 | SEAL RING |
| 635 | A 0004340586 | CUP |
| 635 | A 0004340586 | CUP |
| 640 | A 0009971977 | HANDLE |
| 640 | A 0009971977 | HANDLE |
| 645 | A 0025869843 | REPAIR KIT |
| SPLITTER-BOX PILOT VALVE | ||
| 645 | A 0025869843 | REPAIR KIT |
| SPLITTER-BOX PILOT VALVE | ||
| 650 | A 3812900233 | BRACKET |
| 3/2-WAY VALVE | ||
| 652 | A 6202900133 | BRACKET |
| 3/2-WAY VALVE | ||
| 655 | N 000933006130 | SCREW |
| BRACKET TO PEDAL BEARING BRACKET | ||
| 655 | N 000933006130 | SCREW |
| BRACKET TO PEDAL BEARING BRACKET | ||
| 660 | N 912004006102 | LOCK WASHER |
| BRACKET TO PEDAL BEARING BRACKET | ||
| 660 | N 912004006102 | LOCK WASHER |
| BRACKET TO PEDAL BEARING BRACKET | ||
| 665 | N 000125006421 | WASHER |
| BRACKET TO PEDAL BEARING BRACKET | ||
| Repalced by: N 000125006449 | ||
| 665 | N 000125006449 | WASHER |
| BRACKET TO PEDAL BEARING BRACKET | ||
| 665 | N 000125006449 | WASHER |
| BRACKET TO PEDAL BEARING BRACKET | ||
| 670 | N 000137027201 | SPRING WASHER |
| 3/2-WAY VALVE TO CAB FRONT PANEL | ||
| 670 | N 000137027201 | SPRING WASHER |
| 3/2-WAY VALVE TO CAB FRONT PANEL | ||
| 675 | N 074305026202 | NUT |
| 3/2-WAY VALVE TO CAB FRONT PANEL | ||
| 675 | N 074305026202 | NUT |
| 3/2-WAY VALVE TO CAB FRONT PANEL | ||
| 675 | N 074305026202 | NUT |
| VALVE TO BRACKET | ||
| 675 | N 074305026202 | NUT |
| 3/2-WAY VALVE TO CAB FRONT PANEL | ||
| 678 | A 3609900840 | WASHER |
| Repalced by: N 001440027000 | ||
| 678 | N 001440027000 | WASHER |
| VALVE TO BRACKET | ||
| 680 | A 3892600062 | BRACKET |
| LINE CONNECTIONS | ||
| A 6202600762 | BRACKET | |
| Repalced by: A 6202600062 | ||
| 685 | A 6202600062 | BRACKET |
| LINE MOUNTING | ||
| 690 | A 6172600362 | BRACKET |
| Repalced by: A 6172600062 | ||
| 690 | A 6172600062 | BRACKET |
| LINE MOUNTING | ||
| 690 | A 6172600062 | BRACKET |
| LINE MOUNTING | ||
| 690 | A 6172600462 | BRACKET |
| Repalced by: A 6172600162 | ||
| 690 | A 6172600162 | BRACKET |
| LINE MOUNTING | ||
| 690 | A 6172600162 | BRACKET |
| LINE MOUNTING | ||
| 695 | A 0009940445 | LOCK |
| Repalced by: A 1409941045 | ||
| 695 | A 1409941045 | LOCK |
| BRACKET TO CAB | ||
| 695 | A 1409941045 | LOCK |
| BRACKET TO CAB | ||
| 700 | A 3479915040 | SPACER TUBE |
| BRACKET TO CAB | ||
| 700 | A 3479915040 | SPACER TUBE |
| BRACKET TO CAB | ||
| 705 | N 007981004254 | SHEET METAL SCREW |
| BRACKET TO CAB | ||
| 705 | N 007981004254 | SHEET METAL SCREW |
| BRACKET TO CAB | ||
| 710 | N 006798006103 | SERRATED WASHER |
| BRACKET TO CAB | ||
| 715 | N 000934006007 | NUT |
| BRACKET TO CAB | ||
| 720 | A 0002680759 | SEAL RING |
| NEUTRAL POSITION SWITCH | ||
| 720 | A 0002682059 | SEAL RING |
| IDLE POSITION SWITCH TO TRANSMISSION CASE COVER; AS REQUIRED | ||
| 1.60 MM | ||
| 720 | A 0002681959 | SEAL RING |
| IDLE POSITION SWITCH TO TRANSMISSION CASE COVER; AS REQUIRED | ||
| 1.80 MM | ||
| 720 | A 0002681559 | SEAL RING |
| IDLE POSITION SWITCH TO TRANSMISSION CASE COVER; AS REQUIRED | ||
| 2.00 MM | ||
| 720 | A 0002681659 | SEAL RING |
| IDLE POSITION SWITCH TO TRANSMISSION CASE COVER; AS REQUIRED | ||
| 2.20 MM | ||
| 720 | A 0002681759 | SEAL RING |
| IDLE POSITION SWITCH TO TRANSMISSION CASE COVER; AS REQUIRED | ||
| 2.40 MM | ||
| 720 | A 0002682159 | SEAL RING |
| IDLE POSITION SWITCH TO TRANSMISSION CASE COVER; AS REQUIRED | ||
| 2.60 MM | ||
| 720 | A 0002682259 | SEAL RING |
| IDLE POSITION SWITCH TO TRANSMISSION CASE COVER; AS REQUIRED | ||
| 2.80 MM | ||
| 720 | A 0002682359 | SEAL RING |
| IDLE POSITION SWITCH TO TRANSMISSION CASE COVER; AS REQUIRED | ||
| 3.00 MM | ||
| A 0005454214 | SWITCH | |
| Repalced by: A 0005455209 | ||
| 725 | A 0005455209 | SWITCH |
| Repalced by: A 0005457909 | ||
| 725 | A 0005457909 | SWITCH |
| Repalced by: A 0005459009 | ||
| 725 | A 0005459009 | SWITCH |
| Repalced by: A 0015451109 | ||
| 725 | A 0015451109 | SWITCH |
| Repalced by: A 0015452709 | ||
| 725 | A 0015452709 | SWITCH |
| NEUTRAL POSITION SWITCH | ||
| 730 | A 0002680359 | SEAL RING |
| Repalced by: N 007603018100 | ||
| 730 | N 007603018100 | SEAL RING |
| GEAR CLUSTER INDICATION | ||
| 730 | N 007603018100 | SEAL RING |
| OVERREVVING | ||
| 735 | A 0015453414 | SWITCH |
| Repalced by: A 0025458114 | ||
| 735 | A 0025458114 | SWITCH |
| Repalced by: A 0035451614 | ||
| 735 | A 0035451614 | SWITCH |
| GEAR CLUSTER INDICATION | ||
| 735 | A 0035451614 | SWITCH |
| OVERREVVING | ||
| 750 | A 0065426817 | SENDER UNIT |
| OVERREVVING | ||
| 750 | A 0065426817 | SENDER UNIT |
| OVERREVVING | ||
| 750 | A 0065426917 | SENDER UNIT |
| OVERREVVING | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
