Transporto priemonė: 1935 LS; VIN numerio dalis: 646523
Grupė: 32 SPRINGS AND SUSPENSION
| # | Kodas | Pavadinimas |
|---|---|---|

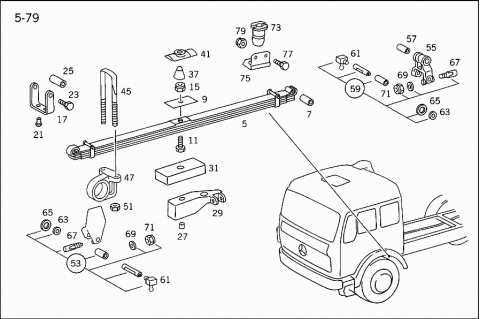

| 005 | A 6203200002 | FRONT SPRING |
| (PARABOLIC SPRING);NUMBER OF LEAVES: | ||
| 4 | ||
| 007 | A 3043210150 | BUSHING |
| 007 | A 6203210050 | BUSHING |
| 009 | A 3933210284 | SHIM |
| BETWEEN THE SPRING LEAVES | ||
| 011 | A 3913210171 | SCREW |
| (SPRING BOLT) | ||
| 015 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 015 | N 910113014000 | NUT |
| SPRING BOLT | ||
| 017 | A 6203240533 | SPRING CLAMP |
| FRONT SPRING | ||
| 021 | N 910006008024 | RIVET |
| SPRING CLAMP TO SPRING LEAF | ||
| 023 | N 000963012011 | SCREW |
| SPRING CLAMP | ||
| 025 | A 0003212753 | SPACER TUBE |
| SPRING CLAMP | ||
| 027 | A 3893230074 | PIN |
| FRONT SPRINGS TO FRONT AXLE | ||
| 029 | A 6213310628 | SHIM |
| LEFT SHOCK ABSORBER | ||
| 029 | A 6213310228 | SHIM |
| LEFT SHOCK ABSORBER | ||
| 029 | A 6213310528 | SHIM |
| RIGHT SHOCK ABSORBER | ||
| 029 | A 6213310128 | SHIM |
| RIGHT SHOCK ABSORBER | ||
| 031 | A 6203310228 | SHIM |
| BETWEEN SPRING AND FRONT AXLE | ||
| 031 | A 3953310028 | SHIM |
| BETWEEN SPRING AND SHIM,RIGHT | ||
| 037 | A 3263310044 | RUBBER BUFFER |
| Repalced by: A 6553310044 | ||
| 037 | A 6553310044 | RUBBER BUFFER |
| FRONT SPRINGS TO FRONT AXLE | ||
| 041 | A 3043310027 | SPACER |
| Repalced by: A 6483310026 | ||
| 041 | A 6483310026 | PLATE |
| Repalced by: A 6553310126 | ||
| 041 | A 6553310126 | PLATE |
| Repalced by: A 6483310026 | ||
| 041 | A 6483310026 | PLATE |
| FRONT SPRINGS TO FRONT AXLE | ||
| 045 | A 3043311925 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 275 MM | ||
| 045 | A 3873310925 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 230 MM | ||
| 047 | A 6203230563 | BEARING BRACKET |
| TORSION BAR,FRONT | ||
| 051 | N 000934020008 | NUT |
| Repalced by: N 308673020002 | ||
| 051 | N 308673020002 | NUT |
| Repalced by: N 308674020000 | ||
| 051 | N 308674020000 | NUT |
| FRONT SPRINGS WITH TORSION BAR TO FRONT AXLE | ||
| 053 | A 3953200165 | SHACKLE PIN |
| (PARTS KIT),FRONT SPRING,FRONT | ||
| 055 | A 3873200162 | SHACKLE |
| FRONT SPRING,REAR | ||
| 057 | A 3043210150 | BUSHING |
| 057 | A 6203210050 | BUSHING |
| 059 | A 3953200265 | SHACKLE PIN |
| (PARTS KIT),FRONT SPRING,REAR | ||
| 061 | N 071412010300 | GREASE NIPPLE |
| SHACKLE PIN | ||
| 063 | A 3523230376 | WASHER |
| AS REQUIRED | ||
| 4.00 MM | ||
| 063 | A 3523230476 | WASHER |
| AS REQUIRED | ||
| 4.20 MM | ||
| 063 | A 3523230576 | WASHER |
| AS REQUIRED | ||
| 4.30 MM | ||
| 065 | A 0029973140 | SEAL RING |
| SPRING SUSPENSION | ||
| 067 | A 3529900337 | BOLT |
| SPRING PIN LOCK | ||
| 069 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 069 | N 000125010532 | WASHER |
| SPRING PIN LOCK | ||
| 071 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 071 | N 910113010000 | NUT |
| SPRING PIN LOCK | ||
| 073 | A 3833240008 | HELPER SPRING |
| FRONT SPRING STOP | ||
| 075 | A 3953210040 | BRACKET |
| HELPER SPRING | ||
| 077 | N 000933010145 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 079 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 079 | N 910113010000 | NUT |
| BRACKET TO SIDE MEMBER | ||

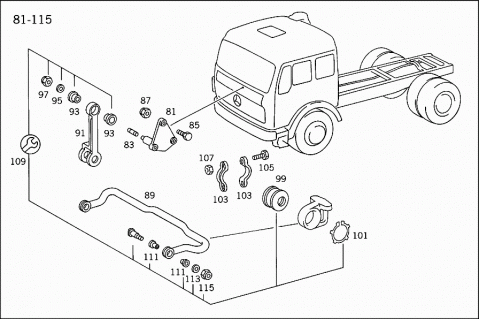

| 081 | A 6203200178 | CONSOLE |
| Repalced by: A 6203230463 | ||
| 081 | A 6203230463 | BEARING BRACKET |
| LINK TO FRAME | ||
| 083 | N 000939014036 | STUD BOLT |
| 085 | N 000961016039 | SCREW |
| CONSOLE TO FRAME | ||
| 087 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 087 | N 910113016002 | NUT |
| CONSOLE TO FRAME | ||
| 089 | A 6213230165 | TORSION BAR |
| FRONT AXLE | ||
| 091 | A 6203230516 | LINK |
| TORSION BAR,FRONT | ||
| 093 | A 6203230150 | BUSHING |
| LINK TO CONSOLE | ||
| 095 | A 6203230052 | SPACER WASHER |
| LINK TO CONSOLE | ||
| 097 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 097 | N 910113014001 | NUT |
| LINK TO CONSOLE | ||
| N 000961014127 | SCREW | |
| LINK TO CONSOLE | ||
| 099 | A 3873260281 | RUBBER MOUNTING |
| TORSION BAR BEARING | ||
| 101 | N 000983085001 | LOCK RING |
| 103 | A 6213230540 | BRACKET |
| TORSION BAR | ||
| 105 | N 000961012052 | SCREW |
| Repalced by: N 308676012012 | ||
| 105 | N 308676012012 | SCREW |
| BRACKET TO TORSION BAR | ||
| 107 | N 910113012002 | NUT |
| BRACKET TO TORSION BAR | ||
| 109 | A 6213200428 | REPAIR KIT |
| TORSION BAR MOUNTING | ||
| 111 | A 6203230350 | BUSHING |
| TORSION BAR TO SHACKLE | ||
| 113 | A 6203230052 | SPACER WASHER |
| TORSION BAR TO SHACKLE | ||
| 115 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 115 | N 910113014001 | NUT |
| TORSION BAR TO SHACKLE | ||

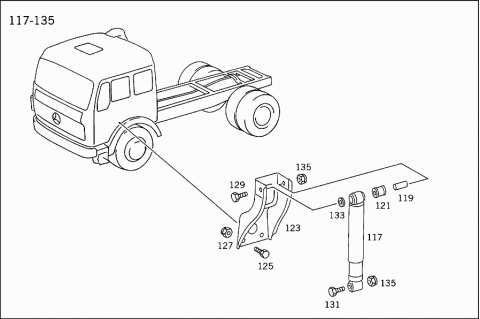

| 117 | A 0043234600 | SHOCK ABSORBER |
| Repalced by: A 0063230800 | ||
| 117 | A 0043230100 | SHOCK ABSORBER |
| Repalced by: A 0063230800 | ||
| 117 | A 0063230800 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 119 | A 0003233150 | BUSHING |
| TO 004 323 46 00,006 323 08 00 | ||
| 119 | A 0003235250 | BUSHING |
| TO 004 323 01 00 | ||
| 121 | A 0003232885 | RUBBER MOUNTING |
| TO 004 323 46 00,006 323 08 00 | ||
| 121 | A 0003233044 | RUBBER BUFFER |
| Repalced by: A 0003233144 | ||
| 121 | A 0003233144 | RUBBER BUFFER |
| TO 004 323 01 00 | ||
| 123 | A 6243230340 | BRACKET |
| SHOCK ABSORBER,TOP | ||
| 125 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 125 | N 308676014020 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 127 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 127 | N 910113014001 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 129 | N 000960016275 | SCREW |
| SHOCK ABSORBER TO BRACKET | ||
| 129 | N 000960016267 | SCREW |
| SHOCK ABSORBER TO BRACKET | ||
| 131 | N 000960016244 | SCREW |
| SHOCK ABSORBER TO BEARING BRACKET | ||
| A 6208910053 | SPACER TUBE | |
| Repalced by: A 6458910653 | ||
| A 6458910653 | SPACER TUBE | |
| SHOCK ABSORBER TO BRACKET | ||
| A 6458910553 | SPACER TUBE | |
| SHOCK ABSORBER TO BRACKET | ||
| 133 | A 3939900240 | WASHER |
| SHOCK ABSORBER TO BRACKET | ||
| 135 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 135 | N 910113016002 | NUT |
| SHOCK ABSORBER TO BRACKET | ||
| 135 | N 910113016002 | NUT |
| SHOCK ABSORBER TO BEARING BRACKET | ||

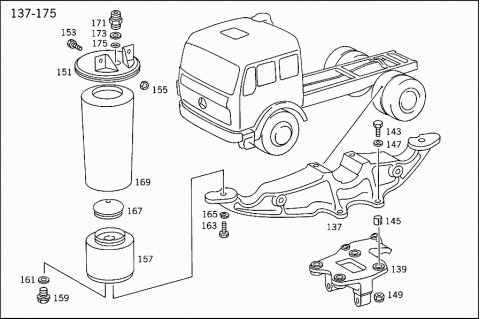

| 137 | A 6203280141 | SUPPORT |
| Repalced by: A 6203280041 | ||
| 137 | A 6203280041 | SUPPORT |
| Repalced by: A 6553280541 | ||
| 137 | A 6553280541 | SUPPORT |
| Repalced by: A 6553280341 | ||
| 137 | A 6553280341 | SUPPORT |
| Repalced by: A 6553281041 | ||
| 137 | A 6553281041 | SUPPORT |
| AIR SPRING BELLOWS,LEFT | ||
| 137 | A 6203280041 | SUPPORT |
| Repalced by: A 6553280641 | ||
| 137 | A 6553280641 | SUPPORT |
| Repalced by: A 6553280441 | ||
| 137 | A 6553280441 | SUPPORT |
| Repalced by: A 6553281141 | ||
| 137 | A 6553281141 | SUPPORT |
| AIR SPRING BELLOWS,RIGHT | ||
| 139 | A 3933251140 | BRACKET |
| TORSION BAR,LEFT | ||
| 139 | A 3933251240 | BRACKET |
| TORSION BAR,RIGHT | ||
| 143 | N 000960024058 | SCREW |
| AIR-SPRING-BELLOWS SUPPORT TO REAR AXLE | ||
| 145 | N 007346030004 | CLAMPING SLEEVE |
| AIR-SPRING-BELLOWS SUPPORT TO REAR AXLE | ||
| 147 | A 6203250070 | SPHERICAL WASHER |
| AIR-SPRING-BELLOWS SUPPORT TO REAR AXLE | ||
| 149 | N 913004024004 | NUT |
| AIR-SPRING-BELLOWS SUPPORT TO REAR AXLE | ||
| 151 | A 3873200635 | PLATE |
| REAR AXLE,FRONT | ||
| 151 | A 3873200535 | PLATE |
| REAR AXLE,REAR | ||
| A 6583250053 | SPACER TUBE | |
| Repalced by: A 6583250253 | ||
| A 6583250253 | SPACER TUBE | |
| PLATE TO CENTRAL BEARING | ||
| 153 | N 000960018133 | SCREW |
| PLATE TO CENTRAL BEARING | ||
| 153 | N 000961012106 | SCREW |
| FRONT PLATE TO SIDE MEMBER | ||
| 155 | N 913004018004 | NUT |
| PLATE TO CENTRAL BEARING | ||
| 155 | N 910113012002 | NUT |
| FRONT PLATE TO SIDE MEMBER | ||
| 157 | A 3933201018 | PISTON |
| PNEUMATIC SUSPENSION | ||
| 159 | A 0004290456 | SCREW PLUG |
| 161 | N 007603012112 | SEAL RING |
| 163 | N 000961061113 | SCREW |
| PISTON TO AIR-SPRING-BELLOWS SUPPORT | ||
| 163 | N 000961016081 | SCREW |
| PISTON TO AIR-SPRING-BELLOWS SUPPORT | ||
| 165 | N 912004016101 | LOCK WASHER |
| PISTON TO AIR-SPRING-BELLOWS SUPPORT | ||
| 167 | A 3603280039 | RUBBER BUFFER |
| (RUBBER STOP),EMERGENCY RUNNING | ||
| 169 | A 3833270001 | AIR SPRING BELLOWS |
| REAR AXLE PNEUMATIC SUSPENSION | ||
| 169 | A 6213280001 | AIR SPRING BELLOWS |
| REAR AXLE PNEUMATIC SUSPENSION | ||
| 171 | A 0039979972 | FITTING |
| AIR SPRING BELLOWS,CONNECTION: | ||
| "10" | ||
| 173 | A 0079974245 | SEAL RING |
| AIR SPRING BELLOWS,CONNECTION: | ||
| "10" | ||
| 175 | A 0004290627 | THRUST RING |
| AIR SPRING BELLOWS,CONNECTION: | ||
| "10" | ||
| 177 | A 3933505405 | CONTROL ARM |
| Repalced by: A 6553500305 | ||
| 177 | A 6553500305 | CONTROL ARM |
| TRIANGULAR | ||
| 177 | A 3933505505 | CONTROL ARM |
| Repalced by: A 6583500005 | ||
| 177 | A 6583500005 | CONTROL ARM |
| TRIANGULAR | ||
| 179 | A 0003500313 | JOINT |
| (CENTRAL JOINT) | ||
| TO 393 350 55 05;EHRENREICH | ||
| 179 | A 0003500713 | JOINT |
| (CENTRAL JOINT) | ||
| TO 393 350 54 05;LEMFOERDER | ||
| 179 | A 0003500813 | JOINT |
| (CENTRAL JOINT) | ||
| TO 658 350 00 05;EHRENREICH | ||
| 181 | A 0005860135 | REPAIR KIT |
| CENTRAL JOINT;WITH BALL PIVOT | ||
| TO 393 350 54 05;LEMFOERDER | ||
| 181 | A 0005861933 | REPAIR KIT |
| Repalced by: A 0005861833 | ||
| 181 | A 0005861833 | REPAIR KIT |
| Repalced by: A 0003500405 | ||
| 181 | A 0003500405 | REPAIR KIT |
| CENTRAL JOINT;WITH BALL PIVOT | ||
| TO 393 350 55 05 ; EHRENREICH | ||
| 183 | A 0003500505 | CONTROL ARM |
| Repalced by: A 0003500305 | ||
| 183 | A 0003500305 | REPAIR KIT |
| Repalced by: A 0003500213 | ||
| 183 | A 0003500213 | REPAIR KIT |
| WITH BALL PIVOT | ||
| TO 393 350 54 05;LEMFOERDER | ||
| 183 | A 0005861533 | REPAIR KIT |
| LESS BALL PIVOT | ||
| TO 393 350 55 05 ; EHRENREICH | ||
| 183 | A 0005861433 | REPAIR KIT |
| WITH BALL PIVOT | ||
| TO 393 350 55 05 ; EHRENREICH | ||
| 185 | N 000961020016 | SCREW |
| Repalced by: N 308676020021 | ||
| 185 | N 308676020021 | SCREW |
| THRUST ARM TO SUPPORT | ||
| 187 | N 000137020202 | SPRING WASHER |
| Repalced by: N 000137020205 | ||
| 187 | N 000137020205 | SPRING WASHER |
| THRUST ARM TO SUPPORT | ||
| 189 | A 6203500106 | CONTROL ARM |
| Repalced by: A 6553500306 | ||
| 189 | A 6553500306 | CONTROL ARM |
| LOWER CONTROL ARM | ||
| 191 | A 0003381797 | BOOT |
| 193 | A 0005861533 | REPAIR KIT |
| LESS BALL PIVOT | ||
| 193 | A 0005861433 | REPAIR KIT |
| WITH BALL PIVOT | ||
| 195 | N 000960020138 | SCREW |
| Repalced by: N 000960020078 | ||
| 195 | N 000960020078 | SCREW |
| LINK TO AXLE | ||
| 195 | N 000960020032 | SCREW |
| Repalced by: N 308765020012 | ||
| 195 | N 308765020012 | SCREW |
| LINK TO AXLE | ||
| A 6529900040 | WASHER | |
| LINK TO AXLE | ||
| 197 | N 913004020004 | NUT |
| Repalced by: N 913004020003 | ||
| 197 | N 913004020003 | NUT |
| LINK TO AXLE | ||
| 199 | N 000960020093 | SCREW |
| Repalced by: N 308765020014 | ||
| 199 | N 308765020014 | SCREW |
| LINK TO CENTRAL BEARING | ||
| 201 | N 913004020004 | NUT |
| Repalced by: N 913004020003 | ||
| 201 | N 913004020003 | NUT |
| LINK TO CENTRAL BEARING | ||
| 203 | A 3933280152 | SPACER WASHER |
| AS REQUIRED | ||
| 0.50 MM | ||
| 203 | A 3933280252 | SPACER WASHER |
| AS REQUIRED | ||
| 1.00 MM | ||
| 203 | A 3933280352 | SPACER WASHER |
| AS REQUIRED | ||
| 2.00 MM | ||
| 203 | N 000125021006 | WASHER |
| AS REQUIRED | ||
| 3.00 MM | ||
| 203 | A 3933280452 | SPACER WASHER |
| AS REQUIRED | ||
| 4.00 MM | ||

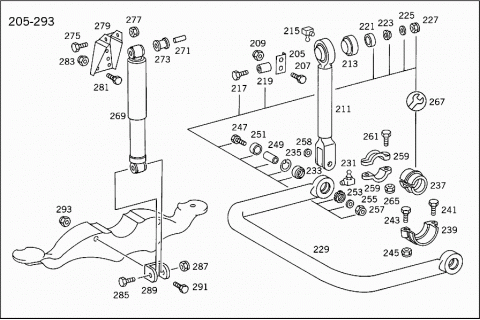

| 205 | A 3833260940 | BRACKET |
| LINK | ||
| A 6483120184 | SHIM | |
| LINK | ||
| 207 | N 000961018020 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| N 000125019009 | WASHER | |
| BRACKET TO SIDE MEMBER | ||
| 209 | N 913004018004 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 211 | A 3933200789 | ROD |
| TORSION BAR TO BRACKET | ||
| 213 | A 0009816131 | JOINT BEARING |
| 215 | N 071412008302 | GREASE NIPPLE |
| 217 | N 000960016285 | SCREW |
| ROD TO BRACKET | ||
| 219 | A 3853230453 | SPACER TUBE |
| ROD TO BRACKET | ||
| 221 | A 3853230353 | SPACER TUBE |
| ROD TO BRACKET | ||
| 223 | A 3803230260 | SEAL RING |
| ROD TO BRACKET | ||
| 225 | N 007349017002 | WASHER |
| ROD TO BRACKET | ||
| 227 | N 913004016005 | NUT |
| Repalced by: N 910113016001 | ||
| 227 | N 910113016001 | NUT |
| ROD TO BRACKET | ||
| 229 | A 3933260965 | TORSION BAR |
| REAR AXLE | ||
| 231 | N 071412008302 | GREASE NIPPLE |
| TORSION BAR | ||
| 233 | A 0009816131 | JOINT BEARING |
| ROD TO TORSION BAR | ||
| 233 | A 0009817431 | JOINT BEARING |
| ROD TO TORSION BAR | ||
| 235 | N 000472055000 | LOCK RING |
| ROD TO TORSION BAR | ||
| 237 | A 3893260081 | RUBBER MOUNTING |
| TORSION BAR TO REAR AXLE | ||
| 237 | A 6553260481 | RUBBER MOUNTING |
| TORSION BAR TO REAR AXLE | ||
| 239 | A 3933250319 | SPRING SEAT |
| TORSION BAR TO REAR AXLE,RIGHT | ||
| 239 | A 3933250419 | SPRING SEAT |
| TORSION BAR TO REAR AXLE,LEFT | ||
| A 6553260064 | STEP BEARING | |
| TORSION BAR TO REAR AXLE | ||
| 241 | N 000960016285 | SCREW |
| TORSION BAR TO REAR AXLE | ||
| M 16X115 | ||
| 243 | N 000960016248 | SCREW |
| TORSION BAR TO REAR AXLE | ||
| M 16X160 | ||
| 243 | N 000960016277 | SCREW |
| Repalced by: N 308765016011 | ||
| 243 | N 308765016011 | SCREW |
| TORSION BAR TO REAR AXLE | ||
| M 16X110 | ||
| 245 | N 913004016005 | NUT |
| Repalced by: N 910113016001 | ||
| 245 | N 910113016001 | NUT |
| TORSION BAR TO REAR AXLE | ||
| 247 | N 000960016285 | SCREW |
| ROD TO TORSION BAR | ||
| 249 | A 3853230453 | SPACER TUBE |
| ROD TO TORSION BAR | ||
| 251 | A 3853230353 | SPACER TUBE |
| ROD TO TORSION BAR | ||
| 253 | A 3803230160 | SEAL RING |
| ROD TO TORSION BAR | ||
| 255 | N 007349017002 | WASHER |
| ROD TO TORSION BAR | ||
| 257 | N 913004016005 | NUT |
| Repalced by: N 910113016001 | ||
| 257 | N 910113016001 | NUT |
| ROD TO TORSION BAR | ||
| 258 | A 3939900140 | WASHER |
| ROD TO TORSION BAR | ||
| 259 | A 3933251640 | BRACKET |
| TORSION BAR | ||
| 261 | N 000961010038 | SCREW |
| BRACKET TO TORSION BAR | ||
| 265 | N 913004010010 | NUT |
| Repalced by: N 910113010002 | ||
| 265 | N 910113010002 | NUT |
| BRACKET TO TORSION BAR | ||
| 267 | A 6213200128 | REPAIR KIT |
| TORSION BAR MOUNTING | ||
| 267 | A 6213200011 | REPAIR KIT |
| TORSION BAR MOUNTING | ||
| 269 | A 0023266200 | SHOCK ABSORBER |
| Repalced by: A 0053262000 | ||
| 269 | A 0033268500 | SHOCK ABSORBER |
| Repalced by: A 0053262000 | ||
| 269 | A 0053262000 | SHOCK ABSORBER |
| REAR AXLE | ||
| 271 | A 0003233150 | BUSHING |
| TO 002 326 62 00, 005 326 20 00 | ||
| 273 | A 0003232885 | RUBBER MOUNTING |
| TO 002 326 62 00, 005 326 20 00 | ||
| 275 | N 000960016105 | SCREW |
| SHOCK ABSORBER TO TOP BRACKET | ||
| 277 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 277 | N 910113016002 | NUT |
| SHOCK ABSORBER TO TOP BRACKET | ||
| 279 | A 3873200243 | BRACKET |
| SHOCK ABSORBER,TOP | ||
| A 6483120084 | SHIM | |
| SHOCK ABSORBER,TOP | ||
| 281 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 281 | N 308676012026 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 283 | N 910113012002 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 285 | N 000960016164 | SCREW |
| SHOCK ABSORBER TO BOTTOM BRACKET | ||
| 287 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 287 | N 910113016002 | NUT |
| SHOCK ABSORBER TO BOTTOM BRACKET | ||
| 289 | A 3953230140 | BRACKET |
| SHOCK ABSORBER,BOTTOM | ||
| 291 | N 000960020140 | SCREW |
| Repalced by: N 000960020123 | ||
| 291 | N 000960020123 | SCREW |
| SHOCK ABSORBER TO AIR-SPRING-BELLOWS SUPPORT | ||
| 291 | N 000960020040 | SCREW |
| SHOCK ABSORBER TO AIR-SPRING-BELLOWS SUPPORT | ||
| 293 | N 913004020004 | NUT |
| Repalced by: N 913004020003 | ||
| 293 | N 913004020003 | NUT |
| SHOCK ABSORBER TO AIR-SPRING-BELLOWS SUPPORT | ||

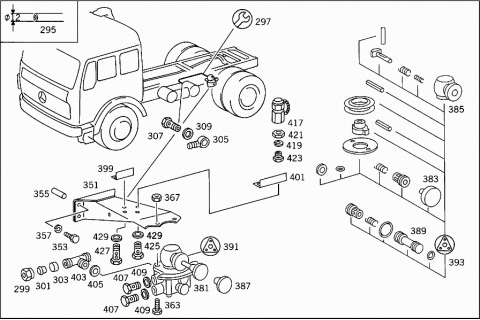

| 295 | A 0109975982 | HOSE |
| Repalced by: A 0009872827 | ||
| 295 | A 0009872827 | PLASTIC PIPE |
| AIR RESERVOIR,SHIFT VALVE | ||
| 9X12 MM | ||
| 297 | A 0049971772 | FITTING |
| Repalced by: A 0029906171 | ||
| 297 | A 0029906171 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 299 | N 915017012100 | UNION NUT |
| 301 | N 003861012007 | GLAND |
| Repalced by: A 0019901967 | ||
| 301 | A 0019901967 | SEAL CONE |
| 303 | N 915062009000 | SLEEVE |
| 305 | N 915052009009 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 9/16 MM | ||
| 307 | N 915036012203 | HOLLOW SCREW |
| AIR RESERVOIR,CONNECTION: | ||
| "24" | ||
| 309 | N 007603016401 | SEAL RING |
| AIR RESERVOIR,CONNECTION: | ||
| "24" | ||

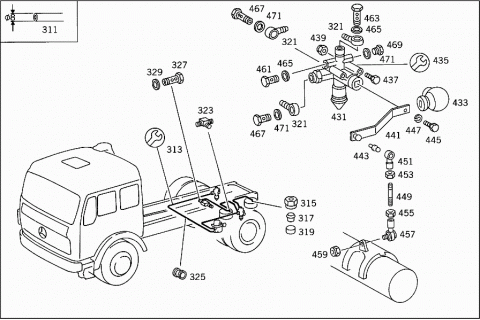

| 311 | A 0089979082 | HOSE |
| SHIFT VALVE,AIR SPRING BELLOWS,TEST CONNECTION | ||
| 6X8 MM | ||
| 313 | A 0039978972 | FITTING |
| Repalced by: A 0029905971 | ||
| 313 | A 0029905971 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 315 | N 915017008100 | UNION NUT |
| 317 | N 003861008005 | GLAND |
| 319 | N 915062006000 | SLEEVE |
| 321 | A 0009909488 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 6/16 MM | ||
| 321 | N 915052006014 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 6/16 MM | ||
| 321 | N 915052006013 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 6/12 MM | ||
| 323 | A 0009907990 | T-FITTING |
| BETWEEN THE LINES | ||
| 325 | A 0039977581 | GROMMET |
| COMPRESSED AIR LINE THRU FRAME | ||
| 327 | N 915047008202 | HOLLOW SCREW |
| BRAKE POWER REGULATOR,CONNECTIONS: | ||
| "41,42" | ||
| 329 | N 007603012405 | SEAL RING |
| BRAKE POWER REGULATOR,CONNECTIONS: | ||
| "41,42" | ||
| 335 | A 0089976082 | HOSE |
| Repalced by: A 0009872627 | ||
| 335 | A 0009872627 | PLASTIC PIPE |
| BRAKE POWER REGULATOR,TEST CONNECTION | ||
| 4X6 MM | ||
| 337 | A 0039979172 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 339 | N 915052004015 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 4/12 MM | ||
| 341 | A 0039977481 | GROMMET |
| COMPRESSED AIR LINE THRU LEFT FRAME SIDE MEMBER | ||
| 343 | N 000433008406 | WASHER |
| COMPRESSED AIR LINE TO FRAME | ||
| 345 | A 0019978390 | LOOM TIE |
| 280 MM | ||
| 345 | A 0019978490 | LOOM TIE |
| 376 MM | ||
| 351 | A 3873200443 | BRACKET |
| CONTROL VALVE | ||
| 353 | N 000961012165 | SCREW |
| Repalced by: N 000961012051 | ||
| 353 | N 000961012051 | SCREW |
| BRACKET TO FRAME | ||
| 353 | N 000960012230 | SCREW |
| BRACKET TO FRAME | ||
| 355 | A 3939910040 | SPACER TUBE |
| BRACKET TO FRAME | ||
| 357 | N 912004012100 | LOCK WASHER |
| BRACKET TO FRAME | ||
| 363 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 363 | N 304017008034 | SCREW |
| BRACKET TO BRACKET | ||
| 367 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 367 | N 913004008001 | NUT |
| BRACKET TO BRACKET | ||
| 381 | A 0003290725 | VALVE |
| CONTROL VALVE | ||
| "GRAU" | ||
| 381 | A 0003290825 | VALVE |
| CONTROL VALVE | ||
| "KNORR" | ||
| 383 | A 0003290193 | PROTECTIVE CAP |
| TO 000 329 08 25 | ||
| 385 | A 0003290092 | BOOT |
| TO 000 329 08 25 | ||
| 387 | A 0009973177 | HANDLE |
| TO 000 329 08 25 | ||
| 389 | A 0003200058 | VALVE |
| TO 000 329 08 25 | ||
| 391 | A 0003200567 | REPAIR KIT |
| CONTROL VALVE | ||
| "GRAU" | ||
| 393 | A 0003200767 | REPAIR KIT |
| CONTROL VALVE | ||
| "KNORR,SV 3111-I/83153" | ||
| 399 | A 3935840721 | GUIDE SIGN |
| "AIR SPRING BELLOWS,LEFT/RIGHT"; IN GERMAN | ||
| 401 | A 3185840621 | GUIDE SIGN |
| "SUPPLY";IN GERMAN | ||
| A 3875840055 | ADHESIVE FOIL | |
| "SUPPLY";IN GERMAN | ||
| 403 | A 0009907470 | T-FITTING |
| SHIFT VALVE,CONNECTION: | ||
| "11" | ||
| 405 | N 007603016401 | SEAL RING |
| SHIFT VALVE,CONNECTION: | ||
| "11" | ||
| 407 | N 915036012203 | HOLLOW SCREW |
| SHIFT VALVE,CONNECTIONS: | ||
| "12,13,22,23" | ||
| 409 | N 007603016401 | SEAL RING |
| SHIFT VALVE,CONNECTIONS: | ||
| "12,13,22,23" | ||
| 417 | A 0004312031 | TEST CONNECTION |
| CONTROL VALVE | ||
| 417 | A 0004314531 | TEST CONNECTION |
| CONTROL VALVE | ||
| 417 | A 0004314831 | TEST CONNECTION |
| CONTROL VALVE | ||
| 417 | A 0004316131 | TEST CONNECTION |
| CONTROL VALVE | ||
| 419 | N 912004012100 | LOCK WASHER |
| TEST CONNECTION TO BRACKET | ||
| 421 | N 080705012003 | NUT |
| TEST CONNECTION TO BRACKET | ||
| 423 | A 0019908168 | FITTING |
| TEST CONNECTION TO BRACKET | ||
| 425 | N 915036008202 | HOLLOW SCREW |
| TEST CONNECTION,CONNECTIONS: | ||
| "12,13" | ||
| 427 | N 915047008202 | HOLLOW SCREW |
| TEST CONNECTION,CONNECTION: | ||
| "11" | ||
| 429 | N 007603012405 | SEAL RING |
| TEST CONNECTION,CONNECTIONS: | ||
| "11,12,13" | ||
| 431 | A 0003283230 | VALVE |
| REAR AXLE SELF-LEVELLING DEVICE | ||
| 433 | A 0003280292 | BOOT |
| 435 | A 0005861332 | REPAIR KIT |
| Repalced by: A 0003201067 | ||
| 435 | A 0003201067 | REPAIR KIT |
| AIR SPRING VALVE | ||
| KNORR SV 1280-I/69324 | ||
| 435 | A 0003201067 | REPAIR KIT |
| AIR SPRING VALVE | ||
| KNORR SV 1280-I/80093 | ||
| 437 | N 000931008309 | SCREW |
| AIR SPRING VALVE TO FRAME SIDE MEMBER | ||
| 439 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 439 | N 913004008001 | NUT |
| AIR SPRING VALVE TO FRAME SIDE MEMBER | ||
| 441 | A 3603200927 | LEVER |
| AIR SPRING VALVE | ||
| 443 | N 071803013208 | BALL PIVOT |
| 445 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 445 | N 304017008016 | SCREW |
| LEVER TO AIR SPRING VALVE | ||
| 447 | N 912004008102 | LOCK WASHER |
| LEVER TO AIR SPRING VALVE | ||
| 449 | N 900331008427 | PULL ROD |
| FROM LEVER TO REAR AXLE | ||
| 451 | A 0004310667 | YOKE |
| TOP | ||
| 453 | N 000439008211 | NUT |
| Repalced by: N 304035008001 | ||
| 453 | N 304035008001 | NUT |
| R.H. THREAD | ||
| 455 | N 000439008203 | NUT |
| Repalced by: N 304035008002 | ||
| 455 | N 304035008002 | NUT |
| L.H. THREAD | ||
| 457 | A 0004310767 | YOKE |
| BOTTOM | ||
| 459 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 459 | N 913004008001 | NUT |
| PULL ROD TO AXLE | ||
| 461 | N 915036008202 | HOLLOW SCREW |
| AIR SPRING VALVE,CONNECTIONS: | ||
| "11,21" | ||
| 463 | N 915047008202 | HOLLOW SCREW |
| LEFT AIR SPRING VALVE,CONNECTION: | ||
| "11" | ||
| 465 | N 007603012405 | SEAL RING |
| AIR SPRING VALVE,CONNECTIONS: | ||
| "11,21" | ||
| 467 | N 915036012203 | HOLLOW SCREW |
| AIR SPRING VALVE,CONNECTIONS: | ||
| "12,23" | ||
| 469 | N 007604012102 | SCREW PLUG |
| LEFT AIR SPRING VALVE,CONNECTION: | ||
| "21" | ||
| 471 | N 007603016401 | SEAL RING |
| AIR SPRING VALVE,CONNECTIONS: | ||
| "12,23" | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
