Transporto priemonė: 1935 S; VIN numerio dalis: 646123
Grupė: 30 CONTROL
| # | Kodas | Pavadinimas |
|---|---|---|
| X XXXXXXXXXXXX | PART NAME MISSING | |

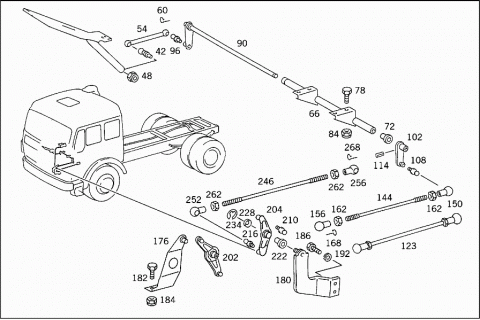

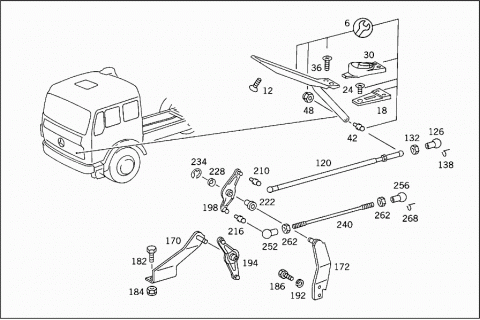

| PEDAL/LINKAGE CONTROL | ||
| 006 | A 6243000304 | ACCELERATOR PEDAL |
| (PARTS KIT) | ||
| A 6153000104 | PAD | |
| ACCELERATOR PEDAL | ||
| 012 | N 007991005007 | SCREW |
| ACCELERATOR PEDAL | ||
| 018 | A 6153010084 | SHIM |
| ACCELERATOR PEDAL | ||
| 024 | N 000965006040 | SCREW |
| SHIM TO CAB FLOOR | ||
| 030 | A 6153010097 | BOOT |
| ACCELERATOR PEDAL | ||
| A 6553010093 | GUIDE RAIL | |
| ACCELERATOR PEDAL TO FLOOR PLATE | ||
| N 000965006077 | SCREW | |
| GUIDE RAIL RETROFIT | ||
| 036 | N 000965006003 | SCREW |
| ACCELERATOR PEDAL,BOOT AND SHIM TO CAB FLOOR | ||
| A 3813010041 | STOP | |
| PEDAL STOP | ||
| N 000931008254 | SCREW | |
| Repalced by: N 304014008002 | ||
| N 304014008002 | SCREW | |
| PEDAL STOP TO CAB FLOOR | ||
| N 304032008006 | NUT | |
| PEDAL STOP TO CAB FLOOR | ||
| 042 | A 0009911015 | BALL PIVOT |
| ACCELERATOR PEDAL | ||
| 048 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 048 | N 913004006001 | NUT |
| BALL PIVOT TO ACCELERATOR PEDAL | ||
| 054 | A 3819910123 | BALL SOCKET |
| FROM ACCELERATOR PEDAL TO CONTROL SHAFT BEARING | ||
| 060 | N 071805010403 | SECURING CLIP |
| BALL SOCKET TO BALL PIVOT | ||
| 066 | A 6153000021 | BEARING TUBE |
| CONTROL SHAFT | ||
| 072 | A 3813020050 | BUSHING |
| BEARING TUBE | ||
| 078 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 078 | N 304017008016 | SCREW |
| BEARING TUBE TO CAB FLOOR | ||
| 084 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 084 | N 913004008001 | NUT |
| BEARING TUBE TO CAB FLOOR | ||
| 090 | A 6153000020 | SHAFT |
| (CONTROL SHAFT) | ||
| 096 | N 071803010204 | BALL PIVOT |
| 102 | A 3813000625 | LEVER |
| (CONTROL LEVER) | ||
| 108 | N 071803010204 | BALL PIVOT |
| 114 | N 001481004017 | CLAMPING SLEEVE |
| Repalced by: N 308752004001 | ||
| 114 | N 308752004001 | CLAMPING PIN |
| CONTROL LEVER TO CONTROL SHAFT | ||
| 120 | A 6203000615 | ROD |
| FROM ACCELERATOR PEDAL TO INTERMEDIATE LEVER | ||
| 120 | A 6203000015 | ROD |
| FROM ACCELERATOR PEDAL TO INTERMEDIATE LEVER | ||
| 123 | A 3604301992 | ROD |
| FROM CONTROL SHAFT BEARING TO INTERMEDIATE LEVER | ||
| 126 | A 0009912422 | BALL SOCKET |
| ROD TO ACCELERATOR PEDAL | ||
| 126 | A 0009912422 | BALL SOCKET |
| ROD TO ACCELERATOR PEDAL | ||
| 132 | N 000934006007 | NUT |
| BALL SOCKET TO ROD | ||
| 132 | N 000934006007 | NUT |
| BALL SOCKET TO ROD | ||
| 138 | N 071805010403 | SECURING CLIP |
| BALL SOCKET TO BALL PIVOT | ||
| 138 | N 071805010403 | SECURING CLIP |
| BALL SOCKET TO BALL PIVOT | ||
| 144 | A 3353010315 | ROD |
| FROM CONTROL SHAFT BEARING TO INTERMEDIATE LEVER | ||
| 150 | A 0009912422 | BALL SOCKET |
| ROD TO CONTROL LEVER | ||
| 156 | N 071805010204 | BALL SOCKET |
| ROD TO INTERMEDIATE LEVER | ||
| 162 | N 000934006007 | NUT |
| BALL SOCKET TO ROD | ||
| 168 | N 071805010403 | SECURING CLIP |
| BALL SOCKET TO BALL PIVOT | ||
| A 6203010640 | BRACKET | |
| INTERMEDIATE SHAFT BEARING | ||
| 170 | A 6203000536 | BEARING BRACKET |
| INTERMEDIATE LEVER | ||
| 172 | A 6203000136 | BEARING BRACKET |
| Repalced by: A 6203000736 | ||
| 172 | A 6203000736 | BEARING BRACKET |
| INTERMEDIATE LEVER | ||
| A 6203000936 | BEARING BRACKET | |
| INTERMEDIATE LEVER | ||
| 176 | A 6203000636 | BEARING BRACKET |
| INTERMEDIATE LEVER | ||
| 180 | A 6203000236 | BEARING BRACKET |
| Repalced by: A 6203000836 | ||
| 180 | A 6203000836 | BEARING BRACKET |
| INTERMEDIATE LEVER | ||
| A 6453010084 | SHIM | |
| BEARING BRACKET TO CAB SUSPENSION CONSOLE | ||
| 182 | N 000933010128 | SCREW |
| BEARING BRACKET TO GUSSET PLATE | ||
| N 000933008147 | SCREW | |
| Repalced by: N 304017008021 | ||
| N 304017008021 | SCREW | |
| BRACKET TO BEARING BRACKET | ||
| 184 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 184 | N 910113010000 | NUT |
| BEARING BRACKET TO GUSSET PLATE | ||
| N 913004008004 | NUT | |
| Repalced by: N 913004008001 | ||
| N 913004008001 | NUT | |
| BRACKET TO BEARING BRACKET | ||
| 186 | N 000933008186 | SCREW |
| BEARING BRACKET TO CAB SUSPENSION CONSOLE | ||
| 186 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 186 | N 304017008034 | SCREW |
| BEARING BRACKET TO CAB SUSPENSION CONSOLE | ||
| 186 | N 304017008034 | SCREW |
| BEARING BRACKET TO CAB SUSPENSION CONSOLE | ||
| 192 | N 912004008102 | LOCK WASHER |
| BEARING BRACKET TO CAB SUSPENSION CONSOLE | ||
| 194 | A 6203000628 | LEVER |
| INTERMEDIATE BEARING | ||
| 198 | A 6203000228 | LEVER |
| Repalced by: A 6203001328 | ||
| 198 | A 6203001328 | LEVER |
| INTERMEDIATE BEARING | ||
| 202 | A 6203001028 | LEVER |
| Repalced by: A 6203001128 | ||
| A 6203001128 | LEVER | |
| INTERMEDIATE BEARING | ||
| 204 | A 6203000728 | LEVER |
| INTERMEDIATE BEARING | ||
| 210 | N 071803010202 | BALL PIVOT |
| TOP | ||
| 216 | N 071803013208 | BALL PIVOT |
| BOTTOM | ||
| 222 | A 3813020050 | BUSHING |
| INTERMEDIATE LEVER TO BEARING BRACKET | ||
| 222 | A 3813020050 | BUSHING |
| INTERMEDIATE LEVER TO BEARING BRACKET | ||
| 228 | A 6153010088 | COVERING |
| INTERMEDIATE LEVER TO BEARING BRACKET | ||
| 234 | N 006799010001 | LOCK PLATE |
| INTERMEDIATE LEVER TO BEARING BRACKET | ||
| 240 | N 900331008421 | PULL ROD |
| FROM INTERMEDIATE LEVER TO ENGINE CONTROL SHAFT | ||
| 246 | N 900331008420 | PULL ROD |
| FROM INTERMEDIATE LEVER TO ENGINE CONTROL SHAFT | ||
| 252 | N 071805013203 | BALL SOCKET |
| PULL ROD TO INTERMEDIATE LEVER | ||
| 256 | A 4069910022 | BALL SOCKET |
| PULL ROD TO LEVER AT ENGINE | ||
| 262 | N 304032008006 | NUT |
| BALL SOCKET TO ROD | ||
| 268 | N 071805013402 | SECURING CLIP |
| BALL SOCKET TO BALL PIVOT | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |

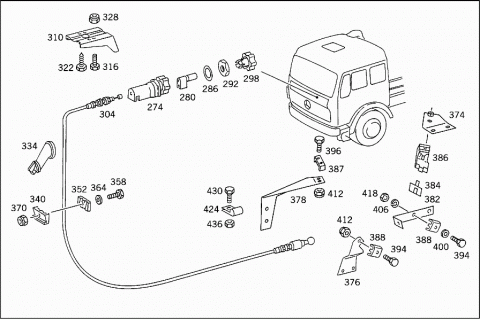

| MANUAL IDLING CONTROL | ||
| 274 | A 3813000326 | MANUAL CONTROL |
| IDLING ADJUSTMENT | ||
| 280 | A 3813020108 | GUIDE |
| IDLING ADJUSTMENT | ||
| 286 | N 000988030003 | FITTED WASHER |
| MANUAL CONTROL TO BRACKET | ||
| 292 | A 3819900051 | NUT |
| MANUAL CONTROL TO BRACKET | ||
| 298 | A 6153020001 | KNOB |
| IDLING ADJUSTMENT | ||
| 304 | A 6203000130 | WIRE CABLE |
| IDLING ADJUSTMENT | ||
| 304 | A 6203000130 | WIRE CABLE |
| IDLING ADJUSTMENT | ||
| 304 | A 6153000930 | WIRE CABLE |
| IDLING ADJUSTMENT | ||
| 310 | A 3813020240 | BRACKET |
| MANUAL CONTROL | ||
| 316 | N 000933006103 | SCREW |
| Repalced by: N 304017006018 | ||
| 316 | N 304017006018 | SCREW |
| BRACKET TO WINDOW SILL GIRDER | ||
| 316 | N 000933006183 | SCREW |
| Repalced by: N 304017006016 | ||
| 316 | N 304017006016 | SCREW |
| BRACKET TO WINDOW SILL GIRDER | ||
| 322 | N 007976005207 | SHEET METAL SCREW |
| Repalced by: N 914031005208 | ||
| 322 | N 914031005208 | COMBINATION BOLT |
| BRACKET TO WINDOW SILL GIRDER | ||
| 328 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 328 | N 913004006001 | NUT |
| BRACKET TO WINDOW SILL GIRDER | ||
| 334 | A 0069978881 | GROMMET |
| WIRE CABLE THRU FIRE WALL | ||
| 340 | A 6175460044 | CLAMPING PIECE |
| WIRE CABLE TO FIRE WALL | ||
| 340 | A 6175460344 | CLAMPING PIECE |
| WIRE CABLE TO FIRE WALL | ||
| 352 | A 6175460144 | CLAMPING PIECE |
| WIRE CABLE TO FIRE WALL | ||
| 352 | A 3875460344 | CLAMPING PIECE |
| WIRE CABLE TO FIRE WALL | ||
| 358 | N 000931006118 | SCREW |
| WIRE CABLE TO FIRE WALL | ||
| 364 | N 000125006421 | WASHER |
| WIRE CABLE TO FIRE WALL | ||
| 370 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 370 | N 913004006001 | NUT |
| WIRE CABLE TO FIRE WALL | ||
| 374 | A 6203000040 | BRACKET |
| WIRE CABLE TO RADIATOR MOUNTING CONSOLE | ||
| 376 | A 6203020040 | BRACKET |
| Repalced by: A 6203000040 | ||
| 376 | A 6203020040 | BRACKET |
| WIRE CABLE TO RADIATOR MOUNTING | ||
| A 6203010740 | BRACKET | |
| WIRE CABLE TO RADIATOR MOUNTING CONSOLE | ||
| N 913004006002 | NUT | |
| Repalced by: N 913004006001 | ||
| N 913004006001 | NUT | |
| BRACKET TO CONSOLE | ||
| 378 | A 6203010240 | BRACKET |
| WIRE CABLE TO HYDRAULIC LINE BRACKET | ||
| 382 | A 6203000140 | BRACKET |
| WIRE CABLE TO RADIATOR MOUNTING | ||
| 384 | A 6203010036 | COVER |
| WIRE CABLE TO BRACKET | ||
| 386 | A 6203010043 | CLAMPING PIECE |
| WIRE CABLE TO BRACKET | ||
| 387 | A 3975460144 | CLAMPING PIECE |
| WIRE CABLE TO BRACKET | ||
| 388 | A 3875460244 | CLAMPING PIECE |
| WIRE CABLE TO BRACKET | ||
| 388 | A 3875460244 | CLAMPING PIECE |
| WIRE CABLE TO BRACKET | ||
| 394 | N 000933006127 | SCREW |
| CLAMPING PIECE TO BRACKET | ||
| M 6X25 | ||
| 394 | N 000933006127 | SCREW |
| CLAMPING PIECE TO BRACKET | ||
| M 6X25 | ||
| 396 | N 000933006124 | SCREW |
| CLAMPING PIECE TO BRACKET | ||
| M 6X30 | ||
| 400 | N 000125006421 | WASHER |
| CLAMPING PIECE TO BRACKET | ||
| 400 | N 000125006421 | WASHER |
| CLAMPING PIECE TO BRACKET | ||
| 406 | N 912004006102 | LOCK WASHER |
| CLAMPING PIECE TO BRACKET | ||
| 406 | N 912004006102 | LOCK WASHER |
| CLAMPING PIECE TO BRACKET | ||
| 412 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 412 | N 913004006001 | NUT |
| CLAMPING PIECE TO BRACKET | ||
| 412 | N 913004006001 | NUT |
| CLAMPING PIECE TO BRACKET | ||
| 418 | N 000934006007 | NUT |
| CLAMPING PIECE TO BRACKET | ||
| 424 | N 916016008200 | CLAMP |
| WIRE CABLE TO HYDRAULIC LINE BRACKET | ||
| 430 | N 000000001147 | SCREW |
| WIRE CABLE TO HYDRAULIC LINE BRACKET | ||
| M 6X20 | ||
| 436 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 436 | N 913004006001 | NUT |
| WIRE CABLE TO HYDRAULIC LINE BRACKET | ||
