Transporto priemonė: 1935 S; VIN numerio dalis: 646123

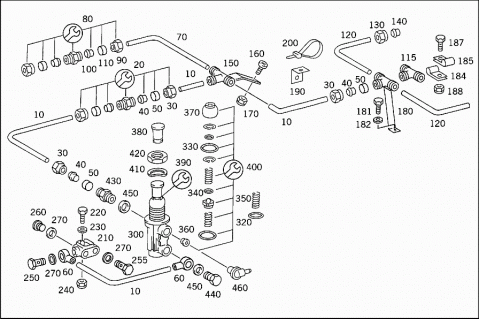

Grupė: 43 EXHAUST BRAKE

#	Kodas	Pavadinimas
	X XXXXXXXXXXXX	PART NAME MISSING
		EXHAUST BRAKE VALVE LINE CONNECTION
010	A 0089979082	HOSE
		FROM DISTRIBUTOR TO EXHAUST BRAKE 3/2-WAY VALVE
		6X8 MM
010	A 0089979082	HOSE
		FROM FRONT T-FITTING TO REAR T-FITTING
		6X8 MM
020	A 0039978972	FITTING
	Repalced by: A 0029905971
020	A 0029905971	FITTING
		(PARTS KIT),LINE RUPTURE
030	N 915017008100	UNION NUT
040	N 003861008005	GLAND
050	N 915062006000	SLEEVE
060	N 915052006013	BANJO UNION
		HOSE WIDTH, / I.D.,
		6/12 MM
070	A 0089976082	HOSE
	Repalced by: A 0009872627
070	A 0009872627	PLASTIC PIPE
		FROM T-FITTING TO EXHAUST BRAKE CYLINDER
		4X6 MM
080	A 0039979172	FITTING
		(PARTS KIT),LINE RUPTURE
090	N 915017006100	UNION NUT
100	N 003861006007	GLAND
	Repalced by: A 0019901667
100	A 0019901667	SEAL CONE
110	N 915062004000	SLEEVE
115	A 0019902970	T-FITTING
120	A 0004290701	LINE
	Repalced by: A 0004296201
120	A 0004296201	LINE
		FROM T-FITTING TO EXHAUST BRAKE CYLINDER
		6X0.7 MM
130	N 915017006100	UNION NUT
140	N 003861006007	GLAND
	Repalced by: A 0019901667
140	A 0019901667	SEAL CONE
150	A 3874201186	BRACKET
		(T-FITTING) EXHAUST BRAKE LINE CONNECTION
160	N 007985006193	SCREW
	Repalced by: N 000000001146
160	N 000000001146	SCREW
		BRACKET TO AIR-COMPRESSOR-LINE BRACKET
		M 6X16
170	N 913004006002	NUT
	Repalced by: N 913004006001
170	N 913004006001	NUT
		BRACKET TO AIR-COMPRESSOR-LINE BRACKET
180	A 6204202186	BRACKET
		(T-FITTING) EXHAUST BRAKE LINE CONNECTION
181	N 000931008229	SCREW
		BRACKET TO ENGINE
		M 8X35
182	N 007349008006	WASHER
	Repalced by: N 007349008007
182	N 007349008007	WASHER
		BRACKET TO ENGINE
184	A 3609950101	CLAMP
		LINE TO BRACKET
185	A 3609950301	CLAMP
		LINE TO BRACKET
187	N 000933006193	SCREW
		BRACKET TO AIR-COMPRESSOR-LINE BRACKET
		M 6X16
188	N 913002006005	NUT
	Repalced by: N 913002006009
188	N 913002006009	NUT
		BRACKET TO AIR-COMPRESSOR-LINE BRACKET
190	A 3604280243	ANGLE
		COMPRESSED AIR LINE MOUNTING
200	A 0019978490	LOOM TIE
		COMPRESSED AIR LINE MOUNTING
		376 MM
200	A 0019978390	LOOM TIE
		COMPRESSED AIR LINE MOUNTING
		280 MM
210	A 0004294037	DISTRIBUTOR
		EXHAUST BRAKE LINE CONNECTION
220	N 000933006147	SCREW
		DISTRIBUTOR TO CAB
230	N 009021006205	WASHER
	Repalced by: N 009021006208
230	N 009021006208	WASHER
		DISTRIBUTOR TO CAB
240	N 913004006002	NUT
	Repalced by: N 913004006001
240	N 913004006001	NUT
		DISTRIBUTOR TO CAB
250	N 915047008202	HOLLOW SCREW
		DISTRIBUTOR,CONNECTION:
		"10"
255	N 915036008202	HOLLOW SCREW
		DISTRIBUTOR,CONNECTION:
		"60"
260	N 000908012003	SCREW PLUG
	Repalced by: N 000908012009
260	N 000908012009	SCREW PLUG
		DISTRIBUTOR,CONNECTIONS:
		"20,30,40,50,70"
270	N 007603012405	SEAL RING
		DISTRIBUTOR,CONNECTIONS:
		"10,20,30,40,50,60,70"
	X XXXXXXXXXXXX	PART NAME MISSING
		EXHAUST BRAKE VALVE
300	A 0004342101	VALVE
		EXHAUST BRAKE OPERATING MECHANISM
		BOSCH
300	A 0004342301	VALVE
		EXHAUST BRAKE OPERATING MECHANISM
		WABCO
320	A 0059979248	SEAL RING
		BOSCH
330	A 0079972448	SEAL RING
		WABCO
340	A 0079972548	SEAL RING
		WABCO
350	A 0014315193	SPRING
		BOSCH
360	A 0004314034	STRAINER
		BOSCH
370	A 0004340586	CUP
		WABCO
380	A 0009971977	HANDLE
		WABCO
390	A 0025865343	REPAIR KIT
		BOSCH
400	A 0025869843	REPAIR KIT
		WABCO
410	N 000137027201	SPRING WASHER
		3/2-WAY VALVE TO CAB
420	N 074305026202	NUT
		3/2-WAY VALVE TO CAB
430	A 0019972572	FITTING
		3/2-WAY VALVE;CONNECTION:
		"20"
440	N 915036008202	HOLLOW SCREW
		3/2-WAY VALVE;CONNECTION:
		"10"
450	N 007603012405	SEAL RING
		3/2-WAY VALVE;CONNECTIONS:
		"10,20"
460	A 4063580065	BREATHER
	Repalced by: A 3933280065
460	A 3933280065	PIPE SOCKET
		3/2-WAY VALVE;CONNECTION:
		"30"
