Transporto priemonė: 1935 S; VIN numerio dalis: 646123
Grupė: 31 FRAME

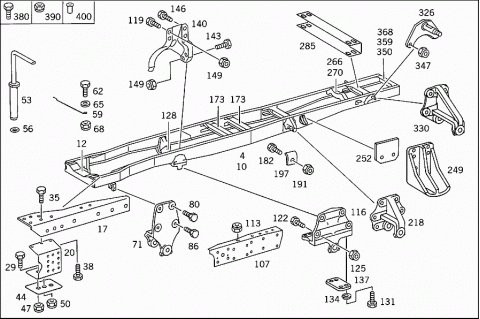

28814

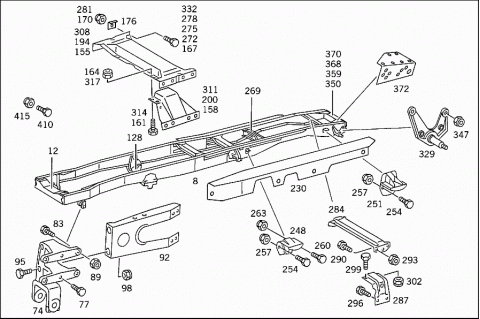

28815

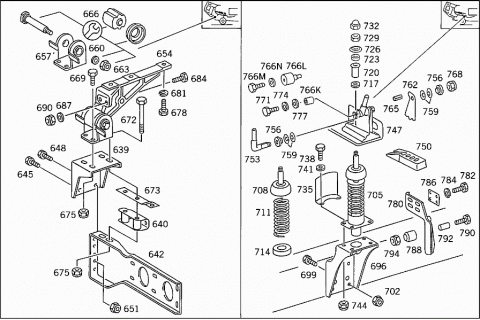

28816

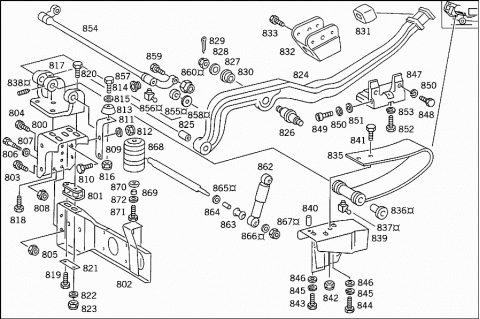

28817

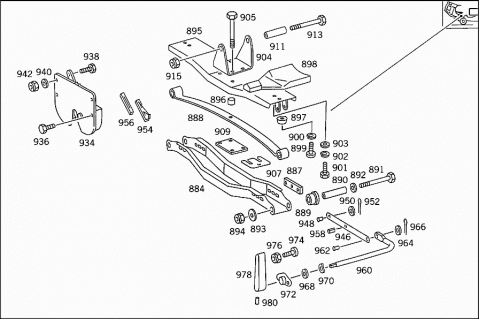

28818

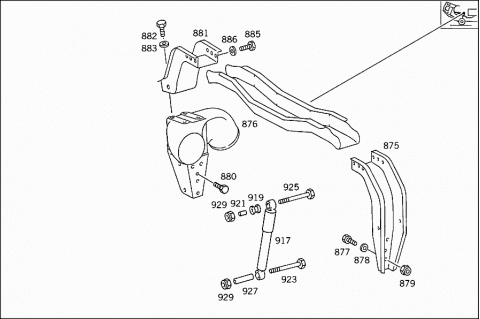

28819

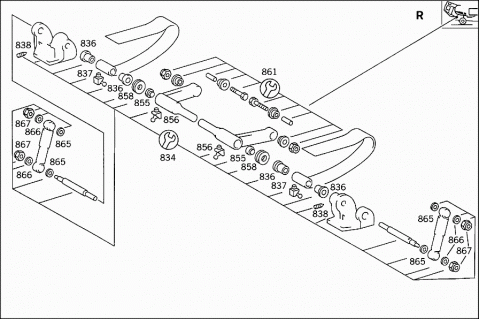

28820
# Kodas Pavadinimas
004 A 6213109301 FRAME
004 A 6213109601 FRAME
004 A 6213109701 FRAME
004 A 6213100002 FRAME
004 A 6463100101 FRAME
004 A 6213108001 FRAME
004 A 6213107801 FRAME
008 A 6463100401 FRAME
008 A 6203107001 FRAME
008 A 6203107101 FRAME
008 A 6203102201 FRAME
008 A 6213108201 FRAME
008 A 6213108301 FRAME
008 A 6213100502 FRAME
010 A 6213106901 FRAME
X XXXXXXXXXXXX PART NAME MISSING
FRONT FRAME AREA
012 A 3873100422 CROSS MEMBER
FRONT
012 A 3873100522 CROSS MEMBER
012 A 6203100122 CROSS MEMBER
FRONT
012 A 6203100222 CROSS MEMBER
FRONT
017 A 3873122087 GUSSET PLATE
FRONT LEFT
017 A 6203120987 GUSSET PLATE
FRONT RIGHT
020 A 3878900032 BOW
FRONT LEFT
020 A 3878900132 BOW
FRONT RIGHT
A 6203121582 REINFORCEMENT
CROSS MEMBER AND GUSSET PLATE TO SIDE MEMBERS
029 N 000961012106 SCREW
CROSS MEMBER AND BRACKETS TO SIDE MEMBERS
M 12X35
035 N 000961012097 SCREW
Repalced by: N 308676012026
035 N 308676012026 SCREW
CROSS MEMBER AND GUSSET PLATE TO SIDE MEMBERS
035 N 308676012015 SCREW
CROSS MEMBER,GUSSET PLATES AND BRACKETS TO SIDE MEMBERS
M 12X45
035 N 000961014088 SCREW
Repalced by: N 308676014008
035 N 308676014008 SCREW
CROSS MEMBER AND GUSSET PLATE TO SIDE MEMBERS
M 14X35
038 N 000961014063 SCREW
Repalced by: A 9429901304
038 A 9429901304 SCREW
CLAMP TO SIDE MEMBER
M 14X40
N 000125013008 WASHER
044 A 3878910696 BASE
AS REQUIRED
3.00 MM
044 A 3878910796 BASE
AS REQUIRED
4.00 MM
044 A 3878910896 BASE
AS REQUIRED
5.00 MM
047 N 913004012009 NUT
Repalced by: N 910113012003
047 N 910113012003 NUT
CROSS MEMBER,GUSSET PLATES AND BRACKETS TO SIDE MEMBERS
050 N 913004014005 NUT
Repalced by: N 910113014000
050 N 910113014000 NUT
CROSS MEMBER,GUSSET PLATES AND BRACKETS TO SIDE MEMBERS
050 N 910113014000 NUT
CROSS MEMBER AND GUSSET PLATE TO SIDE MEMBERS
053 A 3873150106 COUPLING PIN
FOR COUPLING MOUTH
053 A 6203150006 COUPLING PIN
FOR COUPLING MOUTH
056 A 0009874346 SEALING CORD
FOR COUPLING MOUTH
059 A 3353150031 LOCKING SPRING
TO SECURE COUPLING PIN
059 A 3873150031 LOCKING SPRING
TO SECURE COUPLING PIN
062 N 000933008153 SCREW
Repalced by: N 304017008034
062 N 304017008034 SCREW
LOCK SPRING TO CROSS MEMBER
062 N 000933008152 SCREW
Repalced by: N 304017008027
062 N 304017008027 SCREW
LOCK SPRING TO CROSS MEMBER
065 N 000125008418 WASHER
Repalced by: N 000125008443
065 N 000125008443 WASHER
LOCK SPRING TO CROSS MEMBER
068 N 913004008004 NUT
Repalced by: N 913004008001
068 N 913004008001 NUT
LOCK SPRING TO CROSS MEMBER
071 A 6203220201 FRONT SPRING BRACKET
Repalced by: A 6203220501
071 A 6203220501 FRONT SPRING BRACKET
Repalced by: A 6203220901
071 A 6203220901 FRONT SPRING BRACKET
FRONT
074 A 6203220601 FRONT SPRING BRACKET
FRONT
077 N 000961016108 SCREW
FRONT SPRING FRONT BRACKET TO SIDE MEMBER
M 16X30
080 A 3879900114 SCREW
FRONT SPRING FRONT BRACKET TO SIDE MEMBER
M 16X45
080 A 6569900014 SCREW
FRONT SPRING FRONT BRACKET TO SIDE MEMBER
M 16X45
083 N 000961016096 SCREW
Repalced by: N 308676016007
083 N 308676016007 SCREW
FRONT SPRING FRONT BRACKET TO SIDE MEMBER
M 16X50
086 A 3879900214 SCREW
FRONT SPRING FRONT BRACKET TO SIDE MEMBER
M 16X55
089 N 913004016005 NUT
Repalced by: N 910113016001
089 N 910113016001 NUT
FRONT SPRING FRONT BRACKET TO SIDE MEMBER
092 A 6203100653 STRUT
Repalced by: A 6553100453
092 A 6553100453 STRUT
FRONT SPRING FRONT BRACKET,LEFT
092 A 6203100753 STRUT
FRONT SPRING FRONT BRACKET,RIGHT
095 N 000960016250 SCREW
STRUT TO FRONT SPRING BRACKET
098 N 913004016005 NUT
Repalced by: N 910113016001
098 N 910113016001 NUT
STRUT TO FRONT SPRING BRACKET
107 A 6203110553 ANGLE
FRAME SIDE MEMBER REINFORCEMENT,FRONT LEFT
107 A 6203110653 ANGLE
FRAME SIDE MEMBER REINFORCEMENT,FRONT RIGHT
113 N 913004012009 NUT
Repalced by: N 910113012003
113 N 910113012003 NUT
ANGLE TO SIDE MEMBER
116 A 6203220003 FRONT SPRING BRACKET
Repalced by: A 6203220103
116 A 6203220103 FRONT SPRING BRACKET
REAR
119 N 000960014237 SCREW
FRONT SPRING REAR BRACKET AND STRUT TO SIDE MEMBER
M 14X50
119 N 000960014237 SCREW
FRONT SPRING REAR BRACKET AND STRUT TO SIDE MEMBER
M 14X50
119 N 000960014237 SCREW
FRONT SPRING REAR BRACKET AND STRUT TO SIDE MEMBER
M 14X50
119 N 000960014237 SCREW
FRONT SPRING REAR BRACKET AND STRUT TO SIDE MEMBER
M 14X50
119 N 000961014101 SCREW
Repalced by: N 308676014012
119 N 308676014012 SCREW
FRONT SPRING REAR BRACKET TO SIDE MEMBER
M 14X45
119 N 308676014012 SCREW
FRONT SPRING REAR BRACKET TO SIDE MEMBER
M 14X45
119 N 308676014012 SCREW
FRONT SPRING REAR BRACKET TO SIDE MEMBER
M 14X45
122 N 000960014229 SCREW
FRONT SPRING REAR BRACKET TO SIDE MEMBER
M 14X55
125 N 913004014005 NUT
Repalced by: N 910113014000
125 N 910113014000 NUT
FRONT SPRING REAR BRACKET TO SIDE MEMBER
125 N 910113014000 NUT
FRONT SPRING REAR BRACKET TO SIDE MEMBER
125 N 910113014000 NUT
FRONT SPRING REAR BRACKET TO SIDE MEMBER
128 A 3873120810 CROSS MEMBER
FRONT SPRING REAR BRACKET
NO.2
128 A 3873120410 CROSS MEMBER
FRONT SPRING REAR BRACKET
NO.2
131 N 000961014100 SCREW
CROSS MEMBER TO FRONT SPRING REAR BRACKET
131 N 000961014113 SCREW
CROSS MEMBER TO FRONT SPRING REAR BRACKET
131 N 000961014113 SCREW
CROSS MEMBER TO FRONT SPRING REAR BRACKET
134 N 912004014100 LOCK WASHER
CROSS MEMBER TO FRONT SPRING REAR BRACKET
137 A 3873120084 SHIM
Repalced by: A 6203121984
137 A 6203121984 SHIM
CROSS MEMBER TO FRONT SPRING REAR BRACKET
140 A 6203121561 STRUT
CROSS MEMBER AT FRONT SPRING REAR BRACKET
140 A 6203121561 STRUT
CROSS MEMBER AT FRONT SPRING REAR BRACKET
143 N 000961014113 SCREW
STRUT TO CROSS MEMBER
143 N 000961014113 SCREW
STRUT TO CROSS MEMBER
146 N 000961014028 SCREW
STRUT TO SIDE MEMBER
146 N 000961014028 SCREW
STRUT TO SIDE MEMBER
146 N 000961014028 SCREW
STRUT TO SIDE MEMBER
146 N 000961014028 SCREW
STRUT TO SIDE MEMBER
149 N 913004014002 NUT
Repalced by: N 910113014001
149 N 910113014001 NUT
STRUT TO CROSS AND SIDE MEMBERS
149 N 910113014001 NUT
STRUT TO CROSS AND SIDE MEMBERS
149 N 910113014001 NUT
STRUT TO CROSS AND SIDE MEMBERS
149 N 910113014001 NUT
STRUT TO CROSS AND SIDE MEMBERS
X XXXXXXXXXXXX PART NAME MISSING
CENTRAL FRAME AREA
155 A 3873120025 CROSS MEMBER
BATTERY/APPARATUS SUPPORT
NO.3
155 A 3873120025 CROSS MEMBER
PROPELLER SHAFT BEARING
NO.4
155 A 3873120025 CROSS MEMBER
PROPELLER SHAFT BEARING
NO.4,NO.5
158 A 3873121961 STRUT
AT CROSS MEMBER
NO.3,NO.4,NO.5
161 A 0039900901 SCREW
Repalced by: A 0029908201
161 A 0029908201 SCREW
STRUT TO CROSS MEMBER
164 N 913004012009 NUT
Repalced by: N 910113012003
164 N 910113012003 NUT
STRUT TO CROSS MEMBER
167 N 000961014100 SCREW
CROSS MEMBER AND STRUT TO SIDE MEMBER
170 N 913004014005 NUT
Repalced by: N 910113014000
170 N 910113014000 NUT
CROSS MEMBER AND STRUT TO SIDE MEMBER
173 A 3873100036 CROSS MEMBER
PROPELLER SHAFT BEARING
NO.4
173 A 6203100037 CROSS MEMBER
BATTERY/APPARATUS SUPPORT
NO.3
173 A 6203100036 CROSS MEMBER
FUEL TANK
NO.3
176 A 6203121584 SHIM
CROSS MEMBER TO SIDE MEMBERS
182 N 000961014028 SCREW
CROSS MEMBER TO SIDE MEMBERS
M 14X40
182 N 000961014054 SCREW
CROSS MEMBER TO SIDE MEMBERS
M 14X45
191 N 913004014005 NUT
Repalced by: N 910113014000
191 N 910113014000 NUT
CROSS MEMBER TO SIDE MEMBERS
194 A 3873120017 CROSS MEMBER
REAR SPRING FRONT BRACKET
NO.5
194 A 3873120017 CROSS MEMBER
REAR SPRING FRONT BRACKET
NO.6
194 A 3893120025 CROSS MEMBER
REAR SPRING FRONT BRACKET
NO.4
197 A 6203121584 SHIM
CROSS MEMBER AND SADDLE PLATE ANGLE TO SIDE MEMBER
200 A 3873120161 STRUT
CROSS MEMBER AT REAR SPRING FRONT BRACKET
218 A 3873250001 REAR SPRING BRACKET
FRONT
218 A 3873250101 REAR SPRING BRACKET
FRONT
230 A 6203160352 ANGLE
SADDLE PLATE,LEFT
230 A 6203160552 ANGLE
SADDLE PLATE,LEFT
230 A 6203160752 ANGLE
SADDLE PLATE,LEFT
230 A 6203161052 ANGLE
SADDLE PLATE,LEFT
230 A 6203160452 ANGLE
SADDLE PLATE,RIGHT
230 A 6203160652 ANGLE
SADDLE PLATE,RIGHT
230 A 6203160852 ANGLE
SADDLE PLATE,RIGHT
230 A 6203161152 ANGLE
SADDLE PLATE,RIGHT
X XXXXXXXXXXXX PART NAME MISSING
REAR FRAME AREA
248 A 3893250217 HELPER SPRING BRACKET
FRONT
249 A 3873250117 HELPER SPRING BRACKET
HELPER SPRING
249 A 3873250117 HELPER SPRING BRACKET
FRONT AND REAR
251 A 3893250117 HELPER SPRING BRACKET
Repalced by: A 6843250017
251 A 6843250017 HELPER SPRING BRACKET
REAR
252 A 3893120384 SHIM
FRONT
254 N 000961012097 SCREW
Repalced by: N 308676012026
254 N 308676012026 SCREW
HELPER SPRING BRACKET TO SIDE MEMBER
254 N 000961012122 SCREW
HELPER SPRING BRACKET TO SIDE MEMBER
254 N 000961012122 SCREW
HELPER SPRING BRACKET TO SIDE MEMBER
254 N 000960012189 SCREW
Repalced by: N 308676012031
254 N 308676012031 SCREW
Repalced by: N 308676012011
254 N 308676012011 SCREW
HELPER SPRING BRACKET AND CROSS MEMBER TO SIDE MEMBER
254 N 308676012011 SCREW
HELPER SPRING BRACKET AND CROSS MEMBER TO SIDE MEMBER
257 N 910113012002 NUT
HELPER SPRING BRACKET TO SIDE MEMBER
260 N 000960014167 SCREW
Repalced by: N 000961014064
260 N 000961014064 SCREW
HELPER SPRING BRACKET TO SIDE MEMBER
M 14X50
260 N 000961014054 SCREW
HELPER SPRING BRACKET AND CROSS MEMBER TO SIDE MEMBER
M 14X45
260 N 000961014054 SCREW
HELPER SPRING BRACKET TO SIDE MEMBER
M 14X45
260 N 000961014050 SCREW
Repalced by: N 308676014020
260 N 308676014020 SCREW
HELPER SPRING BRACKET TO SIDE MEMBER
M 14X35
263 N 913004014002 NUT
Repalced by: N 910113014001
263 N 910113014001 NUT
HELPER SPRING BRACKET AND CROSS MEMBER TO SIDE MEMBER
263 N 910113014001 NUT
HELPER SPRING BRACKET AND CROSS MEMBER TO SIDE MEMBER
266 A 3873100037 CROSS MEMBER
SHOCK ABSORBER
NO.6
266 A 3873100037 CROSS MEMBER
SHOCK ABSORBER
NO.7
269 A 6203100437 CROSS MEMBER
SHOCK ABSORBER
NO.5
270 A 3873100937 CROSS MEMBER
SHOCK ABSORBER
NO.5
272 N 000961012164 SCREW
CROSS MEMBER TO SIDE MEMBERS
275 N 000960012342 SCREW
CROSS MEMBER AND SADDLE PLATE ANGLE TO SIDE MEMBER
M 12X45
278 N 000961012097 SCREW
Repalced by: N 308676012026
278 N 308676012026 SCREW
CROSS MEMBER TO SIDE MEMBERS
M 12X35
278 N 000961012122 SCREW
CROSS MEMBER TO SIDE MEMBERS
281 N 910113012002 NUT
CROSS MEMBER TO SIDE MEMBERS
284 A 6203120525 CROSS MEMBER
NO.6
285 A 3873120425 CROSS MEMBER
NO.6
287 A 6203120661 STRUT
CROSS MEMBER,LEFT
287 A 6203120761 STRUT
CROSS MEMBER,RIGHT
290 A 3969900114 SCREW
STRUT TO CROSS MEMBER
293 N 913004012009 NUT
Repalced by: N 910113012003
293 N 910113012003 NUT
STRUT TO CROSS MEMBER
296 N 000961016036 SCREW
Repalced by: N 308676016013
296 N 308676016013 SCREW
CROSS MEMBER,STRUT,AND TORSION BAR CONSOLE TO SIDE MEMBER
299 N 000933010145 SCREW
CROSS MEMBER TO SIDE MEMBERS
302 N 913004010008 NUT
Repalced by: N 910113010000
302 N 910113010000 NUT
CROSS MEMBER TO SIDE MEMBERS
308 A 3873120017 CROSS MEMBER
REAR-SPRING REAR BRACKET
NO.7
308 A 3873120017 CROSS MEMBER
REAR-SPRING REAR BRACKET
NO.8
311 A 3873120361 STRUT
CROSS MEMBER AT REAR SPRING REAR BRACKET
314 A 0039900901 SCREW
Repalced by: A 0029908201
314 A 0029908201 SCREW
STRUT TO CROSS MEMBER
317 N 913004012009 NUT
Repalced by: N 910113012003
317 N 910113012003 NUT
STRUT TO CROSS MEMBER
326 A 3353250603 REAR SPRING BRACKET
REAR
329 A 6213250003 REAR SPRING BRACKET
REAR LEFT
329 A 6213250004 REAR SPRING BRACKET
REAR RIGHT
330 A 3873250003 REAR SPRING BRACKET
REAR
332 N 000961014028 SCREW
REAR SPRING REAR BRACKET AND CROSS MEMBER TO SIDE MEMBER
332 N 000961014028 SCREW
REAR SPRING REAR BRACKET TO SIDE MEMBER
347 N 913004014005 NUT
Repalced by: N 910113014000
347 N 910113014000 NUT
REAR SPRING REAR BRACKET TO SIDE MEMBER
350 A 3873120425 CROSS MEMBER
NO.9
359 A 3873120735 CROSS MEMBER
(REAR CROSS MEMBER)
368 A 6213100046 CROSS MEMBER
(REAR CROSS MEMBER)
368 A 6213100446 CROSS MEMBER
(REAR CROSS MEMBER)
A 6213120435 CROSS MEMBER
A 6213121235 CROSS MEMBER
A 6213121087 GUSSET PLATE
REAR CROSS MEMBER TO LEFT SIDE MEMBER
A 6213121187 GUSSET PLATE
REAR CROSS MEMBER TO RIGHT SIDE MEMBER
A 6213122787 GUSSET PLATE
REAR CROSS MEMBER TO LEFT SIDE MEMBER
A 6213122887 GUSSET PLATE
REAR CROSS MEMBER TO RIGHT SIDE MEMBER
N 000961014088 SCREW
Repalced by: N 308676014008
N 308676014008 SCREW
GUSSET PLATE TO CROSS MEMBER
N 308676014008 SCREW
GUSSET PLATE TO CROSS MEMBER
N 913004014005 NUT
Repalced by: N 910113014000
N 910113014000 NUT
GUSSET PLATE TO CROSS MEMBER
N 910113014000 NUT
GUSSET PLATE TO CROSS MEMBER
370 A 6213120335 CROSS MEMBER
Repalced by: A 6553120435
370 A 6553120435 CROSS MEMBER
(REAR CROSS MEMBER)
372 A 6213120287 GUSSET PLATE
REAR CROSS MEMBER TO LEFT SIDE MEMBER
372 A 6213120387 GUSSET PLATE
REAR CROSS MEMBER TO RIGHT SIDE MEMBER
X XXXXXXXXXXXX PART NAME MISSING
MOUNTING USED FOR FRAME CONNECTION PARTS
Y YYYYYYYYYYYY PART NAME MISSING
DIMENSIONS ARE INDICATED IN THE FOLLOWING ORDER:
Y YYYYYYYYYYYY PART NAME MISSING
THREAD X SHANK DIA. X SHANK LENGTH X TOTAL LENGTH
Y YYYYYYYYYYYY PART NAME MISSING
380 N 000609010004 FITTED SCREW
M 10X11X14X28
380 N 000610010003 FITTED SCREW
M 10X11X25X38
380 N 000609010014 FITTED SCREW
M 10X11X24X40
380 A 3859900514 SCREW
M 10X11X26,5X46
Y YYYYYYYYYYYY PART NAME MISSING
380 A 3859900714 SCREW
M 12X12X10X25
380 A 3859901414 SCREW
M 12X12X11X26
380 A 0039900901 SCREW
Repalced by: A 0029908201
380 A 0029908201 SCREW
M 12X12X12X28
380 A 3859901514 SCREW
M 12X12X13X28
380 A 0029908201 SCREW
M 12X12X14X30
380 A 3859902114 SCREW
M 12X12X15X30
380 A 0029908301 SCREW
Repalced by: N 308676012013
380 N 308676012013 SCREW
M 12X12X16X32
380 A 3859902214 SCREW
M 12X12X17X32
Y YYYYYYYYYYYY PART NAME MISSING
380 A 6209900114 SCREW
M 12X13X12X29
380 A 3969900314 SCREW
M 12X13X13X30
380 A 3589901914 SCREW
M 12X13X15X32
380 A 3559900014 SCREW
M 12X13X18X35
380 A 3589900614 SCREW
M 12X13X21X38
380 A 6179900114 SCREW
M 12X13X23X40
380 A 6249900014 SCREW
M 12X13X25X42
380 A 3859900214 SCREW
M 12X13X35X52
380 A 6689900114 SCREW
M 12X13X58X80
380 A 6689900014 SCREW
M 12X13X63X85
Y YYYYYYYYYYYY PART NAME MISSING
380 A 3859900814 SCREW
Repalced by: A 3229903101
380 A 3229903101 SCREW
M 14X14X18X32
380 A 3859902014 SCREW
M 14X14X18X34
380 A 3559900114 SCREW
M 12X14X13X35
380 A 3219901601 SCREW
M 14X14X17X35
380 A 3219901901 SCREW
M 14X14X22X40
380 A 3559900501 SCREW
M 14X14X24X42
380 A 3409900201 SCREW
M 14X14X27X45
380 A 3609902001 SCREW
M 14X14X32X50
Y YYYYYYYYYYYY PART NAME MISSING
380 A 3589900114 SCREW
M 14X15X15X32
380 A 3589900814 SCREW
M 14X15X17X34
380 A 6459900014 SCREW
M 14X15X18X35
380 A 3589901014 SCREW
M 14X15X19X36
380 A 3589900214 SCREW
M 14X15X21X38
380 A 3589900414 SCREW
M 14X15X25X42
380 A 3589900714 SCREW
M 14X15X27X44
380 A 3589900914 SCREW
M 14X15X29X46
380 A 3859900414 SCREW
M 14X15X31X48
380 A 3859900314 SCREW
M 14X15X35X52
Y YYYYYYYYYYYY PART NAME MISSING
380 A 3859900914 SCREW
Repalced by: N 308676016020
380 N 308676016020 SCREW
M 16X16X18X36
380 A 3859901714 SCREW
M 16X16X20X38
380 A 3859901014 SCREW
M 16X16X22X40
380 A 3859901114 SCREW
M 16X16X24X42
380 A 0029909901 SCREW
Repalced by: A 3959900501
380 A 3959900501 SCREW
M 16X16X20X45
380 A 3859901814 SCREW
M 16X16X30X48
380 A 3859901914 SCREW
M 16X16X32X50
380 A 6259900301 SCREW
M 16X16X38X90
Y YYYYYYYYYYYY PART NAME MISSING
380 A 3589900514 SCREW
M 16X17X22X42
380 A 6459900714 SCREW
M 16X17X24X44
380 A 3609900114 SCREW
M 16X17X28X48
Y YYYYYYYYYYYY PART NAME MISSING
380 A 3469900014 SCREW
M 16X18X18X40
380 A 3859902314 SCREW
M 18X18X23X45
380 A 6569900014 SCREW
M 16X18X25X45
380 A 6209900014 SCREW
M 16X18X26X48
380 A 3469900114 SCREW
M 16X18X31X50
380 A 3859902414 SCREW
M 18X18X33X55
380 A 6229900014 SCREW
M 16X18X38X60
380 A 3919900014 SCREW
M 16X18X63X85
Y YYYYYYYYYYYY PART NAME MISSING
380 N 000610018004 FITTED SCREW
M 18X19X25X45
380 N 000610018009 FITTED SCREW
M 18X19X33X55
380 N 000610018006 FITTED SCREW
M 18X19X38X60
380 N 000609018000 FITTED SCREW
M 18X19X57X85
Y YYYYYYYYYYYY PART NAME MISSING
390 N 913004010011 NUT
390 N 913004012009 NUT
Repalced by: N 910113012003
390 N 910113012003 NUT
390 N 913004014005 NUT
Repalced by: N 910113014000
390 N 910113014000 NUT
390 N 913004016005 NUT
Repalced by: N 910113016001
390 N 910113016001 NUT
390 N 913004018004 NUT
Y YYYYYYYYYYYY PART NAME MISSING
400 N 910005012073 RIVET
12X28 MM
400 N 910005012080 RIVET
12X42 MM
400 N 910005014056 RIVET
14X45 MM
400 N 910005014059 RIVET
14X55 MM
400 N 910005014066 RIVET
14X70 MM
400 N 910005014066 RIVET
14X65 MM
400 N 910005014042 RIVET
14X70 MM
400 N 910005016017 RIVET
16X48 MM
400 N 910005016027 RIVET
16X58 MM
400 N 910005016027 RIVET
16X68 MM
410 N 000961014028 SCREW
FRONT SPRING REAR BRACKET TO SIDE MEMBER
410 N 000961014028 SCREW
FRONT SPRING REAR BRACKET TO SIDE MEMBER
415 N 913004014002 NUT
Repalced by: N 910113014001
415 N 910113014001 NUT
FRONT SPRING REAR BRACKET TO SIDE MEMBER
415 N 910113014001 NUT
FRONT SPRING REAR BRACKET TO SIDE MEMBER
X XXXXXXXXXXXX PART NAME MISSING
CAB SUSPENSION,FRONT; SHORT MERCEDES-BENZ CAB
639 A 3878912631 CONSOLE
CAB SUSPENSION,FRONT
639 A 6458910331 CONSOLE
CAB SUSPENSION,FRONT
640 A 6458900032 BOW
CAB SUSPENSION,FRONT
642 A 6203170223 STRUT
BUMPER,LEFT
642 A 6203170423 STRUT
BUMPER,RIGHT
645 N 000961014063 SCREW
Repalced by: A 9429901304
645 A 9429901304 SCREW
CONSOLE TO FRAME
648 N 000961014101 SCREW
Repalced by: N 308676014012
648 N 308676014012 SCREW
CONSOLE AND STRUT TO FRAME
651 N 913004014005 NUT
Repalced by: N 910113014000
651 N 910113014000 NUT
CONSOLE AND STRUT TO FRAME
654 A 6208902103 MOUNTING
CAB SUSPENSION,FRONT LEFT
654 A 6208902203 MOUNTING
CAB SUSPENSION,FRONT RIGHT
657 A 6208902003 MOUNTING
660 N 007349017002 WASHER
663 N 913004016004 NUT
Repalced by: N 910113016002
663 N 910113016002 NUT
666 A 3815860031 REPAIR KIT
CAB SUSPENSION,FRONT
669 N 000961014063 SCREW
Repalced by: A 9429901304
669 A 9429901304 SCREW
MOUNTING TO CONSOLE
672 N 000961014101 SCREW
Repalced by: N 308676014012
672 N 308676014012 SCREW
MOUNTING TO CONSOLE AND TO STRUT
672 N 000960014270 SCREW
MOUNTING TO CONSOLE,TO BRACKET,AND TO STRUT
673 A 3878910398 SHIM
MOUNTING TO CONSOLE
675 N 913004014005 NUT
Repalced by: N 910113014000
675 N 910113014000 NUT
MOUNTING TO CONSOLE AND TO STRUT
678 N 000961014028 SCREW
MOUNTING TO CAB
681 N 912004014100 LOCK WASHER
MOUNTING TO CAB
684 N 000961014064 SCREW
MOUNTING TO CAB
687 A 3209901840 WASHER
MOUNTING TO CAB
690 N 913004014002 NUT
Repalced by: N 910113014001
690 N 910113014001 NUT
MOUNTING TO CAB
X XXXXXXXXXXXX PART NAME MISSING
CAB SUSPENSION,REAR; SHORT MERCEDES-BENZ CAB
696 A 3873170001 CONSOLE
Repalced by: A 6553170001
696 A 6553170001 CONSOLE
Repalced by: A 3873170001
696 A 3873170001 CONSOLE
CAB SUSPENSION,REAR
699 N 000961012097 SCREW
Repalced by: N 308676012026
699 N 308676012026 SCREW
CONSOLE TO SIDE MEMBER
702 N 910113012002 NUT
CONSOLE TO SIDE MEMBER
705 A 6208900019 SHOCK ABSORBER
Repalced by: A 6208900119
705 A 6208900119 SHOCK ABSORBER
(VIBRATION ABSORBER),CAB REAR SUSPENSION
705 A 6208900119 SHOCK ABSORBER
(VIBRATION ABSORBER),CAB REAR SUSPENSION
708 A 0008910201 RUBBER MOUNTING
TO 620 890 00 19
708 A 0008910301 RUBBER MOUNTING
TO 620 890 01 19
711 A 0008911051 SPRING
TO 620 890 00 19
711 A 0008911151 SPRING
TO 620 890 01 19
714 A 0008910123 BUFFER
TO 620 890 00 19
717 N 000433015002 WASHER
Repalced by: N 000433015005
717 N 000433015005 WASHER
VIBRATION ABSORBER
720 A 3813170753 SPACER TUBE
VIBRATION ABSORBER
723 A 3275045082 RUBBER RING
VIBRATION ABSORBER
726 A 3878912010 WASHER
VIBRATION ABSORBER
729 N 000934012022 NUT
VIBRATION ABSORBER
732 N 001587012008 CAP NUT
Repalced by: N 001587012010
732 N 001587012010 CAP NUT
VIBRATION ABSORBER
735 A 3813170031 COVER PLATE
VIBRATION ABSORBER
738 N 000933008153 SCREW
Repalced by: N 304017008034
738 N 304017008034 SCREW
VIBRATION ABSORBER TO CONSOLE
741 N 009021008205 WASHER
Repalced by: N 009021008213
741 N 009021008213 WASHER
VIBRATION ABSORBER TO CONSOLE
744 N 913004008004 NUT
Repalced by: N 913004008001
744 N 913004008001 NUT
VIBRATION ABSORBER TO CONSOLE
A 3978910430 CLAMP
Repalced by: A 6553170025
A 6553170025 BRACKET
VIBRATION ABSORBER TO CONSOLE
N 000933008153 SCREW
Repalced by: N 304017008034
N 304017008034 SCREW
CLAMP TO CONSOLE
N 000933010105 SCREW
CLAMP TO CONSOLE
N 913004008004 NUT
Repalced by: N 913004008001
N 913004008001 NUT
CLAMP TO CONSOLE
N 913004010008 NUT
Repalced by: N 910113010000
N 910113010000 NUT
CLAMP TO CONSOLE
747 A 3813102075 LOCKING MECHANISM
Repalced by: A 6453100283
747 A 6453100283 LOCKING MECHANISM
CAB,LEFT
747 A 3813101975 LOCKING MECHANISM
Repalced by: A 6453100383
747 A 6453100383 LOCKING MECHANISM
CAB, RIGHT
750 A 3813170119 LATCH
753 A 3813172374 PIN
756 A 3813170676 WASHER
759 A 0009935426 DISC SPRING
762 A 3813170924 LEVER
762 A 6453100289 TOOTHED SEGMENT
LEFT
762 A 6453100389 TOOTHED SEGMENT
RIGHT
765 N 001481006041 CLAMPING SLEEVE
766K A 6553170053 SPACER TUBE
Repalced by: A 6017910036
766K A 6017910036 PIPE
766L A 6553100077 BUFFER
766M N 000933010094 SCREW
766N N 009021010202 WASHER
Repalced by: N 009021010209
766N N 009021010209 WASHER
768 N 910113012002 NUT
768 N 913004010008 NUT
Repalced by: N 910113010000
768 N 910113010000 NUT
771 N 000933010105 SCREW
LOCKING MECHANISM TO CAB
774 N 912004010102 LOCK WASHER
LOCKING MECHANISM TO CAB
777 N 000125010518 WASHER
Repalced by: N 000125010532
777 N 000125010532 WASHER
LOCKING MECHANISM TO CAB
780 A 3873170626 GUIDE
CAB,LEFT
780 A 3873170726 GUIDE
CAB, RIGHT
782 N 000961012151 SCREW
GUIDE TO CAB
784 N 912004012100 LOCK WASHER
GUIDE TO CAB
786 A 3873170084 SHIM
GUIDE TO CAB
788 A 3813170750 BUSHING
LATERAL GUIDE OF CAB
790 N 000960012230 SCREW
LEFT AND RIGHT BUSHINGS TO FENDER BRACKETS
792 A 3813170553 SPACER TUBE
LEFT AND RIGHT BUSHINGS TO FENDER BRACKETS
792 A 6523170053 SPACER TUBE
LEFT AND RIGHT BUSHINGS TO FENDER BRACKETS
N 001481010035 CLAMPING SLEEVE
SPACER TUBE TO BRACKET
794 N 910113012002 NUT
LEFT AND RIGHT BUSHINGS TO FENDER BRACKETS
X XXXXXXXXXXXX PART NAME MISSING
CAB SUSPENSION,FRONT; MERCEDES-BENZ LARGE-CAPACITY CAB
800 A 3878912831 CONSOLE
CAB SUSPENSION,FRONT
801 A 6208900232 BOW
CAB SUSPENSION,FRONT
802 A 6203100053 STRUT
BUMPER,LEFT
802 A 6203100153 STRUT
BUMPER,RIGHT
803 N 000961014088 SCREW
Repalced by: N 308676014008
803 N 308676014008 SCREW
CONSOLE TO FRAME
803 N 000961014063 SCREW
Repalced by: A 9429901304
803 A 9429901304 SCREW
CONSOLE TO FRAME
803 A 9429901304 SCREW
CONSOLE AND STRUT TO FRAME
804 N 000961014101 SCREW
Repalced by: N 308676014012
804 N 308676014012 SCREW
CONSOLE AND STRUT TO FRAME
805 N 913004014005 NUT
Repalced by: N 910113014000
805 N 910113014000 NUT
CONSOLE AND STRUT TO FRAME
806 A 3469900014 SCREW
CONSOLE TO FRAME
806 A 6209900014 SCREW
CONSOLE TO FRAME
807 A 3939900240 WASHER
CONSOLE TO FRAME
808 N 913004016005 NUT
Repalced by: N 910113016001
808 N 910113016001 NUT
CONSOLE TO FRAME
809 A 3878900314 BRACKET
LEFT RUBBER BUFFER
809 A 3878900414 BRACKET
RIGHT RUBBER BUFFER
810 N 000961014028 SCREW
BRACKET TO CONSOLE
811 N 007349015003 WASHER
BRACKET TO CONSOLE
812 N 913004014002 NUT
Repalced by: N 910113014001
812 N 910113014001 NUT
BRACKET TO CONSOLE
813 A 3348910072 MOUNTING
(RUBBER BUFFER)
814 N 000933008153 SCREW
Repalced by: N 304017008034
814 N 304017008034 SCREW
RUBBER BUFFER TO BRACKET
815 N 009021008205 WASHER
Repalced by: N 009021008213
815 N 009021008213 WASHER
RUBBER BUFFER TO BRACKET
816 N 913004008004 NUT
Repalced by: N 913004008001
816 N 913004008001 NUT
RUBBER BUFFER TO BRACKET
817 A 6208910420 MOUNTING
CAB SUSPENSION,LEFT; SPRING,STABILIZER,VIBRATION ABSORBER
817 A 6208910520 MOUNTING
CAB SUSPENSION,RIGHT; ROCKING LEVER, SPRING,STABILIZER,VIBRATION ABSORBER
818 N 000961014008 SCREW
Repalced by: N 308676014003
818 N 308676014003 SCREW
MOUNTING TO CONSOLE
819 N 000960014251 SCREW
MOUNTING TO CONSOLE,TO BRACKET,AND TO STRUT
M 14X85
820 N 000960014248 SCREW
Repalced by: N 308765014008
820 N 308765014008 SCREW
MOUNTING TO CONSOLE,TO BRACKET,AND TO STRUT
M 14X100
821 A 3878910498 SHIM
MOUNTING TO CONSOLE,TO BRACKET,AND TO STRUT
822 N 007349015003 WASHER
MOUNTING TO CONSOLE
823 N 913004014005 NUT
Repalced by: N 910113014000
823 N 910113014000 NUT
MOUNTING TO CONSOLE,TO BRACKET,AND TO STRUT
824 A 3878912856 LEVER
(TILTING LEVER),CAB
825 A 3879920003 BUSHING
TILTING LEVER
825 A 3879920203 BUSHING
TILTING LEVER
826 A 6208910257 PIN
ON TOGGLE LEVER;FOR HYDRAULIC CYLINDER
827 A 3875530376 WASHER
PIN TO TOGGLE LEVER
828 N 000979016005 NUT
Repalced by: N 000979016008
828 N 000979016008 NUT
PIN TO TOGGLE LEVER
829 N 000094004065 COTTER PIN
PIN TO TOGGLE LEVER
830 A 6208910017 BUSHING
ON TOGGLE LEVER;FOR HYDRAULIC CYLINDER
831 A 3638910023 BUFFER
TILTING LEVER
A 3875860431 REPAIR KIT
Repalced by: A 3879920003
A 3879920003 BUSHING
CAB MOUNTING
832 A 6208901603 MOUNTING
CAB TILTING LEVER
833 N 308676012012 SCREW
MOUNTING TO CAB
834 A 3873100077 REPAIR KIT
CAB SUSPENSION,FRONT
835 A 6208910151 SPRING
CAB SUSPENSION,FRONT
836 A 3638910617 BUSHING
SPRING
837 N 071412008200 GREASE NIPPLE
FOR SPRING
838 N 000417008004 HEADLESS SETSCREW
SHAFT ADJUSTMENT
839 A 6218900403 MOUNTING
SPRING AND STABILIZER,LEFT
839 A 6218900503 MOUNTING
SPRING AND STABILIZER,RIGHT
840 A 6218910157 PIN
841 N 000933008153 SCREW
Repalced by: N 304017008034
841 N 304017008034 SCREW
SPRING TO BEARING
842 N 913004008004 NUT
Repalced by: N 913004008001
842 N 913004008001 NUT
SPRING TO BEARING
843 N 000961014028 SCREW
MOUNTING TO CONSOLE
844 N 000960014061 SCREW
MOUNTING TO CAB
845 N 912004014100 LOCK WASHER
MOUNTING TO CONSOLE AND TO CAB
846 N 007349015003 WASHER
MOUNTING TO CONSOLE AND TO CAB
847 A 6208910631 CONSOLE
CAB SUSPENSION,FRONT LEFT TOP
847 A 6208910731 CONSOLE
CAB SUSPENSION,FRONT RIGHT TOP
848 N 000961012069 SCREW
Repalced by: N 308676012015
848 N 308676012015 SCREW
LEFT AND RIGHT CONSOLES TO CAB
M 12X45
849 N 006912012017 SCREW
LEFT AND RIGHT CONSOLES TO CAB
M 12X30
850 N 912004012100 LOCK WASHER
LEFT AND RIGHT CONSOLES TO CAB
851 A 3609900940 WASHER
LEFT AND RIGHT CONSOLES TO CAB
852 N 000961014050 SCREW
Repalced by: N 308676014020
852 N 308676014020 SCREW
LEFT AND RIGHT CONSOLES TO CAB
853 N 912004014100 LOCK WASHER
LEFT AND RIGHT CONSOLES TO CAB
854 A 6218900504 STABILIZER
Repalced by: A 6558900004
854 A 6558900004 STABILIZER
CAB SUSPENSION,FRONT
855 A 0009817231 JOINT BEARING
Repalced by: A 0019814631
855 A 0019814631 JOINT BEARING
A 0019814831 JOINT BEARING
856 N 071412008200 GREASE NIPPLE
857 N 000906010000 SCREW PLUG
STABILIZER
858 A 3878911910 WASHER
STABILIZER TO BEARING
859 N 000960014245 SCREW
STABILIZER TO BEARING
860 N 913004014002 NUT
Repalced by: N 910113014001
860 N 910113014001 NUT
STABILIZER TO BEARING
861 A 6203100177 REPAIR KIT
CAB FRONT SUSPENSION STABILIZER
862 A 0008912205 SHOCK ABSORBER
(VIBRATION ABSORBER), CAB FRONT SUSPENSION
863 A 0008910501 RUBBER MOUNTING
864 A 0008910617 BUSHING
865 A 6203170176 WASHER
VIBRATION ABSORBER TO BEARING AND TO CAB
866 N 000125013008 WASHER
867 N 910113012002 NUT
VIBRATION ABSORBER TO BEARING AND TO CAB
868 A 3638910223 BUFFER
(HOLLOW RUBBER SPRING),CAB
869 A 3638910517 BUSHING
HOLLOW RUBBER SPRING
870 A 3638910047 FLANGE
HOLLOW RUBBER SPRING
871 N 000933010129 SCREW
Repalced by: N 304017010002
871 N 304017010002 SCREW
HOLLOW RUBBER SPRING TO CAB
872 A 3878912210 WASHER
Repalced by: A 4432610076
872 A 4432610076 WASHER
HOLLOW RUBBER SPRING TO CAB
X XXXXXXXXXXXX PART NAME MISSING
CAB SUSPENSION,REAR; MERCEDES-BENZ LARGE-CAPACITY CAB
875 A 6208910031 CONSOLE
CAB SUSPENSION,REAR LEFT
876 A 6208911631 CONSOLE
CAB SUSPENSION,REAR RIGHT,BOTTOM; AND AIR INTAKE
877 N 000961014028 SCREW
CONSOLE TO SIDE MEMBER
M 14X40
877 N 000961014054 SCREW
CONSOLE TO SIDE MEMBER
M 14X45
878 N 007349015003 WASHER
CONSOLE TO SIDE MEMBER
879 N 913004014002 NUT
Repalced by: N 910113014001
879 N 910113014001 NUT
CONSOLE TO SIDE MEMBER
880 N 000961016040 SCREW
CONSOLE AND ENGINE REAR MOUNTING CONSOLE TO SIDE MEMBER
881 A 6208910131 CONSOLE
CAB SUSPENSION,REAR RIGHT,TOP
882 N 000961012151 SCREW
CONSOLE TO CONSOLE
883 A 3609900940 WASHER
CONSOLE TO CONSOLE
883 N 007349013003 WASHER
Repalced by: N 007349013005
883 N 007349013005 WASHER
CONSOLE TO CONSOLE
884 A 3878910024 STRUT
Repalced by: A 6558910224
884 A 6558910224 STRUT
CAB SUSPENSION,REAR
885 N 308676012012 SCREW
STRUT TO CONSOLE
M 12X25
885 N 000961012151 SCREW
STRUT TO CONSOLE
M 12X30
886 N 000125013008 WASHER
887 A 3878910198 SHIM
STRUT TO CONSOLE
888 A 6208910051 SPRING
(LEAF SPRING),CAB SUSPENSION
889 A 3638910717 BUSHING
LEAF SPRING
890 A 3638910218 TUBE
LEAF SPRING
891 N 000960012332 SCREW
LEAF SPRING TO STRUT
892 N 009021013200 WASHER
LEAF SPRING TO STRUT
893 A 3638910010 WASHER
LEAF SPRING TO STRUT
894 N 910113012002 NUT
LEAF SPRING TO STRUT
895 A 3878900522 RAIL
Repalced by: A 6558900122
895 A 6558900122 RAIL
CAB SUSPENSION,REAR
896 N 000007012200 CYLINDRICAL PIN
897 A 3878910323 BUFFER
RAIL STOP
898 A 6208910272 MOUNTING
CAB SUSPENSION,REAR
899 N 000084008119 SCREW
BUFFER AND MOUNTING TO RAIL
900 N 912004008102 LOCK WASHER
BUFFER AND MOUNTING TO RAIL
901 N 000933008154 SCREW
Repalced by: N 304017008021
901 N 304017008021 SCREW
MOUNTING TO RAIL
902 N 912004008102 LOCK WASHER
MOUNTING TO RAIL
903 N 000125008418 WASHER
Repalced by: N 000125008443
903 N 000125008443 WASHER
MOUNTING TO RAIL
904 A 6208910020 MOUNTING
CAB LOCKING MECHANISM
905 N 000931010258 SCREW
MOUNTING AND RAIL TO LEAF SPRING
907 A 6208910296 BASE
MOUNTING AND RAIL TO LEAF SPRING
909 A 3878910811 PLATE
MOUNTING AND RAIL TO LEAF SPRING
911 A 3878911753 SPACER TUBE
CAB LOCKING MECHANISM
913 N 000960016242 SCREW
Repalced by: N 000960016251
913 N 000960016251 SCREW
SPACER TUBE TO MOUNTING
915 N 913004016004 NUT
Repalced by: N 910113016002
915 N 910113016002 NUT
SPACER TUBE TO MOUNTING
917 A 0008912205 SHOCK ABSORBER
(VIBRATION ABSORBER),CAB REAR SUSPENSION
919 A 0008910501 RUBBER MOUNTING
921 A 0008910617 BUSHING
923 N 000960018125 SCREW
Repalced by: N 000960018072
923 N 000960018072 SCREW
VIBRATION ABSORBER TO CONSOLE
925 N 000960018040 SCREW
Repalced by: N 000960018142
925 N 000960018142 SCREW
VIBRATION ABSORBER TO CONNECTING RAIL
927 A 3878910453 SPACER TUBE
VIBRATION ABSORBER TO CONSOLE
929 N 913004018003 NUT
Repalced by: N 910113018004
929 N 910113018004 NUT
VIBRATION ABSORBER TO CONSOLE AND TO CONNECTING RAIL
X XXXXXXXXXXXX PART NAME MISSING
CAB LOCKING MECHANISM; MERCEDES-BENZ LARGE-CAPACITY CAB
934 A 0008900089 FASTENER
Repalced by: A 0008902389
934 A 0008901389 FASTENER
Repalced by: A 0008902389
934 A 0008902389 FASTENER
(CENTRAL LOCK) CAB LOCKING MECHANISM
936 N 000933010198 SCREW
CENTRAL LOCK TO CAB
M 10X16
938 N 000933010105 SCREW
CENTRAL LOCK TO CAB
M 10X25
940 N 000125010518 WASHER
Repalced by: N 000125010532
940 N 000125010532 WASHER
CENTRAL LOCK TO CAB
942 N 913004010008 NUT
Repalced by: N 910113010000
942 N 910113010000 NUT
CENTRAL LOCK TO CAB
A 6208910070 ROD
Repalced by: A 6208910270
946 A 6208910270 ROD
CAB LOCKING MECHANISM
948 N 001444008202 PIN
ROD TO CENTRAL LOCKING MECHANISM
A 1269911907 PIN
ROD TO CENTRAL LOCKING MECHANISM
950 N 000433008406 WASHER
ROD TO CENTRAL LOCKING MECHANISM
952 N 000094002059 COTTER PIN
ROD TO CENTRAL LOCKING MECHANISM
N 912002008001 LOCK
Repalced by: N 912002008003
N 912002008003 LOCK
ROD TO CENTRAL LOCKING MECHANISM
954 A 3878910814 BRACKET
ROD THRU CAB
956 A 3878910085 SEAL
ROD THRU CAB
958 N 007346005003 CLAMPING SLEEVE
ROD TO BRACKET
960 A 6208910256 LEVER
CAB LOCKING MECHANISM
960 A 6208910556 LEVER
CAB LOCKING MECHANISM
962 N 001444008233 PIN
LEVER TO ROD
964 N 000433008406 WASHER
LEVER TO ROD
966 N 000094002059 COTTER PIN
LEVER TO ROD
968 N 000125015013 WASHER
Repalced by: N 000125015019
968 N 000125015019 WASHER
LEVER MOUNTING
970 N 900055014401 LOCK RING
LEVER MOUNTING
972 A 3638910317 BUSHING
LEVER TO CAB
974 N 007985008142 SCREW
BUSHING AND LEVER TO CAB
976 N 913004008004 NUT
Repalced by: N 913004008001
976 N 913004008001 NUT
BUSHING AND LEVER TO CAB
A 2019900292 RIVET
BUSHING AND LEVER TO CAB
978 A 6208910073 HANDLE
CAB LOCKING MECHANISM
980 N 007346005004 CLAMPING SLEEVE
Repalced by: N 001481005039
980 N 001481005039 CLAMPING SLEEVE
HANDLE TO LEVER
980 N 001481005039 CLAMPING SLEEVE
LEVER MOUNTING
Reklama
Kontaktai
Pasiūlymas
Skaitliukas



© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
