Transporto priemonė: 1935 S; VIN numerio dalis: 646123

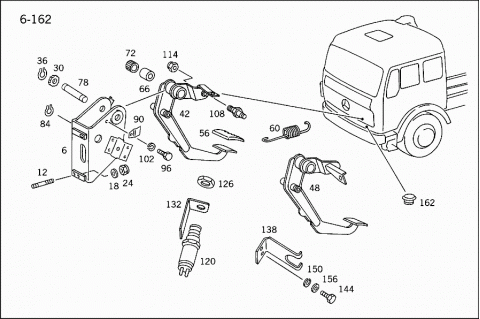

Grupė: 29 PEDAL ASSEMBLY
| # | Kodas | Pavadinimas |
|---|---|---|
| 006 | A 6202900219 | BEARING BRACKET |
| CLUTCH | ||
| 012 | N 000939008136 | STUD BOLT |
| BEARING BRACKET TO CAB | ||
| 018 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 018 | N 000125008443 | WASHER |
| BEARING BRACKET TO CAB | ||
| 024 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 024 | N 913004008001 | NUT |
| BEARING BRACKET TO CAB | ||
| 030 | A 3812910186 | STOP |
| PEDAL ASSEMBLY | ||
| 036 | N 000471016001 | LOCK RING |
| Repalced by: A 0079942041 | ||
| 036 | A 0079942041 | LOCK |
| STOP TO BEARING BRACKET | ||
| 042 | A 6202901816 | PEDAL |
| CLUTCH | ||
| 048 | A 6202902316 | PEDAL |
| CLUTCH | ||
| 056 | A 1072910182 | PAD |
| CLUTCH PEDAL | ||
| 060 | A 6209930010 | SPRING |
| CLUTCH PEDAL RESET | ||
| 066 | A 3812910053 | SPACER TUBE |
| CLUTCH PEDAL | ||
| 072 | A 0119813410 | NEEDLE BEARING |
| CLUTCH PEDAL | ||
| 078 | A 3812940707 | PIVOT PIN |
| PEDAL TO BEARING BRACKET | ||
| 084 | N 000471020001 | LOCK RING |
| PEDAL TO BEARING BRACKET | ||
| 090 | A 3812910073 | LOCK |
| PEDAL TO BEARING BRACKET | ||
| 096 | N 000933006183 | SCREW |
| Repalced by: N 304017006016 | ||
| 096 | N 304017006016 | SCREW |
| LOCK TO BEARING BRACKET | ||
| 102 | N 912004006102 | LOCK WASHER |
| LOCK TO BEARING BRACKET | ||
| 108 | A 3812910874 | PIN |
| MASTER CYLINDER | ||
| 108 | A 3812910274 | PIN |
| MASTER CYLINDER | ||
| 114 | N 913002008004 | NUT |
| PIN TO CLUTCH PEDAL | ||
| 120 | A 0075420417 | SENSOR |
| Repalced by: A 0095426117 | ||
| 120 | A 0095426117 | SENDER UNIT |
| Repalced by: A 6555400017 | ||
| 120 | A 6555400017 | SENDER UNIT |
| CLUTCH OPERATION | ||
| EPS | ||
| A 0004343801 | VALVE | |
| SPLITTER BOX GEARSHIFT 3/2-WAY VALVE | ||
| A 0014307460 | GASKET KIT | |
| 3/2-WAY VALVE | ||
| A 0009940047 | SEAL RING | |
| 3/2-WAY VALVE | ||
| TO M16 | ||
| A 0009941248 | LOCK | |
| 3/2-WAY VALVE | ||
| TO M16 | ||
| A 0009970834 | SCREW | |
| Repalced by: A 0009973734 | ||
| A 0009973734 | SCREW | |
| 3/2-WAY VALVE | ||
| TO M16 | ||
| 126 | N 074305026202 | NUT |
| SENSOR TO BRACKET | ||
| 126 | N 074305026202 | NUT |
| 3/2-WAY VALVE TO BRACKET | ||
| A 3609900840 | WASHER | |
| Repalced by: N 001440027000 | ||
| N 001440027000 | WASHER | |
| SENSOR TO BRACKET | ||
| 132 | A 6202953540 | BRACKET |
| 132 | A 6202954340 | BRACKET |
| SENSOR | ||
| 132 | A 6202954340 | BRACKET |
| 3/2-WAY VALVE | ||
| 138 | A 6202900133 | BRACKET |
| SENSOR | ||
| 144 | N 000933006207 | SCREW |
| BRACKET TO PEDAL BEARING BRACKET | ||
| 144 | N 000933006130 | SCREW |
| BRACKET TO PEDAL BEARING BRACKET | ||
| 150 | N 912004006102 | LOCK WASHER |
| BRACKET TO PEDAL BEARING BRACKET | ||
| N 000125006421 | WASHER | |
| BRACKET TO PEDAL BEARING BRACKET | ||
| 156 | N 000125006421 | WASHER |
| BRACKET TO PEDAL BEARING BRACKET | ||
| 162 | A 6179970081 | GROMMET |
| FIRE WALL,LEFT,IN FRONT LEGROOM | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |

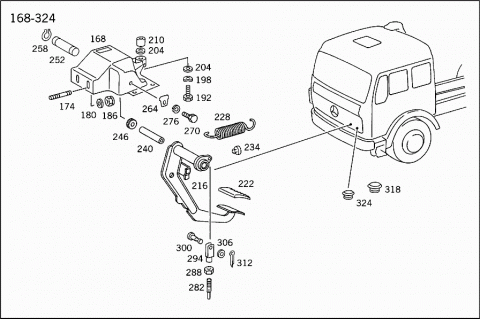

| BRAKE PEDAL UNIT | ||
| 168 | A 3812941001 | BEARING BRACKET |
| BRAKE | ||
| 174 | N 000939008136 | STUD BOLT |
| BEARING BRACKET TO FIRE WALL | ||
| 180 | N 007349008003 | WASHER |
| BEARING BRACKET TO FIRE WALL | ||
| 186 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 186 | N 913004008001 | NUT |
| BEARING BRACKET TO FIRE WALL | ||
| 192 | N 000933010151 | SCREW |
| BEARING BRACKET TO STEERING COLUMN BRACKET | ||
| 192 | N 000933010151 | SCREW |
| BEARING BRACKET TO WINDOW SILL GIRDER | ||
| 198 | N 000137010201 | SPRING WASHER |
| BEARING BRACKET TO STEERING COLUMN BRACKET | ||
| 198 | N 000137010201 | SPRING WASHER |
| BEARING BRACKET TO WINDOW SILL GIRDER | ||
| 204 | A 3859901840 | WASHER |
| Repalced by: A 4039900040 | ||
| 204 | A 4039900040 | WASHER |
| BEARING BRACKET TO STEERING COLUMN BRACKET | ||
| 204 | A 4039900040 | WASHER |
| BEARING BRACKET TO WINDOW SILL GIRDER | ||
| 210 | A 3604270253 | SPACER TUBE |
| BEARING BRACKET TO STEERING COLUMN BRACKET | ||
| 210 | A 3604270253 | SPACER TUBE |
| BEARING BRACKET TO WINDOW SILL GIRDER | ||
| 216 | A 6202900818 | PEDAL |
| BRAKE | ||
| 216 | A 3852900518 | PEDAL |
| BRAKE | ||
| 222 | A 1072910182 | PAD |
| BRAKE PEDAL | ||
| 228 | A 3879935010 | SPRING |
| BRAKE PEDAL RESET | ||
| 234 | A 1152910186 | STOP |
| BRAKE PEDAL RELEASE SPRING | ||
| 240 | A 3852920053 | SPACER TUBE |
| BRAKE PEDAL | ||
| 246 | A 0119813410 | NEEDLE BEARING |
| BRAKE PEDAL | ||
| 252 | A 3852940007 | PIVOT PIN |
| PEDAL TO BEARING BRACKET | ||
| 258 | N 000471020001 | LOCK RING |
| PEDAL TO BEARING BRACKET | ||
| 264 | A 3852920073 | LOCK |
| Repalced by: A 6732920073 | ||
| 264 | A 6732920073 | LOCK |
| PEDAL TO BEARING BRACKET | ||
| 270 | N 000933006103 | SCREW |
| Repalced by: N 304017006018 | ||
| 270 | N 304017006018 | SCREW |
| LOCK TO BEARING BRACKET | ||
| 276 | N 912004006102 | LOCK WASHER |
| LOCK TO BEARING BRACKET | ||
| 282 | A 3852950133 | ROD |
| Repalced by: A 9702900039 | ||
| 282 | A 9702900039 | ROD |
| TWO-CIRCUIT-BRAKE-VALVE CONTROL | ||
| 288 | N 000439008211 | NUT |
| Repalced by: N 304035008001 | ||
| 288 | N 304035008001 | NUT |
| ROD TO YOKE | ||
| 294 | A 6209960001 | YOKE |
| TWO-CIRCUIT-BRAKE-VALVE CONTROL | ||
| 300 | A 3852920174 | PIN |
| YOKE TO BRAKE PEDAL | ||
| 306 | N 000433008406 | WASHER |
| YOKE TO BRAKE PEDAL | ||
| 312 | N 000094002059 | COTTER PIN |
| YOKE TO BRAKE PEDAL | ||
| 318 | A 3819970486 | PLUG |
| CAB FLOOR SEALING | ||
| 324 | A 3819970386 | PLUG |
| Repalced by: A 0009972020 | ||
| 324 | A 0009972020 | EXPANSION PLUG |
| Repalced by: A 0009973220 | ||
| 324 | A 0009973220 | EXPANSION PLUG |
| CAB FLOOR SEALING | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| FOR BRAKE VALVE,SEE GROUP 42 | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| FOR CYLINDERS & HYDRAULIC LINES, SEE GROUP 25 | ||
