Transporto priemonė: 1935 S; VIN numerio dalis: 646123
Grupė: 32 SPRINGS AND SUSPENSION
| # | Kodas | Pavadinimas |
|---|---|---|
| X XXXXXXXXXXXX | PART NAME MISSING | |

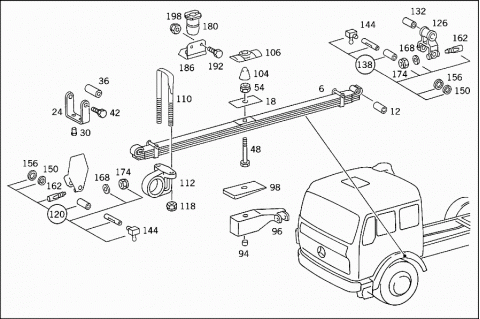

| FRONT SPRING | ||
| 006 | A 6203200302 | FRONT SPRING |
| (PARABOLIC SPRING);NUMBER OF LEAVES: | ||
| 3 | ||
| 006 | A 6203200002 | FRONT SPRING |
| (PARABOLIC SPRING);NUMBER OF LEAVES: | ||
| 4 | ||
| 012 | A 3043210150 | BUSHING |
| 012 | A 6203210050 | BUSHING |
| 018 | A 3933210284 | SHIM |
| BETWEEN THE SPRING LEAVES | ||
| 024 | A 6203240433 | SPRING CLAMP |
| FRONT SPRING | ||
| 024 | A 6203240533 | SPRING CLAMP |
| FRONT SPRING | ||
| 030 | N 910006008024 | RIVET |
| SPRING CLAMP TO SPRING LEAF | ||
| 036 | A 0003212753 | SPACER TUBE |
| SPRING CLAMP | ||
| 042 | N 000963012011 | SCREW |
| SPRING CLAMP | ||
| 048 | A 3913210071 | SCREW |
| (SPRING BOLT) | ||
| 048 | A 3913210171 | SCREW |
| (SPRING BOLT) | ||
| 054 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 054 | N 910113014000 | NUT |
| SPRING BOLT | ||

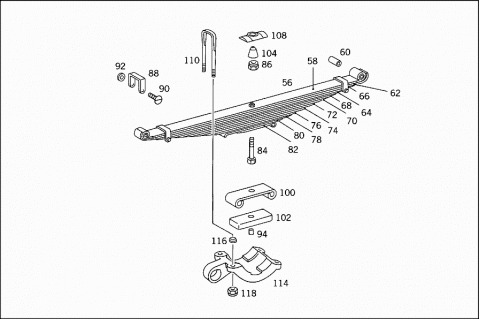

| 056 | A 3873200102 | FRONT SPRING |
| (TRAPEZOIDAL SPRING);NUMBER OF LEAVES: | ||
| 12 | ||
| 056 | A 3873200002 | FRONT SPRING |
| (TRAPEZOIDAL SPRING);NUMBER OF LEAVES: | ||
| 9 | ||
| 058 | A 3873200194 | SPRING LEAF |
| NO.1 | ||
| 058 | A 3873200394 | SPRING LEAF |
| NO.1 | ||
| 060 | A 3043210150 | BUSHING |
| 060 | A 6203210050 | BUSHING |
| 062 | A 3873210112 | SPRING LEAF |
| NO.2 | ||
| 062 | A 3873210312 | SPRING LEAF |
| NO.2 | ||
| 064 | A 3633210013 | SPRING LEAF |
| Repalced by: A 6593210713 | ||
| 064 | A 6593210713 | SPRING LEAF |
| NO.3 | ||
| 064 | A 3873210013 | SPRING LEAF |
| NO.3 | ||
| 066 | A 3633210014 | SPRING LEAF |
| Repalced by: A 6593210714 | ||
| 066 | A 6593210714 | SPRING LEAF |
| NO.4 | ||
| 066 | A 3873210014 | SPRING LEAF |
| NO.4 | ||
| 068 | A 3633210015 | SPRING LEAF |
| Repalced by: A 6593210615 | ||
| 068 | A 6593210615 | SPRING LEAF |
| NO.5 | ||
| 068 | A 3873210015 | SPRING LEAF |
| NO.5 | ||
| 070 | A 3633210016 | SPRING LEAF |
| Repalced by: A 6593210616 | ||
| 070 | A 6593210616 | SPRING LEAF |
| NO.6 | ||
| 070 | A 3873210016 | SPRING LEAF |
| NO.6 | ||
| 072 | A 3633210017 | SPRING LEAF |
| Repalced by: A 6593210617 | ||
| 072 | A 6593210617 | SPRING LEAF |
| NO.7 | ||
| 072 | A 3873210017 | SPRING LEAF |
| NO.7 | ||
| 074 | A 3633210018 | SPRING LEAF |
| Repalced by: A 6593210618 | ||
| 074 | A 6593210618 | SPRING LEAF |
| NO.8 | ||
| 074 | A 3873210018 | SPRING LEAF |
| NO.8 | ||
| 076 | A 3633210019 | SPRING LEAF |
| Repalced by: A 6593210619 | ||
| 076 | A 6593210619 | SPRING LEAF |
| NO.9 | ||
| 076 | A 3873210019 | SPRING LEAF |
| NO.9 | ||
| 078 | A 3633210020 | SPRING LEAF |
| NO.10 | ||
| 080 | A 3633210021 | SPRING LEAF |
| NO.11 | ||
| 082 | A 3873210122 | SPRING LEAF |
| Repalced by: A 6593210422 | ||
| 082 | A 6593210422 | SPRING LEAF |
| NO.12 | ||
| 084 | A 3873210071 | SCREW |
| (SPRING BOLT) | ||
| NO.12 | ||
| 084 | A 3323210071 | SCREW |
| (SPRING BOLT) | ||
| 086 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 086 | N 910113014000 | NUT |
| SPRING BOLT | ||
| 088 | A 6203240733 | SPRING CLAMP |
| Repalced by: A 6203240433 | ||
| 088 | A 6203240433 | SPRING CLAMP |
| FRONT SPRING | ||
| 090 | N 000963012011 | SCREW |
| SPRING CLAMP | ||
| 092 | A 3039902440 | WASHER |
| SPRING CLAMP | ||
| 094 | A 3893230074 | PIN |
| FRONT SPRINGS TO FRONT AXLE | ||
| 096 | A 6213310228 | SHIM |
| LEFT SHOCK ABSORBER | ||
| 096 | A 6213310428 | SHIM |
| LEFT SHOCK ABSORBER | ||
| 096 | A 6213310428 | SHIM |
| LEFT SHOCK ABSORBER | ||
| 096 | A 6213310628 | SHIM |
| LEFT SHOCK ABSORBER | ||
| 096 | A 6213310128 | SHIM |
| RIGHT SHOCK ABSORBER | ||
| 096 | A 6213310328 | SHIM |
| RIGHT SHOCK ABSORBER | ||
| 096 | A 6213310328 | SHIM |
| RIGHT SHOCK ABSORBER | ||
| 096 | A 6213310528 | SHIM |
| RIGHT SHOCK ABSORBER | ||
| 098 | A 3953310028 | SHIM |
| BETWEEN SPRING AND SHIM,RIGHT | ||
| 100 | A 3863220028 | SHIM |
| BETWEEN SPRING AND FRONT AXLE | ||
| 102 | A 3873310228 | SHIM |
| BETWEEN SPRING AND FRONT AXLE | ||
| 104 | A 3263310044 | RUBBER BUFFER |
| Repalced by: A 6553310044 | ||
| 104 | A 6553310044 | RUBBER BUFFER |
| FRONT SPRINGS TO FRONT AXLE | ||
| 106 | A 3043310027 | SPACER |
| Repalced by: A 6483310026 | ||
| 106 | A 6483310026 | PLATE |
| Repalced by: A 6553310126 | ||
| 106 | A 6553310126 | PLATE |
| Repalced by: A 6483310026 | ||
| 106 | A 6483310026 | PLATE |
| FRONT SPRINGS TO FRONT AXLE | ||
| 106 | A 6483310026 | PLATE |
| Repalced by: A 6553310126 | ||
| 106 | A 6553310126 | PLATE |
| Repalced by: A 6483310026 | ||
| 106 | A 6483310026 | PLATE |
| FRONT SPRINGS TO FRONT AXLE | ||
| 108 | A 6203310126 | PLATE |
| Repalced by: A 6553310026 | ||
| 108 | A 3873310126 | PLATE |
| Repalced by: A 6553310026 | ||
| 108 | A 6553310026 | PLATE |
| FRONT SPRINGS TO FRONT AXLE | ||
| 108 | A 6553310026 | PLATE |
| FRONT SPRINGS TO FRONT AXLE | ||
| 110 | A 3043311625 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 245 MM | ||
| 110 | A 3203310325 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 212 MM | ||
| 110 | A 3873310925 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 230 MM | ||
| 110 | A 3893310125 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 370 MM | ||
| 110 | A 3873310025 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 390 MM | ||
| 112 | A 6193230063 | BEARING BRACKET |
| TORSION BAR,FRONT | ||
| 114 | A 6213230920 | BEARING |
| TORSION BAR,LEFT | ||
| 114 | A 6213231020 | BEARING |
| TORSION BAR,RIGHT | ||
| 116 | A 3859970126 | WASHER |
| FRONT SPRINGS WITH TORSION BAR TO FRONT AXLE | ||
| 118 | N 000934020008 | NUT |
| Repalced by: N 308673020002 | ||
| 118 | N 308673020002 | NUT |
| Repalced by: N 308674020000 | ||
| 118 | N 308674020000 | NUT |
| FRONT SPRINGS WITH TORSION BAR TO FRONT AXLE | ||
| 120 | A 3953200165 | SHACKLE PIN |
| (PARTS KIT),FRONT SPRING,FRONT | ||
| 126 | A 3873200162 | SHACKLE |
| FRONT SPRING,REAR | ||
| 132 | A 3043210150 | BUSHING |
| 132 | A 6203210050 | BUSHING |
| 138 | A 3953200265 | SHACKLE PIN |
| (PARTS KIT),FRONT SPRING,REAR | ||
| 144 | N 071412010300 | GREASE NIPPLE |
| SHACKLE PIN | ||
| 150 | A 3523230376 | WASHER |
| AS REQUIRED | ||
| 4.00 MM | ||
| 150 | A 3523230476 | WASHER |
| AS REQUIRED | ||
| 4.20 MM | ||
| 150 | A 3523230576 | WASHER |
| AS REQUIRED | ||
| 4.30 MM | ||
| 156 | A 0029973140 | SEAL RING |
| SPRING SUSPENSION | ||
| 162 | A 3529900337 | BOLT |
| SPRING PIN LOCK | ||
| 168 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 168 | N 000125010532 | WASHER |
| SPRING PIN LOCK | ||
| 174 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 174 | N 910113010000 | NUT |
| SPRING PIN LOCK | ||
| 180 | A 3833240008 | HELPER SPRING |
| FRONT SPRING STOP | ||
| 180 | A 6209870039 | RUBBER BUFFER |
| FRONT SPRING STOP | ||
| 186 | A 3953210040 | BRACKET |
| HELPER SPRING | ||
| 192 | N 000933010145 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 198 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 198 | N 910113010000 | NUT |
| BRACKET TO SIDE MEMBER | ||

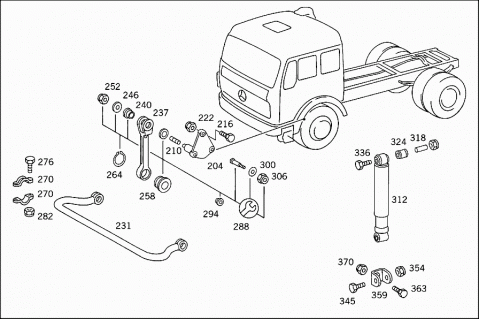

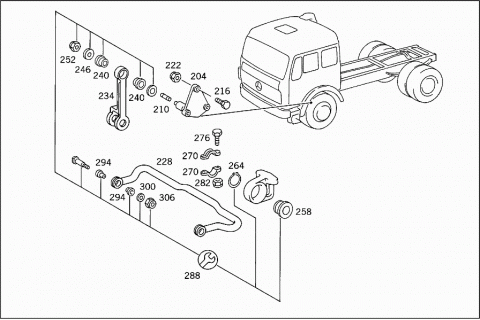

| X XXXXXXXXXXXX | PART NAME MISSING | |
| TORSION BAR,FRONT | ||
| 204 | A 6203200078 | CONSOLE |
| Repalced by: A 6203230363 | ||
| 204 | A 6203230363 | BEARING BRACKET |
| TORSION BAR,FRONT | ||
| 210 | N 000939012102 | STUD BOLT |
| 216 | N 000961016040 | SCREW |
| CONSOLE TO FRAME | ||
| 222 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 222 | N 910113016002 | NUT |
| CONSOLE TO FRAME | ||
| 228 | A 6203230165 | TORSION BAR |
| Repalced by: A 6523230765 | ||
| 228 | A 6523230765 | TORSION BAR |
| FRONT AXLE | ||
| 231 | A 6213230265 | TORSION BAR |
| FRONT AXLE | ||
| 234 | A 6203230216 | SHACKLE |
| TORSION BAR,FRONT | ||
| 237 | A 6213230116 | SHACKLE |
| TORSION BAR,FRONT | ||
| 240 | A 0003232150 | BUSHING |
| SHACKLE TO CONSOLE | ||
| 246 | A 3873230152 | SPACER WASHER |
| SHACKLE TO CONSOLE | ||
| 252 | N 910113012002 | NUT |
| SHACKLE TO CONSOLE | ||
| N 000961012056 | SCREW | |
| Repalced by: N 308676012038 | ||
| N 308676012038 | SCREW | |
| SHACKLE TO CONSOLE | ||
| 258 | A 3873230285 | RUBBER MOUNTING |
| TORSION BAR TO BEARING BRACKET | ||
| 258 | A 6213230085 | RUBBER MOUNTING |
| TORSION BAR TO BEARING BRACKET | ||
| 264 | N 000983068000 | LOCK RING |
| TORSION BAR TO BEARING BRACKET | ||
| 270 | A 6203230140 | BRACKET |
| Repalced by: A 6213230340 | ||
| 270 | A 6213230340 | BRACKET |
| TORSION BAR | ||
| 276 | N 308676012012 | SCREW |
| BRACKET TO TORSION BAR | ||
| 282 | N 910113012002 | NUT |
| BRACKET TO TORSION BAR | ||
| 288 | A 6203200628 | REPAIR KIT |
| TORSION BAR MOUNTING | ||
| 288 | A 6213200228 | REPAIR KIT |
| TORSION BAR MOUNTING | ||
| 294 | A 6203230250 | BUSHING |
| TORSION BAR TO SHACKLE | ||
| 300 | N 007349017002 | WASHER |
| TORSION BAR TO SHACKLE | ||
| 306 | N 913004016005 | NUT |
| Repalced by: N 910113016001 | ||
| 306 | N 910113016001 | NUT |
| TORSION BAR TO SHACKLE | ||

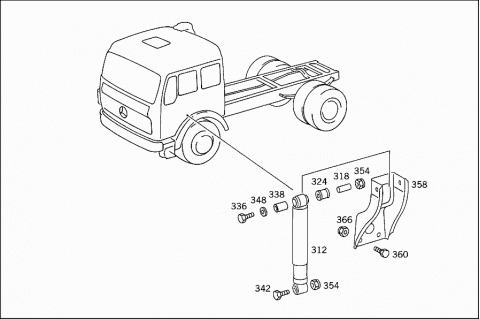

| X XXXXXXXXXXXX | PART NAME MISSING | |
| FRONT SHOCK ABSORBERS | ||
| 312 | A 0033233200 | SHOCK ABSORBER |
| Repalced by: A 0063230900 | ||
| 312 | A 0043239200 | SHOCK ABSORBER |
| Repalced by: A 0063230900 | ||
| 312 | A 0063230900 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 312 | A 0043230100 | SHOCK ABSORBER |
| Repalced by: A 0063230800 | ||
| 312 | A 0043234600 | SHOCK ABSORBER |
| Repalced by: A 0063230800 | ||
| 312 | A 0063230800 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 312 | A 0043234500 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 312 | A 0043230000 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 312 | A 0043234400 | SHOCK ABSORBER |
| Repalced by: A 0063230700 | ||
| 312 | A 0033239700 | SHOCK ABSORBER |
| Repalced by: A 0063230700 | ||
| 312 | A 0063230700 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 318 | A 0003235250 | BUSHING |
| TO 004 323 01 00,004 323 92 00 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 003 323 97 00;004 323 00 00 | ||
| 318 | A 0003233150 | BUSHING |
| TO 004 323 46 00,44 00,45 00 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 003 323 32 00 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 006 323 07 00,08 00,09 00 | ||
| 324 | A 0003233044 | RUBBER BUFFER |
| Repalced by: A 0003233144 | ||
| 324 | A 0003233144 | RUBBER BUFFER |
| TO 004 323 01 00,004 323 92 00 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 003 323 97 00;004 323 00 00 | ||
| 324 | A 0003232885 | RUBBER MOUNTING |
| TO 004 323 46 00,44 00,45 00 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 003 323 32 00 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 006 323 07 00,08 00,09 00 | ||
| 336 | N 000960016275 | SCREW |
| SHOCK ABSORBER TO TOP BRACKET | ||
| 336 | N 000960016267 | SCREW |
| SHOCK ABSORBER TO TOP BRACKET | ||
| 336 | N 000960016267 | SCREW |
| SHOCK ABSORBER TO TOP BRACKET | ||
| 336 | N 000960016164 | SCREW |
| SHOCK ABSORBER TO TOP BRACKET | ||
| 338 | A 6208910053 | SPACER TUBE |
| Repalced by: A 6458910653 | ||
| 338 | A 6458910653 | SPACER TUBE |
| SHOCK ABSORBER TO TOP BRACKET | ||
| 338 | A 6458910553 | SPACER TUBE |
| SHOCK ABSORBER TO TOP BRACKET | ||
| 342 | N 000960016244 | SCREW |
| SHOCK ABSORBER TO SHIM | ||
| 345 | N 000960016164 | SCREW |
| SHOCK ABSORBER TO BOTTOM BRACKET | ||
| 348 | A 3939900240 | WASHER |
| SHOCK ABSORBER TO TOP BRACKET | ||
| 348 | A 3939900240 | WASHER |
| SHOCK ABSORBER TO TOP BRACKET | ||
| 354 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 354 | N 910113016002 | NUT |
| SHOCK ABSORBER TO TOP BRACKET | ||
| 354 | N 910113016002 | NUT |
| SHOCK ABSORBER TO SHIM | ||
| 354 | N 910113016002 | NUT |
| SHOCK ABSORBER TO BOTTOM BRACKET | ||
| 358 | A 6243230340 | BRACKET |
| SHOCK ABSORBER,TOP | ||
| 358 | A 6243230340 | BRACKET |
| SHOCK ABSORBER,TOP | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE GROUP: | ||
| 52 | ||
| 359 | A 3953230140 | BRACKET |
| SHOCK ABSORBER,BOTTOM | ||
| 360 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 360 | N 308676014020 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 360 | N 308676014020 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 363 | N 000960020075 | SCREW |
| Repalced by: N 000960020084 | ||
| 363 | N 000960020084 | SCREW |
| BRACKET TO FRONT AXLE | ||
| 366 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 366 | N 910113014001 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 366 | N 910113014001 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 370 | N 913004020004 | NUT |
| Repalced by: N 913004020003 | ||
| 370 | N 913004020003 | NUT |
| BRACKET TO FRONT AXLE | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |

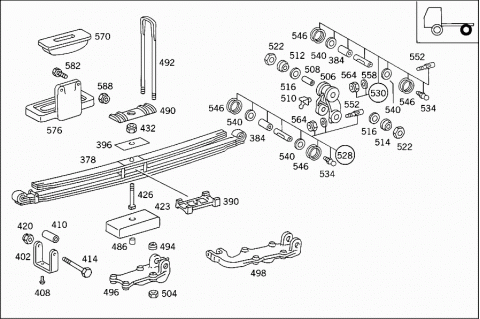

| REAR SPRING | ||
| 378 | A 6213200008 | REAR SPRING |
| (PARABOLIC SPRING),3-LEAF; WITH 2-LEAF HELPER SPRING | ||
| 378 | A 3893200908 | REAR SPRING |
| (PARABOLIC SPRING),3-LEAF; WITH 2-LEAF HELPER SPRING | ||
| 384 | A 3353240350 | BUSHING |
| 384 | A 6203240050 | BUSHING |
| 390 | A 6213240035 | SPACER |
| 390 | A 3873240035 | SPACER |
| 396 | A 3873210084 | SHIM |
| 402 | A 6203240133 | SPRING CLAMP |
| Repalced by: A 6203240033 | ||
| 402 | A 6203240033 | SPRING CLAMP |
| 408 | N 910006008023 | RIVET |
| SPRING CLAMP TO SPRING LEAF | ||
| 410 | A 0003212753 | SPACER TUBE |
| SPRING CLAMP | ||
| 414 | N 000960012214 | SCREW |
| Repalced by: A 0079900601 | ||
| 414 | A 0079900601 | SCREW |
| SPRING CLAMP | ||
| 420 | N 910113012002 | NUT |
| SPRING CLAMP | ||
| 423 | A 6213510028 | PAD |
| 426 | A 3893240071 | SPRING BOLT |
| 426 | A 3873240071 | SPRING BOLT |
| 432 | N 913004018004 | NUT |
| SPRING BOLT | ||

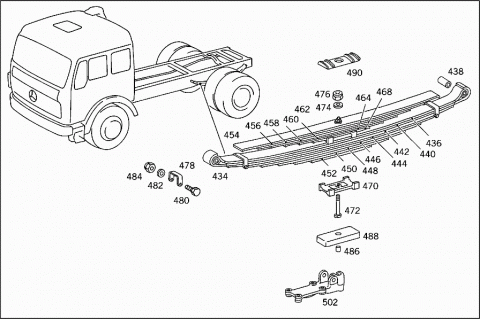

| 434 | A 3893200308 | REAR SPRING |
| 8-LEAF;WITH 6-LEAF HELPER SPRING | ||
| 436 | A 3893200393 | SPRING LEAF |
| NO.1 | ||
| 438 | A 3353240350 | BUSHING |
| 438 | A 6203240050 | BUSHING |
| 440 | A 3893240312 | SPRING LEAF |
| NO.2 | ||
| 442 | A 3893240313 | SPRING LEAF |
| Repalced by: A 6563240514 | ||
| 442 | A 6563240514 | SPRING LEAF |
| NO.3 | ||
| 444 | A 3893240515 | SPRING LEAF |
| Repalced by: A 6563240315 | ||
| 444 | A 6563240315 | SPRING LEAF |
| NO.4 | ||
| 446 | A 3893240516 | SPRING LEAF |
| NO.5 | ||
| 448 | A 3893240517 | SPRING LEAF |
| Repalced by: A 6563240317 | ||
| 448 | A 6563240317 | SPRING LEAF |
| NO.6 | ||
| 450 | A 3893240518 | SPRING LEAF |
| Repalced by: A 6563240318 | ||
| 450 | A 6563240318 | SPRING LEAF |
| NO.7 | ||
| 452 | A 3893240019 | SPRING LEAF |
| Repalced by: A 6563240219 | ||
| 452 | A 6563240219 | SPRING LEAF |
| NO.8 | ||
| 454 | A 3893200310 | HELPER SPRING |
| 6-LEAF | ||
| 456 | A 3893240541 | SPRING LEAF |
| Repalced by: A 6563240541 | ||
| 456 | A 6563240541 | SPRING LEAF |
| NO.1 | ||
| 458 | A 3893240542 | SPRING LEAF |
| Repalced by: A 6563240342 | ||
| 458 | A 6563240342 | SPRING LEAF |
| NO.2 | ||
| 460 | A 3893240543 | SPRING LEAF |
| Repalced by: A 6563240343 | ||
| 460 | A 6563240343 | SPRING LEAF |
| NO.3 | ||
| 462 | A 3893240544 | SPRING LEAF |
| Repalced by: A 6563240344 | ||
| 462 | A 6563240344 | SPRING LEAF |
| NO.4 | ||
| 464 | A 3893240545 | SPRING LEAF |
| Repalced by: A 6563240345 | ||
| 464 | A 6563240345 | SPRING LEAF |
| NO.5 | ||
| 468 | A 3893240546 | SPRING LEAF |
| NO.6 | ||
| 470 | A 3873240035 | SPACER |
| REAR SPRING | ||
| NO.6 | ||
| 472 | A 3463245071 | SPRING BOLT |
| REAR SPRING | ||
| NO.6 | ||
| 474 | N 007349019002 | WASHER |
| REAR SPRING | ||
| 476 | N 913004018004 | NUT |
| 478 | A 0023218933 | SPRING CLAMP |
| 480 | N 000960012222 | SCREW |
| 482 | A 3039902440 | WASHER |
| 484 | N 000934012022 | NUT |
| 486 | A 3893250074 | PIN |
| REAR SPRING TO REAR AXLE | ||
| 488 | A 3893510028 | PAD |
| BETWEEN SPRING AND REAR AXLE | ||
| 488 | A 3893510428 | PAD |
| BETWEEN SPRING AND REAR AXLE | ||
| 488 | A 3893510328 | PAD |
| BETWEEN SPRING AND REAR AXLE | ||
| 488 | A 3873510328 | PAD |
| BETWEEN SPRING AND REAR AXLE | ||
| 490 | A 3873510026 | SPRING CLAMPING PLATE |
| REAR SPRING TO REAR AXLE | ||
| 490 | A 6203510026 | SPRING CLAMPING PLATE |
| REAR SPRING TO REAR AXLE | ||
| 492 | A 3873510125 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 492 | A 3353510125 | U-BOLT |
| Repalced by: A 9433510225 | ||
| 492 | A 9433510225 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 492 | A 3873510025 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 494 | A 3879975026 | WASHER |
| REAR SPRING TO REAR AXLE | ||
| 496 | A 6213260020 | BEARING |
| TORSION BAR AND SHOCK ABSORBER,LEFT | ||
| 496 | A 6213260120 | BEARING |
| TORSION BAR AND SHOCK ABSORBER,RIGHT | ||
| 498 | A 3873260720 | BEARING |
| TORSION BAR AND SHOCK ABSORBER,LEFT | ||
| 498 | A 3873260820 | BEARING |
| TORSION BAR AND SHOCK ABSORBER,RIGHT | ||
| 500 | A 3873260920 | BEARING |
| LEFT | ||
| 500 | A 6203260020 | BEARING |
| LEFT | ||
| 502 | A 3873261020 | BEARING |
| RIGHT | ||
| 502 | A 6203260120 | BEARING |
| RIGHT | ||
| 504 | N 000934024001 | NUT |
| REAR SPRING TO REAR AXLE | ||
| 506 | A 3463205063 | SHACKLE |
| REAR SPRING | ||
| 506 | A 3873200163 | SHACKLE |
| REAR SPRING | ||
| 506 | A 3873200063 | SHACKLE |
| REAR SPRING | ||
| 508 | A 3353240050 | BUSHING |
| 508 | A 3873240050 | BUSHING |
| 510 | N 071412008200 | GREASE NIPPLE |
| 512 | A 6213250062 | THRUST WASHER |
| SHACKLE TO REAR-SPRING REAR BRACKET, INSIDE | ||
| 514 | A 6213250162 | THRUST WASHER |
| SHACKLE TO REAR-SPRING REAR BRACKET, OUTSIDE | ||
| 516 | A 0029973640 | SEAL RING |
| SHACKLE TO REAR-SPRING REAR BRACKET | ||
| 522 | N 000439024200 | NUT |
| SHACKLE TO REAR-SPRING REAR BRACKET | ||
| 528 | A 6583200065 | SHACKLE PIN |
| (PARTS KIT),FRONT SPRING EYE | ||
| 528 | A 3893200065 | SHACKLE PIN |
| (PARTS KIT),REAR SPRING EYE | ||
| 530 | A 3893200265 | SHACKLE PIN |
| (PARTS KIT),SPRING SHACKLE,TOP | ||
| 534 | N 071412010100 | GREASE NIPPLE |
| SHACKLE PIN | ||
| 540 | A 3523230976 | WASHER |
| AS REQUIRED | ||
| 4.00 MM | ||
| 540 | A 3523231076 | WASHER |
| AS REQUIRED | ||
| 4.20 MM | ||
| 540 | A 3523231176 | WASHER |
| Repalced by: A 3523231076 | ||
| 546 | A 0029973040 | SEAL RING |
| REAR SPRING TO REAR SPRING FRONT BRACKET AND TO SHACKLE | ||
| 552 | A 3529900337 | BOLT |
| SPRING PIN LOCK | ||
| 558 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 558 | N 000125010532 | WASHER |
| SPRING PIN LOCK | ||
| 564 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 564 | N 910113010000 | NUT |
| SPRING PIN LOCK | ||
| 570 | A 3873250144 | RUBBER BUFFER |
| AXLE STOP | ||
| 576 | A 3873250040 | BRACKET |
| RUBBER BUFFER | ||
| 582 | N 000931010282 | SCREW |
| BRACKET TO FRAME | ||
| 588 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 588 | N 910113010000 | NUT |
| BRACKET TO FRAME | ||

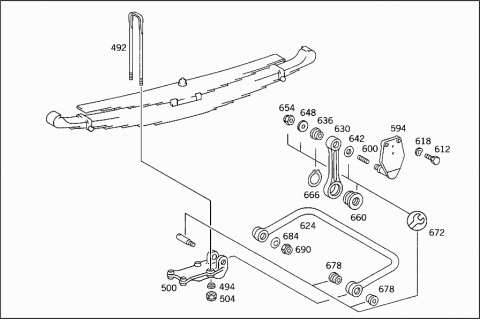

| X XXXXXXXXXXXX | PART NAME MISSING | |
| TORSION BAR,REAR | ||
| 594 | A 3933200678 | CONSOLE |
| Repalced by: A 3933261163 | ||
| 594 | A 3933261163 | BEARING BRACKET |
| TORSION BAR,REAR | ||
| 594 | A 3933201178 | CONSOLE |
| Repalced by: A 3933261263 | ||
| 594 | A 3933261263 | BEARING BRACKET |
| TORSION BAR,REAR | ||
| 600 | N 000939016033 | STUD BOLT |
| 612 | N 000961016108 | SCREW |
| CONSOLE TO FRAME | ||
| 612 | N 000961016100 | SCREW |
| Repalced by: N 308676016020 | ||
| 612 | N 308676016020 | SCREW |
| CONSOLE TO FRAME | ||
| 618 | N 000137016202 | SPRING WASHER |
| CONSOLE TO FRAME | ||
| 624 | A 3873260065 | TORSION BAR |
| REAR AXLE | ||
| 630 | A 3873260647 | SHACKLE |
| TORSION BAR,REAR | ||
| 630 | A 3873260947 | SHACKLE |
| TORSION BAR,REAR | ||
| 630 | A 3873260747 | SHACKLE |
| TORSION BAR,REAR | ||
| 636 | A 0003260650 | BUSHING |
| SHACKLE TO CONSOLE | ||
| 642 | A 3873230252 | SPACER WASHER |
| SHACKLE TO CONSOLE | ||
| 648 | A 3933260152 | SPACER WASHER |
| SHACKLE TO CONSOLE | ||
| 654 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 654 | N 910113016002 | NUT |
| SHACKLE TO CONSOLE | ||
| N 000961016081 | SCREW | |
| SHACKLE TO CONSOLE | ||
| 660 | A 3873260281 | RUBBER MOUNTING |
| TORSION BAR TO SHACKLE | ||
| 666 | N 000983085001 | LOCK RING |
| TORSION BAR TO SHACKLE | ||
| 672 | A 6203200028 | REPAIR KIT |
| TORSION BAR MOUNTING | ||
| 678 | A 3873260050 | BUSHING |
| TORSION BAR TO BEARING | ||
| 684 | N 007349019002 | WASHER |
| TORSION BAR TO BEARING | ||
| 690 | N 913004018003 | NUT |
| Repalced by: N 910113018004 | ||
| 690 | N 910113018004 | NUT |
| TORSION BAR TO BEARING | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |

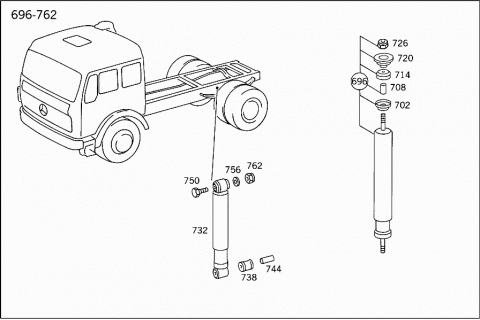

| REAR SHOCK ABSORBERS | ||
| 696 | A 6213260000 | SHOCK ABSORBER |
| (PARTS KIT) | ||
| 696 | A 3873260100 | SHOCK ABSORBER |
| (PARTS KIT) | ||
| 702 | A 3173260167 | RETAINER |
| SHOCK ABSORBER TO CROSS MEMBER AND TO BEARING | ||
| 53 MM | ||
| 708 | A 3179911240 | SPACER TUBE |
| SHOCK ABSORBER TO CROSS MEMBER AND TO BEARING | ||
| 714 | A 3543260068 | RUBBER BUFFER |
| SHOCK ABSORBER TO CROSS MEMBER AND TO BEARING | ||
| 720 | A 3543260067 | RETAINER |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| 80 MM | ||
| 726 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 726 | N 910113014001 | NUT |
| SHOCK ABSORBER TO CROSS MEMBER AND TO BEARING | ||
| 732 | A 0033264400 | SHOCK ABSORBER |
| REAR AXLE | ||
| 732 | A 0023268800 | SHOCK ABSORBER |
| REAR AXLE | ||
| 732 | A 0033267700 | SHOCK ABSORBER |
| REAR AXLE | ||
| 732 | A 0033260200 | SHOCK ABSORBER |
| REAR AXLE | ||
| 738 | A 0003233044 | RUBBER BUFFER |
| Repalced by: A 0003233144 | ||
| 738 | A 0003233144 | RUBBER BUFFER |
| TO 003 326 44 00 | ||
| 738 | A 0003232885 | RUBBER MOUNTING |
| TO 002 326 88 00;003 326 77 00 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 003 326 02 00 | ||
| 744 | A 0003234550 | BUSHING |
| TO 003 326 44 00 | ||
| 744 | A 0003233150 | BUSHING |
| TO 002 326 88 00;003 326 77 00 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 003 326 02 00 | ||
| 750 | N 000960016244 | SCREW |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| 750 | N 000960016224 | SCREW |
| SHOCK ABSORBER TO BEARING | ||
| 756 | N 007349017002 | WASHER |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| 762 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 762 | N 910113016002 | NUT |
| SHOCK ABSORBER TO CROSS MEMBER AND TO BEARING | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
