Transporto priemonė: 1935 S; VIN numerio dalis: 646123
Grupė: 46 STEERING
| # | Kodas | Pavadinimas |
|---|---|---|
| 004 | A 0004664502 | TANK |
| OIL | ||
| 008 | A 0004660267 | OIL DIPSTICK |
| Repalced by: A 0004660867 | ||
| 008 | A 0004660867 | OIL DIPSTICK |
| A 1233270059 | PROTECTIVE CAP | |
| 012 | A 0004660068 | FILLER CAP |
| 016 | A 0004661760 | SEAL RING |
| 020 | A 0004660740 | BRACKET |
| 024 | A 0004660604 | FILTER |
| 030 | N 007985006139 | SCREW |
| OIL TANK TO BRACKET | ||
| 034 | N 913002006001 | NUT |
| Repalced by: N 913002006009 | ||
| 034 | N 913002006009 | NUT |
| OIL TANK TO BRACKET | ||
| 038 | A 6204600235 | BRACKET |
| OIL TANK | ||
| 038 | A 6204600335 | BRACKET |
| OIL TANK | ||
| 042 | N 000933010238 | SCREW |
| Repalced by: N 304017010028 | ||
| 042 | N 304017010028 | SCREW |
| BRACKET TO STEERING BOX | ||
| 046 | N 912004010102 | LOCK WASHER |
| BRACKET TO STEERING BOX | ||
| 050 | A 3609970982 | HOSE |
| Repalced by: A 3859971582 | ||
| 050 | A 3859971582 | HOSE |
| SUCTION LINE | ||
| 054 | A 6204661665 | LINE |
| (SUCTION LINE),FROM OIL TANK TO PUMP | ||
| 054 | A 6204660665 | LINE |
| (SUCTION LINE),FROM OIL TANK TO PUMP | ||
| 054 | A 6454660365 | LINE |
| (SUCTION LINE),FROM OIL TANK TO PUMP | ||
| 054 | A 6204661765 | LINE |
| (SUCTION LINE),FROM OIL TANK TO PUMP | ||
| 054 | A 6204660765 | LINE |
| (SUCTION LINE),FROM OIL TANK TO PUMP | ||
| 054 | A 6464660365 | LINE |
| (SUCTION LINE),FROM OIL TANK TO PUMP | ||
| 058 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 058 | N 000000000667 | CLAMP |
| HOSE TO SUCTION LINE AND TO OIL TANK | ||
| 20-32X13 MM | ||
| 062 | A 6454600524 | LINE |
| (SUCTION LINE),FROM OIL TANK TO PUMP | ||
| 062 | A 6454600024 | LINE |
| (SUCTION LINE),FROM OIL TANK TO PUMP | ||
| 062 | A 6454600624 | LINE |
| (SUCTION LINE),FROM OIL TANK TO PUMP | ||
| 062 | A 6464600224 | LINE |
| (SUCTION LINE),FROM OIL TANK TO PUMP | ||
| 066 | N 915017022100 | UNION NUT |
| SUCTION LINE | ||
| 070 | N 003861022004 | GLAND |
| Repalced by: A 0019901267 | ||
| 070 | A 0019901267 | SEAL CONE |
| SUCTION LINE | ||
| 074 | A 0009907168 | FITTING |
| SUCTION LINE TO OIL PUMP | ||
| 078 | A 6454600324 | LINE |
| FROM PUMP TO HIGH PRESSURE HOSE | ||
| 078 | A 6454600224 | LINE |
| FROM PUMP TO HIGH PRESSURE HOSE | ||
| 078 | A 6454600424 | LINE |
| FROM PUMP TO HIGH PRESSURE HOSE | ||
| 078 | A 6464600024 | LINE |
| FROM PUMP TO HIGH PRESSURE HOSE | ||
| 082 | N 915017012100 | UNION NUT |
| DELIVERY LINE | ||
| 086 | N 003861012007 | GLAND |
| Repalced by: A 0019901967 | ||
| 086 | A 0019901967 | SEAL CONE |
| DELIVERY LINE | ||
| 090 | A 0009978152 | HOSE |
| (DELIVERY LINE),FROM PUMP TO STEERING | ||
| 090 | A 0009978152 | HOSE |
| (DELIVERY LINE),FROM PUMP TO STEERING | ||
| 090 | A 0009978152 | HOSE |
| (DELIVERY LINE),FROM PUMP TO STEERING | ||
| 090 | A 0019976352 | HOSE |
| (DELIVERY LINE),FROM PUMP TO STEERING | ||
| 090 | A 0019976352 | HOSE |
| (DELIVERY LINE),FROM PUMP TO STEERING | ||
| 090 | A 0019976352 | HOSE |
| (DELIVERY LINE),FROM PUMP TO STEERING | ||
| 090 | A 0129972482 | HOSE |
| (DELIVERY LINE),FROM PUMP TO STEERING | ||
| 090 | A 0129972482 | HOSE |
| (DELIVERY LINE),FROM PUMP TO STEERING | ||
| 090 | A 0129972482 | HOSE |
| (DELIVERY LINE),FROM PUMP TO STEERING | ||
| 090 | A 0009978252 | HOSE |
| (DELIVERY LINE),FROM PUMP TO STEERING | ||
| 090 | A 0009978252 | HOSE |
| (DELIVERY LINE),FROM PUMP TO STEERING | ||
| 090 | A 0019976452 | HOSE |
| (DELIVERY LINE),FROM PUMP TO STEERING | ||
| 090 | A 0019976452 | HOSE |
| (DELIVERY LINE),FROM PUMP TO STEERING | ||
| 090 | A 0129972582 | HOSE |
| (DELIVERY LINE),FROM PUMP TO STEERING | ||
| 090 | A 0129972582 | HOSE |
| (DELIVERY LINE),FROM PUMP TO STEERING | ||
| 094 | A 3854600024 | LINE |
| (DELIVERY LINE) FROM HIGH PRESSURE HOSE TO FITTING | ||
| 094 | A 6204600424 | LINE |
| (DELIVERY LINE) FROM HIGH PRESSURE HOSE TO FITTING | ||
| 094 | A 6454600124 | LINE |
| (DELIVERY LINE) FROM HIGH PRESSURE HOSE TO FITTING | ||
| 094 | A 3854600124 | LINE |
| (DELIVERY LINE) FROM HIGH PRESSURE HOSE TO FITTING | ||
| 094 | A 6204600524 | LINE |
| (DELIVERY LINE) FROM HIGH PRESSURE HOSE TO FITTING | ||
| 094 | A 6464600124 | LINE |
| (DELIVERY LINE) FROM HIGH PRESSURE HOSE TO FITTING | ||
| 098 | N 915017012100 | UNION NUT |
| DELIVERY LINE | ||
| 102 | N 003861012007 | GLAND |
| Repalced by: A 0019901967 | ||
| 102 | A 0019901967 | SEAL CONE |
| DELIVERY LINE | ||
| 106 | N 003901012011 | SCREW-IN FITTING |
| DELIVERY LINE TO STEERING | ||
| 110 | N 003901015005 | SCREW-IN FITTING |
| RETURN LINE TO STEERING | ||
| 114 | A 3854660265 | LINE |
| (RETURN LINE),FROM STEERING TO OIL TANK | ||
| 118 | N 915017015100 | UNION NUT |
| RETURN LINE | ||
| 122 | N 003861015004 | GLAND |
| RETURN LINE | ||
| 126 | A 3439970582 | HOSE |
| Repalced by: A 6999974082 | ||
| 126 | A 6999974082 | HOSE |
| Repalced by: A 3859971682 | ||
| 126 | A 3859971682 | HOSE |
| (RETURN LINE),FROM STEERING TO OIL TANK | ||
| 130 | N 916017016000 | CLAMP |
| Repalced by: N 000000000666 | ||
| 130 | N 000000000666 | CLAMP |
| HOSE TO RETURN LINE AND TO OIL TANK | ||
| 16-27X13 MM | ||
| 134 | A 3812950440 | BRACKET |
| DELIVERY AND SUCTION LINES | ||
| 136 | A 3874660240 | BRACKET |
| Repalced by: A 6564660040 | ||
| 136 | A 6564660040 | BRACKET |
| DELIVERY AND SUCTION LINES TO FRAME | ||
| A 3874660440 | BRACKET | |
| Repalced by: A 6205244040 | ||
| A 6205244040 | BRACKET | |
| AT INTAKE MANIFOLD | ||
| 136 | A 3874660940 | BRACKET |
| DELIVERY AND SUCTION LINES TO FRAME | ||
| 138 | N 000961012122 | SCREW |
| BRACKET TO FRAME | ||
| M 12X40 | ||
| 138 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 138 | N 308676012026 | SCREW |
| BRACKET TO FRAME | ||
| M 12X35 | ||
| 140 | N 910113012002 | NUT |
| BRACKET TO FRAME | ||
| 142 | A 6454660240 | BRACKET |
| DELIVERY AND SUCTION LINES TO FRAME | ||
| A 6214660140 | BRACKET | |
| DELIVERY AND SUCTION LINES TO FRAME | ||
| 142 | A 6454600135 | BRACKET |
| DELIVERY AND SUCTION LINES TO ENGINE, FRONT | ||
| A 6204660740 | BRACKET | |
| Repalced by: A 6205240340 | ||
| A 6205240340 | BRACKET | |
| DELIVERY AND SUCTION LINES TO ENGINE, FRONT | ||
| N 000933010129 | SCREW | |
| Repalced by: N 304017010002 | ||
| N 304017010002 | SCREW | |
| BRACKET TO FRAME | ||
| M 10X30 | ||
| N 913004010008 | NUT | |
| Repalced by: N 910113010000 | ||
| N 910113010000 | NUT | |
| BRACKET TO FRAME | ||
| 146 | N 000933010128 | SCREW |
| BRACKET TO ENGINE | ||
| M 10X20 | ||
| 146 | N 000933010105 | SCREW |
| BRACKET TO ENGINE | ||
| M 10X25 | ||
| 148 | N 912004010102 | LOCK WASHER |
| BRACKET TO ENGINE | ||
| N 913004010008 | NUT | |
| Repalced by: N 910113010000 | ||
| N 910113010000 | NUT | |
| BRACKET TO ENGINE | ||
| 150 | A 3609950701 | CLAMP |
| Repalced by: N 916016018202 | ||
| 150 | N 916016018202 | CLAMP |
| SUCTION LINE | ||
| 22 MM | ||
| 154 | A 3609950401 | CLAMP |
| DELIVERY LINE | ||
| 12 MM | ||
| 158 | N 916016022202 | CLAMP |
| SUCTION LINE | ||
| 22/20 | ||
| 158 | N 916016022203 | CLAMP |
| SUCTION LINE | ||
| 22/15 | ||
| 162 | N 916016012200 | CLAMP |
| DELIVERY LINE | ||
| 12/15 | ||
| 166 | N 000000001147 | SCREW |
| CLAMP MOUNTING | ||
| M 6X20 | ||
| 166 | N 007985006193 | SCREW |
| Repalced by: N 000000001146 | ||
| 166 | N 000000001146 | SCREW |
| CLAMP MOUNTING | ||
| M 6X16 | ||
| 166 | N 007985006176 | SCREW |
| CLAMP MOUNTING | ||
| M 6X20 | ||
| 166 | N 000933006083 | SCREW |
| CLAMP MOUNTING | ||
| M 6X35 | ||
| 170 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 170 | N 913004006001 | NUT |
| CLAMP MOUNTING | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |

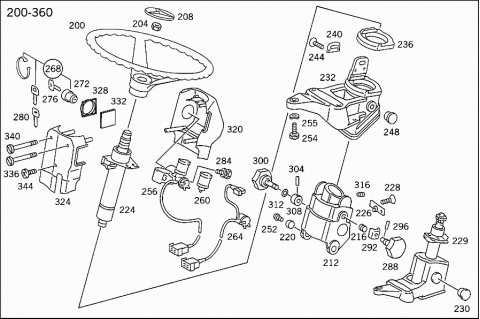

| STEERING WHEEL AND STEERING COLUMN | ||
| 200 | A 3834640201 | STEERING WHEEL |
| 204 | N 308675022001 | NUT |
| STEERING WHEEL TO STEERING COLUMN | ||
| 208 | A 0004640432 | BADGE |
| STEERING WHEEL | ||
| 212 | A 3834601652 | STEERING COLUMN END |
| Repalced by: A 3054600452 | ||
| 212 | A 3054600452 | STEERING COLUMN END |
| ADJUSTABLE STEERING COLUMN | ||
| 216 | N 900421014009 | THREADED INSERT |
| Repalced by: A 6559970015 | ||
| 216 | A 6559970015 | THREADED CHUCK |
| LEFT TOP | ||
| 220 | A 3834620650 | BUSHING |
| LEFT AND RIGHT BOTTOM | ||
| 224 | A 6204600237 | BEARING |
| STEERING SHAFT | ||
| 224 | A 6204600637 | BEARING |
| STEERING SHAFT | ||
| 224 | A 6204600737 | BEARING |
| STEERING SHAFT | ||
| 224 | A 6204600337 | BEARING |
| STEERING SHAFT | ||
| 226 | A 3834600036 | GUIDE |
| Repalced by: A 3834600136 | ||
| 226 | A 3834600136 | GUIDE |
| STEERING SHAFT | ||
| 228 | N 000965004006 | SCREW |
| GUIDE TO STEERING COLUMN END | ||
| 229 | A 6154601031 | STEERING COLUMN BRACKET |
| 229 | A 6154601331 | STEERING COLUMN BRACKET |
| 230 | A 3839970286 | PLUG |
| 232 | A 3834600931 | STEERING COLUMN BRACKET |
| 236 | A 3834610349 | RUBBER PAD |
| 240 | A 3834620975 | WASHER |
| 244 | N 914146005702 | SCREW |
| 248 | A 3839970286 | PLUG |
| LATERAL LEFT AND RIGHT | ||
| 252 | A 3834620674 | PIN |
| STEERING COLUMN BRACKET TO STEERING COLUMN END | ||
| 254 | N 000933010145 | SCREW |
| STEERING COLUMN BRACKET TO CAB | ||
| 255 | N 000137010201 | SPRING WASHER |
| STEERING COLUMN BRACKET TO CAB | ||
| 256 | A 0014621130 | STEERING LOCK |
| LESS TUMBLER | ||
| 260 | A 0005451367 | CONTACTOR |
| SOLENOID SWITCH | ||
| 264 | A 0005455413 | SWITCH |
| IGNITION SWITCH | ||
| 268 | A 3814600004 | TUMBLER |
| WITH 2 KEYS | ||
| 272 | A 3814600104 | TUMBLER |
| LESS KEY | ||
| 276 | A 0007600006 | KEY |
| 280 | A 0007663706 | KEY |
| BLANK | ||
| 284 | A 0004622371 | SCREW |
| (BREAK-OFF BOLT),STEERING LOCK MOUNTING | ||
| 288 | A 3834601869 | HANDLE |
| Repalced by: A 6754600369 | ||
| 288 | A 6754600369 | HANDLE |
| Repalced by: A 6554600369 | ||
| 288 | A 6554600369 | HANDLE |
| STEERING WHEEL HEIGHT ADJUSTMENT | ||
| 292 | A 3834620763 | THRUST PLATE |
| STEERING WHEEL HEIGHT ADJUSTMENT | ||
| 296 | N 001481003011 | CLAMPING SLEEVE |
| Repalced by: A 6559910061 | ||
| 296 | A 6559910061 | DOWEL PIN |
| STEERING WHEEL HEIGHT ADJUSTMENT | ||
| 300 | A 3834601969 | HANDLE |
| Repalced by: A 6554600469 | ||
| 300 | A 6554600469 | HANDLE |
| STEERING WHEEL TILT ADJUSTMENT | ||
| 304 | N 001481002501 | CLAMPING SLEEVE |
| STEERING WHEEL TILT ADJUSTMENT | ||
| 308 | A 6554620163 | THRUST PLATE |
| Repalced by: A 3834620363 | ||
| 308 | A 3834620363 | THRUST PLATE |
| 312 | A 0009936426 | DISC SPRING |
| STEERING WHEEL TILT ADJUSTMENT | ||
| 316 | N 000417004006 | HEADLESS SETSCREW |
| Repalced by: N 000417004011 | ||
| 316 | N 000417004011 | HEADLESS SETSCREW |
| STEERING WHEEL TILT ADJUSTMENT | ||
| 320 | A 6204620443 | SHELL |
| STEERING COLUMN PANELLING; BLACK,NO.9051 | ||
| 320 | A 6204620543 | SHELL |
| STEERING COLUMN PANELLING; BLACK,NO.9051 | ||
| 324 | A 6204620043 | SHELL |
| STEERING COLUMN PANELLING; BLACK,NO.9051 | ||
| 324 | A 6204620243 | SHELL |
| STEERING COLUMN PANELLING; BLACK,NO.9051 | ||
| 328 | A 3574620096 | BOOT |
| STEERING COLUMN PANELLING; BLACK,NO.9051 | ||
| 332 | A 3574620196 | BOOT |
| STEERING COLUMN PANELLING; BLACK,NO.9051 | ||
| 336 | A 3019900021 | SCREW |
| Repalced by: A 3819900321 | ||
| 340 | A 3819900321 | SCREW |
| STEERING COLUMN PANELLING | ||
| M 5X83 | ||
| 344 | A 3819900521 | SCREW |
| STEERING COLUMN PANELLING | ||
| M 5X13 | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| STEERING COLUMN BEARING | ||

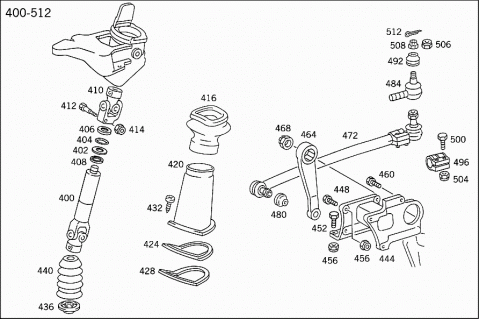

| A 3814600609 | STEERING SHAFT | |
| Repalced by: A 6504600209 | ||
| 400 | A 6504600209 | STEERING SHAFT |
| ELBE | ||
| 400 | A 6504600609 | STEERING SHAFT |
| LEMFOERDER | ||
| 400 | A 3874602709 | STEERING SHAFT |
| Repalced by: A 6554600809 | ||
| 400 | A 6554600809 | STEERING SHAFT |
| 400 | A 6554600509 | STEERING SHAFT |
| 400 | A 3814601809 | STEERING SHAFT |
| Repalced by: A 6504600409 | ||
| 400 | A 6504600409 | STEERING SHAFT |
| ELBE | ||
| 400 | A 6504600809 | STEERING SHAFT |
| LEMFOERDER | ||
| 402 | A 3814620175 | WASHER |
| TO A 381 460 18 09 | ||
| 404 | A 3814620260 | SEAL RING |
| TO A 381 460 18 09 | ||
| 406 | A 3814620061 | SEAL HOLDER |
| TO A 381 460 18 09 | ||
| 408 | A 3814620251 | RING |
| TO A 381 460 18 09 | ||
| 410 | A 3164600057 | UNIVERSAL JOINT |
| Repalced by: A 0004600057 | ||
| 410 | A 0004600057 | UNIVERSAL JOINT |
| 410 | A 3164600157 | UNIVERSAL JOINT |
| Repalced by: A 0004600157 | ||
| 410 | A 0004600157 | UNIVERSAL JOINT |
| 412 | A 3819900114 | SCREW |
| STEERING SHAFT TO STEERING | ||
| M 8X42 | ||
| 412 | A 3819900114 | SCREW |
| STEERING SHAFT TO STEERING | ||
| M 8X42 | ||
| 412 | A 3169900114 | SCREW |
| UNIVERSAL JOINT TO STEERING COLUMN | ||
| M 8X38 | ||
| 414 | N 910113008001 | NUT |
| STEERING SHAFT TO STEERING | ||
| 414 | N 910113008001 | NUT |
| UNIVERSAL JOINT TO STEERING COLUMN | ||
| 416 | A 3874610396 | BOOT |
| STEERING COLUMN COVERING,TOP | ||
| 420 | A 3874611297 | PROTECTIVE SLEEVE |
| STEERING SHAFT | ||
| 424 | A 3874620024 | REINFORCEMENT |
| PROTECTIVE SLEEVE TO CAB FLOOR | ||
| 428 | A 3874610180 | GASKET |
| PROTECTIVE SLEEVE TO CAB FLOOR | ||
| 432 | N 007981005309 | SHEET METAL SCREW |
| Repalced by: N 007981005321 | ||
| 432 | N 007981005321 | SHEET METAL SCREW |
| PROTECTIVE SLEEVE TO CAB FLOOR | ||
| 436 | A 3814620475 | WASHER |
| UNIVERSAL JOINT COVERING | ||
| 440 | A 3814621196 | BOOT |
| UNIVERSAL JOINT COVERING | ||
| 444 | A 3874610240 | STEERING SUPPORT |
| AT FRAME | ||
| 444 | A 6204610440 | STEERING SUPPORT |
| AT FRAME | ||
| 444 | A 6204610640 | STEERING SUPPORT |
| AT FRAME | ||
| 444 | A 3874610340 | STEERING SUPPORT |
| AT FRAME | ||
| 444 | A 6204610540 | STEERING SUPPORT |
| AT FRAME | ||
| 444 | A 6204610740 | STEERING SUPPORT |
| AT FRAME | ||
| 448 | N 000960014229 | SCREW |
| STEERING SUPPORT AND FRONT CROSS MEMBER TO FRAME | ||
| 448 | N 000960016241 | SCREW |
| STEERING SUPPORT AND FRONT SPRING FRONT BRACKET TO FRAME | ||
| 452 | N 000960014237 | SCREW |
| STEERING SUPPORT TO FRAME | ||
| 452 | N 000960016249 | SCREW |
| Repalced by: N 308676016004 | ||
| 452 | N 308676016004 | SCREW |
| STEERING SUPPORT TO FRAME | ||
| 456 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 456 | N 910113014000 | NUT |
| STEERING SUPPORT TO FRAME | ||
| 456 | N 913004016005 | NUT |
| Repalced by: N 910113016001 | ||
| 456 | N 910113016001 | NUT |
| STEERING SUPPORT TO FRAME | ||
| 460 | N 000961016077 | SCREW |
| Repalced by: N 308676016006 | ||
| 460 | N 308676016006 | SCREW |
| STEERING BOX ASSEMBLY TO STEERING SUPPORT | ||
| 464 | A 3874630801 | PITMAN ARM |
| AT STEERING GEAR | ||
| 464 | A 6204630001 | PITMAN ARM |
| AT STEERING GEAR | ||
| 464 | A 3874630701 | PITMAN ARM |
| AT STEERING GEAR | ||
| 468 | A 0029905051 | NUT |
| PITMAN ARM TO STEERING BOX ASSEMBLY | ||
| 468 | A 0019908151 | NUT |
| PITMAN ARM TO STEERING BOX ASSEMBLY | ||
| 472 | A 6204600005 | DRAG LINK |
| Repalced by: A 6204602805 | ||
| 472 | A 6204602805 | DRAG LINK |
| LEMFOERDER | ||
| 472 | A 6204602905 | DRAG LINK |
| LEMFOERDER | ||
| 472 | A 6204602005 | DRAG LINK |
| Repalced by: A 6204603705 | ||
| 472 | A 6204603705 | DRAG LINK |
| EHRENREICH | ||
| 472 | A 6204603005 | DRAG LINK |
| EHRENREICH | ||
| 472 | A 6204600105 | DRAG LINK |
| Repalced by: A 6204603805 | ||
| 472 | A 6204603805 | DRAG LINK |
| LEMFOERDER | ||
| 472 | A 6204602105 | DRAG LINK |
| Repalced by: A 6204603905 | ||
| 472 | A 6204603905 | DRAG LINK |
| EHRENREICH | ||
| 480 | A 3354600096 | BOOT |
| Repalced by: A 0004621796 | ||
| 480 | A 0004621796 | BOOT |
| FIXED PART OF JOINT | ||
| 484 | A 0004600348 | DRAG LINK END |
| Repalced by: A 0004602848 | ||
| 484 | A 0004602848 | DRAG LINK END |
| Repalced by: A 0014600848 | ||
| 484 | A 0014600848 | DRAG LINK END |
| Repalced by: A 0014602248 | ||
| 484 | A 0014602248 | DRAG LINK END |
| R.H. THREAD | ||
| LEMFOERDER | ||
| 484 | A 0004601048 | DRAG LINK END |
| Repalced by: A 0004602948 | ||
| 484 | A 0004602948 | DRAG LINK END |
| Repalced by: A 0014601248 | ||
| 484 | A 0014601248 | DRAG LINK END |
| Repalced by: A 0014602248 | ||
| 484 | A 0014602248 | DRAG LINK END |
| R.H. THREAD | ||
| EHRENREICH | ||
| 492 | A 3354600096 | BOOT |
| Repalced by: A 0004621796 | ||
| 492 | A 0004621796 | BOOT |
| 496 | A 0003382445 | CLAMP |
| DRAG LINK END TO DRAG LINK | ||
| LEMFOERDER | ||
| 496 | A 0003383445 | CLAMP |
| DRAG LINK END TO DRAG LINK | ||
| EHRENREICH | ||
| 500 | N 000960012246 | SCREW |
| Repalced by: N 000960012353 | ||
| 500 | N 000960012353 | SCREW |
| CLAMP TO DRAG LINK | ||
| M 12X60 | ||
| 500 | N 000960012453 | SCREW |
| Repalced by: N 308676012017 | ||
| 500 | N 308676012017 | SCREW |
| CLAMP TO DRAG LINK | ||
| M 12X62 | ||
| 504 | N 913004012009 | NUT |
| Repalced by: N 910113012003 | ||
| 504 | N 910113012003 | NUT |
| CLAMP TO DRAG LINK | ||
| 506 | A 0019905451 | NUT |
| DRAG LINK TO STEERING ARM AND PITMAN ARM | ||
| 508 | N 000937024000 | NUT |
| Repalced by: N 000937024002 | ||
| 508 | N 000937024002 | NUT |
| DRAG LINK TO STEERING ARM AND PITMAN ARM | ||
| 512 | N 000094005045 | COTTER PIN |
| DRAG LINK TO STEERING ARM AND PITMAN ARM | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
