Transporto priemonė: 1936; VIN numerio dalis: 621025
Grupė: 42 BRAKES

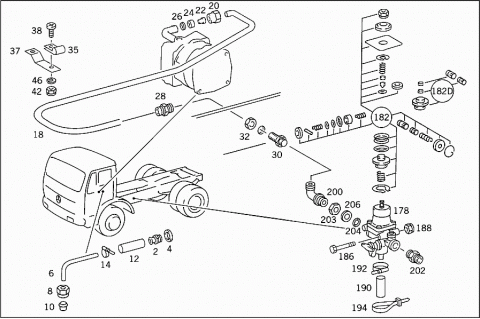

42251

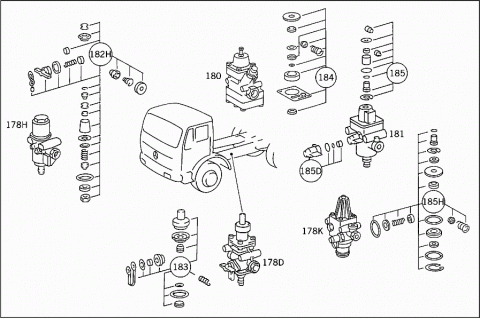

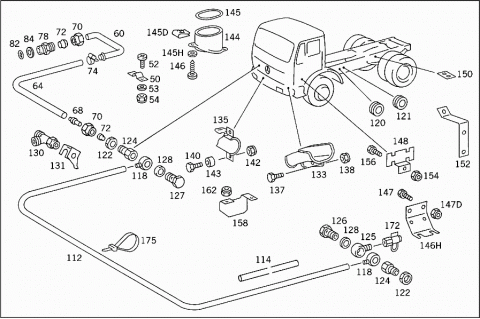

42252
42253

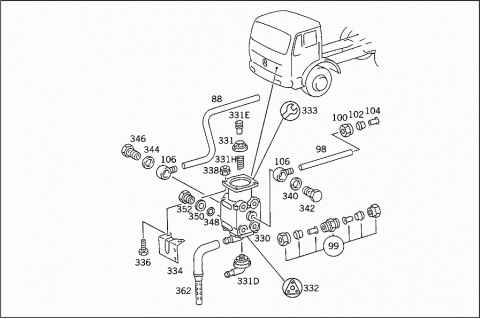

42254

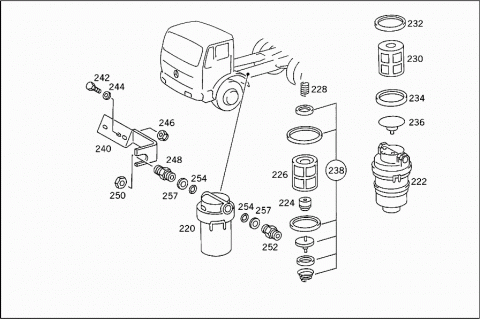

42255

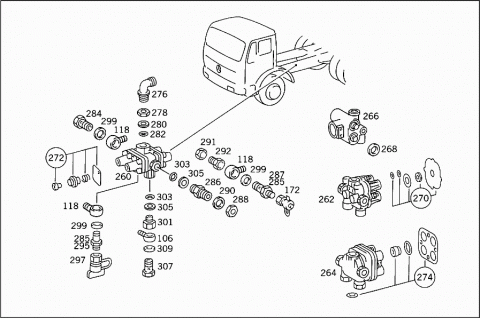

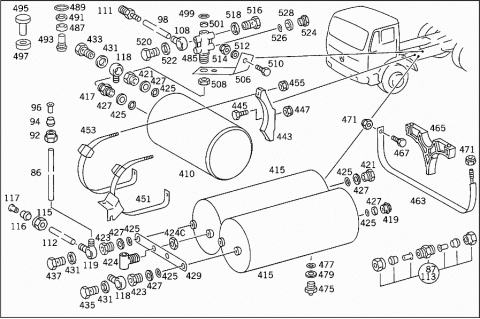

42256

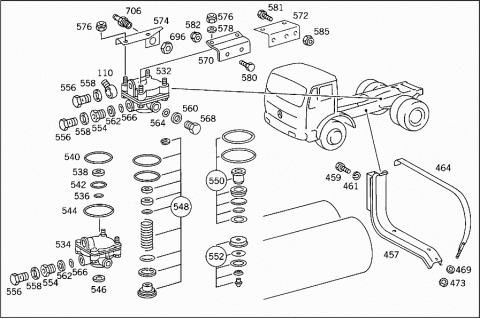

42257

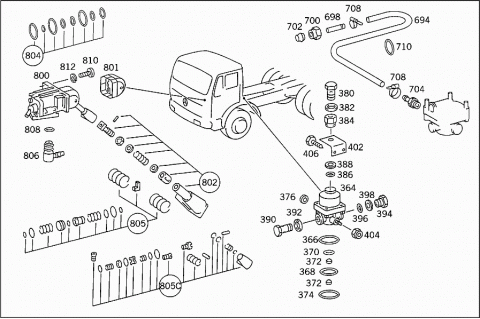

42258
42259

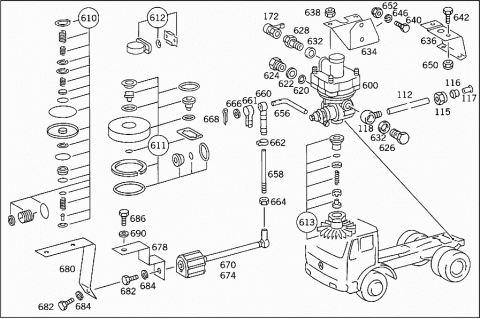

42260

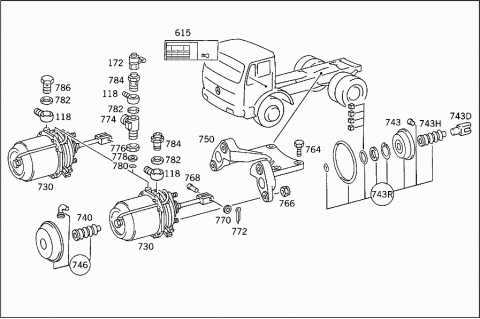

42261

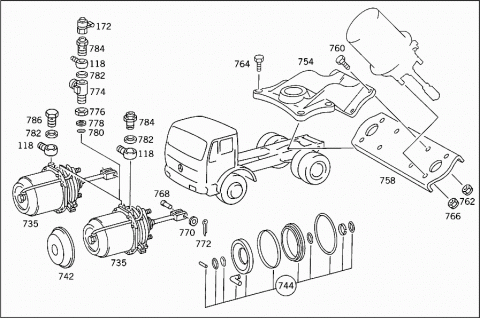

42262
# Kodas Pavadinimas
T YYYYYYYYYYYY PART NAME MISSING
FOR FRONT WHEEL BRAKE,SEE UNIT STANDARD VERSION, MODEL:
739.1
T YYYYYYYYYYYY PART NAME MISSING
FOR BRAKES,SEE UNIT STANDARD VERSION, MODEL:
740.3
Y YYYYYYYYYYYY PART NAME MISSING
Y YYYYYYYYYYYY PART NAME MISSING
Y YYYYYYYYYYYY PART NAME MISSING
Y YYYYYYYYYYYY PART NAME MISSING
FOR BRAKES,SEE UNIT STANDARD VERSION, MODEL:
748.4
Y YYYYYYYYYYYY PART NAME MISSING
Y YYYYYYYYYYYY PART NAME MISSING
A 6209970272 FITTING
AIR COMPRESSOR,CONNECTION:
"20"
N 007603026104 SEAL RING
AIR COMPRESSOR,CONNECTION:
"20"
002 A 4031340156 FITTING
COMPRESSED AIR LINE TO AIR CLEANER
004 N 007603026104 SEAL RING
COMPRESSED AIR LINE TO AIR CLEANER
006 A 0004291601 LINE
FROM AIR CLEANER TO AIR COMPRESSOR
008 N 915017022100 UNION NUT
COMPRESSED AIR LINE TO AIR COMPRESSOR
010 N 003861022004 GLAND
Repalced by: A 0019901267
010 A 0019901267 SEAL CONE
COMPRESSED AIR LINE TO AIR COMPRESSOR
012 N 900271022023 HOSE
FROM AIR CLEANER TO AIR COMPRESSOR
22X31X1000 MM
014 N 916017025000 CLAMP
Repalced by: N 000000000668
014 N 000000000668 CLAMP
HOSE TO AIR-COMPRESSOR-TO-AIR-CLEANER LINE
018 A 0004291401 LINE
AIR COMPRESSOR,PRESSURE REGULATOR, FILTER,FOUR-CIRCUIT PROTECTIVE VALVE
15 MM
018 A 0004291401 LINE
FROM AIR RESERVOIR TO CHECK VALVE
15 MM
020 N 915018015000 UNION NUT
N 915017015100 UNION NUT
022 N 003861015004 GLAND
024 N 915065015101 THRUST RING
026 N 915045012100 SEAL RING
Repalced by: N 007603012121
026 N 007603012121 SEAL RING
028 N 074298022203 DOUBLE FITTING
BETWEEN THE LINES
N 003902015002 CONNECTION FITTING
BETWEEN THE LINES
030 N 003940014201 BULKHEAD FITTING
THROUGH SIDE MEMBER
N 003910015002 BULKHEAD FITTING
THROUGH SIDE MEMBER
032 N 074305022202 NUT
FITTING TO FRAME SIDE MEMBER
035 A 3609952001 CLAMP
Repalced by: A 6739950001
035 A 6739950001 CLAMP
MOUNTING USED FOR COMPRESSED AIR LINES
037 A 6204294740 BRACKET
MOUNTING USED FOR COMPRESSED AIR LINES
038 N 007985006145 SCREW
Repalced by: N 007985006581
038 N 007985006581 SCREW
CLAMP TO BRACKET
M 6X20
038 N 007985006193 SCREW
Repalced by: N 000000001146
038 N 000000001146 SCREW
CLAMP TO BRACKET
M 6X16
N 000125006421 WASHER
CLAMP TO BRACKET
Repalced by: N 000125006449
N 000125006449 WASHER
CLAMP TO BRACKET
042 N 913004006002 NUT
Repalced by: N 913004006001
042 N 913004006001 NUT
CLAMP TO BRACKET
046 N 912004006102 LOCK WASHER
CLAMP TO BRACKET
050 A 3159955010 CLAMP
COMPRESSED AIR LINE TO BRACKET
052 N 007985006145 SCREW
Repalced by: N 007985006581
052 N 007985006581 SCREW
CLAMP TO BRACKET
053 N 000125006421 WASHER
CLAMP TO BRACKET
Repalced by: N 000125006449
053 N 000125006449 WASHER
CLAMP TO BRACKET
054 N 913004006002 NUT
Repalced by: N 913004006001
054 N 913004006001 NUT
CLAMP TO BRACKET
060 A 3834290801 LINE
Repalced by: A 6194290801
060 A 6194290801 LINE
Repalced by: A 6254293501
060 A 6254293501 LINE
LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
064 N 916027011014 HOSE
LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
068 A 0004290541 FITTING
BRAKE HOSE
070 N 915017012100 UNION NUT
072 N 003861012007 GLAND
Repalced by: A 0019901967
072 A 0019901967 SEAL CONE
074 N 916017016000 CLAMP
Repalced by: N 000000000666
074 N 000000000666 CLAMP
LINE MOUNTING
078 A 0029971572 FITTING
LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
082 A 0009971548 SEAL RING
LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
084 A 0004290927 THRUST RING
LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
086 A 0089976082 HOSE
Repalced by: A 0009872627
086 A 0009872627 PLASTIC PIPE
PRESSURE GAUGE
4X6 MM
087 A 0039979172 FITTING
(PARTS KIT),LINE RUPTURE
088 N 073379006203 HOSE
PRESSURE GAUGE LINE
6X10 MM
N 040621007200 INSULATING HOSE
7X8.4 MM
092 N 915017006100 UNION NUT
094 N 003861006007 GLAND
Repalced by: A 0019901667
094 A 0019901667 SEAL CONE
096 N 915062004000 SLEEVE
098 A 0089979082 HOSE
BRAKE VALVE,FOUR-CIRCUIT PROTECTIVE VALVE,RELAY VALVE
6X8 MM
098 A 0089979082 HOSE
3/2-WAY VALVE,BRAKE POWER REGULATOR
6X8 MM
098 A 0089979082 HOSE
PRESSURE GAUGE
6X8 MM
098 A 0089979082 HOSE
PARKING BRAKE VALVE
6X8 MM
098 A 0089979082 HOSE
AXLE BREATHING
6X8 MM
099 A 0039978972 FITTING
Repalced by: A 0029905971
099 A 0029905971 FITTING
(PARTS KIT),LINE RUPTURE
100 N 915017008100 UNION NUT
102 N 003861008005 GLAND
104 N 915062006000 SLEEVE
106 N 915052006013 BANJO UNION
HOSE WIDTH, / I.D.,
6/12 MM
108 N 915052006021 BANJO UNION
HOSE WIDTH, / I.D.,
6/14 MM
110 N 915052006014 BANJO UNION
HOSE WIDTH, / I.D.,
6/16 MM
111 A 0009904678 CONNECTOR
LINE CONNECTIONS
112 A 0109975982 HOSE
Repalced by: A 0009872827
112 A 0009872827 PLASTIC PIPE
AIR RESERVOIR,FOUR-CIRCUIT PROTECTIVE VALVE,BRAKE CYLINDER
9X12 MM
112 A 0009872827 PLASTIC PIPE
RELAY VALVE,BRAKE POWER REGULATOR, TRISTOP CYLINDER,CONTROL VALVE
9X12 MM
112 A 0009872827 PLASTIC PIPE
BRAKE VALVE,BRAKE POWER REGULATOR
9X12 MM
112 A 0009872827 PLASTIC PIPE
HAND BRAKE VALVE,CHECK VALVE, DISTRIBUTOR
9X12 MM
113 A 0049971772 FITTING
Repalced by: A 0029906171
113 A 0029906171 FITTING
(PARTS KIT),LINE RUPTURE
A 0009907378 CONNECTOR
REPAIR SIZE
114 N 040621013200 INSULATING HOSE
13X14.6 MM
115 N 915017012100 UNION NUT
116 N 003861012007 GLAND
Repalced by: A 0019901967
116 A 0019901967 SEAL CONE
A 0009921505 BUSHING
Repalced by: N 915062009000
117 N 915062009000 SLEEVE
118 N 915052009009 BANJO UNION
HOSE WIDTH, / I.D.,
9/16 MM
119 A 0019901088 BANJO UNION
HOSE WIDTH, / I.D.,
9/16 MM
A 0019908171 ELBOW FITTING
COMPRESSED AIR LINE THRU FRAME
120 A 6209970181 GROMMET
LINE THRU FRAME
42/36 MM
120 A 6454290081 GROMMET
Repalced by: A 6554290081
120 A 6554290081 GROMMET
LINE THRU FRAME
121 A 3549970081 GROMMET
LINE THRU FRAME
32/27 MM
121 A 3879970481 GROMMET
LINE THRU FRAME
38/30 MM
A 0009970934 UNION SCREW
COMPRESSED AIR LINE THRU FRAME
122 N 080705018002 NUT
COMPRESSED AIR LINE THRU FRAME
N 000439018204 NUT
COMPRESSED AIR LINE THRU FRAME
124 A 0004296034 ADAPTER FITTING
Repalced by: A 0004296634
124 A 0004296634 ADAPTER FITTING
Repalced by: A 0004296934
124 A 0004296934 ADAPTER FITTING
COMPRESSED AIR LINE THRU FRAME
A 0004296834 ADAPTER FITTING
COMPRESSED AIR LINE THRU FRAME
125 A 0019900788 BANJO UNION
COMPRESSED AIR LINE THRU FRAME
125 A 0019900788 BANJO UNION
COMPRESSED AIR LINE THRU FRAME
126 N 915047012203 HOLLOW SCREW
COMPRESSED AIR LINE, BRAKE
126 N 915047012203 HOLLOW SCREW
COMPRESSED AIR LINE, BRAKE
127 N 915036012203 HOLLOW SCREW
COMPRESSED AIR LINE THRU FRAME
127 N 915036012203 HOLLOW SCREW
COMPRESSED AIR LINE THRU FRAME
127 N 915036012203 HOLLOW SCREW
COMPRESSED AIR LINE THRU FRAME
128 N 007603016401 SEAL RING
COMPRESSED AIR LINE THRU FRAME
A 0009940147 SEAL RING
COMPRESSED-AIR-LINE PLUG-CONNECTION
TO M 22
A 0009941448 LOCK
COMPRESSED-AIR-LINE PLUG-CONNECTION
TO M 22
A 6739970145 REPAIR KIT
COMPRESSED-AIR-LINE PLUG-CONNECTION
TO M 22
130 A 0019901570 T-FITTING
COMPRESSED AIR LINE THRU FRAME
130 A 0019907070 T-FITTING
COMPRESSED AIR LINE THRU FRAME
131 A 6204290473 LOCK
COMPRESSED AIR LINE THRU FRAME
133 A 6204201186 BRACKET
BRAKE LINE MOUNTING
133 A 6204201586 BRACKET
BRAKE LINE MOUNTING
133 A 6204201286 BRACKET
BRAKE LINE MOUNTING
133 A 6204201686 BRACKET
BRAKE LINE MOUNTING
135 A 6204201386 BRACKET
Repalced by: A 6154200086
135 A 6154200086 BRACKET
BRAKE LINE MOUNTING
135 A 6204202386 BRACKET
BRAKE LINE MOUNTING
135 A 6204201986 BRACKET
BRAKE LINE MOUNTING
135 A 6204201486 BRACKET
BRAKE LINE MOUNTING
135 A 6204202486 BRACKET
BRAKE LINE MOUNTING
135 A 6204202086 BRACKET
BRAKE LINE MOUNTING
137 N 000933008147 SCREW
Repalced by: N 304017008021
137 N 304017008021 SCREW
BRACKET TO BUMPER STRUT
138 N 913004008004 NUT
Repalced by: N 913004008001
138 N 913004008001 NUT
BRACKET TO BUMPER STRUT
140 N 000933008153 SCREW
Repalced by: N 304017008034
140 N 304017008034 SCREW
BRACKET TO CONSOLE
M 8X25
140 N 000961014100 SCREW
BRACKET TO CONSOLE
142 N 913004008004 NUT
Repalced by: N 913004008001
142 N 913004008001 NUT
BRACKET TO CONSOLE
142 N 913004014002 NUT
Repalced by: N 910113014001
142 N 910113014001 NUT
BRACKET TO CONSOLE
143 A 3609902340 WASHER
BRAKE LINE MOUNTING
144 A 6204291940 BRACKET
BRAKE LINE THRU CAB FLOOR
144 A 6204292440 BRACKET
BRAKE LINE THRU CAB FLOOR
145 A 6204290084 SEAL RING
BRACKET TO SUBSTRUCTURE
145D A 0009946445 LOCK
BRACKET TO CAB FLOOR
145H N 009021005202 WASHER
Repalced by: N 009021005205
145H N 009021005205 WASHER
BRACKET TO CAB FLOOR
146 N 007981004252 SHEET METAL SCREW
BRACKET TO CAB FLOOR
146H A 6204297040 BRACKET
LINE MOUNTING
147 N 000933010129 SCREW
Repalced by: N 304017010002
147 N 304017010002 SCREW
BRACKET TO SIDE MEMBER
147D N 913004010008 NUT
Repalced by: N 910113010000
147D N 910113010000 NUT
BRACKET TO SIDE MEMBER
148 A 6204293940 BRACKET
LINE MOUNTING
148 A 6204293940 BRACKET
LINE MOUNTING
150 A 6204294340 BRACKET
Repalced by: A 3604293140
150 A 3604293140 BRACKET
LINE MOUNTING
150 A 3604293140 BRACKET
LINE MOUNTING
152 A 6204311040 BRACKET
BRACKET TO SIDE MEMBER
154 N 913004008004 NUT
Repalced by: N 913004008001
154 N 913004008001 NUT
BRACKET TO SIDE MEMBER
154 N 913004008001 NUT
BRACKET TO SIDE MEMBER
156 N 000933008152 SCREW
Repalced by: N 304017008027
156 N 304017008027 SCREW
BRACKET TO SIDE MEMBER
156 N 304017008027 SCREW
BRACKET TO SIDE MEMBER
158 A 6204295240 BRACKET
BRACKET TO CAB FLOOR
162 N 913004006002 NUT
Repalced by: N 913004006001
162 N 913004006001 NUT
BRACKET TO CAB FLOOR
172 A 0004312031 TEST CONNECTION
VOSS
172 A 0004314531 TEST CONNECTION
SCHAEFER
172 A 0004314831 TEST CONNECTION
WABCO
172 A 0004316131 TEST CONNECTION
SCHAEFER
172 A 0004316131 TEST CONNECTION
FRONT AXLE BRAKE CIRCUIT
SCHAEFER
172 A 0004316131 TEST CONNECTION
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
"21,22"
172 A 0004316131 TEST CONNECTION
BRAKE POWER REGULATOR,CONNECTION:
"40"
172 A 0004316131 TEST CONNECTION
TRISTOP CYLINDER;CONNECTIONS:
"11,12"
A 0009979486 PROTECTIVE CAP
175 A 0019978490 LOOM TIE
COMPRESSED AIR LINE MOUNTING
178 A 0014310006 PRESSURE REGULATOR
Repalced by: A 0024314906
178D A 0014313406 PRESSURE REGULATOR
Repalced by: A 0024314306
178H A 0014311206 PRESSURE REGULATOR
Repalced by: A 0024314906
178K A 0024314906 PRESSURE REGULATOR
WABCO
180 A 0014310606 PRESSURE REGULATOR
Repalced by: A 0024313406
180 A 0024313406 PRESSURE REGULATOR
Repalced by: A 0024314306
181 A 0024314306 PRESSURE REGULATOR
WITH TIRE INFLATING CONNECTION
BOSCH
181 A 0024318306 PRESSURE REGULATOR
KNORR
182 A 0015864343 REPAIR KIT
Repalced by: A 0004301107
182 A 0004301107 REPAIR KIT
TO 001 431 00 06,WABCO 975 300 110 0
182D A 0024304681 REPAIR KIT
VALVE KIT
TO 001 431 00 06,WABCO 975 300 110 0
182H A 0025866743 REPAIR KIT
TO 001 431 12 06,KNORR 3200
183 A 0025866043 REPAIR KIT
TO 001 431 34 06,GRAU 312 017 014
184 A 0015868543 REPAIR KIT
Repalced by: A 0004301407
184 A 0004301407 REPAIR KIT
TO 001 431 06 06,BOSCH 0 481 039 101
185 A 0004301768 REPAIR KIT
DIAPHRAGM
TO 002 431 34 06,BOSCH 0 481 039 221
185 A 0004301768 REPAIR KIT
DIAPHRAGM
TO 002 431 43 06,BOSCH 0 481 039 201
185D A 0004307960 REPAIR KIT
TIRE INFLATING CONNECTION
TO 002 431 34 06,BOSCH 0 481 039 221
185D A 0004307960 REPAIR KIT
TIRE INFLATING CONNECTION
TO 002 431 43 06,BOSCH 0 481 039 201
185H A 0014304960 REPAIR KIT
TO 002 431 49 06,WABCO 975 303 460 0
A 0004300407 REPAIR KIT
TO 002 431 83 06,KNORR 90309
186 N 000931008251 SCREW
PRESSURE REGULATOR TO BRACKET
188 N 913004008004 NUT
Repalced by: N 913004008001
188 N 913004008001 NUT
PRESSURE REGULATOR TO BRACKET
190 A 0005461830 INSULATING HOSE
PRESSURE REGULATOR,CONNECTION:
"30"
190 A 0159975082 HOSE
PRESSURE REGULATOR,CONNECTION:
"30"
192 N 916026016001 CLAMP
Repalced by: A 0059970190
192 A 0059970190 LOOM TIE
PRESSURE REGULATOR,CONNECTION:
"30"
192 N 916026020001 CLAMP
Repalced by: N 000000000667
192 N 000000000667 CLAMP
PRESSURE REGULATOR,CONNECTION:
"30"
194 A 0019978390 LOOM TIE
PRESSURE REGULATOR,CONNECTION:
"30"
200 A 0009905871 ELBOW FITTING
PRESSURE REGULATOR,CONNECTION:
"10"
N 003911015102 FITTING
PRESSURE REGULATOR,CONNECTION:
"10"
202 A 0019972172 FITTING
PRESSURE REGULATOR,CONNECTION:
"21"
203 N 074305022202 NUT
ELBOW FITTING TO PRESSURE REGULATOR
N 007604012102 SCREW PLUG
PRESSURE REGULATOR,CONNECTIONS:
"4,23"
Repalced by: N 007604012105
N 007604012105 SCREW PLUG
PRESSURE REGULATOR,CONNECTIONS:
"4,23"
N 007603012405 SEAL RING
PRESSURE REGULATOR,CONNECTIONS:
"4,23"
204 A 0009870446 SEALING CORD
PRESSURE REGULATOR,CONNECTIONS:
"10,21"
206 A 0004290227 THRUST RING
Repalced by: A 0009940203
206 A 0009940203 THRUST RING
PRESSURE REGULATOR,CONNECTIONS:
"10,21"
220 A 0004292595 AIR CLEANER
"BOSCH"
220 A 0004292695 AIR CLEANER
"KNORR"
220 A 0004292795 AIR CLEANER
WABCO
222 A 0004292895 AIR CLEANER
"GRAU"
224 A 0004290597 FILTER ELEMENT
TO 000 429 27 95,WABCO
226 A 0004290497 FILTER ELEMENT
TO 000 429 27 95,WABCO
228 A 0059930901 SPRING
TO 000 429 27 95,WABCO
230 A 0004290397 FILTER ELEMENT
TO 000 429 28 95,GRAU
230 A 0004290797 FILTER ELEMENT
TO 000 429 25 95,BOSCH
232 A 0089978048 SEAL RING
TO 000 429 28 95,GRAU
232 A 0019974048 SEAL RING
TO 000 429 25 95,BOSCH
234 A 0059972748 SEAL RING
TO 000 429 28 95, GRAU
236 A 0004290845 DIAPHRAGM
TO 000 429 28 95,GRAU
236 A 0004291045 DIAPHRAGM
TO 000 429 25 95,BOSCH
238 A 0004204455 REPAIR KIT
TO 000 429 27 95,WABCO
A 0004300369 REPAIR KIT
TO 000 429 26 95,KNORR
240 A 6204310740 BRACKET
AIR CLEANER
242 N 000933008147 SCREW
Repalced by: N 304017008021
242 N 304017008021 SCREW
BRACKET TO STRAP
244 N 000125008418 WASHER
Repalced by: N 000125008443
244 N 000125008443 WASHER
BRACKET TO STRAP
246 N 913004008004 NUT
Repalced by: N 913004008001
246 N 913004008001 NUT
BRACKET TO STRAP
248 A 0019972372 FITTING
AIR CLEANER,CONNECTION:
"10"
250 N 074305022202 NUT
AIR CLEANER TO PRESSURE REGULATOR
252 A 0019972172 FITTING
AIR CLEANER,CONNECTION:
"20"
A 0029978972 FITTING
AIR CLEANER,CONNECTION:
"20"
254 A 0009870446 SEALING CORD
AIR CLEANER;CONNECTIONS:
"10,20"
257 A 0004290227 THRUST RING
Repalced by: A 0009940203
257 A 0009940203 THRUST RING
AIR CLEANER;CONNECTIONS:
"10,20"
260 A 0014318906 VALVE
Repalced by: A 0024314006
260 A 0024314006 VALVE
Repalced by: A 0034315006
262 A 0014318706 VALVE
Repalced by: A 0034315006
264 A 0014319306 VALVE
Repalced by: A 0034315006
266 A 0024310206 VALVE
Repalced by: A 0024312706
266 A 0024312706 VALVE
Repalced by: A 0024319106
266 A 0024319106 VALVE
Repalced by: A 0034315006
A 0034315006 VALVE
(FOUR-CIRCUIT PROTECTIVE VALVE)
WABCO
268 A 0059973248 SEAL RING
TO 002 431 02 06,GRAU
270 A 0035861043 REPAIR KIT
TO 001 431 87 06,KNORR
272 A 0035860943 REPAIR KIT
TO 001 431 89 06,002 431 40 06,WABCO
274 A 0004304706 GASKET KIT
TO 001 431 93 06,BOSCH 62401
274 A 0004300260 REPAIR KIT
TO 001 431 93 06,BOSCH 62201
A 0004305106 REPAIR KIT
FOUR-CIRCUIT PROTECTIVE VALVE
WABCO; TO 003 431 50 06
276 A 0009909671 ELBOW FITTING
Repalced by: A 0029901271
276 A 0029901271 ELBOW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"10"
A 0029902271 ELBOW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"10"
278 N 074305022202 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"10"
280 A 0004290227 THRUST RING
Repalced by: A 0009940203
280 A 0009940203 THRUST RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"10"
282 A 0009870446 SEALING CORD
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"10"
284 N 915036012203 HOLLOW SCREW
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"21"
285 N 915039012205 HOLLOW SCREW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"21"
286 N 074313012304 FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
287 N 915039012205 HOLLOW SCREW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
288 N 080705018002 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
288 N 080705016003 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
290 N 000125017010 WASHER
Repalced by: N 000125017016
290 N 000125017016 WASHER
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
291 N 000439016206 NUT
Repalced by: N 308675016001
291 N 308675016001 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
292 A 0004296434 ADAPTER FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
295 N 915039012205 HOLLOW SCREW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"23"
297 A 0034291044 VALVE
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"23"
297 A 0044293744 VALVE
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
299 N 007603016401 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
"21,22,23,24"
301 A 0019905268 FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
303 A 0009971548 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
"22,24"
305 A 0004290927 THRUST RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
"22,24"
307 N 915047008202 HOLLOW SCREW
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
N 915036008202 HOLLOW SCREW
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
309 N 007603012405 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
330 A 0024310605 BRAKE VALVE
TRUCK-TRACTOR BRAKE
WABCO
330 A 0024311005 BRAKE VALVE
TRUCK-TRACTOR BRAKE
BOSCH
330 A 0024312005 BRAKE VALVE
TRUCK-TRACTOR BRAKE
KNORR
330 A 0014318305 BRAKE VALVE
(TWO-CIRCUIT BRAKE VALVE)
WABCO
330 A 0014318905 BRAKE VALVE
(TWO-CIRCUIT BRAKE VALVE)
BOSCH
330 A 0014319105 BRAKE VALVE
(TWO-CIRCUIT BRAKE VALVE)
KNORR
330 A 0014319905 BRAKE VALVE
(TWO-CIRCUIT BRAKE VALVE)
GRAU
331 A 0004312185 FILLER RING
TO 000 431 83 05
331D A 0004310273 BREATHER PIPE
TO 001 431 83 05,WABCO
331E A 0004318383 PISTON
TO 001 431 83 05,WABCO
331H A 0014316993 SPRING
TO 001 431 89 05,BOSCH
A 0004313623 VALVE
WABCO
332 A 0014308460 GASKET KIT
BRAKE VALVE
TO 002 431 10 05,BOSCH
333 A 0035861143 REPAIR KIT
Repalced by: A 0004306360
333 A 0004306360 REPAIR KIT
Repalced by: A 0004308206
333 A 0004308206 REPAIR KIT
BRAKE VALVE
TO 002 431 06 05,WABCO
A 0025868043 REPAIR KIT
Repalced by: A 0004301160
333 A 0004301160 REPAIR KIT
Repalced by: A 0004306260
333 A 0004306260 REPAIR KIT
Repalced by: A 0014300460
333 A 0014300460 REPAIR KIT
Repalced by: A 0004308006
333 A 0004308006 REPAIR KIT
BRAKE VALVE
TO 001 431 83 05,WABCO
333 A 0025868743 REPAIR KIT
Repalced by: A 0004303506
333 A 0004303506 REPAIR KIT
BRAKE VALVE
TO 001 431 89 05,BOSCH
333 A 0035861243 REPAIR KIT
BRAKE VALVE
TO 001 431 91 05,KNORR
A 0034300981 GASKET KIT
TO 002 431 91 06 GRAU 66001
334 A 6202920140 BRACKET
BRAKE VALVE
336 N 000933008152 SCREW
Repalced by: N 304017008027
336 N 304017008027 SCREW
BRAKE VALVE TO PEDAL UNIT
338 N 913004008004 NUT
Repalced by: N 913004008001
338 N 913004008001 NUT
BRAKE VALVE TO PEDAL UNIT
340 N 007603012405 SEAL RING
TWO-CIRCUIT BRAKE VALVE,CONNECTION:
"40"
342 N 915036008202 HOLLOW SCREW
TWO-CIRCUIT BRAKE VALVE,CONNECTION:
"40"
344 N 007603016401 SEAL RING
TWO-CIRCUIT BRAKE VALVE,CONNECTIONS:
"11,12,21,22"
346 N 915036012203 HOLLOW SCREW
TWO-CIRCUIT BRAKE VALVE,CONNECTIONS:
"11,12,21,22"
348 A 0009971548 SEAL RING
TWO-CIRCUIT BRAKE VALVE,CONNECTIONS:
"11,12,21,22"
350 A 0004290927 THRUST RING
TWO-CIRCUIT BRAKE VALVE,CONNECTIONS:
"11,12,21,22"
352 N 000908016001 SCREW PLUG
TWO-CIRCUIT BRAKE VALVE,CONNECTIONS:
"11,12,21,22"
A 6204290035 BRAKE HOSE
Repalced by: A 6174310073
A 6204290041 FITTING
Repalced by: A 6174310073
A 0004300270 MUFFLER
Repalced by: A 6174310073
362 A 6174310073 BREATHER PIPE
AT BRAKE VALVE
362 A 6174310173 BREATHER PIPE
AT BRAKE VALVE
364 A 0014306481 VALVE
FRONT AXLE BRAKE PRESSURE
366 A 0019871746 SEALING CORD
368 A 0089970445 SEAL RING
370 A 0089978648 SEAL RING
372 A 0004313223 VALVE
374 A 0089978748 SEAL RING
376 N 007603016401 SEAL RING
380 N 915036012203 HOLLOW SCREW
REGULATING VALVE,CONNECTION:
"10"
382 N 007603016401 SEAL RING
REGULATING VALVE,CONNECTION:
"10"
384 A 0004296134 ADAPTER FITTING
Repalced by: A 0069970072
384 A 0069970072 FITTING
REGULATING VALVE,CONNECTION:
"10"
386 A 0009971548 SEAL RING
REGULATING VALVE,CONNECTION:
"10"
388 A 0004290927 THRUST RING
REGULATING VALVE,CONNECTION:
"10"
390 N 915047012203 HOLLOW SCREW
REGULATING VALVE,CONNECTION:
"20"
392 N 007603016401 SEAL RING
REGULATING VALVE,CONNECTION:
"20"
394 N 000908016001 SCREW PLUG
REGULATING VALVE,CONNECTION:
"20"
396 A 0009971548 SEAL RING
REGULATING VALVE,CONNECTION:
"20"
398 A 0004290927 THRUST RING
REGULATING VALVE,CONNECTION:
"20"
402 A 6204312440 BRACKET
REGULATING VALVE
402 A 6204312540 BRACKET
REGULATING VALVE
404 N 913004008004 NUT
Repalced by: N 913004008001
404 N 913004008001 NUT
VALVE TO BRACKET
406 N 007976005204 SHEET METAL SCREW
BRACKET TO CAB FLOOR
A 0029900271 ELBOW FITTING
A 0029900871 ELBOW FITTING
N 913004008004 NUT
Repalced by: N 913004008001
N 913004008001 NUT
FITTING TO CAB FLOOR
N 915036012203 HOLLOW SCREW
ELBOW FITTING,CONNECTION:
"10"
N 915047012203 HOLLOW SCREW
ELBOW FITTING,CONNECTION:
"20"
N 007603016401 SEAL RING
ELBOW FITTING,CONNECTIONS:
"10,20"
410 A 0004324801 RESERVOIR
Repalced by: A 0014327501
410 A 0014327501 RESERVOIR
Repalced by: A 0034321201
410 A 0034321201 RESERVOIR
AIR RESERVOIR III
20 L
415 A 0004322601 RESERVOIR
Repalced by: A 0034321801
415 A 0034321801 RESERVOIR
AIR RESERVOIRS I AND II
30 L
417 A 0019972172 FITTING
AIR RESERVOIR,CONNECTION:
"13"
N 915036012203 HOLLOW SCREW
AIR RESERVOIR,CONNECTION:
"13"
A 0009905168 FITTING
AIR RESERVOIR,CONNECTION:
"13"
N 007603016401 SEAL RING
AIR RESERVOIR,CONNECTION:
"13"
A 0019909771 ELBOW FITTING
AIR RESERVOIR,CONNECTION:
"13"
N 915052009009 BANJO UNION
AIR RESERVOIR,CONNECTION:
"13"
419 N 000908022001 SCREW PLUG
Repalced by: N 000908022011
419 N 000908022011 SCREW PLUG
AIR RESERVOIR,CONNECTION:
419 N 000908022011 SCREW PLUG
AIR RESERVOIR,CONNECTION:
"31"
N 007603022403 SEAL RING
AIR RESERVOIR
421 A 0009905168 FITTING
AIR RESERVOIR,CONNECTION:
"23"
421 A 0009905168 FITTING
AIR RESERVOIR,CONNECTION:
"31"
423 A 0019907368 FITTING
AIR RESERVOIR,CONNECTIONS:
"11,12,21,22"
423 A 0019907368 FITTING
AIR RESERVOIR,CONNECTION:
"11"
424 A 0019907170 T-FITTING
AIR RESERVOIR,CONNECTION:
"11"
424C N 074305022202 NUT
AIR RESERVOIR,CONNECTION:
"11"
425 A 0009870446 SEALING CORD
AIR RESERVOIR,CONNECTIONS:
"13,23,32"
425 A 0009870446 SEALING CORD
AIR RESERVOIR,CONNECTIONS:
"11,12,21,22,31"
427 A 0004290227 THRUST RING
Repalced by: A 0009940203
427 A 0009940203 THRUST RING
AIR RESERVOIR,CONNECTIONS:
"13,23,32"
427 A 0009940203 THRUST RING
AIR RESERVOIR,CONNECTIONS:
"11,12,21,22,31"
429 A 3464320073 LOCK
AIR RESERVOIR,CONNECTIONS:
"11,12,21,22"
431 N 007603016401 SEAL RING
AIR RESERVOIR,CONNECTION:
"11,12,21,22,23,31"
433 N 915036012203 HOLLOW SCREW
AIR RESERVOIR,CONNECTION:
"23"
435 N 915036012203 HOLLOW SCREW
AIR RESERVOIR,CONNECTIONS:
"11,12,21,22,31"
435 N 915036012203 HOLLOW SCREW
AIR RESERVOIR,CONNECTIONS:
"12,21,22"
435 N 915036012203 HOLLOW SCREW
AIR RESERVOIR,CONNECTION:
"11"
437 N 915047012203 HOLLOW SCREW
AIR RESERVOIR,CONNECTION:
"11"
443 A 3874320540 BRACKET
AIR RESERVOIR III
445 N 000933008215 SCREW
Repalced by: A 0069909301
445 A 0069909301 SCREW
BRACKET TO SIDE PART,FRONT
447 N 913004008004 NUT
Repalced by: N 913004008001
447 N 913004008001 NUT
BRACKET TO SIDE PART,FRONT
T YYYYYYYYYYYY PART NAME MISSING
FOR BATTERY/APPARATUS SUPPORT, SEE GROUP 54
451 A 6204300640 STRAP
AIR RESERVOIR III
451 A 6204300440 STRAP
AIR RESERVOIR III
451 A 6204300240 STRAP
AIR RESERVOIR III
451 A 6204300240 STRAP
AIR RESERVOIR III
453 A 6204300740 STRAP
AIR RESERVOIR III
453 A 6204301240 STRAP
AIR RESERVOIR III
453 A 6204301240 STRAP
AIR RESERVOIR III
453 A 6204300540 STRAP
AIR RESERVOIR III
453 A 6204301040 STRAP
AIR RESERVOIR III
453 A 6204301040 STRAP
AIR RESERVOIR III
455 N 913004010008 NUT
Repalced by: N 910113010000
455 N 910113010000 NUT
STRAP TO BRACKET
457 A 3874300339 SUPPORT
AIR RESERVOIRS I AND II
459 N 000961012097 SCREW
Repalced by: N 308676012026
459 N 308676012026 SCREW
SUPPORT TO SIDE MEMBER
461 N 912004012100 LOCK WASHER
SUPPORT TO SIDE MEMBER
463 A 6204300040 STRAP
AIR RESERVOIR TO APPARATUS SUPPORT
464 A 3874301140 STRAP
Repalced by: A 3874300540
464 A 3874300540 STRAP
Repalced by: A 6204300040
464 A 6204300040 STRAP
AIR RESERVOIR TO SUPPORT
465 A 6204320018 BASE
AIR RESERVOIR,STRAP
465 A 3854320218 BASE
AIR RESERVOIR,STRAP
467 N 000933010105 SCREW
AIR RESERVOIR,STRAP
N 001440010002 WASHER
AIR RESERVOIR,STRAP
469 N 000436011001 WASHER
AIR RESERVOIR,STRAP
471 N 913004010008 NUT
Repalced by: N 910113010000
471 N 910113010000 NUT
AIR RESERVOIR,STRAP
473 N 000934010014 NUT
AIR RESERVOIR,STRAP
475 A 0004321107 VALVE
AIR RESERVOIR DRAIN
Repalced by: A 0004322407
475 A 0004322407 DRAIN VALVE
AIR RESERVOIR DRAIN
Repalced by: A 0004322107
475 A 0004322107 DRAIN VALVE
AIR RESERVOIR DRAIN
475 A 0004322107 VALVE
AIR RESERVOIR DRAIN
475 A 0004322407 VALVE
AIR RESERVOIR DRAIN
Repalced by: A 0004322107
475 A 0004322107 DRAIN VALVE
AIR RESERVOIR DRAIN
A 0005830296 RING
DRAIN VALVE
TO 000 432 08 07
477 A 0009870446 SEALING CORD
DRAIN VALVE TO AIR RESERVOIR
479 A 0004290227 THRUST RING
Repalced by: A 0009940203
479 A 0009940203 THRUST RING
DRAIN VALVE TO AIR RESERVOIR
485 A 0024299644 VALVE
(CHECK VALVE)
VOSS
485 A 0034290444 VALVE
(CHECK VALVE)
WABCO
485 A 0034291244 VALVE
(CHECK VALVE)
SCHAEFER
487 A 0109970048 SEAL RING
13.6X2 MM,TO 003 429 12 44,SCHAEFER
489 A 0109970148 SEAL RING
15.3X2.4 MM,TO 003 429 12 44,SCHAEFER
491 A 0004290662 THRUST WASHER
TO 003 429 12 44,SCHAEFER
493 A 0004290728 SEAL CONE
TO 003 429 12 44,SCHAEFER
495 A 0004290383 VALVE TAPPET
TO 002 429 96 44,VOSS
497 A 0004292584 SEAL RING
TO 002 429 96 44,VOSS
499 A 0089977348 SEAL RING
TO 003 429 04 44,WABCO
501 A 0002950320 VALVE
TO 003 429 04 44,WABCO
506 A 6204292540 BRACKET
Repalced by: A 6164290140
506 A 6204292540 BRACKET
Repalced by: A 6164290140
506 A 6164290140 BRACKET
CHECK VALVE
506 A 6164290140 BRACKET
CHECK VALVE
508 N 074305022202 NUT
CHECK VALVE TO BRACKET
510 N 000933010260 SCREW
BRACKET TO SIDE MEMBER
512 A 3529900640 WASHER
BRACKET TO SIDE MEMBER
514 N 913004010008 NUT
Repalced by: N 910113010000
514 N 910113010000 NUT
BRACKET TO SIDE MEMBER
A 6204310062 COVERING
CHECK VALVE
N 000933008130 SCREW
Repalced by: N 304017008039
N 304017008039 SCREW
BRACKET TO COVER PLATE
N 913004008004 NUT
Repalced by: N 913004008001
N 913004008001 NUT
BRACKET TO COVER PLATE
N 915045012100 SEAL RING
Repalced by: N 007603012121
N 007603012121 SEAL RING
CHECK VALVE,CONNECTION:
"10"
516 N 915036012203 HOLLOW SCREW
CHECK VALVE,CONNECTION:
"21"
518 N 007603016401 SEAL RING
CHECK VALVE,CONNECTION:
"21"
520 N 915036010204 HOLLOW SCREW
Repalced by: N 915036010108
520 N 915036010108 HOLLOW SCREW
CHECK VALVE,CONNECTION:
"23"
522 N 007603014405 SEAL RING
CHECK VALVE,CONNECTION:
"23"
524 N 000908016001 SCREW PLUG
CHECK VALVE,CONNECTION:
"22"
526 A 0009971548 SEAL RING
CHECK VALVE,CONNECTION:
"22"
528 A 0004290927 THRUST RING
CHECK VALVE,CONNECTION:
"22"
532 A 0014296844 VALVE
RELAY VALVE
WABCO
532 A 0034291644 VALVE
RELAY VALVE
BOSCH
532 A 0034295344 VALVE
RELAY VALVE
KNORR
534 A 0014299144 VALVE
RELAY VALVE
GRAU
536 A 0059972648 SEAL RING
22.3X2.4 MM, TO 001 429 91 44,GRAU
538 A 0004312788 VALVE SEAT
TO 001 429 91 44,GRAU
540 A 0059972748 SEAL RING
80X3 MM, TO 000 429 28 95, GRAU
542 A 0014311660 SEAL RING
28X2 MM, TO 001 429 91 44,GRAU
544 A 0014311760 SEAL RING
86X2 MM, TO 001 429 91 44,GRAU
546 A 0004311980 GASKET
34X2X6 MM, TO 001 429 91 44,GRAU
548 A 0005865742 REPAIR KIT
TO 001 429 68 44,WABCO
550 A 0025865642 REPAIR KIT
Repalced by: A 0004201071
550 A 0004201071 VALVE
GASKET KIT
TO 003 429 16 44,BOSCH; UP TO 03.82
550 A 0004201271 VALVE
GASKET KIT
TO 003 429 16 44,BOSCH; FROM 04.82
552 A 0025865742 REPAIR KIT
Repalced by: A 0004301109
552 A 0004301109 REPAIR KIT
BLEEDER VALVE
TO 003 429 16 44,BOSCH
554 A 0009905168 FITTING
RELAY VALVE,CONNECTION:
"10"
556 N 915036012203 HOLLOW SCREW
RELAY VALVE;CONNECTIONS:
"10,40"
558 N 007603016401 SEAL RING
RELAY VALVE;CONNECTIONS:
"10,40"
560 A 0004290927 THRUST RING
RELAY VALVE,CONNECTION:
"20"
562 A 0004290227 THRUST RING
Repalced by: A 0009940203
562 A 0009940203 THRUST RING
RELAY VALVE,CONNECTION:
"10"
564 A 0009971548 SEAL RING
RELAY VALVE,CONNECTION:
"20"
566 A 0009870446 SEALING CORD
RELAY VALVE,CONNECTION:
"10"
568 N 000908016001 SCREW PLUG
RELAY VALVE,CONNECTION:
"20"
570 A 3634311740 BRACKET
RELAY VALVE
572 A 6204310340 BRACKET
RELAY VALVE
574 A 6204292040 BRACKET
FROM HOSE TO TRISTOP CYLINDER
576 N 913004008004 NUT
Repalced by: N 913004008001
576 N 913004008001 NUT
RELAY VALVE TO BRACKET
578 N 000125008418 WASHER
Repalced by: N 000125008443
578 N 000125008443 WASHER
RELAY VALVE TO BRACKET
580 N 000933010129 SCREW
Repalced by: N 304017010002
580 N 304017010002 SCREW
BRACKET TO LEFT SIDE MEMBER
581 N 000961012107 SCREW
Repalced by: N 308676012011
581 N 308676012011 SCREW
582 N 913004010008 NUT
Repalced by: N 910113010000
582 N 910113010000 NUT
BRACKET TO LEFT SIDE MEMBER
585 N 910113012002 NUT
BRACKET TO LEFT SIDE MEMBER
600 A 0014313212 BRAKE PRESSURE REGULATOR
LOAD-DEPENDING BRAKE
WABCO
600 A 0014313612 BRAKE PRESSURE REGULATOR
LOAD-DEPENDING BRAKE
BOSCH
600 A 0024310412 BRAKE PRESSURE REGULATOR
LOAD-DEPENDING BRAKE
KNORR
600 A 0014313312 BRAKE PRESSURE REGULATOR
LOAD-DEPENDING BRAKE
WABCO
600 A 0014313512 BRAKE PRESSURE REGULATOR
LOAD-DEPENDING BRAKE
BOSCH
600 A 0024310512 BRAKE PRESSURE REGULATOR
LOAD-DEPENDING BRAKE
KNORR
610 A 0035860243 REPAIR KIT
Repalced by: A 0004307560
610 A 0004307560 REPAIR KIT
TO 001 431 32 12,001 431 33 12,WABCO
611 A 0004301868 REPAIR KIT
GASKETS
TO 001 431 35 12,001 431 36 12,BOSCH
612 A 0014311486 REPAIR KIT
COVERING
TO 001 431 35 12,BOSCH
612 A 0014311586 REPAIR KIT
COVERING
TO 001 431 36 12,BOSCH
613 A 0004301883 REPAIR KIT
VALVE
TO 001 431 35 12,001 431 36 12,BOSCH
A 0004300207 REPAIR KIT
BRAKE POWER REGULATOR
TO 002 431 04 12,KNORR
A 0004300307 REPAIR KIT
Repalced by: A 0004300207
A 0004300207 REPAIR KIT
BRAKE POWER REGULATOR
TO 002 431 05 12,KNORR
615 A 6215841221 GUIDE SIGN
LOAD-DEPENDING BRAKE
615 A 6215841421 GUIDE SIGN
LOAD-DEPENDING BRAKE
615 A 6215840621 GUIDE SIGN
LOAD-DEPENDING BRAKE
A 3875840055 ADHESIVE FOIL
LOAD-DEPENDING BRAKE
620 A 0009971548 SEAL RING
BRAKE POWER REGULATOR,CONNECTION:
"20"
622 A 0004290927 THRUST RING
BRAKE POWER REGULATOR,CONNECTION:
"20"
624 N 000908016001 SCREW PLUG
BRAKE POWER REGULATOR,CONNECTION:
"20"
626 N 915036012203 HOLLOW SCREW
BRAKE POWER REGULATOR,CONNECTIONS:
"1,2"
626 N 915036012203 HOLLOW SCREW
BRAKE POWER REGULATOR,CONNECTIONS:
"10,20"
626 N 915036012203 HOLLOW SCREW
BRAKE POWER REGULATOR,CONNECTION:
"10"
628 N 915039012205 HOLLOW SCREW FITTING
BRAKE POWER REGULATOR,CONNECTION:
"40"
632 N 007603016401 SEAL RING
BRAKE POWER REGULATOR,CONNECTIONS:
"10,20,40"
632 N 007603016401 SEAL RING
BRAKE POWER REGULATOR,CONNECTIONS:
"10,40"
634 A 3874311540 BRACKET
BRAKE POWER REGULATOR
636 A 6204311740 BRACKET
BRAKE POWER REGULATOR
A 6204313940 BRACKET
BRAKE POWER REGULATOR
A 6454310440 BRACKET
BRAKE POWER REGULATOR
638 N 913004008004 NUT
Repalced by: N 913004008001
638 N 913004008001 NUT
BRACKET TO BRAKE POWER REGULATOR
N 000125008418 WASHER
Repalced by: N 000125008443
N 000125008443 WASHER
BRACKET TO BRAKE POWER REGULATOR
640 N 000933010129 SCREW
Repalced by: N 304017010002
640 N 304017010002 SCREW
BRACKET TO SIDE MEMBER
M 10X30
642 N 000961012097 SCREW
Repalced by: N 308676012026
642 N 308676012026 SCREW
BRACKET TO SIDE MEMBER
M 12X35
642 N 000961012151 SCREW
BRACKET TO SIDE MEMBER
M 12X30
642 N 000961012151 SCREW
BRACKET TO SIDE MEMBER
M 12X30
N 000933010105 SCREW
BRACKET TO SIDE MEMBER
M 10X25
N 000961016142 SCREW
BRACKET TO SIDE MEMBER
M 16X1,5X30
646 N 912004010102 LOCK WASHER
BRACKET TO SIDE MEMBER
650 N 910113012002 NUT
BRACKET TO SIDE MEMBER
N 913004016004 NUT
Repalced by: N 910113016002
N 910113016002 NUT
BRACKET TO SIDE MEMBER
M 16X1,5
652 N 913004010008 NUT
Repalced by: N 910113010000
652 N 910113010000 NUT
BRACKET TO CROSS MEMBER
656 A 3854310239 LEVER
Repalced by: A 6204310839
656 A 6204310839 LEVER
Repalced by: A 6744310039
656 A 6744310039 LEVER
BRAKE POWER REGULATOR CONTROL
658 N 900331008420 PULL ROD
BRAKE POWER REGULATOR CONTROL
658 N 900331008419 PULL ROD
BRAKE POWER REGULATOR CONTROL
660 A 0004310735 CONNECTOR
BRAKE POWER REGULATOR CONTROL
661 A 6249950065 CLAMP
BRAKE POWER REGULATOR CONTROL
662 N 916026010000 CLAMP
Repalced by: N 000000000665
662 N 000000000665 CLAMP
CONNECTOR TO ROD
664 N 304032008006 NUT
CONNECTOR TO ROD
666 N 000125008418 WASHER
Repalced by: N 000125008443
666 N 000125008443 WASHER
CONNECTOR TO ROD
668 N 000094002077 COTTER PIN
CONNECTOR TO ROD
670 A 0004311418 METAL SPRING BELLOWS
Repalced by: A 0004311718
670 A 0004311718 METAL SPRING BELLOWS
BRAKE POWER REGULATOR CONTROL
674 A 0004311218 METAL SPRING BELLOWS
BRAKE POWER REGULATOR CONTROL
674 A 0004311018 METAL SPRING BELLOWS
BRAKE POWER REGULATOR CONTROL
678 A 6204310840 BRACKET
Repalced by: A 6204313740
678 A 6204313740 BRACKET
METAL SPRING BELLOWS
680 A 6204311040 BRACKET
METAL SPRING BELLOWS
682 N 000933012039 SCREW
METAL SPRING BELLOWS TO BRACKET
682 N 000933012039 SCREW
METAL SPRING BELLOWS TO BRACKET
682 N 000961012047 SCREW
METAL SPRING BELLOWS TO BRACKET
682 N 000961012047 SCREW
METAL SPRING BELLOWS TO BRACKET
684 N 912004012100 LOCK WASHER
METAL SPRING BELLOWS TO BRACKET
686 N 000961016096 SCREW
Repalced by: N 308676016007
686 N 308676016007 SCREW
BRACKET AND BEARING BRACKET TO REAR AXLE
M 16X1.5X50
690 A 6209900640 WASHER
BRACKET AND BEARING BRACKET TO REAR AXLE
694 N 916027011014 HOSE
FROM COMPRESSED AIR LINE TO TRISTOP CYLINDER
696 N 080705018002 NUT
HOSE TO BRACKET
698 A 0004290541 FITTING
BRAKE HOSE
700 N 915017012100 UNION NUT
702 N 003861012007 GLAND
Repalced by: A 0019901967
702 A 0019901967 SEAL CONE
704 N 074304016201 FITTING
TRISTOP CYLINDER;CONNECTION:
"12"
704 N 074304016201 FITTING
TRISTOP CYLINDER;CONNECTION:
"11"
706 A 0004290641 FITTING
TRISTOP CYLINDER;CONNECTION:
"11"
708 N 916017016000 CLAMP
Repalced by: N 000000000666
708 N 000000000666 CLAMP
LINE MOUNTING
710 A 0039975745 SEAL RING
BRAKE HOSE MOUNTING
730 A 0074207018 WHEEL BRAKE CYLINDER
TRISTOP CYLINDER
WABCO
730 A 0084209718 WHEEL BRAKE CYLINDER
TRISTOP CYLINDER
BOSCH
730 A 0084202018 WHEEL BRAKE CYLINDER
TRISTOP CYLINDER
KNORR
735 A 0074206818 WHEEL BRAKE CYLINDER
TRISTOP CYLINDER
WABCO
735 A 0084209518 WHEEL BRAKE CYLINDER
TRISTOP CYLINDER
BOSCH
735 A 0094202218 WHEEL BRAKE CYLINDER
TRISTOP CYLINDER
KNORR
740 A 0004212286 CUP
Repalced by: A 0004215286
740 A 0004215286 CUP
TO 007 420 70 18,WABCO
A 0004213886 CUP
TO 007 420 68 18,WABCO
A 0004234187 PROTECTIVE CAP
KNORR
742 A 0004310728 DIAPHRAGM
TO 007 420 68 18,WABCO
743 A 0004312728 DIAPHRAGM
Repalced by: A 0004314028
743 A 0004314028 DIAPHRAGM
TO 008 420 95 18,008 420 97 18,BOSCH
A 0004311828 DIAPHRAGM
Repalced by: A 0004314128
A 0004311428 DIAPHRAGM
Repalced by: A 0004314128
A 0004314128 DIAPHRAGM
KNORR
743D A 0004211263 GUIDE
Repalced by: N 071752014000
743D N 071752014000 YOKE
TO 008 420 95 18,008 420 97 18,BOSCH
A 0004231060 SEAL RING
KNORR
A 0009978786 PLUG
KNORR
A 0004231160 SEAL RING
KNORR
A 0099979748 SEAL RING
KNORR
743H A 0004233886 CUP
TO 008 420 97 18,BOSCH
743R A 0004303860 REPAIR KIT
TO 008 420 95 18,008 420 97 18,BOSCH
744 A 0025862642 REPAIR KIT
SPRING LOAD ACCUMULATOR
TO 007 420 68 18,007 420 70 18,WABCO
746 A 0025862742 REPAIR KIT
DIAPHRAGM
TO 007 420 70 18,WABCO
746 A 0044201224 REPAIR KIT
DIAPHRAGM CYLINDER
KNORR
746 A 0014307260 REPAIR KIT
Repalced by: A 0044201324
A 0044201324 REPAIR KIT
SPRING LOAD ACCUMULATOR CYLINDER
KNORR
746 A 0014307160 REPAIR KIT
Repalced by: A 0044201724
746 A 0044201724 REPAIR KIT
SPRING LOAD ACCUMULATOR CYLINDER
KNORR
750 A 3894230133 BEARING BRACKET
Repalced by: A 3634230033
750 A 3634230033 BEARING BRACKET
TRISTOP CYLINDER
754 A 6214230033 BEARING BRACKET
TRISTOP CYLINDER
758 A 3874230006 BRAKE ANCHOR
TRISTOP CYLINDER
760 N 000961014028 SCREW
SUPPORT TO BEARING BRACKET
M 14X40
760 N 000961014054 SCREW
SUPPORT TO BEARING BRACKET
M 14X45
762 N 913004014002 NUT
Repalced by: N 910113014001
762 N 910113014001 NUT
SUPPORT TO BEARING BRACKET
764 N 000961016036 SCREW
Repalced by: N 308676016013
764 N 308676016013 SCREW
BEARING BRACKET TO REAR AXLE
M 16X1.5X40
766 N 913004016004 NUT
Repalced by: N 910113016002
766 N 910113016002 NUT
TRISTOP CYLINDER TO SUPPORT
768 A 3619910005 PIN
SLACK ADJUSTER TO TRISTOP CYLINDER
770 N 000433015005 WASHER
SLACK ADJUSTER TO TRISTOP CYLINDER
772 N 000094004051 COTTER PIN
SLACK ADJUSTER TO TRISTOP CYLINDER
774 A 0019905370 T-FITTING
TRISTOP CYLINDER;CONNECTIONS:
"11,12"
776 N 080705016003 NUT
TRISTOP CYLINDER;CONNECTIONS:
"11,12"
778 A 0004290927 THRUST RING
TRISTOP CYLINDER;CONNECTIONS:
"11,12"
780 A 0009971548 SEAL RING
TRISTOP CYLINDER;CONNECTIONS:
"11,12"
782 N 007603016401 SEAL RING
TRISTOP CYLINDER;CONNECTIONS:
"11,12"
784 N 915039012205 HOLLOW SCREW FITTING
TRISTOP CYLINDER;CONNECTIONS:
"11,12"
786 N 915036012203 HOLLOW SCREW
LEFT TRISTOP CYLINDER,CONNECTION:
"11"
800 A 0014303481 VALVE
HAND BRAKE VALVE
"BOSCH"
800 A 0014305681 VALVE
HAND BRAKE VALVE
WABCO
800 A 0014306681 VALVE
Repalced by: A 0024309881
800 A 0024309881 VALVE
HAND BRAKE VALVE
"KNORR"
800 A 0014304381 VALVE
HAND BRAKE VALVE
"BOSCH"
800 A 0014305781 VALVE
HAND BRAKE VALVE
WABCO
800 A 0014306781 VALVE
Repalced by: A 0024309981
800 A 0024309981 VALVE
HAND BRAKE VALVE
"KNORR"
A 0014311287 PROTECTIVE CAP
KNORR
801 A 0014310887 PROTECTIVE CAP
TO 001 430 56 81,001 430 57 81,WABCO
801 A 0014311087 PROTECTIVE CAP
TO 001 430 34 81,001 430 43 81,BOSCH
A 0009975577 HANDLE
KNORR
802 A 0009973477 HANDLE
TO 001 430 34 81, 001 430 43 81,WABCO
802 A 0009972477 HANDLE
TO 001 430 56 81, 001 430 57 81,WABCO
N 001481003025 CLAMPING SLEEVE
KNORR
804 A 0025866343 REPAIR KIT
GASKET KIT
TO 001 430 34 81, 001 430 43 81,BOSCH
805 A 0025867443 REPAIR KIT
Repalced by: A 0034303181
805 A 0034303181 REPAIR KIT
GASKET KIT
TO 001 430 56 81, 001 430 57 81,WABCO
A 0034302081 REPAIR KIT
TO 002 430 98 81,002 430 99 81,KNORR
805C A 0035860543 REPAIR KIT
TO 001 430 66 81,001 430 67 81,KNORR
806 A 0009976189 COUPLING
LINE TO HAND BRAKE VALVE
808 A 0099973948 SEAL RING
810 N 007985008119 SCREW
PARKING BRAKE VALVE TO INSTRUMENT PANEL
812 N 912006008000 LOCK WASHER
PARKING BRAKE VALVE TO INSTRUMENT PANEL
Reklama
Kontaktai
Pasiūlymas
Skaitliukas



© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
