Transporto priemonė: 1936; VIN numerio dalis: 621025
Grupė: 52 CHASSIS SHEET METAL - 001 SHEET METAL,AIR INTAKE
| # | Kodas | Pavadinimas |
|---|---|---|

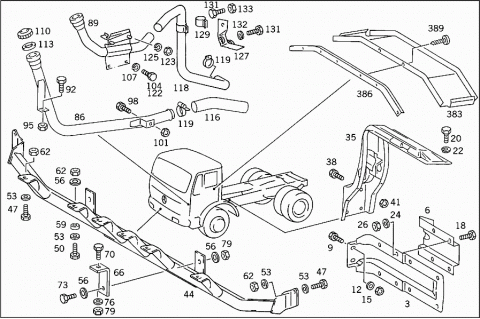

| 003 | A 3875210240 | BRACKET |
| Repalced by: A 6575210140 | ||
| 003 | A 6575210140 | BRACKET |
| FENDER | ||
| 006 | A 3875210140 | BRACKET |
| Repalced by: A 6575210040 | ||
| 006 | A 6575210040 | BRACKET |
| Repalced by: A 6575200033 | ||
| 006 | A 6575200033 | SUPPORT |
| (CONSOLE),FOR FENDER | ||
| 009 | N 000961014028 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M14X40 | ||
| 009 | N 000961014054 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 14X45 | ||
| 009 | N 000961016075 | SCREW |
| Repalced by: N 308676016020 | ||
| 009 | N 308676016020 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 16X35 | ||
| 012 | N 001440016001 | WASHER |
| FENDER BRACKET TO SIDE MEMBER | ||
| 015 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 015 | N 910113016002 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 015 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 015 | N 910113014001 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 018 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 018 | N 304017008034 | SCREW |
| CONSOLE TO FENDER BRACKET | ||
| M 8X25 | ||
| 020 | N 000933008150 | SCREW |
| Repalced by: N 304017008018 | ||
| 020 | N 304017008018 | SCREW |
| FENDER TO CONSOLE AND TO FENDER BRACKET | ||
| M 8X35 | ||
| 020 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 020 | N 304017008027 | SCREW |
| FENDER TO FENDER BRACKET | ||
| M 8X30 | ||
| 022 | N 912004008102 | LOCK WASHER |
| FENDER TO CONSOLE AND TO FENDER BRACKET | ||
| 024 | A 1159904540 | WASHER |
| Repalced by: A 6312670276 | ||
| 024 | A 6312670276 | WASHER |
| FENDER TO CONSOLE AND TO FENDER BRACKET | ||
| Repalced by: A 0049902582 | ||
| 024 | A 0049902582 | WASHER |
| FENDER TO CONSOLE AND TO FENDER BRACKET | ||
| 026 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 026 | N 913004008001 | NUT |
| CONSOLE TO FENDER BRACKET | ||

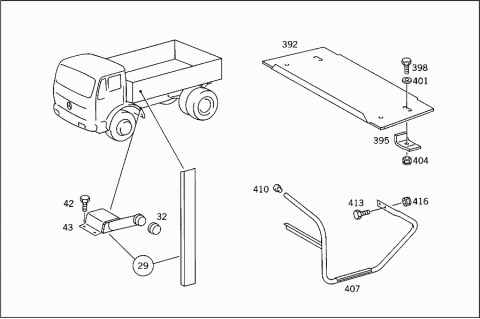

| 029 | A 6206100134 | SUPPORT |
| STOP BUFFER | ||
| 029 | A 6206100034 | SUPPORT |
| STOP BUFFER | ||
| 032 | A 0009884611 | BUFFER |
| 035 | A 3875200241 | BRACKET |
| FENDER AND SHOCK ABSORBER,LEFT | ||
| 035 | A 3875205841 | BRACKET |
| FENDER AND SHOCK ABSORBER,RIGHT | ||
| 038 | N 000961014028 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 041 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 041 | N 910113014001 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 042 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 042 | N 304017008034 | SCREW |
| STOP BUFFER AND FENDER TO BRACKET | ||
| M 8X25 | ||
| 043 | A 6206190040 | BRACKET |
| (STOP BUFFER) | ||
| 044 | A 3875200922 | COVERING |
| RADIATOR UNDERSHIELD | ||
| 047 | N 000961012151 | SCREW |
| BOTTOM COVER PLATE TO BUMPER | ||
| M 12 X 30 | ||
| 050 | N 000961012069 | SCREW |
| Repalced by: N 308676012015 | ||
| 050 | N 308676012015 | SCREW |
| BOTTOM COVER PLATE TO BUMPER | ||
| M 12X45 | ||
| 053 | N 000125013008 | WASHER |
| 056 | N 009021013200 | WASHER |
| BOTTOM COVER PLATE TO BUMPER | ||
| 059 | N 007349013003 | WASHER |
| Repalced by: N 007349013005 | ||
| 059 | N 007349013005 | WASHER |
| BOTTOM COVER PLATE TO BUMPER | ||
| 062 | N 910113012002 | NUT |
| BOTTOM COVER PLATE TO BUMPER | ||
| 066 | A 3875241840 | BRACKET |
| COVER PLATE | ||
| 070 | N 000961012069 | SCREW |
| Repalced by: N 308676012015 | ||
| 070 | N 308676012015 | SCREW |
| BRACKET TO FRAME | ||
| 073 | N 000961012122 | SCREW |
| BRACKET TO FRAME | ||
| 076 | N 000125013008 | WASHER |
| 079 | N 910113012002 | NUT |
| BRACKET TO FRAME | ||
| 086 | A 6205201206 | PIPE ELBOW |
| OIL REFILLING | ||
| 086 | A 3875200406 | PIPE ELBOW |
| OIL REFILLING | ||
| 089 | A 6205201106 | PIPE ELBOW |
| OIL REFILLING | ||
| 089 | A 6205202206 | PIPE ELBOW |
| Repalced by: A 6455200106 | ||
| 089 | A 6455200106 | PIPE ELBOW |
| Repalced by: A 6555200406 | ||
| 089 | A 6555200406 | PIPE ELBOW |
| OIL REFILLING | ||
| 092 | N 000933010128 | SCREW |
| OIL FILLER NECK TO SIDE AND CROSS MEMBERS | ||
| 095 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 095 | N 910113010000 | NUT |
| OIL FILLER NECK TO SIDE AND CROSS MEMBERS | ||
| 098 | N 000961012122 | SCREW |
| OIL FILLER NECK TO SIDE AND CROSS MEMBERS | ||
| 101 | N 910113012002 | NUT |
| OIL FILLER NECK TO SIDE AND CROSS MEMBERS | ||
| 104 | N 000933006102 | SCREW |
| OIL FILLER PIPE TO RADIATOR | ||
| 107 | N 912004006102 | LOCK WASHER |
| OIL FILLER PIPE TO RADIATOR | ||
| N 000125006421 | WASHER | |
| OIL FILLER PIPE TO RADIATOR | ||
| Repalced by: N 000125006449 | ||
| N 000125006449 | WASHER | |
| OIL FILLER PIPE TO RADIATOR | ||
| 110 | A 0000180702 | CAP |
| OIL REFILLING | ||
| A 1020180302 | CAP | |
| OIL REFILLING | ||
| A 1020180402 | CAP | |
| OIL REFILLING | ||
| 113 | A 0000180180 | GASKET |
| Repalced by: A 1020180080 | ||
| 113 | A 1020180080 | GASKET |
| Repalced by: A 1020180380 | ||
| 113 | A 1020180380 | GASKET |
| 116 | A 6205280282 | HOSE |
| FROM OIL FILLER NECK TO OIL PAN | ||
| 116 | A 3875280582 | HOSE |
| FROM OIL FILLER NECK TO OIL PAN | ||
| 116 | A 6205280082 | HOSE |
| FROM OIL FILLER NECK TO OIL PAN | ||
| 118 | A 6205280482 | HOSE |
| FROM OIL FILLER NECK TO OIL PAN | ||
| 119 | N 916017040000 | CLAMP |
| Repalced by: N 000000000671 | ||
| 119 | N 000000002775 | CLAMP |
| HOSE TO OIL FILLER PIPE AND TO PIPE SOCKET ON OIL PAN | ||
| 40-60X13 MM | ||
| 122 | N 000933008130 | SCREW |
| Repalced by: N 304017008039 | ||
| 122 | N 304017008039 | SCREW |
| OIL DIPSTICK TO OIL FILLER PIPE | ||
| 123 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 123 | N 913004008001 | NUT |
| OIL DIPSTICK TO OIL FILLER PIPE | ||
| 125 | N 912004008102 | LOCK WASHER |
| OIL DIPSTICK TO OIL FILLER PIPE | ||
| 127 | A 6205205541 | BRACKET |
| HOSE TO CAB SUPPORT | ||
| 129 | A 6205280143 | CLAMP |
| HOSE TO CAB SUPPORT | ||
| 131 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 131 | N 304017008034 | SCREW |
| HOSE TO CAB SUPPORT | ||
| 132 | N 912004008102 | LOCK WASHER |
| HOSE TO CAB SUPPORT | ||
| 133 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 133 | N 913004008001 | NUT |
| HOSE TO CAB SUPPORT | ||

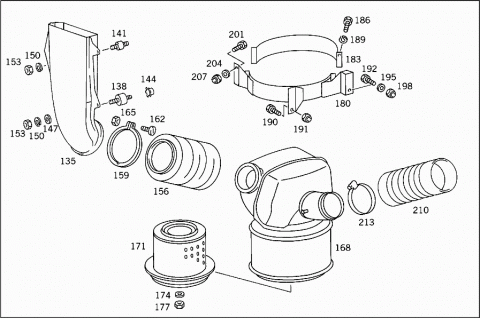

| 135 | A 3855200201 | AIR INTAKE PIPE |
| RIGHT | ||
| 135 | A 3855200301 | AIR INTAKE PIPE |
| LEFT | ||
| 138 | A 3879880011 | BUFFER |
| AIR INTAKE PIPE TO CAB | ||
| 141 | A 3879880111 | BUFFER |
| AIR INTAKE PIPE TO CAB | ||
| 144 | A 0019901791 | NUT RETAINER |
| AIR INTAKE PIPE TO CAB | ||
| 147 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 147 | N 000125008443 | WASHER |
| AIR INTAKE PIPE TO CAB | ||
| 150 | N 912004008102 | LOCK WASHER |
| AIR INTAKE PIPE TO CAB | ||
| 153 | N 304032008006 | NUT |
| AIR INTAKE PIPE TO CAB | ||
| 156 | A 3815280191 | BOOT |
| AIR INTAKE | ||
| 159 | A 3815280443 | CLAMP |
| BOOT TO AIR DUCT AND TO AIR CLEANER | ||
| 162 | N 000084004425 | SCREW |
| BOOT TO AIR DUCT AND TO AIR CLEANER | ||
| 165 | N 000934004006 | NUT |
| BOOT TO AIR DUCT AND TO AIR CLEANER | ||
| 168 | A 0090945902 | AIR CLEANER |
| Repalced by: A 0110942602 | ||
| 168 | A 0110942602 | AIR CLEANER |
| 168 | A 0090946002 | AIR CLEANER |
| Repalced by: A 0140948802 | ||
| 168 | A 0140948802 | AIR CLEANER |
| 171 | A 0010948304 | FILTER ELEMENT |
| 174 | A 0000940276 | WASHER |
| FELT | ||
| 177 | A 0009901550 | NUT |
| 180 | A 3875200533 | SUPPORT |
| Repalced by: A 6565200033 | ||
| 180 | A 6565200033 | SUPPORT |
| AIR CLEANER | ||
| 180 | A 3875200633 | SUPPORT |
| Repalced by: A 6565200133 | ||
| 180 | A 6565200133 | SUPPORT |
| AIR CLEANER | ||
| 183 | A 3875280721 | STRAP |
| AIR CLEANER TO SUPPORT | ||
| 186 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 186 | N 304017008034 | SCREW |
| STRAP TO SUPPORT | ||
| 189 | N 912004008102 | LOCK WASHER |
| STRAP TO SUPPORT | ||
| 190 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 190 | N 308676014020 | SCREW |
| AIR CLEANER SUPPORT TO SIDE MEMBER, FRONT | ||
| 191 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 191 | N 910113014001 | NUT |
| AIR CLEANER SUPPORT TO SIDE MEMBER, FRONT | ||
| 192 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 192 | N 308676012026 | SCREW |
| AIR CLEANER SUPPORT TO SIDE MEMBER, REAR | ||
| M 12X35 | ||
| 192 | N 308676012026 | SCREW |
| AIR CLEANER SUPPORT TO SIDE MEMBER, REAR | ||
| M 12X35 | ||
| 195 | N 000125013008 | WASHER |
| 198 | N 910113012002 | NUT |
| AIR CLEANER SUPPORT TO SIDE MEMBER, REAR | ||
| 198 | N 910113012002 | NUT |
| AIR CLEANER SUPPORT TO SIDE MEMBER, REAR | ||
| 201 | N 000933010105 | SCREW |
| AIR CLEANER SUPPORT TO BUMPER STRUT | ||
| M 10X25 | ||
| 204 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 204 | N 000125010532 | WASHER |
| AIR CLEANER SUPPORT TO BUMPER STRUT | ||
| 207 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 207 | N 910113010000 | NUT |
| AIR CLEANER SUPPORT TO BUMPER STRUT | ||
| 210 | A 0000949882 | HOSE |
| Repalced by: A 6205280782 | ||
| 210 | A 6205280782 | HOSE |
| FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE | ||
| 213 | N 916017130000 | CLAMP |
| Repalced by: N 000000000678 | ||
| 213 | N 000000000678 | CLAMP |
| HOSE TO PICO AIR CLEANER | ||
| Repalced by: N 000000005892 | ||
| 213 | N 000000005892 | CLAMP |
| HOSE TO PICO AIR CLEANER | ||
| 213 | N 000000005892 | CLAMP |
| HOSE TO SCOOP | ||

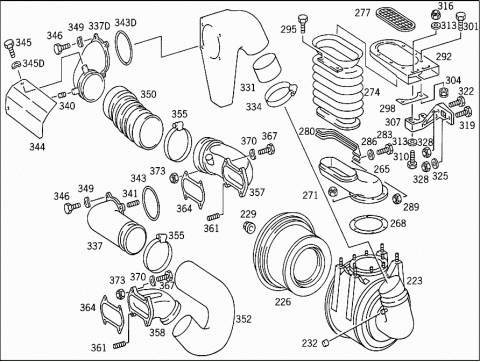

| 223 | A 0100948802 | AIR CLEANER |
| MANN & HUMMEL | ||
| 223 | A 0110940202 | AIR CLEANER |
| MANN & HUMMEL | ||
| 224 | A 0120946102 | AIR CLEANER |
| MANN & HUMMEL | ||
| 224 | A 0120946202 | AIR CLEANER |
| MANN & HUMMEL | ||
| 226 | A 0020942404 | FILTER ELEMENT |
| TO 010 094 88 02,012 094 62 02 | ||
| 226 | A 0010948304 | FILTER ELEMENT |
| TO 011 094 02 02,012 094 61 02 | ||
| 229 | A 0009901550 | NUT |
| TO 010 094 88 02,011 094 02 02, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 012 094 61 02,012 094 62 02 | ||
| 232 | A 0000940276 | WASHER |
| FELT | ||
| TO 010 094 88 02,011 094 02 022 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 012 094 61 02,012 094 62 02 | ||

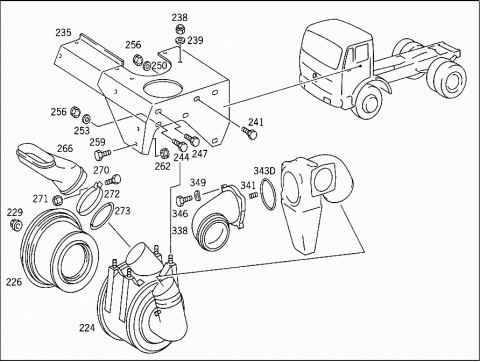

| 235 | A 6205200033 | SUPPORT |
| AIR CLEANER | ||
| 238 | N 910113012002 | NUT |
| AIR CLEANER TO SUPPORT | ||
| 238 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 238 | N 910113014001 | NUT |
| AIR CLEANER TO SUPPORT | ||
| 239 | N 000125013008 | WASHER |
| 239 | N 000125015013 | WASHER |
| Repalced by: N 000125015019 | ||
| 239 | N 000125015019 | WASHER |
| AIR CLEANER TO SUPPORT | ||
| 241 | N 000961014043 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 14X40 | ||
| 244 | N 000961014054 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M14X45 | ||
| 247 | N 000961014029 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 14X48 | ||
| 247 | N 000961014064 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M14X50 | ||
| 250 | N 000125015013 | WASHER |
| Repalced by: N 000125015019 | ||
| 250 | N 000125015019 | WASHER |
| SUPPORT TO SIDE MEMBER | ||
| 253 | A 3609901740 | WASHER |
| Repalced by: A 3859900440 | ||
| 253 | A 3859900440 | WASHER |
| Repalced by: A 3379900440 | ||
| 253 | A 3379900440 | WASHER |
| SUPPORT TO SIDE MEMBER | ||
| 256 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 256 | N 910113014001 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 259 | N 000961012151 | SCREW |
| SUPPORT TO CONSOLE | ||
| 262 | N 910113012002 | NUT |
| SUPPORT TO CONSOLE | ||
| 265 | A 6205200206 | PIPE ELBOW |
| (INTAKE PIPE) | ||
| 266 | A 6205201906 | PIPE ELBOW |
| (INTAKE PIPE) | ||
| 268 | A 0010946280 | GASKET |
| INTAKE PIPE TO AIR CLEANER | ||
| 270 | N 000931008046 | SCREW |
| Repalced by: N 304017008018 | ||
| 270 | N 304017008018 | SCREW |
| INTAKE PIPE TO AIR CLEANER | ||
| 271 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 271 | N 913004008001 | NUT |
| INTAKE PIPE TO AIR CLEANER | ||
| 271 | N 913004008001 | NUT |
| INTAKE PIPE TO AIR CLEANER | ||
| 272 | A 6209970690 | CLAMP |
| INTAKE PIPE TO AIR CLEANER | ||
| 273 | A 0099977648 | SEAL RING |
| INTAKE PIPE TO AIR CLEANER | ||
| 274 | A 6205200096 | BOOT |
| Repalced by: A 6205200296 | ||
| 274 | A 6205200296 | BOOT |
| AIR INTAKE | ||
| 277 | A 6205200003 | STRAINER |
| Repalced by: A 6205280103 | ||
| 277 | A 6205280103 | STRAINER |
| BOOT | ||
| 280 | A 6205280043 | CLAMP |
| BOOT TO INTAKE PIPE | ||
| 283 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 283 | N 304017008027 | SCREW |
| BOOT TO INTAKE PIPE | ||
| 286 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 286 | N 000125008443 | WASHER |
| BOOT TO INTAKE PIPE | ||
| 289 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 289 | N 913004008001 | NUT |
| BOOT TO INTAKE PIPE | ||
| 292 | A 6205280840 | BRACKET |
| Repalced by: A 6575280040 | ||
| 292 | A 6575280040 | BRACKET |
| BOOT | ||
| 295 | N 914116006410 | SCREW |
| BOOT TO BRACKET | ||
| 298 | A 6205280940 | BRACKET |
| BOOT | ||
| 301 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 301 | N 304017008016 | SCREW |
| BOOT TO BRACKET | ||
| 304 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 304 | N 913004008001 | NUT |
| BOOT TO BRACKET | ||
| 307 | A 6205280239 | SUPPORT |
| BOOT | ||
| 307 | A 6205280139 | SUPPORT |
| BOOT | ||
| 310 | N 000933010150 | SCREW |
| BRACKET TO SUPPORT | ||
| 313 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 313 | N 000125010532 | WASHER |
| BRACKET TO SUPPORT | ||
| 316 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 316 | N 910113010000 | NUT |
| BRACKET TO SUPPORT | ||
| 319 | N 000933010094 | SCREW |
| SUPPORT TO CAB BEARING RAIL | ||
| M10X40 | ||
| 322 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 322 | N 304017010002 | SCREW |
| SUPPORT TO CAB BEARING RAIL | ||
| M 10X30 | ||
| 325 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 325 | N 000125010532 | WASHER |
| SUPPORT TO CAB BEARING RAIL | ||
| 328 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 328 | N 910113010000 | NUT |
| SUPPORT TO CAB BEARING RAIL | ||
| 331 | A 6245280082 | HOSE |
| FROM AIR CLEANER TO CAB CONSOLE | ||
| 334 | N 916017130000 | CLAMP |
| Repalced by: N 000000000678 | ||
| 334 | N 000000000678 | CLAMP |
| HOSE TO AIR CLEANER AND CAB CONSOLE | ||
| Repalced by: N 000000005892 | ||
| 334 | N 000000005892 | CLAMP |
| HOSE TO AIR CLEANER AND CAB CONSOLE | ||
| 337 | A 6205200606 | PIPE ELBOW |
| (INTAKE PIPE) | ||
| 337D | A 6205201506 | PIPE ELBOW |
| (INTAKE PIPE) | ||
| 338 | A 6205200506 | PIPE ELBOW |
| (INTAKE PIPE) | ||
| 338 | A 6205200806 | PIPE ELBOW |
| (INTAKE PIPE) | ||
| 338 | A 6205201806 | PIPE ELBOW |
| (INTAKE PIPE) | ||
| 340 | N 900421006002 | THREADED INSERT |
| 6X12 | ||
| 341 | N 900421008004 | THREADED INSERT |
| 8X16 | ||
| 343 | A 0069979348 | SEAL RING |
| INTAKE PIPE TO CAB CONSOLE | ||
| 343D | A 0019976748 | SEAL RING |
| INTAKE PIPE TO CAB CONSOLE | ||
| 344 | A 6205240001 | PROTECTIVE PLATE |
| (INTAKE PIPE) | ||
| 345 | N 000933006103 | SCREW |
| Repalced by: N 304017006018 | ||
| 345 | N 304017006018 | SCREW |
| PROTECTIVE PLATE TO PIPE ELBOW | ||
| 345D | N 000137006204 | SPRING WASHER |
| PROTECTIVE PLATE TO PIPE ELBOW | ||
| 346 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 346 | N 304017008027 | SCREW |
| INTAKE PIPE TO CAB CONSOLE | ||
| 349 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 349 | N 000137008212 | SPRING WASHER |
| INTAKE PIPE TO CAB CONSOLE | ||
| 350 | A 6235280082 | HOSE |
| FROM AIR INTAKE PIPE TO ENGINE | ||
| 352 | A 0010948482 | HOSE |
| FROM AIR INTAKE PIPE TO ENGINE | ||
| 352 | A 0010941282 | HOSE |
| Repalced by: A 0010941182 | ||
| 352 | A 0010941182 | HOSE |
| FROM AIR INTAKE PIPE TO ENGINE | ||
| 355 | N 916017130000 | CLAMP |
| Repalced by: N 000000000678 | ||
| 355 | N 000000000678 | CLAMP |
| FROM AIR INTAKE PIPE TO ENGINE | ||
| Repalced by: N 000000005892 | ||
| 355 | N 000000005892 | CLAMP |
| FROM AIR INTAKE PIPE TO ENGINE | ||
| 357 | A 6205201006 | PIPE ELBOW |
| (INTAKE PIPE) | ||
| 358 | A 6205200706 | PIPE ELBOW |
| (INTAKE PIPE) | ||
| 361 | N 900421010002 | THREADED INSERT |
| 364 | A 3015280080 | GASKET |
| Repalced by: A 4421411480 | ||
| 364 | A 4421411480 | GASKET |
| INTAKE PIPE TO ENGINE | ||
| 367 | N 000933010150 | SCREW |
| INTAKE PIPE TO ENGINE | ||
| M10X55 | ||
| 367 | N 000933010095 | SCREW |
| Repalced by: N 304017010030 | ||
| 367 | N 304017010030 | SCREW |
| Repalced by: N 304017010053 | ||
| 367 | N 304017010053 | SCREW |
| INTAKE PIPE TO ENGINE | ||
| M 10X50 | ||
| 367 | N 000933010328 | SCREW |
| INTAKE PIPE TO ENGINE | ||
| M 10X45 | ||
| 370 | N 000137010201 | SPRING WASHER |
| INTAKE PIPE TO ENGINE | ||
| 373 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 373 | N 910113010000 | NUT |
| INTAKE PIPE TO ENGINE | ||
| 383 | A 3875240529 | COVER |
| PROTECTIVE PLATE | ||
| 383 | A 3835240529 | COVER |
| PROTECTIVE PLATE | ||
| 383 | A 3875240429 | COVER |
| PROTECTIVE PLATE | ||
| 386 | A 3875240084 | SHIM |
| PROTECTIVE PLATE TO FRAME | ||
| 389 | N 007981005306 | SHEET METAL SCREW |
| PROTECTIVE PLATE TO FRAME | ||
| 392 | A 6205200031 | RUNNING BOARD |
| 395 | A 6205230019 | MOUNTING ANGLE |
| ROCKER PANEL TO FRAME | ||
| 398 | A 3819900901 | SCREW |
| ROCKER PANEL TO FRAME | ||
| 401 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 401 | N 000125010532 | WASHER |
| ROCKER PANEL TO FRAME | ||
| 401 | N 007349010003 | WASHER |
| Repalced by: N 007349010007 | ||
| 401 | N 007349010007 | WASHER |
| ROCKER PANEL TO FRAME | ||
| 404 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 404 | N 910113010000 | NUT |
| ROCKER PANEL TO FRAME | ||
| 407 | A 6205200130 | SUPPORT |
| ROCKER PANEL | ||
| 410 | N 915042025003 | PLUG |
| AT SUPPORT | ||
| 413 | N 000933010105 | SCREW |
| ROCKER PANEL TO APPARATUS SUPPORT | ||
| 416 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 416 | N 910113010000 | NUT |
| ROCKER PANEL TO APPARATUS SUPPORT | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
