Transporto priemonė: 1936; VIN numerio dalis: 621025

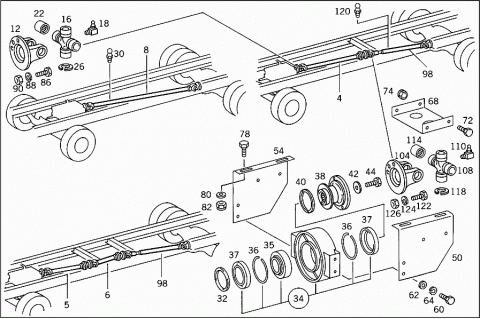

Grupė: 41 PROPELLER SHAFT
| # | Kodas | Pavadinimas |
|---|---|---|
| 004 | A 3954101104 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 1503 MM | ||
| 004 | A 3954101104 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 1503 MM | ||
| 004 | A 3954101504 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 1564 MM | ||
| 004 | A 3954101604 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 1446 MM | ||
| 004 | A 3954101604 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 1446 MM | ||
| 005 | A 3954101204 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING I | ||
| 1389 MM | ||
| 005 | A 3954101404 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING I | ||
| 1312 MM | ||
| 006 | A 3954100804 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING I TO INTERMEDIATE BEARING II | ||
| 895 MM | ||
| 008 | A 6204100102 | PROPELLER SHAFT |
| FROM TRANSMISSION TO REAR AXLE | ||
| 1688 MM | ||
| 008 | A 3954100502 | PROPELLER SHAFT |
| FROM TRANSMISSION TO REAR AXLE | ||
| 1940 MM | ||
| 008 | A 6204100002 | PROPELLER SHAFT |
| FROM TRANSMISSION TO REAR AXLE | ||
| 1872 MM | ||
| 008 | A 6204100402 | PROPELLER SHAFT |
| FROM TRANSMISSION TO REAR AXLE | ||
| 1798 MM | ||
| 008 | A 6204100402 | PROPELLER SHAFT |
| FROM TRANSMISSION TO REAR AXLE | ||
| 1798 MM | ||
| 008 | A 3954103102 | PROPELLER SHAFT |
| FROM TRANSMISSION TO REAR AXLE | ||
| 2105 MM | ||
| 012 | A 3954110211 | DRIVE FLANGE |
| Repalced by: A 3954110811 | ||
| 012 | A 3954110811 | DRIVE FLANGE |
| 016 | A 6204100031 | UNIVERSAL JOINT CROSS |
| Repalced by: A 9404100031 | ||
| 016 | A 9404100031 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| 018 | N 071412008302 | GREASE NIPPLE |
| 022 | A 3954100142 | BEARING BUSHING |
| 026 | A 0069943141 | LOCK |
| AS REQUIRED | ||
| 2.00 MM | ||
| 026 | A 0069943541 | LOCK |
| AS REQUIRED | ||
| 2.10 MM | ||
| 026 | A 0069943941 | LOCK |
| AS REQUIRED | ||
| 2.20 MM | ||
| A 3954110059 | SEAL RING | |
| PROTECTIVE TUBE | ||
| 105X17 MM | ||
| A 0004110159 | SEAL RING | |
| PROTECTIVE TUBE | ||
| 102.5X22 MM | ||
| 030 | N 071412008101 | GREASE NIPPLE |
| Repalced by: N 071412008102 | ||
| 030 | N 071412008102 | GREASE NIPPLE |
| 032 | A 3894130061 | PROTECTIVE CAP |
| 032 | A 3954130061 | PROTECTIVE CAP |
| 034 | A 6204100010 | REPAIR KIT |
| Repalced by: A 3954100022 | ||
| 034 | A 3954100022 | INTERMEDIATE BEARING |
| Repalced by: A 3954100622 | ||
| 034 | A 3954100622 | INTERMEDIATE BEARING |
| Repalced by: A 6554100022 | ||
| 034 | A 6554100022 | INTERMEDIATE BEARING |
| PROPELLER SHAFT | ||
| 035 | A 0029819225 | BALL BEARING |
| 035 | A 0029819325 | BALL BEARING |
| 036 | N 912009110200 | SNAP RING |
| 037 | A 3874130261 | PROTECTIVE CAP |
| A 6554110052 | SPACER WASHER | |
| PROPELLER SHAFT BEARING | ||
| 038 | A 3954100130 | CENTERING FLANGE |
| Repalced by: A 3874110446 | ||
| 038 | A 3874110446 | FLANGE |
| PROPELLER SHAFT BEARING | ||
| 040 | A 3894130061 | PROTECTIVE CAP |
| 040 | A 3954130061 | PROTECTIVE CAP |
| 042 | A 3894110062 | THRUST WASHER |
| FOLLOWER FLANGE TO PROPELLER SHAFT | ||
| 044 | A 3899900019 | SCREW |
| FOLLOWER FLANGE TO PROPELLER SHAFT | ||
| 050 | A 6204135942 | BRACKET |
| PROPELLER SHAFT BEARING,LEFT | ||
| 050 | A 6204135142 | BRACKET |
| PROPELLER SHAFT BEARING,LEFT | ||
| 050 | A 6204133942 | BRACKET |
| PROPELLER SHAFT BEARING,LEFT | ||
| 050 | A 6204133942 | BRACKET |
| PROPELLER SHAFT BEARING,LEFT | ||
| 050 | A 6204132942 | BRACKET |
| LEFT,PROPELLER SHAFT BEARING I | ||
| 050 | A 6204135542 | BRACKET |
| LEFT,PROPELLER SHAFT BEARING II | ||
| 050 | A 6204134142 | BRACKET |
| PROPELLER SHAFT BEARING,LEFT | ||
| 050 | A 6204138342 | BRACKET |
| PROPELLER SHAFT BEARING,LEFT | ||
| 050 | A 6204133742 | BRACKET |
| PROPELLER SHAFT BEARING,LEFT | ||
| 050 | A 6204133342 | BRACKET |
| PROPELLER SHAFT BEARING,LEFT | ||
| 050 | A 6204133542 | BRACKET |
| PROPELLER SHAFT BEARING,LEFT | ||
| 050 | A 6204133542 | BRACKET |
| PROPELLER SHAFT BEARING,LEFT | ||
| 050 | A 6204136142 | BRACKET |
| PROPELLER SHAFT BEARING,LEFT | ||
| 054 | A 6204135842 | BRACKET |
| PROPELLER SHAFT BEARING,RIGHT | ||
| 054 | A 6204135042 | BRACKET |
| PROPELLER SHAFT BEARING,RIGHT | ||
| 054 | A 6204133842 | BRACKET |
| PROPELLER SHAFT BEARING,RIGHT | ||
| 054 | A 6204133842 | BRACKET |
| PROPELLER SHAFT BEARING,RIGHT | ||
| 054 | A 6204132842 | BRACKET |
| RIGHT,PROPELLER SHAFT BEARING I | ||
| 054 | A 6204135442 | BRACKET |
| RIGHT,PROPELLER SHAFT BEARING II | ||
| 054 | A 6204134042 | BRACKET |
| PROPELLER SHAFT BEARING,RIGHT | ||
| 054 | A 6204138242 | BRACKET |
| PROPELLER SHAFT BEARING,RIGHT | ||
| 054 | A 6204133642 | BRACKET |
| PROPELLER SHAFT BEARING,RIGHT | ||
| 054 | A 6204133242 | BRACKET |
| PROPELLER SHAFT BEARING,RIGHT | ||
| 054 | A 6204133442 | BRACKET |
| PROPELLER SHAFT BEARING,RIGHT | ||
| 054 | A 6204133442 | BRACKET |
| PROPELLER SHAFT BEARING,RIGHT | ||
| 054 | A 6204136042 | BRACKET |
| PROPELLER SHAFT BEARING,RIGHT | ||
| 060 | N 000961012106 | SCREW |
| BRACKET TO HOUSING | ||
| 062 | A 3299900040 | WASHER |
| Repalced by: A 1232420366 | ||
| 062 | A 1232420366 | WASHER |
| BRACKET TO HOUSING | ||
| 064 | N 912004012100 | LOCK WASHER |
| BRACKET TO HOUSING | ||
| 068 | A 3954130011 | REINFORCEMENT |
| PROPELLER SHAFT | ||
| 072 | N 000961012106 | SCREW |
| REINFORCEMENT TO BRACKET | ||
| 074 | N 913004012009 | NUT |
| Repalced by: N 910113012003 | ||
| 074 | N 910113012003 | NUT |
| REINFORCEMENT TO BRACKET | ||
| 078 | N 000961012108 | SCREW |
| PROPELLER SHAFT BEARING TO CROSS MEMBER | ||
| 080 | A 3299900040 | WASHER |
| Repalced by: A 1232420366 | ||
| 080 | A 1232420366 | WASHER |
| PROPELLER SHAFT BEARING TO CROSS MEMBER | ||
| 082 | N 913004012009 | NUT |
| Repalced by: N 910113012003 | ||
| 082 | N 910113012003 | NUT |
| PROPELLER SHAFT BEARING TO CROSS MEMBER | ||
| 086 | A 0029909901 | SCREW |
| Repalced by: A 3959900501 | ||
| 086 | A 3959900501 | SCREW |
| PROPELLER SHAFT TO TRANSMISSION | ||
| 086 | A 3959900501 | SCREW |
| PROPELLER SHAFT TO INTERMEDIATE BEARING | ||
| 088 | N 912004016101 | LOCK WASHER |
| PROPELLER SHAFT TO TRANSMISSION | ||
| 088 | N 912004016101 | LOCK WASHER |
| PROPELLER SHAFT TO INTERMEDIATE BEARING | ||
| 090 | N 000934016013 | NUT |
| Repalced by: N 308673016001 | ||
| 090 | N 308673016001 | NUT |
| PROPELLER SHAFT TO TRANSMISSION | ||
| 090 | N 308673016001 | NUT |
| PROPELLER SHAFT TO INTERMEDIATE BEARING | ||
| 098 | A 3954100202 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| 1183 MM | ||
| 098 | A 6204100302 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| 1537 MM | ||
| 098 | A 6204100302 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING II TO REAR AXLE | ||
| 1537 MM | ||
| 098 | A 6204100302 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| 1537 MM | ||
| 098 | A 3954100102 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| 1618 MM | ||
| 098 | A 3954100102 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING II TO REAR AXLE | ||
| 1618 MM | ||
| 104 | A 3954110211 | DRIVE FLANGE |
| Repalced by: A 3954110811 | ||
| 104 | A 3954110811 | DRIVE FLANGE |
| 108 | A 6204100031 | UNIVERSAL JOINT CROSS |
| Repalced by: A 9404100031 | ||
| 108 | A 9404100031 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| 110 | N 071412008302 | GREASE NIPPLE |
| 114 | A 3954100142 | BEARING BUSHING |
| 118 | A 0069943141 | LOCK |
| AS REQUIRED | ||
| 2.00 MM | ||
| 118 | A 0069943541 | LOCK |
| AS REQUIRED | ||
| 2.10 MM | ||
| 118 | A 0069943941 | LOCK |
| AS REQUIRED | ||
| 2.20 MM | ||
| A 3954110059 | SEAL RING | |
| PROTECTIVE TUBE | ||
| 105X17 MM | ||
| A 0004110159 | SEAL RING | |
| PROTECTIVE TUBE | ||
| 102.5X22 MM | ||
| 120 | N 071412008101 | GREASE NIPPLE |
| Repalced by: N 071412008102 | ||
| 120 | N 071412008102 | GREASE NIPPLE |
| 122 | A 0029909901 | SCREW |
| Repalced by: A 3959900501 | ||
| 122 | A 3959900501 | SCREW |
| PROPELLER SHAFT TO PROPELLER SHAFT BEARING AND TO REAR AXLE | ||
| 122 | A 3959900501 | SCREW |
| PROPELLER SHAFT TO REAR AXLE | ||
| 124 | N 912004016101 | LOCK WASHER |
| PROPELLER SHAFT TO PROPELLER SHAFT BEARING AND TO REAR AXLE | ||
| 124 | N 912004016101 | LOCK WASHER |
| PROPELLER SHAFT TO REAR AXLE | ||
| 126 | N 000934016013 | NUT |
| Repalced by: N 308673016001 | ||
| 126 | N 308673016001 | NUT |
| PROPELLER SHAFT TO PROPELLER SHAFT BEARING AND TO REAR AXLE | ||
| 126 | N 308673016001 | NUT |
| PROPELLER SHAFT TO REAR AXLE | ||
