Transporto priemonė: 1938; VIN numerio dalis: 693154

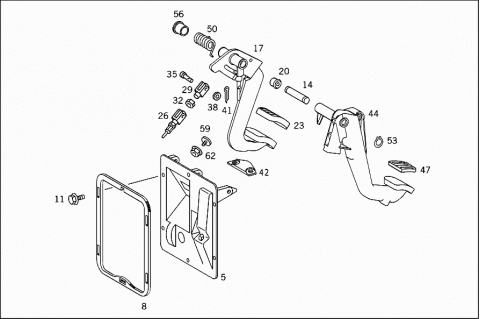

Grupė: 29 PEDAL ASSEMBLY - 090 CLUTCH AND BRAKE PEDAL ASSEMBLY
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 9702940001 | BEARING BRACKET |
| CLUTCH PEDAL AND BRAKE PEDAL | ||
| 005 | A 9702940001 | BEARING BRACKET |
| CLUTCH PEDAL AND BRAKE PEDAL | ||
| 008 | A 9702940080 | GASKET |
| BEARING BRACKET TO FIRE WALL | ||
| 008 | A 9702940080 | GASKET |
| BEARING BRACKET TO FIRE WALL | ||
| 011 | N 910106008022 | SCREW |
| BEARING BRACKET TO FIRE WALL | ||
| M8X20 MM | ||
| 011 | N 910106008022 | SCREW |
| BEARING BRACKET TO FIRE WALL | ||
| M8X20 MM | ||
| 014 | A 9702940274 | PIN |
| CLUTCH AND BRAKE PEDALS TO BEARING BRACKET | ||
| 014 | A 9702940274 | PIN |
| CLUTCH AND BRAKE PEDALS TO BEARING BRACKET | ||
| 017 | A 9702900018 | PEDAL |
| BRAKE | ||
| 017 | A 9702900018 | PEDAL |
| BRAKE | ||
| 020 | A 1242920050 | BUSHING |
| 020 | A 1242920050 | BUSHING |
| 023 | A 2012920082 | PAD |
| 023 | A 2012920082 | PAD |
| 026 | A 9702900039 | ROD |
| 026 | A 9702900039 | ROD |
| 029 | N 071752008002 | YOKE |
| 029 | N 071752008002 | YOKE |
| 032 | N 304032008006 | NUT |
| 032 | N 304032008006 | NUT |
| 035 | A 3852920174 | PIN |
| ROD TO BRAKE PEDAL | ||
| 035 | A 3852920174 | PIN |
| ROD TO BRAKE PEDAL | ||
| 038 | N 000433008403 | WASHER |
| ROD TO BRAKE PEDAL | ||
| 038 | N 000433008403 | WASHER |
| ROD TO BRAKE PEDAL | ||
| 041 | N 000094002059 | COTTER PIN |
| ROD TO BRAKE PEDAL | ||
| 041 | N 000094002059 | COTTER PIN |
| ROD TO BRAKE PEDAL | ||
| 042 | A 9412920145 | PLATE |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 042 | A 9412920145 | PLATE |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 044 | A 9702900516 | PEDAL |
| Repalced by: A 9402900016 | ||
| 044 | A 9402900016 | PEDAL |
| CLUTCH | ||
| 044 | A 9702900516 | PEDAL |
| Repalced by: A 9402900016 | ||
| 044 | A 9402900016 | PEDAL |
| CLUTCH | ||
| 044 | A 9402900016 | PEDAL |
| CLUTCH | ||
| 047 | A 2012910282 | PAD |
| 047 | A 2012910282 | PAD |
| 050 | A 6679930220 | SPRING |
| BRAKE PEDAL RESET | ||
| 050 | A 6679930220 | SPRING |
| BRAKE PEDAL RESET | ||
| 053 | N 000471016001 | LOCK RING |
| CLUTCH AND BRAKE PEDALS TO BEARING BRACKET | ||
| 053 | N 000471016001 | LOCK RING |
| CLUTCH AND BRAKE PEDALS TO BEARING BRACKET | ||
| 056 | A 9702940053 | SPACER TUBE |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 056 | A 9702940053 | SPACER TUBE |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 059 | A 9702920030 | STOP |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 062 | N 913023006002 | NUT |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 062 | N 913023006002 | NUT |
| BRAKE PEDAL TO BEARING BRACKET | ||
