Transporto priemonė: 1938; VIN numerio dalis: 693154

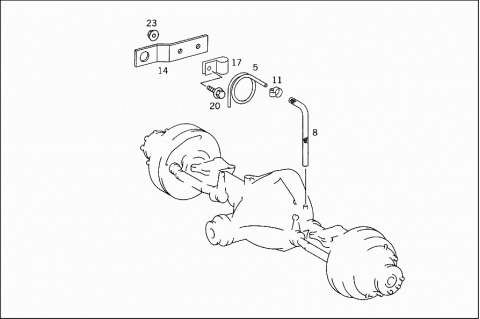

Grupė: 35 REAR AXLE - 030 AXLE BREATHING
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 3443517066 | PIPE |
| 005 | A 3443517066 | PIPE |
| 008 | A 3449977582 | HOSE |
| Repalced by: A 3769978182 | ||
| 008 | A 3769978182 | HOSE |
| 008 | A 3769978182 | HOSE |
| 011 | N 916002010100 | CLAMP |
| 011 | N 916002010100 | CLAMP |
| 014 | A 3845288240 | BRACKET |
| 014 | A 3845288240 | BRACKET |
| 017 | A 3129951401 | CLAMP |
| PIPE TO BRACKET | ||
| 017 | A 3129951401 | CLAMP |
| PIPE TO BRACKET | ||
| 020 | N 910105006004 | SCREW |
| PIPE TO BRACKET | ||
| 020 | N 910105006004 | SCREW |
| PIPE TO BRACKET | ||
| 023 | N 913023006002 | NUT |
| PIPE TO BRACKET | ||
| 023 | N 913023006002 | NUT |
| PIPE TO BRACKET | ||
| 023 | N 913023010002 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 023 | N 910105010011 | HEXAGON HEAD BOLT |
| BRACKET TO SIDE MEMBER | ||
