Transporto priemonė: 1944 LS; VIN numerio dalis: 646592

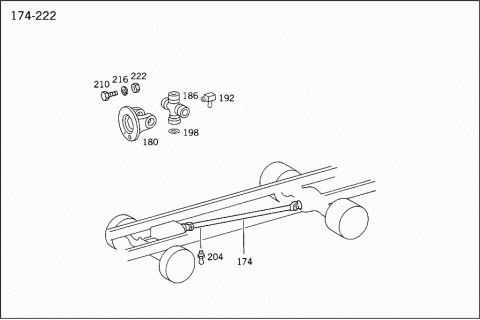

Grupė: 41 PROPELLER SHAFT
| # | Kodas | Pavadinimas |
|---|---|---|
| 174 | A 6204100402 | PROPELLER SHAFT |
| FROM TRANSMISSION TO REAR AXLE | ||
| 1798 MM | ||
| 174 | A 3954103102 | PROPELLER SHAFT |
| FROM TRANSMISSION TO REAR AXLE | ||
| 2105 MM | ||
| 174 | A 6204100102 | PROPELLER SHAFT |
| FROM TRANSMISSION TO REAR AXLE | ||
| 1688 MM | ||
| 174 | A 3954101802 | PROPELLER SHAFT |
| FROM TRANSMISSION TO REAR AXLE | ||
| 1998 MM | ||
| 180 | A 3954110811 | DRIVE FLANGE |
| 186 | A 6204100031 | UNIVERSAL JOINT CROSS |
| Repalced by: A 9404100031 | ||
| 186 | A 9404100031 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| 192 | N 071412008302 | GREASE NIPPLE |
| 198 | A 3634110773 | LOCK |
| Repalced by: A 0069943141 | ||
| 198 | A 0069943141 | LOCK |
| AS REQUIRED | ||
| 2.00 MM | ||
| 198 | A 3634110973 | LOCK |
| Repalced by: A 0069943541 | ||
| 198 | A 0069943541 | LOCK |
| AS REQUIRED | ||
| 2.10 MM | ||
| 198 | A 3634111173 | LOCK |
| Repalced by: A 0069943941 | ||
| 198 | A 0069943941 | LOCK |
| AS REQUIRED | ||
| 2.20 MM | ||
| A 3954110059 | SEAL RING | |
| PROTECTIVE TUBE | ||
| 105X17 MM | ||
| A 0004110159 | SEAL RING | |
| PROTECTIVE TUBE | ||
| 102.5X22 MM | ||
| 204 | N 071412008101 | GREASE NIPPLE |
| Repalced by: N 071412008102 | ||
| 204 | N 071412008102 | GREASE NIPPLE |
| 210 | A 0029909901 | SCREW |
| Repalced by: A 3959900501 | ||
| 210 | A 3959900501 | SCREW |
| PROPELLER SHAFT TO REAR AXLE | ||
| 216 | N 912004016101 | LOCK WASHER |
| PROPELLER SHAFT TO TRANSMISSION AND TO REAR AXLE | ||
| 222 | N 000934016013 | NUT |
| Repalced by: N 308673016001 | ||
| 222 | N 308673016001 | NUT |
| PROPELLER SHAFT TO TRANSMISSION AND TO REAR AXLE | ||
