Transporto priemonė: 2032 S/6X2/4; VIN numerio dalis: 391320
Grupė: 25 CLUTCH
| # | Kodas | Pavadinimas |
|---|---|---|

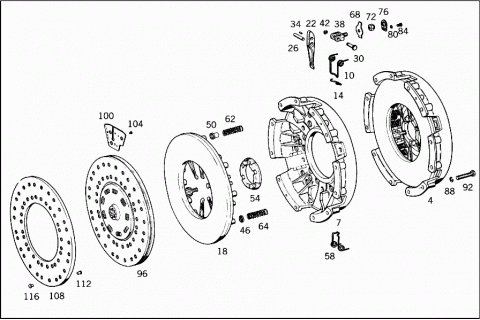

| 004 | A 0022503104 | CLUTCH PRESSURE PLATE |
| Repalced by: A 0032502504 | ||
| 004 | A 0032502504 | CLUTCH PRESSURE PLATE |
| 004 | A 0032500004 | CLUTCH PRESSURE PLATE |
| Repalced by: A 0032502604 | ||
| 004 | A 0032502604 | CLUTCH PRESSURE PLATE |
| Repalced by: A 0032507004 | ||
| 004 | A 0032507004 | CLUTCH PRESSURE PLATE |
| 007 | A 0002520932 | HOUSING |
| 007 | A 0002524232 | HOUSING |
| 010 | A 0002520727 | SPRING |
| SUSPENDED IN CLUTCH PRESSURE PLATE HOUSING | ||
| 010 | A 0002523927 | SPRING |
| SUSPENDED BELOW LEAF SPRING | ||
| 014 | A 0002520929 | CLAMP |
| Repalced by: A 0002523227 | ||
| 014 | A 0002521829 | CLAMP |
| Repalced by: A 0002523227 | ||
| A 0002523412 | PRESSURE PLATE | |
| A 0002523512 | PRESSURE PLATE | |
| 018 | A 0002520412 | PRESSURE PLATE |
| 018 | A 0002524212 | PRESSURE PLATE |
| Repalced by: A 0002524912 | ||
| 018 | A 0002524912 | PRESSURE PLATE |
| 022 | A 0002524613 | RELEASE LEVER |
| 026 | A 0002522116 | SPINDLE |
| Repalced by: A 0002522816 | ||
| 026 | A 0002522816 | SPINDLE |
| FOR BRACKETS | ||
| 026 | A 0002522816 | SPINDLE |
| FOR BRACKETS | ||
| 026 | A 0002523116 | SPINDLE |
| FOR BRACKETS | ||
| 030 | A 0002520616 | SPINDLE |
| FOR RELEASE LEVERS | ||
| 030 | A 0002522216 | SPINDLE |
| FOR RELEASE LEVERS | ||
| 034 | A 0002520118 | ROLLER |
| FOR BEDDING THE LEVERS IN BRACKETS | ||
| 038 | A 0002520614 | BRACKET |
| FOR BEDDING THE LEVERS IN CLUTCH PRESSURE PLATE | ||
| 038 | A 0002520614 | BRACKET |
| FOR BEDDING THE LEVERS IN CLUTCH PRESSURE PLATE | ||
| 038 | A 0002522614 | BRACKET |
| FOR BEDDING THE LEVERS IN CLUTCH PRESSURE PLATE | ||
| 042 | N 006799008005 | LOCK PLATE |
| 8 MM | ||
| 042 | N 006799007007 | LOCK PLATE |
| 7 MM | ||
| 042 | N 006799007007 | LOCK PLATE |
| 7 MM | ||
| 046 | A 0002520024 | INSULATING WASHER |
| 050 | A 0002520535 | SLEEVE |
| 050 | A 0002520535 | SLEEVE |
| 054 | A 0002521345 | FLANGE |
| Repalced by: A 0002522145 | ||
| 054 | A 0002522145 | FLANGE |
| 054 | A 0002521745 | FLANGE |
| Repalced by: A 0002521245 | ||
| 054 | A 0002521245 | FLANGE |
| 058 | A 0002521927 | SPRING |
| Repalced by: A 0002523227 | ||
| 058 | A 0002523227 | SPRING |
| SUSPENDED IN CLUTCH PRESSURE PLATE HOUSING | ||
| 058 | A 0002524027 | SPRING |
| SUSPENDED BELOW LEAF SPRING | ||
| 062 | A 0002524320 | PRESSURE SPRING |
| SPRING STEEL WIRE DIA., | ||
| 3.75 MM | ||
| 062 | A 0002524320 | PRESSURE SPRING |
| SPRING STEEL WIRE DIA., | ||
| 3.75 MM | ||
| 062 | A 0002524320 | PRESSURE SPRING |
| SPRING STEEL WIRE DIA., | ||
| 3.75 MM | ||
| 064 | A 0002524420 | PRESSURE SPRING |
| SPRING STEEL WIRE DIA., | ||
| 4.00 MM | ||
| 064 | A 0002524420 | PRESSURE SPRING |
| SPRING STEEL WIRE DIA., | ||
| 4.00 MM | ||
| 064 | A 0002524420 | PRESSURE SPRING |
| SPRING STEEL WIRE DIA., | ||
| 4.00 MM | ||
| 068 | A 0002520519 | LEAF SPRING |
| THIGH SPRING SUSPENDED IN CLUTCH PRESSURE PLATE HOUSING | ||
| 068 | A 0002523719 | LEAF SPRING |
| THIGH SPRING SUSPENDED BELOW LEAF SPRING | ||
| 072 | A 0002521372 | NUT |
| Repalced by: A 0002523072 | ||
| 072 | A 0002523072 | NUT |
| 076 | A 0002521073 | LOCK |
| 080 | N 912004005103 | LOCK WASHER |
| 084 | N 007985005157 | SCREW |
| 084 | A 0002522971 | SCREW |
| 088 | N 912004010102 | LOCK WASHER |
| CLUTCH TO FLYWHEEL | ||
| 092 | N 000931010268 | SCREW |
| Repalced by: N 304017010050 | ||
| 092 | N 304017010050 | SCREW |
| CLUTCH TO FLYWHEEL | ||
| 092 | N 000931010239 | SCREW |
| CLUTCH TO FLYWHEEL | ||
| 096 | A 0072500903 | CLUTCH DISC |
| ASBESTOS-FREE LINING | ||
| 096 | A 0072501003 | CLUTCH DISC |
| ASBESTOS-FREE LINING | ||
| 096 | A 0022509803 | CLUTCH DISC |
| Repalced by: A 0052506403 | ||
| 096 | A 0052506403 | CLUTCH DISC |
| Repalced by: A 0062504603 | ||
| 096 | A 0062504603 | CLUTCH DISC |
| 096 | A 0052504303 | CLUTCH DISC |
| Repalced by: A 0062504503 | ||
| 096 | A 0062504503 | CLUTCH DISC |
| Repalced by: A 0072500803 | ||
| 096 | A 0072500803 | CLUTCH DISC |
| 096 | A 0072504203 | CLUTCH DISC |
| ASBESTOS-FREE LINING | ||
| 096 | A 0072504303 | CLUTCH DISC |
| ASBESTOS-FREE LINING | ||
| 096 | A 0022509903 | CLUTCH DISC |
| Repalced by: A 0032500003 | ||
| 096 | A 0032500003 | CLUTCH DISC |
| Repalced by: A 0052500103 | ||
| 096 | A 0052500103 | CLUTCH DISC |
| 096 | A 0052500203 | CLUTCH DISC |
| 100 | A 0002520419 | LEAF SPRING |
| Repalced by: A 0002523819 | ||
| 100 | A 0002523819 | LEAF SPRING |
| 100 | A 0002522419 | LEAF SPRING |
| Repalced by: A 0002523319 | ||
| 100 | A 0002523319 | LEAF SPRING |
| Repalced by: A 0002523919 | ||
| 100 | A 0002523919 | LEAF SPRING |
| 104 | A 0002520675 | RIVET |
| Repalced by: A 0002522075 | ||
| 104 | A 0002522075 | RIVET |
| LEAF SPRING TO CLUTCH DISC | ||
| 5X6 MM | ||
| 104 | A 0002523975 | RIVET |
| LEAF SPRING TO CLUTCH DISC | ||
| 6X6 MM | ||
| 108 | A 0012523210 | CLUTCH LINING |
| ASBESTOS-FREE | ||
| 108 | A 0002528310 | CLUTCH LINING |
| Repalced by: A 0012522910 | ||
| 108 | A 0012522910 | CLUTCH LINING |
| 108 | A 0012523310 | CLUTCH LINING |
| Repalced by: A 0012528310 | ||
| 108 | A 0012528310 | CLUTCH LINING |
| Repalced by: A 0022520010 | ||
| 108 | A 0022520010 | CLUTCH LINING |
| ASBESTOS-FREE | ||
| 108 | A 0002527810 | CLUTCH LINING |
| Repalced by: A 0012522010 | ||
| 108 | A 0002528510 | CLUTCH LINING |
| Repalced by: A 0012522010 | ||
| 108 | A 0012522010 | CLUTCH LINING |
| 112 | A 0002520375 | RIVET |
| Repalced by: A 0002521275 | ||
| 112 | A 0002521275 | RIVET |
| Repalced by: A 0002524375 | ||
| 112 | A 0002524375 | RIVET |
| LINING WITH INTERMEDIATE SPRING | ||
| 112 | A 0002522375 | RIVET |
| Repalced by: A 0002523375 | ||
| 112 | A 0002523375 | RIVET |
| Repalced by: A 0002523775 | ||
| 112 | A 0002523775 | RIVET |
| Repalced by: A 0002524675 | ||
| 112 | A 0002524675 | RIVET |
| Repalced by: A 0002524875 | ||
| 112 | A 0002524875 | RIVET |
| LINING WITH INTERMEDIATE SPRING | ||
| 6X5 MM | ||
| 112 | A 0002524875 | RIVET |
| LINING WITH CLUTCH DISC | ||
| TO 005 250 01 03,005 250 02 03 | ||
| 116 | A 0002521475 | RIVET |
| Repalced by: A 0002523875 | ||
| 116 | A 0002523875 | RIVET |
| LINING WITH CLUTCH DISC | ||
| 116 | A 0002522475 | RIVET |
| Repalced by: A 0002524875 | ||
| 116 | A 0002524875 | RIVET |
| LINING WITH CLUTCH DISC | ||
| 6X6 MM,TO 002 250 99 03,003 250 00 03 | ||

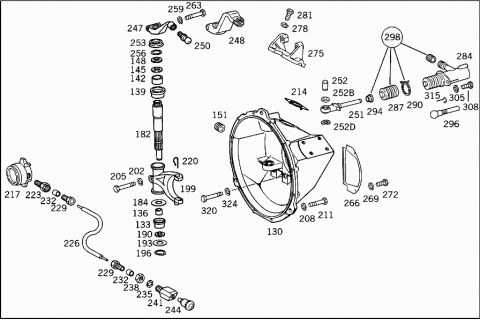

| 130 | A 3852501605 | HOUSING |
| Repalced by: A 3972500305 | ||
| 130 | A 3852501605 | HOUSING |
| Repalced by: A 3972500305 | ||
| 130 | A 3972500305 | HOUSING |
| Repalced by: A 6202501205 | ||
| 130 | A 6202501205 | HOUSING |
| CLUTCH | ||
| 133 | A 3432510150 | BUSHING |
| BOTTOM | ||
| 136 | A 3439920103 | BUSHING |
| TOP | ||
| 139 | A 3852510250 | BUSHING |
| Repalced by: A 3852510450 | ||
| 139 | A 3852510450 | BUSHING |
| Repalced by: A 6202510050 | ||
| 139 | A 6202510050 | BUSHING |
| TOP | ||
| 142 | A 3389920103 | BUSHING |
| TOP | ||
| 145 | A 3859970040 | SEAL RING |
| TOP | ||
| 145 | A 3859970040 | SEAL RING |
| TOP | ||
| 145 | A 0119978846 | SEAL RING |
| TOP | ||
| 145 | A 0099971547 | SEAL RING |
| TOP | ||
| 148 | A 3852930027 | COVER PLATE |
| TOP | ||
| 148 | A 3852930027 | COVER PLATE |
| TOP | ||
| 151 | A 3852510083 | PLUG |
| Repalced by: A 6202510383 | ||
| 151 | A 6202510383 | PLUG |
| BELL HOUSING | ||
| 182 | A 3852540507 | SHAFT |
| Repalced by: A 3895860025 | ||
| A 3895860025 | REPAIR KIT | |
| Repalced by: A 3892500014 | ||
| A 3892500014 | SHAFT | |
| Repalced by: A 3852500014 | ||
| A 3852500014 | SHAFT | |
| (PARTS KIT),RELEASE SHAFT | ||
| 184 | A 3172930177 | WASHER |
| AS REQUIRED | ||
| 0.80 MM | ||
| 184 | A 3172930277 | WASHER |
| AS REQUIRED | ||
| 0.90 MM | ||
| 184 | A 3172930377 | WASHER |
| AS REQUIRED | ||
| 1.00 MM | ||
| 184 | A 3172930477 | WASHER |
| AS REQUIRED | ||
| 1.10 MM | ||
| 184 | A 3172930577 | WASHER |
| AS REQUIRED | ||
| 1.20 MM | ||
| 184 | A 3172930677 | WASHER |
| AS REQUIRED | ||
| 1.30 MM | ||
| 190 | A 3379975040 | SEAL RING |
| BOTTOM | ||
| 193 | A 3432930052 | SPACER WASHER |
| BOTTOM | ||
| 196 | N 000471024000 | LOCK RING |
| BOTTOM | ||
| 199 | A 3372540208 | RELEASE LEVER |
| Repalced by: A 6202540108 | ||
| 199 | A 6202540108 | RELEASE LEVER |
| 202 | N 912004012100 | LOCK WASHER |
| RELEASE YOKE TO SHAFT | ||
| 205 | N 000931012033 | SCREW |
| Repalced by: N 000933012102 | ||
| 205 | N 000933012102 | SCREW |
| RELEASE YOKE TO SHAFT | ||
| 208 | N 912004010102 | LOCK WASHER |
| BELL HOUSING TO TIMING GEAR CASE | ||
| 211 | N 000931010264 | SCREW |
| BELL HOUSING TO TIMING GEAR CASE | ||
| N 000125010518 | WASHER | |
| Repalced by: N 000125010532 | ||
| N 000125010532 | WASHER | |
| BELL HOUSING TO TIMING GEAR CASE | ||
| 214 | A 3852500155 | COVER |
| BELL HOUSING | ||
| 217 | A 0002501915 | RELEASE BEARING |
| Repalced by: A 0002507415 | ||
| 217 | A 0002502515 | RELEASE BEARING |
| Repalced by: A 0002507415 | ||
| 217 | A 0002507415 | RELEASE BEARING |
| 217 | A 0002507715 | RELEASE BEARING |
| 220 | A 3179930225 | SPRING |
| RELEASE COLLAR TO RELEASE YOKE | ||
| A 6209970288 | GREASE NIPPLE | |
| (PARTS KIT) RELEASE BEARING LUBRICATION | ||
| 223 | N 071428004102 | SCREW-IN FITTING |
| RELEASE BEARING LUBRICATION | ||
| 226 | A 3859970582 | HOSE |
| RELEASE BEARING LUBRICATION | ||
| 229 | N 003871004102 | UNION SCREW |
| RELEASE BEARING LUBRICATION | ||
| 232 | N 003862004001 | DOUBLE TAPER RING |
| RELEASE BEARING LUBRICATION | ||
| 235 | N 912004014100 | LOCK WASHER |
| RELEASE BEARING LUBRICATION | ||
| 238 | N 000936014010 | NUT |
| Repalced by: N 308675014000 | ||
| 238 | N 308675014000 | NUT |
| Repalced by: N 308675014002 | ||
| 238 | N 308675014002 | NUT |
| RELEASE BEARING LUBRICATION | ||
| 241 | A 3872510108 | INTERMEDIATE PIECE |
| Repalced by: A 6209970088 | ||
| 241 | A 6209970088 | GREASE NIPPLE |
| RELEASE BEARING LUBRICATION | ||
| 244 | N 003411002001 | GREASE CUP |
| Repalced by: A 6209880135 | ||
| 244 | A 6209880135 | CAP |
| RELEASE BEARING LUBRICATION | ||
| 247 | A 3852950628 | LEVER |
| Repalced by: A 6202900534 | ||
| 248 | A 3072950228 | LEVER |
| CLUTCH ACTUATION | ||
| A 6202900534 | LEVER | |
| (PARTS KIT),CLUTCH ACTUATION | ||
| 250 | A 3029910115 | BALL PIVOT |
| CLUTCH ACTUATION | ||
| 251 | A 0009966440 | ROD END |
| CLUTCH ACTUATION | ||
| 252 | A 3072560074 | PIN |
| CLUTCH ACTUATION | ||
| 252B | A 0019970041 | SEAL RING |
| Repalced by: A 0019972141 | ||
| 252B | A 0019972141 | SEAL RING |
| CLUTCH ACTUATION | ||
| 252D | N 000471012001 | LOCK RING |
| CLUTCH ACTUATION | ||
| 253 | A 3852540576 | WASHER |
| Repalced by: A 6202540176 | ||
| 253 | A 6202540176 | WASHER |
| LEVER TO RELEASE SHAFT | ||
| 253 | A 6202500155 | COVER |
| LEVER TO RELEASE SHAFT | ||
| 256 | A 0029972948 | SEAL RING |
| LEVER TO RELEASE SHAFT | ||
| 259 | N 912004010102 | LOCK WASHER |
| LEVER TO RELEASE SHAFT | ||
| 263 | N 304017010030 | SCREW |
| LEVER TO RELEASE SHAFT | ||
| 266 | A 3852510110 | COVER PLATE |
| Repalced by: A 3852510210 | ||
| 266 | A 3852510210 | COVER PLATE |
| Repalced by: A 0002510283 | ||
| A 0002510283 | PLUG | |
| BELL HOUSING | ||
| A 0002510183 | PLUG | |
| BELL HOUSING | ||
| 269 | N 912004008102 | LOCK WASHER |
| COVER PLATE TO BELL HOUSING | ||
| 272 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 272 | N 304017008016 | SCREW |
| COVER PLATE TO BELL HOUSING | ||
| 275 | A 3852950340 | BRACKET |
| Repalced by: A 3072950840 | ||
| 275 | A 3852951740 | BRACKET |
| Repalced by: A 3072950840 | ||
| 275 | A 3072950840 | BRACKET |
| CLUTCH ACTUATION | ||
| 278 | N 912004010102 | LOCK WASHER |
| BRACKET TO BELL HOUSING | ||
| 281 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 281 | N 304017010002 | SCREW |
| BRACKET TO BELL HOUSING | ||
| A 0002957907 | SLAVE CYLINDER | |
| Repalced by: A 0012950307 | ||
| 284 | A 0012950307 | SLAVE CYLINDER |
| Repalced by: A 0012955307 | ||
| 284 | A 0012955307 | SLAVE CYLINDER |
| Repalced by: A 0012958807 | ||
| 284 | A 0012958807 | SLAVE CYLINDER |
| Repalced by: A 0022950407 | ||
| 284 | A 0022950407 | SLAVE CYLINDER |
| CLUTCH ACTUATION | ||
| 287 | A 0002952683 | BOOT |
| Repalced by: A 0005863129 | ||
| 290 | A 0002950673 | LOCK |
| A 0004310265 | VALVE | |
| Repalced by: A 3075530107 | ||
| A 3075530107 | VALVE | |
| CLUTCH SLAVE CYLINDER | ||
| 294 | A 0004212687 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 294 | A 3164210187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 294 | A 0004210887 | PROTECTIVE CAP |
| Repalced by: A 0004217187 | ||
| 294 | A 0004217187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 294 | A 0004210887 | PROTECTIVE CAP |
| CLUTCH SLAVE CYLINDER | ||
| 296 | A 0002950974 | PIN |
| CLUTCH SLAVE CYLINDER | ||
| 298 | A 0005863129 | REPAIR KIT |
| Repalced by: A 0002900911 | ||
| 298 | A 0002900911 | REPAIR KIT |
| CLUTCH SLAVE CYLINDER | ||
| 305 | N 912004010102 | LOCK WASHER |
| CLUTCH SLAVE CYLINDER TO BRACKET | ||
| 308 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 308 | N 304017010002 | SCREW |
| CLUTCH SLAVE CYLINDER TO BRACKET | ||
| N 071805019301 | SNAP RING | |
| CLUTCH SLAVE CYLINDER TO LEVER | ||
| 315 | N 071805019402 | SECURING CLIP |
| Repalced by: N 073130019300 | ||
| 315 | N 073130019300 | SNAP RING |
| CLUTCH SLAVE CYLINDER TO LEVER | ||
| 320 | N 000960018111 | SCREW |
| BELL HOUSING TO TRANSMISSION | ||
| 324 | N 912004018101 | LOCK WASHER |
| BELL HOUSING TO TRANSMISSION | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
