Transporto priemonė: 2032 S/6X2/4; VIN numerio dalis: 391320
Grupė: 31 FRAME

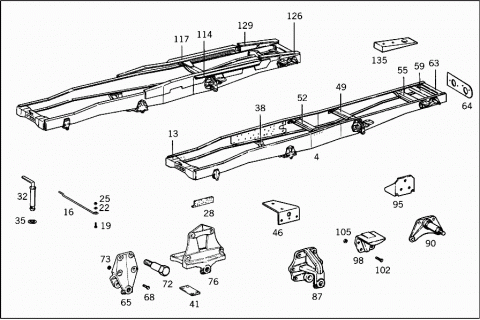

29275

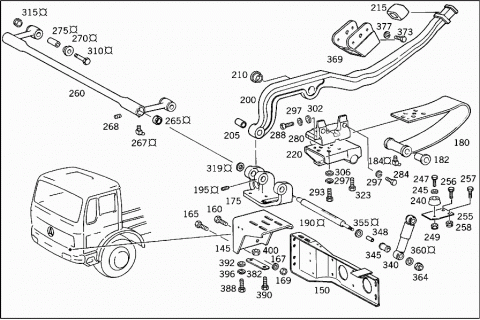

29276

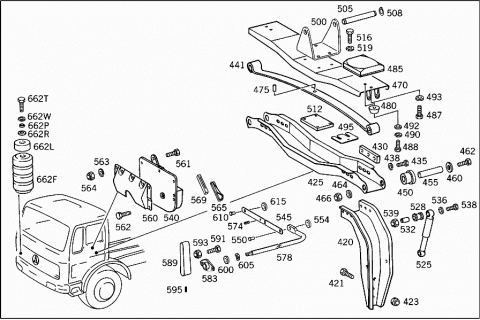

29277

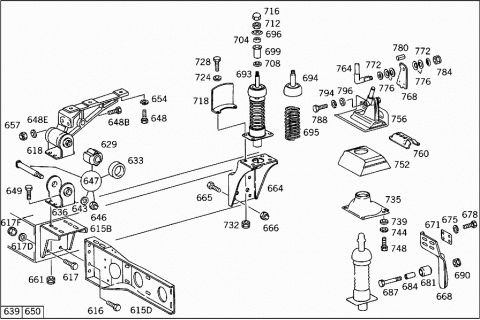

29278

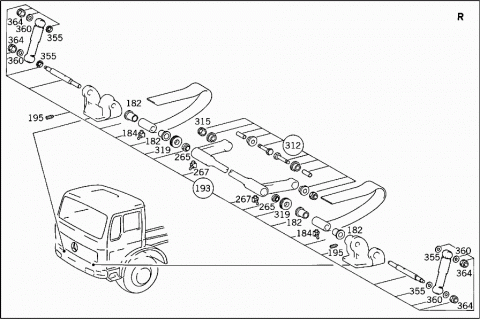

29279
# Kodas Pavadinimas
004 A 3913100001 FRAME
013 A 3873100422 CROSS MEMBER
FRONT
016 A 3353150031 LOCKING SPRING
COUPLING PIN
019 N 000933008153 SCREW
Repalced by: N 304017008034
019 N 304017008034 SCREW
LOCK SPRING TO CROSS MEMBER
022 N 000125008418 WASHER
Repalced by: N 000125008443
022 N 000125008443 WASHER
LOCK SPRING TO CROSS MEMBER
025 N 913004008004 NUT
Repalced by: N 913004008001
025 N 913004008001 NUT
LOCK SPRING TO CROSS MEMBER
028 A 3873122087 GUSSET PLATE
LEFT
A 3873122187 GUSSET PLATE
Repalced by: A 6203120987
A 6203120987 GUSSET PLATE
RIGHT
N 000961012097 SCREW
Repalced by: N 308676012026
N 308676012026 SCREW
CROSS MEMBER AND GUSSET PLATE TO SIDE MEMBERS
N 000125013008 WASHER
N 910113012002 NUT
CROSS MEMBER AND GUSSET PLATE TO SIDE MEMBERS
032 A 3873150006 COUPLING PIN
032 A 3873150006 COUPLING PIN
A 3873150106 COUPLING PIN
035 A 0009874346 SEALING CORD
COUPLING MOUTH
038 A 3873120510 CROSS MEMBER
Repalced by: A 3873100027
038 A 3873100027 CROSS MEMBER
FRONT SPRING REAR BRACKET
NO.2
041 A 3873120084 SHIM
Repalced by: A 6203121984
041 A 6203121984 SHIM
AT CROSS MEMBER
N 000961014054 SCREW
CROSS MEMBER WITH SHIM TO FRONT SPRING REAR BRACKET
M 14X45
N 000961014100 SCREW
CROSS MEMBER WITH SHIM TO FRONT SPRING REAR BRACKET
M 14X30
N 000961014100 SCREW
CROSS MEMBER WITH SHIM TO FRONT SPRING REAR BRACKET
M 14X30
N 912004014100 LOCK WASHER
CROSS MEMBER WITH SHIM TO FRONT SPRING REAR BRACKET
N 913004014002 NUT
Repalced by: N 910113014001
N 910113014001 NUT
CROSS MEMBER WITH SHIM TO FRONT SPRING REAR BRACKET
046 A 3875420640 BRACKET
HORN
049 A 3913100037 CROSS MEMBER
NO.3
A 3873120025 CROSS MEMBER
A 3913120161 STRUT
AT CROSS MEMBER
A 0039900901 SCREW
Repalced by: A 0029908201
A 0029908201 SCREW
STRUT TO CROSS MEMBER
N 913004012009 NUT
Repalced by: N 910113012003
N 910113012003 NUT
STRUT TO CROSS MEMBER
052 A 3873100036 CROSS MEMBER
NO.4
N 000961012164 SCREW
CROSS MEMBER TO SIDE MEMBERS
M 12X28
N 000961014100 SCREW
CROSS MEMBER TO SIDE MEMBERS
M 14X30
N 910113012002 NUT
CROSS MEMBER TO SIDE MEMBERS
N 913004014002 NUT
Repalced by: N 910113014001
N 910113014001 NUT
CROSS MEMBER TO SIDE MEMBERS
055 A 3913100137 CROSS MEMBER
NO.5
059 A 3873100437 CROSS MEMBER
NO.6
N 000961012164 SCREW
SHOCK ABSORBER CROSS MEMBER TO SIDE MEMBERS
N 910113012002 NUT
SHOCK ABSORBER CROSS MEMBER TO SIDE MEMBERS
A 3873120035 CROSS MEMBER
Repalced by: A 3933100246
A 3933100046 CROSS MEMBER
Repalced by: A 3933100246
063 A 3933100246 CROSS MEMBER
Repalced by: A 3873120735
063 A 3873120735 CROSS MEMBER
REAR
064 A 3875440438 BRACKET
ELECTRIC CABLE TO REAR CROSS MEMBER
065 A 3873220301 FRONT SPRING BRACKET
FRONT
068 N 000961016077 SCREW
Repalced by: N 308676016006
068 N 308676016006 SCREW
FRONT SPRING BRACKET TO SIDE MEMBER
M 16X45
072 A 3879900114 SCREW
FRONT SPRING BRACKET TO SIDE MEMBER
M 16X45
A 3879900214 SCREW
FRONT SPRING BRACKET TO SIDE MEMBER
M 16X55
073 N 913004016005 NUT
Repalced by: N 910113016001
073 N 910113016001 NUT
FRONT SPRING BRACKET TO SIDE MEMBER
076 A 3873220503 FRONT SPRING BRACKET
REAR
N 000960014229 SCREW
FRONT SPRING REAR BRACKET TO SIDE MEMBER
M 14X55
N 000961014101 SCREW
Repalced by: N 308676014012
N 308676014012 SCREW
FRONT SPRING REAR BRACKET TO SIDE MEMBER
M 14X45
N 913004014005 NUT
Repalced by: N 910113014000
N 910113014000 NUT
FRONT SPRING REAR BRACKET TO SIDE MEMBER
A 3873220301 FRONT SPRING BRACKET
FRONT AXLE II
N 000961016100 SCREW
Repalced by: N 308676016020
N 308676016020 SCREW
FRONT SPRING BRACKET TO SIDE MEMBER
M 16X35
N 000960016023 SCREW
FRONT SPRING BRACKET TO SIDE MEMBER
M 16X55
N 913004016005 NUT
Repalced by: N 910113016001
N 910113016001 NUT
FRONT SPRING BRACKET TO SIDE MEMBER
087 A 3913250001 REAR SPRING BRACKET
CROSS MEMBER,LEFT
NO.5
A 3913250002 REAR SPRING BRACKET
CROSS MEMBER,RIGHT
NO.5
N 000961016097 SCREW
Repalced by: N 308676016005
N 308676016005 SCREW
LEFT AND RIGHT REAR SPRING BRACKETS TO FRAME
M 16X50
N 000961016077 SCREW
Repalced by: N 308676016006
N 308676016006 SCREW
LEFT AND RIGHT REAR SPRING BRACKETS TO FRAME
M 16X45
N 000960016047 SCREW
LEFT AND RIGHT REAR SPRING BRACKETS TO FRAME
M 16X70
N 913004016005 NUT
Repalced by: N 910113016001
N 910113016001 NUT
LEFT AND RIGHT REAR SPRING BRACKETS TO FRAME
090 A 3353250603 REAR SPRING BRACKET
REAR
095 A 3913220031 PLATE
FOR SPRING
N 000961014100 SCREW
STOP TO SIDE MEMBER
N 913004014002 NUT
Repalced by: N 910113014001
N 910113014001 NUT
STOP TO SIDE MEMBER
098 A 3893250117 HELPER SPRING BRACKET
Repalced by: A 6843250017
098 A 6843250017 HELPER SPRING BRACKET
FRONT AND REAR
102 N 000961012097 SCREW
Repalced by: N 308676012026
102 N 308676012026 SCREW
HELPER SPRING BRACKET TO SIDE MEMBER
105 N 910113012002 NUT
HELPER SPRING BRACKET TO SIDE MEMBER
A 3913160001 SIDE MEMBER
AUXILIARY FRAME,LEFT
A 3913160002 SIDE MEMBER
AUXILIARY FRAME,RIGHT
114 A 3913160052 ANGLE
AUXILIARY FRAME,LEFT
117 A 3913160152 ANGLE
AUXILIARY FRAME,RIGHT
N 000961012097 SCREW
Repalced by: N 308676012026
N 308676012026 SCREW
AUXILIARY FRAME TO FRAME
N 000961014028 SCREW
AUXILIARY FRAME TO FRAME
N 910113012002 NUT
AUXILIARY FRAME TO FRAME
N 913004014002 NUT
Repalced by: N 910113014001
N 910113014001 NUT
AUXILIARY FRAME TO FRAME
126 A 3913100263 CONSOLE
AUXILIARY FRAME,LEFT
129 A 3913100363 CONSOLE
AUXILIARY FRAME,RIGHT
N 000961012097 SCREW
Repalced by: N 308676012026
N 308676012026 SCREW
LEFT AND RIGHT CONSOLES TO FRAME
M 12X30
N 000961014088 SCREW
Repalced by: N 308676014008
N 308676014008 SCREW
LEFT AND RIGHT CONSOLES TO FRAME
M 14X35
N 000961012151 SCREW
LEFT AND RIGHT CONSOLES TO FRAME
M 12X35
N 910113012002 NUT
LEFT AND RIGHT CONSOLES TO FRAME
N 913004014002 NUT
Repalced by: N 910113014001
N 910113014001 NUT
LEFT AND RIGHT CONSOLES TO FRAME
N 912004012101 LOCK WASHER
LEFT AND RIGHT CONSOLES TO FRAME
180 N 910113012002 NUT
LEFT AND RIGHT CONSOLES TO FRAME
N 912004014100 LOCK WASHER
LEFT AND RIGHT CONSOLES TO FRAME
135 A 3873160150 CONSOLE
SADDLE PLATE
N 000961012097 SCREW
Repalced by: N 308676012026
N 308676012026 SCREW
SADDLE PLATE CONSOLE TO SIDE MEMBER
N 912004012100 LOCK WASHER
SADDLE PLATE CONSOLE TO SIDE MEMBER
N 910113012002 NUT
SADDLE PLATE CONSOLE TO SIDE MEMBER
N 000961012164 SCREW
CROSS MEMBER TO SIDE MEMBERS, TOP
N 910113012002 NUT
CROSS MEMBER TO SIDE MEMBERS, TOP
N 000961014100 SCREW
CROSS MEMBER TO SIDE MEMBERS,BOTTOM RIGHT
N 913004014002 NUT
Repalced by: N 910113014001
N 910113014001 NUT
CROSS MEMBER TO SIDE MEMBERS,BOTTOM RIGHT
X XXXXXXXXXXXX PART NAME MISSING
MOUNTING USED FOR FRAME CONNECTION PARTS
Y YYYYYYYYYYYY PART NAME MISSING
DIMENSIONS ARE INDICATED IN THE FOLLOWING ORDER:
Y YYYYYYYYYYYY PART NAME MISSING
THREAD X SHANK DIA. X SHANK LENGTH X TOTAL LENGTH
Y YYYYYYYYYYYY PART NAME MISSING
N 000609010004 FITTED SCREW
M 10X11X14X28
N 000610010003 FITTED SCREW
M 10X11X25X38
N 000609010014 FITTED SCREW
M 10X11X24X40
A 3859900514 SCREW
M 10X11X26,5X46
Y YYYYYYYYYYYY PART NAME MISSING
A 3859900714 SCREW
M 12X12X10X25
A 3859901414 SCREW
M 12X12X11X26
A 0039900901 SCREW
Repalced by: A 0029908201
A 0029908201 SCREW
M 12X12X12X28
A 3859901514 SCREW
M 12X12X13X28
A 0029908201 SCREW
M 12X12X14X30
A 3859902114 SCREW
M 12X12X15X30
A 0029908301 SCREW
Repalced by: N 308676012013
N 308676012013 SCREW
M 12X12X16X32
A 3859902214 SCREW
M 12X12X17X32
Y YYYYYYYYYYYY PART NAME MISSING
A 6209900114 SCREW
M 12X13X12X29
A 3969900314 SCREW
M 12X13X13X30
A 3589901914 SCREW
M 12X13X15X32
A 3559900014 SCREW
M 12X13X18X35
A 3589900614 SCREW
M 12X13X21X38
A 6179900114 SCREW
M 12X13X23X40
A 6249900014 SCREW
M 12X13X25X42
A 3859900214 SCREW
M 12X13X35X52
A 6689900114 SCREW
M 12X13X58X80
A 6689900014 SCREW
M 12X13X63X85
Y YYYYYYYYYYYY PART NAME MISSING
A 3859900814 SCREW
Repalced by: A 3229903101
A 3229903101 SCREW
M 14X14X18X32
A 3859902014 SCREW
M 14X14X18X34
A 3559900114 SCREW
M 12X14X13X35
A 3219901601 SCREW
M 14X14X17X35
A 3219901901 SCREW
M 14X14X22X40
A 3559900501 SCREW
M 14X14X24X42
A 3409900201 SCREW
M 14X14X27X45
A 3609902001 SCREW
M 14X14X32X50
Y YYYYYYYYYYYY PART NAME MISSING
A 3589900114 SCREW
M 14X15X15X32
A 3589900814 SCREW
M 14X15X17X34
A 6459900014 SCREW
M 14X15X18X35
A 3589901014 SCREW
M 14X15X19X36
A 3589900214 SCREW
M 14X15X21X38
A 3589900414 SCREW
M 14X15X25X42
A 3589900714 SCREW
M 14X15X27X44
A 3589900914 SCREW
M 14X15X29X46
A 3859900414 SCREW
M 14X15X31X48
A 3859900314 SCREW
M 14X15X35X52
Y YYYYYYYYYYYY PART NAME MISSING
A 3859900914 SCREW
Repalced by: N 308676016020
N 308676016020 SCREW
M 16X16X18X36
A 3859901714 SCREW
M 16X16X20X38
A 3859901014 SCREW
M 16X16X22X40
A 3859901114 SCREW
M 16X16X24X42
A 0029909901 SCREW
Repalced by: A 3959900501
A 3959900501 SCREW
M 16X16X20X45
A 3859901814 SCREW
M 16X16X30X48
A 3859901914 SCREW
M 16X16X32X50
A 6259900301 SCREW
M 16X16X38X90
Y YYYYYYYYYYYY PART NAME MISSING
A 3589900514 SCREW
M 16X17X22X42
A 6459900714 SCREW
M 16X17X24X44
A 3609900114 SCREW
M 16X17X28X48
Y YYYYYYYYYYYY PART NAME MISSING
A 3469900014 SCREW
M 16X18X18X40
A 3859902314 SCREW
M 18X18X23X45
A 6209900014 SCREW
M 16X18X26X48
A 3469900114 SCREW
M 16X18X31X50
A 3859902414 SCREW
M 18X18X33X55
A 6229900014 SCREW
M 16X18X38X60
A 3919900014 SCREW
M 16X18X63X85
Y YYYYYYYYYYYY PART NAME MISSING
N 000610018004 FITTED SCREW
M 18X19X25X45
N 000610018009 FITTED SCREW
M 18X19X33X55
N 000610018006 FITTED SCREW
M 18X19X38X60
N 000609018000 FITTED SCREW
M 18X19X57X85
Y YYYYYYYYYYYY PART NAME MISSING
N 913004010011 NUT
N 913004012009 NUT
Repalced by: N 910113012003
N 910113012003 NUT
N 913004014005 NUT
Repalced by: N 910113014000
N 910113014000 NUT
N 913004016005 NUT
Repalced by: N 910113016001
N 910113016001 NUT
N 913004018004 NUT
Y YYYYYYYYYYYY PART NAME MISSING
N 910005012080 RIVET
12X42 MM
N 910005012087 RIVET
12X58 MM
N 910005014056 RIVET
14X45 MM
N 910005014059 RIVET
14X50 MM
N 000961012097 SCREW
Repalced by: N 308676012026
N 308676012026 SCREW
FRONT CROSS MEMBER TO SIDE MEMBERS
N 910113012002 NUT
FRONT CROSS MEMBER TO SIDE MEMBERS
145 A 3878910531 CONSOLE
Repalced by: A 3878912631
145 A 3878912631 CONSOLE
CAB TO FRAME
150 A 3873100153 STRUT
BUMPER,LEFT
A 3873100253 STRUT
BUMPER,RIGHT
160 N 000961014063 SCREW
Repalced by: A 9429901304
160 A 9429901304 SCREW
CONSOLE AND STRUT TO FRAME
M 14X40
165 N 000961014101 SCREW
Repalced by: N 308676014012
165 N 308676014012 SCREW
CONSOLE AND STRUT TO FRAME
M 14X45
167 N 000125015013 WASHER
Repalced by: N 000125015019
167 N 000125015019 WASHER
CONSOLE AND STRUT TO FRAME
169 N 913004014001 NUT
CONSOLE AND STRUT TO FRAME
N 000961014050 SCREW
Repalced by: N 308676014020
N 308676014020 SCREW
FRONT CROSS MEMBER TO SIDE MEMBERS
N 913004014002 NUT
Repalced by: N 910113014001
N 910113014001 NUT
FRONT CROSS MEMBER TO SIDE MEMBERS
175 A 3878913720 MOUNTING
CAB SUSPENSION,FRONT LEFT
A 3878913820 MOUNTING
CAB SUSPENSION,FRONT RIGHT
A 3878900505 SPRING
Repalced by: A 3878910551
180 A 3878910551 SPRING
CAB SUSPENSION,FRONT
182 A 3638910617 BUSHING
CAB SUSPENSION,FRONT
184 N 071412008200 GREASE NIPPLE
CAB SUSPENSION,FRONT
190 A 3873170574 PIN
Repalced by: A 3875860231
193 A 3875860231 REPAIR KIT
Repalced by: A 3873100177
193 A 3873100177 REPAIR KIT
CAB SUSPENSION,FRONT
A 3873170674 PIN
Repalced by: A 3875860131
193 A 3875860131 REPAIR KIT
Repalced by: A 3873100077
193 A 3873100077 REPAIR KIT
CAB SUSPENSION,FRONT
195 N 000417008004 HEADLESS SETSCREW
PIN TO BEARING
A 3878911156 LEVER
Repalced by: A 3878912556
200 A 3878912156 LEVER
Repalced by: A 3878912556
200 A 3878912556 LEVER
(TILTING LEVER),CAB
A 3878911256 LEVER
Repalced by: A 3876202856
A 3878912256 LEVER
Repalced by: A 3878912856
A 3878912456 LEVER
Repalced by: A 3878912856
A 3878912856 LEVER
(TILTING LEVER),CAB
205 A 3879920003 BUSHING
LEVER TO BEARING BRACKET
A 3879920203 BUSHING
LEVER TO BEARING BRACKET
210 A 0009817231 JOINT BEARING
Repalced by: A 6208910017
210 A 0019810431 JOINT BEARING
Repalced by: A 6208910017
210 A 0019810531 JOINT BEARING
Repalced by: A 6208910017
210 A 6208910017 BUSHING
(TILTING LEVER),CAB
215 A 3638910023 BUFFER
(TILTING LEVER),CAB
A 3878903903 MOUNTING
Repalced by: A 3878905303
220 A 3878905303 MOUNTING
STABILIZER,LEFT
A 3878904003 MOUNTING
Repalced by: A 3878905603
A 3878905603 MOUNTING
RIGHT STABILIZER
A 3878910123 BUFFER
Repalced by: A 3348910072
240 A 3348910072 MOUNTING
(RUBBER MOUNTING),IN BRACKET ON FRAME
245 N 009021008205 WASHER
Repalced by: N 009021008213
245 N 009021008213 WASHER
BUFFER TO BRACKET
247 N 000933008153 SCREW
Repalced by: N 304017008034
247 N 304017008034 SCREW
BUFFER TO BRACKET
249 N 913004008004 NUT
Repalced by: N 913004008001
249 N 913004008001 NUT
BUFFER TO BRACKET
255 A 3878910914 BRACKET
FRONT RUBBER MOUNTING TO FRAME
256 N 000961012097 SCREW
Repalced by: N 308676012026
256 N 308676012026 SCREW
BUFFER TO BRACKET
M 12X35
257 N 000961012151 SCREW
BUFFER TO BRACKET
M 12X30
258 N 910113012002 NUT
BUFFER TO BRACKET
A 3878900704 STABILIZER
Repalced by: A 3878900404
260 A 3878900404 STABILIZER
CAB SUSPENSION,REAR
265 A 0009810731 JOINT BEARING
Repalced by: A 0009817231
265 A 0009810931 JOINT BEARING
Repalced by: A 0009817331
265 A 0009817331 JOINT BEARING
Repalced by: A 0009817231
265 A 0009817231 JOINT BEARING
Repalced by: A 0019814631
265 A 0019814631 JOINT BEARING
STABILIZER
A 0019814831 JOINT BEARING
STABILIZER
267 N 071412008200 GREASE NIPPLE
STABILIZER
268 N 000906010000 SCREW PLUG
STABILIZER
270 A 3878910272 MOUNTING
Repalced by: A 3875860531
275 A 3878910717 BUSHING
Repalced by: A 3875860531
280 A 3878910831 CONSOLE
Repalced by: A 6208910631
280 A 6208910631 CONSOLE
CAB SUSPENSION,FRONT LEFT
A 3878910931 CONSOLE
Repalced by: A 6208910731
A 6208910731 CONSOLE
CAB SUSPENSION,FRONT RIGHT
284 N 000961012069 SCREW
Repalced by: N 308676012015
284 N 308676012015 SCREW
LEFT AND RIGHT BEARING BRACKETS TO CAB
M 12X45
288 N 006912012013 SCREW
LEFT AND RIGHT CONSOLES TO CAB
M 12X30
293 N 000961014054 SCREW
LEFT AND RIGHT CONSOLES TO CAB
M 14X45
297 N 912004012100 LOCK WASHER
LEFT AND RIGHT CONSOLES TO CAB
302 A 3609900940 WASHER
LEFT AND RIGHT CONSOLES TO CAB
306 N 007349015003 WASHER
LEFT AND RIGHT CONSOLES TO CAB
310 A 3878910957 PIN
Repalced by: A 3875860531
312 A 3875860531 REPAIR KIT
CAB FRONT SUSPENSION STABILIZER
315 N 913004014002 NUT
Repalced by: N 910113014001
315 N 910113014001 NUT
STABILIZER TO BEARING BRACKET
319 A 3878911910 WASHER
LEFT AND RIGHT BEARING BRACKETS TO CAB
323 N 000961014028 SCREW
LEFT AND RIGHT BEARING BRACKETS TO CAB
M 14X40
N 000933008153 SCREW
Repalced by: N 304017008034
N 304017008034 SCREW
LEFT AND RIGHT BEARING BRACKETS TO CAB
M 8X25
N 913004008004 NUT
Repalced by: N 913004008001
N 913004008001 NUT
LEFT AND RIGHT BEARING BRACKETS TO CAB
N 000961014050 SCREW
Repalced by: N 308676014020
N 308676014020 SCREW
LEFT AND RIGHT BEARING BRACKETS TO CAB
N 912004014100 LOCK WASHER
LEFT AND RIGHT BEARING BRACKETS TO CAB
340 A 0008911405 SHOCK ABSORBER
CAB SUSPENSION,FRONT
340 A 0008911605 SHOCK ABSORBER
CAB SUSPENSION,FRONT
340 A 0008911905 SHOCK ABSORBER
Repalced by: A 0008911805
340 A 0008911805 SHOCK ABSORBER
CAB SUSPENSION,FRONT
345 A 0008910101 RUBBER MOUNTING
Repalced by: A 0008910001
345 A 0008910001 RUBBER MOUNTING
345 A 0008910401 RUBBER MOUNTING
Repalced by: A 0008910501
345 A 0008910501 RUBBER MOUNTING
348 A 0008910217 BUSHING
Repalced by: A 0008910117
348 A 0008910117 BUSHING
348 A 0008910317 BUSHING
Repalced by: A 0008910617
348 A 0008910617 BUSHING
355 A 3873170076 WASHER
BEARING BRACKET TO CAB
355 A 3873170176 WASHER
Repalced by: A 6203170176
355 A 6203170176 WASHER
SHOCK ABSORBER TO CONSOLE AND TO CAB
360 N 000125010518 WASHER
Repalced by: N 000125010532
360 N 000125010532 WASHER
SHOCK ABSORBER TO CONSOLE AND TO CAB
360 A 3873170276 WASHER
Repalced by: N 000125013008
360 N 000125013008 WASHER
364 N 913004010008 NUT
Repalced by: N 910113010000
364 N 910113010000 NUT
SHOCK ABSORBER TO CONSOLE AND TO CAB
364 N 910113012002 NUT
SHOCK ABSORBER TO CONSOLE AND TO CAB
369 A 3878913220 MOUNTING
Repalced by: A 6208901603
369 A 6208901603 MOUNTING
TILTING LEVER TO CAB SIDE MEMBER
373 N 000933010105 SCREW
MOUNTING TO CAB
377 N 912004010102 LOCK WASHER
MOUNTING TO CAB
382 A 3878910098 SHIM
Repalced by: A 3878910498
382 A 3878910498 SHIM
388 N 000961014088 SCREW
Repalced by: N 308676014008
388 N 308676014008 SCREW
CAB CONSOLE TO SIDE MEMBER
M 14X35
390 N 000960014229 SCREW
CAB CONSOLE TO SIDE MEMBER
M 14X55
392 N 007349015003 WASHER
CAB CONSOLE TO SIDE MEMBER
396 N 912004014100 LOCK WASHER
CAB CONSOLE TO SIDE MEMBER
400 N 913004014001 NUT
CAB CONSOLE TO SIDE MEMBER
420 A 3878911031 CONSOLE
CAB MOUNTING,REAR
421 N 000961014050 SCREW
Repalced by: N 308676014020
421 N 308676014020 SCREW
CONSOLE TO SIDE MEMBER
423 N 913004014002 NUT
Repalced by: N 910113014001
423 N 910113014001 NUT
CONSOLE TO SIDE MEMBER
425 A 3878910024 STRUT
Repalced by: A 6558910224
425 A 6558910224 STRUT
CAB MOUNTING,REAR
430 A 3878910198 SHIM
STRUT TO CONSOLE
435 N 000961012052 SCREW
Repalced by: N 308676012012
435 N 308676012012 SCREW
STRUT TO CONSOLE
438 N 912004012101 LOCK WASHER
STRUT TO CONSOLE
441 A 3878910651 SPRING
Repalced by: A 3878911051
441 A 3878911051 SPRING
CAB
450 A 3638910717 BUSHING
LEAF SPRING TO CAB
455 A 3638910218 TUBE
LEAF SPRING TO CAB
460 A 3638910010 WASHER
LEAF SPRING TO CAB
462 N 000960012153 SCREW
LEAF SPRING TO CAB
464 N 009021013200 WASHER
LEAF SPRING TO CAB
466 N 910113012002 NUT
LEAF SPRING TO CAB
470 A 3878900222 RAIL
CAB SUSPENSION,REAR
475 N 000007012225 CYLINDRICAL PIN
480 A 3638910123 BUFFER
Repalced by: A 3878910323
480 A 3878910323 BUFFER
(CONNECTING RAIL)
485 A 3878910072 MOUNTING
(CONNECTING RAIL)
487 N 000084008119 SCREW
BUFFER AND MOUNTING TO RAIL
M 8X20
488 N 000933008154 SCREW
Repalced by: N 304017008021
488 N 304017008021 SCREW
BUFFER AND MOUNTING TO RAIL
M 8X22
490 N 912004008102 LOCK WASHER
BUFFER AND MOUNTING TO RAIL
492 N 000433008406 WASHER
BUFFER AND MOUNTING TO RAIL
493 N 000125008418 WASHER
Repalced by: N 000125008443
493 N 000125008443 WASHER
BUFFER AND MOUNTING TO RAIL
495 A 3878910298 SHIM
BUFFER AND MOUNTING TO RAIL
A 3638910520 MOUNTING
Repalced by: A 3878918120
500 A 3878918120 MOUNTING
CAB LOCKING MECHANISM
505 A 3638910457 PIN
CAB LOCKING MECHANISM
508 N 000471025002 LOCK RING
PIN TO BEARING
512 A 3878910811 PLATE
LEAF SPRING
516 N 000931010258 SCREW
LEAF SPRING TO BEARING BRACKET
519 N 912004010102 LOCK WASHER
LEAF SPRING TO BEARING BRACKET
525 A 0008911405 SHOCK ABSORBER
CAB SUSPENSION,REAR
525 A 0008911605 SHOCK ABSORBER
CAB SUSPENSION,REAR
528 A 0008910101 RUBBER MOUNTING
Repalced by: A 0008910001
528 A 0008910001 RUBBER MOUNTING
532 A 0008910217 BUSHING
Repalced by: A 0008910117
532 A 0008910117 BUSHING
536 A 3878911610 WASHER
SHOCK ABSORBER
538 N 000960014145 SCREW
SHOCK ABSORBER TO RAIL
M 14X130
N 000960014236 SCREW
SHOCK ABSORBER TO RAIL
M14X55
539 N 913004014002 NUT
Repalced by: N 910113014001
539 N 910113014001 NUT
SHOCK ABSORBER TO RAIL
540 A 0008900089 FASTENER
Repalced by: A 0008902389
540 A 0008901389 FASTENER
Repalced by: A 0008902389
540 A 0008902389 FASTENER
CENTRAL LOCK TO CAB
545 A 3878910070 ROD
CENTRAL LOCK TO CAB
550 N 001434008059 PIN
PULL TO FASTENER
554 N 000433008406 WASHER
PULL TO FASTENER
N 000094002059 COTTER PIN
PULL TO FASTENER
560 A 3878911131 CONSOLE
CENTRAL LOCK
561 N 000933010128 SCREW
CENTRAL LOCK TO CAB
M 10X20
562 N 000933010105 SCREW
CENTRAL LOCK TO CAB
M 10X25
563 N 912004010102 LOCK WASHER
CENTRAL LOCK TO CAB
564 N 913004010008 NUT
Repalced by: N 910113010000
564 N 910113010000 NUT
CENTRAL LOCK TO CAB
N 000125010518 WASHER
Repalced by: N 000125010532
N 000125010532 WASHER
CENTRAL LOCK TO CAB
565 A 3878910814 BRACKET
ROD THRU CAB
569 A 3878910085 SEAL
ROD THRU CAB
574 N 007346005003 CLAMPING SLEEVE
CAB LOCKING MECHANISM
578 A 3878911456 LEVER
CAB LOCKING MECHANISM
583 A 3638910317 BUSHING
LEVER TO CAB
589 A 3638910073 HANDLE
Repalced by: A 6208910073
589 A 6208910073 HANDLE
CAB LOCKING MECHANISM
591 N 007985008142 SCREW
LEVER AND BUSHING TO CAB
593 N 913004008004 NUT
Repalced by: N 913004008001
593 N 913004008001 NUT
LEVER AND BUSHING TO CAB
595 N 007346005004 CLAMPING SLEEVE
Repalced by: N 001481005039
595 N 001481005039 CLAMPING SLEEVE
LEVER
600 N 000125015013 WASHER
Repalced by: N 000125015019
600 N 000125015019 WASHER
LEVER
605 N 900055014400 LOCK RING
LEVER
610 N 001434008057 PIN
LEVER
615 N 000433008406 WASHER
LEVER
N 000094002059 COTTER PIN
LEVER
A 3815840038 GUMMED LABEL
GUIDE TO CAB LOCKING MECHANISM
A 3878910531 CONSOLE
Repalced by: A 3878912631
A 3878912631 CONSOLE
CAB MOUNTING,FRONT
A 3878912631 CONSOLE
CAB MOUNTING,FRONT
615B A 3878912631 CONSOLE
CAB MOUNTING,FRONT
615B A 3878912631 CONSOLE
CAB MOUNTING,FRONT
615D A 3873170423 STRUT
CAB MOUNTING,FRONT
615D A 3873170423 STRUT
CAB MOUNTING,FRONT
616 N 000961014101 SCREW
Repalced by: N 308676014012
616 N 308676014012 SCREW
STRUT TO FRAME
M14X45
616 N 308676014012 SCREW
STRUT TO FRAME
M14X45
617 N 000961014063 SCREW
Repalced by: A 9429901304
617 A 9429901304 SCREW
STRUT TO FRAME
M14X40
617 A 9429901304 SCREW
STRUT TO FRAME
M14X40
617D N 000125015013 WASHER
Repalced by: N 000125015019
617D N 000125015019 WASHER
STRUT TO FRAME
617D N 000125015019 WASHER
STRUT TO FRAME
617F N 913004014005 NUT
Repalced by: N 910113014000
617F N 910113014000 NUT
STRUT TO FRAME
617F N 910113014000 NUT
STRUT TO FRAME
618 A 3813106509 BRACKET
CAB SUSPENSION,FRONT LEFT
618 A 3813106509 BRACKET
CAB SUSPENSION,FRONT LEFT
A 3813106609 BRACKET
CAB SUSPENSION,FRONT RIGHT
A 3813106609 BRACKET
CAB SUSPENSION,FRONT RIGHT
629 A 3813171512 RUBBER BUFFER
CAB SUSPENSION,FRONT
633 A 3813171412 RUBBER BUFFER
CAB SUSPENSION,FRONT
636 A 3878902903 MOUNTING
CAB SUSPENSION,FRONT
636 A 3878902903 MOUNTING
CAB SUSPENSION,FRONT
639 A 3813172174 PIN
643 N 007349017002 WASHER
CAB SUSPENSION,FRONT
643 N 007349017002 WASHER
CAB SUSPENSION,FRONT
646 N 913004016004 NUT
Repalced by: N 910113016002
646 N 910113016002 NUT
CAB SUSPENSION,FRONT
646 N 910113016002 NUT
CAB SUSPENSION,FRONT
647 A 3815860031 REPAIR KIT
CAB SUSPENSION,FRONT
647 A 3815860031 REPAIR KIT
CAB SUSPENSION,FRONT
648 N 000961014028 SCREW
LEFT AND RIGHT BEARING BRACKETS TO CAB
M14X40
648 N 000961014028 SCREW
LEFT AND RIGHT BEARING BRACKETS TO CAB
M14X40
648B N 000961014064 SCREW
LEFT AND RIGHT BEARING BRACKETS TO CAB
M 14X50
648B N 000961014064 SCREW
LEFT AND RIGHT BEARING BRACKETS TO CAB
M 14X50
648E A 3209901840 WASHER
LEFT AND RIGHT BEARING BRACKETS TO CAB
648E A 3209901840 WASHER
LEFT AND RIGHT BEARING BRACKETS TO CAB
649 N 000961014063 SCREW
Repalced by: A 9429901304
649 A 9429901304 SCREW
CAB TO FRAME
M14X40
649 A 9429901304 SCREW
CAB TO FRAME
M14X40
N 000961014101 SCREW
Repalced by: N 308676014012
N 308676014012 SCREW
CAB TO FRAME
M14X45
N 308676014012 SCREW
CAB TO FRAME
M14X45
650 A 3878910698 SHIM
654 N 912004014100 LOCK WASHER
LEFT AND RIGHT BEARING BRACKETS TO CAB
654 N 912004014100 LOCK WASHER
LEFT AND RIGHT BEARING BRACKETS TO CAB
657 N 913004014002 NUT
Repalced by: N 910113014001
657 N 910113014001 NUT
LEFT AND RIGHT BEARING BRACKETS TO CAB
657 N 910113014001 NUT
LEFT AND RIGHT BEARING BRACKETS TO CAB
661 N 913004014005 NUT
Repalced by: N 910113014000
661 N 910113014000 NUT
CAB TO FRAME
661 N 910113014000 NUT
CAB TO FRAME
662F A 3638910223 BUFFER
(HOLLOW RUBBER SPRING),CAB
662L A 3638910047 FLANGE
HOLLOW RUBBER SPRING TO CAB
662P A 3638910517 BUSHING
HOLLOW RUBBER SPRING TO CAB
A 3878911710 WASHER
Repalced by: A 3878912210
A 3878912210 WASHER
Repalced by: A 4432610076
A 4432610076 WASHER
HOLLOW RUBBER SPRING TO CAB
20 MM
662R A 3878912210 WASHER
Repalced by: A 4432610076
662R A 4432610076 WASHER
HOLLOW RUBBER SPRING TO CAB
10 MM
662R A 4432610076 WASHER
HOLLOW RUBBER SPRING TO CAB
10 MM
N 000931010282 SCREW
HOLLOW RUBBER SPRING TO CAB
M 10X40
662T N 000933010129 SCREW
Repalced by: N 304017010002
662T N 304017010002 SCREW
HOLLOW RUBBER SPRING TO CAB
M 10X30
662W N 912004010102 LOCK WASHER
HOLLOW RUBBER SPRING TO CAB
664 A 3873170001 CONSOLE
Repalced by: A 6553170001
664 A 6553170001 CONSOLE
Repalced by: A 3873170001
664 A 3873170001 CONSOLE
CAB
664 A 3873170001 CONSOLE
CAB
665 N 000961012097 SCREW
Repalced by: N 308676012026
665 N 308676012026 SCREW
CONSOLE TO SIDE MEMBER
665 N 308676012026 SCREW
CONSOLE TO SIDE MEMBER
666 N 910113012002 NUT
CONSOLE TO SIDE MEMBER
666 N 910113012002 NUT
CONSOLE TO SIDE MEMBER
668 A 3873170626 GUIDE
LEFT
668 A 3873170626 GUIDE
LEFT
A 3873170726 GUIDE
RIGHT
A 3873170726 GUIDE
RIGHT
671 A 3873170084 SHIM
GUIDE TO CAB
671 A 3873170084 SHIM
GUIDE TO CAB
675 N 912004012100 LOCK WASHER
GUIDE TO CAB
675 N 912004012100 LOCK WASHER
GUIDE TO CAB
678 N 000960012301 SCREW
GUIDE TO CAB
678 N 000960012301 SCREW
GUIDE TO CAB
681 A 3813170750 BUSHING
LATERAL GUIDE OF CAB
681 A 3813170750 BUSHING
LATERAL GUIDE OF CAB
684 A 3813170553 SPACER TUBE
LEFT AND RIGHT BUSHINGS TO FENDER BRACKETS
684 A 3813170553 SPACER TUBE
LEFT AND RIGHT BUSHINGS TO FENDER BRACKETS
687 N 000960012230 SCREW
LEFT AND RIGHT BUSHINGS TO FENDER BRACKETS
687 N 000960012230 SCREW
LEFT AND RIGHT BUSHINGS TO FENDER BRACKETS
690 N 910113012002 NUT
LEFT AND RIGHT BUSHINGS TO FENDER BRACKETS
690 N 910113012002 NUT
LEFT AND RIGHT BUSHINGS TO FENDER BRACKETS
693 A 3878901619 SHOCK ABSORBER
Repalced by: A 3878901319
693 A 3878901319 SHOCK ABSORBER
CAB SUSPENSION,REAR
693 A 3878901319 SHOCK ABSORBER
CAB SUSPENSION,REAR
693 A 3878901319 SHOCK ABSORBER
CAB SUSPENSION,REAR
693 A 3878901319 SHOCK ABSORBER
CAB SUSPENSION,REAR
694 A 0008910201 RUBBER MOUNTING
694 A 0008910201 RUBBER MOUNTING
694 A 0008910301 RUBBER MOUNTING
694 A 0008910301 RUBBER MOUNTING
695 A 0008910751 SPRING
Repalced by: A 0008910451
695 A 0008910451 SPRING
695 A 0008910451 SPRING
696 A 3878912010 WASHER
SHOCK ABSORBER
696 A 3878912010 WASHER
SHOCK ABSORBER
699 A 3813170753 SPACER TUBE
SHOCK ABSORBER
699 A 3813170753 SPACER TUBE
SHOCK ABSORBER
704 A 3275045082 RUBBER RING
SHOCK ABSORBER
704 A 3275045082 RUBBER RING
SHOCK ABSORBER
708 N 000433015005 WASHER
SHOCK ABSORBER
708 N 000433015005 WASHER
SHOCK ABSORBER
712 N 000934012022 NUT
SHOCK ABSORBER
712 N 000934012022 NUT
SHOCK ABSORBER
716 N 001587012008 CAP NUT
Repalced by: N 001587012010
716 N 001587012010 CAP NUT
SHOCK ABSORBER
716 N 001587012010 CAP NUT
SHOCK ABSORBER
718 A 3813170031 COVER PLATE
SHOCK ABSORBER
718 A 3813170031 COVER PLATE
SHOCK ABSORBER
724 N 009021008205 WASHER
Repalced by: N 009021008213
724 N 009021008213 WASHER
SHOCK ABSORBER TO CONSOLE
724 N 009021008213 WASHER
SHOCK ABSORBER TO CONSOLE
728 N 000933008153 SCREW
Repalced by: N 304017008034
728 N 304017008034 SCREW
SHOCK ABSORBER TO CONSOLE
728 N 304017008034 SCREW
SHOCK ABSORBER TO CONSOLE
732 N 913004008004 NUT
Repalced by: N 913004008001
732 N 913004008001 NUT
SHOCK ABSORBER TO CONSOLE
732 N 913004008001 NUT
SHOCK ABSORBER TO CONSOLE
735 A 3813176140 BRACKET
Repalced by: A 3813177840
735 A 3813177840 BRACKET
VIBRATION ABSORBER TO CAB,LEFT
735 A 3813177840 BRACKET
VIBRATION ABSORBER TO CAB,LEFT
735 A 3813176240 BRACKET
Repalced by: A 3813177940
735 A 3813177940 BRACKET
VIBRATION ABSORBER TO CAB,RIGHT
735 A 3813177940 BRACKET
VIBRATION ABSORBER TO CAB,RIGHT
739 N 000125010518 WASHER
Repalced by: N 000125010532
739 N 000125010532 WASHER
BRACKET AND BOOT TO SIDE MEMBER
739 N 000125010532 WASHER
BRACKET AND BOOT TO SIDE MEMBER
744 N 912004010102 LOCK WASHER
BRACKET AND BOOT TO SIDE MEMBER
744 N 912004010102 LOCK WASHER
BRACKET AND BOOT TO SIDE MEMBER
748 N 000933010105 SCREW
BRACKET AND BOOT TO SIDE MEMBER
748 N 000933010105 SCREW
BRACKET AND BOOT TO SIDE MEMBER
752 A 3813170097 BOOT
RETAINER
752 A 3813170097 BOOT
RETAINER
756 A 3813102075 LOCKING MECHANISM
CAB,LEFT
756 A 3813102075 LOCKING MECHANISM
CAB,LEFT
A 3813101975 LOCKING MECHANISM
CAB, RIGHT
A 3813101975 LOCKING MECHANISM
CAB, RIGHT
760 A 3813170119 LATCH
CAB LOCKING MECHANISM
760 A 3813170119 LATCH
CAB LOCKING MECHANISM
764 A 3813172374 PIN
CAB LOCKING MECHANISM
764 A 3813172374 PIN
CAB LOCKING MECHANISM
768 A 3813170924 LEVER
CAB LOCKING MECHANISM
768 A 3813170924 LEVER
CAB LOCKING MECHANISM
772 A 3813170676 WASHER
CAB LOCKING MECHANISM
772 A 3813170676 WASHER
CAB LOCKING MECHANISM
776 A 0009935426 DISC SPRING
CAB LOCKING MECHANISM
776 A 0009935426 DISC SPRING
CAB LOCKING MECHANISM
780 N 001481006041 CLAMPING SLEEVE
CAB LOCKING MECHANISM
780 N 001481006041 CLAMPING SLEEVE
CAB LOCKING MECHANISM
784 N 910113012002 NUT
CAB LOCKING MECHANISM
784 N 910113012002 NUT
CAB LOCKING MECHANISM
788 N 000933010105 SCREW
LOCKING MECHANISM TO CAB
788 N 000933010105 SCREW
LOCKING MECHANISM TO CAB
794 N 912004010102 LOCK WASHER
LOCKING MECHANISM TO CAB
794 N 912004010102 LOCK WASHER
LOCKING MECHANISM TO CAB
796 N 000125010518 WASHER
Repalced by: N 000125010532
796 N 000125010532 WASHER
LOCKING MECHANISM TO CAB
796 N 000125010532 WASHER
LOCKING MECHANISM TO CAB
Reklama
Kontaktai
Pasiūlymas
Skaitliukas



© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
