Transporto priemonė: 2032 S/6X2/4; VIN numerio dalis: 391320

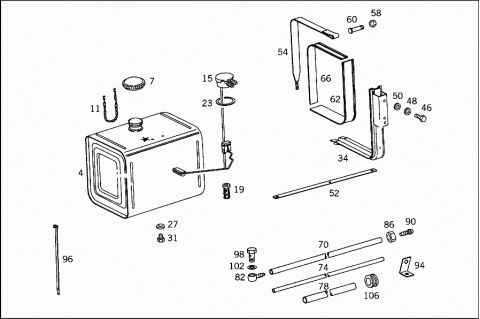

Grupė: 47 FUEL SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 004 | A 3874701201 | FUEL TANK |
| Repalced by: A 3874701001 | ||
| 004 | A 3874701001 | FUEL TANK |
| 300 L | ||
| A 3914700201 | FUEL TANK | |
| Repalced by: A 3914700101 | ||
| A 3914700101 | FUEL TANK | |
| 300 L | ||
| 007 | A 0004718030 | FILLER CAP |
| Repalced by: A 0004700305 | ||
| 007 | A 0004710530 | FILLER CAP |
| Repalced by: A 0004717930 | ||
| 007 | A 0004717930 | FILLER CAP |
| Repalced by: A 0004700305 | ||
| 007 | A 0004700305 | FILLER CAP |
| 007 | A 0004700105 | FILLER CAP |
| Repalced by: A 0004700305 | ||
| A 3049970340 | SEAL RING | |
| 011 | A 3034700031 | CHAIN |
| A 0035426917 | SENDER UNIT | |
| Repalced by: A 0045423817 | ||
| A 0045421717 | SENDER UNIT | |
| Repalced by: A 0045423817 | ||
| 015 | A 0045423817 | SENDER UNIT |
| Repalced by: A 0055423917 | ||
| 015 | A 0055423917 | SENDER UNIT |
| Repalced by: A 0085428117 | ||
| 015 | A 0085428117 | SENDER UNIT |
| FUEL GAUGE | ||
| A 0045421117 | SENDER UNIT | |
| Repalced by: A 0045423917 | ||
| A 0045421817 | SENDER UNIT | |
| Repalced by: A 0045423917 | ||
| A 0045423917 | SENDER UNIT | |
| Repalced by: A 0055424017 | ||
| A 0055424017 | SENDER UNIT | |
| Repalced by: A 0085428217 | ||
| A 0085428217 | SENDER UNIT | |
| FUEL GAUGE | ||
| A 0009970920 | EXPANSION PLUG | |
| FUEL GAUGE SENDER UNIT | ||
| TO 004 542 38 17,004 542 39 17 | ||
| N 916026010000 | CLAMP | |
| Repalced by: N 000000000665 | ||
| N 000000000665 | CLAMP | |
| FUEL LINE TO SENDER UNIT | ||
| A 0004710135 | FUEL STRAINER | |
| Repalced by: A 0004710235 | ||
| 019 | A 0004710235 | FUEL STRAINER |
| 023 | A 0119970745 | SEAL RING |
| FUEL GAUGE SENDER UNIT TO FUEL TANK | ||
| 027 | N 007603014405 | SEAL RING |
| AT TANK | ||
| 031 | N 007604014106 | SCREW PLUG |
| Repalced by: N 007604014110 | ||
| 031 | N 007604014110 | SCREW PLUG |
| AT TANK | ||
| 034 | A 3914700142 | SUPPORT |
| FUEL TANK | ||
| A 3914700242 | SUPPORT | |
| Repalced by: A 6574700442 | ||
| A 6574700442 | SUPPORT | |
| Repalced by: A 6574700542 | ||
| A 6574700542 | SUPPORT | |
| FUEL TANK | ||
| A 3664750503 | CONSOLE | |
| Repalced by: A 3634700342 | ||
| A 3634700342 | SUPPORT | |
| FUEL TANK | ||
| 046 | N 000961014028 | SCREW |
| FUEL TANK TO SUPPORT | ||
| N 000961014050 | SCREW | |
| Repalced by: N 308676014020 | ||
| N 308676014020 | SCREW | |
| FUEL TANK TO SUPPORT | ||
| 048 | N 912004014100 | LOCK WASHER |
| FUEL TANK TO SUPPORT | ||
| N 913004014002 | NUT | |
| Repalced by: N 910113014001 | ||
| N 910113014001 | NUT | |
| FUEL TANK TO SUPPORT | ||
| 050 | N 000125015013 | WASHER |
| Repalced by: N 000125015019 | ||
| 050 | N 000125015019 | WASHER |
| FUEL TANK TO SUPPORT | ||
| 052 | A 3914750026 | REINFORCEMENT |
| FUEL TANK TO SUPPORT | ||
| A 3664750026 | REINFORCEMENT | |
| FUEL TANK TO SUPPORT | ||
| N 000961012151 | SCREW | |
| REINFORCEMENT TO SUPPORT | ||
| N 000125013008 | WASHER | |
| N 910113012002 | NUT | |
| REINFORCEMENT TO SUPPORT | ||
| 054 | A 3464705340 | STRAP |
| FOR FUEL TANK | ||
| A 3914700040 | STRAP | |
| Repalced by: A 3464705340 | ||
| A 3464705340 | STRAP | |
| FOR FUEL TANK | ||
| 058 | N 000934012022 | NUT |
| STRAP TO SUPPORT | ||
| 060 | N 001443016200 | PIN |
| STRAP TO SUPPORT | ||
| N 000094004049 | COTTER PIN | |
| STRAP TO SUPPORT | ||
| A 3634750420 | PAD | |
| Repalced by: A 3634750120 | ||
| 062 | A 3634750120 | PAD |
| FUEL TANK TO SUPPORT | ||
| A 3634750520 | PAD | |
| Repalced by: A 3634750320 | ||
| 066 | A 3634750320 | PAD |
| FUEL TANK TO SUPPORT | ||
| 070 | A 0089975482 | HOSE |
| FEED LINE AND RETURN LINE 8X11 MM | ||
| 074 | A 0089979082 | HOSE |
| FUEL TANK BREATHING | ||
| 4X6 MM | ||
| A 3054760126 | HOSE | |
| FEED LINE AND RETURN LINE | ||
| A 0029978790 | CLIP | |
| FEED LINE AND RETURN LINE | ||
| 078 | N 040621011200 | INSULATING HOSE |
| FEED | ||
| 082 | N 915052008016 | BANJO UNION |
| FEED | ||
| 086 | N 915017010200 | UNION NUT |
| Repalced by: N 915017010201 | ||
| 086 | N 915017010201 | UNION NUT |
| RETURN | ||
| A 3879900078 | CONNECTOR | |
| Repalced by: N 915062008000 | ||
| N 915062008000 | SLEEVE | |
| FEED LINE AND RETURN LINE | ||
| 090 | A 0019974972 | FITTING |
| RETURN | ||
| 094 | A 3874760136 | BRACKET |
| Repalced by: A 6454310740 | ||
| 094 | A 6454310740 | BRACKET |
| FUEL LINES | ||
| 094 | A 6454310740 | BRACKET |
| FUEL LINES | ||
| A 3854760036 | BRACKET | |
| Repalced by: A 6205240340 | ||
| A 6205240340 | BRACKET | |
| FUEL LINES | ||
| N 000933008153 | SCREW | |
| Repalced by: N 304017008034 | ||
| N 304017008034 | SCREW | |
| FUEL LINE TO ENGINE SUPPORT | ||
| N 913004008004 | NUT | |
| Repalced by: N 913004008001 | ||
| N 913004008001 | NUT | |
| FUEL LINE TO ENGINE SUPPORT | ||
| 096 | A 0019978490 | LOOM TIE |
| FUEL LINES | ||
| 376 MM | ||
| A 0019978390 | LOOM TIE | |
| FUEL LINES | ||
| 280 MM | ||
| 098 | N 915011008103 | HOLLOW SCREW |
| Repalced by: N 915036010100 | ||
| 098 | N 915036010204 | HOLLOW SCREW |
| Repalced by: N 915036010108 | ||
| 098 | N 915036010108 | HOLLOW SCREW |
| FUEL LINE TO FEED PUMP | ||
| 102 | N 007603014405 | SEAL RING |
| FUEL LINE TO FEED PUMP | ||
| 106 | A 4069975081 | GROMMET |
| FUEL LINE THRU FRAME SIDE MEMBER | ||
