Transporto priemonė: 2032 S/6X2/4; VIN numerio dalis: 391320

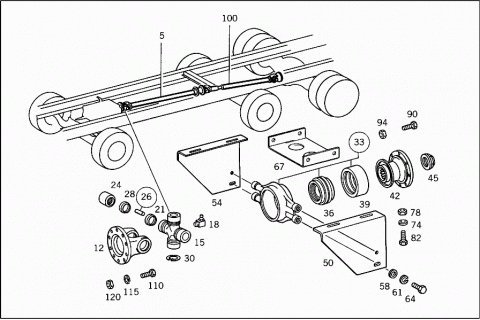

Grupė: 41 PROPELLER SHAFT
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 3874103804 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE SHAFT BEARING | ||
| 1118 MM | ||
| 005 | A 3914100304 | PROPELLER SHAFT |
| Repalced by: A 3874109304 | ||
| 005 | A 3874109304 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE SHAFT BEARING | ||
| 824 MM | ||
| 012 | A 3874110011 | DRIVE FLANGE |
| Repalced by: A 3894110511 | ||
| 012 | A 3894110511 | DRIVE FLANGE |
| 012 | A 3874110111 | DRIVE FLANGE |
| Repalced by: A 3894110611 | ||
| 012 | A 3894110611 | DRIVE FLANGE |
| 015 | A 3634100631 | UNIVERSAL JOINT CROSS |
| Repalced by: A 6204100131 | ||
| 015 | A 6204100131 | UNIVERSAL JOINT CROSS |
| Repalced by: A 0004100231 | ||
| 015 | A 0004100231 | UNIVERSAL JOINT CROSS |
| Repalced by: A 0004101628 | ||
| 015 | A 0004101628 | UNIVERSAL JOINT |
| Repalced by: A 9424100131 | ||
| 015 | A 9424100131 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| 018 | N 071412008302 | GREASE NIPPLE |
| 021 | A 3634110033 | EXPANSION PLUG |
| 024 | A 3874100042 | BEARING BUSHING |
| A 0009818287 | NEEDLE | |
| Repalced by: A 3959810087 | ||
| 026 | A 3959810087 | NEEDLE |
| SET = 164 PIECES | ||
| TO 363 410 06 31;36.25 MM | ||
| 028 | A 3634110080 | GASKET |
| 030 | A 3634110173 | LOCK |
| Repalced by: A 0069941941 | ||
| 030 | A 0069941941 | LOCK |
| AS REQUIRED | ||
| 2.00 MM | ||
| 030 | A 3634110573 | LOCK |
| Repalced by: A 0069942341 | ||
| 030 | A 0069942341 | LOCK |
| AS REQUIRED | ||
| 2.10 MM | ||
| 030 | A 3634111373 | LOCK |
| Repalced by: A 0069942741 | ||
| 030 | A 0069942741 | LOCK |
| AS REQUIRED | ||
| 2.20 MM | ||
| A 3894130161 | PROTECTIVE CAP | |
| A 3894130361 | PROTECTIVE CAP | |
| 033 | A 3634130001 | HOUSING |
| Repalced by: A 3875860041 | ||
| A 3875860041 | REPAIR KIT | |
| Repalced by: A 3874100010 | ||
| 033 | A 3874100010 | REPAIR KIT |
| FROM PROPELLER SHAFT BEARING TO REAR AXLE | ||
| A 3894100122 | INTERMEDIATE BEARING | |
| Repalced by: A 3894100222 | ||
| A 3894100222 | INTERMEDIATE BEARING | |
| Repalced by: A 6544100022 | ||
| A 6544100022 | INTERMEDIATE BEARING | |
| 036 | A 3634100151 | BALL BEARING |
| 036 | A 0029819625 | BALL BEARING |
| 036 | A 0029819725 | BALL BEARING |
| N 912009110200 | SNAP RING | |
| A 3894130261 | PROTECTIVE CAP | |
| 039 | A 3634130012 | RUBBER MOUNTING |
| A 6544110052 | SPACER WASHER | |
| 042 | A 3874100030 | CENTERING FLANGE |
| 042 | A 3954100030 | CENTERING FLANGE |
| Repalced by: A 3894110146 | ||
| 042 | A 3894100030 | CENTERING FLANGE |
| Repalced by: A 3894110146 | ||
| 042 | A 3894110146 | FLANGE |
| PLEASE REFER TO ADDITIONAL PARTS | ||
| A 3874130061 | PROTECTIVE CAP | |
| A 3894130161 | PROTECTIVE CAP | |
| A 3894130361 | PROTECTIVE CAP | |
| 045 | A 3663530072 | NUT |
| Repalced by: A 3853510672 | ||
| 045 | A 3853510672 | NUT |
| FOLLOWER FLANGE TO PROPELLER SHAFT | ||
| A 3894110162 | THRUST WASHER | |
| FOLLOWER FLANGE TO PROPELLER SHAFT | ||
| A 3839900019 | SCREW | |
| FOLLOWER FLANGE TO PROPELLER SHAFT | ||
| A 3894130442 | BRACKET | |
| Repalced by: A 6204132642 | ||
| A 6204132642 | BRACKET | |
| LEFT | ||
| A 3894130542 | BRACKET | |
| Repalced by: A 6204132742 | ||
| A 6204132742 | BRACKET | |
| RIGHT | ||
| 050 | A 3874131542 | BRACKET |
| Repalced by: A 6204132042 | ||
| 050 | A 6204132042 | BRACKET |
| LEFT | ||
| 054 | A 3874131642 | BRACKET |
| Repalced by: A 6204132142 | ||
| 054 | A 6204132142 | BRACKET |
| RIGHT | ||
| 058 | A 6739900640 | WASHER |
| Repalced by: A 3879900040 | ||
| 058 | A 3879900040 | WASHER |
| Repalced by: N 007349013003 | ||
| 058 | N 007349013005 | WASHER |
| BRACKET TO HOUSING | ||
| 061 | N 912004012100 | LOCK WASHER |
| BRACKET TO HOUSING | ||
| 064 | N 000961012094 | SCREW |
| Repalced by: N 308676012013 | ||
| 064 | N 308676012013 | SCREW |
| BRACKET TO HOUSING | ||
| 067 | A 3874130011 | REINFORCEMENT |
| Repalced by: A 3954130011 | ||
| 067 | A 3954130011 | REINFORCEMENT |
| N 000961012094 | SCREW | |
| Repalced by: N 308676012013 | ||
| N 308676012013 | SCREW | |
| STRUT TO BRACKET | ||
| N 913004012009 | NUT | |
| Repalced by: N 910113012003 | ||
| N 910113012003 | NUT | |
| STRUT TO BRACKET | ||
| 074 | A 6739900640 | WASHER |
| Repalced by: A 3879900040 | ||
| 074 | A 3879900040 | WASHER |
| Repalced by: N 007349013003 | ||
| 074 | N 007349013005 | WASHER |
| PROPELLER SHAFT BEARING TO CROSS MEMBER | ||
| 078 | N 913004012009 | NUT |
| Repalced by: N 910113012003 | ||
| 078 | N 910113012003 | NUT |
| PROPELLER SHAFT BEARING TO CROSS MEMBER | ||
| 082 | N 000961012106 | SCREW |
| PROPELLER SHAFT BEARING TO CROSS MEMBER | ||
| 090 | A 0029909901 | SCREW |
| Repalced by: A 3959900501 | ||
| 090 | A 3959900501 | SCREW |
| PROPELLER SHAFT TO FOLLOWER FLANGE | ||
| 094 | N 913004016005 | NUT |
| Repalced by: N 910113016001 | ||
| 094 | N 910113016001 | NUT |
| PROPELLER SHAFT TO FOLLOWER FLANGE | ||
| 100 | A 3874100302 | PROPELLER SHAFT |
| Repalced by: A 3894106301 | ||
| 100 | A 3894106301 | PROPELLER SHAFT |
| FROM PROPELLER SHAFT BEARING TO REAR AXLE | ||
| 1189 MM | ||
| 100 | A 3874102504 | PROPELLER SHAFT |
| Repalced by: A 3894104901 | ||
| 100 | A 3894104901 | PROPELLER SHAFT |
| Repalced by: A 3954100202 | ||
| 100 | A 3954100202 | PROPELLER SHAFT |
| FROM PROPELLER SHAFT BEARING TO REAR AXLE | ||
| A 3874110011 | DRIVE FLANGE | |
| Repalced by: A 3894110511 | ||
| A 3894110511 | DRIVE FLANGE | |
| A 3874110111 | DRIVE FLANGE | |
| Repalced by: A 3894110611 | ||
| A 3894110611 | DRIVE FLANGE | |
| A 3954110211 | DRIVE FLANGE | |
| Repalced by: A 3954110811 | ||
| A 3954110811 | DRIVE FLANGE | |
| A 3634100631 | UNIVERSAL JOINT CROSS | |
| Repalced by: A 6204100131 | ||
| A 6204100131 | UNIVERSAL JOINT CROSS | |
| Repalced by: A 0004100231 | ||
| A 0004100231 | UNIVERSAL JOINT CROSS | |
| Repalced by: A 0004101628 | ||
| A 0004101628 | UNIVERSAL JOINT | |
| Repalced by: A 9424100131 | ||
| A 9424100131 | UNIVERSAL JOINT CROSS | |
| WITH BUSHINGS | ||
| A 6204100031 | UNIVERSAL JOINT CROSS | |
| Repalced by: A 9404100031 | ||
| A 9404100031 | UNIVERSAL JOINT CROSS | |
| WITH BUSHINGS | ||
| N 071412008302 | GREASE NIPPLE | |
| A 3634110033 | EXPANSION PLUG | |
| A 3874100042 | BEARING BUSHING | |
| A 0009818287 | NEEDLE | |
| Repalced by: A 3959810087 | ||
| A 3959810087 | NEEDLE | |
| SET = 164 PIECES | ||
| TO 363 410 06 31;36.25 MM | ||
| A 3634110080 | GASKET | |
| A 3634110173 | LOCK | |
| Repalced by: A 0069941941 | ||
| A 0069941941 | LOCK | |
| AS REQUIRED | ||
| 2.00 MM | ||
| A 3634110573 | LOCK | |
| Repalced by: A 0069942341 | ||
| A 0069942341 | LOCK | |
| AS REQUIRED | ||
| 2.10 MM | ||
| A 3634111373 | LOCK | |
| Repalced by: A 0069942741 | ||
| A 0069942741 | LOCK | |
| AS REQUIRED | ||
| 2.20 MM | ||
| A 3634110773 | LOCK | |
| Repalced by: A 0069943141 | ||
| A 0069943141 | LOCK | |
| AS REQUIRED | ||
| 2.00 MM | ||
| A 3634110973 | LOCK | |
| Repalced by: A 0069943541 | ||
| A 0069943541 | LOCK | |
| AS REQUIRED | ||
| 2.10 MM | ||
| A 3634111173 | LOCK | |
| Repalced by: A 0069943941 | ||
| A 0069943941 | LOCK | |
| AS REQUIRED | ||
| 2.20 MM | ||
| N 900087008000 | PLUG | |
| 110 | A 0029909901 | SCREW |
| Repalced by: A 3959900501 | ||
| 110 | A 3959900501 | SCREW |
| 115 | N 912004016101 | LOCK WASHER |
| 120 | N 000934016013 | NUT |
| Repalced by: N 308673016001 | ||
| 120 | N 308673016001 | NUT |
