Transporto priemonė: 2032 S/6X2/4; VIN numerio dalis: 391320
Grupė: 50 RADIATOR
| # | Kodas | Pavadinimas |
|---|---|---|
| A 3875001803 | RADIATOR | |
| Repalced by: A 0005014201 | ||
| A 0005013801 | RADIATOR | |
| Repalced by: A 0005014201 | ||
| A 0005014201 | RADIATOR | |
| Repalced by: A 0005014701 | ||
| 010 | A 0005014701 | RADIATOR |
| LESS EXPANSION TANK | ||
| BEHR | ||
| A 3875001703 | RADIATOR | |
| Repalced by: A 0005014301 | ||
| A 0005013701 | RADIATOR | |
| Repalced by: A 0005014301 | ||
| A 0005014301 | RADIATOR | |
| Repalced by: A 0005014601 | ||
| 010 | A 0005014601 | RADIATOR |
| LESS EXPANSION TANK | ||
| BEHR | ||
| 011 | A 0019973230 | SCREW PLUG |
| Repalced by: N 007604014101 | ||
| 011 | N 007604014101 | SCREW PLUG |
| 013 | N 007603014405 | SEAL RING |
| 015 | A 3875001603 | RADIATOR |
| Repalced by: A 3875002903 | ||
| 015 | A 3875002903 | RADIATOR |
| BEHR | ||
| A 3875001503 | RADIATOR | |
| Repalced by: A 3855010401 | ||
| 015 | A 3855010401 | RADIATOR |
| Repalced by: A 3875002903 | ||
| 015 | A 3875002903 | RADIATOR |
| BEHR | ||
| 020 | A 0005000249 | TANK |
| ON RADIATOR | ||
| 022 | A 3815000249 | TANK |
| Repalced by: A 3815001649 | ||
| 022 | A 3815001649 | TANK |
| AT CAB REAR PANEL | ||
| 022 | A 3815000649 | TANK |
| Repalced by: A 3815000749 | ||
| 022 | A 3815000749 | TANK |
| AT CAB REAR PANEL | ||
| 025 | A 0005013715 | RADIATOR CAP |
| Repalced by: A 0005014215 | ||
| 025 | A 0005013215 | RADIATOR CAP |
| Repalced by: A 0005014215 | ||
| 025 | A 0005013115 | RADIATOR CAP |
| Repalced by: A 0005014215 | ||
| 025 | A 0005014215 | RADIATOR CAP |
| TO 000 500 02 49,381 500 02 49 | ||
| 025 | A 0005014215 | RADIATOR CAP |
| TO 381 500 16 49 | ||
| 026 | A 0005014515 | RADIATOR CAP |
| TO 381 500 06 49,381 500 07 49 | ||
| 027 | A 0005014615 | RADIATOR CAP |
| TO 381 500 06 49,381 500 07 49 | ||
| 027 | A 0005017215 | RADIATOR CAP |
| TO 381 500 06 49,381 500 07 49 | ||
| 028 | A 0005010480 | GASKET |
| O.D., | ||
| 52 MM,TO 000 501 42 15,000 501 46 15 | ||
| 029 | A 0005010880 | GASKET |
| O.D., | ||
| 37 MM | ||
| 029E | A 0009950468 | CLAMP |
| Repalced by: A 0009881878 | ||
| 030 | N 900271008043 | HOSE |
| 8X17 MM | ||
| 035 | A 0009977952 | HOSE |
| Repalced by: A 0139978682 | ||
| 035 | A 0139978682 | HOSE |
| OVERFLOW | ||
| 040 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 040 | N 304017008016 | SCREW |
| 045 | N 912004008102 | LOCK WASHER |
| 050 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 050 | N 000125008443 | WASHER |
| 070 | A 0009976436 | VALVE |
| Repalced by: A 0009970436 | ||
| 070 | A 0009970436 | VALVE |
| DRAIN | ||
| 075 | A 0009930225 | SPRING |
| 080 | A 3815010520 | BRACKET |
| Repalced by: A 6155010020 | ||
| 080 | A 6155010020 | BRACKET |
| EXPANSION TANK | ||
| 080 | A 3815000731 | BRACKET |
| EXPANSION TANK | ||
| 082 | N 000933010128 | SCREW |
| BRACKET TO RIGHT FENDER | ||
| 082K | N 006902011101 | WASHER |
| BRACKET TO RIGHT FENDER | ||
| 083 | N 913004010164 | NUT |
| BRACKET TO RIGHT FENDER | ||
| 083 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 083 | N 910113010000 | NUT |
| BRACKET TO RIGHT FENDER | ||
| 084 | A 3815000131 | BRACKET |
| Repalced by: A 3815012720 | ||
| 084 | A 3815012720 | BRACKET |
| EXPANSION TANK | ||
| 084 | A 3815012520 | BRACKET |
| EXPANSION TANK | ||
| 085 | A 3815010095 | SHIM |
| Repalced by: A 3815010295 | ||
| 085 | A 3815010295 | SHIM |
| Repalced by: A 3815010495 | ||
| 085 | A 3815010495 | SHIM |
| EXPANSION TANK TO BRACKET | ||
| 086 | A 6174750420 | PAD |
| Repalced by: A 6174750020 | ||
| 086 | A 6174750020 | PAD |
| EXPANSION TANK TO BRACKET | ||
| 087 | N 000933010105 | SCREW |
| EXPANSION TANK TO BRACKET | ||
| 088 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 088 | N 000125010532 | WASHER |
| EXPANSION TANK TO BRACKET | ||
| 089 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 089 | N 910113010000 | NUT |
| EXPANSION TANK TO BRACKET | ||
| 090 | A 3875000716 | AIR BAFFLE |
| 090 | A 3875000516 | AIR BAFFLE |
| 090 | A 3875000616 | AIR BAFFLE |
| 090 | A 3875051230 | AIR BAFFLE |
| 095 | N 000933006102 | SCREW |
| AIR BAFFLE AND BRACKET TO RADIATOR | ||
| 098 | N 000137006204 | SPRING WASHER |
| AIR BAFFLE AND BRACKET TO RADIATOR | ||
| 105 | A 3635050180 | BOOT |
| FAN SHROUD | ||
| 109 | A 3639950065 | CLAMP |
| FAN SHROUD | ||
| 109H | A 4030100340 | BRACKET |
| OIL DIPSTICK TO RADIATOR | ||
| 109H | A 4220100240 | BRACKET |
| OIL DIPSTICK TO RADIATOR | ||
| 110 | N 000933008145 | SCREW |
| OIL-DIPSTICK GUIDE TUBE TO BRACKET | ||
| 111 | N 007349008003 | WASHER |
| OIL-DIPSTICK GUIDE TUBE TO BRACKET | ||
| 112 | N 912004008102 | LOCK WASHER |
| OIL-DIPSTICK GUIDE TUBE TO BRACKET | ||
| 113 | A 3875040501 | SUPPORT |
| RADIATOR | ||
| 115 | N 000961012151 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| 116 | N 910113012002 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| 118 | A 3875040012 | RUBBER MOUNTING |
| RADIATOR TO SUPPORT | ||
| 122 | N 000933010238 | SCREW |
| Repalced by: N 304017010028 | ||
| 122 | N 304017010028 | SCREW |
| RUBBER MOUNTING TO SUPPORT | ||
| 125 | N 000137010201 | SPRING WASHER |
| RUBBER MOUNTING TO SUPPORT | ||
| 130 | N 000933010164 | SCREW |
| RADIATOR TO RUBBER MOUNTING | ||
| 130 | N 000933010128 | SCREW |
| RADIATOR TO RUBBER MOUNTING | ||
| 138 | N 000137010201 | SPRING WASHER |
| RADIATOR TO RUBBER MOUNTING | ||
| 145 | A 3875011582 | HOSE |
| FROM RADIATOR TO THERMOSTAT | ||
| 145 | A 3875010982 | HOSE |
| FROM RADIATOR TO THERMOSTAT | ||
| 150 | N 916017070000 | CLAMP |
| Repalced by: N 000000000674 | ||
| 150 | N 000000000674 | CLAMP |
| FROM RADIATOR TO THERMOSTAT | ||
| 156 | A 3875010356 | PIPE ELBOW |
| FROM RADIATOR TO WATER PUMP | ||
| 160 | A 3875010782 | HOSE |
| Repalced by: A 3875012982 | ||
| 160 | A 3875012982 | HOSE |
| FROM RADIATOR TO WATER PUMP | ||
| 165 | N 900271065003 | HOSE |
| FROM RADIATOR TO WATER PUMP | ||
| 168 | N 916017070000 | CLAMP |
| Repalced by: N 000000000674 | ||
| 168 | N 000000000674 | CLAMP |
| FROM RADIATOR TO WATER PUMP | ||
| 170 | A 3875010323 | CONNECTOR |
| AT WATER PUMP | ||
| 170 | A 3875010223 | CONNECTOR |
| Repalced by: A 3875010423 | ||
| 170 | A 3875010423 | CONNECTOR |
| AT WATER PUMP | ||
| 174 | A 4032010480 | GASKET |
| Repalced by: A 4422010480 | ||
| 174 | A 4422010480 | GASKET |
| CONNECTOR TO WATER PUMP | ||
| 180 | N 000933010105 | SCREW |
| CONNECTOR TO WATER PUMP | ||
| 180 | N 000931010271 | SCREW |
| CONNECTOR TO WATER PUMP | ||
| 186 | N 000137010201 | SPRING WASHER |
| CONNECTOR TO WATER PUMP | ||
| 192 | A 3875011382 | HOSE |
| Repalced by: A 3875012882 | ||
| 192 | A 3875012882 | HOSE |
| FROM WATER PUMP TO EXPANSION TANK | ||
| 192 | A 3875011082 | HOSE |
| FROM WATER PUMP TO EXPANSION TANK | ||
| 193 | A 3875010624 | COOLING WATER PIPE |
| FROM WATER PUMP TO EXPANSION TANK | ||
| 194 | A 3875011782 | HOSE |
| FROM WATER PUMP TO EXPANSION TANK | ||
| 195 | N 916017032000 | CLAMP |
| Repalced by: N 000000000670 | ||
| 195 | N 000000000670 | CLAMP |
| FROM WATER PUMP TO EXPANSION TANK | ||
| 195 | N 000000000670 | CLAMP |
| FROM WATER PUMP TO EXPANSION TANK | ||
| 200 | N 916017025000 | CLAMP |
| Repalced by: N 000000000668 | ||
| 200 | N 000000000668 | CLAMP |
| FROM WATER PUMP TO EXPANSION TANK | ||
| 210 | A 3875000279 | FLANGE |
| AT ENGINE | ||
| 210 | A 3875000079 | FLANGE |
| AT ENGINE | ||
| 215 | N 917003040008 | GASKET |
| FLANGE TO ENGINE | ||
| 218 | N 000933010105 | SCREW |
| FLANGE TO ENGINE | ||
| 222 | N 912004010102 | LOCK WASHER |
| FLANGE TO ENGINE | ||
| A 3609951501 | CLAMP | |
| Repalced by: A 3609950601 | ||
| 230 | A 3609950601 | CLAMP |
| HEATING PIPE TO ENGINE | ||
| 235 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 235 | N 304017008016 | SCREW |
| HEATING PIPE TO ENGINE | ||
| 236 | N 000933006130 | SCREW |
| HEATING PIPE TO ENGINE | ||
| 237 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 237 | N 913004008001 | NUT |
| HEATING PIPE TO ENGINE | ||
| 238 | N 913004006003 | NUT |
| Repalced by: N 910113006001 | ||
| 238 | N 910113006001 | NUT |
| HEATING PIPE TO ENGINE | ||
| 240 | A 3875060135 | HOSE |
| FROM FLANGE TO HEATING PIPE | ||
| 244 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 244 | N 000000000667 | CLAMP |
| FROM FLANGE TO HEATING PIPE | ||
| 250 | A 3835000072 | LINE |
| Repalced by: A 3875000072 | ||
| 250 | A 3875000072 | LINE |
| HEATING PIPES | ||
| 255 | A 3875011420 | BRACKET |
| HEATING PIPE | ||
| 258 | A 3835060035 | HOSE |
| HEATING; TO CAB | ||
| 260 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 260 | N 000000000667 | CLAMP |
| HEATING; TO CAB | ||
| 266 | A 3875060435 | HOSE |
| Repalced by: A 3635060135 | ||
| 266 | A 3635060135 | HOSE |
| Repalced by: A 3635060235 | ||
| 266 | A 3635060235 | HOSE |
| HEATING, TO CONNECTOR | ||
| 270 | N 916017025000 | CLAMP |
| Repalced by: N 000000000668 | ||
| 270 | N 000000000668 | CLAMP |
| HEATING, TO CONNECTOR | ||
| 271 | A 3875011682 | HOSE |
| ENGINE BREATHING | ||
| 271 | A 3875011282 | HOSE |
| ENGINE BREATHING | ||
| 272 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 272 | N 000000000667 | CLAMP |
| ENGINE BREATHING | ||
| 275 | N 900271015037 | HOSE |
| ENGINE BREATHING | ||
| 280 | A 3875011625 | BREATHER PIPE |
| FROM ENGINE TO EXPANSION TANK | ||
| 280 | A 3875011425 | BREATHER PIPE |
| FROM ENGINE TO EXPANSION TANK | ||
| 280 | A 3875016825 | BREATHER PIPE |
| FROM ENGINE TO EXPANSION TANK | ||
| 280 | A 3875017025 | BREATHER PIPE |
| FROM ENGINE TO EXPANSION TANK | ||
| 290 | A 3875010820 | BRACKET |
| Repalced by: A 3834929141 | ||
| 290 | A 3834929141 | BRACKET |
| COOLING WATER LINE TO FRAME | ||
| 295 | A 3879950020 | CLAMP |
| COOLING WATER LINE TO FRAME | ||
| 300 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 300 | N 304017008016 | SCREW |
| COOLING WATER LINE TO FRAME | ||
| 302 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 302 | N 913004008001 | NUT |
| COOLING WATER LINE TO FRAME | ||
| 310 | A 3604292040 | BRACKET |
| Repalced by: A 3604292940 | ||
| 310 | A 3604292940 | BRACKET |
| COOLING WATER LINE TO FRAME | ||
| 314 | A 3879950020 | CLAMP |
| COOLING WATER LINE TO BRACKET | ||
| 318 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 318 | N 304017008021 | SCREW |
| COOLING WATER LINE TO BRACKET | ||
| 320 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 320 | N 913004008001 | NUT |
| COOLING WATER LINE TO BRACKET | ||
| 330 | A 3875011482 | HOSE |
| VENTILATION, FROM RADIATOR TO EXPANSION TANK | ||
| 335 | N 900271012018 | HOSE |
| VENTILATION, FROM RADIATOR TO EXPANSION TANK | ||

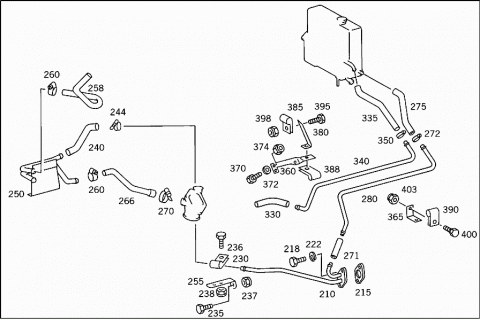

| 340 | A 3875011825 | BREATHER PIPE |
| VENTILATION, FROM RADIATOR TO EXPANSION TANK | ||
| 340 | A 3875012125 | BREATHER PIPE |
| VENTILATION, FROM RADIATOR TO EXPANSION TANK | ||
| 340 | A 3875012225 | BREATHER PIPE |
| VENTILATION, FROM RADIATOR TO EXPANSION TANK | ||
| 350 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 350 | N 000000000667 | CLAMP |
| VENTILATION, FROM RADIATOR TO EXPANSION TANK | ||
| 360 | A 3855010220 | BRACKET |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
| 365 | A 3875015920 | BRACKET |
| Repalced by: A 6454310740 | ||
| 365 | A 6454310740 | BRACKET |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
| 370 | N 000933010094 | SCREW |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
| 372 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 372 | N 000125010532 | WASHER |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
| 374 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 374 | N 910113010000 | NUT |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
| 380 | A 3875011120 | BRACKET |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
| 380 | A 3875011720 | BRACKET |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
| 380 | A 3875015820 | BRACKET |
| Repalced by: A 3524290740 | ||
| 380 | A 3524290740 | BRACKET |
| 385 | A 3609951401 | CLAMP |
| Repalced by: N 916016011202 | ||
| 385 | N 916016011202 | CLAMP |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
| A 3609951301 | CLAMP | |
| Repalced by: A 3609951201 | ||
| 388 | A 3609951201 | CLAMP |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
| 390 | A 3609950401 | CLAMP |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
| 390 | A 3609952001 | CLAMP |
| Repalced by: A 6739950001 | ||
| 390 | A 6739950001 | CLAMP |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
| 395 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 395 | N 304017008016 | SCREW |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
| 395 | N 000933008148 | SCREW |
| Repalced by: N 304017008023 | ||
| 395 | N 304017008023 | SCREW |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
| 398 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 398 | N 913004008001 | NUT |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
| 400 | N 000933006102 | SCREW |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
| 403 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 403 | N 913004006001 | NUT |
| RADIATOR AND ENGINE BREATHING,AT ENGINE | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
