Transporto priemonė: 2032 S/6X2/4; VIN numerio dalis: 391320
Grupė: 32 SPRINGS AND SUSPENSION
| # | Kodas | Pavadinimas |
|---|---|---|

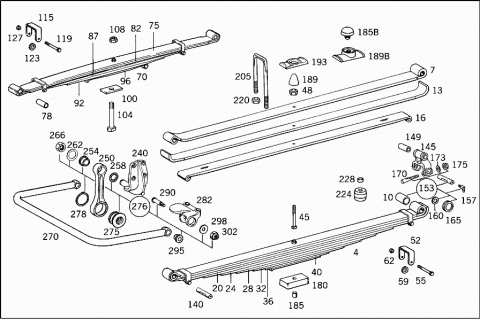

| 004 | A 3913200302 | FRONT SPRING |
| 9-LEAF | ||
| 007 | A 3913200094 | SPRING LEAF |
| NO.1 | ||
| 010 | A 3043210150 | BUSHING |
| FRONT SPRING | ||
| 010 | A 6203210050 | BUSHING |
| FRONT SPRING | ||
| 013 | A 3913210312 | SPRING LEAF |
| NO.2 | ||
| 016 | A 3663210013 | SPRING LEAF |
| NO.3 | ||
| 020 | A 3663210014 | SPRING LEAF |
| NO.4 | ||
| 024 | A 3663210015 | SPRING LEAF |
| NO.5 | ||
| 028 | A 3663210016 | SPRING LEAF |
| NO.6 | ||
| 032 | A 3663210017 | SPRING LEAF |
| NO.7 | ||
| 036 | A 3663210018 | SPRING LEAF |
| NO.8 | ||
| 040 | A 3663210019 | SPRING LEAF |
| NO.9 | ||
| 045 | A 3153210471 | SCREW |
| (SPRING BOLT) | ||
| 048 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 048 | N 910113014000 | NUT |
| SPRING BOLT | ||
| 052 | A 0023219233 | SPRING CLAMP |
| Repalced by: A 6203240733 | ||
| 052 | A 6203240733 | SPRING CLAMP |
| Repalced by: A 6203240433 | ||
| 052 | A 6203240433 | SPRING CLAMP |
| FRONT SPRING | ||
| 055 | N 000960012216 | SCREW |
| Repalced by: N 308765012007 | ||
| 055 | N 308765012007 | SCREW |
| FOR SPRING CLAMPS | ||
| N 000963012011 | SCREW | |
| FOR SPRING CLAMPS | ||
| 059 | A 3039902440 | WASHER |
| FOR SPRING CLAMPS | ||
| 062 | N 910113012002 | NUT |
| FOR SPRING CLAMPS | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| FRONT AXLE II | ||
| 070 | A 3913200002 | FRONT SPRING |
| 5-LEAF | ||
| 075 | A 3913200194 | SPRING LEAF |
| NO.1 | ||
| 078 | A 3043210150 | BUSHING |
| FRONT SPRING | ||
| 078 | A 6203210050 | BUSHING |
| FRONT SPRING | ||
| 082 | A 3913210012 | SPRING LEAF |
| NO.2 | ||
| 087 | A 3913210013 | SPRING LEAF |
| NO.3 | ||
| 092 | A 3913210014 | SPRING LEAF |
| NO.4 | ||
| 096 | A 3913210015 | SPRING LEAF |
| NO.5 | ||
| 100 | A 3913210084 | SHIM |
| 104 | A 3333210071 | SCREW |
| (SPRING BOLT) | ||
| 108 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 108 | N 910113014000 | NUT |
| SPRING BOLT | ||
| 115 | A 0003249033 | SPRING CLAMP |
| Repalced by: A 0023219233 | ||
| 115 | A 0023219233 | SPRING CLAMP |
| Repalced by: A 6203240933 | ||
| 115 | A 6203240933 | SPRING CLAMP |
| FRONT SPRING | ||
| 119 | N 000960012216 | SCREW |
| Repalced by: N 308765012007 | ||
| 119 | N 308765012007 | SCREW |
| FOR SPRING CLAMPS | ||
| 119 | N 000963012011 | SCREW |
| FOR SPRING CLAMPS | ||
| 123 | A 3039902440 | WASHER |
| FOR SPRING CLAMPS | ||
| 127 | N 910113012002 | NUT |
| FOR SPRING CLAMPS | ||
| 140 | A 3703220130 | SHACKLE PIN |
| Repalced by: A 3955860332 | ||
| 140 | A 3953220430 | SHACKLE PIN |
| Repalced by: A 3955860332 | ||
| A 3955860132 | REPAIR KIT | |
| Repalced by: A 3955860332 | ||
| A 3955860332 | REPAIR KIT | |
| Repalced by: A 3953200165 | ||
| A 3953200165 | SHACKLE PIN | |
| PARTS KIT | ||
| 145 | A 3703200062 | SHACKLE |
| Repalced by: A 3873200162 | ||
| 145 | A 3873200162 | SHACKLE |
| FRONT SPRING | ||
| 149 | A 3043210150 | BUSHING |
| FRONT SPRING | ||
| 149 | A 6203210050 | BUSHING |
| FRONT SPRING | ||
| A 3953220330 | SHACKLE PIN | |
| Repalced by: A 3955860232 | ||
| 153 | A 3955860032 | REPAIR KIT |
| Repalced by: A 3955860232 | ||
| 153 | A 3955860232 | REPAIR KIT |
| Repalced by: A 3953200265 | ||
| 153 | A 3953200265 | SHACKLE PIN |
| PARTS KIT | ||
| 157 | N 071412010300 | GREASE NIPPLE |
| 160 | A 3523230376 | WASHER |
| AS REQUIRED | ||
| 4.00 MM | ||
| 160 | A 3523230476 | WASHER |
| AS REQUIRED | ||
| 4.20 MM | ||
| 160 | A 3523230576 | WASHER |
| AS REQUIRED | ||
| 4.30 MM | ||
| 165 | A 0029973140 | SEAL RING |
| 170 | A 3529900337 | BOLT |
| 173 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 173 | N 000125010532 | WASHER |
| 175 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 175 | N 910113010000 | NUT |
| 180 | A 3353510428 | PAD |
| 185 | A 3893230074 | PIN |
| A 3263310044 | RUBBER BUFFER | |
| Repalced by: A 3873310144 | ||
| A 3873310044 | RUBBER BUFFER | |
| Repalced by: A 3873310144 | ||
| 185B | A 3873310144 | RUBBER BUFFER |
| FRONT AXLE I | ||
| 189 | A 3263310044 | RUBBER BUFFER |
| Repalced by: A 6553310044 | ||
| 189 | A 6553310044 | RUBBER BUFFER |
| FRONT AXLE II | ||
| A 3043310027 | SPACER | |
| Repalced by: A 3873310226 | ||
| 189B | A 3873310226 | PLATE |
| Repalced by: A 6203310026 | ||
| 189B | A 6203310026 | PLATE |
| FRONT AXLE I | ||
| 189B | A 6203310026 | PLATE |
| FRONT AXLE I | ||
| 193 | A 3043310027 | SPACER |
| Repalced by: A 6483310026 | ||
| 193 | A 6483310026 | PLATE |
| Repalced by: A 6553310126 | ||
| 193 | A 6553310126 | PLATE |
| Repalced by: A 6483310026 | ||
| 193 | A 6483310026 | PLATE |
| FRONT AXLE II | ||
| 198 | A 3953230140 | BRACKET |
| FRONT AXLE II | ||
| 205 | A 3043311625 | U-BOLT |
| FRONT AXLE I | ||
| 245 MM | ||
| 205 | A 3203310325 | U-BOLT |
| FRONT AXLE I | ||
| 212 MM | ||
| 205 | A 3913310025 | U-BOLT |
| FRONT AXLE I | ||
| 150 MM | ||
| 220 | N 000934020014 | NUT |
| Repalced by: N 308673020002 | ||
| 220 | N 308673020002 | NUT |
| Repalced by: N 308674020000 | ||
| 220 | N 308674020000 | NUT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 224 | A 0019871140 | RUBBER BUFFER |
| AT FRAME | ||
| 228 | A 3633220051 | SPACER RING |
| RUBBER BUFFER TO FRAME | ||
| N 007985010125 | SCREW | |
| RUBBER BUFFER TO FRAME | ||
| N 913004010008 | NUT | |
| Repalced by: N 910113010000 | ||
| N 910113010000 | NUT | |
| RUBBER BUFFER TO FRAME | ||
| 240 | A 3873200178 | CONSOLE |
| Repalced by: A 3873230563 | ||
| 240 | A 3873230563 | BEARING BRACKET |
| FRONT STABILIZER | ||
| N 000939012102 | STUD BOLT | |
| N 000961016040 | SCREW | |
| BEARING BRACKET TO SIDE MEMBER | ||
| M 16X45 | ||
| N 000961016142 | SCREW | |
| BEARING BRACKET TO SIDE MEMBER | ||
| M 16X30 | ||
| N 913004016004 | NUT | |
| Repalced by: N 910113016002 | ||
| N 910113016002 | NUT | |
| BEARING BRACKET TO SIDE MEMBER | ||
| 250 | A 3893230016 | LINK |
| Repalced by: A 3893230116 | ||
| 250 | A 3893230116 | LINK |
| 254 | A 0003232150 | BUSHING |
| SHACKLE TO BEARING BRACKET | ||
| 258 | A 3873230052 | SPACER WASHER |
| SHACKLE TO BEARING BRACKET | ||
| 262 | A 3873230152 | SPACER WASHER |
| SHACKLE TO BEARING BRACKET | ||
| 266 | N 910113012002 | NUT |
| SHACKLE TO BEARING BRACKET | ||
| 270 | A 3873230165 | TORSION BAR |
| FRONT AXLE I | ||
| 275 | A 0003233785 | RUBBER MOUNTING |
| TORSION BAR | ||
| 275 | A 3873230285 | RUBBER MOUNTING |
| TORSION BAR | ||
| 276 | A 3875860032 | REPAIR KIT |
| Repalced by: A 3873200028 | ||
| 276 | A 3873200028 | REPAIR KIT |
| TORSION BAR MOUNTING | ||
| 276 | A 6205860032 | REPAIR KIT |
| Repalced by: A 6203200228 | ||
| 276 | A 6203200228 | REPAIR KIT |
| STABILIZER MOUNTING | ||
| 278 | N 000983068000 | LOCK RING |
| 282 | A 3703230020 | BEARING |
| LEFT | ||
| 282 | A 3703230120 | BEARING |
| RIGHT | ||
| 290 | A 3353230074 | PIN |
| Repalced by: A 3875860032 | ||
| 290 | A 3353230074 | PIN |
| Repalced by: A 6205860032 | ||
| 295 | A 0003230950 | BUSHING |
| TORSION BAR TO BEARING BRACKET | ||
| 298 | A 0009932026 | DISC SPRING |
| TORSION BAR TO BEARING BRACKET | ||
| 302 | N 000935020001 | NUT |
| TORSION BAR TO BEARING BRACKET | ||
| N 000094004066 | COTTER PIN | |
| TORSION BAR TO BEARING BRACKET | ||

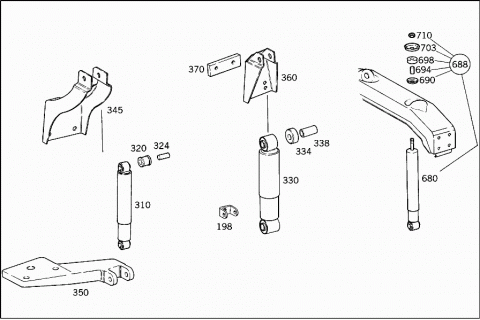

| 310 | A 0023235800 | SHOCK ABSORBER |
| Repalced by: A 0043234500 | ||
| 310 | A 0043234500 | SHOCK ABSORBER |
| FRONT AXLE I | ||
| 310 | A 0023235900 | SHOCK ABSORBER |
| Repalced by: A 0043230000 | ||
| 310 | A 0043230000 | SHOCK ABSORBER |
| FRONT AXLE I | ||
| 320 | A 0003232444 | RUBBER BUFFER |
| Repalced by: A 0003232885 | ||
| 320 | A 0003232885 | RUBBER MOUNTING |
| TO 002 323 58 00,004 323 45 00, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 002 323 59 09 | ||
| 320 | A 0003233044 | RUBBER BUFFER |
| Repalced by: A 0003233144 | ||
| 320 | A 0003233144 | RUBBER BUFFER |
| TO 004 323 00 00 | ||
| 324 | A 0003230453 | SPACER TUBE |
| Repalced by: A 0003233150 | ||
| 324 | A 0003232550 | BUSHING |
| Repalced by: A 0003233150 | ||
| 324 | A 0003233150 | SPACER RING |
| TO 002 323 58 00,004 323 45 00, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 002 323 59 00 | ||
| 324 | A 0003235250 | BUSHING |
| TO 004 323 00 00 | ||
| 330 | A 0033230800 | SHOCK ABSORBER |
| FRONT AXLE II | ||
| 330 | A 0033230900 | SHOCK ABSORBER |
| FRONT AXLE II | ||
| 334 | A 0003232444 | RUBBER BUFFER |
| Repalced by: A 0003232885 | ||
| 334 | A 0003232885 | RUBBER MOUNTING |
| TO 003 323 08 00,003 323 09 00 | ||
| 338 | A 0003230453 | SPACER TUBE |
| Repalced by: A 0003233150 | ||
| 338 | A 0003232550 | BUSHING |
| Repalced by: A 0003233150 | ||
| 338 | A 0003233150 | SPACER RING |
| TO 003 323 08 00 | ||
| 345 | A 3913230240 | BRACKET |
| Repalced by: A 3953230640 | ||
| 345 | A 3953230640 | BRACKET |
| Repalced by: A 6203230040 | ||
| 345 | A 6203230040 | BRACKET |
| Repalced by: A 6243230340 | ||
| 345 | A 6243230340 | BRACKET |
| SHOCK ABSORBER,TOP | ||
| 350 | A 3913230340 | BRACKET |
| Repalced by: A 3913230540 | ||
| 350 | A 3913230540 | BRACKET |
| LEFT SHOCK ABSORBER | ||
| 350 | A 3913230440 | BRACKET |
| Repalced by: A 3913230640 | ||
| 350 | A 3913230640 | BRACKET |
| RIGHT SHOCK ABSORBER | ||
| N 000960016164 | SCREW | |
| TOP BRACKET TO SHOCK ABSORBER | ||
| N 000960016153 | SCREW | |
| TOP BRACKET TO SHOCK ABSORBER | ||
| M 16X120,TO 395 323 06 40 | ||
| N 000960016065 | SCREW | |
| TOP BRACKET TO SHOCK ABSORBER | ||
| M 16X95,TO 620 323 00 40 | ||
| A 3878911153 | SPACER TUBE | |
| TOP BRACKET TO SHOCK ABSORBER | ||
| TO 395 323 06 40 | ||
| A 3939900240 | WASHER | |
| TOP BRACKET TO SHOCK ABSORBER | ||
| TO 620 323 00 40 | ||
| N 913004016004 | NUT | |
| Repalced by: N 910113016002 | ||
| N 910113016002 | NUT | |
| TOP BRACKET TO SHOCK ABSORBER | ||
| N 000961014050 | SCREW | |
| Repalced by: N 308676014020 | ||
| N 308676014020 | SCREW | |
| BRACKET TO SIDE MEMBER,FRONT AXLE I | ||
| M 14X35 | ||
| N 913004014002 | NUT | |
| Repalced by: N 910113014001 | ||
| N 910113014001 | NUT | |
| BRACKET TO SIDE MEMBER,FRONT AXLE I | ||
| 360 | A 3873200243 | BRACKET |
| FRONT AXLE II,TOP | ||
| N 000960012342 | SCREW | |
| BRACKET TO SIDE MEMBER,FRONT AXLE II | ||
| N 910113012002 | NUT | |
| BRACKET TO SIDE MEMBER,FRONT AXLE II | ||
| 370 | A 3913230084 | SHIM |
| BRACKET TO SIDE MEMBER,FRONT AXLE II | ||
| N 000960016244 | SCREW | |
| BOTTOM BRACKET TO SHOCK ABSORBER, FRONT AXLE I | ||
| N 913004016004 | NUT | |
| Repalced by: N 910113016002 | ||
| N 910113016002 | NUT | |
| BOTTOM BRACKET TO SHOCK ABSORBER, FRONT AXLE I | ||
| N 000960020140 | SCREW | |
| Repalced by: N 000960020123 | ||
| N 000960020123 | SCREW | |
| SHOCK ABSORBER TO FRONT SPRING, FRONT AXLE II | ||
| N 000960016164 | SCREW | |
| SHOCK ABSORBER TO FRONT SPRING, FRONT AXLE II | ||
| N 913004020004 | NUT | |
| Repalced by: N 913004020003 | ||
| N 913004020003 | NUT | |
| SHOCK ABSORBER TO FRONT SPRING, FRONT AXLE II | ||
| N 913004016004 | NUT | |
| Repalced by: N 910113016002 | ||
| N 910113016002 | NUT | |
| SHOCK ABSORBER TO FRONT SPRING, FRONT AXLE II | ||

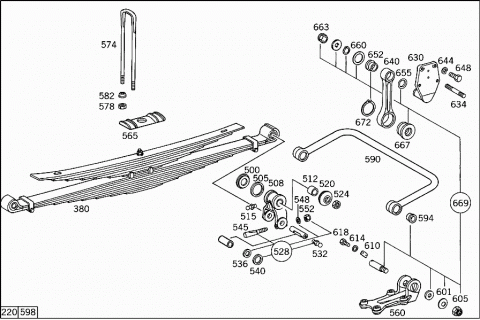

| 380 | A 3913200008 | REAR SPRING |
| 9-LEAF;WITH 7-LEAF HELPER SPRING | ||
| 384 | A 3913200093 | SPRING LEAF |
| NO.1 | ||
| 388 | A 3353240350 | BUSHING |
| REAR SPRING | ||
| 388 | A 6203240050 | BUSHING |
| REAR SPRING | ||
| 392 | A 3913240012 | SPRING LEAF |
| NO.2 | ||
| 396 | A 3913240013 | SPRING LEAF |
| NO.3 | ||
| 400 | A 3913240014 | SPRING LEAF |
| NO.4 | ||
| 404 | A 3913240015 | SPRING LEAF |
| NO.5 | ||
| 407 | A 3913240016 | SPRING LEAF |
| NO.6 | ||
| 410 | A 3913240017 | SPRING LEAF |
| NO.7 | ||
| 414 | A 3913240018 | SPRING LEAF |
| NO.8 | ||
| 418 | A 3913240019 | SPRING LEAF |
| NO.9 | ||
| 430 | A 3913200010 | HELPER SPRING |
| 7-LEAF | ||
| 434 | A 3913240040 | SPRING LEAF |
| NO.1 | ||
| 438 | A 3913240041 | SPRING LEAF |
| NO.2 | ||
| 442 | A 3913240042 | SPRING LEAF |
| NO.3 | ||
| 446 | A 3913240043 | SPRING LEAF |
| NO.4 | ||
| 450 | A 3913240044 | SPRING LEAF |
| NO.5 | ||
| 455 | A 3913240045 | SPRING LEAF |
| NO.6 | ||
| 458 | A 3913240046 | SPRING LEAF |
| NO.7 | ||
| 465 | A 3873240035 | SPACER |
| 470 | A 3473240071 | SPRING BOLT |
| Repalced by: A 3473240271 | ||
| 470 | A 3473240271 | SPRING BOLT |
| 474 | N 007349019002 | WASHER |
| 478 | N 913004018004 | NUT |
| 482 | A 0003247633 | SPRING CLAMP |
| Repalced by: A 0023218933 | ||
| 482 | A 0023218933 | SPRING CLAMP |
| Repalced by: A 0023219833 | ||
| 482 | A 0023219833 | SPRING CLAMP |
| Repalced by: A 0003244233 | ||
| 482 | A 0003244233 | SPRING CLAMP |
| 486 | N 000960012222 | SCREW |
| 490 | A 3039902440 | WASHER |
| 493 | N 913004012009 | NUT |
| Repalced by: N 910113012003 | ||
| 493 | N 910113012003 | NUT |
| 500 | A 3463255062 | THRUST WASHER |
| Repalced by: A 6213250062 | ||
| 500 | A 6213250062 | THRUST WASHER |
| SPRING SHACKLE TO SPRING REAR BRACKET | ||
| 505 | A 0029973640 | SEAL RING |
| SPRING SHACKLE TO SPRING REAR BRACKET | ||
| 508 | A 3463205063 | SHACKLE |
| REAR SPRING TO REAR SPRING REAR BRACKET | ||
| 512 | A 3353240050 | BUSHING |
| 515 | N 071412008200 | GREASE NIPPLE |
| 520 | A 3463255162 | THRUST WASHER |
| Repalced by: A 6213250162 | ||
| 520 | A 6213250162 | THRUST WASHER |
| SPRING SHACKLE TO SPRING REAR BRACKET | ||
| 524 | N 000936024000 | NUT |
| SPRING SHACKLE TO SPRING REAR BRACKET | ||
| A 3353250030 | SHACKLE PIN | |
| Repalced by: A 3895860132 | ||
| A 3893250230 | SHACKLE PIN | |
| Repalced by: A 3895860132 | ||
| A 3895860032 | REPAIR KIT | |
| Repalced by: A 3895860132 | ||
| 528 | A 3895860132 | REPAIR KIT |
| Repalced by: A 3893200065 | ||
| 528 | A 3893200065 | SHACKLE PIN |
| PARTS KIT | ||
| 532 | N 071412010100 | GREASE NIPPLE |
| SHACKLE PIN | ||
| 536 | A 3523230976 | WASHER |
| AS REQUIRED | ||
| 4.00 MM | ||
| 536 | A 3523231076 | WASHER |
| AS REQUIRED | ||
| 4.20 MM | ||
| 536 | A 3523231176 | WASHER |
| Repalced by: A 3523231076 | ||
| 540 | A 0029973040 | SEAL RING |
| SPRING TO SHACKLE | ||
| 545 | A 3529900337 | BOLT |
| SHACKLE PIN TO SHACKLE | ||
| 548 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 548 | N 000125010532 | WASHER |
| SHACKLE PIN TO SHACKLE | ||
| 552 | N 913002010001 | NUT |
| SHACKLE PIN TO SHACKLE | ||
| 560 | A 3873260520 | BEARING |
| TORSION BAR,LEFT | ||
| 560 | A 3873260620 | BEARING |
| TORSION BAR,RIGHT | ||
| 565 | A 3873510026 | SPRING CLAMPING PLATE |
| REAR SPRING TO REAR AXLE | ||
| 565 | A 6203510026 | SPRING CLAMPING PLATE |
| REAR SPRING TO REAR AXLE | ||
| 574 | A 3353510125 | U-BOLT |
| Repalced by: A 9433510225 | ||
| 574 | A 9433510225 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 475 MM | ||
| 578 | N 000934024006 | NUT |
| REAR SPRING TO REAR AXLE | ||
| 582 | A 3879975026 | WASHER |
| REAR SPRING TO REAR AXLE | ||
| 590 | A 3873260065 | TORSION BAR |
| REAR AXLE | ||
| 594 | A 0003260250 | BUSHING |
| TORSION BAR BEARING | ||
| 598 | A 3353260074 | PIN |
| Repalced by: A 3875860132 | ||
| 598 | A 3353260074 | PIN |
| Repalced by: A 3875860532 | ||
| 601 | A 0009931926 | DISC SPRING |
| TORSION BAR BEARING | ||
| 605 | N 000935027000 | NUT |
| TORSION BAR BEARING | ||
| N 000094005045 | COTTER PIN | |
| TORSION BAR BEARING | ||
| 610 | A 3129941309 | LOCK |
| TORSION BAR BEARING | ||
| 614 | N 912004008102 | LOCK WASHER |
| TORSION BAR BEARING | ||
| 618 | N 000933008145 | SCREW |
| TORSION BAR BEARING | ||
| 630 | A 3933200578 | CONSOLE |
| Repalced by: A 3933200678 | ||
| 630 | A 3933200678 | CONSOLE |
| Repalced by: A 3933261163 | ||
| 630 | A 3933261163 | BEARING BRACKET |
| TORSION BAR,REAR | ||
| 634 | N 000939016033 | STUD BOLT |
| 640 | A 3633260047 | SHACKLE |
| Repalced by: A 3633260147 | ||
| 640 | A 3633260147 | SHACKLE |
| TORSION BAR,REAR | ||
| 644 | N 000137016202 | SPRING WASHER |
| BEARING BRACKET TO SIDE MEMBER | ||
| 648 | N 000961016108 | SCREW |
| BEARING BRACKET TO SIDE MEMBER | ||
| 652 | A 0003260650 | BUSHING |
| TORSION BAR BEARING | ||
| 655 | A 3873230252 | SPACER WASHER |
| TORSION BAR BEARING | ||
| 660 | A 3933260152 | SPACER WASHER |
| TORSION BAR BEARING | ||
| 663 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 663 | N 910113016002 | NUT |
| TORSION BAR BEARING | ||
| 667 | A 0003261681 | RUBBER MOUNTING |
| TORSION BAR BEARING | ||
| 667 | A 3873260281 | RUBBER MOUNTING |
| TORSION BAR BEARING | ||
| 669 | A 3875860132 | REPAIR KIT |
| Repalced by: A 3873200128 | ||
| 669 | A 3873200128 | REPAIR KIT |
| SHACKLE TO TORSION BAR | ||
| 669 | A 3875860532 | REPAIR KIT |
| Repalced by: A 3873200528 | ||
| 669 | A 3873200528 | REPAIR KIT |
| TORSION BAR MOUNTING | ||
| 672 | N 000983085001 | LOCK RING |
| SHACKLE TO TORSION BAR | ||
| 680 | A 0023263500 | SHOCK ABSORBER |
| Repalced by: A 3913260100 | ||
| 680 | A 0023262900 | SHOCK ABSORBER |
| Repalced by: A 3913260100 | ||
| 688 | A 3913260100 | SHOCK ABSORBER |
| (PARTS KIT),REAR SPRINGS | ||
| 690 | A 3173260167 | RETAINER |
| 694 | A 3179911240 | SPACER TUBE |
| 698 | A 3543260068 | RUBBER BUFFER |
| 703 | A 3543260067 | RETAINER |
| 710 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 710 | N 910113014001 | NUT |
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
