Transporto priemonė: 2033 LS/6X2/4; VIN numerio dalis: 622520
Grupė: 42 BRAKES

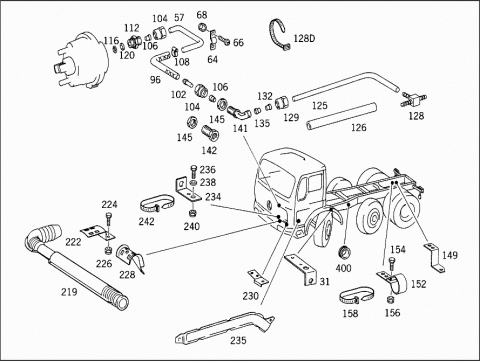

42535

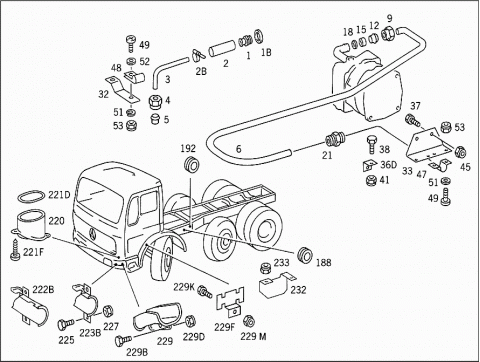

42536

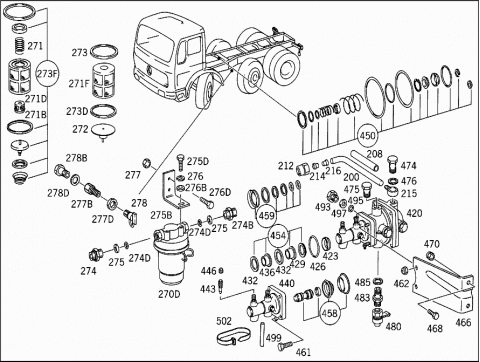

42537

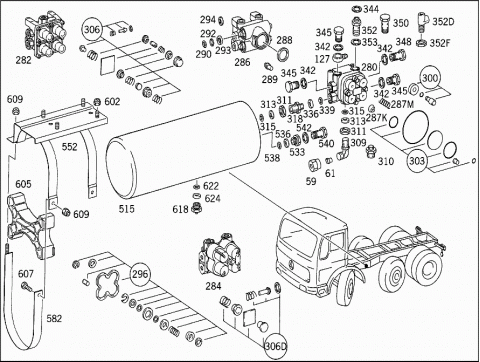

42538

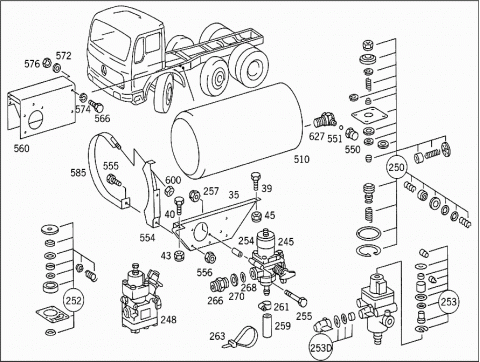

42539

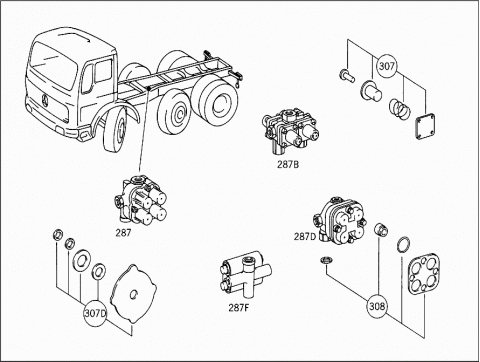

42540

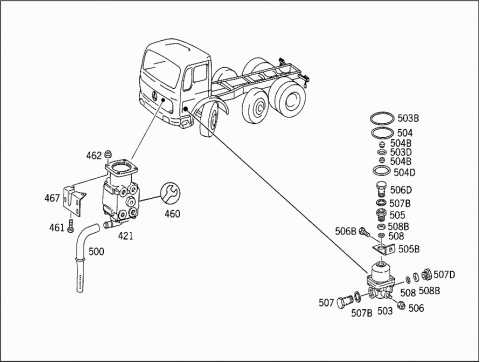

42541

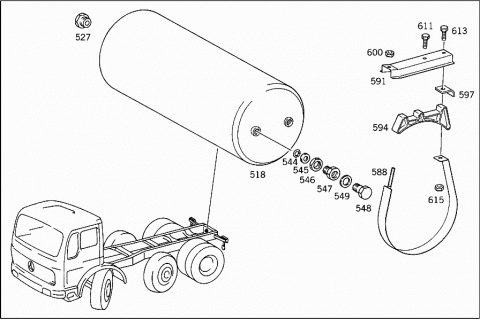

42542
42543

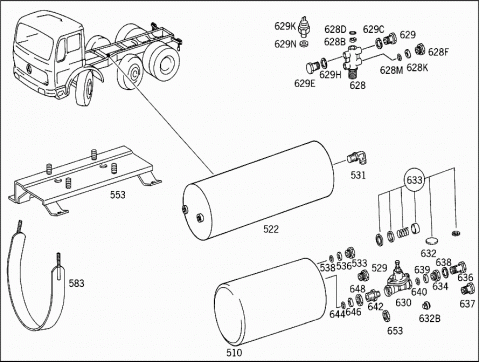

42544

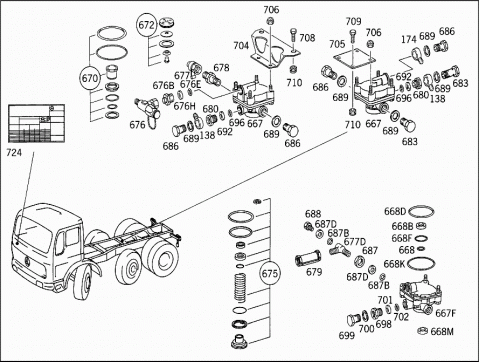

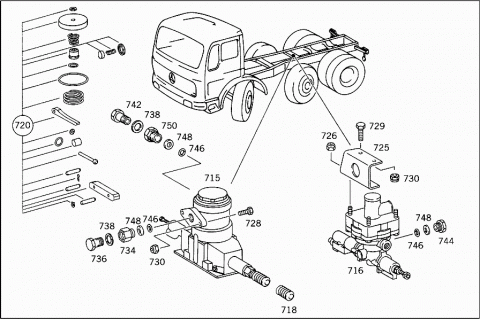

42545

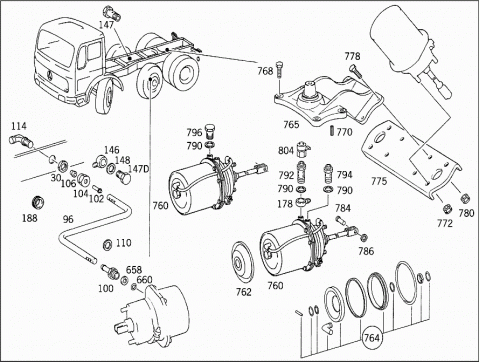

42546

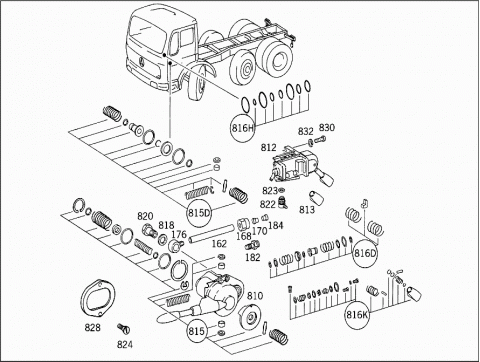

42547
# Kodas Pavadinimas
T YYYYYYYYYYYY PART NAME MISSING
FOR FRONT WHEEL BRAKE,SEE UNIT STANDARD VERSION, MODEL:
739.1
T YYYYYYYYYYYY PART NAME MISSING
FOR BRAKES,SEE UNIT STANDARD VERSION, MODEL:
740.3
T YYYYYYYYYYYY PART NAME MISSING
FOR BRAKES,SEE UNIT STANDARD VERSION, MODEL:
748.4
A 6209970272 FITTING
AIR COMPRESSOR,CONNECTION:
"20"
N 007603026104 SEAL RING
AIR COMPRESSOR,CONNECTION:
"20"
001 A 4031340156 FITTING
AIR-COMPRESSOR AIR INTAKE
001B N 007603026104 SEAL RING
AIR-COMPRESSOR AIR INTAKE
002 N 900271022023 HOSE
AIR COMPRESSOR CONNECTION
002B N 916017025000 CLAMP
Repalced by: N 000000000668
002B N 000000000668 CLAMP
HOSE TO COMPRESSED AIR LINE
003 A 0004291601 LINE
FROM AIR COMPRESSOR TO HOSE
22 MM
004 N 915017022100 UNION NUT
SUCTION LINE TO AIR COMPRESSOR
Repalced by: N 000000006243
004 N 000000006243 NUT
SUCTION LINE TO AIR COMPRESSOR
005 N 003861022004 GLAND
Repalced by: A 0019901267
005 A 0019901267 SEAL CONE
SUCTION LINE TO AIR COMPRESSOR
006 A 0004291401 LINE
AIR COMPRESSOR,PRESSURE REGULATOR, FOUR-CIRCUIT PROTECTIVE VALVE
15 MM
009 N 915018015000 UNION NUT
LINE CONNECTION
009 N 915017015100 UNION NUT
LINE CONNECTION
012 N 003861015004 GLAND
LINE CONNECTION
015 N 915065015101 THRUST RING
LINE CONNECTION
018 N 915045012100 SEAL RING
Repalced by: N 007603012121
018 N 007603012121 SEAL RING
LINE CONNECTION
021 N 074298022203 DOUBLE FITTING
BETWEEN THE LINES
021 N 003902015002 CONNECTION FITTING
BETWEEN THE LINES
030 N 080705018002 NUT
FITTING TO FRAME SIDE MEMBER
031 A 3914290040 BRACKET
Repalced by: A 4255530840
031 A 4255530840 BRACKET
MOUNTING USED FOR COMPRESSED AIR LINES
031 A 4255530840 BRACKET
MOUNTING USED FOR COMPRESSED AIR LINES
032 A 6204294740 BRACKET
AIR-COMPRESSOR-TO-PRESSURE-REGULATOR LINE MOUNTING
033 A 3914311440 BRACKET
MOUNTING USED FOR COMPRESSED AIR LINES
A 6474310040 BRACKET
MOUNTING USED FOR COMPRESSED AIR LINES
A 6224312540 BRACKET
MOUNTING USED FOR COMPRESSED AIR LINES
035 A 3914310540 BRACKET
PRESSURE REGULATOR
035 A 6224310040 BRACKET
PRESSURE REGULATOR
035 A 6224310040 BRACKET
PRESSURE REGULATOR
036D A 3604280243 ANGLE
MOUNTING USED FOR COMPRESSED AIR LINES
A 3914290040 BRACKET
Repalced by: A 4255530840
A 4255530840 BRACKET
A 4255530840 BRACKET
037 N 000933012056 SCREW
Repalced by: N 304017012020
037 N 304017012020 SCREW
BRACKET TO SIDE MEMBER
M 12X30
037 N 304017012020 SCREW
BRACKET TO SIDE MEMBER
M 12X30
N 000961012186 SCREW
BRACKET TO SIDE MEMBER
M 12X1,5X30
038 N 000933008147 SCREW
Repalced by: N 304017008021
038 N 304017008021 SCREW
BRACKET TO CONTROL VALVE
039 N 000933012064 SCREW
BRACKET TO APPARATUS SUPPORT
M 12X25
N 000961012052 SCREW
Repalced by: N 308676012012
N 308676012012 HEXAGON HEAD BOLT
BRACKET TO APPARATUS SUPPORT
M12X1.5X25
040 N 000933010128 SCREW
BRACKET TO APPARATUS SUPPORT
041 N 910113008001 NUT
BRACKET TO CONTROL VALVE
043 N 913004010008 NUT
Repalced by: N 910113010000
043 N 910113010000 NUT
BRACKET TO APPARATUS SUPPORT
045 N 913002012004 NUT
BRACKET TO SIDE MEMBER
M 12
N 910113012002 NUT
BRACKET
M 12X1.5
047 A 3609950210 CLAMP
MOUNTING USED FOR COMPRESSED AIR LINES
048 A 3609950501 CLAMP
Repalced by: A 3609952001
048 A 3609952001 CLAMP
Repalced by: A 6739950001
048 A 6739950001 CLAMP
MOUNTING USED FOR COMPRESSED AIR LINES
049 N 000000001147 SCREW
CLAMP TO BRACKET
M 6X20
049 N 007985006193 SCREW
Repalced by: N 000000001146
049 N 000000001146 SCREW
CLAMP TO BRACKET
M 6X16
051 N 912004006102 LOCK WASHER
CLAMP TO BRACKET
052 N 000125006421 WASHER
CLAMP TO BRACKET
Repalced by: N 000125006449
052 N 000125006449 WASHER
CLAMP TO BRACKET
053 N 913004006002 NUT
Repalced by: N 913004006001
053 N 913004006001 NUT
CLAMP TO BRACKET
057 A 0004292101 LINE
AIR RESERVOIR,FOUR-CIRCUIT PROTECTIVE VALVE,BRAKE CYLINDER
12 MM
059 N 915017012100 UNION NUT
LINE CONNECTION
Repalced by: N 000000006239
059 N 000000006239 UNION NUT
LINE CONNECTION
061 N 003861012007 GLAND
Repalced by: A 0019901967
061 A 0019901967 SEAL CONE
LINE CONNECTION
064 A 3159955010 CLAMP
MOUNTING USED FOR COMPRESSED AIR LINES
066 N 007985006145 SCREW
Repalced by: N 007985006581
066 N 007985006581 SCREW
MOUNTING USED FOR COMPRESSED AIR LINES
M 6X20
N 000125006421 WASHER
MOUNTING USED FOR COMPRESSED AIR LINES
Repalced by: N 000125006449
N 000125006449 WASHER
MOUNTING USED FOR COMPRESSED AIR LINES
068 N 913004006002 NUT
Repalced by: N 913004006001
068 N 913004006001 NUT
MOUNTING USED FOR COMPRESSED AIR LINES
A 3834290801 LINE
Repalced by: A 6194290801
A 6194290801 LINE
Repalced by: A 6254293501
A 6254293501 LINE
FRONT AXLE I BRAKE CYLINDER,LEFT AND RIGHT
A 6254293501 LINE
FRONT AXLE I BRAKE CYLINDER,LEFT AND RIGHT
096 N 916027011014 HOSE
FRONT AXLE I BRAKE CYLINDER,LEFT AND RIGHT
096 N 916027011014 HOSE
FRONT AXLE II BRAKE CYLINDER
100 N 074304016201 FITTING
FROM BRAKE HOSE TO LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
102 A 0004290541 FITTING
FROM BRAKE HOSE TO LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
104 N 915017012100 UNION NUT
LINE CONNECTION
Repalced by: N 000000006239
104 N 000000006239 UNION NUT
LINE CONNECTION
106 N 003861012007 GLAND
Repalced by: A 0019901967
106 A 0019901967 SEAL CONE
LINE CONNECTION
108 N 916017016000 CLAMP
Repalced by: N 000000000666
108 N 000000000666 CLAMP
LINE MOUNTING
A 0039975745 SEAL RING
BETWEEN THE LINES TO BRAKE HOSE
110 A 0039975745 SEAL RING
AT T-FITTING
112 A 0029971572 FITTING
LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
114 N 003911012100 FITTING
Repalced by: A 0009907871
114 A 0009907871 ELBOW FITTING
LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
Repalced by: N 000000006195
114 N 000000006195 FITTING
LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
116 A 0009971548 SEAL RING
LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
120 A 0004290927 THRUST RING
LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
125 A 0109975982 HOSE
Repalced by: A 0009872827
125 A 0009872827 PLASTIC PIPE
9X12 MM
125 A 0009872827 PLASTIC PIPE
AIR RESERVOIR,FOUR-CIRCUIT PROTECTIVE VALVE,BRAKE CYLINDER
9X12 MM
125 A 0009872827 PLASTIC PIPE
CHECK VALVE,RELAY VALVE
9X12 MM
125 A 0009872827 PLASTIC PIPE
HAND BRAKE VALVE
9X12 MM
125 A 0009872827 PLASTIC PIPE
BRAKE VALVE,BRAKE POWER REGULATOR
9X12 MM
125 A 0009872827 PLASTIC PIPE
PRESSURE RATIO VALVE
9X12 MM
125 A 0009872827 PLASTIC PIPE
FROM TRISTOP CYLINDER TO TRISTOP CYLINDER
9X12 MM
A 0049971772 FITTING
Repalced by: A 0029906171
A 0029906171 FITTING
(PARTS KIT),LINE RUPTURE
TO 010 997 59 82
A 0009907378 CONNECTOR
REPAIR SIZE
126 N 040621013200 INSULATING HOSE
11X13 MM
127 N 915052009009 BANJO UNION
HOSE WIDTH, / I.D.,
9/16 MM
128 A 0019903970 T-FITTING
Repalced by: A 0029909070
128 A 0029909070 T-FITTING
128D A 0019978390 LOOM TIE
LINE MOUNTING
280 MM
129 N 915017012100 UNION NUT
Repalced by: N 000000006239
129 N 000000006239 UNION NUT
132 N 003861012007 GLAND
Repalced by: A 0019901967
132 A 0019901967 SEAL CONE
135 A 0009921505 BUSHING
Repalced by: N 915062009000
135 N 915062009000 SLEEVE
138 A 0019901088 BANJO UNION
16 MM
138 N 915052009009 BANJO UNION
HOSE WIDTH, / I.D.,
9/16 MM
141 N 003911012100 FITTING
Repalced by: A 0009907871
141 A 0009907871 ELBOW FITTING
COMPRESSED AIR LINE THRU FRAME
Repalced by: N 000000006195
141 N 000000006195 FITTING
COMPRESSED AIR LINE THRU FRAME
A 0019908171 ELBOW FITTING
A 0019908171 ELBOW FITTING
COMPRESSED AIR LINE THRU FRAME
142 A 0004296934 ADAPTER FITTING
COMPRESSED AIR LINE THRU FRAME
142 A 0004296934 ADAPTER FITTING
LEFT AND RIGHT BRAKE HOSES
A 0004296834 ADAPTER FITTING
COMPRESSED AIR LINES TO FRAME
A 0004296834 ADAPTER FITTING
COMPRESSED AIR LINE THRU FRAME
A 0009970934 UNION SCREW
LEFT AND RIGHT BRAKE HOSES
A 0009970934 UNION SCREW
COMPRESSED AIR LINE THRU FRAME
145 N 080705018002 NUT
COMPRESSED AIR LINE THRU FRAME
145 N 080705018002 NUT
LEFT AND RIGHT BRAKE HOSES
N 000439018204 NUT
N 000439018204 NUT
COMPRESSED AIR LINE THRU FRAME
A 0019901570 T-FITTING
COMPRESSED AIR LINE THRU FRAME
A 0019907070 T-FITTING
COMPRESSED AIR LINE THRU FRAME
A 6204290473 LOCK
COMPRESSED AIR LINE THRU FRAME
A 0004312031 TEST CONNECTION
COMPRESSED AIR LINE THRU FRAME
A 0004312031 TEST CONNECTION
COMPRESSED AIR LINE THRU FRAME
A 0004314531 TEST CONNECTION
COMPRESSED AIR LINE THRU FRAME
A 0004314531 TEST CONNECTION
COMPRESSED AIR LINE THRU FRAME
A 0004314831 TEST CONNECTION
COMPRESSED AIR LINE THRU FRAME
A 0004314831 TEST CONNECTION
COMPRESSED AIR LINE THRU FRAME
A 0004316131 TEST CONNECTION
COMPRESSED AIR LINE THRU FRAME
A 0004316131 TEST CONNECTION
COMPRESSED AIR LINE THRU FRAME
A 0009979486 PROTECTIVE CAP
146 A 0019900788 BANJO UNION
COMPRESSED AIR LINE THRU FRAME
146 A 0019900788 BANJO UNION
COMPRESSED AIR LINE THRU FRAME
147 N 915047012203 HOLLOW SCREW
COMPRESSED AIR LINE THRU FRAME
147 N 915047012203 HOLLOW SCREW
COMPRESSED AIR LINE THRU FRAME
147 N 915047012203 HOLLOW SCREW
COMPRESSED AIR LINE THRU FRAME
147D N 915036012203 HOLLOW SCREW
COMPRESSED AIR LINE THRU FRAME
147D N 915036012203 HOLLOW SCREW
LEFT AND RIGHT BRAKE HOSES
148 N 007603016401 SEAL RING
COMPRESSED AIR LINE THRU FRAME
A 0009940147 SEAL RING
COMPRESSED-AIR-LINE PLUG-CONNECTION
TO M 22
A 0009941448 LOCK
COMPRESSED-AIR-LINE PLUG-CONNECTION
TO M 22
A 6739970145 TS SEALING RING
COMPRESSED-AIR-LINE PLUG-CONNECTION
TO M 22
149 A 6204296740 BRACKET
Repalced by: A 3184923441
149 A 3184923441 BRACKET
MOUNTING USED FOR COMPRESSED AIR LINES
152 A 3934310140 BRACKET
Repalced by: A 6514310240
152 A 6514310240 BRACKET
MOUNTING USED FOR COMPRESSED AIR LINES
154 N 000933008147 SCREW
Repalced by: N 304017008021
154 N 304017008021 SCREW
BRACKET TO CONTROL ARM
M 8X20
156 N 913004008004 NUT
Repalced by: N 913004008001
156 N 913004008001 NUT
BRACKET TO CONTROL ARM
158 A 0019978390 LOOM TIE
LINE MOUNTING
280 MM
158 A 0019978490 LOOM TIE
LINE MOUNTING
376 MM
162 A 0089979082 HOSE
6X8 MM
162 A 0089979082 HOSE
BRAKE VALVE,FOUR-CIRCUIT PROTECTIVE VALVE,RELAY VALVE
6X8 MM
162 A 0089979082 HOSE
PRESSURE GAUGE,FILLING VALVE,3/2-WAY VALVE
6X8 MM
162 A 0089979082 HOSE
AXLE BREATHING
6X8 MM
168 N 915017008100 UNION NUT
LINE CONNECTION
170 N 003861008005 GLAND
LINE CONNECTION
174 N 915052006014 BANJO UNION
HOSE WIDTH, / I.D.,
6/16 MM
176 N 915052006021 BANJO UNION
HOSE WIDTH, / I.D.,
6/14 MM
178 N 915052006013 BANJO UNION
HOSE WIDTH, / I.D.,
6/12 MM
A 0019904788 BANJO UNION
182 A 0019976772 FITTING
Repalced by: N 915059006000
182 N 915059006002 FITTING
184 A 0007630043 SLEEVE
Repalced by: N 915062006000
184 N 915062006000 SLEEVE
188 A 3879970481 GROMMET
LINE THRU FRAME
38/30 MM
192 A 3549970081 GROMMET
LINE THRU FRAME
32/27 MM
200 A 0089976082 HOSE
Repalced by: A 0009872627
200 A 0009872627 PLASTIC PIPE
3/2-WAY VALVE,PRESSURE GAUGE,EXHAUST BRAKE CYLINDER
4X6 MM
200 A 0009872627 PLASTIC PIPE
LOAD/NO-LOAD VALVE,TRUCK-TRACTOR BRAKE VALVE
4X6 MM
208 N 073379006203 HOSE
PRESSURE GAUGE LINE
6X10 MM
212 N 915017006100 UNION NUT
FROM TWO-CIRCUIT BRAKE VALVE TO DOUBLE PRESSURE GAUGE
214 N 003861006007 GLAND
Repalced by: A 0019901667
214 A 0019901667 SEAL CONE
FROM TWO-CIRCUIT BRAKE VALVE TO DOUBLE PRESSURE GAUGE
215 N 915052004019 BANJO UNION
FROM TWO-CIRCUIT BRAKE VALVE TO DOUBLE PRESSURE GAUGE
216 A 0009920105 BUSHING
Repalced by: N 915062004000
216 N 915062004000 SLEEVE
FROM TWO-CIRCUIT BRAKE VALVE TO DOUBLE PRESSURE GAUGE
219 A 0004290086 PROTECTIVE TUBE
Repalced by: A 0004290286
219 A 0004290286 PROTECTIVE TUBE
COMPRESSED AIR LINE
220 A 6204291940 BRACKET
COMPRESSED AIR LINE THRU CAB FLOOR
220 A 6204291940 BRACKET
COMPRESSED AIR LINE THRU CAB FLOOR
220 A 6204292440 BRACKET
COMPRESSED AIR LINE THRU CAB FLOOR
220 A 6204292440 BRACKET
COMPRESSED AIR LINE THRU CAB FLOOR
221D A 6204290084 SEAL RING
TO SEAL CABLE HARNESS OPENING IN CAB
221D A 6204290084 SEAL RING
TO SEAL CABLE HARNESS OPENING IN CAB
221F N 007981004252 SHEET METAL SCREW
BRACKET TO CAB FLOOR
A 0009946445 LOCK
BRACKET TO CAB FLOOR
N 009021005202 WASHER
Repalced by: N 009021005205
N 009021005205 WASHER
BRACKET TO CAB FLOOR
222 A 3874291140 BRACKET
PLASTIC LINES TO FRAME
222B A 6204202386 BRACKET
LEFT FRONT
222B A 6204202486 BRACKET
RIGHT FRONT
223B A 6204201986 BRACKET
LEFT FRONT
223B A 6204202086 BRACKET
RIGHT FRONT
A 6154200086 BRACKET
LINE MOUNTING
A 6204201486 BRACKET
LINE MOUNTING
224 N 000933008147 SCREW
Repalced by: N 304017008021
224 N 304017008021 SCREW
BRACKET TO CONSOLE
225 N 000961014100 SCREW
BRACKET TO CONSOLE
226 N 913004008004 NUT
Repalced by: N 913004008001
226 N 913004008001 NUT
BRACKET TO CONSOLE
227 N 913004014002 NUT
Repalced by: N 910113014001
227 N 910113014001 NUT
BRACKET TO CONSOLE
228 A 3874292540 BRACKET
BUMPER,LEFT
A 6204201186 BRACKET
BUMPER,LEFT
229 A 6204201586 BRACKET
BUMPER,LEFT
A 3874292640 BRACKET
BUMPER,RIGHT
A 6204201286 BRACKET
BUMPER,RIGHT
A 6204201686 BRACKET
BUMPER,RIGHT
229B N 000933008147 SCREW
Repalced by: N 304017008021
229B N 304017008021 SCREW
BRACKET TO BUMPER STRUT
229D N 913004008004 NUT
Repalced by: N 913004008001
229D N 913004008001 NUT
BRACKET TO BUMPER STRUT
229F A 6204293940 BRACKET
LINE MOUNTING
229F A 6204293940 BRACKET
LINE MOUNTING
229F A 6204293940 BRACKET
LINE MOUNTING
229F A 6204293940 BRACKET
LINE MOUNTING
229K N 000933008152 SCREW
Repalced by: N 304017008027
229K N 304017008027 SCREW
BRACKET TO SIDE MEMBER
229M N 913004008004 NUT
Repalced by: N 913004008001
229M N 913004008001 NUT
BRACKET TO SIDE MEMBER
230 A 3874291540 BRACKET
PRESSURE GAUGE LINE TO CAB
230 A 3874292740 BRACKET
PRESSURE GAUGE LINE TO CAB
232 A 6204295240 BRACKET
LINE MOUNTING
232 A 6204295240 BRACKET
LINE MOUNTING
233 N 913004006002 NUT
Repalced by: N 913004006001
233 N 913004006001 NUT
BRACKET TO CAB FLOOR
233 N 913004006001 NUT
BRACKET TO CAB FLOOR
A 3609902340 WASHER
A 3609902340 WASHER
234 A 3274925419 BRACKET
Repalced by: A 6205240340
234 A 6205240340 BRACKET
LINE MOUNTING
235 A 6204292340 BRACKET
LINE MOUNTING
236 N 000933008153 SCREW
Repalced by: N 304017008034
236 N 304017008034 SCREW
BRACKET TO FRONT CROSS MEMBER
238 N 000125008418 WASHER
Repalced by: N 000125008443
238 N 000125008443 WASHER
BRACKET TO FRONT CROSS MEMBER
240 N 913004008004 NUT
Repalced by: N 913004008001
240 N 913004008001 NUT
BRACKET TO FRONT CROSS MEMBER
242 A 0019978490 LOOM TIE
245 A 0014310006 PRESSURE REGULATOR
Repalced by: A 0024314906
245 A 0014313406 PRESSURE REGULATOR
Repalced by: A 0024314306
245 A 0014311206 PRESSURE REGULATOR
Repalced by: A 0024314906
245 A 0024314906 PRESSURE REGULATOR
WABCO
248 A 0014310606 PRESSURE REGULATOR
Repalced by: A 0024313406
248 A 0024313406 PRESSURE REGULATOR
Repalced by: A 0024314306
248 A 0024314306 PRESSURE REGULATOR
WITH TIRE INFLATING CONNECTION
BOSCH
248 A 0024318306 PRESSURE REGULATOR
KNORR
250 A 0015864343 REPAIR KIT
Repalced by: A 0004301107
250 A 0004301107 REPAIR KIT
TO 001 431 00 06,WABCO 975 300 110 0
A 0024304681 REPAIR KIT
VALVE KIT
TO 001 431 00 06,WABCO 975 300 110 0
A 0014304960 REPAIR KIT
TO 002 431 49 06,WABCO 975 303 460 0
250 A 0025866043 REPAIR KIT
TO 001 431 34 06,GRAU 312 017 014
250 A 0025866743 REPAIR KIT
TO 001 431 12 06,KNORR 3200
252 A 0015868543 REPAIR KIT
Repalced by: A 0004301407
252 A 0004301407 REPAIR KIT
TO 001 431 06 06,BOSCH 0 481 039 101
253 A 0004301768 REPAIR KIT
DIAPHRAGM
TO 002 431 34 06,BOSCH 0 481 039 221
253 A 0004301768 REPAIR KIT
DIAPHRAGM
TO 002 431 43 06,BOSCH. 0 481 039 201
253D A 0004307960 REPAIR KIT
TIRE INFLATING CONNECTION
TO 002 431 34 06,BOSCH 0 481 039 221
253D A 0004307960 REPAIR KIT
TIRE INFLATING CONNECTION
TO 002 431 43 06,BOSCH. 0 481 039 201
A 0004300407 REPAIR KIT
TO 002 431 83 06,KNORR 90309
254 A 3354310053 SPACER TUBE
Repalced by: A 3094310249
254 A 3094310249 GUIDE BUSHING
PRESSURE REGULATOR TO BRACKET
255 N 000931008207 SCREW
Repalced by: N 304014008007
255 N 304014008007 SCREW
PRESSURE REGULATOR TO BRACKET
257 N 913004008004 NUT
Repalced by: N 913004008001
257 N 913004008001 NUT
PRESSURE REGULATOR TO BRACKET
259 A 0005461830 INSULATING HOSE
PRESSURE REGULATOR,CONNECTION "3"
259 A 0159975082 HOSE
PRESSURE REGULATOR,CONNECTION "3"
261 N 916026016001 CLAMP
Repalced by: A 0059970190
261 A 0059970190 HOSE CLAMP
PRESSURE REGULATOR,CONNECTION "3"
261 N 916026020001 CLAMP
Repalced by: N 000000000667
261 N 000000000667 CLAMP
PRESSURE REGULATOR,CONNECTION "3"
263 A 0019978390 LOOM TIE
PRESSURE REGULATOR,CONNECTION "3"
266 N 074298022203 DOUBLE FITTING
PRESSURE REGULATOR,CONNECTIONS:
"1,2"
A 0019972172 FITTING
PRESSURE REGULATOR,CONNECTIONS:
"2"
A 0019972372 FITTING
PRESSURE REGULATOR,CONNECTIONS:
"1"
A 0029978972 FITTING
PRESSURE REGULATOR,CONNECTIONS:
"1"
268 N 007603022102 SEAL RING
PRESSURE REGULATOR,CONNECTIONS:
"1,2"
A 0009870446 O-RING
PRESSURE REGULATOR,CONNECTIONS:
"1.2"
270 A 0004290227 THRUST RING
Repalced by: A 0009940203
270 A 0009940203 THRUST RING
AT PRESSURE REGULATOR
270D A 0004292595 AIR CLEANER
BOSCH
270D A 0004292595 AIR CLEANER
BOSCH
270D A 0004292695 AIR CLEANER
KNORR
270D A 0004292695 AIR CLEANER
KNORR
270D A 0004292795 AIR CLEANER
WABCO
270D A 0004292795 AIR CLEANER
WABCO
270D A 0004292895 AIR CLEANER
GRAU
270D A 0004292895 AIR CLEANER
GRAU
271 A 0059930901 SPRING
TO 000 429 27 95,WABCO
271 A 0059930901 SPRING
TO 000 429 27 95,WABCO
271B A 0004290597 FILTER ELEMENT
TO 000 429 27 95,WABCO
271B A 0004290597 FILTER ELEMENT
TO 000 429 27 95,WABCO
271D A 0004290497 FILTER ELEMENT
TO 000 429 27 95,WABCO
271D A 0004290497 FILTER ELEMENT
TO 000 429 27 95,WABCO
271F A 0004290397 FILTER ELEMENT
TO 000 429 28 95,GRAU
271F A 0004290397 FILTER ELEMENT
TO 000 429 28 95,GRAU
A 0004290797 FILTER ELEMENT
TO 000 429 25 95,BOSCH
272 A 0004290845 DIAPHRAGM
TO 000 429 28 95,GRAU
272 A 0004290845 DIAPHRAGM
TO 000 429 28 95,GRAU
A 0004291045 DIAPHRAGM
TO 000 429 25 95,BOSCH
273 A 0089978048 SEAL RING
TO 000 429 28 95,GRAU
273 A 0089978048 SEAL RING
TO 000 429 28 95,GRAU
A 0019974048 SEAL RING
TO 000 429 25 95,BOSCH
273D A 0059972748 SEAL RING
TO 000 429 28 95, GRAU
273D A 0059972748 SEAL RING
TO 000 429 28 95, GRAU
A 0119974048 SEAL RING
TO 000 429 25 95,BOSCH
A 0089978848 SEAL RING
Repalced by: A 0049972248
A 0049972248 SEAL RING
Repalced by: A 0289972348
A 0289972348 SEAL RING
TO 000 429 27 95,100X3 MM,WABCO
A 0289972348 SEAL RING
TO 000 429 27 95,100X3 MM,WABCO
A 0089978948 SEAL RING
Repalced by: A 0009870746
A 0009870746 SEALING CORD
TO 000 429 27 95,75X3 MM,WABCO
A 0009870746 SEALING CORD
TO 000 429 27 95,75X3 MM,WABCO
273F A 0004204455 REPAIR KIT
TO 000 429 27 95,WABCO
273F A 0004204455 REPAIR KIT
98X3 MM, TO 000 429 28 95,WABCO
A 0004300369 REPAIR KIT
TO 000 429 26 95,KNORR
A 0004300369 REPAIR KIT
TO 000 429 26 95,KNORR
274 A 0019972372 FITTING
AIR CLEANER,CONNECTION:
"1"
274 A 0019972372 FITTING
AIR CLEANER,CONNECTION:
"1"
274B A 0019972172 FITTING
AIR CLEANER,CONNECTION:
"2"
274B A 0019972172 FITTING
AIR CLEANER,CONNECTION:
"2"
A 0009905871 ELBOW FITTING
AIR CLEANER,CONNECTION:
"2"
A 0029902271 ELBOW FITTING
AIR CLEANER,CONNECTION:
"2"
274D A 0009870446 O-RING
AIR CLEANER,CONNECTION:
"1,2"
275 A 0004290227 THRUST RING
Repalced by: A 0009940203
275 A 0009940203 THRUST RING
AIR CLEANER,CONNECTION:
"1,2"
N 074305022202 NUT
AIR CLEANER,CONNECTION:
"1,2"
N 074305022202 NUT
AIR CLEANER,CONNECTION:
"1,2"
275B A 6224310640 BRACKET
AIR CLEANER
275B A 6224310640 BRACKET
AIR CLEANER
275D N 000933010128 SCREW
AIR CLEANER TO BRACKET
275D N 000933010128 SCREW
AIR CLEANER TO BRACKET
276 N 912004010102 LOCK WASHER
AIR CLEANER TO BRACKET
276 N 912004010102 LOCK WASHER
AIR CLEANER TO BRACKET
276B N 000125010518 WASHER
Repalced by: N 000125010532
276B N 000125010532 WASHER
AIR CLEANER TO BRACKET
276B N 000125010532 WASHER
AIR CLEANER TO BRACKET
276D N 000933008145 SCREW
BRACKET TO PRESSURE REGULATOR BRACKET
276D N 000933008145 SCREW
BRACKET TO PRESSURE REGULATOR BRACKET
277 N 913004008004 NUT
Repalced by: N 913004008001
277 N 913004008001 NUT
BRACKET TO PRESSURE REGULATOR BRACKET
277 N 913004008001 NUT
BRACKET TO PRESSURE REGULATOR BRACKET
277B A 0019908168 FITTING
REDUCTION FITTING
277B A 0019908168 FITTING
REDUCTION FITTING
277D N 080705012003 NUT
REDUCTION FITTING TO BRACKET
277D N 080705012003 NUT
REDUCTION FITTING TO BRACKET
278 A 0034291044 VALVE
REFILLING CONNECTION
278 A 0034291044 VALVE
REFILLING CONNECTION
278 A 0044293744 VALVE
REFILLING CONNECTION
278 A 0044293744 VALVE
REFILLING CONNECTION
278B N 915036008202 HOLLOW SCREW
REFILLING CONNECTION
278B N 915036008202 HOLLOW SCREW
REFILLING CONNECTION
278D N 007603012405 SEAL RING
REFILLING CONNECTION
278D N 007603012405 SEAL RING
REFILLING CONNECTION
280 A 0014313806 VALVE
Repalced by: A 0024310406
280 A 0024310406 VALVE
(FOUR-CIRCUIT PROTECTIVE VALVE)
BOSCH
282 A 0014314706 VALVE
(FOUR-CIRCUIT PROTECTIVE VALVE)
WABCO
284 A 0014313506 VALVE
Repalced by: A 0014318406
284 A 0014318406 VALVE
(FOUR-CIRCUIT PROTECTIVE VALVE)
KNORR
286 A 0014316806 VALVE
Repalced by: A 0024312906
286 A 0024312906 VALVE
Repalced by: A 0024319306
286 A 0024319306 VALVE
(FOUR-CIRCUIT PROTECTIVE VALVE)
GRAU
287 A 0014318706 VALVE
Repalced by: A 0034315006
287 A 0014318706 VALVE
287B A 0014318906 VALVE
Repalced by: A 0024314006
287B A 0024314006 VALVE
Repalced by: A 0034315006
287B A 0024314006 VALVE
287D A 0014319306 VALVE
Repalced by: A 0034315006
287D A 0014319306 VALVE
287F A 0024310206 VALVE
Repalced by: A 0024312706
287F A 0024312706 VALVE
Repalced by: A 0024319106
287F A 0024319106 VALVE
Repalced by: A 0034315006
287F A 0024319106 VALVE
A 0034315006 VALVE
(FOUR-CIRCUIT PROTECTIVE VALVE)
WABCO
287K A 0014310986 CUP
TO 002 431 04 06,BOSCH
287M A 0009934905 SPRING
Repalced by: A 0009935205
287M A 0009935205 SPRING
TO 002 431 04 06,BOSCH
288 A 0014311860 SEAL RING
34X2.3 MM,TO 001 431 68 06,GRAU
289 A 0024298844 VALVE
TO 001 431 68 06,GRAU 37001
290 A 0099972448 SEAL RING
TO 001 431 68 06 19.3X2.4MM GRAU 37001
292 A 0059973248 SEAL RING
25.3X2.4 MM,TO 001 431 68 06,GRAU
293 A 0004313188 VALVE SEAT
TO 001 431 68 06,GRAU 37001
294 A 0014311960 SEAL RING
Repalced by: A 0009971548
294 A 0009971548 SEAL RING
TO 001 431 68 06 15X2 MM GRAU 19001
296 A 0015863842 REPAIR KIT
TO 001 431 35 06,KNORR
300 A 0025861743 REPAIR KIT
BOOT
TO 001 431 38 06,BOSCH
303 A 0015868443 REPAIR KIT
SEAL RING
TO 001 431 38 06,BOSCH
306 A 0025862843 REPAIR KIT
TO 001 431 47 06,WABCO 2100
306D A 0004300468 REPAIR KIT
TO 001 431 47 06,WABCO 2210
A 0034300881 REPAIR KIT
TO 002 431 93 06 GRAU 74001
307 A 0035860943 REPAIR KIT
TO 001 431 89 06,002 431 40 06,WABCO
307D A 0035861043 REPAIR KIT
TO 001 431 87 06,KNORR
308 A 0004304706 GASKET KIT
TO 001 431 93 06,BOSCH 62401
308 A 0004300260 REPAIR KIT
TO 001 431 93 06,BOSCH 62201
308 A 0004302906 GASKET KIT
BOOT
TO 002 431 04 06;BOSCH
A 0034300981 GASKET KIT
TO 002 431 91 06 GRAU 66001
A 0004303160 REPAIR KIT
TO 001 430 84 06,KNORR
A 0004305106 REPAIR KIT
FOUR-CIRCUIT PROTECTIVE VALVE
WABCO; TO 003 431 50 06
309 A 0009905871 ELBOW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"1"
310 A 0019972172 FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"1"
310 A 0019972172 FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"1"
A 0029978972 FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"1"
311 N 074305022202 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"1,21,22"
313 A 0004290227 THRUST RING
Repalced by: A 0009940203
313 A 0009940203 THRUST RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"1,21,22"
315 A 0009870446 O-RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"1,21,22"
318 A 0039976972 FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
336 A 0004290927 THRUST RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"11,12,21,22,23,24"
339 A 0009971548 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"11,12,21,22,23,24"
342 N 007603016401 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"11,12,21,22,23"
344 N 007603012405 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
344 N 007603012405 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
345 N 915036012203 HOLLOW SCREW
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"11,21,22,23,24"
348 N 915047012203 HOLLOW SCREW
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"12,23"
350 N 915047008202 HOLLOW SCREW
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
350 N 915047008202 HOLLOW SCREW
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
352 N 915039012205 HOLLOW SCREW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
352D A 0019905270 T-FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
352D A 0019905270 T-FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
352F N 080705016003 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
352F N 080705016003 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
353 N 007603016401 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
400 A 3879970481 GROMMET
38/30 MM
420 A 0014313505 BRAKE VALVE
TWO-CIRCUIT BRAKE VALVE
TEVES-WABCO
420 A 0014314305 BRAKE VALVE
TWO-CIRCUIT BRAKE VALVE
BOSCH-TEVES
420 A 0014319405 BRAKE VALVE
TWO-CIRCUIT BRAKE VALVE
SCHAEFER-WABCO
420 A 0024310505 BRAKE VALVE
TWO-CIRCUIT BRAKE VALVE
BOSCH-SCHAEFER
421 A 0014318305 BRAKE VALVE
TWO-CIRCUIT BRAKE VALVE
WABCO
421 A 0014318305 BRAKE VALVE
TWO-CIRCUIT BRAKE VALVE
WABCO
421 A 0014318905 BRAKE VALVE
TWO-CIRCUIT BRAKE VALVE
BOSCH
421 A 0014318905 BRAKE VALVE
TWO-CIRCUIT BRAKE VALVE
BOSCH
421 A 0014319105 BRAKE VALVE
TWO-CIRCUIT BRAKE VALVE
KNORR
421 A 0014319105 BRAKE VALVE
TWO-CIRCUIT BRAKE VALVE
KNORR
421 A 0014319905 BRAKE VALVE
TWO-CIRCUIT BRAKE VALVE
GRAU
421 A 0014319905 BRAKE VALVE
TWO-CIRCUIT BRAKE VALVE
GRAU
A 0014316993 SPRING
TO 001 431 89 05,BOSCH
A 0014316993 SPRING
TO 001 431 89 05,BOSCH
423 A 0004310378 RUBBER RING
TO 001 431 43 05,002 431 05 05
426 A 0049970248 SEAL RING
TO 001 431 43 05,BOSCH-TEVES
429 A 0004312181 VALVE DISC
Repalced by: A 0004312781
429 A 0004312781 VALVE DISC
TO 001 431 43 05,BOSCH-TEVES
432 A 0004318986 CUP
TO 001 431 43 05,BOSCH-TEVES
436 A 0004312281 VALVE DISC
TO 001 431 43 05,BOSCH-TEVES
A 0109974248 SEAL RING
TO 001 431 43 05,BOSCH-TEVES
A 0109974348 SEAL RING
Repalced by: A 0049970248
A 0049970248 SEAL RING
TO 002 431 05 05,BOSCH-SCHAEFER
A 0059975248 SEAL RING
TO 001 431 43 05,002 431 05 05
A 0059975348 SEAL RING
TO 001 431 43 05,002 431 05 05
A 0059975448 SEAL RING
TO 001 431 43 05,002 431 05 05
A 0049979148 SEAL RING
TO 001 431 43 05,002 431 05 05
A 0059975548 SEAL RING
TO 001 431 43 05,002 431 05 05
440 A 0074202118 WHEEL BRAKE CYLINDER
SLAVE CYLINDER
TEVES,TO 001 431 35 05,001 431 43 05
440 A 0064201518 WHEEL BRAKE CYLINDER
SLAVE CYLINDER
SCHAEFER,TO001 431 94 05,002 431 05 05
443 A 0004204155 BLEEDER VALVE
Repalced by: A 0004310265
443 A 0004202155 BLEEDER VALVE
Repalced by: A 0004310265
443 A 0004310265 VALVE
Repalced by: A 3075530107
443 A 3075530107 VALVE
446 A 3164210187 PROTECTIVE CAP
Repalced by: A 0004210887
446 A 0004210887 PROTECTIVE CAP
Repalced by: A 0004217187
446 A 0004217187 PROTECTIVE CAP
A 0004312185 FILLER RING
TO 001 431 83 05,WABCO
A 0004310273 BREATHER PIPE
TO 001 431 83 05,WABCO
A 0004318383 PISTON
TO 001 431 83 05,WABCO
A 0004313623 VALVE
WABCO
A 0004313623 VALVE
WABCO
450 A 0005868643 REPAIR KIT
COMPRESSED AIR CYLINDER
TO 001 431 35 05,001 431 94 05,WABCO
454 A 0025861343 REPAIR KIT
VALVE DISC
TO 001 431 43 05,002 431 05 05,BOSCH
A 0025865742 REPAIR KIT
Repalced by: A 0004301109
A 0004301109 REPAIR KIT
BLEEDER VALVE
TO 001 431 43 05,002 431 05 05,BOSCH
458 A 0025862442 REPAIR KIT
SLAVE CYLINDER
TO 007 420 21 18,TEVES
A 0025860942 REPAIR KIT
SLAVE CYLINDER
TO 006 420 15 18,002 431 05 05,WABCO
459 A 0025865542 REPAIR KIT
SLAVE CYLINDER
TO 006 420 15 18,WABCO
460 A 0025868043 REPAIR KIT
Repalced by: A 0004301160
A 0004301160 REPAIR KIT
Repalced by: A 0004306260
A 0004306260 REPAIR KIT
Repalced by: A 0014300460
A 0014300460 REPAIR KIT
Repalced by: A 0004308006
A 0004308006 REPAIR KIT
TO 001 431 83 05,WABCO
A 0004308006 REPAIR KIT
TO 001 431 83 05,WABCO
460 A 0025868743 REPAIR KIT
Repalced by: A 0004303506
460 A 0004303506 REPAIR KIT
TO 001 431 89 05,BOSCH
460 A 0004303506 REPAIR KIT
TO 001 431 89 05,BOSCH
460 A 0035861243 REPAIR KIT
TO 001 431 91 05,KNORR
460 A 0035861243 REPAIR KIT
TO 001 431 91 05,KNORR
461 N 000933008152 SCREW
Repalced by: N 304017008027
461 N 304017008027 SCREW
BRAKE VALVE TO PEDAL UNIT
461 N 304017008027 SCREW
BRAKE VALVE TO PEDAL UNIT
462 N 913004008004 NUT
Repalced by: N 913004008001
462 N 913004008001 NUT
BRAKE VALVE TO BRACKET
462 N 913004008001 NUT
BRAKE VALVE TO PEDAL UNIT
462 N 913004008001 NUT
BRAKE VALVE TO BRACKET
466 A 3914311340 BRACKET
TRUCK-TRACTOR BRAKE VALVE
467 A 6202920140 BRACKET
TRUCK-TRACTOR BRAKE VALVE
467 A 6202920140 BRACKET
TRUCK-TRACTOR BRAKE VALVE
468 N 000933010145 SCREW
BRACKET TO SIDE MEMBER
M 10X35
470 N 913004010008 NUT
Repalced by: N 910113010000
470 N 910113010000 NUT
BRACKET TO SIDE MEMBER
474 N 915047012203 HOLLOW SCREW
TWO-CIRCUIT BRAKE CYLINDER;CONNECTION:
"11,12"
475 N 915036012203 HOLLOW SCREW
TWO-CIRCUIT BRAKE CYLINDER;CONNECTION:
"11,12,21,22"
476 N 007603016401 SEAL RING
TWO-CIRCUIT BRAKE CYLINDER;CONNECTION:
"11,12"
476 N 007603016401 SEAL RING
TWO-CIRCUIT BRAKE CYLINDER;CONNECTION:
"11,12"
480 A 0004312031 TEST CONNECTION
TWO-CIRCUIT BRAKE VALVE
VOSS
480 A 0004314831 TEST CONNECTION
TWO-CIRCUIT BRAKE VALVE
WABCO
480 A 0004316131 TEST CONNECTION
TWO-CIRCUIT BRAKE VALVE
WIRA
480 A 0004314531 TEST CONNECTION
TWO-CIRCUIT BRAKE VALVE
SCHAEFER
A 0009979486 PROTECTIVE CAP
483 N 915036012203 HOLLOW SCREW
TWO-CIRCUIT BRAKE CYLINDER;CONNECTION:
"21,22"
485 N 007603016401 SEAL RING
TWO-CIRCUIT BRAKE CYLINDER;CONNECTION:
"21,22"
493 N 000908016001 SCREW PLUG
TWO-CIRCUIT BRAKE CYLINDER;CONNECTION:
"11,12,21,22"
495 A 0009971548 SEAL RING
TWO-CIRCUIT BRAKE CYLINDER;CONNECTION:
"11,12,21,22""
497 A 0004290927 THRUST RING
TWO-CIRCUIT BRAKE CYLINDER;CONNECTION:
"11,12,21,22"
499 A 0089979082 HOSE
TWO-CIRCUIT BRAKE VALVE BLEEDING
500 A 6174310073 BREATHER PIPE
TWO-CIRCUIT BRAKE VALVE BLEEDING
500 A 6174310173 BREATHER PIPE
TWO-CIRCUIT BRAKE VALVE BLEEDING
502 A 0019978390 LOOM TIE
TWO-CIRCUIT BRAKE VALVE BLEEDING
503 A 0014306481 VALVE
PRESSURE RATIO VALVE
503 A 0014306481 VALVE
PRESSURE RATIO VALVE
503B A 0019871746 SEALING CORD
TO 001 430 64 81
503B A 0019871746 SEALING CORD
TO 001 430 64 81
503D A 0089970445 SEAL RING
TO 001 430 64 81
503D A 0089970445 SEAL RING
TO 001 430 64 81
504 A 0089978648 SEAL RING
TO 001 430 64 81
504 A 0089978648 SEAL RING
TO 001 430 64 81
504B A 0004313223 VALVE
TO 001 430 64 81
504B A 0004313223 VALVE
TO 001 430 64 81
504D A 0089978748 SEAL RING
TO 001 430 64 81
504D A 0089978748 SEAL RING
TO 001 430 64 81
505 A 0004296134 ADAPTER FITTING
Repalced by: A 0069970072
505 A 0069970072 FITTING
PRESSURE RATIO VALVE,CONNECTION:
"1"
505 A 0069970072 FITTING
PRESSURE RATIO VALVE,CONNECTION:
"1"
505B A 6204312440 BRACKET
PRESSURE RATIO VALVE
505B A 6204312440 BRACKET
PRESSURE RATIO VALVE
505B A 6204312540 BRACKET
PRESSURE RATIO VALVE
505B A 6204312540 BRACKET
PRESSURE RATIO VALVE
506 N 913004008004 NUT
Repalced by: N 913004008001
506 N 913004008001 NUT
BRACKET TO CAB FLOOR
506 N 913004008001 NUT
BRACKET TO CAB FLOOR
506B N 007976004212 SHEET METAL SCREW
BRACKET TO CAB FLOOR
506B N 007976004212 SHEET METAL SCREW
BRACKET TO CAB FLOOR
506D N 915036012203 HOLLOW SCREW
PRESSURE RATIO VALVE,CONNECTION:
"1"
506D N 915036012203 HOLLOW SCREW
PRESSURE RATIO VALVE,CONNECTION:
"1"
507 N 915047012203 HOLLOW SCREW
PRESSURE RATIO VALVE,CONNECTION:
"2"
507 N 915047012203 HOLLOW SCREW
PRESSURE RATIO VALVE,CONNECTION:
"2"
507B N 007603016401 SEAL RING
PRESSURE RATIO VALVE,CONNECTIONS:
"1,2"
507B N 007603016401 SEAL RING
PRESSURE RATIO VALVE,CONNECTIONS:
"1,2"
507D N 000908016001 SCREW PLUG
PRESSURE RATIO VALVE,CONNECTION:
"2"
507D N 000908016001 SCREW PLUG
PRESSURE RATIO VALVE,CONNECTION:
"2"
508 A 0009971548 SEAL RING
PRESSURE RATIO VALVE,CONNECTIONS:
"1,2"
508 A 0009971548 SEAL RING
PRESSURE RATIO VALVE,CONNECTIONS:
"1,2"
508B A 0004290927 THRUST RING
PRESSURE RATIO VALVE,CONNECTIONS:
"1,2"
508B A 0004290927 THRUST RING
PRESSURE RATIO VALVE,CONNECTIONS:
"1,2"
A 0029900271 ELBOW FITTING
A 0029900871 ELBOW FITTING
N 913004008004 NUT
Repalced by: N 913004008001
N 913004008001 NUT
FITTING TO CAB FLOOR
N 915036012203 HOLLOW SCREW
AT FITTING
N 915047012203 HOLLOW SCREW
AT FITTING
N 007603016401 SEAL RING
AT FITTING
510 A 0004324801 RESERVOIR
Repalced by: A 0014327501
510 A 0014327501 RESERVOIR
Repalced by: A 0034321201
510 A 0034321201 RESERVOIR
AIR RESERVOIR
20 L
510 A 0034321201 RESERVOIR
AIR RESERVOIR
20 L
515 A 0004322601 RESERVOIR
Repalced by: A 0034321801
515 A 0034321801 RESERVOIR
AIR RESERVOIR
30 L
518 A 0004321001 RESERVOIR
Repalced by: A 0034322501
518 A 0034322501 RESERVOIR
AIR RESERVOIR
40 L
522 A 0004329101 RESERVOIR
AIR RESERVOIR
50L (30/20)
522 A 0004329101 RESERVOIR
AIR RESERVOIR
50L (30/20)
527 N 000908022001 SCREW PLUG
Repalced by: N 000908022011
527 N 000908022011 SCREW PLUG
AIR RESERVOIR,CONNECTION:
N 007603022403 SEAL RING
AIR RESERVOIR,CONNECTION:
529 A 0009904468 FITTING
AIR RESERVOIR,CONNECTION:
"31"
531 A 0004293838 ELBOW FITTING
Repalced by: A 0004294638
531 A 0004294638 ELBOW FITTING
AIR RESERVOIR,CONNECTION:
"23"
531 A 0004294638 ELBOW FITTING
AIR RESERVOIR,CONNECTION:
"23"
533 A 0009905168 FITTING
AIR RESERVOIR,CONNECTION:
"11,13,14"
533 A 0009905168 FITTING
AIR RESERVOIR,CONNECTION:
"11,13,14"
536 A 0004290227 THRUST RING
Repalced by: A 0009940203
536 A 0009940203 THRUST RING
AIR RESERVOIR,CONNECTION:
"11,13,14"
536 A 0004290927 THRUST RING
AIR RESERVOIR,CONNECTION:
"11,13,14"
538 A 0009870446 O-RING
AIR RESERVOIR,CONNECTION:
"11,13,14,21,31"
538 A 0009870446 O-RING
AIR RESERVOIR,CONNECTION:
"11,22"
538 A 0009971548 SEAL RING
AIR RESERVOIR,CONNECTION:
"11,13"
540 N 915047012203 HOLLOW SCREW
AIR RESERVOIR,CONNECTION:
"11,21"
542 N 007603016401 SEAL RING
AIR RESERVOIR,CONNECTION:
"11,21"
N 915039012205 HOLLOW SCREW FITTING
AIR RESERVOIR,CONNECTION:
"22"
N 915039012205 HOLLOW SCREW FITTING
AIR RESERVOIR,CONNECTION:
"22"
N 007603016401 SEAL RING
AIR RESERVOIR,CONNECTION:
"22"
N 007603016401 SEAL RING
AIR RESERVOIR,CONNECTION:
"22"
A 0009902687 CROSS FITTING
LINE CONNECTION TO AIR RESERVOIR
30 L
A 0004312031 TEST CONNECTION
LINE CONNECTION TO AIR RESERVOIR
30 L
A 0004312031 TEST CONNECTION
AIR RESERVOIR,CONNECTION:
"11,22"
A 0004314531 TEST CONNECTION
LINE CONNECTION TO AIR RESERVOIR
30 L
A 0004314531 TEST CONNECTION
AIR RESERVOIR,CONNECTION:
"11,22"
A 0004314831 TEST CONNECTION
LINE CONNECTION TO AIR RESERVOIR
30 L
A 0004314831 TEST CONNECTION
AIR RESERVOIR,CONNECTION:
"11,22"
A 0004316131 TEST CONNECTION
LINE CONNECTION TO AIR RESERVOIR
30 L
A 0009979486 PLUG
544 A 0009870446 O-RING
AIR RESERVOIR,CONNECTIONS:
"11,12,13,14,21,22,23,24,31,32"
544 A 0009870446 O-RING
COMPRESSED AIR LINE TO AIR RESERVOIR
"11,12,13,14,21,22,23,24,31,32"
545 A 0004290227 THRUST RING
Repalced by: A 0009940203
545 A 0009940203 THRUST RING
AIR RESERVOIR,CONNECTIONS:
"11,12,13,14,21,22,23,24,31,32"
545 A 0009940203 THRUST RING
COMPRESSED AIR LINE TO AIR RESERVOIR
"11,12,13,14,21,22,23,24,31,32"
546 N 074305022202 NUT
AIR RESERVOIR,CONNECTIONS:
"2,12,13,14,22,23,24"
547 A 0009905168 FITTING
AIR RESERVOIR,CONNECTION:
"12,21,22"
548 N 915036012203 HOLLOW SCREW
COMPRESSED AIR LINE TO AIR RESERVOIR
549 N 007603016401 SEAL RING
COMPRESSED AIR LINE TO AIR RESERVOIR
550 N 915020014000 NUT
551 A 3209970286 PLUG
552 A 6224300010 BRACKET
AIR RESERVOIR
553 A 6224300110 BRACKET
AIR RESERVOIR
553 A 6224300110 BRACKET
AIR RESERVOIR
554 A 3874320540 BRACKET
AIR RESERVOIR
555 N 000933008154 SCREW
Repalced by: N 304017008021
555 N 304017008021 SCREW
BRACKET TO SIDE PART,FRONT
556 N 913004008004 NUT
Repalced by: N 913004008001
556 N 913004008001 NUT
BRACKET TO SIDE PART,FRONT
T YYYYYYYYYYYY PART NAME MISSING
FOR BATTERY/APPARATUS SUPPORT, SEE GROUP 54
560 A 6224300011 CONSOLE
SUPPORT TO FRAME SIDE MEMBER
560 A 6224300011 CONSOLE
SUPPORT TO FRAME SIDE MEMBER
560 A 6224300111 CONSOLE
SUPPORT TO FRAME SIDE MEMBER
566 N 000961014028 SCREW
SUPPORT TO FRAME SIDE MEMBER
M 14X40
566 N 000961014054 SCREW
SUPPORT TO FRAME SIDE MEMBER
M 14X45
572 N 000125015013 WASHER
Repalced by: N 000125015019
572 N 000125015019 WASHER
SUPPORT TO FRAME SIDE MEMBER
574 N 912004014100 LOCK WASHER
SUPPORT TO FRAME SIDE MEMBER
576 N 913004014002 NUT
Repalced by: N 910113014001
576 N 910113014001 NUT
SUPPORT TO FRAME SIDE MEMBER
582 A 6224300040 STRAP
AIR RESERVOIR
583 A 3664300040 STRAP
AIR RESERVOIR
583 A 3664300040 STRAP
AIR RESERVOIR
585 A 3874300640 STRAP
AIR RESERVOIR
588 A 3874300540 STRAP
Repalced by: A 6204300040
588 A 6204300040 STRAP
AIR RESERVOIR TO FRAME
591 A 3914320216 SUPPORT
REAR AIR RESERVOIR
594 A 3434320418 BASE
AIR RESERVOIR TO FRAME
597 A 3434320026 PLATE
AIR RESERVOIR TO FRAME
600 N 000934010014 NUT
STRAP TO BRACKET
602 N 910113012002 NUT
AIR RESERVOIR TO FRAME
605 A 6224320018 BASE
AIR RESERVOIR,STRAP
607 N 000933010105 SCREW
AIR RESERVOIR,STRAP
609 N 913004010008 NUT
Repalced by: N 910113010000
609 N 910113010000 NUT
AIR RESERVOIR,STRAP
611 N 000933010129 SCREW
Repalced by: N 304017010002
611 N 304017010002 SCREW
SUPPORT TO FRAME
M 10X30
613 N 000933010145 SCREW
SUPPORT TO FRAME
M 10X35
615 N 913004010008 NUT
Repalced by: N 910113010000
615 N 910113010000 NUT
SUPPORT TO FRAME
618 A 0004321107 VALVE
DRAIN
Repalced by: A 0004322407
618 A 0004322407 DRAIN VALVE
DRAIN
Repalced by: A 0004322107
618 A 0004322107 DRAIN VALVE
DRAIN
618 A 0004322107 VALVE
DRAIN
618 A 0004322407 VALVE
DRAIN
Repalced by: A 0004322107
618 A 0004322107 DRAIN VALVE
DRAIN
618 A 0004322107 DRAIN VALVE
AIR RESERVOIR
A 0005830296 RING
DRAIN VALVE
TO 000 432 08 07
622 A 0009870446 O-RING
DRAIN VALVE TO AIR RESERVOIR
624 A 0004290227 THRUST RING
Repalced by: A 0009940203
624 A 0009940203 THRUST RING
DRAIN VALVE TO AIR RESERVOIR
627 A 0024295844 VALVE
(CHECK VALVE)
WABCO
627 A 0024295944 VALVE
(CHECK VALVE)
VOSS
627 A 0024297544 VALVE
(CHECK VALVE)
GRAU
628 A 0024299644 VALVE
(CHECK VALVE)
VOSS
628 A 0024299644 VALVE
(CHECK VALVE)
VOSS
628 A 0034290444 VALVE
(CHECK VALVE)
WABCO
628 A 0034290444 VALVE
(CHECK VALVE)
WABCO
628 A 0034291244 VALVE
(CHECK VALVE)
SCHAEFER
628 A 0034291244 VALVE
(CHECK VALVE)
SCHAEFER
628B A 0002950320 VALVE
TO 003 429 04 88,WABCO
628D A 0089977348 SEAL RING
TO 003 429 04 88,WABCO
A 0109970048 SEAL RING
13.6X2,TO 003 429 12 44,SCHAEFER
A 0109970148 SEAL RING
15.3X2.4,TO 003 429 12 44,SCHAEFER
A 0004290662 THRUST WASHER
TO 003 429 12 44,SCHAEFER
A 0004290728 SEAL CONE
TO 003 429 12 44,SCHAEFER
628F N 000908016001 SCREW PLUG
CHECK VALVE,CONNECTION:
"22"
628F N 000908016001 SCREW PLUG
CHECK VALVE,CONNECTION:
"22"
628K A 0004290927 THRUST RING
CHECK VALVE,CONNECTION:
"22"
628K A 0004290927 THRUST RING
CHECK VALVE,CONNECTION:
"22"
628M A 0009971548 SEAL RING
CHECK VALVE,CONNECTION:
"22"
628M A 0009971548 SEAL RING
CHECK VALVE,CONNECTION:
"22"
629 N 915036012203 HOLLOW SCREW
CHECK VALVE,CONNECTION:
"21"
629 N 915036012203 HOLLOW SCREW
CHECK VALVE,CONNECTION:
"21"
629C N 007603016401 SEAL RING
CHECK VALVE,CONNECTION:
"21"
629C N 007603016401 SEAL RING
CHECK VALVE,CONNECTION:
"21"
629E N 915036010204 HOLLOW SCREW
Repalced by: N 915036010108
629E N 915036010108 HOLLOW SCREW
EXTENSIBLE BRAKE VALVE,CONNECTION:
"10"
629E N 915036010108 HOLLOW SCREW
EXTENSIBLE BRAKE VALVE,CONNECTION:
"10"
629H N 007603014405 SEAL RING
CHECK VALVE,CONNECTION:
"23"
629H N 007603014405 SEAL RING
CHECK VALVE,CONNECTION:
"23"
629K A 0015456814 SWITCH
CHECK VALVE,CONNECTION:
24
629N N 007603012405 SEAL RING
CHECK VALVE,CONNECTION:
24
630 A 0024297044 VALVE
Repalced by: A 0044293244
630 A 0044293244 VALVE
(OVERFLOW VALVE)
GRAU
630 A 0024290044 VALVE
Repalced by: A 0044293144
630 A 0044293144 VALVE
(OVERFLOW VALVE)
WABCO
630 A 0014296544 VALVE
Repalced by: A 0044293144
630 A 0044293144 VALVE
(OVERFLOW VALVE)
WABCO
632 A 0004290745 DIAPHRAGM
TO 002 429 70 44,GRAU
632B A 0024298844 VALVE
TO 002 429 70 44,GRAU
A 0004290645 DIAPHRAGM
Repalced by: A 0004290745
A 0004290745 DIAPHRAGM
TO 004 429 32 44
633 A 0015862042 REPAIR KIT
TO 001 429 65 44,WABCO
633 A 0015862642 REPAIR KIT
TO 002 429 00 44,WABCO
634 A 0009905168 FITTING
OVERFLOW VALVE,CONNECTION "1"
634 A 0009905168 FITTING
OVERFLOW VALVE,CONNECTION "1"
636 N 915047012203 HOLLOW SCREW
OVERFLOW VALVE,CONNECTION:
"1"
637 N 915036012203 HOLLOW SCREW
OVERFLOW VALVE,CONNECTION:
"1"
637 N 915036012203 HOLLOW SCREW
OVERFLOW VALVE,CONNECTION:
"1"
638 N 007603016401 SEAL RING
OVERFLOW VALVE,CONNECTION:
"1"
638 N 007603016401 SEAL RING
OVERFLOW VALVE,CONNECTION:
"1"
639 A 0004290227 THRUST RING
Repalced by: A 0009940203
639 A 0009940203 THRUST RING
OVERFLOW VALVE,CONNECTION "1"
639 A 0009940203 THRUST RING
OVERFLOW VALVE,CONNECTION "1"
640 A 0009870446 O-RING
OVERFLOW VALVE,CONNECTION "1"
640 A 0009870446 O-RING
OVERFLOW VALVE,CONNECTION "1"
642 A 0019972372 FITTING
VALVE TO RESERVOIR
644 A 0009870446 O-RING
VALVE TO RESERVOIR
646 A 0004290227 THRUST RING
Repalced by: A 0009940203
646 A 0009940203 THRUST RING
VALVE TO RESERVOIR
648 N 074305022202 NUT
VALVE TO RESERVOIR
653 N 080705018002 NUT
FITTING TO FRAME SIDE MEMBER
658 A 0004290927 THRUST RING
DIAPHRAGM CYLINDER,CONNECTION:
"11,12"
660 A 0009971548 SEAL RING
DIAPHRAGM CYLINDER,CONNECTION:
"11,12"
667 A 0034295344 VALVE
RELAY VALVE
KNORR
667 A 0034291644 VALVE
RELAY VALVE
BOSCH
667 A 0014296844 VALVE
RELAY VALVE
WABCO
667F A 0014299144 VALVE
RELAY VALVE
GRAU
668 A 0059972648 SEAL RING
22.3X2.4 MM,TO 001 429 91 44,GRAU
668B A 0004312788 VALVE SEAT
TO 001 429 91 44,GRAU
668D A 0059972748 SEAL RING
80X3 MM,TO 000 429 28 95, GRAU
668F A 0014311660 SEAL RING
28X2 MM,TO 001 429 91 44,GRAU
668K A 0014311760 SEAL RING
86X2 MM,TO 001 429 91 44,GRAU
668M A 0004311980 GASKET
TO 001 429 91 44,GRAU
670 A 0025865642 REPAIR KIT
Repalced by: A 0004201071
670 A 0004201071 VALVE
GASKET KIT
TO 003 429 16 44,BOSCH; UP TO 03.82
670 A 0004201271 VALVE
GASKET KIT
TO 003 429 16 44,BOSCH; FROM 04.82
672 A 0025865742 REPAIR KIT
Repalced by: A 0004301109
672 A 0004301109 REPAIR KIT
BLEEDER VALVE
TO 003 429 16 44,BOSCH
675 A 0005865742 REPAIR KIT
TO 001 429 68 44,WABCO
676 A 0024292444 VALVE
RELAY VALVE,CONNECTION:
"4"
A 0039974348 SEAL RING
A 0039974448 SEAL RING
A 0039974548 SEAL RING
A 0039974498 CHAIN LOCK LINK
676B N 074313008104 FITTING
Repalced by: A 0029979572
676B A 0029979572 FITTING
RELAY VALVE,CONNECTION:
"4"
676E A 0009971548 SEAL RING
RELAY VALVE,CONNECTION:
"4"
676H A 0004290927 THRUST RING
RELAY VALVE,CONNECTION:
"4"
677 A 0004312031 TEST CONNECTION
RELAY VALVE,CONNECTION "2"
VOSS
677 A 0004314831 TEST CONNECTION
RELAY VALVE,CONNECTION "2"
WABCO
677 A 0004316131 TEST CONNECTION
RELAY VALVE,CONNECTION "2"
WIRA
677 A 0004314531 TEST CONNECTION
RELAY VALVE,CONNECTION "2"
SCHAEFER
A 0009979486 PROTECTIVE CAP
677D A 0004290444 VALVE
Repalced by: A 0034290744
677D A 0034290744 VALVE
RELAY VALVE,CONNECTION:
2
678 N 915039012205 HOLLOW SCREW FITTING
RELAY VALVE,CONNECTION "2"
679 A 0039977072 FITTING
RELAY VALVE,CONNECTION:
"2"
679 A 0029902570 T-FITTING
RELAY VALVE,CONNECTION:
"2"
680 A 0009905168 FITTING
RELAY VALVE,CONNECTION:
"1"
680 A 0009905168 FITTING
RELAY VALVE,CONNECTION:
"2"
683 N 915047012203 HOLLOW SCREW
RELAY VALVE,CONNECTION:
"1"
686 N 915036012203 HOLLOW SCREW
RELAY VALVE,CONNECTION:
"1,2,4"
687 N 080705016003 NUT
RELAY VALVE,CONNECTION:
"2"
687B A 0009971548 SEAL RING
RELAY VALVE,CONNECTION:
"2"
687D A 0004290927 THRUST RING
RELAY VALVE,CONNECTION:
"2,4"
688 N 000908016001 SCREW PLUG
RELAY VALVE,CONNECTION:
"2"
688 N 000908016001 SCREW PLUG
RELAY VALVE,CONNECTION:
"2"
689 N 007603016401 SEAL RING
RELAY VALVE,CONNECTION:
"1,2,4"
692 A 0004290227 THRUST RING
Repalced by: A 0009940203
692 A 0009940203 THRUST RING
RELAY VALVE,CONNECTION:
"1,2"
696 A 0009870446 O-RING
RELAY VALVE,CONNECTION:
"1,2"
698 A 0009905168 FITTING
CHECK VALVE,CONNECTION:
"2"
699 N 915036012203 HOLLOW SCREW
CHECK VALVE,CONNECTION:
"2"
700 N 007603016401 SEAL RING
CHECK VALVE,CONNECTION:
"2"
701 A 0004290227 THRUST RING
Repalced by: A 0009940203
701 A 0009940203 THRUST RING
CHECK VALVE,CONNECTION:
"2"
702 A 0009870446 O-RING
CHECK VALVE,CONNECTION:
"2"
704 A 6224310340 BRACKET
RELAY VALVE
705 A 3914311240 BRACKET
RELAY VALVE
705 A 3914311240 BRACKET
RELAY VALVE
A 6484310140 BRACKET
RELAY VALVE
706 N 913004008004 NUT
Repalced by: N 913004008001
706 N 913004008001 NUT
RELAY VALVE TO BRACKET
708 N 000961012151 SCREW
RELAY VALVE TO CROSS MEMBER
M 12X1,5X22
709 N 000933008153 SCREW
Repalced by: N 304017008034
709 N 304017008034 SCREW
RELAY VALVE TO CROSS MEMBER
M 8X25
710 N 910113012002 NUT
RELAY VALVE TO CROSS MEMBER
710 N 913004008004 NUT
Repalced by: N 913004008001
710 N 913004008001 NUT
RELAY VALVE TO CROSS MEMBER
715 A 0014310212 BRAKE PRESSURE REGULATOR
LOAD-DEPENDING BRAKE
716 A 0014314312 BRAKE PRESSURE REGULATOR
LOAD-DEPENDING BRAKE
716 A 0014314312 BRAKE PRESSURE REGULATOR
LOAD-DEPENDING BRAKE
718 A 0004317287 PROTECTIVE CAP
TO 001 431 02 12
720 A 0005869843 REPAIR KIT
TO 001 431 02 12
A 0004303660 REPAIR KIT
TO 001 431 43 12,WABCO
A 0004303660 REPAIR KIT
TO 001 431 43 12,WABCO
724 A 3875843521 GUIDE SIGN
LOAD-DEPENDING BRAKE
724 A 6225840421 GUIDE SIGN
LOAD-DEPENDING BRAKE
724 A 6225840421 GUIDE SIGN
LOAD-DEPENDING BRAKE
A 3875840055 ADHESIVE FOIL
725 A 3854317040 BRACKET
BRAKE POWER REGULATOR
725 A 3854317040 BRACKET
BRAKE POWER REGULATOR
726 N 913004008004 NUT
Repalced by: N 913004008001
726 N 913004008001 NUT
BRAKE POWER REGULATOR TO BRACKET
726 N 913004008001 NUT
BRAKE POWER REGULATOR TO BRACKET
728 N 000933008128 SCREW
BRAKE POWER REGULATOR TO CROSS MEMBER
M 8X40
729 N 000933008153 SCREW
Repalced by: N 304017008034
729 N 304017008034 SCREW
BRAKE POWER REGULATOR TO CROSS MEMBER
M 8X25
729 N 304017008034 SCREW
BRAKE POWER REGULATOR TO CROSS MEMBER
M 8X25
730 N 913004008004 NUT
Repalced by: N 913004008001
730 N 913004008001 NUT
BRAKE POWER REGULATOR TO CROSS MEMBER
734 A 0019907468 FITTING
BRAKE PRESSURE REGULATOR CONNECTION
736 N 915036012203 HOLLOW SCREW
BRAKE POWER REGULATOR,CONNECTION:
"1,2,"
736 N 915036012203 HOLLOW SCREW
BRAKE POWER REGULATOR,CONNECTION:
"4"
738 N 007603016401 SEAL RING
BRAKE POWER REGULATOR,CONNECTION:
"1,2,4"
742 N 915047012203 HOLLOW SCREW
BRAKE POWER REGULATOR,CONNECTION:
"2"
744 N 915039012205 HOLLOW SCREW FITTING
BRAKE POWER REGULATOR,CONNECTION:
"4"
746 A 0009870446 O-RING
BRAKE PRESSURE REGULATOR CONNECTION
748 A 0004290227 THRUST RING
Repalced by: A 0009940203
748 A 0009940203 THRUST RING
BRAKE PRESSURE REGULATOR CONNECTION
750 A 0009905168 FITTING
BRAKE PRESSURE REGULATOR CONNECTION
A 0004312031 TEST CONNECTION
BRAKE POWER REGULATOR
VOSS
A 0004312031 TEST CONNECTION
BRAKE POWER REGULATOR
VOSS
A 0004314531 TEST CONNECTION
BRAKE POWER REGULATOR
SCHAEFER
A 0004314531 TEST CONNECTION
BRAKE POWER REGULATOR
SCHAEFER
A 0004314831 TEST CONNECTION
BRAKE POWER REGULATOR
WABCO
A 0004314831 TEST CONNECTION
BRAKE POWER REGULATOR
WABCO
A 0004316131 TEST CONNECTION
BRAKE POWER REGULATOR
WIRA
A 0004316131 TEST CONNECTION
BRAKE POWER REGULATOR
WIRA
760 A 0094209518 WHEEL BRAKE CYLINDER
TRISTOP CYLINDER
GRAU
760 A 0074205718 WHEEL BRAKE CYLINDER
TRISTOP CYLINDER
WABCO
760 A 0084208918 WHEEL BRAKE CYLINDER
TRISTOP CYLINDER
760 A 0084205818 WHEEL BRAKE CYLINDER
TRISTOP CYLINDER
KNORR
A 0004214886 CUP
Repalced by: A 0004213886
A 0004213886 CUP
TO 007 420 57 18,WABCO
762 A 0004212986 DIAPHRAGM
A 0004312928 DIAPHRAGM
TO 008 420 58 18,KNORR
A 0004313028 DIAPHRAGM
TO 008 420 89 18
A 0004210111 PLUG
A 0004231060 SEAL RING
TO 008 420 58 18,KNORR
A 0004234187 PROTECTIVE CAP
TO 008 420 58 18,KNORR
A 0004211263 GUIDE
Repalced by: N 071752014000
N 071752014000 YOKE
TO 008 420 89 18
A 0004304160 REPAIR KIT
Repalced by: A 0024209824
A 0024209824 REPAIR KIT
Repalced by: A 0024209524
A 0024209524 REPAIR KIT
DIAPHRAGM PART
TO 008 420 58 18,KNORR
A 0024209424 REPAIR KIT
SPRING LOAD ACCUMULATOR PART
TO 008 420 58 18,KNORR
A 0014308660 REPAIR KIT
TRISTOP CYLINDER
TO 008 420 89 18,BOSCH
764 A 0025863742 REPAIR KIT
Repalced by: A 0025865242
764 A 0025865242 REPAIR KIT
Repalced by: A 0024301560
764 A 0024301560 REPAIR KIT
TRISTOP CYLINDER
TO 007 420 57 18,WABCO
765 A 3894201878 BEARING BRACKET
Repalced by: A 6204201278
A 6204201278 BEARING BRACKET
TRISTOP CYLINDER
A 6204201278 BEARING BRACKET
TRISTOP CYLINDER
768 N 914125020501 SCREW
BEARING BRACKET TO REAR AXLE
M 20X50
768 N 914125020501 SCREW
BEARING BRACKET TO REAR AXLE
M 20X50
768 N 000961016077 SCREW
Repalced by: N 308676016006
768 N 308676016006 SCREW
BEARING BRACKET TO REAR AXLE
M 16X45
768 N 308676016006 SCREW
BEARING BRACKET TO REAR AXLE
M 16X45
768 N 000961016058 SCREW
BEARING BRACKET TO REAR AXLE
M 16X70
768 N 000961016058 SCREW
BEARING BRACKET TO REAR AXLE
M 16X70
768 N 000961016036 SCREW
Repalced by: N 308676016013
768 N 308676016013 SCREW
BEARING BRACKET TO REAR AXLE
770 N 001481028002 CLAMPING SLEEVE
BEARING BRACKET TO REAR AXLE
772 N 913004016004 NUT
Repalced by: N 910113016002
772 N 910113016002 NUT
TRISTOP CYLINDER TO BEARING BRACKET
772 N 910113016002 NUT
TRISTOP CYLINDER TO BEARING BRACKET
775 A 3874230006 BRAKE ANCHOR
TRISTOP CYLINDER
775 A 3874230006 BRAKE ANCHOR
TRISTOP CYLINDER
778 N 000961014028 SCREW
SUPPORT TO BEARING BRACKET
778 N 000961014028 SCREW
SUPPORT TO BEARING BRACKET
780 N 913004014002 NUT
Repalced by: N 910113014001
780 N 910113014001 NUT
SUPPORT TO BEARING BRACKET
780 N 910113014001 NUT
SUPPORT TO BEARING BRACKET
784 A 3619910005 PIN
AT TRISTOP CYLINDER
786 N 000433015005 WASHER
AT TRISTOP CYLINDER
N 000094004051 COTTER PIN
AT TRISTOP CYLINDER
790 N 007603016401 SEAL RING
TRISTOP CYLINDER;CONNECTION:
"11,12"
792 N 915040012206 HOLLOW SCREW FITTING
TRISTOP CYLINDER;CONNECTION:
"11,12"
794 N 915039012205 HOLLOW SCREW FITTING
TRISTOP CYLINDER;CONNECTION:
"12"
796 N 915036012203 HOLLOW SCREW
TRISTOP CYLINDER;CONNECTION:
"11"
804 A 0004312031 TEST CONNECTION
SPRING LOAD ACCUMULATOR CYLINDER
VOSS
804 A 0004314831 TEST CONNECTION
SPRING LOAD ACCUMULATOR CYLINDER
WABCO
804 A 0004316131 TEST CONNECTION
SPRING LOAD ACCUMULATOR CYLINDER
WIRA
804 A 0004314531 TEST CONNECTION
SPRING LOAD ACCUMULATOR CYLINDER
SCHAEFER
A 0009979486 PROTECTIVE CAP
810 A 0004305581 VALVE
HAND BRAKE VALVE
WABCO
810 A 0004306681 VALVE
HAND BRAKE VALVE
KNORR
810 A 0004305681 VALVE
HAND BRAKE VALVE
WABCO
810 A 0004306781 VALVE
HAND BRAKE VALVE
812 A 0014303481 VALVE
PARKING BRAKE VALVE
BOSCH
812 A 0014303481 VALVE
PARKING BRAKE VALVE
BOSCH
812 A 0014305681 VALVE
PARKING BRAKE VALVE
WABCO
812 A 0014305681 VALVE
PARKING BRAKE VALVE
WABCO
812 A 0014306681 VALVE
Repalced by: A 0024309881
812 A 0024309881 VALVE
PARKING BRAKE VALVE
KNORR
812 A 0024309881 VALVE
PARKING BRAKE VALVE
KNORR
812 A 0014304381 VALVE
PARKING BRAKE VALVE
BOSCH
812 A 0014304381 VALVE
PARKING BRAKE VALVE
BOSCH
812 A 0014305781 VALVE
PARKING BRAKE VALVE
WABCO
812 A 0014305781 VALVE
PARKING BRAKE VALVE
WABCO
812 A 0014306781 VALVE
Repalced by: A 0024309981
812 A 0024309981 VALVE
PARKING BRAKE VALVE
KNORR
812 A 0024309981 VALVE
PARKING BRAKE VALVE
KNORR
813 A 0009973477 HANDLE
HAND BRAKE LEVER
TO 001 430 34 81,001 430 43 81,BOSCH
A 0014311287 PROTECTIVE CAP
KNORR
A 0014311287 PROTECTIVE CAP
KNORR
813 A 0009972477 HANDLE
TO 001 430 56 81,001 430 57 81,WABCO
A 0009975577 HANDLE
KNORR
A 0009975577 HANDLE
KNORR
A 0014310887 PROTECTIVE CAP
TO 001 430 56 81,001 430 57 81,WABCO
A 0014311087 PROTECTIVE CAP
TO 001 430 34 81,001 430 43 81,BOSCH
N 001481003025 CLAMPING SLEEVE
KNORR
N 001481003025 CLAMPING SLEEVE
KNORR
815 A 0005868043 REPAIR KIT
Repalced by: A 0004305760
815 A 0004305760 REPAIR KIT
TO 000 430 55 81,WABCO
815 A 0005868143 REPAIR KIT
Repalced by: A 0004305860
815 A 0004305860 REPAIR KIT
TO 000 430 56 81,WABCO
815D A 0025866243 REPAIR KIT
Repalced by: A 0034303881
815D A 0034303881 REPAIR KIT
TO 000 430 66 81,000 431 67 81,KNORR
816D A 0025867443 REPAIR KIT
Repalced by: A 0034303181
816D A 0034303181 REPAIR KIT
TO 001 430 56 81,001 430 57 81,WABCO
816D A 0034303181 REPAIR KIT
TO 001 430 56 81,001 430 57 81,WABCO
A 0034302081 REPAIR KIT
TO 002 430 98 81,002 430 99 81,KNORR
A 0034302081 REPAIR KIT
TO 002 430 98 81,002 430 99 81,KNORR
816H A 0025866343 REPAIR KIT
GASKET KIT
TO 001 430 34 81,001 430 43 81,BOSCH
816H A 0025866343 REPAIR KIT
GASKET KIT
TO 001 430 34 81,001 430 43 81,BOSCH
816K A 0035860543 REPAIR KIT
TO 001 430 66 81,001 430 67 81,KNORR
816K A 0035860543 REPAIR KIT
TO 001 430 66 81,001 430 67 81,KNORR
818 N 007603014405 SEAL RING
CONNECTION TO VALVE
820 N 915036010204 HOLLOW SCREW
Repalced by: N 915036010108
820 N 915036010108 HOLLOW SCREW
PARKING BRAKE VALVE,CONNECTION:
822 A 0009976189 COUPLING
PARKING BRAKE VALVE,CONNECTIONS:
"11,21"
822 A 0009976189 COUPLING
PARKING BRAKE VALVE,CONNECTIONS:
"11,21"
823 A 0099973948 SEAL RING
823 A 0099973948 SEAL RING
824 N 000965006003 SCREW
VALVE TO CAB
M 6X25
824 N 000965006040 SCREW
VALVE TO CAB
M 6X30
828 A 3874310684 SHIM
VALVE TO CAB
830 N 007985008119 SCREW
HAND BRAKE VALVE TO INSTRUMENT PANEL
830 N 007985008119 SCREW
HAND BRAKE VALVE TO INSTRUMENT PANEL
832 N 912006008000 LOCK WASHER
HAND BRAKE VALVE TO INSTRUMENT PANEL
832 N 912006008000 LOCK WASHER
HAND BRAKE VALVE TO INSTRUMENT PANEL
Reklama
Kontaktai
Pasiūlymas
Skaitliukas



© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
