Transporto priemonė: 2033 LS/6X2/4; VIN numerio dalis: 622520

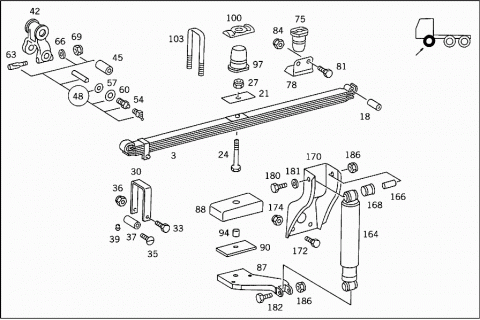

Grupė: 32 SPRINGS AND SUSPENSION
| # | Kodas | Pavadinimas |
|---|---|---|
| 003 | A 3913201002 | FRONT SPRING |
| FRONT AXLE I; 3-LEAF | ||
| 018 | A 3043210150 | BUSHING |
| 018 | A 6203210050 | BUSHING |
| 021 | A 3933210284 | SHIM |
| 024 | A 3913210071 | SCREW |
| (SPRING BOLT) | ||
| 027 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 027 | N 910113014000 | NUT |
| SPRING BOLT | ||
| 030 | A 0003249433 | SPRING CLAMP |
| Repalced by: A 6203240633 | ||
| 030 | A 6203240633 | SPRING CLAMP |
| 033 | N 000960012222 | SCREW |
| SPRING CLAMP | ||
| 035 | N 000963012011 | SCREW |
| SPRING CLAMP | ||
| 036 | N 910113012002 | NUT |
| SPRING CLAMP | ||
| 037 | A 3933210053 | SPACER TUBE |
| Repalced by: A 0003212753 | ||
| 037 | A 0003212753 | SPACER TUBE |
| SPRING CLAMP | ||
| 039 | N 910006008023 | RIVET |
| SPRING CLAMP TO SPRING LEAF | ||
| 042 | A 3873200162 | SHACKLE |
| FRONT SPRING | ||
| 045 | A 3043210150 | BUSHING |
| 045 | A 6203210050 | BUSHING |
| 048 | A 3955860232 | REPAIR KIT |
| Repalced by: A 3953200265 | ||
| 048 | A 3953200265 | SHACKLE PIN |
| (PARTS KIT), SPRING SHACKLE | ||
| 054 | N 071412010300 | GREASE NIPPLE |
| 057 | A 3523230376 | WASHER |
| AS REQUIRED | ||
| 4.00 MM | ||
| 057 | A 3523230476 | WASHER |
| AS REQUIRED | ||
| 4.20 MM | ||
| 057 | A 3523230576 | WASHER |
| AS REQUIRED | ||
| 4.30 MM | ||
| 060 | A 0029973140 | SEAL RING |
| SPRING SUSPENSION | ||
| 063 | A 3529900337 | BOLT |
| FRONT SPRING TO SPRING SHACKLE & SPRING BRACKETS | ||
| 066 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 066 | N 000125010532 | WASHER |
| FRONT SPRING TO SPRING SHACKLE & SPRING BRACKETS | ||
| 069 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 069 | N 910113010000 | NUT |
| FRONT SPRING TO SPRING SHACKLE & SPRING BRACKETS | ||
| 075 | A 3833240008 | HELPER SPRING |
| SPRING STOP TO FRAME BOTTOM SIDE | ||
| 078 | A 3953210040 | BRACKET |
| HELPER SPRING | ||
| 081 | N 000933010145 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 084 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 084 | N 910113010000 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 087 | A 6223230040 | BRACKET |
| LEFT SHOCK ABSORBER | ||
| 087 | A 6223230140 | BRACKET |
| RIGHT SHOCK ABSORBER | ||
| 088 | A 6203310328 | SHIM |
| LEFT AND RIGHT FRONT SPRINGS | ||
| 090 | A 3953310028 | SHIM |
| BETWEEN SPRING AND SHIM,RIGHT | ||
| 094 | A 3893230074 | PIN |
| Repalced by: A 6573310074 | ||
| 094 | A 6573310074 | PIN |
| FRONT SPRINGS TO FRONT AXLE I | ||
| 097 | A 3263310044 | RUBBER BUFFER |
| Repalced by: A 6553310044 | ||
| 097 | A 6553310044 | RUBBER BUFFER |
| FRONT SPRINGS TO FRONT AXLE I | ||
| 100 | A 3043310027 | SPACER |
| Repalced by: A 6483310026 | ||
| 100 | A 6483310026 | PLATE |
| Repalced by: A 6553310126 | ||
| 100 | A 6553310126 | PLATE |
| Repalced by: A 6483310026 | ||
| 100 | A 6483310026 | PLATE |
| FRONT SPRINGS TO FRONT AXLE I | ||
| 103 | A 3043311625 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE I | ||
| 245 MM | ||
| 103 | A 3043311625 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE I | ||
| 245 MM | ||
| 103 | A 3043311625 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE I | ||
| 245 MM | ||
| 103 | A 3873310925 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE I | ||
| 230 MM | ||
| 103 | A 3873310925 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE I | ||
| 230 MM | ||
| 103 | A 3343310125 | U-BOLT |
| Repalced by: A 3043311925 | ||
| 103 | A 3043311925 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE I | ||
| 275 MM | ||
| 103 | A 3043311925 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE I | ||
| 275 MM | ||
| 108 | N 913004020004 | NUT |
| Repalced by: N 913004020003 | ||
| 108 | N 913004020003 | NUT |
| FRONT SPRINGS TO FRONT AXLE I | ||

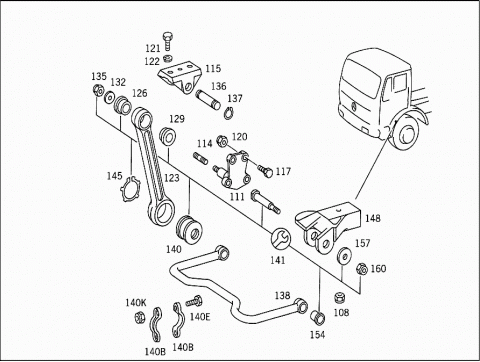

| 111 | A 3873200378 | CONSOLE |
| TORSION BAR,FRONT | ||
| 111 | A 6223200178 | CONSOLE |
| Repalced by: A 6223230163 | ||
| 111 | A 6223230163 | BEARING BRACKET |
| TORSION BAR,FRONT | ||
| 114 | N 000939016033 | STUD BOLT |
| 114 | N 000939014036 | STUD BOLT |
| 115 | A 6203230163 | BEARING BRACKET |
| TORSION BAR,FRONT | ||
| 115 | A 6203230163 | BEARING BRACKET |
| TORSION BAR,FRONT | ||
| 117 | N 000961016040 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M16X45 | ||
| 117 | N 000961016040 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M16X45 | ||
| 117 | N 000961016142 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 16 X 30 | ||
| 120 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 120 | N 910113016002 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| 120 | N 910113016002 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| 121 | N 000933008150 | SCREW |
| Repalced by: N 304017008018 | ||
| 121 | N 304017008018 | SCREW |
| BEARING BRACKET TO ENGINE MOUNTING CONSOLE | ||
| 121 | N 304017008018 | SCREW |
| BEARING BRACKET TO ENGINE MOUNTING CONSOLE | ||
| 122 | N 912004008102 | LOCK WASHER |
| BEARING BRACKET TO ENGINE MOUNTING CONSOLE | ||
| 122 | N 912004008102 | LOCK WASHER |
| BEARING BRACKET TO ENGINE MOUNTING CONSOLE | ||
| 123 | A 3873260847 | SHACKLE |
| TORSION BAR,FRONT | ||
| 123 | A 3873260847 | SHACKLE |
| TORSION BAR,FRONT | ||
| 123 | A 6203260047 | SHACKLE |
| TORSION BAR,FRONT | ||
| 123 | A 6203260047 | SHACKLE |
| TORSION BAR,FRONT | ||
| 123 | A 6223230116 | LINK |
| TORSION BAR,FRONT | ||
| 126 | A 0003260650 | BUSHING |
| SHACKLE TO BEARING BRACKET | ||
| 126 | A 0003260650 | BUSHING |
| SHACKLE TO BEARING BRACKET | ||
| 126 | A 6203230150 | BUSHING |
| LINK TO CONSOLE | ||
| 129 | A 3873230252 | SPACER WASHER |
| SHACKLE TO BEARING BRACKET | ||
| 132 | A 3933260152 | SPACER WASHER |
| SHACKLE TO BEARING BRACKET | ||
| 132 | A 6203230052 | SPACER WASHER |
| LINK TO CONSOLE | ||
| 135 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 135 | N 910113016002 | NUT |
| SHACKLE TO BEARING BRACKET | ||
| 135 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 135 | N 910113014001 | NUT |
| LINK TO CONSOLE | ||
| N 000961014127 | SCREW | |
| LINK TO CONSOLE | ||
| 136 | A 6203230274 | PIN |
| SHACKLE TO BEARING BRACKET | ||
| 136 | A 6203230274 | PIN |
| SHACKLE TO BEARING BRACKET | ||
| 137 | N 000471040002 | LOCK RING |
| SHACKLE TO BEARING BRACKET | ||
| 137 | N 000471040002 | LOCK RING |
| SHACKLE TO BEARING BRACKET | ||
| 138 | A 6223230065 | TORSION BAR |
| FRONT AXLE | ||
| 138 | A 6223230065 | TORSION BAR |
| FRONT AXLE | ||
| 138 | A 6213230165 | TORSION BAR |
| FRONT AXLE | ||
| 140 | A 3873260181 | RUBBER MOUNTING |
| TORSION BAR | ||
| 140 | A 3873260181 | RUBBER MOUNTING |
| TORSION BAR | ||
| 140 | A 3873260281 | RUBBER MOUNTING |
| TORSION BAR | ||
| 140B | A 6213230540 | BRACKET |
| TORSION BAR | ||
| 140E | N 000961012052 | SCREW |
| Repalced by: N 308676012012 | ||
| 140E | N 308676012012 | HEXAGON HEAD BOLT |
| BRACKET TO TORSION BAR | ||
| 140K | N 910113012002 | NUT |
| BRACKET TO TORSION BAR | ||
| A 3893260074 | PIN | |
| Repalced by: A 6203200128 | ||
| 141 | A 6203200128 | REPAIR KIT |
| TORSION BAR MOUNTING | ||
| 141 | A 6203200128 | REPAIR KIT |
| TORSION BAR MOUNTING | ||
| 141 | A 6213200428 | REPAIR KIT |
| TORSION BAR MOUNTING | ||
| 145 | N 000983085001 | LOCK RING |
| TORSION BAR TO SHACKLE | ||
| 148 | A 6203230420 | BEARING |
| TORSION BAR,LEFT | ||
| 148 | A 6203230420 | BEARING |
| TORSION BAR,LEFT | ||
| 148 | A 6203230520 | BEARING |
| TORSION BAR,RIGHT | ||
| 148 | A 6203230520 | BEARING |
| TORSION BAR,RIGHT | ||
| 148 | A 6203230563 | BEARING BRACKET |
| TORSION BAR,FRONT | ||
| 154 | A 3873260050 | BUSHING |
| TORSION BAR TO BEARING BRACKET | ||
| 154 | A 3873260050 | BUSHING |
| TORSION BAR TO BEARING BRACKET | ||
| 154 | A 6203230350 | BUSHING |
| TORSION BAR TO BEARING BRACKET | ||
| 157 | N 007349019002 | WASHER |
| TORSION BAR TO BEARING BRACKET | ||
| 157 | N 007349019002 | WASHER |
| TORSION BAR TO BEARING BRACKET | ||
| 157 | A 6203230052 | SPACER WASHER |
| TORSION BAR TO BEARING BRACKET | ||
| 160 | N 913004018003 | NUT |
| Repalced by: N 910113018004 | ||
| 160 | N 910113018004 | NUT |
| TORSION BAR TO BEARING BRACKET | ||
| 160 | N 910113018004 | NUT |
| TORSION BAR TO BEARING BRACKET | ||
| 160 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 160 | N 910113014001 | NUT |
| TORSION BAR TO BEARING BRACKET | ||
| 161 | A 3933250940 | BRACKET |
| Repalced by: A 3933251540 | ||
| 161 | A 3933251540 | BRACKET |
| TORSION BAR | ||
| 162 | N 000960016244 | SCREW |
| BRACKET TO TORSION BAR | ||
| 162 | N 000961010038 | SCREW |
| BRACKET TO TORSION BAR | ||
| 163 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 163 | N 910113016002 | NUT |
| BRACKET TO TORSION BAR | ||
| 163 | N 913004010010 | NUT |
| Repalced by: N 910113010002 | ||
| 163 | N 910113010002 | HEXAGON NUT |
| BRACKET TO TORSION BAR | ||
| 164 | A 0033235600 | SHOCK ABSORBER |
| Repalced by: A 0043234800 | ||
| 164 | A 0043234800 | SHOCK ABSORBER |
| FRONT AXLE I | ||
| 164 | A 0033235700 | SHOCK ABSORBER |
| FRONT AXLE I | ||
| 166 | A 0003230453 | SPACER TUBE |
| Repalced by: A 0003233150 | ||
| 166 | A 0003233150 | SPACER RING |
| 168 | A 0003231944 | RUBBER BUFFER |
| Repalced by: A 0003232885 | ||
| 168 | A 0003232885 | RUBBER MOUNTING |
| 170 | A 6203230040 | BRACKET |
| Repalced by: A 6243230340 | ||
| 170 | A 6243230340 | BRACKET |
| SHOCK ABSORBER,TOP | ||
| 172 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 172 | N 308676014020 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 174 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 174 | N 910113014001 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 180 | N 000960016164 | SCREW |
| Repalced by: N 000960016250 | ||
| 180 | N 000960016250 | SCREW |
| SHOCK ABSORBER TO BRACKET | ||
| M 16X85 | ||
| 180 | N 000960016065 | SCREW |
| SHOCK ABSORBER TO BRACKET | ||
| M 16 X 95 | ||
| 181 | A 3939900240 | WASHER |
| SHOCK ABSORBER TO BRACKET | ||
| 182 | N 000960016244 | SCREW |
| SHOCK ABSORBER TO FRONT SPRING | ||
| M 16X90 | ||
| 186 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 186 | N 910113016002 | NUT |
| SHOCK ABSORBER TO BRACKET | ||
| 186 | N 910113016002 | NUT |
| SHOCK ABSORBER TO FRONT SPRING | ||

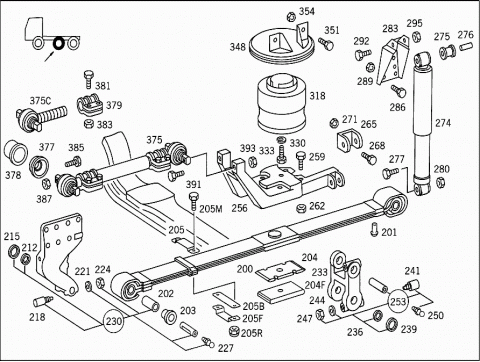

| 200 | A 3913200902 | FRONT SPRING |
| Repalced by: A 6223200102 | ||
| 200 | A 6223200102 | FRONT SPRING |
| Repalced by: A 6573200102 | ||
| 200 | A 6573200102 | FRONT SPRING |
| (GUIDE SPRING),2 LEAVES;FRONT AXLE II | ||
| 201 | N 910005016017 | RIVET |
| SPRING EYE,FRONT | ||
| 202 | A 3833220350 | BUSHING |
| 38 MM | ||
| 202 | A 3273255050 | BUSHING |
| Repalced by: A 3523250150 | ||
| 202 | A 3523250150 | BUSHING |
| 202 | A 3853250050 | BUSHING |
| 203 | A 6553250050 | BUSHING |
| SPLIT | ||
| 204 | A 3833220384 | SHIM |
| BETWEEN THE SPRING LEAVES | ||
| 204F | A 6193220384 | SHIM |
| BETWEEN THE SPRING LEAVES | ||
| 205 | A 6193210133 | SPRING CLAMP |
| UPPER PART | ||
| 205 | A 6193210233 | SPRING CLAMP |
| UPPER PART | ||
| 205B | A 3833212433 | SPRING CLAMP |
| CENTRAL PART | ||
| 205B | A 6193210333 | SPRING CLAMP |
| CENTRAL PART | ||
| 205F | A 3833212233 | SPRING CLAMP |
| LOWER PART | ||
| 205F | A 6193210433 | SPRING CLAMP |
| LOWER PART | ||
| 205M | N 000933008116 | SCREW |
| Repalced by: N 000933008337 | ||
| 205M | N 000933008337 | SCREW |
| Repalced by: A 0099900101 | ||
| 205M | A 0099900101 | SCREW |
| SPRING CLAMP TO SPRING LEAF NO.2 | ||
| 205M | N 000931010282 | SCREW |
| SPRING CLAMP TO SPRING LEAF NO.2 | ||
| 205R | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 205R | N 913004008001 | NUT |
| SPRING CLAMP TO SPRING LEAF NO.2 | ||
| 205R | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 205R | N 910113010000 | NUT |
| SPRING CLAMP TO SPRING LEAF NO.2 | ||
| 212 | A 3913220076 | WASHER |
| Repalced by: A 3523230976 | ||
| 212 | A 3523230976 | WASHER |
| AS REQUIRED | ||
| 4.0 MM | ||
| 212 | A 3833220076 | WASHER |
| Repalced by: A 3523231076 | ||
| 212 | A 3523231076 | WASHER |
| AS REQUIRED | ||
| 4.2 MM | ||
| 215 | A 3919970040 | SEAL RING |
| Repalced by: A 0029973040 | ||
| 215 | A 0029973040 | SEAL RING |
| FRONT AXLE II FRONT SPRING TO SPRING BRACKET AND TO SHACKLE | ||
| 218 | A 3839900337 | BOLT |
| FRONT AXLE II FRONT SPRING TO SPRING BRACKET AND TO SHACKLE | ||
| 221 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 221 | N 000125010532 | WASHER |
| FRONT AXLE II FRONT SPRING TO SPRING BRACKET AND TO SHACKLE | ||
| 224 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 224 | N 910113010000 | NUT |
| FRONT AXLE II FRONT SPRING TO SPRING BRACKET AND TO SHACKLE | ||
| 227 | N 071412010100 | GREASE NIPPLE |
| FRONT AXLE II FRONT SPRING TO SPRING BRACKET AND TO SHACKLE | ||
| 230 | A 6225860032 | REPAIR KIT |
| Repalced by: A 6223200065 | ||
| 230 | A 6223200065 | SHACKLE PIN |
| (PARTS KIT),FRONT & REAR SPRING EYES | ||
| 233 | A 3913270040 | BRACKET |
| (SPRING SHACKLE) | ||
| 236 | A 3523230976 | WASHER |
| AS REQUIRED | ||
| 4.0 MM | ||
| 236 | A 3523231076 | WASHER |
| AS REQUIRED | ||
| 4.2 MM | ||
| 239 | A 0029973040 | SEAL RING |
| SPRING SHACKLE TO CENTRAL BEARING BRACKET | ||
| 241 | A 3529900337 | BOLT |
| SPRING SHACKLE TO CENTRAL BEARING BRACKET | ||
| 244 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 244 | N 000125010532 | WASHER |
| SPRING SHACKLE TO CENTRAL BEARING BRACKET | ||
| 247 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 247 | N 910113010000 | NUT |
| SPRING SHACKLE TO CENTRAL BEARING BRACKET | ||
| 250 | N 071412010100 | GREASE NIPPLE |
| SPRING SHACKLE TO CENTRAL BEARING BRACKET | ||
| 253 | A 6225860232 | REPAIR KIT |
| Repalced by: A 6223200165 | ||
| 253 | A 6223200165 | SHACKLE PIN |
| (PARTS KIT),SPRING SHACKLE,TOP | ||
| 256 | A 3913270041 | SUPPORT |
| Repalced by: A 6223270041 | ||
| 256 | A 6223270041 | SUPPORT |
| FRONT AXLE II AIR SPRING BELLOWS,LEFT | ||
| 256 | A 3913270141 | SUPPORT |
| Repalced by: A 6223270141 | ||
| 256 | A 6223270141 | SUPPORT |
| FRONT AXLE II AIR SPRING BELLOWS,RIGHT | ||
| 259 | N 000960020143 | SCREW |
| SUPPORT TO FRONT AXLE II | ||
| M20X100 | ||
| 259 | N 000960020143 | SCREW |
| SUPPORT TO FRONT AXLE II | ||
| M20X100 | ||
| 259 | N 000960020143 | SCREW |
| SUPPORT TO FRONT AXLE II | ||
| M20X100 | ||
| 259 | N 000960020075 | SCREW |
| Repalced by: N 000960020084 | ||
| 259 | N 000960020084 | SCREW |
| BRACKET TO FRONT AXLE,BOTTOM | ||
| M 20X125 | ||
| 259 | N 000960020084 | SCREW |
| BRACKET TO FRONT AXLE,BOTTOM | ||
| M 20X125 | ||
| 262 | N 913004020004 | NUT |
| Repalced by: N 913004020003 | ||
| 262 | N 913004020003 | NUT |
| BRACKET TO FRONT AXLE,BOTTOM | ||
| 265 | A 3953230140 | BRACKET |
| FRONT AXLE II SHOCK ABSORBER,BOTTOM | ||
| 268 | N 000960020142 | SCREW |
| BRACKET TO SUPPORT | ||
| 271 | N 913004020004 | NUT |
| Repalced by: N 913004020003 | ||
| 271 | N 913004020003 | NUT |
| BRACKET TO SUPPORT | ||
| 274 | A 0033262600 | SHOCK ABSORBER |
| Repalced by: A 0033262500 | ||
| 274 | A 0033262500 | SHOCK ABSORBER |
| FRONT AXLE II | ||
| 274 | A 0033264800 | SHOCK ABSORBER |
| FRONT AXLE II | ||
| 275 | A 0003232885 | RUBBER MOUNTING |
| TO 003 326 25 00 | ||
| 275 | A 0003233044 | RUBBER BUFFER |
| Repalced by: A 0003233144 | ||
| 275 | A 0003233144 | RUBBER BUFFER |
| TO 003 326 48 00 | ||
| Repalced by: A 0003238085 | ||
| 275 | A 0003238085 | RUBBER MOUNTING |
| TO 003 326 48 00 | ||
| 276 | A 0003230453 | SPACER TUBE |
| Repalced by: A 0003233150 | ||
| 276 | A 0003233150 | SPACER RING |
| TO 003 326 25 00 | ||
| 276 | A 0003234550 | BUSHING |
| TO 003 326 48 00 | ||
| 277 | N 000960016065 | SCREW |
| SHOCK ABSORBER TO BOTTOM BRACKET | ||
| 280 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 280 | N 910113016002 | NUT |
| SHOCK ABSORBER TO BOTTOM BRACKET | ||
| 283 | A 3873200243 | BRACKET |
| FRONT AXLE II SHOCK ABSORBER,TOP | ||
| 286 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 286 | N 308676012026 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 289 | N 910113012002 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 292 | N 000960016105 | SCREW |
| SHOCK ABSORBER TO TOP BRACKET | ||
| 295 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 295 | N 910113016002 | NUT |
| SHOCK ABSORBER TO TOP BRACKET | ||

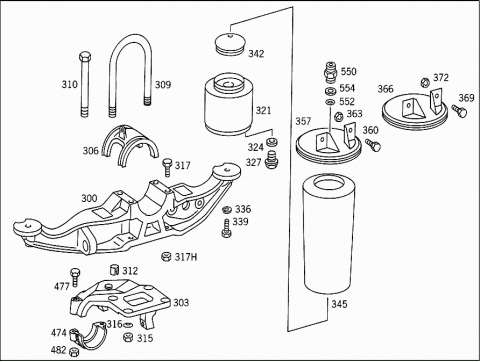

| 300 | A 3933280241 | SUPPORT |
| REAR AXLE AIR SPRING BELLOWS | ||
| 300 | A 6203280141 | SUPPORT |
| Repalced by: A 6203280041 | ||
| 300 | A 6203280041 | SUPPORT |
| Repalced by: A 6553280341 | ||
| 300 | A 6553280341 | SUPPORT |
| Repalced by: A 6553281041 | ||
| 300 | A 6553281041 | SUPPORT |
| AIR SPRING BELLOWS,LEFT | ||
| 300 | A 6203280041 | SUPPORT |
| Repalced by: A 6553280441 | ||
| 300 | A 6553280441 | SUPPORT |
| Repalced by: A 6553281141 | ||
| 300 | A 6553281141 | SUPPORT |
| AIR SPRING BELLOWS,RIGHT | ||
| 303 | A 3933251140 | BRACKET |
| RIGHT STABILIZER | ||
| 303 | A 3933251240 | BRACKET |
| LEFT STABILIZER | ||
| 306 | A 3933280284 | SHIM |
| AIR-SPRING-BELLOWS SUPPORT TO REAR AXLE | ||
| 309 | A 3873510625 | U-BOLT |
| AIR-SPRING-BELLOWS SUPPORT TO REAR AXLE | ||
| 290 MM | ||
| 310 | N 000960024058 | SCREW |
| AIR-SPRING-BELLOWS SUPPORT TO REAR AXLE | ||
| M 24X285 | ||
| 312 | N 007346030004 | CLAMPING SLEEVE |
| AIR-SPRING-BELLOWS SUPPORT TO REAR AXLE | ||
| 315 | N 913004024004 | NUT |
| AIR-SPRING-BELLOWS SUPPORT TO REAR AXLE | ||
| 316 | A 6203250070 | SPHERICAL WASHER |
| AIR-SPRING-BELLOWS SUPPORT TO REAR AXLE | ||
| 317 | N 000961016039 | SCREW |
| AIR-SPRING-BELLOWS SUPPORT BRACING | ||
| 317H | N 000439016206 | NUT |
| Repalced by: N 308675016001 | ||
| 317H | N 308675016001 | NUT |
| AIR-SPRING-BELLOWS SUPPORT BRACING | ||
| 318 | A 6223200018 | PISTON |
| FRONT AXLE II | ||
| 321 | A 3933200918 | PISTON |
| REAR AXLE | ||
| 324 | N 007603012405 | SEAL RING |
| 327 | A 0004290456 | SCREW PLUG |
| 330 | N 912004016101 | LOCK WASHER |
| PISTON TO FRONT AXLE II AIR-SPRING BELLOWS SUPPORT | ||
| 333 | N 000961016065 | SCREW |
| PISTON TO FRONT AXLE II AIR-SPRING BELLOWS SUPPORT | ||
| 336 | N 912004016101 | LOCK WASHER |
| PISTON TO REAR AXLE AIR-SPRING-BELLOWS SUPPORT | ||
| 339 | N 000961016113 | SCREW |
| PISTON TO REAR AXLE AIR-SPRING-BELLOWS SUPPORT | ||
| 339 | N 000961016081 | SCREW |
| PISTON TO REAR AXLE AIR-SPRING-BELLOWS SUPPORT | ||
| 342 | A 3603280039 | RUBBER BUFFER |
| (RUBBER STOP),EMERGENCY RUNNING | ||
| 345 | A 3833270001 | AIR SPRING BELLOWS |
| FRONT AXLE II | ||
| 345 | A 3833270001 | AIR SPRING BELLOWS |
| REAR AXLE | ||
| 345 | A 6213280001 | AIR SPRING BELLOWS |
| FRONT AXLE II | ||
| 345 | A 6213280001 | AIR SPRING BELLOWS |
| REAR AXLE | ||
| 348 | A 3913200035 | PLATE |
| AIR SPRING BELLOWS,TOP | ||
| 351 | N 000961012106 | SCREW |
| PLATE TO FRAME | ||
| 354 | N 913004012009 | NUT |
| Repalced by: N 910113012003 | ||
| 354 | N 910113012003 | NUT |
| PLATE TO FRAME | ||
| 357 | A 3873200635 | PLATE |
| REAR AXLE,FRONT | ||
| 360 | N 000960018133 | SCREW |
| FRONT PLATE TO SIDE MEMBER | ||
| 363 | N 913004018004 | NUT |
| FRONT PLATE TO SIDE MEMBER | ||
| 366 | A 3873200535 | PLATE |
| REAR AXLE,REAR | ||
| 369 | N 000961012106 | SCREW |
| REAR PLATE TO SIDE MEMBER | ||
| 372 | N 913004012009 | NUT |
| Repalced by: N 910113012003 | ||
| 372 | N 910113012003 | NUT |
| REAR PLATE TO SIDE MEMBER | ||
| 375 | A 3833300311 | THRUST ARM |
| Repalced by: A 6543300011 | ||
| 375 | A 6543300011 | THRUST ARM |
| Repalced by: A 6543300111 | ||
| 375 | A 6543300111 | THRUST ARM |
| FRONT AXLE II | ||
| 375C | A 0003330027 | JOINT |
| Repalced by: A 0003301811 | ||
| 375C | A 0003301811 | THRUST ARM |
| R.H. THREAD | ||
| 375C | A 0003330127 | JOINT |
| L.H. THREAD | ||
| 377 | A 0003381897 | BOOT |
| 378 | A 0003330254 | RETAINING RING |
| 379 | A 0003380317 | CLAMPING PIECE |
| 381 | N 000960012246 | SCREW |
| Repalced by: N 000960012353 | ||
| 381 | N 000960012353 | SCREW |
| 383 | N 910113012002 | NUT |
| 385 | N 000960014143 | SCREW |
| THRUST ARM TO BEARING BODY | ||
| 387 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 387 | N 910113014000 | NUT |
| THRUST ARM TO BEARING BODY | ||
| 391 | N 308676014002 | SCREW |
| THRUST ARM TO SUPPORT | ||
| 393 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 393 | N 910113014000 | NUT |
| THRUST ARM TO SUPPORT | ||

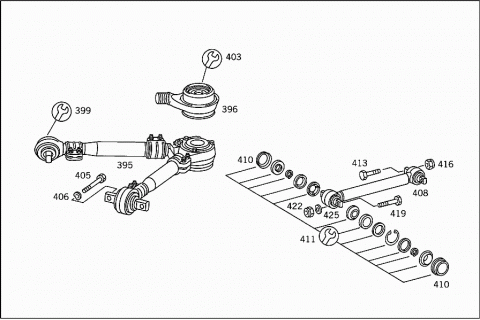

| 395 | A 3933505405 | CONTROL ARM |
| Repalced by: A 3933505505 | ||
| 395 | A 3933505505 | CONTROL ARM |
| Repalced by: A 6543500105 | ||
| 395 | A 6543500105 | CONTROL ARM |
| TRIANGULAR | ||
| 396 | A 0003500313 | JOINT |
| (CENTRAL JOINT) | ||
| TO 393 350 55 05; EHRENREICH | ||
| 396 | A 0003500713 | JOINT |
| (CENTRAL JOINT) | ||
| TO 393 350 54 05; LEMFOERDER | ||
| 396 | A 0003500105 | CONTROL ARM |
| (CENTRAL JOINT) | ||
| TO 654 350 01 05; LEMFOERDER | ||
| 399 | A 0003500505 | CONTROL ARM |
| Repalced by: A 0003500305 | ||
| 399 | A 0003500305 | REPAIR KIT |
| Repalced by: A 0003500213 | ||
| 399 | A 0003500213 | REPAIR KIT |
| WITH BALL PIVOT | ||
| TO 393 350 54 05; LEMFOERDER | ||
| 399 | A 0003500213 | REPAIR KIT |
| WITH BALL PIVOT | ||
| TO 654 350 01 05 ; LEMFOERDER | ||
| 399 | A 0005861533 | REPAIR KIT |
| LESS BALL PIVOT | ||
| TO 393 350 55 05; EHRENREICH | ||
| 399 | A 0005861433 | REPAIR KIT |
| WITH BALL PIVOT | ||
| TO 393 350 55 05; EHRENREICH | ||
| 403 | A 0005860135 | REPAIR KIT |
| CENTRAL JOINT;WITH BALL PIVOT | ||
| TO 393 350 54 05; LEMFOERDER | ||
| 403 | A 0005861933 | REPAIR KIT |
| Repalced by: A 0005861833 | ||
| 403 | A 0005861833 | REPAIR KIT |
| Repalced by: A 0003500405 | ||
| 403 | A 0003500405 | REPAIR KIT |
| CENTRAL JOINT;WITH BALL PIVOT | ||
| TO 393 350 55 05; EHRENREICH | ||
| 405 | N 000961020016 | SCREW |
| Repalced by: N 308676020021 | ||
| 405 | N 308676020021 | SCREW |
| CONTROL ARM TO SUPPORT | ||
| 406 | N 000137020202 | SPRING WASHER |
| Repalced by: N 000137020205 | ||
| 406 | N 000137020205 | SPRING WASHER |
| CONTROL ARM TO SUPPORT | ||
| 408 | A 3933200632 | LINK |
| Repalced by: A 6203500006 | ||
| 408 | A 6203500006 | CONTROL ARM |
| Repalced by: A 6203500106 | ||
| 408 | A 6203500106 | CONTROL ARM |
| Repalced by: A 6553500306 | ||
| 408 | A 6553500306 | CONTROL ARM |
| BOTTOM | ||
| 410 | A 0003381797 | BOOT |
| A 0003380558 | SEAL HOLDER | |
| 411 | A 0005861533 | REPAIR KIT |
| LESS BALL PIVOT | ||
| 411 | A 0005861433 | REPAIR KIT |
| WITH BALL PIVOT | ||
| 413 | N 000960020138 | SCREW |
| Repalced by: N 000960020078 | ||
| 413 | N 000960020078 | SCREW |
| LINK TO AXLE | ||
| 413 | N 000960020032 | SCREW |
| Repalced by: N 308765020012 | ||
| 413 | N 308765020012 | SCREW |
| LINK TO AXLE | ||
| 416 | N 913004020004 | NUT |
| Repalced by: N 913004020003 | ||
| 416 | N 913004020003 | NUT |
| LINK TO AXLE | ||
| 419 | N 000960020145 | SCREW |
| LINK TO CENTRAL BEARING | ||
| 422 | N 913004020003 | NUT |
| LINK TO CENTRAL BEARING | ||
| 425 | A 3933280152 | SPACER WASHER |
| AS REQUIRED | ||
| 0.50 MM | ||
| 425 | A 3933280252 | SPACER WASHER |
| AS REQUIRED | ||
| 1.00 MM | ||
| 425 | A 3933280352 | SPACER WASHER |
| AS REQUIRED | ||
| 2.00 MM | ||
| 425 | A 3933280452 | SPACER WASHER |
| AS REQUIRED | ||
| 4.00 MM | ||
| 425 | N 000125021006 | WASHER |
| AS REQUIRED | ||
| 3.00 MM | ||

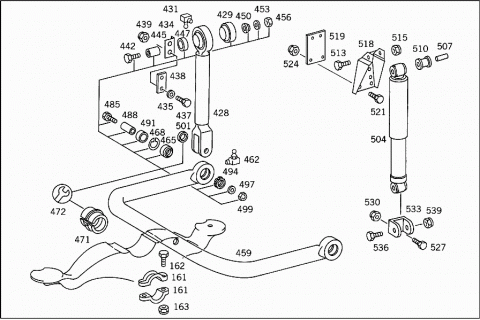

| 428 | A 3933200789 | ROD |
| TORSION BAR | ||
| 429 | A 0009816131 | JOINT BEARING |
| 431 | N 071412008302 | GREASE NIPPLE |
| 434 | A 3833260940 | BRACKET |
| LINK | ||
| 435 | A 6483120184 | SHIM |
| LINK | ||
| 437 | N 000961018020 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 438 | N 000125019009 | WASHER |
| BRACKET TO SIDE MEMBER | ||
| 439 | N 913004018004 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 442 | N 000960016285 | SCREW |
| ROD TO BRACKET | ||
| 445 | A 3853230453 | SPACER TUBE |
| ROD TO BRACKET | ||
| 447 | A 3853230353 | SPACER TUBE |
| ROD TO BRACKET | ||
| 450 | A 3803230260 | SEAL RING |
| ROD TO BRACKET | ||
| 453 | N 007349017002 | WASHER |
| ROD TO BRACKET | ||
| Repalced by: N 007349017003 | ||
| 453 | N 007349017003 | WASHER |
| ROD TO BRACKET | ||
| 456 | N 913004016005 | NUT |
| Repalced by: N 910113016001 | ||
| 456 | N 910113016001 | NUT |
| ROD TO BRACKET | ||
| 459 | A 3933260865 | TORSION BAR |
| REAR AXLE | ||
| 462 | N 071412008302 | GREASE NIPPLE |
| TORSION BAR | ||
| 465 | A 0009816131 | JOINT BEARING |
| TORSION BAR | ||
| 465 | A 0009817431 | JOINT BEARING |
| TORSION BAR | ||
| 468 | N 000472055000 | LOCK RING |
| TORSION BAR | ||
| 471 | A 3933260281 | RUBBER MOUNTING |
| TORSION BAR | ||
| 471 | A 6553260581 | RUBBER MOUNTING |
| TORSION BAR | ||
| 472 | A 3875860332 | REPAIR KIT |
| Repalced by: A 3873200328 | ||
| 472 | A 3873200328 | REPAIR KIT |
| REAR AXLE STABILIZER | ||
| 472 | A 6203200111 | REPAIR KIT |
| REAR AXLE STABILIZER | ||
| 474 | A 3933250319 | SPRING SEAT |
| TORSION BAR TO REAR AXLE,RIGHT | ||
| 474 | A 3933250419 | SPRING SEAT |
| TORSION BAR TO REAR AXLE,LEFT | ||
| A 6553260064 | STEP BEARING | |
| TORSION BAR TO REAR AXLE | ||
| 477 | N 000960016285 | SCREW |
| TORSION BAR TO REAR AXLE | ||
| M 16X115 | ||
| 477 | N 000960016248 | SCREW |
| TORSION BAR TO REAR AXLE | ||
| M 16X160 | ||
| 477 | N 000960016277 | SCREW |
| Repalced by: N 308765016011 | ||
| 477 | N 308765016011 | SCREW |
| TORSION BAR TO REAR AXLE | ||
| M 16X110 | ||
| 482 | N 913004016005 | NUT |
| Repalced by: N 910113016001 | ||
| 482 | N 910113016001 | NUT |
| TORSION BAR TO REAR AXLE | ||
| 485 | N 000960016285 | SCREW |
| ROD TO TORSION BAR | ||
| 488 | A 3853230453 | SPACER TUBE |
| ROD TO TORSION BAR | ||
| 491 | A 3853230353 | SPACER TUBE |
| ROD TO TORSION BAR | ||
| 494 | A 3803230160 | SEAL RING |
| ROD TO TORSION BAR | ||
| 497 | N 007349017002 | WASHER |
| ROD TO TORSION BAR | ||
| Repalced by: N 007349017003 | ||
| 497 | N 007349017003 | WASHER |
| ROD TO TORSION BAR | ||
| 499 | N 913004016005 | NUT |
| Repalced by: N 910113016001 | ||
| 499 | N 910113016001 | NUT |
| ROD TO TORSION BAR | ||
| 501 | A 3939900140 | WASHER |
| ROD TO TORSION BAR | ||
| 504 | A 0023265500 | SHOCK ABSORBER |
| REAR AXLE | ||
| 504 | A 0023265000 | SHOCK ABSORBER |
| Repalced by: A 0033267400 | ||
| 504 | A 0033267400 | SHOCK ABSORBER |
| REAR AXLE | ||
| 507 | A 0003230453 | SPACER TUBE |
| Repalced by: A 0003233150 | ||
| 507 | A 0003233150 | SPACER RING |
| 510 | A 0003232885 | RUBBER MOUNTING |
| 513 | N 000960016105 | SCREW |
| SHOCK ABSORBER TO TOP BRACKET | ||
| 515 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 515 | N 910113016002 | NUT |
| SHOCK ABSORBER TO TOP BRACKET | ||
| 518 | A 3873200243 | BRACKET |
| SHOCK ABSORBER,TOP | ||
| 519 | A 6483120084 | SHIM |
| SHOCK ABSORBER,TOP | ||
| 521 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 521 | N 308676012026 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 524 | N 910113012002 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 527 | N 000960016164 | SCREW |
| Repalced by: N 000960016250 | ||
| 527 | N 000960016250 | SCREW |
| SHOCK ABSORBER TO AIR-SPRING-BELLOWS SUPPORT | ||
| 530 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 530 | N 910113016002 | NUT |
| SHOCK ABSORBER TO AIR-SPRING-BELLOWS SUPPORT | ||
| 533 | A 3953230140 | BRACKET |
| SHOCK ABSORBER TO AIR-SPRING-BELLOWS SUPPORT | ||
| 536 | N 000960020140 | SCREW |
| Repalced by: N 000960020123 | ||
| 536 | N 000960020123 | SCREW |
| SHOCK ABSORBER TO AIR-SPRING-BELLOWS SUPPORT | ||
| 536 | N 000960020040 | SCREW |
| SHOCK ABSORBER TO AIR-SPRING-BELLOWS SUPPORT | ||
| 539 | N 913004020004 | NUT |
| Repalced by: N 913004020003 | ||
| 539 | N 913004020003 | NUT |
| SHOCK ABSORBER TO AIR-SPRING-BELLOWS SUPPORT | ||
| 542 | N 915036008202 | HOLLOW SCREW |
| AIR RESERVOIR,CONNECTION: | ||
| " 31 " | ||
| 544 | N 915047012203 | HOLLOW SCREW |
| AIR RESERVOIR,CONNECTION: | ||
| "14" | ||
| 546 | N 007603012405 | SEAL RING |
| AIR RESERVOIR,CONNECTION: | ||
| "13,31" | ||
| 548 | N 007603016401 | SEAL RING |
| AIR RESERVOIR,CONNECTION: | ||
| "14" | ||
| 550 | A 0039979972 | FITTING |
| AIR SPRING BELLOWS TO CONNECTION "1" | ||
| 552 | A 0079974245 | SEAL RING |
| AIR SPRING BELLOWS TO CONNECTION "1" | ||
| 554 | A 0004290627 | THRUST RING |
| AIR SPRING BELLOWS TO CONNECTION "1" | ||

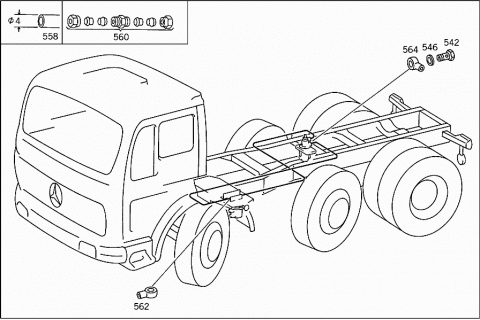

| 558 | A 0089976082 | HOSE |
| Repalced by: A 0009872627 | ||
| 558 | A 0009872627 | PLASTIC PIPE |
| FROM AIR RESERVOIR TO VALVE | ||
| 4X6 MM | ||
| 558 | A 0009872627 | PLASTIC PIPE |
| FROM TEST CONNECTION TO VALVE | ||
| 4X6 MM | ||
| 560 | A 0039979172 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 562 | N 915052004015 | BANJO UNION |
| LINE CONNECTIONS | ||
| 4/12 MM | ||
| 564 | N 915052004019 | BANJO UNION |
| LINE CONNECTIONS | ||
| 4/16 MM | ||

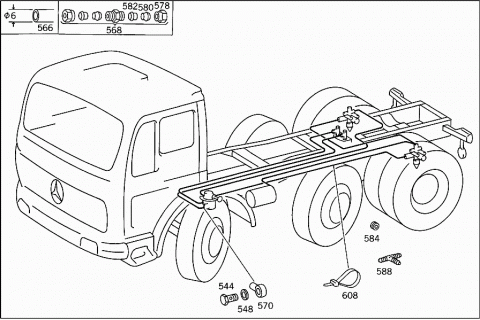

| 566 | A 0089979082 | HOSE |
| FROM SHIFT VALVE TO TWO-WAY VALVE | ||
| 6X8 MM | ||
| 566 | A 0089979082 | HOSE |
| FROM PRESSURE CONTROL VALVE TO BRAKE POWER REGULATOR | ||
| 6X8 MM | ||
| 566 | A 0089979082 | HOSE |
| FROM SHIFT VALVE TO LEVEL ADJUSTMENT VALVE | ||
| 6X8 MM | ||
| 566 | A 0089979082 | HOSE |
| FROM AIR RESERVOIR TO VALVE | ||
| 6X8 MM | ||
| 566 | A 0089979082 | HOSE |
| AIR SPRING BELLOWS TO CONNECTION "1" | ||
| 6X8 MM | ||
| 568 | A 0039978972 | FITTING |
| Repalced by: A 0029905971 | ||
| 568 | A 0029905971 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 570 | A 0009909488 | BANJO UNION |
| LINE CONNECTIONS | ||
| 6/16 MM | ||
| 570 | N 915052006014 | BANJO UNION |
| LINE CONNECTIONS | ||
| 6/16 MM | ||
| 570 | N 915052006021 | BANJO UNION |
| LINE CONNECTIONS | ||
| 6/14 MM | ||
| 570 | N 915052006013 | BANJO UNION |
| LINE CONNECTIONS | ||
| 6/12 MM | ||
| 570 | N 915052006022 | BANJO UNION |
| LINE CONNECTIONS | ||
| 6/10 MM | ||
| 578 | N 915017008100 | UNION NUT |
| LINE CONNECTIONS | ||
| 580 | N 003861008005 | GLAND |
| LINE CONNECTIONS | ||
| 582 | N 915062006000 | SLEEVE |
| LINE CONNECTIONS | ||
| 584 | A 0039977581 | GROMMET |
| LINE CONNECTIONS | ||
| 588 | A 0009907990 | T-FITTING |
| LINE CONNECTIONS | ||

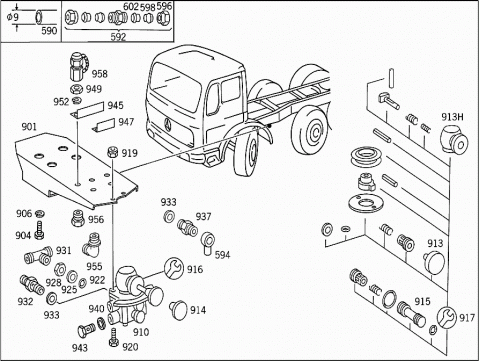

| 590 | A 0109975982 | HOSE |
| Repalced by: A 0009872827 | ||
| 590 | A 0009872827 | PLASTIC PIPE |
| FROM AIR RESERVOIR TO VALVE | ||
| 9X12 MM | ||
| 592 | A 0049971772 | FITTING |
| Repalced by: A 0029906171 | ||
| 592 | A 0029906171 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 594 | N 915052009009 | BANJO UNION |
| LINE CONNECTIONS | ||
| 9/16 MM | ||
| 596 | N 915017012100 | UNION NUT |
| LINE CONNECTIONS | ||
| Repalced by: N 000000006239 | ||
| 596 | N 000000006239 | UNION NUT |
| LINE CONNECTIONS | ||
| 598 | N 003861012007 | GLAND |
| Repalced by: A 0019901967 | ||
| 598 | A 0019901967 | SEAL CONE |
| LINE CONNECTIONS | ||
| 602 | N 915062009000 | SLEEVE |
| LINE CONNECTIONS | ||
| 608 | A 0019978390 | LOOM TIE |
| LINE MOUNTING | ||
| 280 MM | ||
| 608 | A 0019978490 | LOOM TIE |
| LINE MOUNTING | ||
| 376 MM | ||

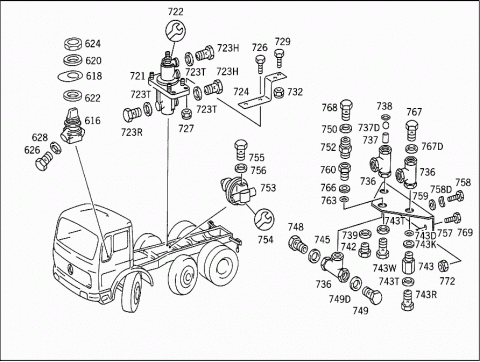

| 616 | A 0029979936 | VALVE |
| STARTING ASSISTANCE | ||
| 618 | A 6235840224 | UNIT IDENTIFICATION PLATE |
| STARTING ASSISTANCE | ||
| 620 | A 6239900040 | WASHER |
| VALVE TO SUBSTRUCTURE | ||
| 622 | A 3859901640 | WASHER |
| VALVE TO SUBSTRUCTURE | ||
| 624 | A 3839900051 | NUT |
| VALVE TO SUBSTRUCTURE | ||
| 626 | N 915036006202 | HOLLOW SCREW |
| 3/2-WAY VALVE | ||
| "10,41,42" | ||
| 628 | N 007603010103 | SEAL RING |
| Repalced by: N 007603010110 | ||
| 628 | N 007603010110 | SEAL RING |
| 3/2-WAY VALVE | ||
| "10,41,42" | ||

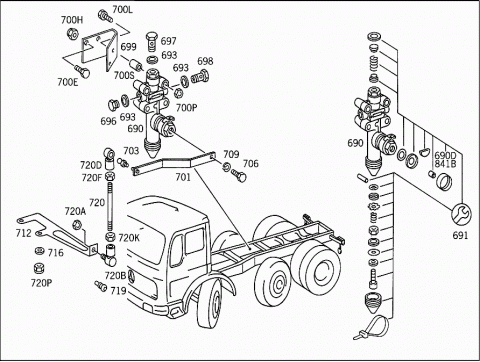

| 690 | A 0003283630 | VALVE |
| FRONT AXLE II SELF-LEVELLING DEVICE | ||
| 690D | A 0003280092 | BOOT |
| Repalced by: A 0003280292 | ||
| 690D | A 0003280292 | BOOT |
| 691 | A 0005861232 | REPAIR KIT |
| Repalced by: A 0003200267 | ||
| 691 | A 0003200267 | REPAIR KIT |
| AIR SPRING VALVE | ||
| TO 000 328 36 30 | ||
| 693 | N 007603012405 | SEAL RING |
| HEIGHT CONTROL VALVE,CONNECTION: | ||
| "11,21" | ||
| 696 | N 000908012003 | SCREW PLUG |
| Repalced by: N 000908012009 | ||
| 696 | N 000908012009 | SCREW PLUG |
| HEIGHT CONTROL VALVE,CONNECTION: | ||
| "21" | ||
| 697 | N 915036008202 | HOLLOW SCREW |
| HEIGHT CONTROL VALVE,CONNECTION: | ||
| " 21 " | ||
| 698 | N 915047008202 | HOLLOW SCREW |
| HEIGHT CONTROL VALVE,CONNECTION: | ||
| " 11 " | ||
| 699 | A 3913280040 | BRACKET |
| AIR SPRING VALVE | ||
| 700E | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 700E | N 304017008027 | SCREW |
| SEE FIG. NO.: | ||
| 286 | ||
| 700H | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 700H | N 913004008001 | NUT |
| SEE FIG. NO.: | ||
| 289 | ||
| 700L | N 000931008248 | SCREW |
| Repalced by: N 304017008053 | ||
| 700L | N 304017008053 | SCREW |
| VALVE TO BRACKET | ||
| 700P | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 700P | N 913004008001 | NUT |
| VALVE TO BRACKET | ||
| 700S | A 3159185017 | BUSHING |
| Repalced by: A 3354310053 | ||
| 700S | A 3354310053 | SPACER TUBE |
| Repalced by: A 3094310249 | ||
| 700S | A 3094310249 | GUIDE BUSHING |
| VALVE TO BRACKET | ||
| 701 | A 3603200927 | LEVER |
| Repalced by: A 6523200527 | ||
| 701 | A 6523200527 | LEVER |
| FRONT AXLE II SELF-LEVELLING DEVICE | ||
| 703 | N 071803013208 | BALL PIVOT |
| 706 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 706 | N 304017008016 | SCREW |
| LEVER TO VALVE | ||
| 709 | N 912004008102 | LOCK WASHER |
| LEVER TO VALVE | ||
| 712 | A 6223280040 | BRACKET |
| Repalced by: A 3873281140 | ||
| 712 | A 3873281140 | BRACKET |
| SELF-LEVELLING DEVICE SUSPENSION, FRONT AXLE II | ||
| 712 | A 3873281140 | BRACKET |
| SELF-LEVELLING DEVICE SUSPENSION, FRONT AXLE II | ||
| 716 | A 6229900040 | WASHER |
| 719 | N 071803013207 | BALL PIVOT |
| 720 | N 900331008421 | PULL ROD |
| PNEUMATIC SUSPENSION CONTROL | ||
| 600 MM | ||
| 720 | N 900331008427 | PULL ROD |
| PNEUMATIC SUSPENSION CONTROL | ||
| 400 MM | ||
| 720 | N 900331008427 | PULL ROD |
| PNEUMATIC SUSPENSION CONTROL | ||
| 400 MM | ||
| 720A | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 720A | N 913004008001 | NUT |
| PULL ROD TO AXLE | ||
| 720A | N 913004008001 | NUT |
| PULL ROD TO AXLE | ||
| 720B | A 0004310667 | YOKE |
| R.H. THREAD | ||
| 720D | A 0004310767 | YOKE |
| L.H. THREAD | ||
| 720F | N 000439008211 | NUT |
| Repalced by: N 304035008001 | ||
| 720F | N 304035008001 | NUT |
| R.H. THREAD | ||
| 720K | N 000439008203 | NUT |
| Repalced by: N 304035008002 | ||
| 720K | N 304035008002 | NUT |
| L.H. THREAD | ||
| 720P | N 913004020004 | NUT |
| Repalced by: N 913004020003 | ||
| 720P | N 913004020003 | NUT |
| FRONT AXLE II BRACKET | ||
| 721 | A 0014305381 | VALVE |
| (PRESSURE CONTROL VALVE) | ||
| 722 | A 0004309760 | REPAIR KIT |
| PRESSURE CONTROL VALVE | ||
| 723H | N 915036008202 | HOLLOW SCREW |
| PRESSURE REGULATOR VALVE,CONNECTION: | ||
| "20" | ||
| 723R | N 915047008202 | HOLLOW SCREW |
| PRESSURE REGULATOR VALVE,CONNECTIONS: | ||
| "10,41,42 " | ||
| 723T | N 007603012405 | SEAL RING |
| PRESSURE REGULATOR VALVE,CONNECTIONS: | ||
| "10,20,41,42" | ||
| 724 | A 6224310940 | BRACKET |
| PRESSURE CONTROL VALVE | ||
| 726 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 726 | N 304017008027 | SCREW |
| VALVE TO BRACKET | ||
| M 8X30 | ||
| 727 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 727 | N 913004008001 | NUT |
| VALVE TO BRACKET | ||
| 729 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 729 | N 304017008027 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| M 8X30 | ||
| 732 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 732 | N 913004008001 | NUT |
| BRACKET TO CROSS MEMBER | ||
| 736 | A 0014292444 | VALVE |
| (SHUTTLE VALVE) AUTOMATIC LOAD-DEPENDING BRAKE | ||
| WESTINGHOUSE | ||
| 736 | A 0034291144 | VALVE |
| (SHUTTLE VALVE) AUTOMATIC LOAD-DEPENDING BRAKE | ||
| VOSS | ||
| 736 | A 0024299544 | VALVE |
| (SHUTTLE VALVE) AUTOMATIC LOAD-DEPENDING BRAKE | ||
| WESTINGHOUSE | ||
| 736 | A 0024299544 | VALVE |
| (SHUTTLE VALVE) AUTOMATIC LOAD-DEPENDING BRAKE | ||
| WESTINGHOUSE | ||
| 736 | A 0024299544 | VALVE |
| (SHUTTLE VALVE) AUTOMATIC LOAD-DEPENDING BRAKE | ||
| WESTINGHOUSE | ||
| 736 | A 0034292244 | VALVE |
| (SHUTTLE VALVE) AUTOMATIC LOAD-DEPENDING BRAKE | ||
| VOSS | ||
| 736 | A 0034292244 | VALVE |
| (SHUTTLE VALVE) AUTOMATIC LOAD-DEPENDING BRAKE | ||
| VOSS | ||
| 736 | A 0034292244 | VALVE |
| (SHUTTLE VALVE) AUTOMATIC LOAD-DEPENDING BRAKE | ||
| VOSS | ||
| A 0004290682 | VALVE | |
| Repalced by: A 0004290782 | ||
| 737 | A 0004290782 | VALVE |
| Repalced by: A 0004291182 | ||
| 737 | A 0004291182 | VALVE BODY |
| PISTONS | ||
| TO 002 429 95 44,001 429 24 44 | ||
| 737 | A 0004291182 | VALVE BODY |
| PISTONS | ||
| TO 002 429 95 44,001 429 24 44 | ||
| 737 | A 0004291182 | VALVE BODY |
| PISTONS | ||
| TO 002 429 95 44,001 429 24 44 | ||
| 737D | A 0029810485 | BALL |
| TO 003 429 11 44,003 429 22 44 | ||
| 737D | A 0029810485 | BALL |
| TO 003 429 11 44,003 429 22 44 | ||
| 737D | A 0029810485 | BALL |
| TO 003 429 11 44,003 429 22 44 | ||
| 738 | A 0004290180 | GASKET |
| TO 003 429 11 44,003 429 22 44 | ||
| 738 | A 0004290180 | GASKET |
| TO 003 429 11 44,003 429 22 44 | ||
| 738 | A 0004290180 | GASKET |
| TO 003 429 11 44,003 429 22 44 | ||
| 739 | N 007603022102 | SEAL RING |
| AUTOMATIC LOAD-DEPENDING BRAKE SHUTTLE VALVE | ||
| 742 | A 0009904468 | FITTING |
| AUTOMATIC LOAD-DEPENDING BRAKE SHUTTLE VALVE | ||
| 743 | A 0004295934 | ADAPTER FITTING |
| AUTOMATIC LOAD-DEPENDING BRAKE SHUTTLE VALVE | ||
| 743 | A 0004295934 | ADAPTER FITTING |
| AUTOMATIC LOAD-DEPENDING BRAKE SHUTTLE VALVE | ||
| 743 | A 0004295934 | ADAPTER FITTING |
| AUTOMATIC LOAD-DEPENDING BRAKE SHUTTLE VALVE | ||
| 743D | A 0009971548 | SEAL RING |
| AUTOMATIC LOAD-DEPENDING BRAKE SHUTTLE VALVE | ||
| 743D | A 0009971548 | SEAL RING |
| AUTOMATIC LOAD-DEPENDING BRAKE SHUTTLE VALVE | ||
| 743D | A 0009971548 | SEAL RING |
| AUTOMATIC LOAD-DEPENDING BRAKE SHUTTLE VALVE | ||
| 743K | A 0004290927 | THRUST RING |
| AUTOMATIC LOAD-DEPENDING BRAKE SHUTTLE VALVE | ||
| 743K | A 0004290927 | THRUST RING |
| AUTOMATIC LOAD-DEPENDING BRAKE SHUTTLE VALVE | ||
| 743K | A 0004290927 | THRUST RING |
| AUTOMATIC LOAD-DEPENDING BRAKE SHUTTLE VALVE | ||
| 743R | N 915036010204 | HOLLOW SCREW |
| Repalced by: N 915036010108 | ||
| 743R | N 915036010108 | HOLLOW SCREW |
| AUTOMATIC LOAD-DEPENDING BRAKE SHUTTLE VALVE | ||
| 743T | N 007603014405 | SEAL RING |
| AUTOMATIC LOAD-DEPENDING BRAKE SHUTTLE VALVE | ||
| 743W | N 915047010202 | HOLLOW SCREW |
| AUTOMATIC LOAD-DEPENDING BRAKE SHUTTLE VALVE | ||
| 745 | N 007603016401 | SEAL RING |
| AUTOMATIC LOAD-DEPENDING BRAKE SHUTTLE VALVE | ||
| 748 | N 915047012203 | HOLLOW SCREW |
| AUTOMATIC LOAD-DEPENDING BRAKE SHUTTLE VALVE | ||
| 749 | N 915036012203 | HOLLOW SCREW |
| AUTOMATIC LOAD-DEPENDING BRAKE SHUTTLE VALVE | ||
| 749D | N 007603016401 | SEAL RING |
| AUTOMATIC LOAD-DEPENDING BRAKE SHUTTLE VALVE | ||
| 750 | N 007603022102 | SEAL RING |
| AUTOMATIC LOAD-DEPENDING BRAKE SHUTTLE VALVE | ||
| 752 | A 0004291034 | ADAPTER FITTING |
| AUTOMATIC LOAD-DEPENDING BRAKE SHUTTLE VALVE | ||
| 753 | A 0014295644 | VALVE |
| (PRESSURE RELIEF VALVE) | ||
| 754 | A 0004300568 | REPAIR KIT |
| PRESSURE RELIEF VALVE | ||
| 755 | N 915036008202 | HOLLOW SCREW |
| PRESSURE RELIEF VALVE,CONNECTION: | ||
| 756 | N 007603012405 | SEAL RING |
| PRESSURE RELIEF VALVE,CONNECTION: | ||
| "10,20 | ||
| 757 | A 6224310540 | BRACKET |
| AUTOMATIC LOAD-DEPENDING BRAKE SHUTTLE VALVE | ||
| 757 | A 6234310540 | BRACKET |
| Repalced by: A 6484290040 | ||
| 757 | A 6484290040 | BRACKET |
| TWO-WAY VALVE | ||
| 758 | N 000933010128 | SCREW |
| VALVE TO BRACKET | ||
| 758D | N 912004010102 | LOCK WASHER |
| VALVE TO BRACKET | ||
| 759 | N 009021010202 | WASHER |
| Repalced by: N 009021010209 | ||
| 759 | N 009021010209 | WASHER |
| VALVE TO BRACKET | ||
| 760 | A 0009904468 | FITTING |
| AUTOMATIC LOAD-DEPENDING BRAKE SHUTTLE VALVE | ||
| 763 | A 0009870446 | O-RING |
| AUTOMATIC LOAD-DEPENDING BRAKE SHUTTLE VALVE | ||
| 766 | A 0004290227 | THRUST RING |
| Repalced by: A 0009940203 | ||
| 766 | A 0009940203 | THRUST RING |
| AUTOMATIC LOAD-DEPENDING BRAKE SHUTTLE VALVE | ||
| 767 | N 915036012203 | HOLLOW SCREW |
| AUTOMATIC LOAD-DEPENDING BRAKE SHUTTLE VALVE | ||
| 767D | N 007603016401 | SEAL RING |
| AUTOMATIC LOAD-DEPENDING BRAKE SHUTTLE VALVE | ||
| 768 | N 915036010204 | HOLLOW SCREW |
| Repalced by: N 915036010108 | ||
| 768 | N 915036010108 | HOLLOW SCREW |
| AUTOMATIC LOAD-DEPENDING BRAKE SHUTTLE VALVE | ||
| 769 | N 000933010145 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| 772 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 772 | N 910113010000 | NUT |
| BRACKET TO CROSS MEMBER | ||

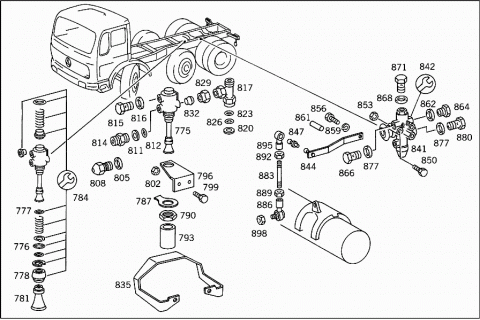

| 775 | A 0004342501 | VALVE |
| (CHANGE-OVER VALVE) AUTOMATIC LOAD-DEPENDING BRAKE | ||
| 776 | A 0079972548 | SEAL RING |
| 777 | A 0079972448 | SEAL RING |
| 778 | A 0004340586 | CUP |
| 781 | A 0009972177 | HANDLE |
| 784 | A 0025869843 | REPAIR KIT |
| AUTOMATIC LOAD-DEPENDING BRAKE CHANGEOVER VALVE | ||
| 787 | N 000093028001 | LOCK PLATE |
| AUTOMATIC LOAD-DEPENDING BRAKE CHANGEOVER VALVE | ||
| 790 | N 080705026000 | NUT |
| Repalced by: N 080705026003 | ||
| 790 | N 080705026003 | NUT |
| AUTOMATIC LOAD-DEPENDING BRAKE CHANGEOVER VALVE | ||
| 793 | A 3633280039 | RUBBER BUFFER |
| AUTOMATIC LOAD-DEPENDING BRAKE CHANGEOVER VALVE | ||
| 796 | A 3934282440 | BRACKET |
| AUTOMATIC LOAD-DEPENDING BRAKE CHANGEOVER VALVE | ||
| 799 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 799 | N 304017008027 | SCREW |
| BRACKET TO FRAME | ||
| 802 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 802 | N 913004008001 | NUT |
| BRACKET TO FRAME | ||
| 805 | N 007603012405 | SEAL RING |
| BRAKE VALVE,CONNECTION: | ||
| "1" | ||
| 808 | A 0024293344 | VALVE |
| (CHECK VALVE) | ||
| 811 | A 0019970845 | SEAL RING |
| CHECK VALVE | ||
| "2" | ||
| 812 | A 0004290827 | THRUST RING |
| Repalced by: A 0009940103 | ||
| 812 | A 0009940103 | THRUST RING |
| CHECK VALVE | ||
| 814 | A 0019972572 | FITTING |
| CHECK VALVE | ||
| Repalced by: N 000000006446 | ||
| 814 | N 000000006446 | FITTING |
| CHECK VALVE | ||
| 814 | N 000000006446 | FITTING |
| CHECK VALVE | ||
| 815 | N 915036008202 | HOLLOW SCREW |
| CHECK VALVE | ||
| 816 | N 007603012405 | SEAL RING |
| CHECK VALVE | ||
| 817 | A 0024292444 | VALVE |
| (TEST VALVE) | ||
| 820 | A 0039974348 | SEAL RING |
| 8X2 MM | ||
| 823 | A 0039974448 | SEAL RING |
| 4X1.5 MM | ||
| 826 | A 0039974548 | SEAL RING |
| 5X2 MM | ||
| 829 | N 915017008100 | UNION NUT |
| 832 | N 003861008005 | GLAND |
| 835 | A 3933200543 | BRACKET |
| AUTOMATIC LOAD-DEPENDING BRAKE CHANGEOVER VALVE | ||
| 841 | A 0003283230 | VALVE |
| Repalced by: A 0003283330 | ||
| 841 | A 0003283330 | VALVE |
| REAR AXLE PNEUMATIC SUSPENSION | ||
| A 0003280192 | BOOT | |
| Repalced by: A 0003280292 | ||
| 841B | A 0003280292 | BOOT |
| 842 | A 0005861332 | REPAIR KIT |
| Repalced by: A 0003201067 | ||
| 842 | A 0003201067 | REPAIR KIT |
| AIR SPRING VALVE | ||
| KNORR SV 1280-I/80093 | ||
| 844 | A 3603200927 | LEVER |
| Repalced by: A 6523200527 | ||
| 844 | A 6523200527 | LEVER |
| AIR SPRING VALVE | ||
| 847 | N 071803013208 | BALL PIVOT |
| 850 | N 000931008228 | SCREW |
| Repalced by: N 000933008134 | ||
| 850 | N 000933008134 | SCREW |
| VALVE TO SIDE MEMBER | ||
| 850 | N 000933008134 | SCREW |
| VALVE TO SIDE MEMBER | ||
| 850 | N 000931008309 | SCREW |
| VALVE TO SIDE MEMBER | ||
| 853 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 853 | N 913004008001 | NUT |
| VALVE TO SIDE MEMBER | ||
| 856 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 856 | N 304017008016 | SCREW |
| LEVER TO VALVE | ||
| 859 | N 912004008102 | LOCK WASHER |
| LEVER TO VALVE | ||
| 861 | N 000007004227 | CYLINDRICAL PIN |
| LEVER TO AIR SPRING VALVE | ||
| 862 | N 007603012405 | SEAL RING |
| PNEUMATIC SUSPENSION VALVE,CONNECTION: | ||
| "21" | ||
| 864 | N 000908012003 | SCREW PLUG |
| Repalced by: N 000908012009 | ||
| 864 | N 000908012009 | SCREW PLUG |
| PNEUMATIC SUSPENSION VALVE,CONNECTION: | ||
| " 21 " | ||
| 864 | N 007604012102 | SCREW PLUG |
| Repalced by: N 007604012105 | ||
| 864 | N 007604012105 | SCREW PLUG |
| 866 | N 915036008202 | HOLLOW SCREW |
| PNEUMATIC SUSPENSION VALVE,CONNECTION: | ||
| " 21 " | ||
| 868 | N 007603012405 | SEAL RING |
| PNEUMATIC SUSPENSION VALVE,CONNECTION: | ||
| "11" | ||
| 871 | N 915047008202 | HOLLOW SCREW |
| PNEUMATIC SUSPENSION VALVE,CONNECTION: | ||
| "11" | ||
| 877 | N 007603016401 | SEAL RING |
| "12,23" | ||
| 880 | N 915036012203 | HOLLOW SCREW |
| PNEUMATIC SUSPENSION VALVE,CONNECTION: | ||
| "12,23" | ||
| 883 | N 900331008427 | PULL ROD |
| PNEUMATIC SUSPENSION CONTROL | ||
| 886 | A 0004310767 | YOKE |
| L.H. THREAD | ||
| 889 | N 000439008211 | NUT |
| Repalced by: N 304035008001 | ||
| 889 | N 304035008001 | NUT |
| R.H. THREAD | ||
| 892 | N 000439008203 | NUT |
| Repalced by: N 304035008002 | ||
| 892 | N 304035008002 | NUT |
| L.H. THREAD | ||
| 895 | A 0004310667 | YOKE |
| R.H. THREAD | ||
| 898 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 898 | N 913004008001 | NUT |
| PULL ROD TO AXLE | ||
| 901 | A 3913270140 | BRACKET |
| CONTROL VALVE | ||
| 904 | N 000933010128 | SCREW |
| BRACKET TO FRAME | ||
| M 10 X 20 | ||
| 906 | N 912004010102 | LOCK WASHER |
| BRACKET TO FRAME | ||
| 910 | A 0003290725 | VALVE |
| CONTROL VALVE | ||
| GRAU | ||
| 910 | A 0003290425 | VALVE |
| Repalced by: A 0003290825 | ||
| 910 | A 0003290825 | VALVE |
| CONTROL VALVE | ||
| KNORR | ||
| 913 | A 0003290193 | PROTECTIVE CAP |
| TO 000 329 04 25 ; 000 329 08 25 | ||
| 913H | A 0003290293 | PROTECTIVE CAP |
| Repalced by: A 0003290092 | ||
| 913H | A 0003290092 | BOOT |
| TO 000 329 04 25 ; 000 329 08 25 | ||
| 914 | A 0009973177 | HANDLE |
| TO 000 329 04 25 ; 000 329 08 25 | ||
| 915 | A 0003200058 | VALVE |
| TO 000 329 04 25 ; 000 329 08 25 | ||
| 916 | A 0005861132 | REPAIR KIT |
| CONTROL VALVE | ||
| KNORR SV 3111-I/73100 | ||
| 917 | A 0003200767 | REPAIR KIT |
| CONTROL VALVE | ||
| KNORR SV 3111-I/83153 | ||
| 917 | A 0003200567 | REPAIR KIT |
| CONTROL VALVE | ||
| GRAU | ||
| 919 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 919 | N 913004008001 | NUT |
| SHIFT VALVE TO BRACKET | ||
| 920 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 920 | N 304017008034 | SCREW |
| SHIFT VALVE TO BRACKET | ||
| 922 | A 0009971548 | SEAL RING |
| SHIFT VALVE,CONNECTION: | ||
| "1" | ||
| 925 | A 0004290927 | THRUST RING |
| SHIFT VALVE,CONNECTION: | ||
| "1" | ||
| 928 | N 080705016003 | NUT |
| SHIFT VALVE,CONNECTION: | ||
| "1" | ||
| 931 | A 0009907470 | T-FITTING |
| SHIFT VALVE,CONNECTION: | ||
| "1" | ||
| 932 | N 915039012206 | HOLLOW SCREW FITTING |
| SHIFT VALVE,CONNECTION: | ||
| "11" | ||
| 933 | N 007603016401 | SEAL RING |
| SHIFT VALVE,CONNECTION: | ||
| "11" | ||
| 933 | N 007603016401 | SEAL RING |
| SHIFT VALVE,CONNECTION: | ||
| "3" | ||
| 937 | N 074313008104 | FITTING |
| Repalced by: A 0029979572 | ||
| 937 | A 0029979572 | FITTING |
| SHIFT VALVE,CONNECTION: | ||
| "3" | ||
| 940 | N 007603012405 | SEAL RING |
| TEST CONNECTION,CONNECTION: | ||
| " 11,21,22,23 " | ||
| 940 | N 007603016401 | SEAL RING |
| SHIFT VALVE,CONNECTIONS: | ||
| "11,12,13,22,23" | ||
| 943 | N 915036012203 | HOLLOW SCREW |
| SHIFT VALVE,CONNECTIONS: | ||
| "11,12,13,22,23" | ||
| 943 | N 915036008202 | HOLLOW SCREW |
| TEST CONNECTION,CONNECTION: | ||
| "11,21,22" | ||
| 943 | N 915036008202 | HOLLOW SCREW |
| TEST CONNECTION,CONNECTION: | ||
| "11,21,22" | ||
| 943 | N 915047008202 | HOLLOW SCREW |
| TEST CONNECTION,CONNECTION: | ||
| "23" | ||
| 945 | A 6225840321 | GUIDE SIGN |
| FRONT AXLE II PNEUMATIC SUSPENSION | ||
| 947 | A 3935840721 | GUIDE SIGN |
| REAR AXLE PNEUMATIC SUSPENSION | ||
| A 3875840055 | ADHESIVE FOIL | |
| REAR AXLE PNEUMATIC SUSPENSION | ||
| 949 | N 080705012003 | NUT |
| TEST CONNECTION TO BRACKET | ||
| 952 | N 912004012100 | LOCK WASHER |
| TEST CONNECTION TO BRACKET | ||
| 955 | A 0019904071 | ELBOW FITTING |
| TEST CONNECTION TO BRACKET | ||
| 956 | A 0019908168 | FITTING |
| TEST CONNECTION TO BRACKET | ||
| 956 | A 0019908168 | FITTING |
| TEST CONNECTION TO BRACKET | ||
| 958 | A 0004312031 | TEST CONNECTION |
| 958 | A 0004314531 | TEST CONNECTION |
| 958 | A 0004314831 | TEST CONNECTION |
| 958 | A 0004316131 | TEST CONNECTION |
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
