Transporto priemonė: 2035 LS/6X2/4; VIN numerio dalis: 647510

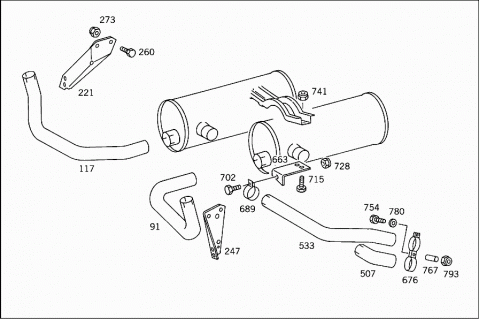

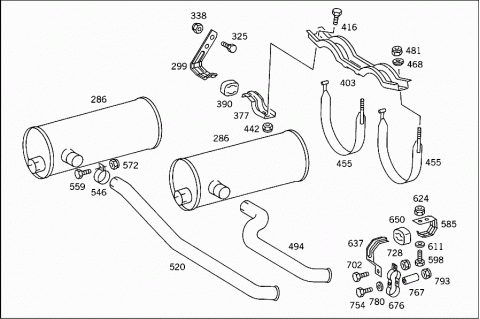

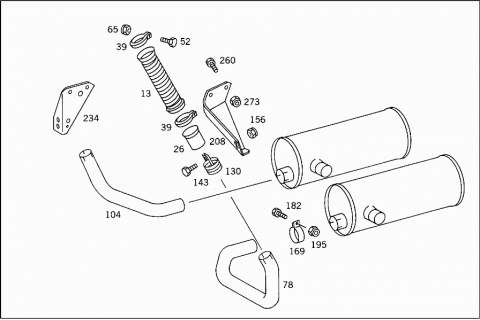

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 013 | A 6214900065 | FLEXIBLE METAL TUBE |
| FRONT LEFT AND RIGHT | ||
| 026 | A 6214920008 | COLLAR |
| FRONT LEFT AND RIGHT | ||
| 039 | A 6219970090 | CLAMP |
| FLEXIBLE METAL TUBE TO THROTTLE HOUSING AND TO COLLAR | ||
| 052 | N 000933008161 | SCREW |
| Repalced by: N 304017008028 | ||
| 052 | N 304017008028 | SCREW |
| FLEXIBLE METAL TUBE TO THROTTLE HOUSING AND TO COLLAR | ||
| 065 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 065 | N 913004008001 | NUT |
| FLEXIBLE METAL TUBE TO THROTTLE HOUSING AND TO COLLAR | ||
| 078 | A 6474900219 | EXHAUST PIPE |
| FRONT,REAR LEFT PART | ||
| 091 | A 6474900519 | EXHAUST PIPE |
| FRONT,REAR LEFT PART | ||
| 104 | A 6474900419 | EXHAUST PIPE |
| FRONT,REAR RIGHT PART | ||
| 117 | A 6474900319 | EXHAUST PIPE |
| FRONT,REAR RIGHT PART | ||
| 130 | A 6254920040 | CLAMP |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 143 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 143 | N 304017010002 | SCREW |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 156 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 156 | N 910113010000 | NUT |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 169 | N 071555104501 | CLAMP |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 182 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 182 | N 304017008027 | SCREW |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 195 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 195 | N 913004008001 | NUT |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 208 | A 6474920441 | BRACKET |
| LEFT EXHAUST PIPE | ||
| 221 | A 6474920541 | BRACKET |
| RIGHT EXHAUST PIPE | ||
| 234 | A 6204923541 | BRACKET |
| RIGHT EXHAUST PIPE | ||
| 247 | A 6204923441 | BRACKET |
| LEFT EXHAUST PIPE | ||
| 260 | N 000933010145 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 273 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 273 | N 910113010000 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 286 | A 6454900901 | EXHAUST MUFFLER |
| LEFT AND RIGHT | ||
| 299 | A 6474920041 | BRACKET |
| Repalced by: A 6224910241 | ||
| 299 | A 6224910241 | BRACKET |
| EXHAUST MUFFLER,LEFT | ||
| 299 | A 6474920141 | BRACKET |
| Repalced by: A 6224910141 | ||
| 299 | A 6224910141 | BRACKET |
| EXHAUST MUFFLER,RIGHT | ||
| 325 | N 000933010105 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 338 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 338 | N 910113010000 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 377 | A 6224910041 | BRACKET |
| EXHAUST MUFFLER | ||
| 390 | A 3814920082 | DAMPING PAD |
| BRACKET TO BRACKET | ||
| 403 | A 6224910016 | SUPPORT |
| EXHAUST MUFFLER | ||
| 416 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 416 | N 304017008021 | SCREW |
| BRACKET TO SUPPORT | ||
| M 8X20 | ||
| 416 | N 304017008021 | SCREW |
| BRACKET TO SUPPORT | ||
| M 8X20 | ||
| 416 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 416 | N 304017008034 | SCREW |
| BRACKET TO SUPPORT | ||
| M 8X25 | ||
| 442 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 442 | N 913004008001 | NUT |
| BRACKET TO SUPPORT | ||
| 455 | A 6214900042 | STRAP |
| Repalced by: A 6554900942 | ||
| 455 | A 6554900942 | STRAP |
| EXHAUST MUFFLER | ||
| 468 | N 006319010302 | SPHERICAL WASHER |
| EXHAUST MUFFLER AND STRAP TO SUPPORT | ||
| 481 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 481 | N 910113010000 | NUT |
| EXHAUST MUFFLER AND STRAP TO SUPPORT | ||
| 494 | A 6474920004 | REAR EXHAUST PIPE |
| AT MUFFLER,LEFT | ||
| 507 | A 6474920304 | REAR EXHAUST PIPE |
| AT MUFFLER,LEFT | ||
| 520 | A 6474920104 | REAR EXHAUST PIPE |
| AT MUFFLER,RIGHT | ||
| 533 | A 6474920204 | REAR EXHAUST PIPE |
| AT MUFFLER,RIGHT | ||
| 546 | N 071555090501 | CLAMP |
| Repalced by: N 071555090502 | ||
| 546 | N 071555090502 | CLAMP |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 559 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 559 | N 304017008027 | SCREW |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 572 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 572 | N 913004008001 | NUT |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 585 | A 6204910141 | BRACKET |
| REAR EXHAUST PIPE | ||
| 598 | N 000931010264 | SCREW |
| BRACKET TO APPARATUS SUPPORT | ||
| 611 | N 007349010003 | WASHER |
| Repalced by: N 007349010007 | ||
| 611 | N 007349010007 | WASHER |
| BRACKET TO APPARATUS SUPPORT | ||
| 624 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 624 | N 910113010000 | NUT |
| BRACKET TO APPARATUS SUPPORT | ||
| 637 | A 6194920241 | BRACKET |
| REAR EXHAUST PIPE | ||
| 650 | A 3814920082 | DAMPING PAD |
| BRACKET TO BRACKET | ||
| 663 | A 6224920441 | BRACKET |
| REAR EXHAUST PIPE TO MUFFLER SUPPORT | ||
| 676 | A 6474920040 | CLAMP |
| REAR EXHAUST PIPE TO BRACKET | ||
| 676 | A 6474920040 | CLAMP |
| ALIGNMENT OF REAR EXHAUST PIPES | ||
| 689 | N 071555090501 | CLAMP |
| Repalced by: N 071555090502 | ||
| 689 | N 071555090502 | CLAMP |
| REAR EXHAUST PIPE TO BRACKET | ||
| 702 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 702 | N 304017010002 | SCREW |
| REAR EXHAUST PIPE TO BRACKET | ||
| 702 | N 304017010002 | SCREW |
| REAR EXHAUST PIPE TO CLAMP | ||
| 715 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 715 | N 304017008027 | SCREW |
| REAR EXHAUST PIPE TO BRACKET | ||
| 728 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 728 | N 910113010000 | NUT |
| REAR EXHAUST PIPE TO BRACKET | ||
| 728 | N 910113010000 | NUT |
| REAR EXHAUST PIPE TO CLAMP | ||
| 741 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 741 | N 913004008001 | NUT |
| REAR EXHAUST PIPE TO BRACKET | ||
| 754 | N 000931010274 | SCREW |
| Repalced by: N 304014010004 | ||
| 754 | N 304014010004 | SCREW |
| REAR EXHAUST PIPE TO CLAMP | ||
| 767 | A 3140720253 | SPACER TUBE |
| REAR EXHAUST PIPE TO CLAMP | ||
| 780 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 780 | N 000125010532 | WASHER |
| REAR EXHAUST PIPE TO CLAMP | ||
| 793 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 793 | N 910113010000 | NUT |
| REAR EXHAUST PIPE TO CLAMP | ||
